MotoTec MINI User manual

PRODUCT MANUAL
Please, Read This Manual Carefully Before Riding the Vehicle
MODEL: MINI

2
Chapter 1
The Product Introduction
This scooter has 3D design, beautiful appearance, unique style and leisure structure,
which let you fall in love at rst sight.
Main characteristics are as follows:
1. Lithium battery: Products approved by UL and CE certication and registrations of
the safety inspection, so it’s safe and reliable; The vehicle has lithium batteries, which
have a long life and don’t need often change;
Products have high voltage and power, climbing speed is fast; Recognized as a green
energy, no any pollution in the whole process of the production and use.
2. Battery: Hidden in the center of the pedal beneath, force equilibrium, small, light,
safe.
3. Motor: The best magnetic steel material is qualitative, the high quality silicon steel
sheet, bold coil, precision bearings, gross motor shaft, powerful and durable.
4.Tire: Using ultra wide beach car straight grain vacuum tires, generous compaction,
better stability and more grip, braking distance is shorter, comfortable and soft.
5. Frame: From 3D virtual design and assembly, to the advanced technology of
automatic pipe bending, let you sit or stand.
6. Disc brake: The cabinet and delicate hydraulic disc brake, the pump body aluminum
alloy forging technology, advanced CNC processing technology, exible, and the
braking action freely.
7. The steering wheel: Leisure streamlined human body engineering design, tough
and rm, allowing you to easily be manipulated.
8. Handles: using soft rubber let hand feels comfortable.
9. Seat cushion: high elastic foam, senior anti-slip leather, elaborate design and
perfect appearance, proper high, let long ride more comfortable.
10. Smart charger: according to the automatic portable design, charging is easy,
wherever there is 220V ac power supply, rechargeable use.
11. Controller: special set-up, soft start, no sense of frustration, driving safer.

3
Chapter 2
Parameters
1Horn 6Shock Absorber
2LED Front Light 7Disk Brake
3LCS Display 8Motor Hub
4Seat 9Battery
5Handle 10 Shock Absorber
1
45
6
8
10 97
3
2

4
1Front Frame 5Shock Absorber
2LED Head Light 6Disk Brake
3Handle 7Motor Hub
4Seat 8Battery
1
4
5
3
7
86
2

5

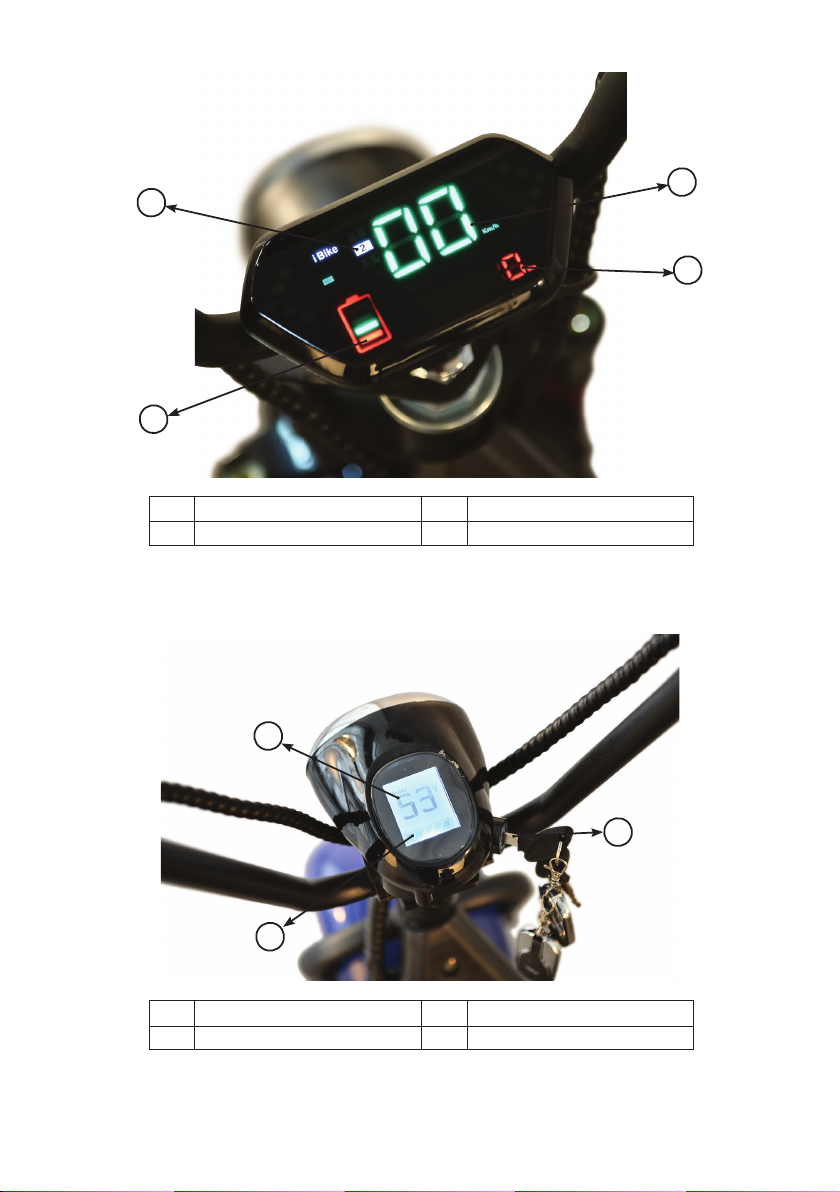

1Speed Mode 3Millage
2Speed 4Battery Indicator
1
4
2
3
1Battery Indicator 3Ignition Key
2Speed
2
3
1

6
1Brake Handle 3Ingnition Key
2Accelerator
2
3
1
1Brake Handle 3Speed Mode
2Head Light Switch 4Horn
1
2
3
4

7
1Back Stand 3Plate Place
2Rear Light
1Removable Battery
1
1
2
3

8
Chapter 3
Main Technical Parameters
I Main technical parameters of the scooter
1. Product Size: 1380 * 870mm
2. High: 870mm
3. Weight: 39kgs
4. Tire specications: 22.5/6 inch
5. Maximum load: 200 kg
6. Top speed: ≤20 km/h
7. Range: 40 ~ 60 km
8. Maximum torque: 95 N/M
9. Maximum climbing: ≤35°
11. Braking performance (20 km/h):
Dry: ≤1 m; Wet: ≤2.5 m
II Main technical parameters of battery
1. Battery type: 18650 lithium-ion batteries
2. Capacity: 12AH~20AH
3. Nominal voltage: 60V
III Main technical parameters of motor
1. Motor models: brushless dc motor hub
2. Rated power: 800W
IV Main technical parameters of controller
1. Current limiting protection value: 25 ± 1A
2. Under-voltage protection value: 52 ± 0.5V
V Charger main parameters:
1. The input voltage (ac):100–240VAC
50/60HZ
2. The output voltage (dc): 67.2 ~2.0A
3. Charging time (the remaining power the case may be): 8 ~ 10 h
Note: the above parameters can be changed by the manufacturer without prior
notice, check the company technical Parameters of model library!

9
Chapter 4
Methods of use and moments which needed attention
I Precautions for safe driving
1. Please check the trac rules and pay attention for safety and speed control, please
ride with safe speed (pay attention to the local accepted speed).
2.Before riding, get familiar with the contents of this manual rst, and then nd a
empty eld for practice, be sure with controlling of the vehicle riding essentials, get
familiar with the structure and properties of the local regulations, this is the foundation
of safe riding.
3. Do not lend the vehicle to not familiar with it riders. Single hand riding or drunk
riding is very dangerous.
4. Riding in rainy and snowy days you have to double pay attention to safety, rain
and snow will bring danger for the riding and controlling the vehicle!
Therefore, we should avoid high speed, also turn carefully, especially should remember
brake in advance is snowy day.
5. The correct using of helmet: put a helmet right on the head, and tie-down straps.
6. Correct clothes: don’t wear tights, the whole body should move freely, don’t open
your clothes; wear low heels as much as possible.
Note: in order to facilitate maintenance, repair and service, every vehicle has a frame.
number and motor number, to help dealer provide you better service let him know
this information
7. The vehicle can’t overweight: default of maximum load of 200 kg. The riding with
heavy load on the bike is dierent; it will be harder to control the vehicle.
II The correct method of use
1. The riding method
1. Keep the natural posture.
2. Riding posture: please both hands on the steering bar and both feet on the vehicle
3. Riding posture: accelerate slowly, avoid catching up rider’s instability.
4. Ride slow on paved road surface.
5. Rain and snow weather, road surface wet easy to slide, focus on riding slowly;
Avoid deep water where the battery box can go in the water, avoid the vehicle
electric parts damage caused by short circuit. Braking performance will decline
at the same time, easy to cause an accident.
2. The way of parking
1. Pay attention while parking especially when other vehicles and pedestrians around,
slowly go to the dock at road on the right side, avoid parked on the ramp.

10
2. After the vehicle stopped, lock a right-handle and pull o the power supply, then
use locks to lock.
3. The power indicator method of use
Turning on the power supply voltage indicator, full electric LOW \ HALF \ HIGH — 3
Led-lights, HIGH lights that electricity used up 75% of the rated capacity, HALF lights
charge 25% of the rated capacity, LOW lights ashing indicates that power is less than
10%; So when you nd LOW lights ashing charge immediately.
4. The use of the power lock key
Turn the ignition key right to start the motor. Use the keys to turn on and shut o
the power, Turn left to shut o the power locks. Turn o the power supply after parking,
power locks shall be counterclockwise, then pull out the key.
5. Acceleration handle (speed)
Rotate in the direction of the rider to accelerate, relax accelerator for reduction
acceleration.
6. The use of the disc brake method and moments needed attention
(1) The use of the disc brake
1. The brake clearance adjustment: turn the adjusting nut by 2 mm by wrench
(between the brake lever and handlebar tube), adjust the gap of between disk
and pads, until you feel comfortable position.
2. The brake pads should be changed every six months, more than 1 mm clearance
or brake linings on the handle — adjusting nut has to adjust; Replace the brake
pads, with a clean environment with a screwer to press the one piece of brake
pads into, with empty space to take out another piece, after replacement of the
new brake pads, need to put the brake on the brake lever adjusting screw back
into the right position (when you feel comfortable position).
3. Period: It takes time for pads to adjust itslelves. After adjusting braking force will
increase obviously.
4. Oil change: the disc brake using mineral oil, if brake handle feels weak, oil need
to be replaced (usually 2 ~ 3 years), straw with a syringe pump oil change.
(2) The moments needed attention
1. Please do not in the vicinity of a disc, brake discs and brake pads and calipers used
lubricating oil, do not touch directly with the hand disc brake disc and brake pad
surface, otherwise, can signicantly reduce the braking performance.
2. New brake shouldn’t be poured by water, in order to avoid a small amount of
lubricating oil in the assembly clearance pollution to the brake pads.

11
3. Hydraulic disc brake system has strong power, so you need to practice in a safe
place, avoid energetically knead dead brake, cause the wheel lock will be out of
control and injured.
7. Using of the charger
(1) Method of use
1. While charging, rst insert the battery box, and then plugged into mains AC220V
plug. After charging, on the other hand, the rst grid AC220V plug, pull out the
battery box plug again.
2. Normal charging, charging indicator light shows red, full charge — the charge
indicator shows green.
3. If the temperature doesn’t t for charging, a red light will be ashing, that means
the charger is in a state of temperature protection, please put the charger moved
to a cool and ventilated place to use.
4. When used without access to the battery, charger output is less than 42 v pulse
voltage, when testing in the output port between plus or minus 1 kΩ resistance
load, you can test the actual charger charging voltage.
(2) The moments needed attention
1. The charger can only be used indoor.
2. It is strictly prohibited in the conned space or under the scorching sun and high
temperature environment, cannot put the charger in barrels or in the box.
3. Is prohibited connect the charger light on the ac power source for a long time
without charge.
4. In the process of charging, such as the abnormal light, odor or overheating
charger shell, should immediately stop charging and send the charger for repair
or replacement.
5. Shall not be open and x charger inside
6. To should not overcharge the battery.
7. Don’t use in a combustible gas environment, which may cause re or explosion.
8. Don’t put the charger near water or wet place, is likely to re or get an electric shock.
8. Use methods and matters needing attention of the battery
(1) Charging
1. Be sure to use the company specially equipped charger to charge; Informal or
unqualied charger, can lead to shorten the battery life or battery failure!
2. Completely discharge the battery can’t be down more than 95%
3. Storage more than a month, the battery charge capacity will reduce about 5%
4. Please charge in time, to ensure the mileage.
5. The charger may work incorrect, as long as the temperature is not more than 60,
that is normal.

12
6. While charging, please put the charger and the whole vehicle stable, dry, no
inammable, explosive, and out of the reach of children.
7. Attending charge shall not be short circuit.
(2) The discharge (use)
1. Can only be used in the electric vehicle batteries, shall not be used for other
purposes, otherwise no warranty.
2. In case of short circuit, battery management system will have automatic protection,
and the power cord of the concatenated insurance will fuse, double protect your
battery, short circuit and replace when terminates after about 2 minutes, the
battery can work normally.
3. Controller of the electric car, motor, speakers, lighting equipment damage or
conguration is not reasonable, all can lead to large current discharge batteries,
the battery has protective stop output, but will be back in 10 seconds, ride for
you will not have any impact.
4. Battery operating temperature range: –10 ~ 55 °C, like other cells, with lower
temperature, the use of battery energy decreases, belongs to the normal
phenomenon.
5. Not discharge completely for avoiding short circuit.
(3) Storage
1. Such as storage for a long time (more than a month), suggested charging to
60%~80% of the battery; Store every three months during the need to supply
electricity, battery also need to supplement battery before use.
2. The battery should be kept in a cool, dry environment.
3. Storage should be avoided in the process of conducting objects across the
electrodes will be directly connected.
4. Near the re source shall be forbidden to use the battery.
5. Disassemble the battery is prohibited.
6. Can’t be use modication on batteries.
(4) Note
1. If battery deformation or heat is found, should stop to use, and contact the
company or the maintenance department for help.
2. Such case as a re, do not use water directly to the battery re extinguishing,
the proposal USE sand covering, foam re extinguisher and thick cloth soaked
with water and the re extinguishing methods of dealing with organic solvent.
3. Damage because not correct storage or charging will be not covered by warranty.
4. Cannot be arbitrarily discarded batteries.
III Inspection, cleaning and maintenance

13
1. On a regular basis or daily check item
1. Note on the vehicle in a safe location.
2. Abnormal position the day before, to see whether aect operation.
3. Brake braking eect: the brake handle modest fashion is downy, clearance, whether
can normal braking.
4. Crack, damage, abnormal tyre, as well as metal, stone, glass and other sharp
objects embedded; The depth of the grooved tyres, tires has to be changed to
new tires when you wear o two-thirds; According to the situation of tire contact
with the ground part of the sag, check the tire pressure, normal pressure values
before and after the tire is 1.5 kg/cm2.
5. Power voltage indicates whether or not the full check article 3 (inchapter 4,
paragraph 2).
6. Steering system check: up, down, forward, backward, left, right handlebar and front
fork, elastic moderate, exible steering, if there is a touch attack clattering sound,
loose steering system, a sound and other issues, please contact with dealers, to
provide you with the most perfect after-sale service.
7. Front and rear axle is loose.

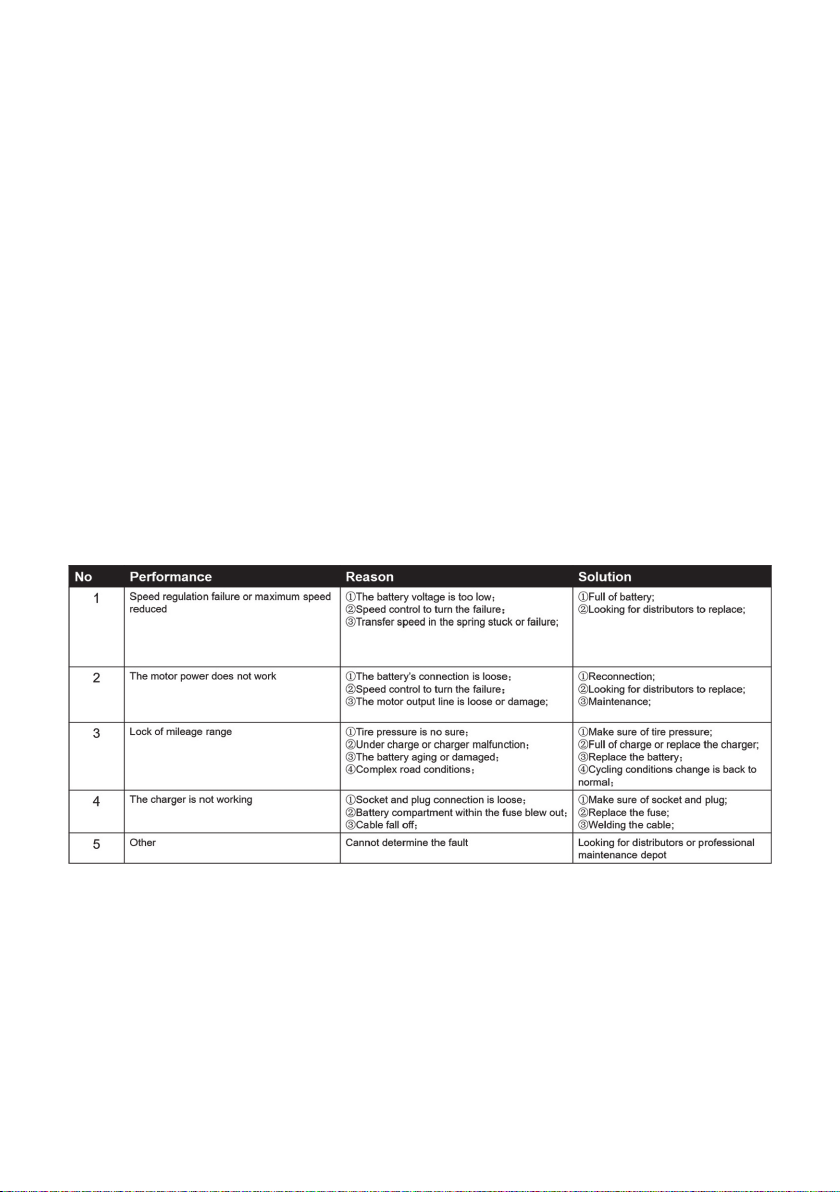

IV Common faults and elimination method

14
Chapter 5
Electrical Principle
Chapter 6
Quality assurance and after-sales service
According to the consumers’ rights and interests of the People’s Republic of China
protects a law “the legal provision, with reference to the relevant document issued
by state bureau of technical supervision in order to eectively protect the legitimate
rights and interests of consumers, improve product quality civil liability system, also
facilitate travel 3 packets (repair, replacement or return) obligations and responsibilities,
on the strength of the warranty card to sell car units designated by the maintenance
department enjoys a” 3 Guarantee “service, specic provisions are as follows:
1. “3 Guarantee” in the scope of the repair, replacement or return
1. please check on the vehicle when it is entitled to request sales sta to provide
eective bill and warranty card, as well as the maintenance unit’s address and
telephone number.
2. after a car you should read the instruction for use to master the correct method
of use and daily maintenance and matters needing attention
3. user operation when used properly according to product manuals within 7 days
from the date of products sold in performance failure. Costumer can choose a
replacement or repair.
4. in 3 guarantee of period of validity, Cant repair many times to repair that cannot
be used properly, the strength of the repair units to provide repair records and

15
certicate, identied through after-sales service of the company headquarters,
can exchange models of products for consumers, changing the same products,
in accordance with the provisions, charging depreciation cost (2.7%), the vehicle
every day, for the battery will not be used by the exchange.
2.Appraisal standard warranty
3. Don’t belong to the scope and content of“3 guarantees”
1. Users are not used as stipulated in the operating instructions, maintenance or
adjustment caused by the fault;
2. Users are modied, folded repair the damage and its own decomposition, the
failure of the original state, not for technical appraisal and analysis of fault;
3. Use the parts and modications not from ocial dealer.
4. Users, maintain undeserved or failure caused by accidents;

16
5. No warranty card or CARDS of vehicles;
6. Wearing parts, consumer goods will not be“3 packets”;
7. Has been a failure, but users continue to use the secondary fault;
8. No certicate of vehicles;
9. To change the invoice date and the car parts coding.
4. The principle of the warranty
“3 Guarantee” outside the scope of faults and “3 Guarantee” period after the main
parts of our company is responsible for repair.
Maintenance record
Date Repair Component Note
