E-Image MTGH10L User manual

User s Manual

PREFACE FLUID HEAD
Thanks for your purchasing E-IMAGE professional heads and
tripods.As the manual is an important part of the equipment
and is aimed at personnal who operate and maintain the
equipment. It contains detail information about the EIMAGE
heads and tripods and it's proper use. We intensely suggest
you to read the manual carefully ,to familiarize yourself with
its many functions. It also include a section about safety and
maintaince, which will help you keep the equipment in prefect
condition and prolong the using period.
Please keep this manual for future reference.
EIMAGE GENTING series is upgraded gener at io n o f
EI MAGE f lui d head s. Mor e inte rna tiona l outl ook in g,
innovative design, with more advanced functions. It also
features refine counterbalance and superb drag system,
which can reach balancing quickly and simply. The new
series can handle wider range paylo ad from 8.8lbs to
55lbs (4kg-25kg), which can work with different type of
cameras. An extendable panhandle with rubber grips is
included for precise camera movements. In addition, its
equipped with an LED bubble level for easy level adjustments
in the dark.

CONTENTS
Fluid head specification……………………...........1
Parts(GH03) ………………………………..................2
Set up & Use (GH03)………………………..........3-5

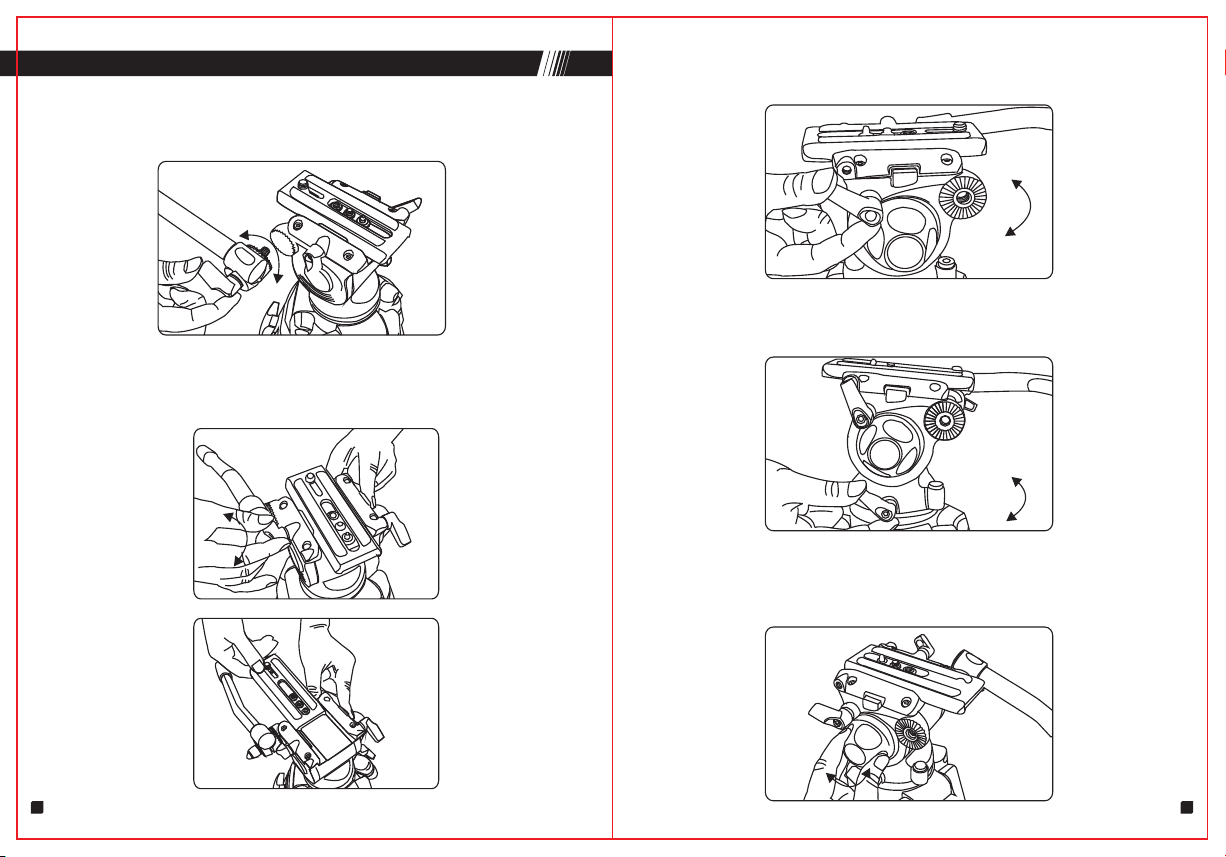

1. Install Panbar…………………………...................... . 3
2. Remove quick release plate…………....................... 3
3. Adjusting tilt position………………............................4
4. Adjusting pan position………………......................... 4
5. Pan & Tilt drag adjustment…………......................... 4

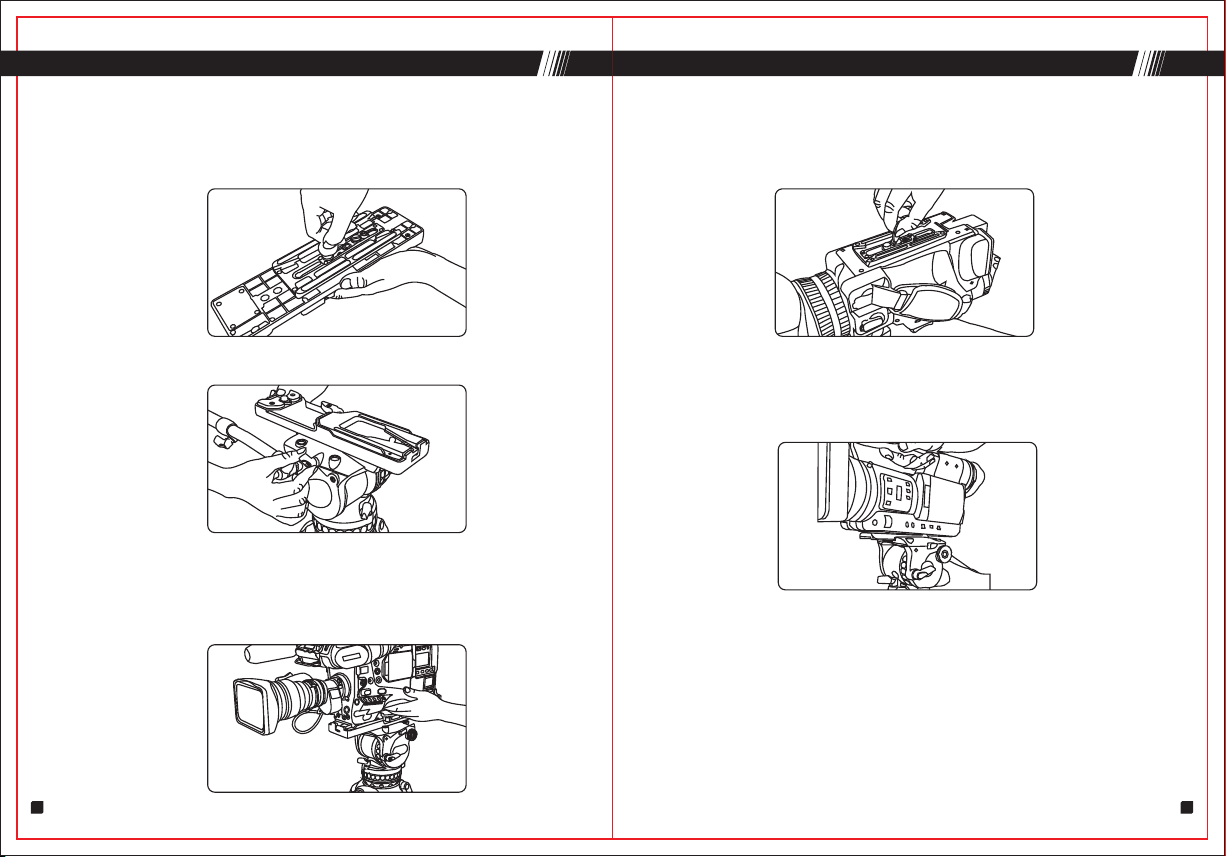

6. Mounting the camera…………................................. 5
7. Extra functions of GH03,GH06 plate………….......... 6
Parts(GH06-GH25) ………………………………......7
Set up & Use(GH06-GH25）………………….. 8-12
1. Installing Panbar…………………………....................8
2. Installing fluid head to tripod………………................8
3. Removing quick release plate…………….................8
4. Mounting the Camcorder…………….........................9

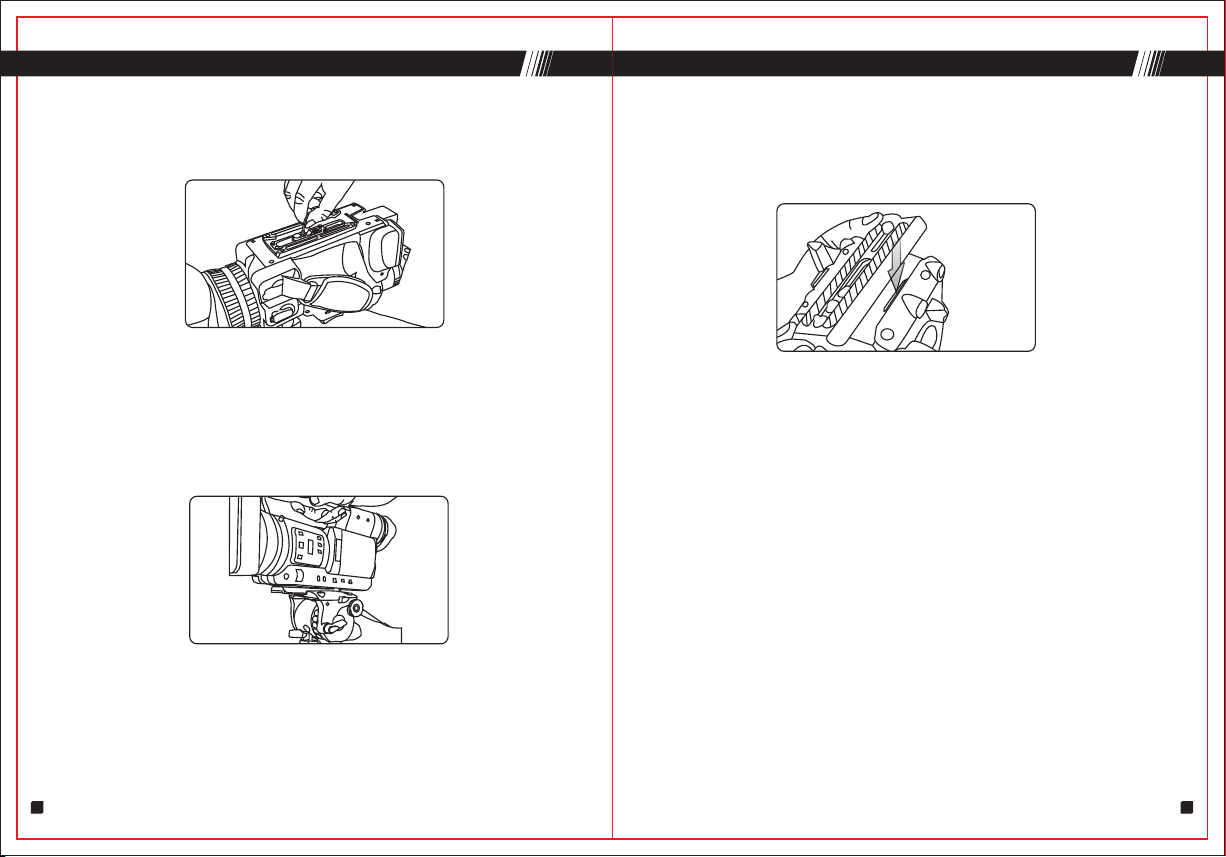

5. Mounting the camera………………......................9-10
6. Adjusting counterbalance………………...................11
7. Adjusting titl drag .…………………………………….11
8. Adjusting pan drag……………………………………12
9. Change of the batteries (GH08/08L/10/10L )……...13
10. Change of the batteries (GH15,GH25)……………14
CONTENTS
Tripod specification…………………………………………..15-16

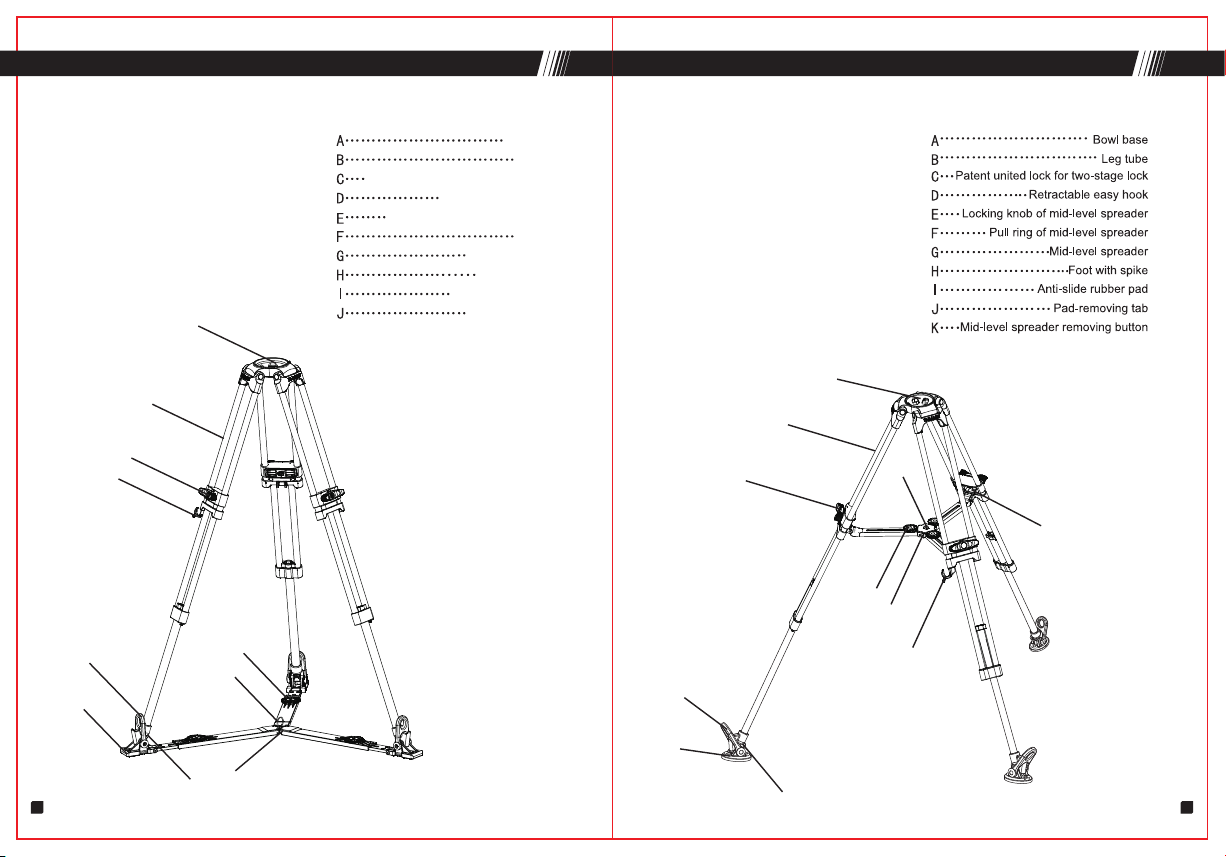

Parts(AT7402A) ……………………………………………...........17
Use AT7402A ……………………………………………...........18-19

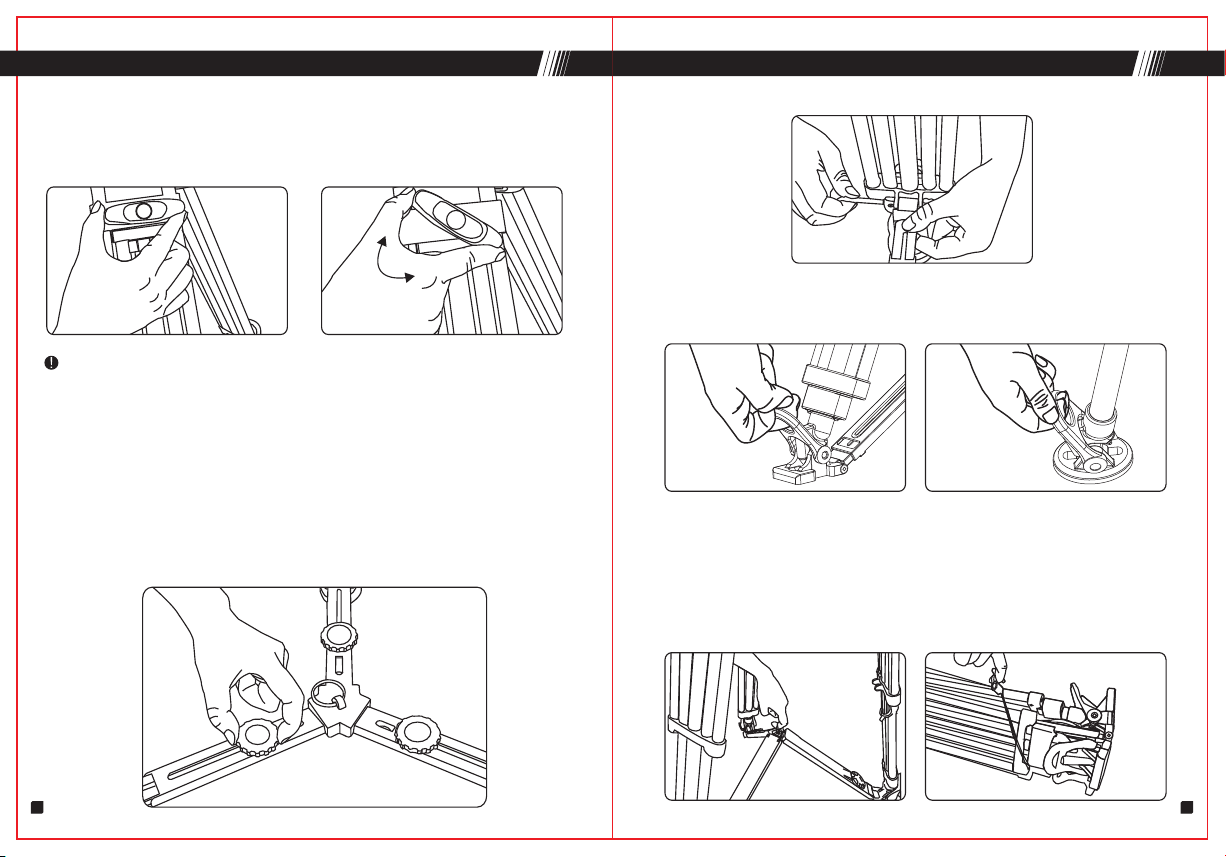

1. Loose & lock leg tube……………………………….......................18
2. Adjusting tripod height……………………………..........................18
3. Anti-slide rubber feet……………………………............................18
4. Floding tripod……………………………………............................ 19
Parts(GA/GC101) ……………………………………....................20
Parts(GA/GC102) ……………………………………................ ... 21
Parts(GA/GC751 GA/GC752) ………………………............. . . 22
Use(GA/GC751 GA/GC752 GA/GC101 GA/GC102) ….23-24
1. Loose & lock leg tube……………………………….......................23
2. Adjust middle spreader……………………………........................23
3. Adjust ground spreader……………………………....................... 23
4. Remove mid-level spreader………………………........................24
5. Install & Remove ground spreader………………………............. 24
6. Floding tripod…………………………………….............................24
Maintenance…………………………………………................. . . . 25
Notice & Warning………………….............................................26

Head No.
Fluid Head
E-IMAGE No.
G H
1 2
GH03 75mm 1kg 4kg +90°～-60°
-40℃～80℃
GH05 75mm 1.7kg 3-8kg +90°～-45°
-30℃～60℃
0-2
GH06 75mm 1.6kg 6kg +90°～-60°
-40℃～80℃
0-50-3
GH08 75mm 1.7kg 8kg +90°～-60°
-40℃～80℃
0-6
GH10 75mm 1.9kg 10kg +90°～-60°
-40℃～80℃
1-7
0-3
GH10L 100mm
2kg 10kg +90°～-60°
-40℃～80℃
1-7
0-3
100mm
3.7kg 15kg +90°～-75°
-40℃～80℃
0-90-5
GH15
100mm
+90°～-80° -40℃～80℃
1-15
0-7GH25 4kg 25kg
A
B
C
E
F
G
H
I
K
J
D
A
B
C
D
E
F
G
H
J
I
K
100mm
+90°～-60° -30℃～60℃
GH20 3.8kg 20kg 0-8
SPECIFICATIONS
Model
No.
Bowl
size
Net
weight
Load
capacity
Grades of
drag
Counterbalance
Tilt range Temperature
range
Variable Instable
Instable
Instable
Instable
Quick release plate
Plate locking knob
Insurance button
Tilt locking knob
Tilt drag adjusting knob
Bowl locking knob

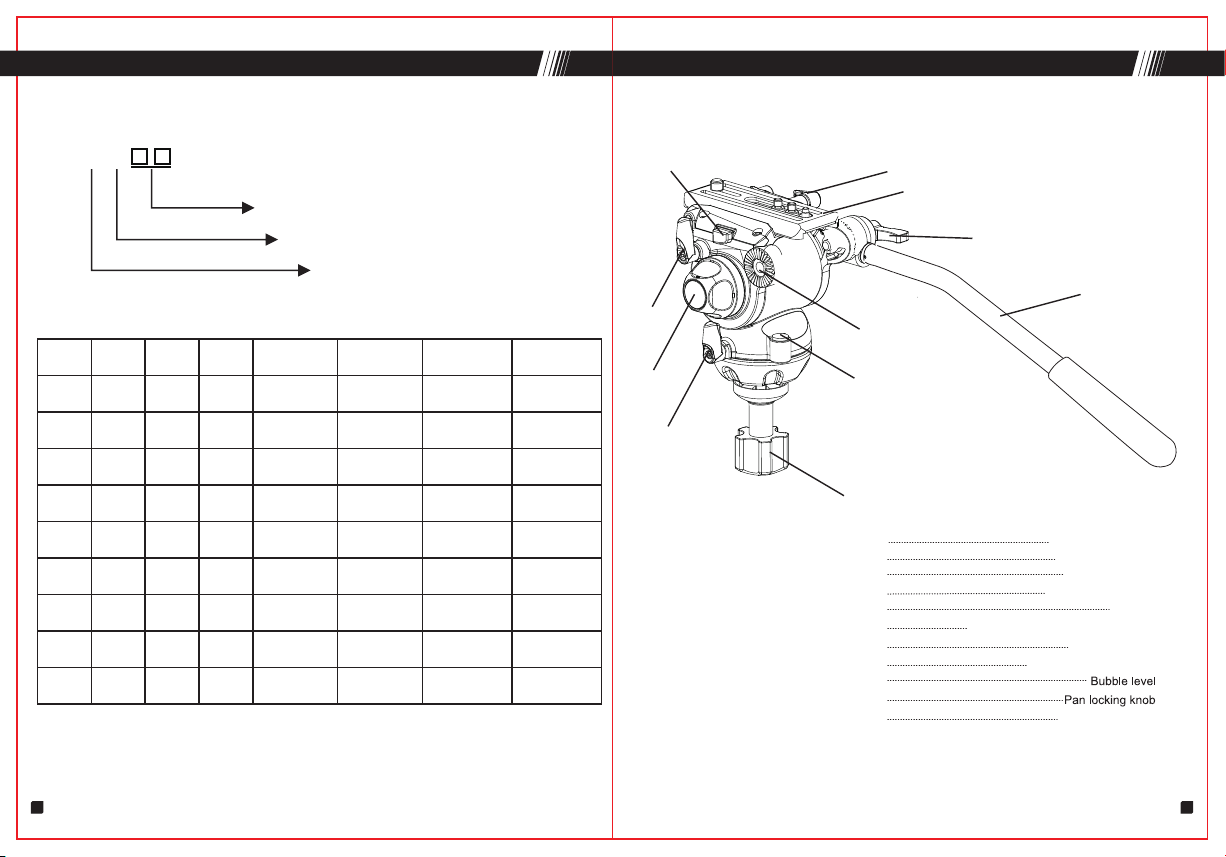

PARTS(GH03)
Pan bar locking knob
Pan bar
Connection part of pan bar & head
