e2v MG5239T User manual

The data should be read in conjunction with the Magnetron
Preamble.
ABRIDGED DATA
Fixed frequency pulse magnetron.
Operating frequency ...... 9375 +25 MHz
Minimum peak output power ...... 25 kW
Magnet ...............integral
Output ............ no.16waveguide
(22.86 x 10.16 mm internal)
Coupler ..............UG-40B/U
(NATO S.N. 5985-99-083-0051)
Cooling ...........natural or forced-air
GENERAL
Electrical
Cathode ............indirectly heated
Heater voltage (see note 1) ........6.3 V
Heater current at 6.3 V .........0.55 A
Heater starting current, peak value,
not to be exceeded ..........3.0Amax
Cathode pre-heating time (minimum)
(see note 2) ........... 60 s
Mechanical
Overall dimensions ...........seeoutline
Net weight ............1.5kgapprox
Mounting position ............. any
A minimum clearance of 50 mm must be maintained between
the magnet and any magnetic materials.
Cooling ...........natural or forced-air
MAXIMUM AND MINIMUM RATINGS
(Absolute values)
These ratings cannot necessarily be used simultaneously, and
no individual rating should be exceeded.
Min Max
Heater voltage (see note 1) ..... 5.7 6.9 V
Heater starting current (peak) .... – 3.0 A
Anode voltage (peak) ....... 7.5 8.2 kV
Anode current (peak) ....... 6.0 10 A
Input power (peak) ........ – 75 kW
Input power (mean) (see note 3) . . . – 85 W
Duty cycle .......... – 0.0015
Pulse duration ......... – 2.0 ms
Rate of rise of voltage pulse
(see notes 4 and 5) ....... – 200kV/ms
Anode temperature (see note 6) . . . – 120 8C
VSWR at the output coupler .... – 1.5:1
TYPICAL OPERATION
Operating Conditions
Oscillation
12
Heater voltage ......... 6.3 6.3 V
Anode current (peak) ....... 8.0 8.0 A
Pulse duration ......... 1.0 0.1 ms
Pulse repetition rate ...... 500 1000 pps
Rate of rise of voltage pulse .... 120 120kV/ms
Typical Performance
Anode voltage (peak) ....... 8.0 8.0 kV
Output power (peak) ...... 27 27 kW
Output power (mean) ...... 13.5 2.7 W

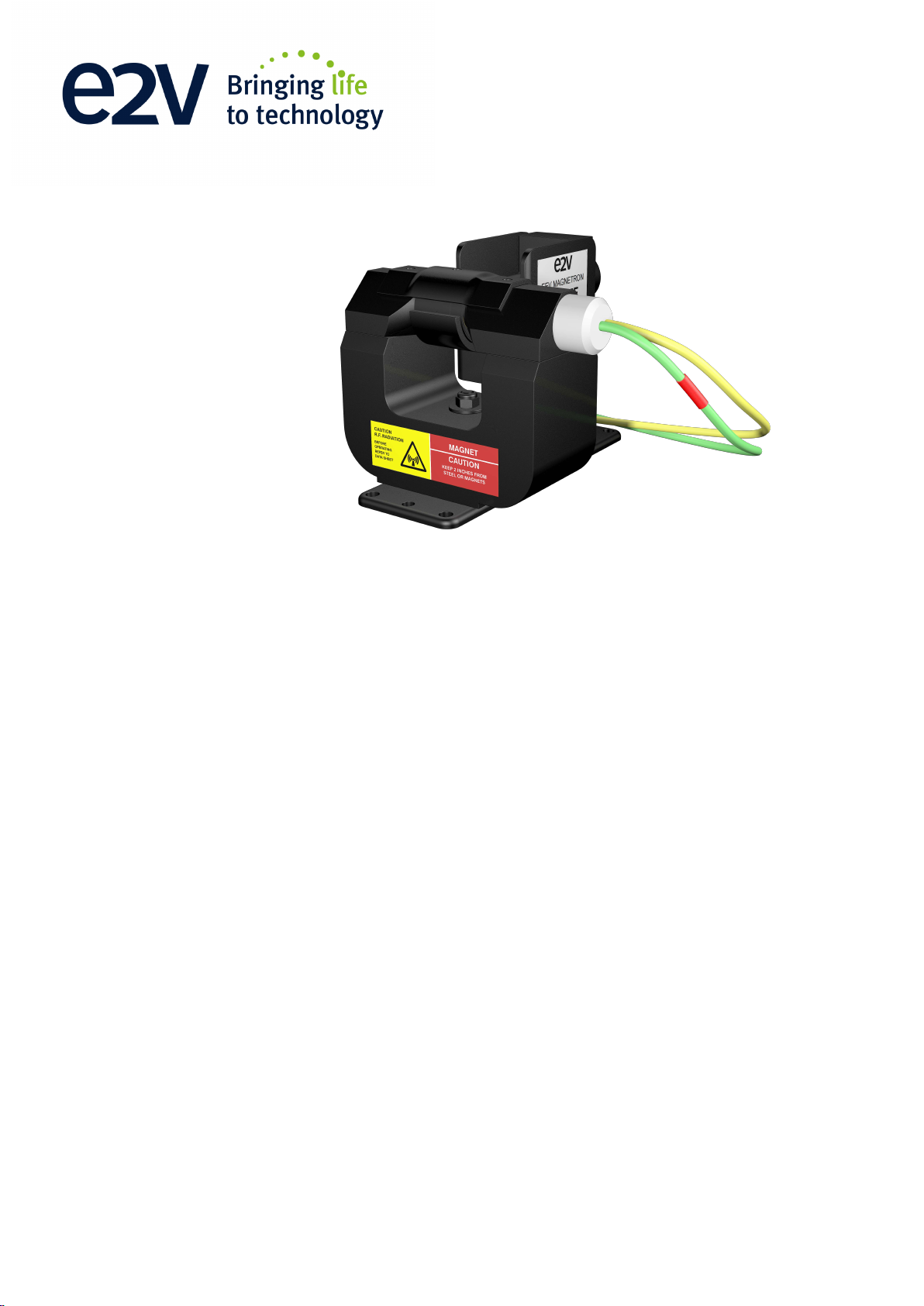

MG5239T
X-Band Magnetron
# e2v technologies limited (uk) 2016A1A-MG5239T Issue 7, June 2016
e2v technologies (uk) limited, Waterhouse Lane, Chelmsford, Essex CM1 2QU, UK Telephone: [phone] Facsimile: [phone]
e-mail: [e-mail] Internet: www.e2v.com Holding Company: e2v technologies plc
123197

TEST CONDITIONS AND LIMITS
The magnetron is tested to comply with the following electrical specification.
Test Conditions
Oscillation Oscillation
12
Heater voltage (for test) ................. 6.3 6.3 V
Anode current (mean) ................. 4.0 0.8 mA
Duty cycle ..................... 0.0005 0.0001
Pulse duration (see note 7) ................ 0.5 0.05 ms
VSWR at the output coupler ............... 1.15:1 1.15:1 max
Rate of rise of voltage pulse (see note 4):
using hard tube pulser ............... 200 200 kV/ms min
alternatively using line type pulser ............ 120 120 kV/ms min
Limits
Min Max Min Max
Anode voltage (peak) ................ 7.5 8.2 7.5 8.2 kV
Output power (mean) ............... 12.5 – 2.5 – W
Frequency (see note 8) .............. 9350 9400 – – MHz
RF bandwidth at
1
/
4
power .............. – 5.0 – 50 MHz
Frequency pulling (VSWR not less than 1.5:1) ....... – 23 – – MHz
Stability (see note 9) ................ – 0.1 – 0.1 %
Heater current ...................................seenote 10
Temperature coefficient of frequency ...........................seenote 11
LIFE TEST
The quality of all production is monitored by the random
selection of tubes which are then life-tested under Test
Conditions Oscillation 1. If the tube is to be operated under
conditions other than those specified herein, e2v technologies
should be consulted to verify that the life of the magnetron will
not be impaired.
End of Life Criteria
(under Test Conditions Oscillation 1)
Anode voltage (peak) ......7.5to8.5 kV
Output power (peak) ....... 16 kWmin
RF bandwidth at
1
/
4
power ...... 5.0 MHzmax
Frequency ....... 9350 to 9400 MHz
Stability (see note 9) ........ 1.0 %max
NOTES
1. With no anode input power.
For average values of pulse input power greater than
40 W the heater voltage must be reduced within 3 seconds
after the application of HT according to the following
schedule:
V
h
= 0.08 (110 7Pi) volts
where Pi = average input power in watts.
The magnetron heater must be protected against arcing by
the use of a minimum capacitance of 4000 pF shunted
across the heater directly at the input terminals; in some
cases a capacitance as high as 2 mF may be necessary
depending on the equipment design. For further details see
the Magnetron Preamble.
2. For ambient temperatures above 0 8C. For ambient
temperatures between 0 and 755 8C the cathode pre-
heating time is 90 seconds.
3. The various parameters are related by the following
formula:
Pi = i
apk
xv
apk
xDu
where Pi = mean input power in watts
i
apk
= peak anode current in amperes
v
apk
= peak anode voltage in volts
and Du = duty cycle.
4. Defined as the steepest tangent to the leading edge of the
voltage pulse above 80% amplitude. Any capacitance in
the viewing system must not exceed 6.0 pF.
5.
The maximum rate of rise of voltage for stable operation
depends upon detailed characteristics of the applied pulse
and the pulser design. The specified maximum rating applies
to typical hard tube pulsers. For minimum starting jitter and
optimum operation, the recommended rate of rise of voltage
for most line type pulsers is from 70 to 120 kV/ms.
6. The anode temperature measured at the point indicated on
the outline drawing must be kept below the limit specified by
means of a suitable flow of air over the anode body and
waveguide attachment brackets which serve as cooling fins.
7. Tolerance +40%.
8. Other frequency ranges can be supplied on request.
9. With the magnetron operating into a VSWR of 1.15:1.
Pulses are defined as missing when the RF energy level is
less than 70% of the normal energy level in a 0.5%
frequency range. Missing pulses are expressed as a
percentage of the number of input pulses applied during
the period of observation after a period of 10 minutes
operation.
10. Measured with heater voltage of 6.3 V and no anode input
power, the heater current limits are 0.43 A minimum,
0.60 A maximum.
11. Design test only. The maximum frequency change
with anode temperature change (after warming) is
70.25 MHz/8C.
MG5239T, page 2 #e2v technologies

10
8
6
4
2
0
35
30
25
20
15
10
5
0024681012
PEAK ANODE VOLTAGE (kV)PEAK OUTPUT POWER (kW)
PEAK ANODE CURRENT (A)
PEAK CURRENT
RATING LIMITS
MAXIMUM
TYPICAL
MINIMUM
TYPICAL
MINIMUM
7897
TYPICAL PERFORMANCE CHART
#e2v technologies MG5239T, page 3

W
AA
S
R
T
TO FIT 4BA
TERMINALS
LEADS Z LONG
SEE NOTE 11
SEE NOTE 2
SEE NOTE 10
REFERENCE
PLANE A
N
ML
K
Y
J
GE
F
Q
P
BA
1H
REFERENCE PLANE C
SEE NOTE 5 SURFACE A
SEE NOTES 2, 3 AND 4
2 HOLES 1D
SEE NOTE 6
REFERENCE PLANE B
SEE NOTE 9
4 HOLES 1C
SEE NOTE 8
SEE NOTE 7
SEE NOTE 1
7936
OUTLINE
(All dimensions without limits are nominal)
Lead Connections
Colour Element
Green Heater
Yellow Heater, cathode
Ref Millimetres
A 113.11 +0.38
B 104.22 +0.10
C 4.318 +0.076
D 4.445 +0.076
E 4.368 +0.41
F 32.5 +0.1
G 31.0 +0.1
H 25.4 max
J 5.18 +0.38
K 41.28 +0.41
L 52.4 max
M 55.55 max
N 30.15 max
P 101.6 max
Q 46.0 min
R 84.12 max
S 63.5
T 12.7 max
W 3.175
Y 30.99 +0.10
Z 311.2 +12.7
AA 33.0
MG5239T, page 4 #e2v technologies

Outline Notes
1. Recommended direction of air flow if required.
2. Anode temperature measured at this point.
3. With surface A resting on a flat surface plate, a feeler
gauge 0.51 mm thick and 3.18 mm wide will not enter more
than 3.18 mm at any point.
4. Surface A and interior surfaces of the waveguide will be
plated with 1.55 mg/cm
2
of gold or 4.65 mg/cm
2
of silver,
but will not be plated if the parts are made of monel or
equivalent corrosion resistant materials. All other metal
surfaces will be painted with heat resistant paint or
otherwise treated to prevent corrosion.
5. Reference plane C intersects plane B at the centre of the
mounting plate hole as shown and is mutually perpendi-
cular to reference planes A and B.
6. These holes will lie within 0.127 mm of the indicated
centres. A cylinder of 8.38 mm diameter and centred on
these holes will clear the side of the magnet.
7. The position of the waveguide hole is not specified on this
drawing since tubes are tested and used with coupler
UG-40B/U (NATO S.N. 5985-99-083-0051).
8. The centre of this hole will lie within 0.102 mm of reference
plane C.
9. Reference plane B passes through the centres of the two
holes of the mounting plate as shown and is perpendicular
to reference plane A.
10. The north seeking pole of the magnet will be adjacent to
the cathode sidearm.
11. Length of flying leads measured from the centre line of the
anode block.
HEALTH AND SAFETY HAZARDS
e2v technologies magnetrons are safe to handle and operate,
provided that the relevant precautions stated herein are
observed. e2v technologies does not accept responsibility for
damage or injury resulting from the use of electronic devices it
produces. Equipment manufacturers and users must ensure that
adequate precautions are taken. Appropriate warning labels and
notices must be provided on equipments incorporating e2v
technologies devices and in operating manuals.
High Voltage
Equipment must be designed so that personnel cannot come
into contact with high voltage circuits. All high voltage circuits
and terminals must be enclosed and fail-safe interlock switches
must be fitted to disconnect the primary power supply and
discharge all high voltage capacitors and other stored charges
before allowing access. Interlock switches must not be
bypassed to allow operation with access doors open.
RF Radiation
Personnel must not be exposed to excessive RF radiation. All
RF connectors must be correctly fitted before operation so that
no leakage of RF energy can occur and the RF output must be
coupled efficiently to the load. It is particularly dangerous to
look into open waveguide or coaxial feeders while the device is
energised. Screening of the cathode sidearm of high power
magnetrons may be necessary.
X-Ray Radiation
High voltage magnetrons emit a significant intensity of X-rays
not only from the cathode sidearm but also from the output
waveguide. These rays can constitute a health hazard unless
adequate shielding for X-ray radiation is provided. This is a
characteristic of all magnetrons and the X-rays emitted
correspond to a voltage much higher than that of the anode.
Printed in England#e2v technologies MG5239T, page 5
