Eagle Eye Networks DM08-2 User manual

Precautions
Please read this document thoroughly before
using this device, and strictly observe the rules in
this document when using this device. Failure to
correctly use electrical products may cause fire
and severe injuries. If you install this device in
public places, provide the tip "You have entered
the area of electronic surveillance" in an
eye-catching place.
Warning
Alerts you to moderate dangers which, if
not avoided, may cause minor or moderate
injuries.
Caution
Alerts you to risks. Neglect of these risks
may cause device damage, data loss,
device performance deterioration, or
unpredictable results.
Note
Provides additional information
Warning
●Strictly observe installation requirements
when installing the device. The manufacturer
shall not be held responsible for device
damage caused by users' non-conformance to
these requirements.
●Strictly conform to local electrical safety
standards and use power adapters that are
marked with the LPS standard when installing
and using this device. Otherwise, this device
may be damaged.
●Use accessories delivered with this device.
The voltage must meet input voltage
requirements for this device.
●If this device is installed in places with
unsteady voltage, ground this device to
discharge high energy such as electrical
surges in order to prevent the power supply
from burning out.
●When this device is in use, ensure that no
water or any liquid flows into the device. If
water or liquid unexpectedly flows into the
device, immediately power off the device and
disconnect all cables (such as power and
network cables) from this device.
●Do not focus strong light (such as bright bulbs
or sunlight) on this device. Otherwise, the
service life of the image sensor may be
shortened.
●If this device is installed in places where
lightning frequently occurs, ground the device
nearby to discharge high energy in order to
prevent device damage.
Caution
●Avoid heavy loads, intensive shakes, and
soaking to prevent damages during
transportation and storage. The warranty does
not cover any device damage that is caused
during secondary packaging and transportation
after the original packaging is taken apart.
●Protect this device from falls and intensive
strikes, keep the device away from magnetic
field interference, and do not install the device
in places with shaking surfaces.
●Clean the device with a soft dry cloth. For
stubborn dirt, dip the cloth into a neutral
cleanser, gently wipe the dirt with the cloth, and
then dry the device.
●Do not jam the ventilation opening. Follow the
installation instructions below when installing
the device.
●Keep the device away from heat sources such
as radiators, electric heaters, etc.
●Keep the device away from places that are
moist, dusty, extremely hot or cold, or contain
strong electric radiation.
●If the device is installed outdoors, take insect-
and moisture-proofing measures to avoid
circuit board corrosion that can affect
monitoring.
●Remove the power plug if the device is unused
for a long time.
●Before unpacking, check whether the fragile
sticker is damaged. If the fragile sticker is
damaged, contact customer services or sales
personnel. The manufacturer shall not be held
responsible for any artificial damage of the
fragile sticker.
Special Announcement
●All complete products sold by the manufacturer
are delivered along with nameplates and
accessories after strict inspection. The
manufacturer shall not be held responsible for
counterfeit products.
●This manual may contain misprints, technology
information that is not accurate enough, or
product function and operation description that is
slightly inconsistent with the actual product.

●This manual is only for reference and does not
ensure that the information is totally consistent
with the actual product. For consistency, see the
actual product.
1. Package Contents
Open the package, check the appearance of the
product for no obvious damage, and confirm the
item list for table 1-1 is consistent.
Table 1-1: Packing List
Component
Quantity
Mini Dome Network Camera
1
Setup & Support Insert
1
Installation Location Sticker
1
L Hexagonal Wrench 80×25mm
1
Stainless Self-Tapping Screw
PA4.0×30mm
2
Swell Plastic Button
φ5.6×29mm
2
2. Device Structure
Camera Dimensions
Note: Different devices may have different dimensions;
please refer to the actual product.
Figure 2-1: Dimensions of Dome (Units: mm)
3. Device Installation
Warning: To avoid moisture influence, install
the dome cover at least half an hour after the
camera is installed and powered on.
The Mini Dome Network Camera can be
installed on the ceiling or wall. This guide
describes how to install the camera on the
ceiling.
Installation Steps
1. Attach the installation sticker to the ceiling.
Drill three holes as indicated by the sticker.
Drive the swell buttons into the holes, as
shown in figure 3-1.
2. Use the wrench in the accessory package to
unscrew the four screws on the dome cover.
Open the camera, as shown in figure 3-1.
Figure 3-1: Opening Camera
3. Use the two self-tapping screws to fasten the
camera to the ceiling, as shown in figure 3-3.
Figure 3-3: Installing Camera
4. Connect the network access port and power
supply of the multihead cable.
Note
●The camera has two outlets for the cables. If using
the top outlet, a hole should be drilled for threading
the cable.
●If using the side outlet, the installation sticker’s gap
should align with the outlet rubber stopper.

5. Connect the camera to a monitor, loosen the
screws of the support frame, then adjust the
three axes to position the camera to the
desired image. Tighten the screws to finalize
adjustments. As shown in figure 3-4.
Figure 3-6: Adjusting Lens
6. Arrange the camera cable using the over-line
buckle (if necessary), then attach the dome
cover with the hex wrench.
4. Device Ports
Note: Different devices may have different ports and
multi-head cables; please refer to the actual product.
Figure 4-1: Device Ports
Table 4-1: Camera Interface
Port Name
Description
Comment
Video output
Analog video output
SD card slot
Insert SD card
Reset button
Long press for 5 seconds to
restore factory settings
4 PIN
terminal
block
OA
Alarm out A
Applied for
alarm
function
OB
Alarm out B
IN
Alarm in
G
Ground
5 PIN
terminal
block
+
12V positive
Applied for
audio
function &
power
-
12V negative
Audio
in
Receive an analog
audio signal
Audio
Connect to an external
out
audio device
Over-line
buckle
Fixes the cables in place
Network
access port
Connects to a standard
ethernet cable
Figure 4-2: Multihead Cable 1
Table 4-2: Multihead Cable 1 Description
ID
Core
Description
Comment
1
Network
access port
Connects to a standard
Ethernet cable
Green light: Network
connection is normal
Yellow light: Data is
being transmitted
Supports
PoE
2
Power supply
(DC 12V)
Connects to a 12 V DC
power supply
Figure 4-3: Multihead Cable 2
Table 4-3: Multihead Cable 2 Description
ID
Core
Description
Comment
1
Network
access port
Connects to a standard
Ethernet cable
Green light: Network
connection is normal
Yellow light: Data is
being transmitted
2
Audio output
Connects to an external
audio device
3
Power supply
(DC 12V)
Connects to a 12 V DC
power supply
4
IN
Alarm input terminal
Applied for
alarm
function
G
Alarm input COM
OUT
Alarm output terminal
G
Alarm output COM

5. Add Camera to VMS
Change IP Address to Static
There are some situations where an IP address
needs to be static and/or the camera password
changed. These steps are optional and do not
apply to everyone.
Camera Login
1. Open an Internet browser, enter the IP
address of the camera (default value:
192.168.0.120) in the address box, and press
Enter.
2. Input the username and password and click
the login button (default username and
password are both admin). Change the
password after logging in for the first time to
ensure system security. It is recommended to
restart the device after modifying the
password.
Set Static IP
1. After logging in to the camera, navigate to
Configuration >Device >Local Network.
2. Input the desired IP address in the IP Address
box and click Apply. After changing the IP
address setting, use the new IP address to
log in to the web interface in the future.
Add Camera to VMS
Once the camera is installed and configured,
you’ll need to add it to your Eagle Eye Cloud VMS
to begin viewing and saving recordings.
1. Connect the camera to Power over Ethernet
(PoE) switch/bridge/CMVR (if no PoE
available, connect camera to power supply
and switch/bridge/CMVR).
2. Log in to Eagle Eye Cloud VMS.
3. Navigate to the Dashboard and locate the
Available Cameras section.
4. Click the plus sign next to the camera to add
it to the VMS.
Other Eagle Eye Networks Security Camera manuals

Eagle Eye Networks
Eagle Eye Networks EN-CCUC-001a User manual

Eagle Eye Networks
Eagle Eye Networks DD09-2 User manual

Eagle Eye Networks
Eagle Eye Networks EN-CCUZ-002a User manual

Eagle Eye Networks
Eagle Eye Networks DD07 User manual

Eagle Eye Networks
Eagle Eye Networks EN-CCUZ-002a User manual

Eagle Eye Networks
Eagle Eye Networks DB10 User manual
Popular Security Camera manuals by other brands

Samsung
Samsung SCV-5082 user manual

Vivotek
Vivotek CC9380-HV Quick installation guide

Laser Optronix
Laser Optronix LD200 User's operation manual

Interlogix
Interlogix TruVision 5 Series Configuration manual

American Dynamics

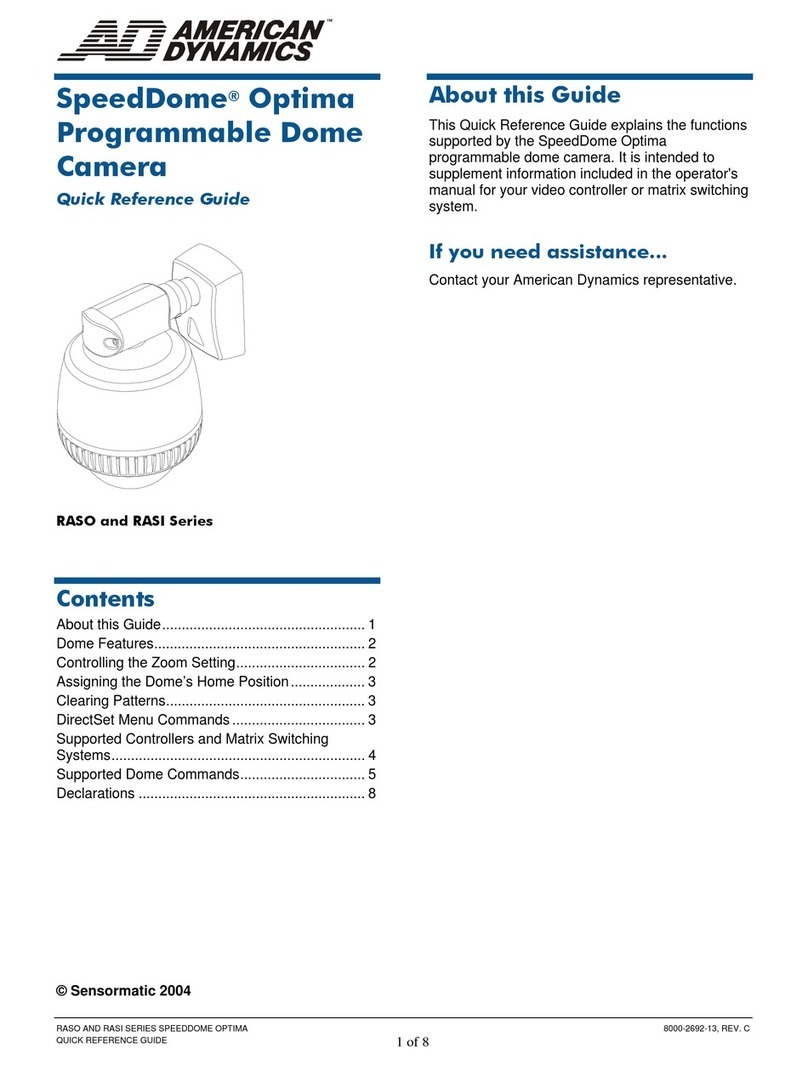

American Dynamics SpeedDome Optima Quick reference guide
