REF. CODE DESCRIPTION
1PL1420 CONTROL PANEL
2PL1421 ASPIRATOR
3PL1422 TANK
4PL1431 ELECTRIC UNIT
5PL1423 TANK
6PL1433N EXTERNAL PARTS
7PL1428 HEAD LIFT-1
8PL1429 HEAD LIFT-2
9PL1425 HEAD 70
10 PL1432 BATTERY
11 PL1424 DRIVE - BRAKE
12 PL1427 HYDRAULIC UNIT
13 PL1452 SQUEEGEE
14 PL1430 SQUEEGEE LIFT
15 PL1434 BRUSHES
EPF02380N-1 LABELS - DOCUMENTS
IPF02380-1 PACKING
WD27195 WIRING DIAGRAM
WD27195-1 ELEC. SCHEMATIC DIAGRAM
PANTHER 28 CODE: PF02380NTG-1 ab SN from 01J860
Back 1 page
Click on icon to
return to this page.
REF. CODE DESCRIPTION QTY
GR23741 PREASSEMBLED CTRL PANEL 1
1 SL17489-1L CONTROL PANEL 1
2 SL39083 SPRING 1
3 SL23718 MICROSWITCH 3
4 SL06056 WASHER 2
5 SL04214 SCREW 6
6 SL04187 SCREW 6
7 SL23741 WIRING 1
8 SL23695 FAIRLEAD 1
9 SL17490-1 LEVER 1
10 SL09808 ARTICULATION 1
11 SL04327 SCREW 4
12 SL06014 WASHER 2
14 SL39114 ROD 1
13 SL05058 NUT 1
15 SL23894-1 FUSE HOLDER 1
16 SL23144 FUSE 3
17 SL05077 NUT 2
18 SL03116 GASKET 4
19 SL04377 SCREW 2
PANTHER 28 CODE: pl1420 ac SN from 01C687
PANTHER 28 CODE: PL1420
Back 1 page
Next page
REF. CODE DESCRIPTION QTY
PANTHER 28 CODE: PL1420
20 SL17149-1 LID 1
21 SL23956 CONNECTION 1
22 SL23955 BASE 1
24 SL17488-1L CONTROL PANEL 1
25 SL06011 WASHER 2
26 SL23872 POTENTIOMETER 1
27 SL13090 SPRING 1
28 SL06019 WASHER 1
29 SL39059 LEVER 1
30 SL05019 NUT 2
31 SL23738 BOARD 1
32 SL03554 PLAQUE 1
33 SL07534 SPACER 2
34 SL04384 SCREW 2
35 SL25887 CONTROL PANEL STICKER 1
36 SL23649 SWITCH 1
37 SL23821 HANDGRIP 1
38 SL23954 OPERATOR 1
39 SL23708 PUSH-BUTTON 1
Back 1 page
REF. CODE DESCRIPTION QTY
1
SL05087 NUT 1
2
SL06038 WASHER 1
3
SL03346 GASKET 1
4
SL09827 ROD 1
5
SL04388 INSERT 1
6
SL18393 FLOAT 1
7
SL03429 GASKET 1
8
SL03345 FILTER 1
9
SL17492-1 SUPPORT 1
10 SL04095 SCREW 3
11 SL04310 SCREW 1
12 SL05017 NUT 1
14 SL04276 SCREW 2
15 SL06022 WASHER 2
16 SL19335 PIPE 1
17 SL05041 NUT 2
18 SL03514 SUCTION CONVEYOR 1
19 SL14240 CAP 1
20 SL03297 CAP / SHELL 1
21 SL02303-J EXHAUSTER / ASPIRATOR 1
22 SL03159 GASKET 1
PANTHER 28 CODE: pl1421 ab SN from 01G000
Back 1 page
REF. CODE DESCRIPTION QTY
1SL04377 SCREW 3
3 SL03487 GASKET 1
4 SL17468 LID 1
5 SL04311 SCREW 2
8 SL04371 SCREW 5
9 SL13090 SPRING 1
10 SL39069 HOOKING / COUPLING 1
11 SL04269 SCREW 2
12 SL06041 WASHER 2
13 SL07150 BUSHING / BUSH 2
21 SL39109 PLAQUE 1
25 SL07547 PIPE 1
26 SL04325 SCREW 1
27 SL04319 SCREW 1
29 SL18349 UNION/CONNECTOR 1
31 SL03416 GASKET 2
32 SL18355 SUCTION OPENING 1
33 SL14003 SLEEVE 2
36 SL19021 HOSE 1
37 SL03437 PLAQUE 1
38 SL18362 HOSE HOLDER 1
39 SL14354 CLAMP 1
PANTHER 28 CODE: pl1422 ad SN from 01H38
PANTHER 28 CODE:
p
l1422 ad SN from 01H38
Back 1 page
Next page
REF. CODE DESCRIPTION QTY
1SL04149 SCREW 1
2SL23081 BRIDGE / JUMPER 1
3 SL39082-1 BRACKET 1
4 SL06019 WASHER 8
5 SL05034 NUT 2
6 SL04226 SCREW 4
7 SL06107 WASHER 4
8 SL14039 RIVET 8
9 SL03578 GRATING 2
10 SL05043 NUT 2
11 SL23001 REMOTE CONTROL SWITCH 1
12 SL23892 FUSE 1
13 SL04081 SCREW 2
14 SL23650 FUSE 1
16 SL04186 SCREW 2
17 SL23894 FUSE HOLDER 1
18 SL05004 NUT 18
19 SL06083 WASHER 14
20 SL23740 FUSE 1
21 SL23103 SUPPORT 3
22 SL39082 PLATE 1
23 SL23716-2 BOX BASE 1
PANTHER 28 CODE: pl1431 ac SN from 01K374
PANTHER 28 CODE:
p
l1431 ac SN from 01K374
Back 1 page
Next page
REF. CODE
DESCRIPTION
QTY
PANTHER 28 CODE:
p
l1431 ac SN from 01K374
24 SL06034 WASHER 6
25 SL06094 WASHER 4
26 SL04371 SCREW 4
27 SL04327 SCREW 4
30 SL05019 NUT 4
31 SL06056 WASHER 4
32 SL23957 RESISTANCE 1
33 SL04179 SCREW 4
34 SL23397 RESISTANCE 1
35 SL39082-2 BRACKET 1
36 SL04092 SCREW 2
37 SL23735 REMOTE CONTROL SWITCH 1
38 SL06004 WASHER 2
39 SL05058 NUT 2
40 SL23221 CONNECTOR 1
41 SL04385 SCREW 2
42 SL23729 GEARCASE / BOARD 1
43 SL25187 LABEL 1
44 SL23716-1L BOX COVER 1
Back 1 page
REF. CODE DESCRIPTION QTY
1 SL03526 FILTER
1
2 SL03575 GASKET
1
3 SL03566 GASKET
1
4 SL07529 PIN
1
5 SL03980 GASKET
1
6 SL03551 GASKET
1
7 SL03979 GASKET
1
8 SL04395 SCREW
4
9 SL06050 WASHER
4
10 SL06108 WASHER
4
11 SL04040 SCREW
4
12 SL17493-1 PIN
2
13 SL04171 INSERT
2
14 SL18232 UNION / CONNECTOR
2
15 SL14109 CLAMP
2
16 SL19097 HOSE
1
17 SL14063 CLAMP
1
18 SL19113-1 HOSE
1
20 SL18395 CAP
1
21 SL04371 SCREW
4
22 SL13118 DUCT LOCK
1
PANTHER 28 CODE: pl1423 ad SN from 02A403
PANTHER 28 CODE: pl1423 ad SN from 02A403
Back 1 page
Next page

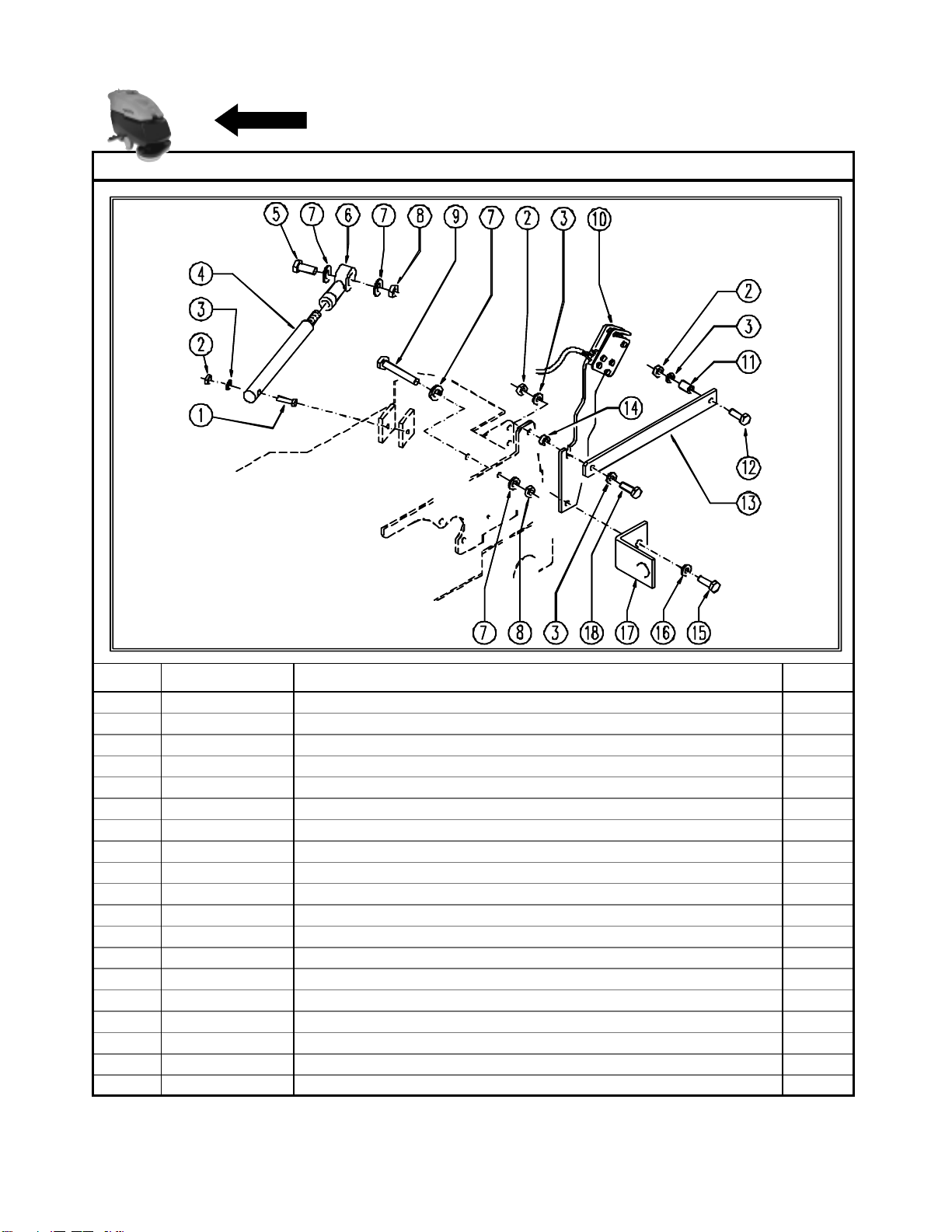

REF. CODE DESCRIPTION QTY
1 SL04164 SCREW 1
2 SL05039 NUT 3
3 SL06041 WASHER 4
4 SL39072 LEVER 1
5 SL04304 SCREW 1
6 SL22004 ARTICULATION 1
7 SL06005 WASHER 4
8 SL05013 NUT 2
9 SL04151 SCREW 1
10 GR53004 SUPPORT ASSEMBLY 1
11 SL07112 SPACER 1
12 SL04127 SCREW 1
13 SL39073 LEVER 1
14 SL07150 SPACER 1
15 SL04134 SCREW 1
16 SL06083 WASHER 1
17 SL39112 SUPPORT 1
18 SL04075 SCREW 1
PANTHER 28 CODE: pl1428 aa SN from 01B100
Back 1 page
REF. CODE DESCRIPTION QTY
1 SL39066 LEVER 2
2 SL13132 SPRING 1
3 SL06029 WASHER 1
4 SL39067 SPRING GUIDE 1
5 SL12072 BUSHING 4
6 SL07528 SPACER 2
7 SL06041 WASHER 3
8 SL05039 NUT 4
9 SL39074 LEVER 1
10 SL04387 SCREW 1
11 SL06022 WASHER 3
12 SL04200 SCREW 1
13 SL07318 SPACER 2
14 SL07527 SPACER 2
15 SL07063 SPACER 2
16 SL02204 ACTUATOR 1
17 SL05041 NUT 2
18 SL04201 SCREW 3
19 SL07165 SPACER 1
20 SL04133 SCREW 1
PANTHER 28 CODE: pl1429 aa SN from 01B100
Back 1 page
REF. CODE DESCRIPTION QTY
1 SL05078 NUT 2
3 SL23200 MICROSWITCH 1
4 SL02251 GEARMOTOR 2
5 SL11002 TANG / TONGUE 2
6 SL04167 SCREW 2
7 SL07390 BUSHING 2
8 SL08040 WHEEL 2
9 SL07297 SPACER 2
10 SL39080 HEAD 1
11 SL06041 WASHER 3
12 SL05039 NUT 3
13 SL06093 WASHER 14
14 SL04180 SCREW 14
15 SL04079 SCREW 3
16 SL04402 SCREW 2
17 SL06031 WASHER 4
18 SL04278 SCREW 4
20 SL13135 SPRING 2
21 SL01042 FLANGE 2
22 SL04020 SCREW 2
23 SL06081 WASHER 2
24 SL39111 DISTRIBUTOR 1
PANTHER 28 CODE: pl1425 af SN from 02C87
PANTHER 28 CODE: pl1425 af SN from 02C87
Back 1 page
Next page
REF. CODE DESCRIPTION QTY
PANTHER 28 CODE: pl1425 af SN from 02C87
26 SL04061 SCREW 1
27 SL04389 SCREW 1
28 SL07133 SPACER 2
29 SL05013 NUT 1
30 SL06005 WASHER 1
31 SL39123 BRACKET 1
32 SL05041 NUT 8
33 SL06022 WASHER 4
34 SL08058 SMALL WHEEL 1
35 SL07526 SPACER 1
36 SL04395 SCREW 6
37 SL03562 FLAP 2
38 SL18243 UNION / CONNECTOR 1
39 SL04324 SCREW 3
40 SL06039 WASHER 3
41 SL03570 FLAP PRESS 2
42 SL03531 GASKET 1
43 SL05029 NUT 6
44 SL39138 PLAQUE 1
45 SL06107 WASHER 2
46 SL53008-1 WIRING 1
Back 1 page
REF. CODE DESCRIPTION QTY
4 SL14356 BELT 2
5 GR23716 WIRING 1
6 SL14357 BELT 2
7 SL17607 BATTERY PLATE 4
8 SL06033 WASHER 2
9 SL06032 WASHER 2
10 SL04320 SCREW 2
11 SL04393 SCREW 1
12 SL04086 SCREW 2
13 SL39122 SUPPORT 1
14 SL53031-L MICROSWITCH 1
15 SL05031 NUT 2
16 SL03572 GUARD 1
PANTHER 28 CODE: pl1432 ac SN from 01G200
Back 1 page
REF. CODE DESCRIPTION QTY
1 SL08054 WHEEL 2
2 SL12031-1 SPACER 2
3 SL12031 BEARING 3
4SL04135 SCREW 2
5SL06093 WASHER 4
6 SL39085 PLATE 1
7 SL11105 TANG / TONGUE 2
8 SL02250 MOTOR 1
9 SL11094 RING 3
10 SL04355 SCREW 6
11 SL06041 WASHER 9
12 SL05039 NUT 7
13 SL06069 WASHER 2
14 SL04269 SCREW 2
15 SL14353 CLIP 1
16 SL04180 SCREW 1
17 SL12035 BEARING 2
18 SL06079 WASHER 2
19 SL39075 BRAKE AXLE 1
20 SL20059 PLUG / STOPPER 2
21 SL05048 NUT 4
PANTHER 28 CODE: pl1424 aa SN from 01B100
PANTHER 28 CODE: pl1424 aa SN from 01B100
Back 1 page
Next page
REF. CODE DESCRIPTION QTY
PANTHER 28 CODE: pl1424 aa SN from 01B100
22
SL05032 NUT 8
23
SL06011 WASHER 16
24
SL08007 SMALL WHEEL 2
25
SL04132 SCREW 8
26
SL13011 SPRING 1
27
SL05017 NUT 2
28
SL39065 FRAME 1
29
SL06022 WASHER 5
30
SL04144 SCREW 1
31
SL04002 SCREW 2
32
SL05074 NUT 2
33
SL20013 RUBBER SHIM 1
34
SL09133 PEDAL 1
35
SL04164 SCREW 1
36
SL39077 LEVER 1
37
SL07387 SPACER 1
38
SL04075 SCREW 1
Back 1 page
