OPERATION AND PARTS MANUAL
Rev B 01/2003
SC12

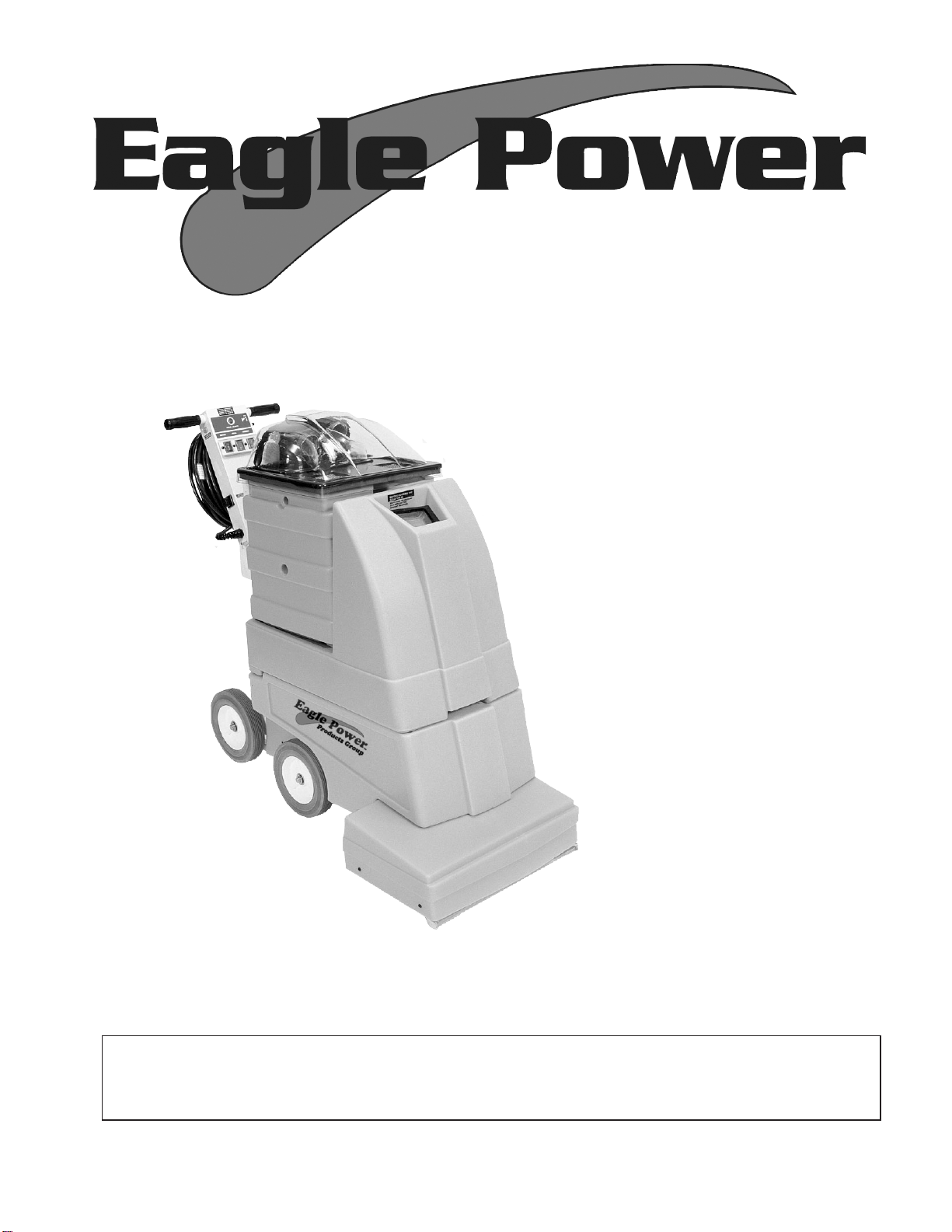

FASTRACTS SC12
12 Gallon
Extractor

BEFORE OPERATING THE MACHINE
Read the manual carefully and completely before attempting to operate the unit. This manual has
important information for the use and safe operation of the machine. Keep this manual handy at all
times. This machine will ensure years of satisfactory service if operated and maintained according to
recommendations in the manual. If additional information is needed, please contact your local
distributor or write to:
EAGLE POWER PRODUCTS
1174 Northland Drive
Mendota Heights, MN 55120
All information and specifications printed in the manual and parts list are current at the time of
printing; however, because of Eagle Power’s policy of continual product improvement, we reserve
the right to make changes at any time without notice.
This machine is shipped with antifreeze in the solution line system to protect the pump and valves
from freezing during transport and storage. Before you use the unit, rinse the solution line system
with clean water (See Preparing The Machine).
WARNING
•The machine was designed for use on carpet and upholstery extraction applications as per
instructions and recommendations written in this manual. Any deviation from its proper use or
purpose and the consequential damage that may occur is the sole responsibility of the end
user.
•Disconnect the power cord from outlet before servicing. Do not leave machine connected to
an electrical outlet when unattended.
•Do not immerse or use this machine in standing water. Such use may cause electric shock.
•This equipment is not designed to handle or use combustible/volatile substance such as
gasoline or kerosene, in, on, or near the machine. The use of such materials will cause an
extreme hazard condition.
•When using an extension cord, use only a 3 conductor grounding cord-12 ga. wire or heavier.
•To avoid electric shock, do not expose the unit to rain-store it indoors only.
•Do not use the machine for dry vacuuming. This machine is not outfitted with a fine dust filter
and it will damage the vacuum motor(s).

I
•Use defoamer at all times to prevent damage to the vacuum motor(s).
•Do not use water in excess of 140°F (62°C).
•Use only commercially available carpet cleaners and defoamer intended for use with
machines of this type. Do not use dyes, bleaches, ammonia or other additives. The use of
powdered cleaning solution if not diluted properly made result in damage to the pump.
•Do not expose machine to freezing temperatures.
•All repairs must be done by an authorized Eagle Power repair station.
•Do not use replacement parts other than those specified in the parts list.
FAILURE TO COMPLY WITH THE ABOVE WARNING INSTRUCTIONS WILL VOID THE
WARRANTY.
GROUNDING INSTRUCTIONS
The 120 V. A/C and the 220 V. A/C models have been outfitted with the appropriate grounded
connectors. Make sure the machine is connected to a grounded outlet having the same configuration
as the grounded plug. No adapter should be used with this machine. Any modification to the connectors
will void the warranty.
PREPARING THE MACHINE
1. Rinse then fill the recovery pail with clean hot tap water (not to exceed 140°F). When pouring
water, make sure drain hose is clipped in the upright position. Pour the water into the solution
tank.
2. Add recommended amount of cleaning solution to the tank, follow mixing directions on label for
best results.
3. Set the recovery pail back in place. Add recommended amount of defoamer to the recovery
pail. Close the lid.
TO CLEAN CARPET
1. Connect machine to a grounded electrical outlet.
2. Turn on the VACUUM, PUMP and BRUSH switches.
3. Lift up on the handle grips to insure that the front of the machine rests on the carpet. Slowly pull
the machine backwards while pressing on the carpet spray switch (below the left handle grip).
Monitor the extraction process through the vacuum lid. Release the spray switch 6 inches before
ending the stroke.

NOTE: If dirty solution does not appear through the vacuum lid check to be sure if:
•The vacuum lid is resting properly on the recovery pails
•The machine’s nose is touching the carpet in the working mode.
•The solution tank is not empty.
4. Roll the machine forward on its four wheels for next stroke. Make overlapping passes to prevent
streaking. Check solution level from time to time (see solution indicator tube on rear left corner of
the back).
NOTE: If foam appears on vacuum lid, turn the VACUUM SWITCH OFF IMMEDIATELY. Add more
defoamer to the recovery pails to dissolve foam or empty the recovery pails.
5. When the solution tank runs empty, turn off the vacuum, pump and brush switches. Empty the
recovery pail and rinse thoroughly. Then repeat steps on PREPARING THE MACHINE.
TO ATTACH ACCESSORY HOSE
1. Remove 2" hose adapter connection from machine.
2. Attach 1 1/2" assembly with adapter plate to vacuum lid inlet.
3. Pull back female quick disconnect sleeve on the machine and insert male plug on the solution
hose.
Attach 1-1/2" assembly Remove 2" hose adapter
TO EMPTY THE SOLUTION TANK
1. Unhook the drain nozzle (located on the side of the machine from the drain clips), placing the
end of the hose into the recovery pail.
AFTER EACH USE
•Empty and thoroughly rinse the recovery pail.
•Coil power cord onto the cord wrap.
•Remove dirt and lint build-up inside vacuum lid filter screen.
•Clean solution line filter.
•Wash the vacuum lid with a soap solution and sponge to prevent dirt from accumulating on
the surface. (To avoid scratching use soft cloth only).
•Lean the machine back on its 4 wheels during storage or when it’s not in use to prevent
brush distortion.)

MAINTENANCE
The upright extractor is engineered for minimum maintenance. But it does require some care to keep it in
optimum working condition. Careful attention to these maintenance instructions will give you maximum
operating performance and life expectancy of the machine.
•Solution line, fittings and accessory tools. -Flush the machine and accessories at least once a
month with solution of 1 part water to 3 parts white vinegar to neutralize the alkaline residue left by
the cleaning solution.
•Filter Solution screen. -Unscrew bowl and rinse screen in running tap water. If screen is clogged up
with soap, soak in vinegar solution and brush clean.
•Vacuum lid screens. -Always keep the screen clean in order to maintain maximum suction and
airflow performance from the vacuum motor. The screens also prevent lint from accumulating in the
vacuum motor fan chamber thus increasing the productive life of the motor. Do not operate the unit
without the screen installed! If the screen gets lost or damaged, replace it immediately.
•Quick disconnect coupler. -Spray with lubricant (WD-40) or equivalent to prevent coupler from
sticking.
TROUBLESHOOTING
ELECTRICAL SYSTEM
PROBLEM POSSIBLE CAUSE
No electrical power. 1. Defective power cord.
2. House or building circuit breaker trips.
Switch is turned on. 1. Faulty electrical cable.
Power is imtermittent to motor. 2. Defective Switches.
3. Loose terminal or discolored terminal connections.
VACUUM SYSTEM
PROBLEM POSSIBLE CAUSE
No Vacuum 1. Vacuum lid is not resting on recovery pail.
2. Loose vacuum hose, vacuum connection.
Low Vacuum 1. Accumulated dirt on lid screen.
2. Worn out vacuum lid gasket.
3. Lint & dirt build-up on suction head. (brush chamber).
4. Defective vacuum hose.
5. Loose connection in the vacuum motor.

SOLUTION SYSTEM
PROBLEM POSSIBLE CAUSE
Pump motor on, no 1. Clogged spray tips.
spray thru carpet 2. Clogged solution intake filter screen.
spray tips or 3. Clogged solenoid valve or open solenoid coil.
accessory tool 4. If carpet spray works normally, plugged up female quick
disconnect coupler.
5. Punctured pump diaphragm
6. Defective pump check valve.
7. Crack in pump housing.
8. Debris in check valve.
Uneven or weak spray 1. Clogged or dirty spray tips.
from tips. 2. Accumulated dirt on solution intake filter screen.
3. Accumulation of debris inside pump and plumbing.
4. Worn pump bearing (excessive noise).
5. Punctured pump diaphragm.
6. Defective rectified
Carpet spray is 1. Debris caught in between the 3 solenoid valve parts
turned off solution andthe plunger.
still drips from
spray tips.
Vacuum motor working 1. Loose “Molex” plug connector. Loose wiring connection.
pump motor fails to 2. Defective pressure switch in pump motor (100 psi model).
turn on. 3. Defective pump motor or rectifier.
ROTARY BRUSH SYSTEM
PROBLEM POSSIBLE CAUSE
Motor runs, brush 1. Loose pulley tension.
won’t spin. 2. String caught between walls.
Brush motor fails 1. Defective bridge rectifier.
to turn on after 2. Defective motor.
circuit breaker has
been reset.
Floating brush won’t 1. Debris caught inside the slide block guide.
move up and down.

BRUSH DRIVE BELT SERVICE AND/OR REPLACEMENT (refer to parts diagram).
1. Remove 2 1/4-20 hex screws attaching lower frame to upper frame.
2. Remove (2) spring cover plate assemblies and carefully remove springs from the slide blocks.
3. Loosen (2) 1/4-20 hex screws that hold brush motor bracket in place. Push bracket toward the front of
the machine to loosen belt.
4. Remove right Open-End and left Pulley-End cover plates.
5. Slide brush assembly and slide blocks out from their guides. Replace worn and defective belt.
6. Reinstall above components. Clean accumulated lint or debris
inside the slide block guides and check for wear on the teflon
surfaces. Replace if necessary. The slide block washer (item
#36) must be installed between the slide block guide and inside
the divider wall. Adjust belt tension by moving motor bracket
toward the rear. Apply minimum belt tension when the hex
bolts are tightened to allow for a smooth vertical brush
movement. A belt too loose will cause the belt to skip when
brush is applied on the carpet. A belt too tight won’t allow for
up and down movement.
REPLACEMENT OF BRUSH ASSEMBLY AND/OR BEARINGS
1. Repeat steps 1 thru 4.
2. Remove slide blocks from the ends of the brush shaft.
3. Remove (4) screws from string guard. Tap the shaft toward the right open end to remove the bearing.
4. Remove (4) screws from slinger and pull off brush core. Scrape off old sealant build up on the slinger and
string guard. It is advisable to replace the two bearings every time the brush is replaced.
5. Reinstall the above component. CAUTION! Install shorter step on the shaft ends toward the left pulley
side. Apply silicon sealant such as GE Silicon auto seal onto the ends of the brush core before
reassembling the slinger and string guard.
36

Fastracts SC12

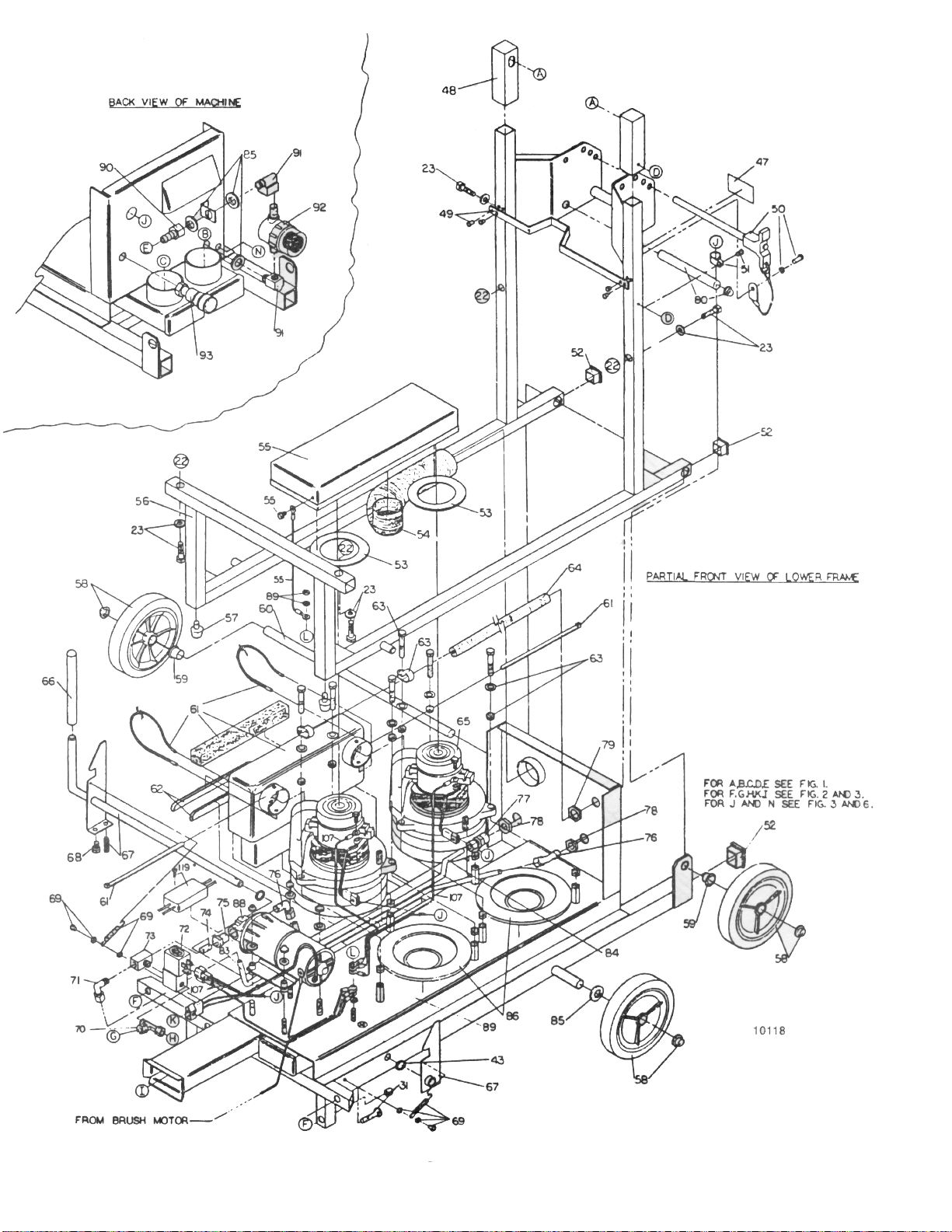

Fastracts SC12

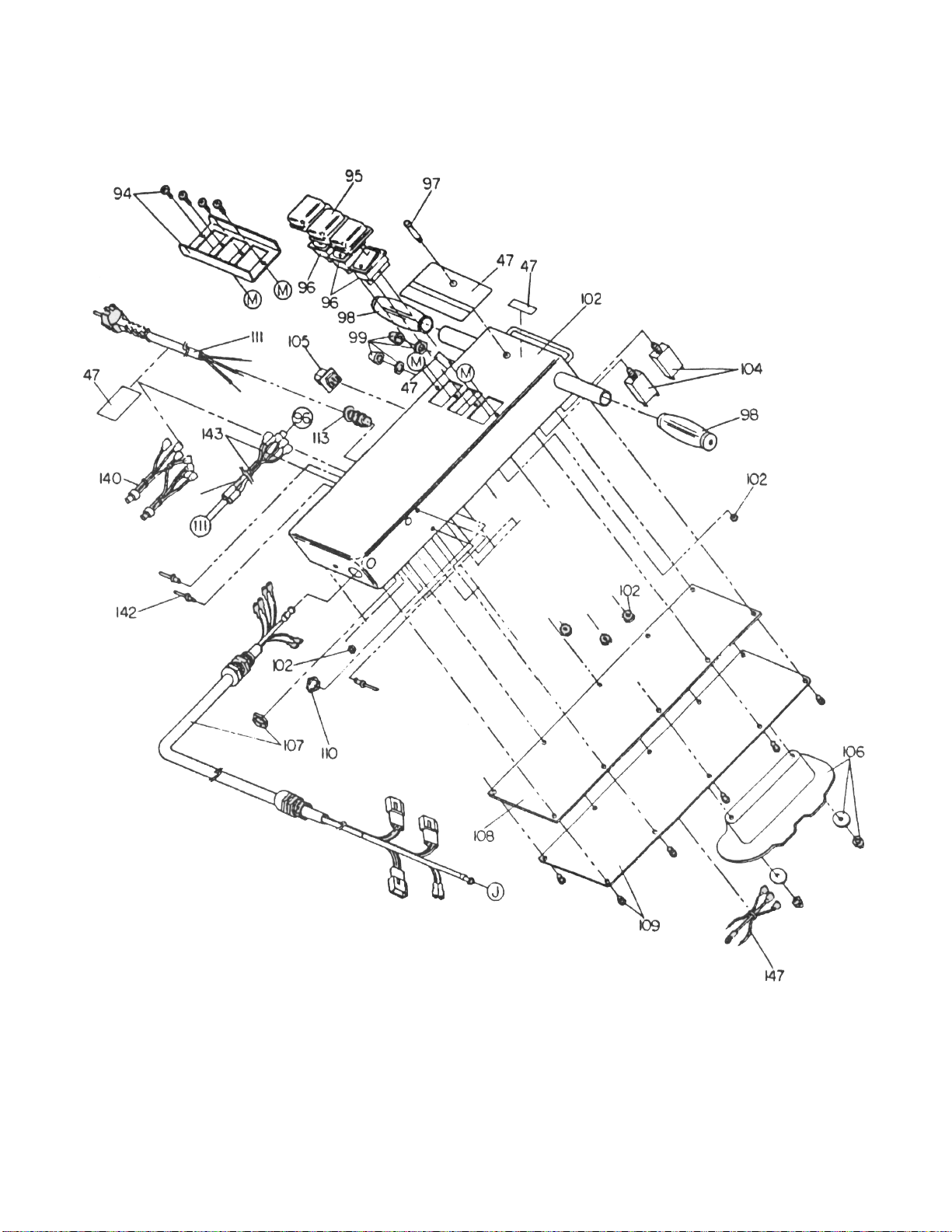

Fig. 2

Fastracts SC12
Fig. 5

Fastracts SC12
Fig. 6

PARTS LIST
FASTRACTS SC7 and SC12
Item Description Part No. Qty. Fig.
1 CLIP, ADAPTER RETAINER D02391 1 1
2 HOSE, ADAPTOR D02359 1 1
3 SEAL, VACUUM INTAKE E02431 1 1
4 SHAFT, LID PIVOT D02373-1 2 1
5 SPRING, DOME PIVOT D02372 1 1
SPRING, SLIDE BLOCK D02372 4 2
6 VACUUM LID ASSEMBLY 80491-1A 1 1
7 GASKET, VACUUM LID E03431 1 1
8 FILTER SCREEN ASSEMBLY, VACUUM LID 82407A 1 1
9 HOSE, VACUUM, 2" ID J00618 2 1
10 PLUG, SOLUTION TANK L00767 1 1
11 RECOVERY PAIL F02465-7 1 1
RECOVERY PAIL F02465-6 1 1
12 DRAIN NOZZLE, 1/2 BARB x 1/2 BARB A00165 1 1
13 CLIP ASSEMBLY, DRAIN HOSE 80263-3A 2 1
14 HOSE, DRAIN, 5/8 OD x 1/8 WALL J00598 1 1
15 90 ELBOW, 1/2 MP x 3/8 BARB A00138 1 1
16 90 ELBOW, 1/2 MP x 5/8 BARB A00099 1 1
17 CLAMP, HOSE, 5/8 J00637 2 1
18 CLAMP, HOSE, 7/8 J00652 1 1
19 HOSE, SOLUTION, 3/8 ID J00613 1 1
21 DECAL KIT H02561 1 1
DECAL KIT H02552 1 1
22 SOLUTION TANK ASSEMBLY F02463-12 1 1
23 SOLUTION TANK MOUNTING KIT 82310A 1 1
24 HOUSING, MOTOR, PLASTIC F02470-G 1 1
26 BRUSH DRIVE MOTOR ASSEMBLY (220V) 82538-1A 1 2
27 WIRE ASSEMBLY, GROUND (VACUUM MOTOR) 00185-6A 1 2
28 PULLEY, BRUSH DRIVE MOTOR D00398-A 1 2
29 BELT, TIMING L00779-1 1 2
30 COVER PLATE ASSEMBLY, SPRING 82378A 1 2

PARTS LIST
FASTRACTS SC7 and SC12
Item Description Part No. Qty Fig.
31 BRUSH CHAMBER ASSEMBLY 82362A 1 2
32 90 ELBOW, 1/8 FP x 1/4 C A00144 2 2
33 GLIDE, BACK, SS D02366 1 2
34 GLIDE, FRONT, SS D02365 1 2
35 SLIDE BLOCK ASSEMBLY 80500A 2 2
36
WASHER, SLIDE BLOCK, 1/16 THK, 25/64 ID, 2" OD F00504 1 2
37 STRING GUARD ASSEMBLY 82235A 1 2
38 BEARING, BRUSH G00536 2 2
39 BRUSH F00505 1 2
40 SHAFT, BRUSH STEEL 1/2” x 18” D02371 1 2
41 SLINGER ASSEMBLY, ROTARY BRUSH 82376A 1 2
42 PULLEY, ROTARY BRUSH D00398-2 1 2
43 WASHER, 3/32 THK, 7/16 ID, 5/8 OD (14") C02298 4 2
44 SPRAY TIP , Brass 1/8” NPT A00091-1 1 2
45 COVER PLATE ASSEMBLY, OPEN END 82368A 1 2
46 COVER PLATE ASSEMBLY, PULLEY END 82367A 1 2
47 LABEL KIT, ENGLISH 1 1,5,6
48 PIVOT, LID FRAME EXTENSION, STEEL D02344-1 2
1” SQUARE TUBE D02344 2 5
49 BRACKET ASSEMBLY, HOSE GUIDE 82361A 1 5
50 PIN ASSEMBLY, RETAINING 82383A 1 5
51 CLAMP ASSEMBLY, CORD 80187A 1 5
52 CAP, END K00712-4 4 5
53 GASKET, COOLING AIR DUCT E02450 2 5
54 HOSE, EXHAUST, 1” ID X 7” J00654 1 5
55 DUCT, COOLING AIR, STEEL D02343 1 5
56 FRAME, UPPER, STEEL D02342-1 1 5
57 FOOT, RUBBER K00705 2 5
58 WHEEL ASSEMBLY 82514A 1 5
59 BUSHING K00674 2 5
60 AXLE, WHEEL D00418-14 1 5
61 MUFFLER ASSEMBLY 80790A 1 5
62 CLIPS, MUFFLER, STEEL D02380 2 5

PARTS LIST
FASTRACTS SC7 and SC12
Item Description Part No. Qty. Fig
63
VACUUM MOTOR MOUNTING ASSEMBLY (2 STAGE) 82291A 1 5
64 LOOM, CORRUGATED, 26” F00463 1 5
65 VACUUM MOTOR, 2 STAGE, 5.7” DIA, 115V 00537A 2 5
W/MOLEX CONNECTOR
66 CAP, LATCH HANDLE K00725 1 5
67 LATCH HANDLE ASSEMBLY 82355A 1 5
68 CAPSCREW, MACHINE STEEL HEX HEAD C02310 1 5
1/4-20 X 1-1/4” LG
69 LATCH HANDLE SPRING ASSEMBLY 82357A 1 5
70 TEE, MALE BRANCH, BRASS, 1/8 MP x 1/4 C A00143 1 5
71 90 ELBOW, 1/8 MP x 1/4 C A00132 1 5
72 SOLENOID, 1/8 NPT (115V) G02536 1 5
73 BRANCH TEE, MALE 1/8 NPT A00135 1 5
74 NIPPLE, SHORT, 1/8 NPT A00055 1 5
75 BUSHING, REDUCER, 3/8 NPT (50 PSI) A00168-1 1 5
BUSHING, REDUCER, 1/4 NPT (100 PSI) A00168-18 1 5
76 90 ELBOW, 1/4 MP x 1/4 C (100 PSI) A00140 1 5
77 TUBE FITTING, BRASS 1/4”X1/4” C A00145 1 5
78 NUT, HEX A00124 2 5
80 SHAFT ASSEMBLY, HANDLE 80418-6A 1 5
81 TUBE, COPPER, 1/4” OD, LEFT TIPS A00085-5 1 2
82 TUBE, COPPER, 1/4” OD, RIGHT TIPS A00085-4 1 2
83 TUBE, COPPER, 1/4” OD X 25 7/8” LG A00085-7 1 2
84 TUBE, COPPER, 1/4” OD X 16-9/16” LG A00085-6 1 2
85 SPACER, 3/16 THK, 1/2 ID, 1" OD C00240 5 2
86 GASKET, VACUUM MOTOR E02448 1 5
87 BRACKET, BRUSH DRIVE MOTOR D02370 1 2
88 PUMP MOTOR, INTERNAL BYPASS, 02513F-100A 1 5
1240VAC, W/MOLEX CONNECTOR (100 PSI)
89 LOWER FRAME ASSEMBLY 02341A 1 5
90 ADAPTER, 3/8 BARB x 1/4 FP A00061 1 5
91 90 ELBOW, 1/4 FP x 1/4 MP A00052 2 5
92 FILTER STRAINER, IN-LINE K00709 1 5
93 QUICK DISCONNECT, 1/4 FP x 1/4 FP A00102 1 5
94 SWITCH GUARD ASSEMBLY 82414A 1 6
95 COVER, ROCKER SWITCH B00214-2 3 6
96 SWITCH, LIGHTED, ROCKER B02211-1 3 6

PARTS LIST
FASTRACTS SC7 and SC12
Item Description Part No. Qty. Fig.
97 LIGHT, INDICATOR, GREEN LENS B021916 1 6
98 GRIP, HANDLE, BLACK K00715B-1 2 6
99 BOOT, FLEX, CIRCUIT BREAKER B02193 1 6
(115v - 1REQ.)
100 SPRING, BRACKET, VACUUM VALVE, ASSEMBLY 1
101 SPRING, VACUUM VALVE SLIDE RETURN 2
102 HANDLE, ADJUSTABLE D02403 1 6
103 SHAFT, VACUUM VALVE D03356 1
104 CIRCUIT BREAKER, 3 A B02192 1 6
105 OUTLET ASSY, ACCESSORY (OPTIONAL) 80188A 1 6
106 CORD WRAP ASSEMBLY 82408A 1 6
107 CORD ASSEMBLY, HANDLE TO LOWER FRAME 00185-32A 1 6
108 GASKET, HANDLE E03432 1 6
109 COVER PLATE ASSEMBLY 82409A 1 6
110 LOCK NUT (115VAC) B00201 1 6
111 CORD, POWER (115VAC) B00221-2 1 6
112 SWITCH, 10 AMP, 250 FAC 1 6
113 STRAIN RELIEF, POWER CORD (115VAC) B02213 1 7
120 HARNESS, RECTIFIER 00185-29A 1 2
121 RECTIFIER, FISH PAPER ASSEMBLY B02171 1 2
163 RECTIFIER M00843 1 2

Fastracts SC12

Warranty Policy
Limited Warranty
Eagle Power Products (EPP) warrants new cleaning equipment against defects in material and
workmanship under normal use and service to the original purchaser as detailed below.
10 Years
Subject to the conditions stated below, EPP warrants polyethylene tanks and housings to be
free from defects in materials and workmanship for a period of ten years.
3 Years
Subject to the conditions stated below, EPP warrants all automatic scrubber components to
be free from defects in materials and workmanship for a 3-year period. Parts replaced or
repaired are warranted for the remainder of the original warranty period.
1 Year
Subject to the conditions stated below, EPP warrants all other cleaning equipment
components to be free from defects in materials and workmanship for a 1-year period. Parts
replaced or repaired are warranted for the remainder of the original warranty period.
Batteries are prorated for one year.
EPP will furnish and charge for replacement parts, including transportation, to the original
owner through an EPP authorized service center. If the part is returned within 30 days and is
found defective, the owner will be credited for the cost of the replacement part including
shipping and handling.
Labor charges are covered for one year from the date of purchase if provided by an authorized
EPP service center. Travel is covered for 90 days for battery operated equipment only.
Wear items exempt from warranty include belts, carbon brushes, power cords, wheels, pad
drivers, clutch plates, brushes, pads, handle grips, filters, screens, throttle cables, and squeegees.
This warranty shall not apply to failures caused by misuse or abuse, improper
maintenance as stated in the operation manuals, use of unauthorized repair parts, repairs
by other than an EPP authorized service center, and damage in transit.
EPP disclaims and denies any liability for any direct, indirect, special incidental or consequential damage which
may be suffered as a result of sale, delivery, servicing, use, loss of any product, downtime, labor, freight, or other
charges not expressly included herein.
Please be sure to record this information. This information will be necessary for future warranty claims.
Eagle Power Products Sales and Service Provided by:
1174 Northland Drive Mendota Heights, MN 55120
651.686.5399 Fax [phone]
www.eaglepower.com
Serial Number:
Date Purchased:
Model Number:
