eamlab MUSICA D101 User manual

1
Thank’you of purchasing this EamLab product. Who are dedicated to the policy
of creating the highest quality audio components, are proud to introduce. You
can be assured that in preparing this component, every attention was paid in
great detail by our entire staff to strict quality control. This dedication was
followed throughout the wole manufacturing process –from basic research, the
selection of each parts, assembly and testing –so that we could supply a product
with every confidence that it will give full owner satisfaction and pride.
We welcome you to the fast-growning Eam Lab circle of dedicated audio
enthusiasts and true sound lovers.
User manual
MUSICA D101 Dac processor

2
The D101 is substantially the evolution of the dac D101
D101 incorporated a preamplifier for digital source, a very high quality
phones amplifier and a new technology to process and convert the
digital signal
The new output HDCA circuit guarantee wide flat frequency response
with high slew / rate and high crest factor. improvements on the
dynamics of reproduction and micro- contrast are to unprecedented
levels.
The core of operation is chip Sabre ESS 9038 pro, and the D201 can
process signals up DSD 512 and PCM 768Khz.
The power transformer is encapsulated with resin and thus eliminating
any possible variation of the original audio signal which would become
dirty through electromagnetic fields.
The main power capacitors are designed on our tight specifications.
They have a very high temperature coefficient and aluminum armor.
Together with the resistors in the metal film 1% tolerance and the
decoupling capacitors in polypropylene audiograde we obtained
results certainly real.,
Features

3
Contents
2…………….Introduction & features
3…………….Table of contents
4…………….Safety instructions
5…………….Use remote control
6…………….Menu and Submenu on display
8…………….Front pannel instruction
9…………….Connections
10 ……………. Troubleshooting guide
11 …………….USB driver installation
14…………….Datasheet
15…………….guarantee policy

4
1. For best performance, please read
this manual carefully. Keep it in a safe
place for future reference.
2. Install the unit in a cool, dry, clean
place away from windows, heat
sources, intense vibration, dust,
humidity, cold, and sources of
humming (transformers, motors,
etc.).. To prevent fire or shock hazard
do not expose the unit to water and
moisture.
3. Never open the equipment. If
something should get into all 'inside,
contact your dealer.
4. Do not operate the switches and
other controls with force. When
moving the unit, first disconnect the
power cord and cables connected to
other devices. Never pull the wires
themselves.
5. The voltage used must be specified.
Using this product with a current
whose voltage is higher than specified
is dangerous and may cause fire or
other damage. EAM LAB is not
responsible for any damage due to an
incorrect use of the appliance
6. Always set the VOLUME control to
min. before starting playback of the
audio source. Gradually increase the
volume to an appropriate level after
playback has started.
7. Do not clean the unit with chemical
solvents: this could ruin the finish.
Instead, use a soft, dry cloth or
denatured alcohol.
8. In case of malfunction, before
concluding that the unit needs to be
repaired, consult the chapter on
"TROUBLESHOOTING".
9. If you are not using the unit for long
periods of time (eg for a vacation),
disconnect the power plug
10. During thunderstorms, disconnect
the power cord to avoid any lightning
damage the unit.
11. Grounding or Polarization: take
the necessary precautions to ensure
that the grounding or polarization are
not canceled.
Before you start to use read following information
Safety information

5
Unpacking:
Carefully remove from the box your
amplifier and keep the original carton
and packing materials for future trips,
expeditions or long-term storage
Before the installation :
remove your amplifier, taking care to
keep it in the future if you ever
require to be shipped to a service
center EAMLAB to be overhauled or
repaired.
package contents:
Verify that the following acessories
are included in the package:
remote control, power cord and this
manual.
Replacing Batteries
If the remote control only works
when it is near the unit, the
batteries are weak. Replace the
batteries with new ones.
Note
•For replacement use only
batteries model CR3020.
•Make sure the polarity is
correct
•For change battery remove
4 screw in bottom side and
leave the electronic board .
battery are bottom of
printed circuit
Use remote control
The remote control transmits a
directional infrared beam. During
operation, be sure to point the
remote directly at the infrared
sensor.
When the sensor is covered or there
is a large object between the remote
control and the sensor, the sensor is
not receiving the signals. The sensor
may not be able to receive signals
properly when it is exposed to direct
sunlight or strong artificial light (such
as a fluorescent light or a flashing).
In this case, change the direction of
light or reposition the unit to avoid
direct lighting.
Note
• Handle the remote control
carefully.
• Do not spill water or other liquids on
the remote control.
• Do not drop the remote control.
• Do not leave or put away the
remote control in the following
conditions: - High humidity or
temperature such as near a heater, a
stove or a bathroom; _ Dusty; -
Expose to temperatures very low or
very high

6

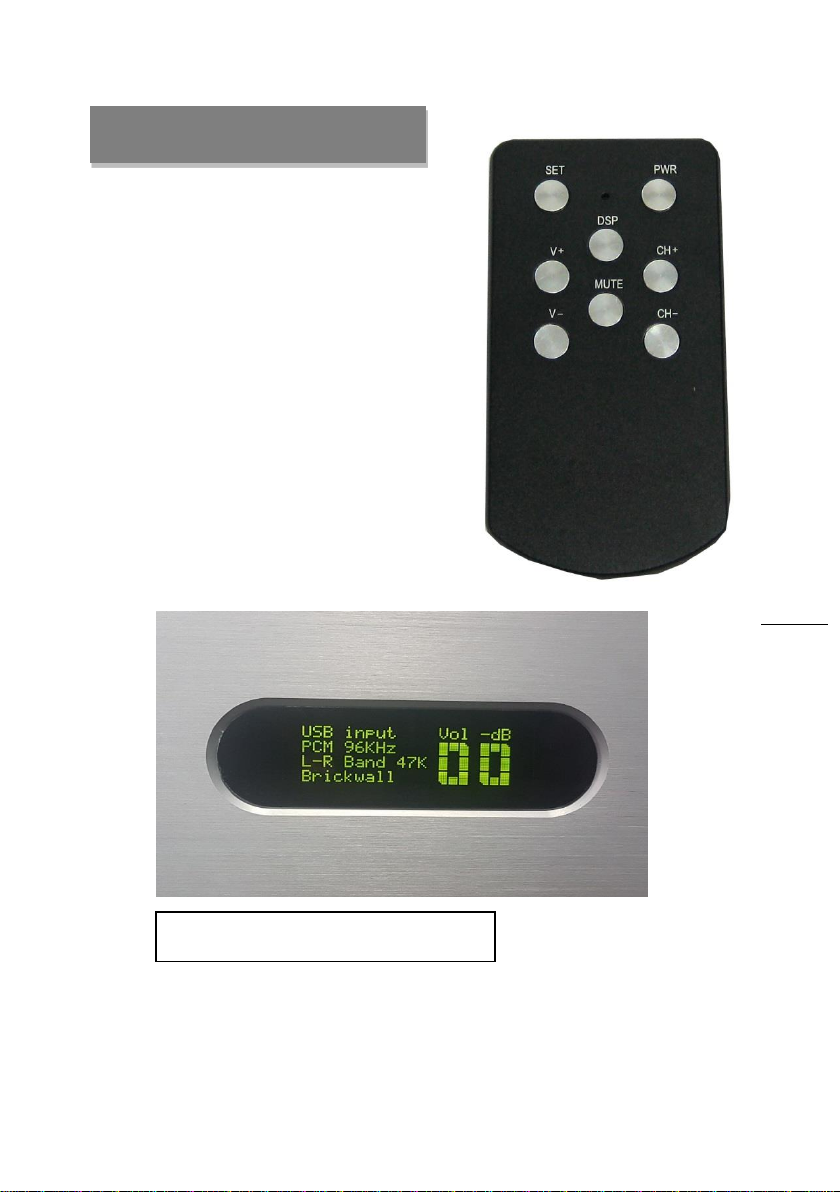

•Set –button for enter in menu
to change filter and band
•Pwr –not use
•DSP –same set button
•V+ increase volume
•V - decrease volume
•Mute –muting signal out
•CH+ / Ch- select input
Remote control function
•CH+/CH- for changing input source,
•V+/V- button for increase or decrease volume
•Mute buttom for muting output signals
In the master menu use button:

7

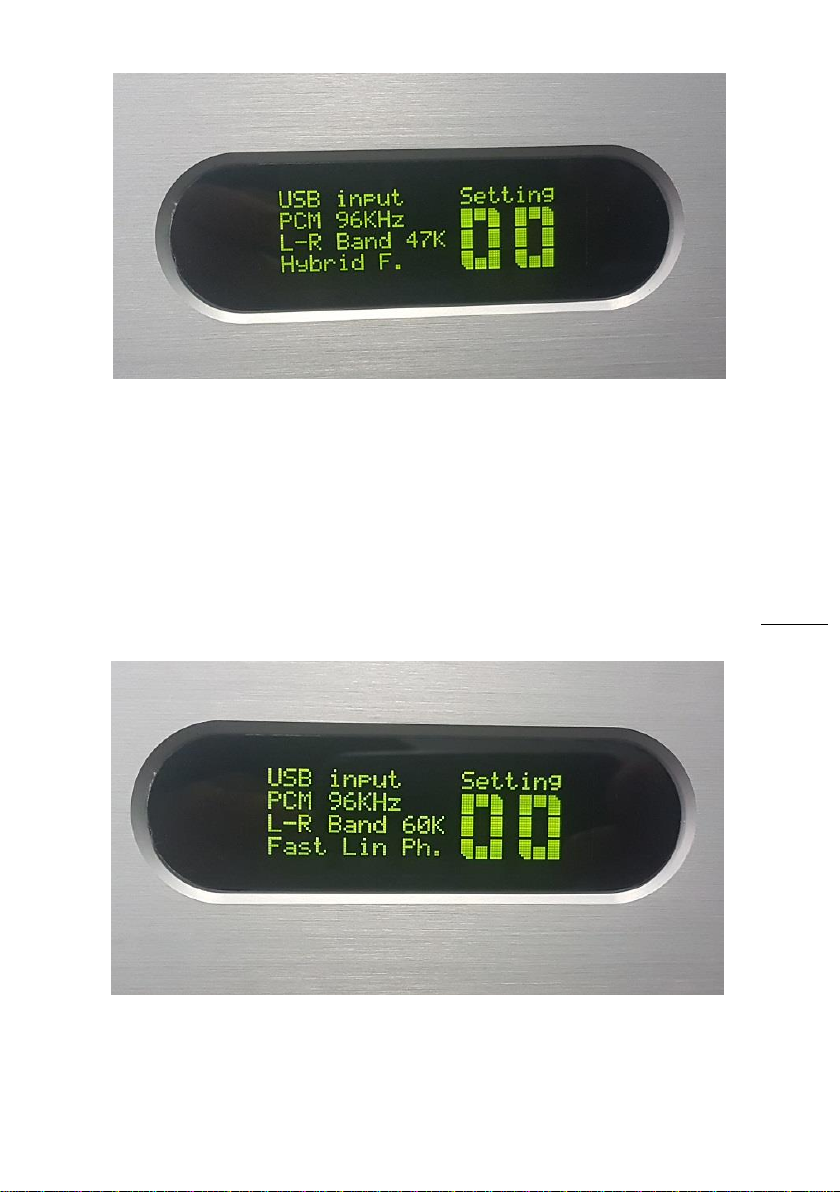

To master menu use DSP or SET button for enter in this menu.
When inside this menu choose button :
•V+ / V- for changing filter : Hybrid , Brickwall, Apodizing F.
•Fast linear Ph. , and more…
•CH+ / CH - for select band to 47K ,50K , 60K , 70K
•Push SET for saving choice and esc to menu

8
Front pannel functions
LEFT encoder
Rotate to select input
source
Push for muting
LEFT encoder
Rotate To increase /decrease
Volume
Push for turn OFF or turn ON

9
•1–trigger signal IN/ OUT
•2 –XLR / RCA output to
connect power amplifier or
preamplifier
•3digital input
•4–Power cord input
•5 –ON/OFF general switch
*- trigger signals use for interconnectig preamplifier and Power amplifier
(with terminated jack cable supplied) when desire turn/off and turn ON
power Amp and Preamp simultaneous with remote control when each
machine are in Stand-by.
**- XLR and RCA output . Is possible use each output to send signal to two
different amplifiers or preamp input Simultaneous if necessary
1
2
2
3
4
5

10
problem
Possible cause
remedy
No power on
The plug on the
power cord is not
connected or is not
fully inserted .
The mains fuse is
blown
Securely connect the
plug or check the fuse
on the rear panel next
to the socket
No sound
Connecting signal
Input or output cables
incorrect
Check the RCA or XLR
cables and / or the
correct connection
sequence of sources
Distorted sound
The source has an
output signal too high
and preamplifier input
is saturated
Turn down the
volume of the source
if it is equipped with
such control
The signal is low
Increase output
volume or check cable
connections
check the correct
position of source
cable
Main fuse is blow
Current overload
replace with identical
fuse. if the fuse blows
again contact service
center
Remote control
do not work
Batteries low or any
objects in front of
receiver
replace batteries or
remove any obstacles
in front of the
infrared receiver
Troubleshooting

12

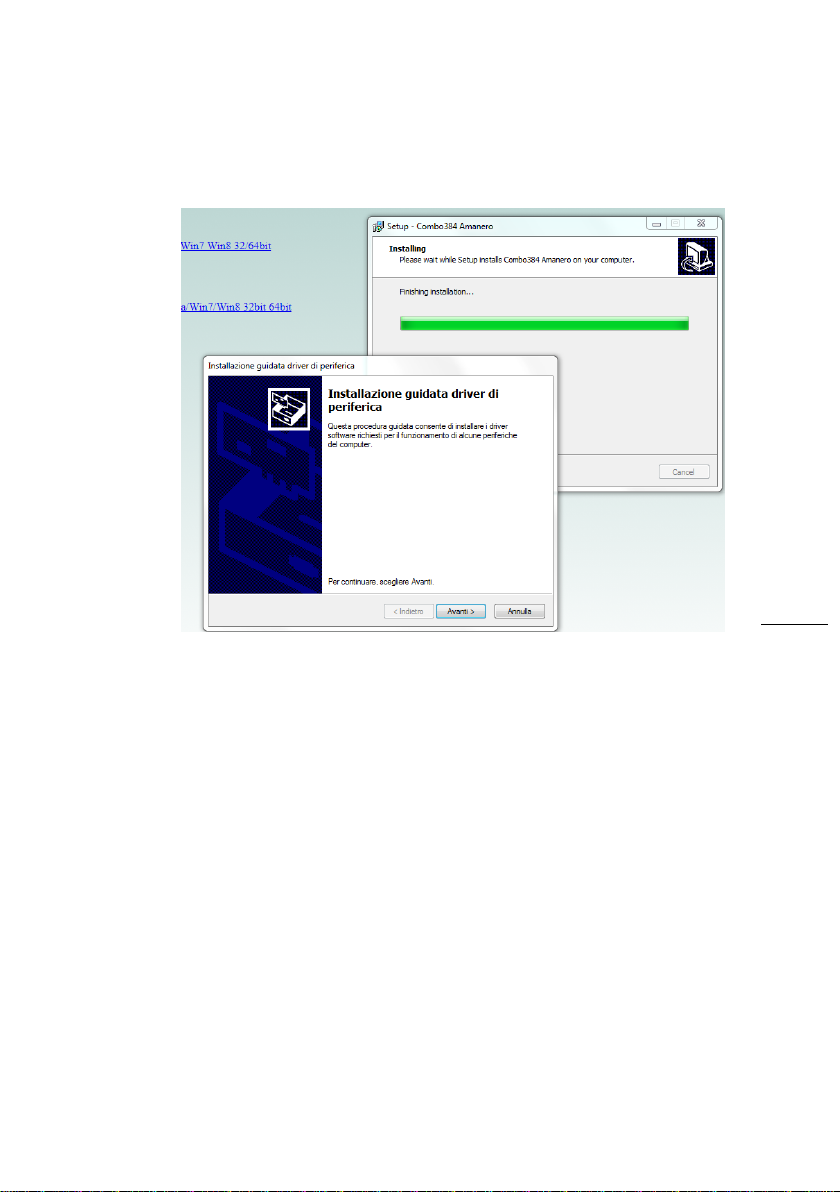

Unzip the file and launch setup.exe
Now click to Install

13
Now click to Avanti
then follow the video instructions to the end and
click finsh
Now Amanero drivers has ben istalled in your
computer
Important :! Next step is choice Amanero ouput
device in your music player system ( foobar or
other)

14
D201 Datasheet
Input
1 USB
1 optical
1 coax via RCA
1 AES/EBU via xlr
Output
1 stereo Male XLR balanced
1 stereo RCA single ended
Preamp section output Voltage
XLR 3.8V rms
RCA 2.8V rms
Phones ouput
3 W@ 32ohm
0,8W @ 300 ohm
Output impedance XLR
< 1 ohm
Output impedance RCA
<=50 ohm
Frequency response ouput
interface , xlr & RCA
5 hz to 80 Khz +/- 0.3db
80Khz to 150Khz +/- 2db
Trigger IN / OUT
IN to 5 -20V
OUT 12V
THD
0.005%
Signal to noise ratio
>115 Db
Idle current
400mA @ 230Vac

15
How to expedite service
Return Authorization Procedure
If you believe there is a problem with your
component, please contact your dealer,
distributor, or the EamLab factory to discuss
the problem before you return the
component for repair. To expedite service,
you may wish to complete and e-mail the
Service Request Form in the Service section
of our website at:
www.eamlab.com
To contact EamLab service
Tel. +39 0331 537078
MAIL : info@eamlab.com
Website : www.eamlab.com
How to return a product
To return a product to EAMLAB, please follow this procedure so that we may
serve you better: 1. Obtain a Return Authorization Number (R/A number) and
shipping address from the Eamlab Service Department. 2. Insure and accept
all liability for loss or damage to the product during shipment to the Eamlab
factory and ensure all freight (shipping) charges are prepaid. The product may
also be hand delivered if arrangements with the Service Department have
been made in advance. Proof of purchase will be required for warranty
validation at the time of hand delivery

16
Manuale d’uso
MUSICA D101 Dac processore
Grazie per aver acquistato questo prodotto EamLab. Chi si dedica alla politica di
creazione di componenti audio di altissima qualità, è orgoglioso di presentare. Si
può essere certi che nella preparazione di questo componente, ogni attenzione
è stata prestata in modo dettagliato da tutto il nostro personale a un rigoroso
controllo di qualità. Questa dedizione è stata seguita in tutto il processo di
fabbricazione della wole - dalla ricerca di base, alla selezione di ciascuna parte,
all'assemblaggio e ai test - in modo da poter fornire un prodotto con la piena
fiducia che esso darà piena soddisfazione e orgoglio al proprietario.
Ti diamo il benvenuto nella cerchia di Eam Lab, una generazione di appassionati
di audio e di veri amanti del suono.

17
Caratteristiche
La D101 è sostanzialmente l'evoluzione del dac D101
D101 ha incorporato un preamplificatore per la sorgente digitale, un
amplificatore per telefoni di altissima qualità e una nuova tecnologia
per elaborare e convertire il segnale digitale
Il nuovo circuito di uscita HDCA garantisce un'ampia risposta in
frequenza piatta con alto slew / rate e alto fattore di cresta. i
miglioramenti delle dinamiche di riproduzione e micro-contrasto sono
a livelli senza precedenti.

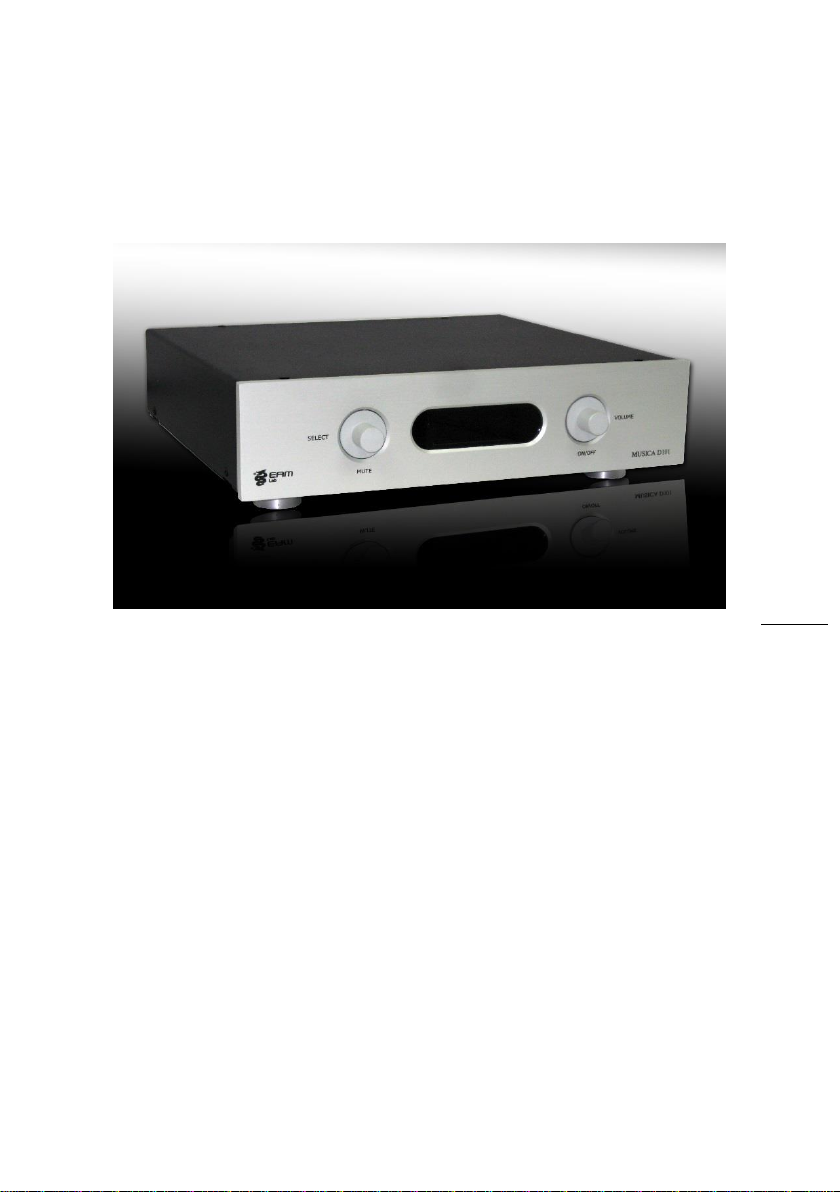

Il fulcro dell'operazione è il chip Sabre ESS 9038 pro, mentre il D201
può elaborare i segnali su DSD 512 e PCM 768Khz.
Il trasformatore di potenza è incapsulato con resina e quindi elimina
ogni possibile variazione del segnale audio originale che si
sporcherebbe attraverso i campi elettromagnetici.
I principali condensatori di potenza sono progettati secondo le nostre
specifiche severe. Hanno un coefficiente di temperatura molto alto e
armature di alluminio. Insieme ai resistori nel film metallico tolleranza
1% e i condensatori di disaccoppiamento in polipropilene audiograde
abbiamo ottenuto risultati sicuramente reali.

18
Indice
7 ................ Introduzione e caratteristiche
8 ................ Tabella dei contenuti
9 ................ Istruzioni di sicurezza
10 ................ Usa il telecomando
11 ................ Menu e sottomenu sul display
12 ................ Istruzioni per il pannello frontale
13 ............... .Connessione
14 ................ Guida alla risoluzione dei problemi
15 ................ Installazione driver USB
14 ............... Caratteristiche
15 ................ Politica di garanzia

19
Prima di iniziare a utilizzare leggi le seguenti
informazioni
Informazioni sulla sicurezza
1. Per ottenere prestazioni ottimali,
leggere attentamente questo
manuale. Conservalo in un luogo
sicuro per riferimenti futuri.
2. Installare l'unità in un luogo fresco,
asciutto e pulito lontano da finestre,
fonti di calore, vibrazioni intense,
polvere, umidità, freddo e fonti di
ronzio (trasformatori, motori, ecc.).
Per prevenire il rischio di incendi o
scosse elettriche non esporre l'unità
all'acqua e all'umidità.
3. Non aprire mai l'apparecchiatura.
Se qualcosa dovesse entrare dentro,
contatta il tuo rivenditore.
4. Non utilizzare gli interruttori e gli
altri comandi con forza. Quando si
sposta l'unità, innanzitutto scollegare
il cavo di alimentazione e i cavi
collegati ad altri dispositivi. Non tirare
mai i fili stessi.
5. La tensione utilizzata deve essere
specificata.
L'uso di questo prodotto con una
corrente la cui tensione è superiore a
quella specificata è pericoloso e può
causare incendi o altri danni. EAM LAB
non è responsabile per eventuali
6. Impostare sempre il controllo
VOLUME su min. prima di avviare la
riproduzione della sorgente audio.
Aumentare gradualmente il volume a
un livello appropriato dopo l'avvio
della riproduzione.
7. Non pulire l'unità con solventi
chimici: ciò potrebbe rovinare la
finitura. Utilizzare invece un panno
morbido e asciutto o alcool
denaturato.
8. In caso di malfunzionamento, prima
di concludere che l'unità deve essere
riparata, consultare il capitolo
"RISOLUZIONE DEI PROBLEMI".
9. Se non si utilizza l'unità per lunghi
periodi di tempo (ad esempio per una
vacanza), scollegare la spina di
alimentazione
10. Durante i temporali, scollegare il
cavo di alimentazione per evitare che
il fulmine danneggi l'unità.
11. Messa a terra o polarizzazione:
adottare le necessarie precauzioni per
garantire che la messa a terra o la
polarizzazione non vengano
annullate.

20
Apertura della confezione:
Rimuovere con cautela dalla
confezione l'amplificatore e
conservare il cartone originale e il
materiale di imballaggio per viaggi,
spedizioni o conservazione a lungo
termine
Prima dell'installazione:
rimuovere l'amplificatore, avendo
cura di mantenerlo in futuro se si
richiede di essere spedito a un centro
di assistenza EAMLAB per essere
revisionato o riparato.
Contenuto del pacco:
Verificare che i seguenti acessori
siano inclusi nel pacchetto:
telecomando, cavo di alimentazione e
questo manuale.
Se il telecomando funziona solo
quando è vicino all'unità, le batterie
sono deboli. Sostituire le batterie
con quelle nuove.
Nota:
• Per la sostituzione utilizzare solo
batterie modello CR3020.
• Assicurarsi che la polarità sia
corretta
• Per sostituire la batteria,
rimuovere le 4 viti sul lato inferiore
e lasciare la scheda elettronica. la
batteria è sul fondo del circuito
stampato
Utilizzare il telecomando
Il telecomando trasmette un raggio
infrarosso direzionale. Durante il
funzionamento, assicurarsi di puntare
il telecomando direttamente sul
sensore a infrarossi. Quando il
sensore è coperto o c'è un oggetto di
grandi dimensioni tra il telecomando
e il sensore, il sensore non riceve i
segnali. Il sensore potrebbe non
essere in grado di ricevere
correttamente i segnali quando è
esposto alla luce diretta del sole o ad
una forte luce artificiale (come una
luce fluorescente o un
lampeggiamento).
In questo caso, cambiare la direzione
della luce o riposizionare l'unità per
evitare l'illuminazione diretta.
Nota
•Maneggiare il telecomando con
cura.
• Non versare acqua o altri liquidi sul
telecomando.
•Non lasciare cadere il telecomando.
•Non lasciare o riporre il
telecomando nelle seguenti
condizioni: - Umidità o temperatura
elevate, ad esempio vicino a
caloriferi, fornelli o bagni; _ Dusty; -
Esporre a temperature molto basse o
molto alte.
Table of contents
Languages:
