Eanmay ST-VGT User manual

TCP/IP&GSM
Home Alarm Control Panel
Instruction Manual
ST-VGT

Brief 1
Chapter I Product Introduction 2
Chapter II Installation and Connection 5
2.1 Box Included 5
2.2 Installation For the Alarm Control Panel 5
2.3 Connection( The wired zones support N.O. N.C detectors) 6
2.4 Install wired detector 6
2.5 Install wireless detector 7
Chapter III Key description and Basic operation 7
3.1 Key description 7
3.2 Basic operation 9
3.3 LCD Icon 10
3.4 System Arm And Disarm Operation 12
3.5 Alarm Procedure 14
Chapter IV Voice Alarm Receiving And GSM Control 15
4.1 Remote Phone Control 15
4.2 Alarm receiving phone operation 15
4.3 GSM remote operation 16
4.4 GSM Alarm Receiving 17
4.5 GSM control via SMS 17
Chapter V User Settings 18
5.1 Set System Clock 18
5.2 Set User Password 18
5.3 Set Voice Phone 18
Chapter VI System Settings 19
6.1 Set Password 19
6.2 Set Network 20
6.3 Set CMS NO. 21
6.4 Set Voice Phone 23
6.5 Set System Option 24
6.5.1 set system clock. 24

6.5.2 set entry delay 24
6.5.3 set exit delay 25
6.5.4 set siren time 25
6.5.5 set detector loss inspection 25
6.5.6 set arm/disarm tone 26
6.5.7 set arm/disarm report 26
6.5.8 set emergency alarm siren type 27
6.5.9 set others 27
6.5.9.1 set force alarm 27
6.5.9.2 set AC off inspection time 28
6.5.9.3 enable magnetic contact inspection 28
6.5.9.4 check wireless detector tamper 28
6.5.9.5 set zone alarm times 29
6.5.9.6 set listen-in time 29
6.6 Set Wireless Device 29
6.6.1 set remote controller 30
6.6.1.1 enroll remote controller 30
6.6.1.2 enter remote control code 30
6.6.1.3 delete remote controller 31
6.6.2 set detectors 31
6.6.2.1 detector coding 31
6.6.2.2 enter the detector code 31
6.6.2.3 delete detector 32
6.6.3 set RFID tags 32
6.6.3.1 RFID tag enrolling 32
6.6.3.2 RFID tag delete 33
6.6.4 set appliance switch 33
6.6.4.1 enroll appliance switch 33
6.6.4.2 delete appliance switch 33
6.6.5 enroll wireless siren 34
6.6.5.1 enroll wireless siren 34

6.6.5.2 delete wireless siren 35
6.6.6 set door bell 35
6.6.6.1 enroll door bell 35
6.6.6.2 delete door bell 36
6.7 Set Zone 36
6.7.1 set zone attribution 36
6.7.2 set zone siren type 37
6.7.3 set related zone 38
6.7.4 set RFID tag function 39
6.8 System Maintenance 39
6.8.1 set timing arm/disarm 39
6.8.2 recording 40
6.8.3 play recording 40
6.8.4 set programmable output port 40
6.8.5 delete system log 41
6.8.6 restore to factory fault 41
6.9 Advanced Setting Options 42
6.9.1 GSM message language 44
6.9.2 boot voice volume 44
6.9.3 LCD standby lightness 44
6.9.4 CMS Heartbeat Time Settings 44
6.9.5 GSM SPK 45
6.9.6 GSM MIC 45
6.9.7 door bell voice options 45
6.9.8 web port setting 45
6.9.9 alarm network receiving center connection 46
Chapter VII Web IE Introduction 47
7.1 Remote Control 48
7.2 Password Setting 49
7.3 CMS Setting 49
7.4 Network Setting 51

7.5 System Options 51
7.6 Voice Phone 52
7.7 Wireless Device 53
7.8 Zone Setting 53
7.9 RFID Setting 54
7.10 Event Log 55
7.11 Remote Upgrade 56
7.12 System Reboot 58
7.13 Alert Setting 58
7.14 Email Setting 59
7.15 Time Setting 59
7.16 Home Automation 60
Chapter VIII Mobile APP Management 61
8.1 enter into the app 62
8.1.1 local account 62
8.1.2 Platform account 64
8.2 zone bypass control 65
8.3 log events 65
8.4 Function settings 66
Chapter VXI Technical Specification 68
Chapter VXII Maintenance 69
10.1 Regular Test 69
10.2 The Cleanliness of Control Main Machine 69
Chapter VXIII Limitation of the Products 69

1
Brief
Thank you for purchasing the “smart home” products of our company, we hope our
products can bring convenience and and protection for your safety!
The “smart home” system uses the most advanced digital sensing and control
technology, it is a set of smart alarm control system of anti-theft,anti-fire, and
anti-gas leak compatible with wired and wireless alarm. This product is easy to
operate and easy to learn with voice indication all around the operation , complicated
orders are not needed.
The “smart home ”system recommends the most advanced multi-random vault
technology in safety and reliability, which effectively solve the problem of
interference, false positives, false negatives that cannot be solved by similar system
at present .The way the “smart home ” system uses in the alarm signal on the
common high-speed way CONTACT ID makes application of this series of products
wider and compatibility stronger. The system can be widely used in
family ,community,villas,shops,units and so on.
We recommend that you carefully read the instruction to facilitate you for a skilled
operation and use to the product, so the product can better serve you.
We will not notice if there is a change of product performance, if you want to
know the latest features,please contact with the relevant business.

2
Chapter I Product Introduction
1. Alarm mode: with Internet Network and GSM network alarm, GSM network with
GPRS function, remote arm and disarm panel through CMS or SMS. CID protocol,
SMS notification, the priority of Internet Network and GSM Network is Optional.
2. With a new large-screen, full-touch buttons, LCD graphic display steps, work
status, Alarm process easy and intuitive.
3. The full English voice prompting operation: all local or remote operation, alarm
information, event log view.
4. GSM-hook and voice telephone with intercom function.
5. All alarm information can be programmed by 16 ways. Please refer to manual 6.9
6.Sleep mode design,in sleep mode status, all the lights, LCD Back light, voice and
prompt tone are disabled.
7.Alarm panel under idle status is equivalent to a cellphone, you can call through the
GSM network for balance cost inquiries.
8.With associated zones, 8 groups associated zone, 2 kinds of association patterns,
can effectively reduce false alarm or for other functions.
9.PGM output: With a programmed output port, followed by 5 kinds of alarm events
output.
10.The doorbell Audio Optional: 1. Ding Dong 2 Welcome.
11.Remote phone operation:dialing by telephone offsite, after password verification,
you can arm, disarm, listen-in premise, system status query and electrical switches
controls and other operations.
12.Voice Alarm: When panel alarm, it will automatically dial the preset user phone
numbers to report alarm information then you can remote control the panel after
enter user passwords.
13. 32 wireless zones, each wireless zone can automatically learn the codes or be
coded manually via the keyboard and web operation.
14. 8 wired zones, User can set the circuit type and speed of response, support N.O,
N.C.

3
15. Enable enroll total 8 wireless remote, 16 electronic switch, 1 wireless doorbell
and unlimited for quantity of one way wireless siren, 1 wireless two way siren, 16
RFID tags.
16. 6 follow me phone#(voice alarm receiving phone#), 2 for CMS, 4 for private
alarm receiving.
17. Status inspection functions: enable record and inquiry 512 alarm event
messages. Like the time when happens anti-tamper alarm, detector alarm, tel-line
off, arm, disarm, system setting, battery low voltage ect. And also can inquiry the
zone number and alarm type.
18. Timing arm and disarm: 4 sets of timing arm and disarm time.
19. Electrical switches control: User can remote switch on/off via phone or SMS,
also can be controlled manually through the local alarm panel.
20. Zone programmable: factory preset for each zone type. Users can modify all the
zone type according to the actual needs .
21. Clock: Built-in full automatic calendar clock, set to local time consistent.
22. Password access management: the panel has one administrator password 16
user password, The administrator password primarily for system administrators to
set up the alarm system; The user passwords for users in the day-to-day use such
arm/ disarm, remote operation. The administrator password, user password can be
freely modified.
23. For CMS networking alarm, depending on the number of users, the user can set
four user codes(account number).
24. Zone type identification:After an alarm is triggered, the alarm zone number
displayed on the LCD screen of the panel, also can send the detailed report to CMS
which includes alarm locations and zone types.
25.Al-proof function :if try to cut off the wire between wired detector and panel or cut
off the tel line which.
26.The tampering alarm: cut the cable between wired detectors and the panel will
trigger alarm,
27. Anti-tamper function: When someone deliberately dismantled the panel, it will

4
alarm when triggering tamper switch at the back of the panel.
28. CMS communications test: The panel will send a message to CMS at the pre-set
time interval to inspect the communication if normal.
29. Siren options:
Built-in siren, external wired siren, Wireless siren. All sirens can be programmed as
enabled/disable when alarms.
30. The voice speaker volume adjustment: total 8 level,adjust the volume by a panel
arrow keys.
31. Wireless repeater function: can extend the distance between the detector and
the panel by adding a wireless repeater of our company.
32. The wireless detector low battery prompted:
Detectors will send status report to the panel every 1-3 hours, the corresponding
zone number and the battery voltage symbol will be displayed on the LCD screen
and also will report to CMS.

5
Chapter II Installation and Connection

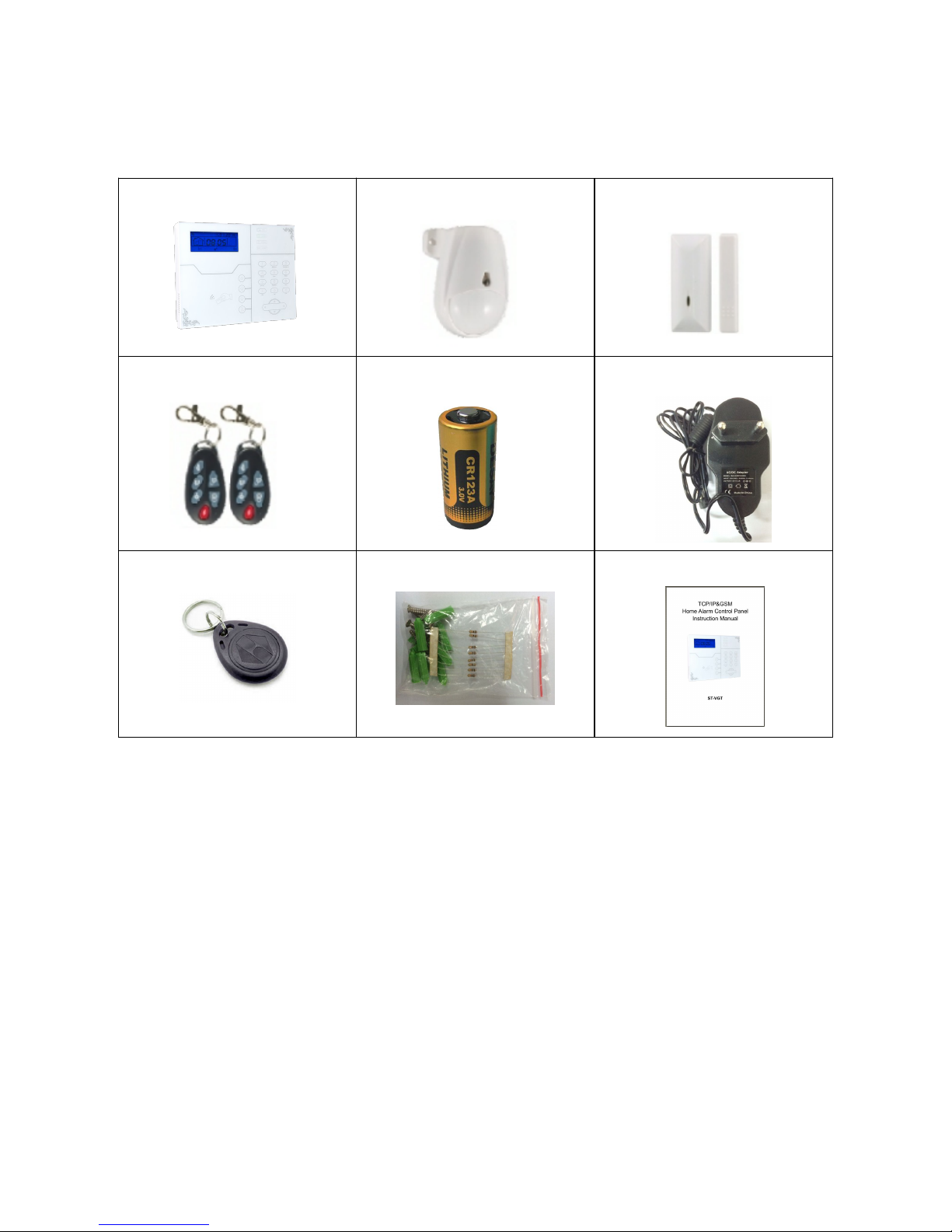

2.1 Box Included
Alarm Control Panel*1pc
Wireless PIR Detector*1pc
Wireless Door Sensor*1pc
Remote Controller*2pcs
Battery CR123A*2pcs
Power Plug 15/2A
RFID Tag*2pcs
Components Bag
Instruction Manual
2.2 Installation For the Alarm Control Panel
1.Fix the bracket to the wall and hang the panel to the bracket
2.The large metal objects can not be placed around the panel, so as not to affect the
wireless signal.
3.Make sure to place the panel within the wireless range of all wireless accessories
and pay attention to the hidden.

6
2.3 Connection( The wired zones support N.O. N.C detectors)
As pictures
Here only introduce the zone 33, 34, 37, 38. The other zones please refer to the
above.
2.4 Install wired detector
2.4.1 The wired zones is disabled as factory default. when to use wired zones
please enable the zones firstly. When wired zones is in trouble, the panel will voice
prompt "operation failed, Zone trouble” if users try to arm the panel. The zone
number will be also display on the LCD screen. At this time arm system is not
allowed unless you force arm.
2.4.2 The control pane can power 15V, 100mA to detectors. The max current is
100mA. Do not exceed 100mA, otherwise please use extra power supply.

7
2.5 Install wireless detector
2.5.1 As the detector ‘s manual says, install coded detector in the area 150m from
the control panel. Please make the walk testing and make sure detector can work
with control panel normally.
2.5.2 Wireless repeater function: (product item No.PB-205R) when wireless detector
is too far from the panel or some wall blocked up between panel and detector which
disable the panel receive the signal from wireless detector. Now you can choose the
repeater to make wireless repeater to achieve wireless signal relay transmitting.
Chapter III Key description and Basic operation
3.1 Key Description

8
Light on under armed status, light flashes under stay status
Light on under disarmed status
Light flashes under AC loss, Zone faulty.
Long light under normal working( without any zone faulty)
Light flashes when alarm
Arm
Home Arm
Disarm
Inquiry
Arrow keys( page down, page up, previous,confirm)
Up and down button can adjust the voice volume
RFID card
Press 3 seconds to trigger fire alarm
Press 3 seconds for medical help
Press 3 seconds for SOS
Press 3 seconds and enter user code to enable or disable delay
zone door bell
Press 3 seconds then enter user code to enable or disable PGM
output

9
Press 3 seconds to enter or exit sleep mode
Press 3 seconds then enter user code to enable or disable
electrical power switch
Press 3 seconds then enter user code to bypass zones or activate
zones
Press 3 seconds then enter user code to proceed normal testing,
siren testing and walk testing
Press 0 for 3 seconds to make phone call through GSM, the talk
time up to approximately 240 seconds
Previous button
Confirm button
Sleep mode: all led indicators, back light, voice, remind tone will be disabled under
sleep mode, The panel will exit sleep mode automatically when users enter system
setting or when alarm occurs.
Bypass zone: bypassed zones means zones disabled. Bypass zones will be
canceled when users disarm systems under home armed or armed status.
Communication test: To test the communication between the panel and the CMS if
normal
Siren test: to test if siren working normal
Walk test: to test if the detectors are working normally with the panel and alarm
3.2 Basic operation
Admin password
(factory default)
012345
User 01 password
(factory default)
1234

10
User 02-16
Blank (can not enter the user setting)
Disarm
User password [1234 ]+Disarm
Home Arm
Press home arm key
Arm
Press arm key
Event log
Inquiry Key
Shutdown
operation
Press * and hold for more than 3 seconds+user password
[1234] (AC power-off status)
Enter system
operation
Press * and hold for more than 3 seconds + admin password
[012345]
Enter user setting
Press * and hold for more than 3 seconds + user No. 01
password [1234]
Zone inspection
Within 1 minutes of panel system power up, do not inspect
wired zones.
Password reset
Enter 000000 to enter system setting menu within 1 minute of
panel power up
3.3 LCD Icon
Icon
Meaning
Icon
Meaning
GSM signal
GSM enabled
Internet web
Home Arm
Detector low
battery
Disarm
System low battery
Arm
Alarm
Enable GPRS
Voice prompt

11
flashes when internet loss, light on when internet is normal
Flashes when GSM not ready, light on when GSM is normal
flashes when GPRS or internet disconnected with CMS, light on when
GPRS is connected with CMS.
flashes under sleep mode, light on under normal working mode.
Zone 5 Alarm
Zone 5 detector lost
Zone 5 trouble
Zone 5 low battery
Zone 5 bypass
Note:
The alarm zone number will still be displayed on LCD screen after first disarm when
alarm occurs, returned to normal screen display only users disarm twice.

12
3.4 System Arm And Disarm Operation
Press the arm key on remote or the
keypad, then you hear system armed,
please exit the protection area there will
be Di-Di sound to confirm the system is
armed successfully.
Press the disarm key on the remote or
enter your user password on the
keypad,then you will hear Di-Di and
voice ‘system disarmed’, then you have
disarm successfully.
Press the key for home arm on the
remote or HOME key on the
keypad,then you will hear ‘system stay’
and it display home arm icon on the LCD
screen.
Press the panic button on remote, or
press 3 key on panel for 3 seconds,it will
trigger to alarm.

13
Note:
Above operation is arm/disarm by the remote controller.
If user receive the SMS from the mobile.it will indicate the code first as below.
Different way to arm/disarm, the CMS alarm center and SMS will display the below
code and let you know which ways to arm/disarm the system.
40-47
The alarm system can work with 8 remote controller. If you use the
remote controller to arm/disarm the system, you will get the code from 40
to 47.
01-16
If user arm/disarm the panel by the password from the keyboard. Code
from 01-16. The alarm system can set 16 user password.
50-54
If user arm/disarm the panel by the voice phone. Code from 50-54.
60
If user arm/disarm the panel through the CMS software platform, code
only have 60.
80-81
Timing arm/disarm or Key zone, code from 80 to 81.
20-39
Using the RFID tag to arm/disarm, code from 20 to 39.
70
Using web IP address to program, code only have 70.
90
Unknown control to arm/disarm show 90.
Example:
If user arm/disarm the panel system by the remote controller failure. The
SMS indicate the 8pcs remote controller of corresponding code from 40 to
47.
If user receive above message, It means the first remote controller to remote arm the
system failure.
Mobile SMS:
Security system to remind you:
User 40 system arm failure

14
3.5 Alarm Procedure

15
Chapter IV Voice Alarm Receiving And GSM Control
4.1 Remote Phone Control
User make phone call to the GSM No. Of the alarm control panel. Directly connect to
the alarm control panel, according to the voice prompt to input the password as
below photo.
1.Dial the GSM No. Of the
alarm control panel.
2.The alarm control panel
auto off-hook
3.Please enter password
1234(default factory)
Press 1 to arm system
Press 2 to disarm system
Press 3 to Stay arm
Press 4 to check system
status
Press 5 to appliance
switch control
Press 6 to control PGM
Press0 to disconnect
4.2 Alarm receiving phone operation
When alarm, the panel will dial the pre-set voice phone number, when the user pick
up the call, they will hear the voice prompting as below, if not press 1 to cancel the
alarm or press 4 to disarm the system, after off-hook, the panel will call other preset
voice phone numbers .
