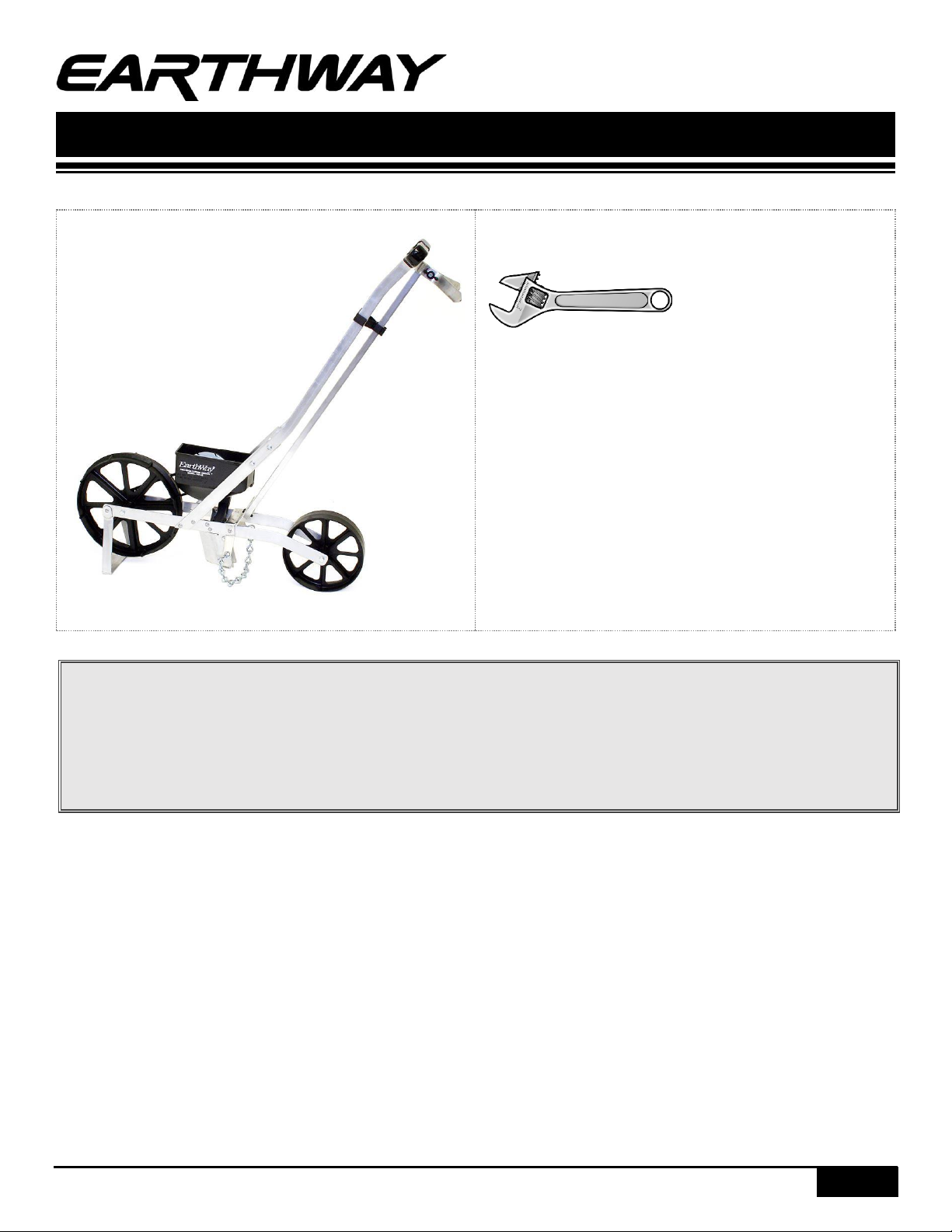

Earth Way 1001-B User manual

Precision Garden Seeder
MODEL # 1001-B ASSEMBLY INSTRUCTIONS
Earthway_1001-B Manual_v1 PAGE 1
Prior to assembly, you will need the following tools:
Adjustable wrench or ½″ box wrench
HELPFUL HINTS
Read the directions before assembly.
This seeder comes partially assembled, requiring you to install the wheels, handle assembly and row marker.
Assembly time is approximately 15 minutes with basic hand tools.
Clean and dry your seeder thoroughly after each use.

Assembly and Operation Instructions
Earthway_1001-B Manual_v1 PAGE 2
Assembly Steps
REAR WHEEL
Step 1: Lower kick stand at front to hold planter
upright.
Step 2: Remove nut, bolt, and axle (22, 18, & 25) from
frame.
Step 3: Insert axle through rear wheel (17), place
between frame, and line up with holes in end of frame.
Step 4: Reinstall bolt and nut (18 & 22), and tighten.
HANDLE
Step 1: Remove nuts and bolts from Plastic Bag.
(These are special lock nuts. A wrench will be required to
remove and install them).
Step 2: Bolt handle (8) in place using bolt & nut (13 &
14) as shown in Figure 1, Page 3 for illustration.
Step 3: Install the Row Marker Retainer Clip (10) from
the front to the back and press into place in the holes on
the handle.
ROW MARKER
Step 1: Place row marker shaft (1) in front of row
marker bracket and line up holes.
Step 2: Insert clevis pin (7) through row marker shaft
(1) and row marker bracket, and insert hair pin clip (6)
through clevis pin. When not in use, secure the row
marker shaft to the Handle Bracket w/Clip (10) to hold in
place.
Step 3: A cord may be tied to the Handle Bracket
w/Clip(10) and row marker shaft (1) for lowering and
raising the row marker.

Assembly and Operation Instructions
Earthway_1001-B Manual_v1 PAGE 3
CUSTOMER SERVICE
574.848.7941 | [e-mail] | www.EARTHWAY.com | 1009 Maple Street, Bristol, IN 46507
ONE YEAR WARRANTY
EarthWay Products, Inc. warrants this product free of defects in original workmanship and materials for a period of one year to the
end user with the original purchase receipt. If a manufacturing non-conformance is found, EarthWay Products, Inc. at its discretion
will repair or replace the part(s)/product at no charge provided the failure is not the result of incorrect installation, mishandling,
misuse, tampering, or normal wear and tear as determined by EarthWay.
EarthWay at its discretion may require that the part(s) or product be returned along with the original purchase receipt for
examination and compliance with the terms of this warranty. Do not return any product without first receiving authorization from
EarthWay Products, Inc.
To seek remedy under this warranty, contact EarthWay Products, Inc. at 574-848-7491, [e-mail] or write to
EarthWay Products, Inc. 1009 Maple Street, Bristol, IN 46507 and describe the nature of the manufacturing defect. SPECIFIC
LIMITATIONS: This warranty covers only the part(s) or product; any labor charges associated with repair or replacement of
non-conformances are specifically excluded. Due to the corrosive nature of most fertilizers and ice melt products, EarthWay
Products, Inc. makes no warranty against and specifically excludes part(s) or product degradation or failure due to corrosion or
its effects.

Assembly and Operation Instructions
Earthway_1001-B Manual_v1 PAGE 4
OPERATING INSTRUCTIONS
1. You will find one seed plate in place in the hopper, the
rest in the box.
A. To remove the plate, hold pulley (12) and belt (11)
stationary with one hand and rotate the seed
plate approximately 1/2” in the “OFF” direction as
indicated by an arrow on the seed plate.
B. Push the seed plate off the hub through the hole
just above the pulley. It will slip off easily.
2. To select the desired seed plate, see the SEED PLATE
GUIDE if the seed is of similar size and shape as those
listed. It is best to experiment before planting. If more
distance is desired between seeds, place a piece of
masking tape over, or fill with bees wax every other
hole or as required in the seed plate.
3. To install the desired seed plate, hold the seed plate
at an angle with the bottom against the straight wall
in the seed hopper. Line up the slots against the inside
of the seed hopper and rotate it approximately 1/2” in
the “ON” direction as indicated by the arrow on top of
the hopper until the cam action locks the seed plate in
place on the hub. Do not force. OFF or ON directions
are also indicated on the seed plates.
4. Pour seeds in the seed hopper. CAUTION: Do not fill
the hopper above the center of the seed plate. NOTE: All the seed, especially small seed, will not be picked up by the
plates leaving a small amount in the bottom of the hopper. Tilt the seeder to the right as you move down the row to
help remove most of the seed if required.
5. Next set the adjustable planting depth with the wedge-shaped ground opener (27) located directly under the
hopper. NOTE: There are graduations in both inches and millimeters on the front angles of the seed chute. Move
ground opener until top edge is in line with desired planting depth. Retighten wing nut after adjustment is made.
Check the depth by moving the seeder forward a few inches in soft soil, readjust if necessary.
6. Mark out the first row with string and stakes. Lower the row marker shaft and adjust the row marker to the proper
width for the next row. Lift the kick stand over the Front wheel. Be sure the cover chain (16) follows behind the
ground opener. You are now ready to plant.
7. To empty any remaining seeds, lower the kick stand and tip the seeder forward until all seeds are removed. NOTE:
When changing seed plates, be sure the seed hopper is completely empty.
NOTICE: Keep your seed hopper clean and free from dust, sand, dirt and seed treating materials.
MAINTENANCE
You will find one seed plate in place in the hopper, the rest in the box.
1. Any accumulation of dust, dirt, or residue from chemically treated seeds in the seed hopper should be wiped out
with a cloth after each use. A buildup of dirt may cause the seed plate to stick and seeds to pop out.
2. Under certain conditions static electricity may build up on the seed hopper and interfere with planting fine seeds. If
this situation should occur, wash the seed hopper and the seed plate with a mild dish washing detergent, and allow
to dry.

Assembly and Operation Instructions
Earthway_1001-B Manual_v1 PAGE 5

Assembly and Operation Instructions
Earthway_1001-B Manual_v1 PAGE 6
HOW TO ORDER SPARE PARTS
All spare parts listed herein may be ordered direct from the manufacturer. Be sure to give the following information
when ordering.
Model Number
Part Number
Part Description
You can contact us by calling [phone] to place an order with a credit card, or purchase online at
https://www.earthway.com/product-category/parts/ Questions? Email us at mailto:[e-mail]

Assembly and Operation Instructions
Earthway_1001-B Manual_v1 PAGE 7
1001-B Precision Garden Seeder Parts List
KEY #
PART #
DESCRIPTION
KEY #
PART #
DESCRIPTION
PART #
DESCRIPTION
1
22606
ROW MARKER SHAFT
(1001-B)
18
31102
5/16-18 X 4 1/4" HHCS ZINC
18100
SWEET CORN SEED PLATE
2
41228
ROW MARKER (1001-B)
19
31101
1/4-20 X 3/4" HHMS ZINC
18101
RADISH SEED PLATE
3
60027
WING NUT ASS'Y BLACK
20
31100
1/4-20 X 1 1/2 HHMS ZINC
18102
CARROT SEED PLATE
4
37100
1/4-20 X 1" CARRIAGE
BOLT ZINC
21
37101
1/4-20 X 1 1/2" CARRIAGE
BOLT ZINC
18103
BEAN SEED PLATE
5
60012
ROW MARKER ASSEMBLY
22
32102
5/16-18 HEX NUT ZINC
18104
PEA SEED PLATE
6
33100
HAIR PIN CLIP ZINC (#213)
23
12132
BEARING (1001-B)
18105
BEET SEED PLATE
7
12133
CLEVIS PIN (1001-B)
24
19110
SEEDER GRIP (1001-B)
BLACK PVC
18106
OPTIONAL BLANK SEED PLATE
8
60011
HANDLE ASS'Y (1001-B)
25
23500
AXLE (1001-B)
18108
OPTIONAL LIGHT CARROT
9
60013
FRAME ASSEMBLY 1001-B
26
12102
FRONT WHEEL 1001-B
includes #12131 & (2) 12132
18109
OPTIONAL BROCCOLI SEED
PLATE
10
12105
HANDLE BRACKET W/CLIP
(1001-B)
27
48300
GROUND OPENER (1001-B)
18110
OPTIONAL CUCUMBER SEED
PLATE
11
19109
GARDEN SEEDER SQ BELT
28
48301
SEED CHUTE (1001-B)
18112
OPTIONAL POPCORN SEED
PLATE
12
12131
PULLEY (1001-B)
29
60015
GROUND OPENER
ASSEMBLY
18124
OPTIONAL LIMA BEAN SEED
PLATE
13
31148
#10 X 1" TYPE A PHPS
BLACK
30
60017
HOPPER ASSEMBLY 1001-B
1600
OPTIONAL New FERT-A-PLY
14
32103
1/4-20 NYLON INS
LOCKNUT ZINC
31
32100
1/4-20 HEX NUT ZINC
60009
OPTIONAL STD SEED PLATE SET
15
43024
HUB WASHER (1001-B)
60010
OPTIONAL SEED PLATE SET
16
70104
#6 SINGLE JACK CHAIN
17
12101
REAR WHEEL (1001-B)
You can find replacement Nuts and Bolts at your local hardware store.

Assembly and Operation Instructions
Earthway_1001-B Manual_v1 PAGE 8

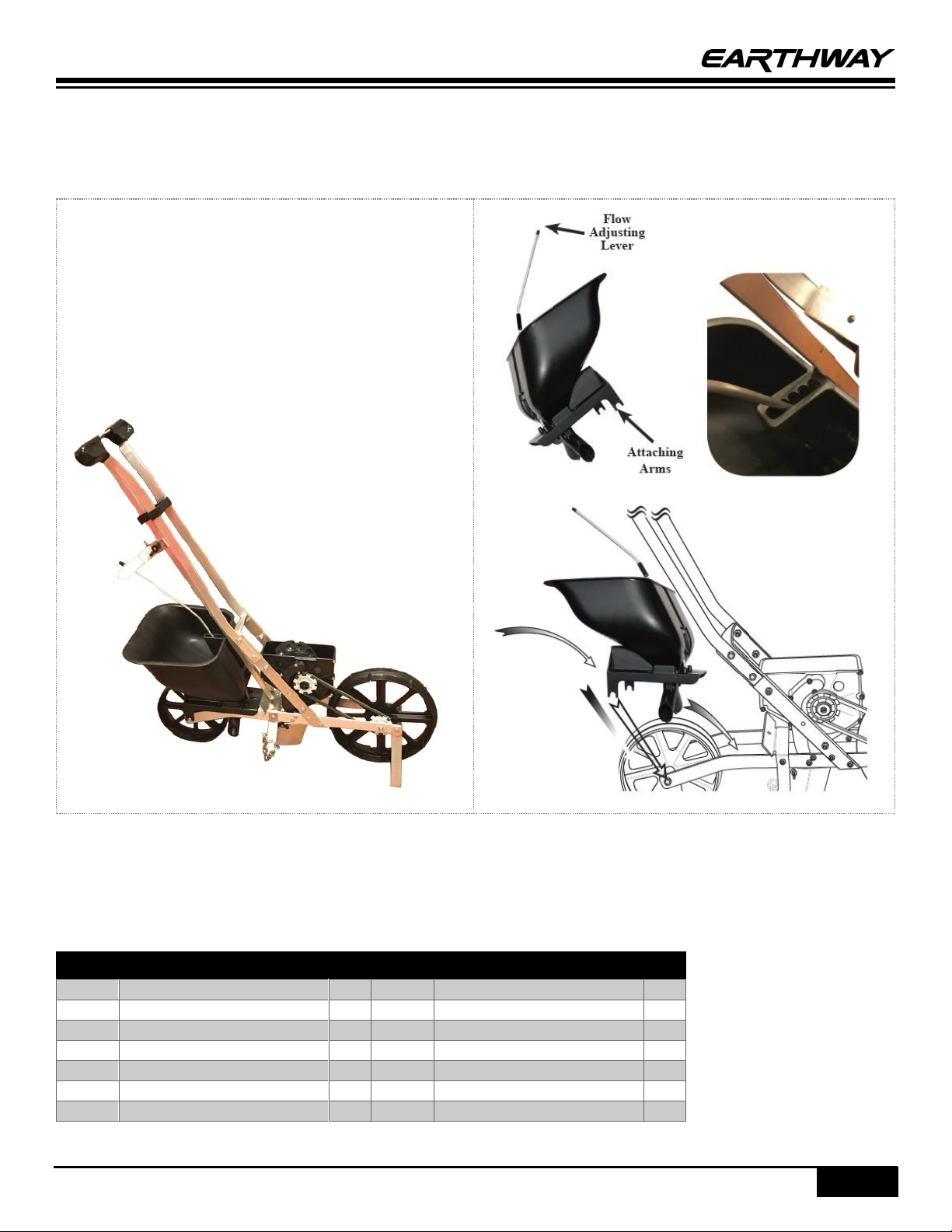

New 1600 Side-Dress Fertilizer Attachment ~ Optional Accessory
Can be used with row marker in place.
ASSEMBLY
Slide Flow Adjustment Lever into the black handle
connector on the 1600.
ATTACHING
Slide the 1600 behind the handle and in front of the rear
wheel, between the frame and lock the Attaching Arms
over the rear wheel mounting bolt & nut.
OPERATING INSTRUCTIONS
Calibrated slide plate allows precise flow rates of all granulated fertilizers. Fertilizer can be applied on both sides of the
planting furrow. Four position positive action On/Off handle helps eliminate waste. Made from durable weather
resistant materials for years of dependable use.
1600 Side-Dress Fertilizer Attachment Parts List
PART #
DESCRIPTION
QTY
PART #
DESCRIPTION
QTY
31133
#8 X 3/4 PHPS TYPE A (BLACK)
2
60046
HOPPER ASSEMBLY 1600
1
31138
#8 X 3/8" PMT #8 HD COARSE BLACK
2
36233
1/4-20 X 1/2" PHPS S.S.
4
31146
#6 X 1/2" TYPE "A" PHPS BLACK
2
36308
1/4-20 LOCK NUT W/EXT LW SS
4
41215
CONTROL ROD (1600)
1
60033
HOPPER SUPPORT (1600)
1
41216
CONTROL ROD EXTENSION (1600)
1
70142
NUT PROTECTER .234 ID. X .375 IL.
1
12123
CONTROL ROD CONNECTOR (1600)
1
