EarthWise M1E-LD-200M User manual

Eurmm
The Clean Air Choice
OPERATOR'S MANUAL
Cordless Shear/Shrubber
Thisproduct is covered by U.S.patents and otherinternationalpatents
i
Copyright. All RightsReserved.
Model
#M1E-LD-200M/7.2
ltem#PSS10172
242767
Thisproduct
has beenengineered and manufactured toour highstandard for dependability,
ease of operation, and operatorsafety.Properlycaredfor, it willgive you years of rugged,
trouble-freeperformance.
A WARNING: To reduce the risk of injury, the usermustread and understand the operator'smanual
. beforeusingthisproduct.
Thank
youfor yourpurchase.
SAVETHISMANUAL FOR FUTUREREFERENCE

ProductSpecifications
Model # M1E-LD-200M/7.2
ltem#PSS10172
Input 7.2V DC, 1.0 Amp
Batterycapacity 1350mAH
No loadspeed1200 RPM
Charger(adaptor)input120V, 60HzAC
Batterychargingtime 3 to5 hours
-Lithium-ion Battery
-5 position rotating cuttinghead
-3.75
in. Grass Shear Blade
-7.5 in. Shrub Trimming Blade
- 5/16 in. Max.Cutting Width
-Tool-less blade changingsystem
PartsList
1
2
3
4
5
6
7
8
9
10
11
Soft gripmain handle
Safety lock on mainhandle
Knob
for rotaryhandle
Mainhousing
Grassshearblade
On/off trigger on mainhandle
Shrub trimmingblade
SDS bladecover
SDS bladereleaseswitch
Handle connector
Lock/Release lever
12
13
14
15
16
17
18
19
20
21
22
Wheel
Wheelcart
Telescopic tube
Adjusting coupling
Telescopichandle
Safety lock on telescopichandle
On/off trigger on telescopichandle
Charginginlet
LED Light
Handle connectioncableinlet
Batterycharger
32 1

Explanation of Symbols
Warningnotice
Read the instructionmanual.
Do not expose the tool to rain.
Warning!
The cuttingbladescontinue to move after switchingoff.
Warning! Keepbystandersaway.
Only usethe battery charger indoors.
Batterychargercontains
a safetytransformer
Eye protectionmust be used
Charging
the battery
The batteryshould be fullychargedbefore using for the firsttime. The charging time is about 3-5
hours.(See page 13 for instructions.)
The battery charger suppliedmatches the lithiumbatteryinstalled inthe tool. DONOTuseany
other charger to recharge the tool.
To protect the lithium batteryagainstdeepdischarging,when the battery is flat, the tool will auto-
matically switch offviaa protectivecircuit. The bladewillstopmoving anda slightwhistling
soundwill
be heard.
If the On/Offswitch is usedcontinually at thispoint, the lithiumbattery canbe damaged.
Do nottryto continue tousethe toolbeforerecharging the battery.
19

IMPORTANTSAFETYWARNINGS
TO REDUCERISK OF INJURY:Beforeuse, be sure everyone using this tool reads and under-
stands all safetyinstructions and otherinformationcontained in thismanual.
WARNING:PersonalInjury
and Damage!Keepyourhands and feet away from the cuttingtool,
especiallywhen
the products are switched on! Neveradjust the cutting headwhen the product isin
the "on"position. Donot touchmovingblades.
Save
these instructions and review frequently prior touseand when instructing others.
WARNING: When usingelectricgardeningappliances,basicsafetyprecautionsshouldalways be
k
followed to reducerisk of fire, electric shock, and personal injury.
READ ALL INSTRUCTIONS
GENERALSAFETY
AVOIDDANGEROUSENVIRONMENTS - Donotuse thisproduct inthe rain orin damp orwet
i conditions. Donot operate this product in gaseous or explosive atmospheres. Motors in these tools
normallyspark. Itis possible the sparkmightignitefumes.
DRESS PROPERLY - Don't wearlooseclothing or jewelrywhileusingthisproduct.Wear
protectivehaircovering
to containlong hair. They canbe caught in movingparts. Useof rubber
gloves and protectivefootwear is recommended whenworkingoutdoors.
USE SAFETYGLASSES - Wearsafetyglasseswithsideshields or goggles that are marked to
comply with ANSIZ87.1standardwhenoperatingthisproduct. Use face or dustmask if environ-
ment is dusty.
DANGER: Risk of cut.Keephandsawayfromblades.
USE RIGHT APPLIANCE - Donotuse appliance foranyjob exceptthat for which itis intended.
WARNING!Switch off beforeadjusting or cleaning.
CAUTION! The bladescontinue to move fora few seconds after the tool is switched off.
AVOIDUNINTENTIONALSTARTING
- Donot carry this product with finger on switch.
IMPORTANT! Anyuse which isnot expresslypermitted inthe manual may result in da ~ = -.-. : -•=
tool and place the user in seriousdanger.Pleasecarefullyread the restrictions inthe operating
instructions.
IMPORTANT!Beforeeach
use check for damaged/worn parts.Check the blade for proper
alignment.
STOREINDOORS
-When notin use,thisproductshould be stored indoors in a dry location out
of reach of children.
STAY ALERT-Watch what youare doing. Use common sense. Donot operate ttvs product i
you are tired or under the influence of medications, drugs or alcohol.
DANGER: If blade jams on any electrical cord or line. DO NOT TOUCH THE BLADE' iTCAN
BECOMEELECTRICALLYLIVE AND VERYDANGEROUS.
possible.Disconnect
the damagedelectricalcord or line from the|
safely. Ifin doubt, call an electrician or the electrical contractor for;
Danger can result in seriouspersonalinjury and possible death.
LIGHTING - Only operate this tool in daylight or good artificial fight
DON'T OVERREACH - Keepproperfooting and balance at aS fries
Make surepowersource is removedwhenclearing jammed material torn Made
:.
MAINTAINTOOL WITH CARE - Keepblades s-3" a — : e = -
the risk of injury.Keephandledry,clean and freefrom o =-:
CALIFORNIAPROPOSITION 65
DARNING: Useof thistool may causeexposure t: ;-e~ :a ^ '
cause cancer, birthdefects or otherreproductive harm. Oust ar
grinding or sanding on somematerials may contain chemicals I
cancer or birthdefects or otherreproductive harm. To reduce e
approvedsafetyequipment,work ina well-ventilated a-ea ^-~-
microscopicparticles.
:•=> • :r -:-~ance and to reduce
•= : a*e • ~:.'.n tothe state of Califorr a ::
: :e:-s cheated during cutting, drilling.
-:.-.- :o the State of California to -------
iwsure to thesechemicals,always -se
.ea- ~usk maskthatfilters out

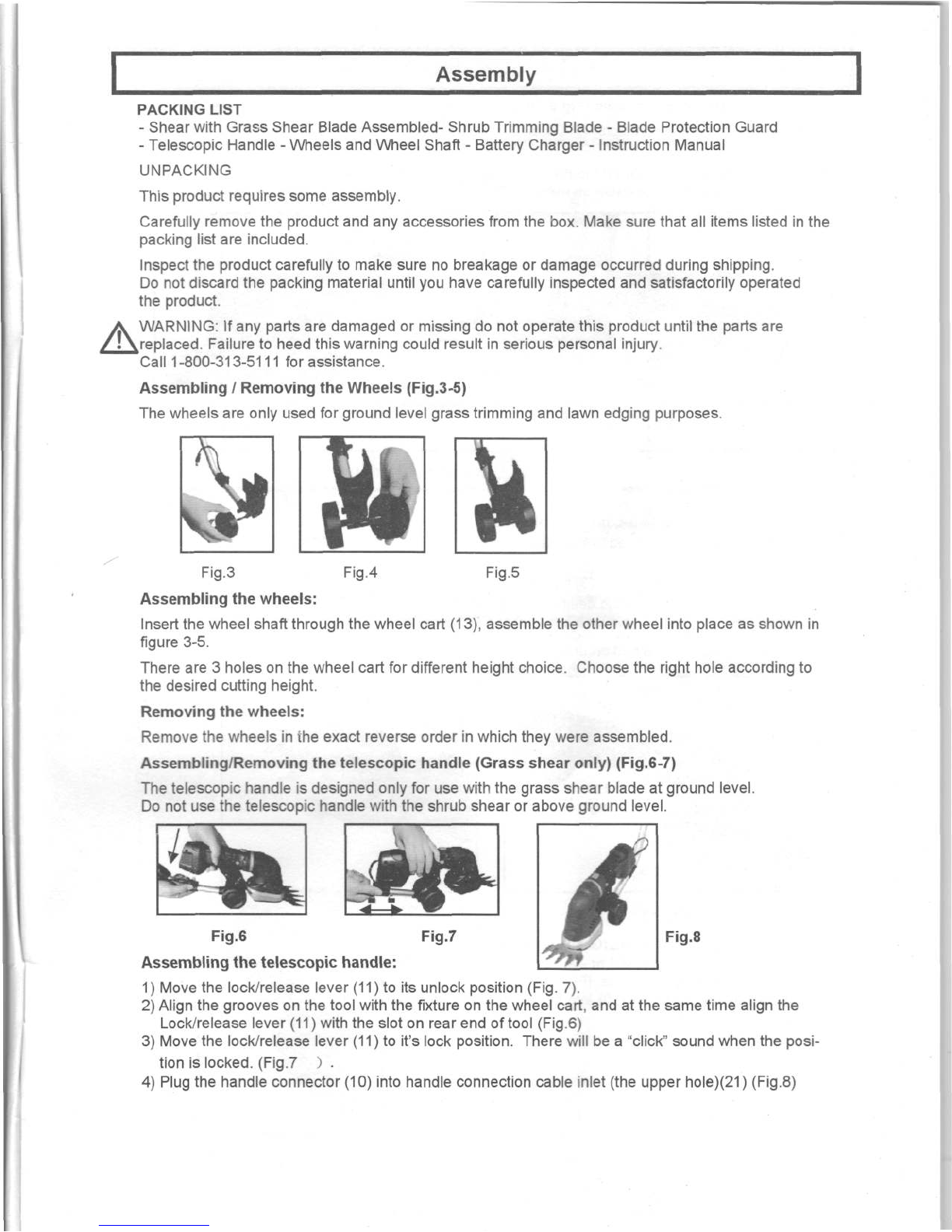

Assembly
PACKING LIST
- ShearwithGrassShearBladeAssembled-ShrubTrimmingBlade - BladeProtectionGuard
- TelescopicHandle - Wheels and Wheel Shaft - BatteryCharger - InstructionManual
UNPACKING
This product requires some assembly.
Carefully remove the product andany accessoriesfrom the box.Makesurethat all itemslisted inthe
packinglist are included.
Inspect the productcarefully to makesure no breakage or damageoccurredduringshipping.
Do not discard the packingmaterial until you havecarefullyinspected and satisfactorilyoperated
the product.
WARNING:
Ifany parts are damaged or missing donot operate this product until the parts are
^replaced. Failure to heed this warningcouldresult in seriouspersonalinjury.
Call
1-800-313-5111 for assistance.
Assembling / Removing the Wheels (Fig.3-5)
The wheels are onlyused for groundlevelgrasstrimming and lawnedgingpurposes.
Fig.4 Fig.5Fig.3
Assembling the wheels:
Insert
the wheelshaftthrough the wheelcart (13), assemble the otherwheelintoplace as shown in
figure3-5.
There are3 holes onthe wheelcart for differentheightchoice.Choose the rightholeaccording to
the desiredcuttingheight.
Removing the wheels:
Remove the wheels in the exactreverseorder in which theywereassembled.
Assembling/Removing
the telescopichandle(Grassshearonly)(Fig.6-7)
The telescopichandle is designedonly foruse with the grassshearblade at groundlevel.
Do notusethe telescopichandlewith the shrubshear or abovegroundlevel.
Fig.6
Fig.7 Fig.8
Assembling the telescopic handle:
1) Move the lock/releaselever (11) toits unlockposition(Fig. 7).
2) Align the grooves onthe toolwith the fixture onthe wheelcart, andatthe sametimealign the
Lock/release lever (11) with the slot on rear endof tool(Fig.6)
3) Move the lock/releaselever (11) to it'slockposition.There will bea "click"soundwhen the posi-
tion is locked.(Fig.7 ) .
4) Plug the handleconnector (10) intohandleconnectioncable inlet (theupper hole)(21) (Fig.8)

Assembly
Removing the telescopic handle (Fig9-10):
1) Makesure the handleconnector (10) is disconnectedfrom the handleconnectioncable inlet (21)
(Fig.9)
2) Move the lock/releaselever (11) tothe unlockposition(fig 7).To release the tool fromthe wheel
cart,
pull the tool inthe direction shown in Fig.10
Fig.9
Fig.10
Adjustments on this product
1. Adjusting the cutting head. (Fig.11-12)
The cuttinghead canbe rotated in5 anglesfrom90°. 45° ,0° to-45° ,-90° togetthe desirec
position.(Fig.11):
1) Push the knob for rotaryhandle (3) backv/ards.
2) Rotate the cuttingheadinto the desiredposition .(Fig.12 )
3) Release the knob and makesure itis securelyfixed in position.
The tool cannotbe switched on during the adjustment ofthe cuttinghead.
Fig. 11
Fig. 12
2. Adjusting for edgingmode(Grass shear only) (Fig.13)
1) Rotate the cuttinghead in90°or -90°direction to postfon tne
tool inthe verticaledgingmode. (Fig.13)
2) Plug the handleconnector(10)intohandle connection cable
inlet (theupperhole)(21)
Fig.
13

Adjustments on thisproduct
3. Adjusting the length of telescopichandle (Fig.14-15)
1) Loosen the adjustingcoupling(15) (Fig.14)
2) Pull the tube outto increase the height, or push the tube into decrease the height. (Fig.15)
3) Re-tighten the adjustingcoupling (15). (Fig.14)
Fig.14
Fig.15
Starting and Stopping
1. Starting and Stopping for cuttingwithouttelescopichandle (Fig.16)
Starting:
1) Push the safety lockbutton (2)and press the On/Offtrigger (6)atthe sametime.
2) Release the safety lock (2).
Stopping:
Release the On/Off switch(6).
Fig. 16

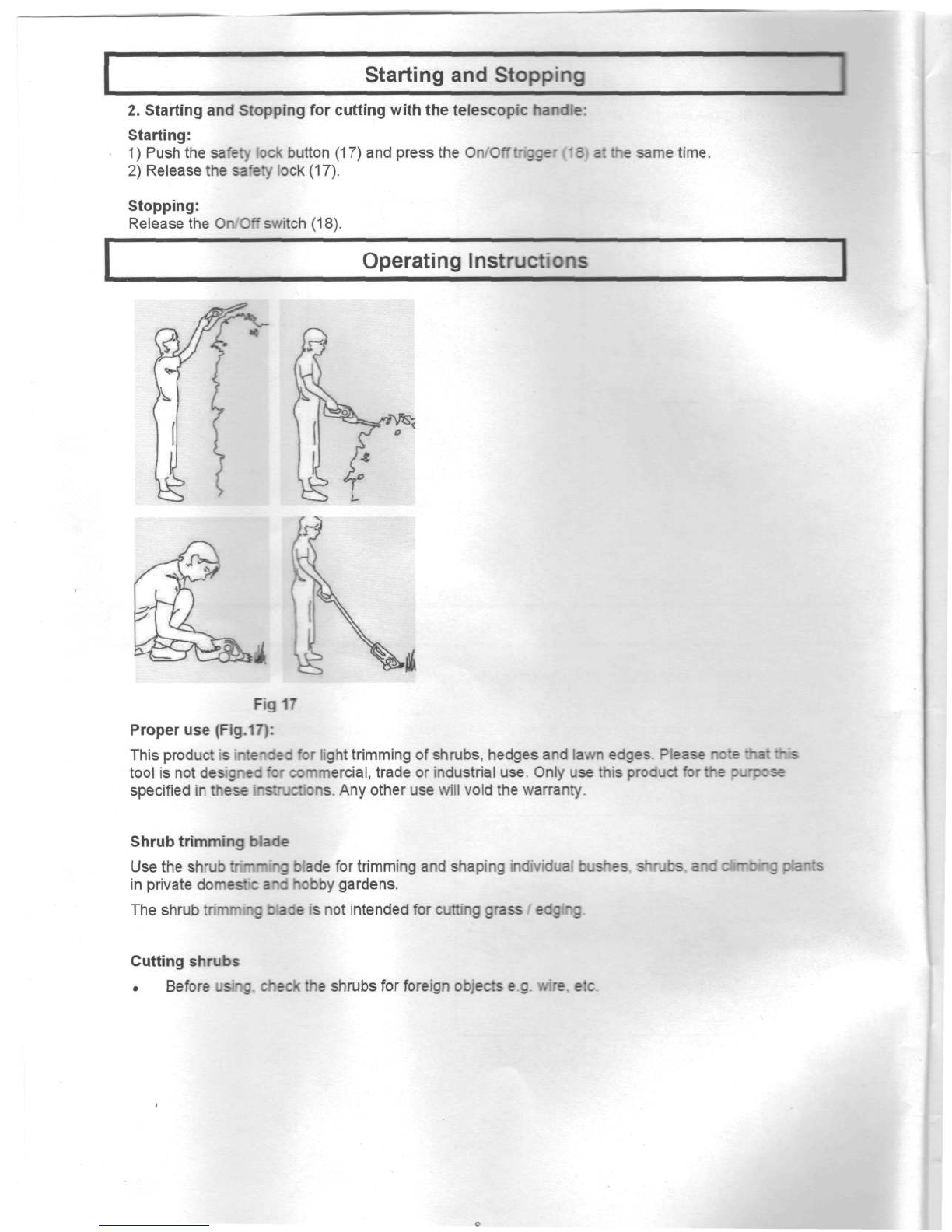

Starting and Stopping
2. Starting and Stopping for cuttingwith the telescopic handle:
Starting:
1) Push the safetylock button (17) and press the On/Off trigger(18) atthe same time.
2) Release the safetylock (17).
Stopping:
Release theOnOff switch (18).
Operating Instructions
Fig17
Proper use (Fig.17):
This product is intended for lighttrimming of shrubs, hedges and lawn edges. Pleasenote that f- s
tool isnot designed for commercial,trade or industrialuse.Only use thisproduct forthe purpose
specified in these instructions. Any other use willvoid the warranty.
Shrub trimming blade
Use the shrub tr-r^g oiade for trimming and shaping individual bushes, shrubs, and URiiiMig plants
in private domest z 3"c "obby gardens.
The shrub trimming blade isnot intended for cuttinggrass edging.
Cutting shrubs
. Before using, check the shrubs for foreignobjectse.g. wire. etc.

OperatingInstructions
• Whenusing the toolhold it awayfromyourself and stand ina securepositionwithyourweight
evenly balanced on bothfeet.
• When cutting,movesteadilyalong the line of cut, so that stems arefed directlyinto the cutter
blades.
• After use,install the bladeguard.
Recommendedcutting/trimmingtimes:
-Cuthedges
with deciduous leaves in June and October.
-Cutevergreenhedges
in April and August.
-Cutconifer
and otherfastgrowing shrubs approx.every six weeksfrom May throughOctober.
Grassshearblade
Use the grassshearblade for cutting the edges of lawns and smallareas of grass in privategardens
and hobbyareas.
The grassshearblade isnot intended for cuttinghedges or choppingmaterial upfor composting.
Edging
When using the toolhold it awayfromyourself and stand ina securepositionwithyourweightevenly
balanced
on bothfeet.
Guide the toolalong the edge ofthe lawn. For largerlawns, itis advisable tousethe telescopic
handle.Attachwheels
and telescopichandle tothe tool withgrassshearblade for edgingmode,
Guide
the toolalong the edge ofthe lawn.
The telescopichandle is designedonly foruse with the grassshearblade at ground level. Donotuse
the telescopichandlewith the shrubtrimmingblade or above groundlevel.
After use install the bladeguard.
Tips:
•Donot force the unitthroughdensegrowth, andifthe bladesslowdown,reduceyourspeed.
• Avoid trimming too close to dirt, sand or gravel, as this could dull the blades and reduce the
cuttingefficiency.
•Donot allow the blade to contactpavedsurfaces,stones or gardenwalls, as this willrapidly
wear down the blade.

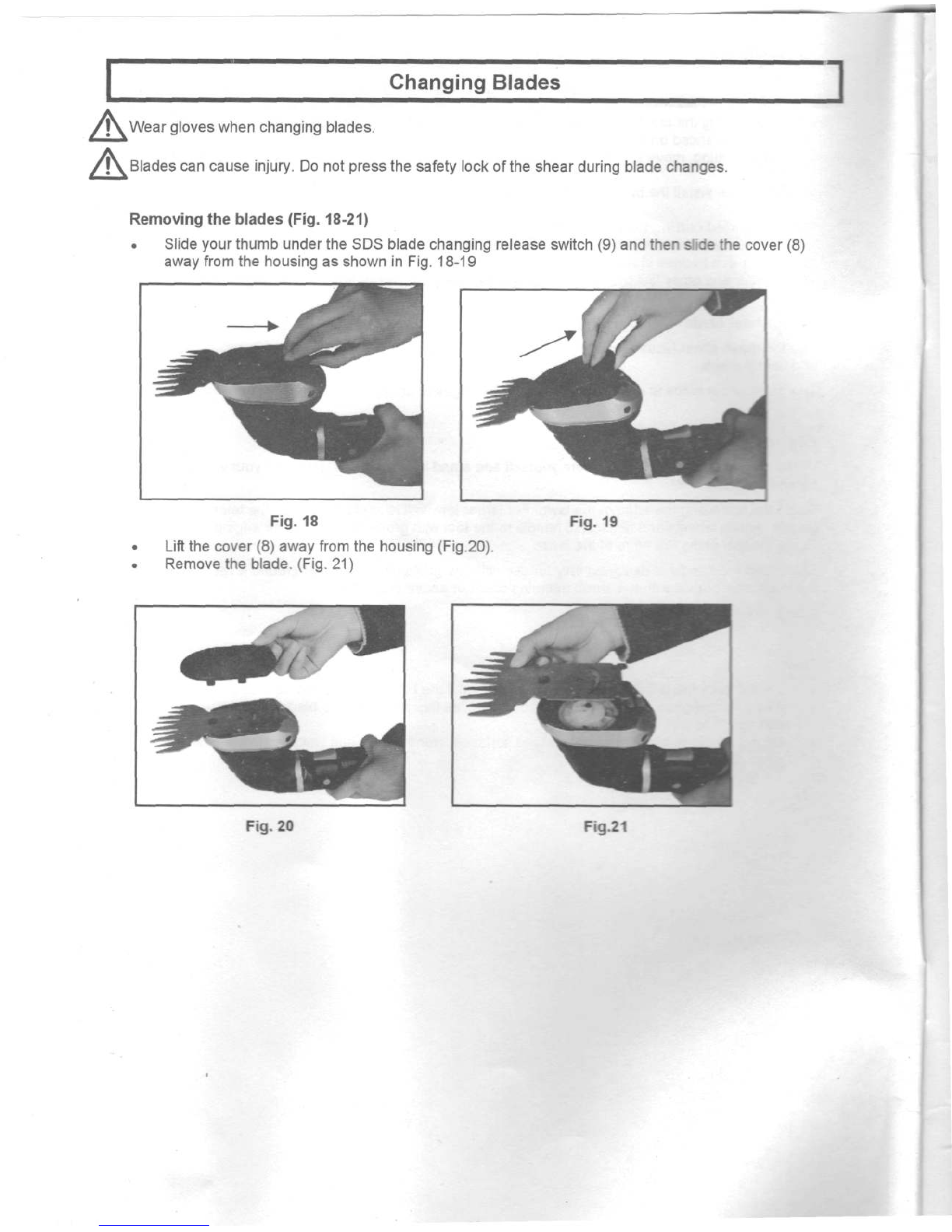

Changing Blades
!\ Weargloveswhenchangingblades.
|\ Blades can causeinjury. Donot press the safetylock ofthe shearduringbladechanges.
Removing
the blades(Fig.18-21)
• Slideyourthumbunder theSDS bladechangingreleaseswitch (9)and thenslide the cover (8)
away from the housing as shown in Fig. 18-19
Fig. 18
Lift the cover (8) awayfrom the housing (Fig.20).
Remove the blade.(Fig. 21)
Fig. 19
Fig. 20
Fig.21

ChangingBlades
Installing the blades(Fig. 22-24)
There aretwo holes onthe blade andtwo driving pins onthe body.Firstalign theendofthe blade
inside
the plastichousing.Align the rearhole in the bladeonto the reardrive pin .
Move the raised rib (23) upand down (Fig.22) for shrub trimming blade or move the raised rib (23) left
and right for grassshearblade (Fig.23) to allow the frontdrive pinto enter the fronthole inthe
blade.
When reinstalling theSDS bladecover,ensure all4 prongs are inside the housingbefore sliding the
coverintoplace.
Secure the bladecover by sliding it toward the blade (Fig.24).
Fig.22 Fig.23
Fig.24
11

Maintenance
CAUTION:Blades can cause injury. Donot press the safetylock ofthe shear duringmaintenance
^work.
Note: To ensure long and reliable service, regularly carry outthe following maintenance:
• Check for obviousdefectssuch asa damaged/ loose blade, fixingsor components.
•Ifthe toolshouldstopworkingproperly,repairshould be earned outby yourlocalhardware
store.
A Neverclean the trimming shears in water (especially running water as :~T'5 s a risk of personal
" injury and damage tothe shears.
To obtaingoodcuttingresults,alwaysmakesure the blades are
timewith a soft dry cloth.
a-: : ea" :nem fromtime to
For easier operation and longerblade life, use lightmachine oilto
shearbladesbefore and after eachuse.
Check the condition ofthe cuttingedges ofthe blades, and always immediately remove notches and
burrscaused by stonesetc.
Re-sharpening
the shrub trimming blade (Fig.25):
• Allow the shrub trimming blade to stopcompletely.
• Clamp the bladeassembly ina vice and file the exposed
cuttingsurface
of eachblade tooth, makingsure the original
angle
ofthe tooth is maintained (Fig.24).
• Remove the bladefrom the vice,start and stop the shear so
that the unsharpenededges ofthe blade teeth are exposed.
• Repeat the sharpeningprocedure as describedabove.
Re-sharpening
the grassshearblade (Fig.26):
• Remove the bladefrom the shear.
• Separate the upperblade(24) and lowerblade(25) (Fig.26).
• Remove any grass and dirtbetween the upper and lower
blades.
• Sharpen the blades by using a sharpeningstone.
•Fitthe blades onthe shear.
Fig. 26
Ensurethat the blade is covered with the bladeguard supplied when notin use.

ChargingProcedure
1. Insert the chargercableintocharginginlet (19) onthe tool.
2. Makesure the walloutlet in yourhome is normalhousehold voltage (AC120V, 60Hz).Insert the
batterychargerpluginto the walloutlet.
3.TheredLED chargingindicator(20) lights upto tell you that the batterypack ison charge. The
battery is fullychargedwhen theredLED chargingindicator(20) isno longerlit.
During
the chargingprocess, itis normal for the handle ofthe tool to warm up.
When not using the tool for extendedperiods,disconnect the batterychargerfrom the socket.
When
the trimmingshears are charging, you must notuse them.
Only charge the batterybetween 0°- 45° C
After prolongeduse,allowbattery to cooldown first beforerecharging.
Fig. 1 Fig. 2
Cleaning / Storage
Clean the exterior ofthe toolthoroughly using a softbrush and cloth. Donotuse water,solvents
or polishes.
Remove all debris,especiallyfrom the ventilationslots.
After use,cover the blades with the guardsprovided.
Charge the battery 3-5 hoursbeforestoring.
If the tool istobe stored foran extendedperiod of time or duringwinterstorage,charge the
battery at leastonceeverythreemonths to protect it fromdamage.
Store the tool ina dry,secureplace outof reach of children.
Do not place any otherobjects ontopofthe tool.
This toolmust notbe stored over 45°C or underdirectexposure to sunlight.
Do not store the tool in placeswithstaticelectricity.
Disposal
Powertools,accessories and packagingshould be sorted for environmentally-friendlyrecycling.
Properdisposal
of batterypacks/batteries:
Li-Ion
This productcontains a lithium-ion battery. Donot dispose of battery packs/
batteriesintohouseholdwaste,water or fire.Batterypacks/batteriesmust be
collected,recycled or disposed ofinan environmentally-friendlyway.Contact
your localrecyclingcenter for information on where to drop off spentbatteries.
Before recyclingcompletelydischarge the lithium-ionbattery.

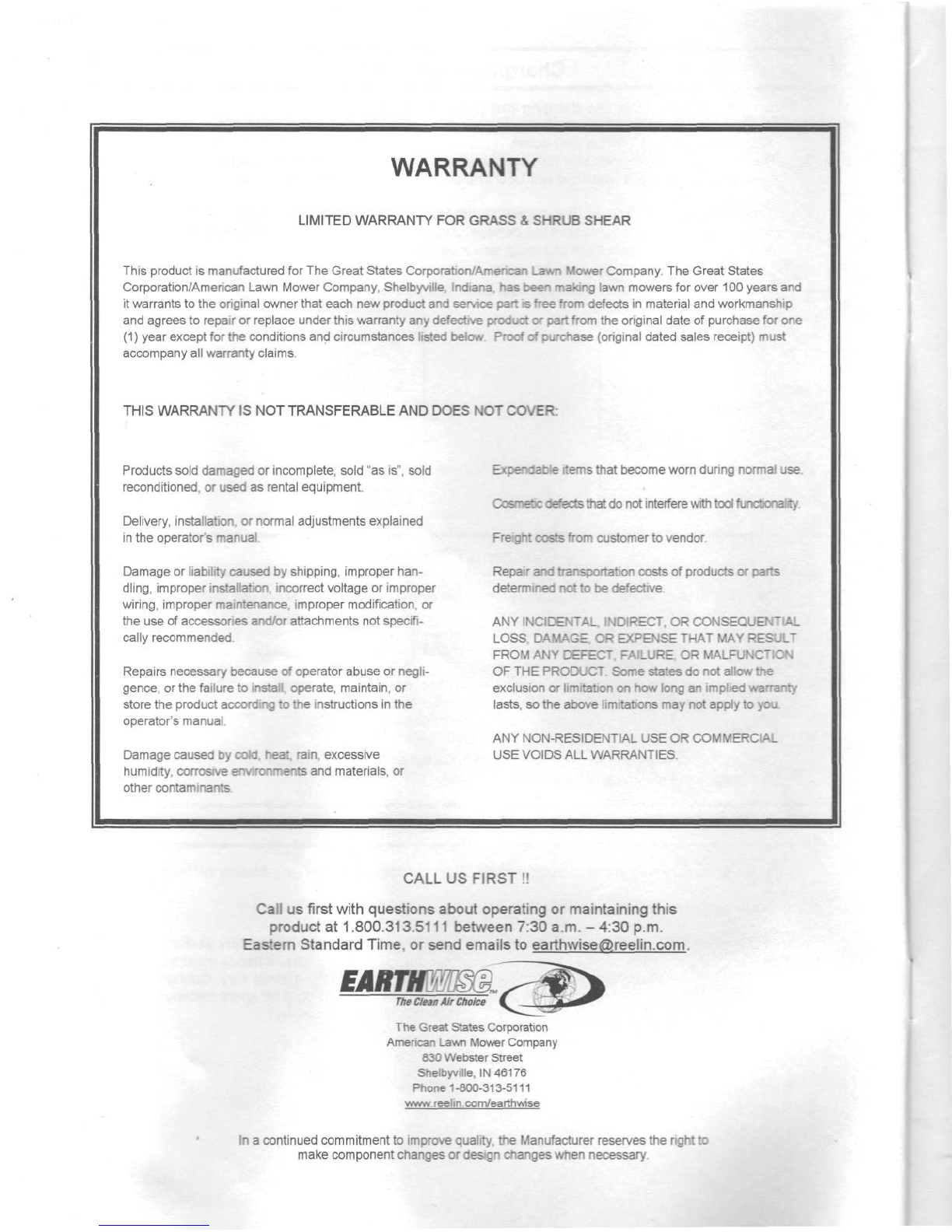

WARRANTY
LIMITED WARRANTY FOR GRASS & SHRUB SHEAR
This product is manufactured forThe GreatStates Corporation/American Lawn MowerCompany. The GreatStates
Corporation/AmericanLawnMowerCompany.
Shelbyville, Indiana, has been making lawnmowers for over 100 years and
it warrants tothe originalowner that each new product and service part is free fromdefects in material and workmanship
and agrees to repair or replaceunderthiswarranty any defective product or part from the originaldate of purchase forone
(1) yearexcept forthe conditions and circumstances listed below. Proof of purchase (original datedsalesreceipt)must
accompany all warrantyclaims.
THIS WARRANTY ISNOT TRANSFERABLE AND DOES NOT COVER:
Productssolddamaged or incomplete,sold "as is",sold
reconditioned, or used as rentalequipment.
Delivery,
installation, or normaladjustmentsexplained
in the operator'smanual.
Damage or liability caused by shipping,improperhan-
dling,improper
installation, incorrectvoltage or improper
wiring,improper
maintenance, impropermodification, or
theuseof accessoriesand/orattachments not specifi-
cally recommended.
Repairs necessarybecause of operatorabuse or negli-
gence, orthe failure to install, operate,maintain, or
store the product according tothe instructions inthe
operator'smanual.
Damage caused by cold, heat rain,excessive
humidity, corrosive environments and materials, or
other contaminants.
Expendable items thatbecomewornduringnormal use.
Cosmetic defects that donot interfere with tool functionaly.
Freight costs fromcustomer to vendor
Repair and transportation costs of products or parts
determined nottobe defective.
ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL
LOSS. DAMAGE OR EXPENSE THAT MAY RESULT
FROM ANY DEFECT. FAILURE. OR MALFUNCTION
OF THE PRODUCT Some states donot allow the
exclusion or limitation onhow long an implied warranty
lasts, sothe above limitations maynot apply to you.
ANY NON-RESIDENTIAL USEOR COMMERCIAL
USE VOIDS ALL WARRANTIES.
CALL US FIRST!!
Call us firstwithquestions about operating or maintainingthis
product
at 1.800.313.5111 between7:30a.m. - 4:30p.m.
Eastern Standard Time, or send emails to [email protected].
The Great States Corporation
American LawnMowerCompany
830 WebsterStreet
Shelbyville,
IN 46176
Phone [phone]
www reelm com/earthwise
In a continuedcommitment to improve quality, the Manufacturerreserves the right to
makecomponentchanges or design changes whennecessary.
