Central Machinery 39955 Quick reference guide

20” PRODUCTION DRILL PRESS
Model 39955
ASSEMBLY & OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©1999 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork con-
tained herein may be reproduced in any shape or form without the express written consent of Harbor Freight
Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual
product may differ slightly from the product described herein. Tools required for assembly and service may not
be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 03c, 09l

SKU 39955 For technical questions, please call 1-800-444-3353. Page 2
THANK YOU for choosing a HARBOR FREIGHT TOOLS product. For future reference, please complete the
owner’s record below:
Model____________ Serial No. ______________ Purchase Date _______________
SAVE THE RECEIPT, WARRANTY AND THESE INSTRUCTIONS. It is important that you read the entire
manual to become familiar with the unit BEFORE you begin assembly.
Technical Specifications
Tool Name: 20” Production Drill Press
Item Number: 39955
Power Source: 120V/ 60 Hz, Single Phase
Motor: 1-1/2 HP
Speeds in RPM: 180, 310, 320, 500, 540, 570, 1180, 1565, 1805, 2190, 2795, 3865
Spindle Stroke: 4”
Spindle: MT3
Swing: 20”
Column Diameter: 3-5/8”
Chuck Capacity: 5mm to 20mm (.197” to .787”) JT3 Taper
Max. Spindle to Base: 45-1/4”
Spindle to Table: 26-1/8”
Table: 16-3/4” x 1-11/16”
Wet Table: With Oiler
Table Slot: 1” x 1/2”
Warning: The warnings, cautions and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must
be understood by the operator that COMMON SENSE AND CAUTION ARE
FACTORS WHICH CANNOT BE BUILT INTO THIS PRODUCT, BUT
MUST BE SUPPLIED BY THE OPERATOR.
The Operator
PLEASE REMEMBER:
Do not operate the product if under the influence of alcohol or drugs. Read warning labels on prescriptions to
determine if your judgment/reflexes might be impaired.
Do not wear loose clothing or jewelry as they can be caught in moving parts.
Protective gloves and nonskid footwear is recommended.
Wear restrictive hair covering to contain long hair.
Use eye and ear protection. Always wear ANSI approved impact safety goggles and
dust mask or respirator when working around metal, wood and chemical dusts and mists.
Wear a full face shield if your are producing metal or wood filings.
Do not reach over or across running machines.
Maintain proper footing and balance at all times.
REV 05l

SKU 39955 For technical questions, please call 1-800-444-3353. Page 3
Work Area
TO AVOID RISK OF PERSONAL INJURY, EQUIPMENT DAMAGE, FIRE AND SHOCK, MAKE SURE YOUR
WORK AREA IS:
Free of damp, wet or rainy conditions.
Free of children (never let them handle tools or machinery).
Well-lit.
Clean and uncluttered.
Before Operating
Before using any tool, any part that appears damaged should be carefully checked to determine that it will
operate properly and perform its intended function.
Before operating your Drill Press check for damaged parts.
Make certain that the power is OFF before plugging the tool in.
Make sure all clamps, locks and bolts are tight.
Always check that adjusting keys and wrenches are removed from the machine work surface before plugging
it in.
Use grounded receptacle only for 110 Volt hookup.
Give the Drill Press a test run. If it makes an unfamiliar noise or vibrates irregularly, turn it off, unplug it and
have the problem corrected by a qualified technician.
Make certain to turn off and unplug the Drill Press when doing any maintenance. The tool should always be
turned off and unplugged when not in use.
Keep Guards in place and in working order.
Do not abuse the power cord. Do not yank on cord to disconnect it from outlet. Keep the cord away from
heat, oil and sharp edges.
Note: Performance of this tool may vary depending on variations in local line voltage. Extension
Cord usage may also affect tool performance.
Grounding/Voltage Warning
Common household current is 110-120 volts. As long as the outlet used with the tool is rated from 110-120V
there will be no complications using it with household receptacles. Plug the tool into a 110-120V properly
grounded outlet protected by a 15-amp, dual element time delay or circuit breaker.
NEVER try to plug a 110-120V tool into a 220-240V circuit or serious complications and possible injury to the
operator may occur. The plugs have different shapes to prevent this.
This tool has a three-prong plug. The third (round) prong is the ground. Cutting off the ground will result in a
safety hazard and void the warranty.
If the outlet you are planning to use is the two-prong type, do not remove or alter the grounding prong in any
manner. Use an adapter and always connect the grounding plug to a known grounding source. It is recommended
that you have a qualified electrician replace the two-prong outlet with a properly grounded three- prong outlet.

SKU 39955 For technical questions, please call 1-800-444-3353. Page 4
E
H
Unpacking
Unpack and check contents. Make sure you have all parts described below. If any parts are missing or
broken, please call Harbor Freight Tools at
1-800-444-3353.
REV 03c,08l

SKU 39955 For technical questions, please call 1-800-444-3353. Page 5
Extension Cords
Your tool has a three-prong plug, therefore you must use a three-prong extension cord. Only use rounded
jacket extension cords listed by the Underwriters Laboratories (UL). Improper use of extension cords may
cause inefficient operation of your tool which can result in overheating. Be sure your extension cord is rated to
allow sufficient current flow to the motor.
If you are using the tool outdoors, use an extension cord rated for outdoor use (signified by “WA” on the
jacket).
The extension cord must have a minimum wire size depending on the amperage of the tool and the length of the
extension cord. This size is determined by its AWG (American Wire Gauge) rating. The smaller the gauge, the
greater the cable’s capacity. The amount of cords used does not matter: Total length determines the minimum
AWG rating. Every cord must meet the AWG rating. Use the chart below to determine what AWG rating is required
for your situation. Cord length is rated in feet. Harbor Freight Tools can supply UL listed and outdoor rated
cords in multiple AWG ratings if needed.
AWG RATING CHART
CORD LENGTH 25’ 50’ 75’ 100’ 125’ 150’ 175’ 200’
AMPS AWG AWG AWG AWG AWG AWG AWG AWG
0-10.0 18 18 16 16 14 14 12 12
10.1-13.0 16 16 14 14 14 12 12 12
13.1-15 14 14 12 12 12 12 12 —-
15-18 14 12 12 12 12 12 —- —-
DoNoT m o D i f y y o u r p l u g i N a N y w a y . ify o u h a v e a N y D o u b T , c a l l aq u a l i f i e D e l e c T r i c i a N .
Assembly
Your Drill Press will require assembly. To assist you with assembly and operation please refer to the Assembly
Diagram and Parts List located on pages 14, 15, 16 and 17. Lay out all parts onto a clear section of your
workbench prior to assembly.
Mounting Surface: Ideally, the base should be bolted down prior to the assembly of other components. The
mounting surface must be flat, level and capable of supporting the weight of the Drill combined with the
materials to be drilled.
Before assembling, remove all traces of the packing grease from the Drill Press and wipe all parts thoroughly
with a clean dry cloth. Apply a thin coating of light machine oil to the Table, Column, and Base to prevent rust.
Column Assembly to Base
Step 1) With the Base (part #10B) on a flat level surface, bolt on the Column Support (part #3B) using
the four (4) M12 Hex Head Screws (part #9B). Tighten Firmly.
Step 2) Insert the Column (part #11B) into its support and firmly secure this assembly in place with
the Hex Socket grub Screws (part #7B). It may be necessary to unscrew the Hex Socket
Screws (part #7B) slightly to ensure that they do not protrude internally, as this will prevent
the Column from sliding fully into position in the Tube.

SKU 39955 For technical questions, please call 1-800-444-3353. Page 6
Table to Column
Step 1) Locate the Elevation Worm Gear Shaft (part #19B), the Crank Handle (part #5B) and the
Table Crank (part #4B). Insert the Elevation Worm Gear Shaft into the Table Support and
extend the Shaft through the opening as far as possible.
Step 2) Locate the Table Crank (part #4B). The Crank is to be installed on the Elevation Worm Gear
Shaft (part #19B). A Set Screw (part #7B) is to be aligned with the flat portion of the Shaft.
Get the Crank as close as possible to the Support, and then tighten the Set Screw.
(See Figure 1).
Step 3) Screw the Crank handle into the Table Crank. Use an adjustable wrench to tighten the Crank
Handle securely.
Step 4) Loosen the Set Screw (part #2B) in the Column Collar (part #1B) with the 3mm Hex wrench
and remove the Collar and Rack from the Column.
Step 5) Locate the Rack (part #6B) and with the smooth end of the Rack pointing upward, slide it
down through the large, round opening in the Table Support (part #3B). Engage the Rack into
the Gear Mechanism found on the inside opening of the Table Support (See Figure 2 below).
Step 6) While holding the Rack and the Table Support as assembled, slide both down over the Col-
umn. Slide the Rack down until the Rack is positioned against the lower Column Support.
Step 7) Replace the Collar (part #1B), with the bevel side down, which was removed in Step 4.
Tighten it with the Hex wrench used in Step 4.
Note: In order for the Rack to slide when the Table is swung to the left or right on the Column, the
Collar must sit loosely over the Rack. Only tighten the Set Screw enough to keep the Collar
in place. Over tightening the Set Screw may result in breaking of the Collar.
Step 8) Check the Column Collar for proper adjustment. The Collar should sit evenly on the Column
and the Rack should slide freely when the Table is rotated 360 degrees.
Figure 1
Figure 2

SKU 39955 For technical questions, please call 1-800-444-3353. Page 7
Step 9) Locate the Column Clamp (part #17B) and insert it into the Table Support. Once inserted,
tighten it by hand. Once this is done, rotate the Worm clockwise with the Crank. If necessary,
loosen the Set Screw in the Crank and reposition the Crank as close to the Table Support as
possible. Tighten the Set Screw.
Step 10) Check the “gap”, i.e., the clearance between the Table Crank and the Table Support. If the
gap is larger than 1/32”, crank backlash will be minimized.
Head to Column
Step 1) With assistance, slide the Head (part #45A) onto the Column as shown in the Assembly
Diagram. It may be necessary to unscrew the Head Lock Set Screws (part #15A) slightly to
ensure that they do not protrude internally, as this will prevent the head from sliding fully into
position. Align the Head with the Base (#10B) and firmly secure it into position with the Set
Screws. Screw the three (3) Rods (part #19A) firmly into the Hub (part #20A).
Chuck
Step 1) The Chuck (part #30) is to be assembled to the Spindle (part #32) according to the follow-
ing instructions. Loosely slide the Chuck onto the Spindle. Make certain that the teeth of the
Chuck are not exposed. Put a piece of scrap wood on the table to protect the Chuck nose.
Pull the Spindle down using the Handle. Press the Chuck nose hard against the scrap wood
on the table until the Chuck is forced into a solid fit. The Chuck is pressure fitted.
Pulley Cover Knob
Step 1) Locate the Knob (part #21) and the pan head screw (part #7). Slide the Knob into the hole in
the front of the Pulley Cover. Twist the screw into the knob from the underside of the Pulley
Cover. Screw on tightly.
Oiler System
Step 1) Use four M5x0.8-8 Screws (#51A) to fasten the two Oil Brackets (#50A). Insert the Oil Bottle
with Spigot Assembly (#52A and #53A) into the Oil Brackets.

SKU 39955 For technical questions, please call 1-800-444-3353. Page 8

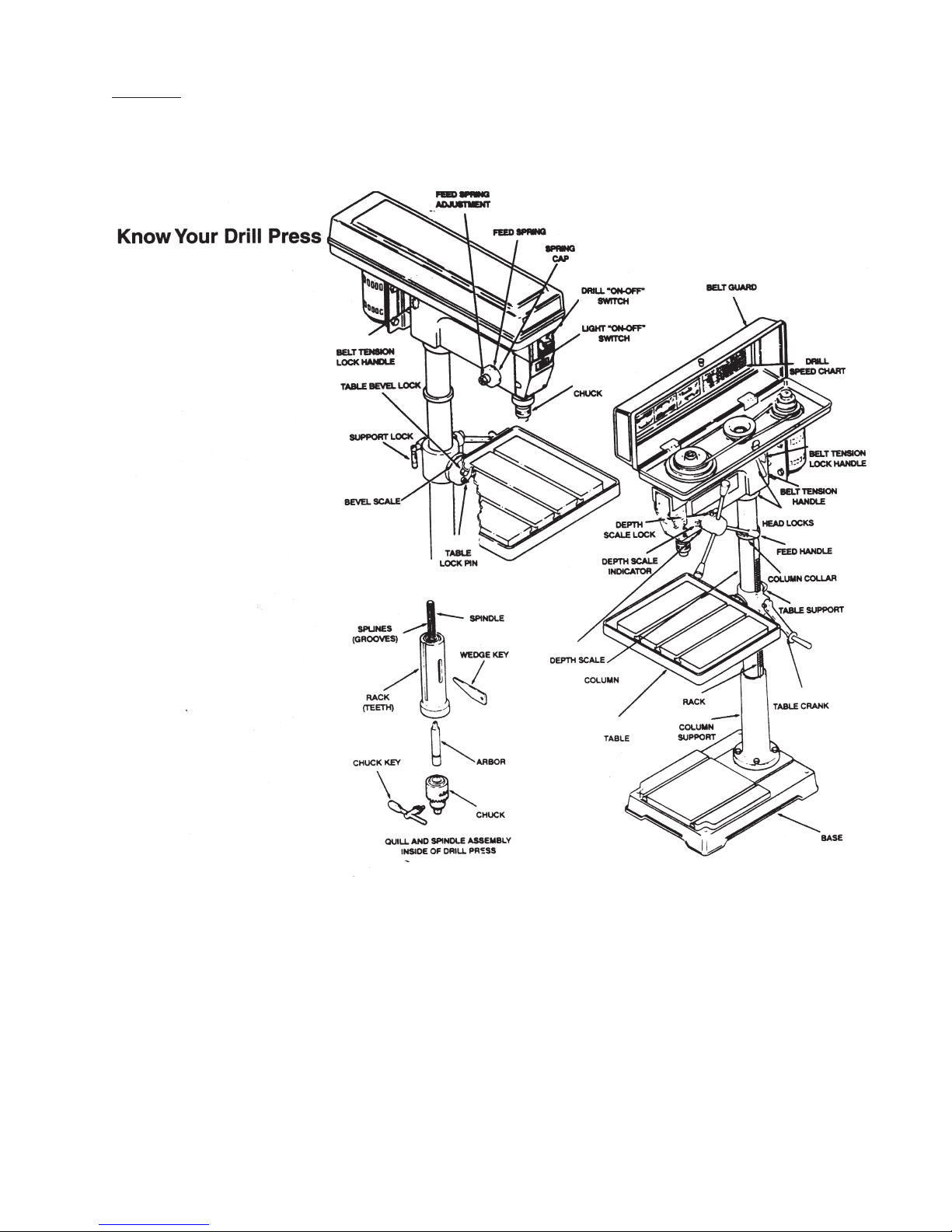

Light Bulb
Screw a light bulb (not more than 60 Watt) into the Socket (part #48A) inside the Head.
REV 03c

SKU 39955 For technical questions, please call 1-800-444-3353. Page 9
Operation
To assist you with operation of your Drill Press, please refer to the instructions below and to the Parts Listings
and Assembly Diagrams on pages 14 through 17 of this manual.
Never force the tool or attachment to do the work of a larger industrial tool. It is designed to do the job better
and more safely at the rate for which it was intended.
Settings and Adjustments
Before adjustments are made, ensure that the machine is SWITCHED OFF AND UNPLUGGED. Also make
sure all locking handles and securing screws are fully tightened when adjustments are complete.
Changing the Pulley Speeds
The Drill Press has twelve (12) different pulley speeds: 180 RPM, 310 RPM, 320 RPM, 500 RPM, 540 RPM,
570 RPM, 1180 RPM, 1565 RPM, 1805 RPM, 2190 RPM, 2795 RPM, and 3865 RPM. A full chart of belt
arrangements for each drill speed is located on the inside of the Pulley Cover.
Step 1) Undo the Belt Tension Lock Knobs (please refer to Know Your Drill Press on page 8 of this
manual) on both sides of the head. Turn the Belt Tension Handle (14A) clockwise to bring the
Motor Pulley close to the Spindle Pulley which will allow the belts to be moved easily.
Note: Please refer to the Pulley and Spindle Diagram with regard to the following steps.
Step 2) Lubricate the Idler Pivot Shaft (part #4) and the Pulley Idler with light grease, and install it in
its mounting place between the motor and spindle pulleys.
Step 3) To change the speed of the Drill, you will need to move the belt to the appropriate place on
each pulley. Hold the Lifting knob (part #21) and lift up on the Pulley Cover (part #13). Manu-
ally move the belt into the appropriate grooves on the pulleys which correspond to the speed
desired. Consult the chart inside the pulley cover and position the belts on the pulleys ac-
cording to the drill speed required.
Step 4) Turn the Belt Tension Lever counterclockwise so that tension is applied to the belts. Tension
is correct when the belts deflect by approximately 1/2” at their centers of run when using rea-
sonable thumb pressure. Lock the motor in this position with the Locking Knob.
180 310 320 500
540 570 1180 1565
1805 2190 2795 3865

SKU 39955 For technical questions, please call 1-800-444-3353. Page 10
To Adjust the Table
The table rotates 360 degrees and tilts 45 degrees right and left. The table is capable of being raised, lowered
and swiveled about the column.
1) Raise or lower the Table by slackening off the Arm Locking Handle and turning the crank clockwise to
raise it and counterclockwise to lower it.
2) The Table can be swiveled about the Column by loosening the Arm Locking Handle. The Table
assembly and Rack move as one around the Table.
3) You can tilt the Table by loosening the Bevel Table Locking Screw (part #12B and 14B) and tilting the
Table to the desired angle.
The Table is fitted with an Angle Scale to determine the degree of slant. For all normal operations the Table
should be set at 0 degrees. To ensure that the drill is entirely perpendicular to the table, insert a piece of
straight round bar in the chuck, place a Square on the Table and bring it up to the round bar. Adjust the Table
tilt if necessary so that the Table is correctly aligned.
Setting the Drilling Depth

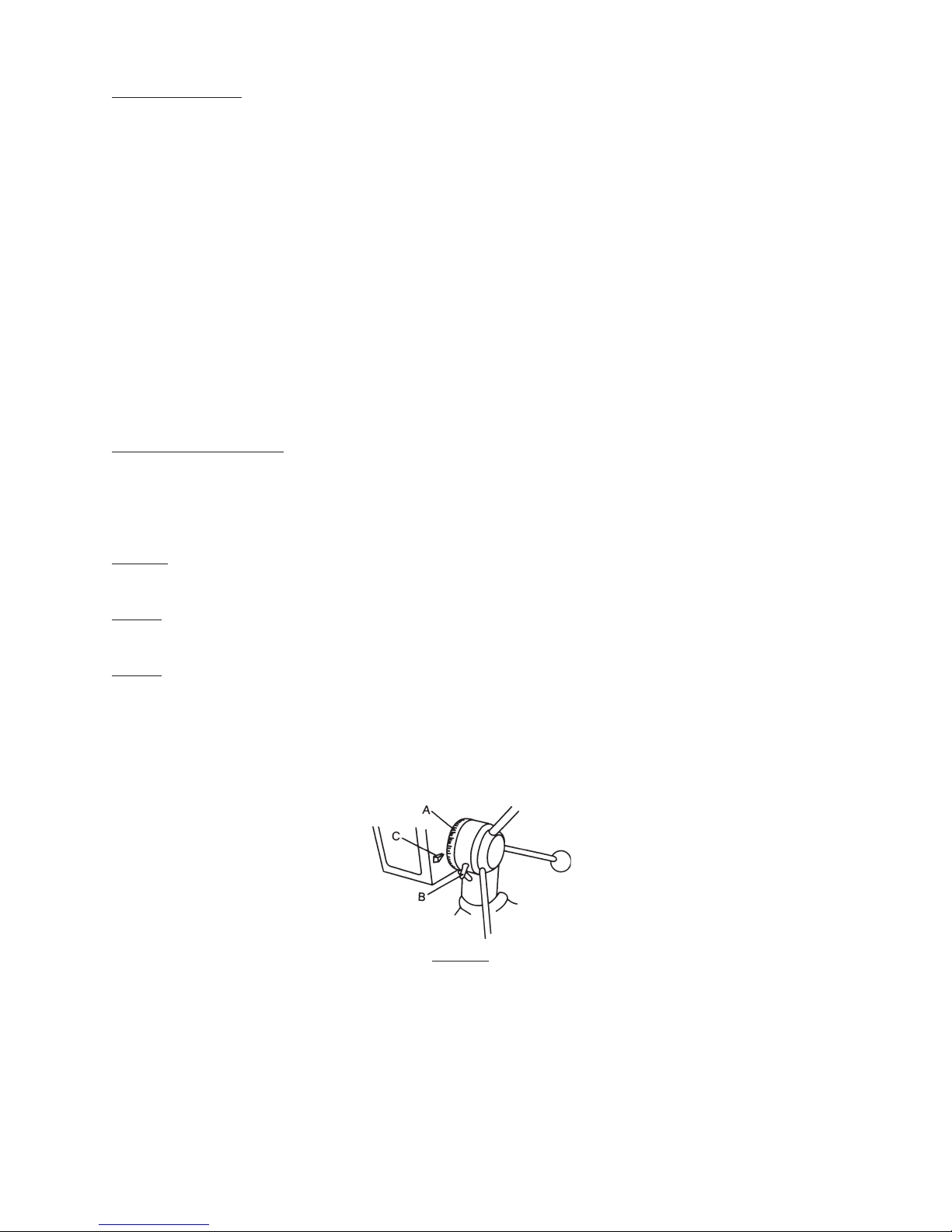

Located near the Spindle Feed Shaft is a Depth Stop Collar (A) (See Figure below) which contains a
graduated scale. The collar is capable of turning around the Shaft, and may be locked in place by a Locking
Screw (B-below). Degrees are measured in both inches and metric.
Step 1) With power OFF, lower the Chuck until the drill contacts the surface of the work piece. Hold it
in that position.
Step 2) Loosen the Locking Screw and turn the collar so that the measurement for the depth of the
hole required is in line with the Pointer (C).
Step 3) Lock the Collar in position using the Locking Screw.
The Drill is now set to drill holes to your predetermined depth from that particular starting point.
Figure 3
REV 03c

SKU 39955 For technical questions, please call 1-800-444-3353. Page 11
Running the Drill Press
Step 1) Insert the drill into the jaws of the chuck approximately 1”, ensuring that the jaws do not touch
the flutes of the drill. Before tightening the Chuck, ensure that the drill is centered within the
jaws.
Step 2) Make certain that the Table height and position is set so that the drill travel range is sufficient
for the material to be drilled.
Step 3) Make certain that the work piece is securely clamped. It should be held in a drill vise or
bolted to the table. Never hold the material with your bare hands while drilling as this may
result in severe personal injury.
Step 4) If the material is irregularly shaped and can not be laid flat on the table, it should be securely
blocked and clamped. Any tilting, twisting or shifting will result not only in a roughly drilled
hole but also increases the chances of damage to the drill.
Step 5) FOR FLAT WORK, lay the piece onto a wooden base and clamp it down firmly against the
table to prevent it from turning.
Step 6) FOR SMALL MATERIALS that cannot be clamped to the table, use a drill press vise. Make
sure that the vice is clamped or bolted to the table.
Step 7) WHEN DRILLING COMPLETELY THROUGH WOOD, always position a piece of scrap wood
between the material and the table to prevent splintering on the underside of the material as
the drill breaks through. The scrap piece of wood must make contact with the left side of the
column. Also, set the depth of the drill so that the drill will not come in contact with the table
or align the table so that the hole in its center is in line with the drill bit.
Step 8) Once the instructions above have been followed, make certain guards are in place and turn
the machine ON.
Cutting Speeds
Factors which determine the best speed to use in the drill press operation are:
1) Type of material to be drilled
2) Size of hole
3) Type of drill bit
4) Quality of the hole or cut desired.
Generally, the SMALLER THE DRILL BIT the GREATER THE REQUIRED RPM. In soft material, the speed
should be higher than for hard metals. As a guide, the drill speed for a given drill bit size is listed in the chart
below.
REV 03c

SKU 39955 For technical questions, please call 1-800-444-3353. Page 12
After Operation-Maintenance
CLEANING: Regularly clean the work surface with a dry brush or clean cloth. Keep machined
parts of the Drill Press lightly greased. Always keep the motor and chuck clean. Prevent metal, wood, dust
and debris from accumulating in the Motor and Chuck areas.
If the jaws do not operate smoothly, have the chuck serviced by a qualified technician.
Lubrication: For average use, lubricate twice a year with a 20 to 30 weight household oil Lubricate more
frequently with increased use.
STORAGE: Remove drill bits and store them in a safe place.
Child-proof the machine and work area. Make sure to use padlocks, master switches and remove the safety
Lock Key.
i f t h e r e i s a n y q u e s t i o n a b o u t ac o n d i t i o n b e i n g s a f e o r u n s a f e , d o n o t o p e r a t e t h e t o o l .

SKU 39955 For technical questions, please call 1-800-444-3353. Page 13
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER
NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND
TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE
PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE
PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE BUYER.THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF
HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

SKU 39955 For technical questions, please call 1-800-444-3353. Page 14
Parts List - #39955
Part # Description Quantity Part # Description Quantity
1 Belt - “V” 1/2 x 29 1 19 Nut-Pulley 1
2 Ball Bearing 1 20 Belt - “V” 1
3A Center Pulley 1 21 Knob 1
4 Pivot Idler 1 22 Lock Nut 1
5A Motor Pulley 1 23 Ring-Locking 1
6 Screw-Set M8 x 1.25 1 24 Washer 1
7 Pan Head Screw M5 1 25 Ball Bearing 20mm 1
8 Cord Clamp 1 26 Rubber Washer 1
9 Rubber Bushing 1 27 Tube-Quill 1
10 Screw-M6 1 28 Key-drift 1
11 Lock Washer 1 29 Chuck Key 1
12 Foam Washer 1 30 Chuck 1
13 Pulley Cover 1 31 Arbor 1
14 Retaining Ring 1 32 Spindle 1
15 Ball Bearing 1 33 Ball Bearing- 30mm 1
16 Bearing Spacer 1
17 Insert-Pulley 1
18A Spindle Pulley 1
Parts List - #39955 A
Part # Description Quantity Part # Description Quantity
1A Screw-Hex Head M8 . 1 25A Screw 1
2A Adjusting Lever 1 26A Switch Box 1
3A Motor Bracket Support 1 27A Screw-Pan Cr. M5 1
4A Motor Mount 1 28A Locking Switch 1
5A Lock Washer 12mm 1 29A Pan Head Screw 1
6A Hex-Nut M12 x 1.25 1
7A Motor 1 31A Cover Switch Plate 1
8A Hex-Nut M8 1 32A Rocker Switch 1
9A Washer 1 33A Screw-Pan Cr. M6 1
10A Cord - Motor 1 34A Lead-3 “ 1
11A Hex Head Screw M8 1
12A Motor Bracket Support 1 36A Screw-Special Set 1
13A Motor Adjusting Knob 1 37A Hex Nut 1
14A Belt Tension Handle 1 38A Spring-Seat 1
15A Screw-Soc Set M10 1 39A Pin-Roll 2.5 -10 1
16A Lock Depth Screw 1 40A Spring-Torsion 1
17A Guide-Scale 1 41A Spring-Cap 1
18A Knob 1 42A Hex-Nut M12 x 1.5-8 1
19A Rod 1 43A Cord - Power 1
20A Hub 1 44A Pin-roll 1
21A Ring/Depth Stop w/Scale 1 45A Head w/Pointer and Trim 1
22A Stop-Pin 1 46A Connector Wire 1
24A Lock Washer 1 47A Screw-Pan Cr. 1
48A Socket- Light Bulb 1
50A Oil Bracket 2
51A Screws 5mmx8mm 4
52A Oil Bottle 1
53A Spigot Assembly 1
REV 03c; 05j; 08l

SKU 39955 For technical questions, please call 1-800-444-3353. Page 15
29
30
31
32
33
22
23
24
25
26
27
28
Assembly Diagram - #39955
18A
3A
5A
REV 05j

SKU 39955 For technical questions, please call 1-800-444-3353. Page 16
Assembly Diagram - #39955 A
Note: All part numbers shown in this diagram have an “A” suffix.
REV 03c; 08l

SKU 39955 For technical questions, please call 1-800-444-3353. Page 17
Note: All part numbers shown in this diagram have a “B” suffix.
Parts List - #39955B
Part # Description Quantity Part # Description Quantity
1B Collar-Rack 1 11B Column-Tube 1
2B Screw-Hex Soc Set 1 12B Table Lock Pin 1
3B Table Support w/Indicator 1 13B Nut-hex M8 1
4B Crank 1 14B Hex Head Screw 1
5B Crank Handle 1 15B Table w/Scale 1
6B Rack 3 16B Pin - Gear 1
7B Screw-hex Soc Set 1 17B Column Clamp 1
8B Column Support 1 18B Helical Gear 1
9B Screw 1 19B Worm- Elevation 1
10B Base 2

SKU 39955 For technical questions, please call 1-800-444-3353. Page 18

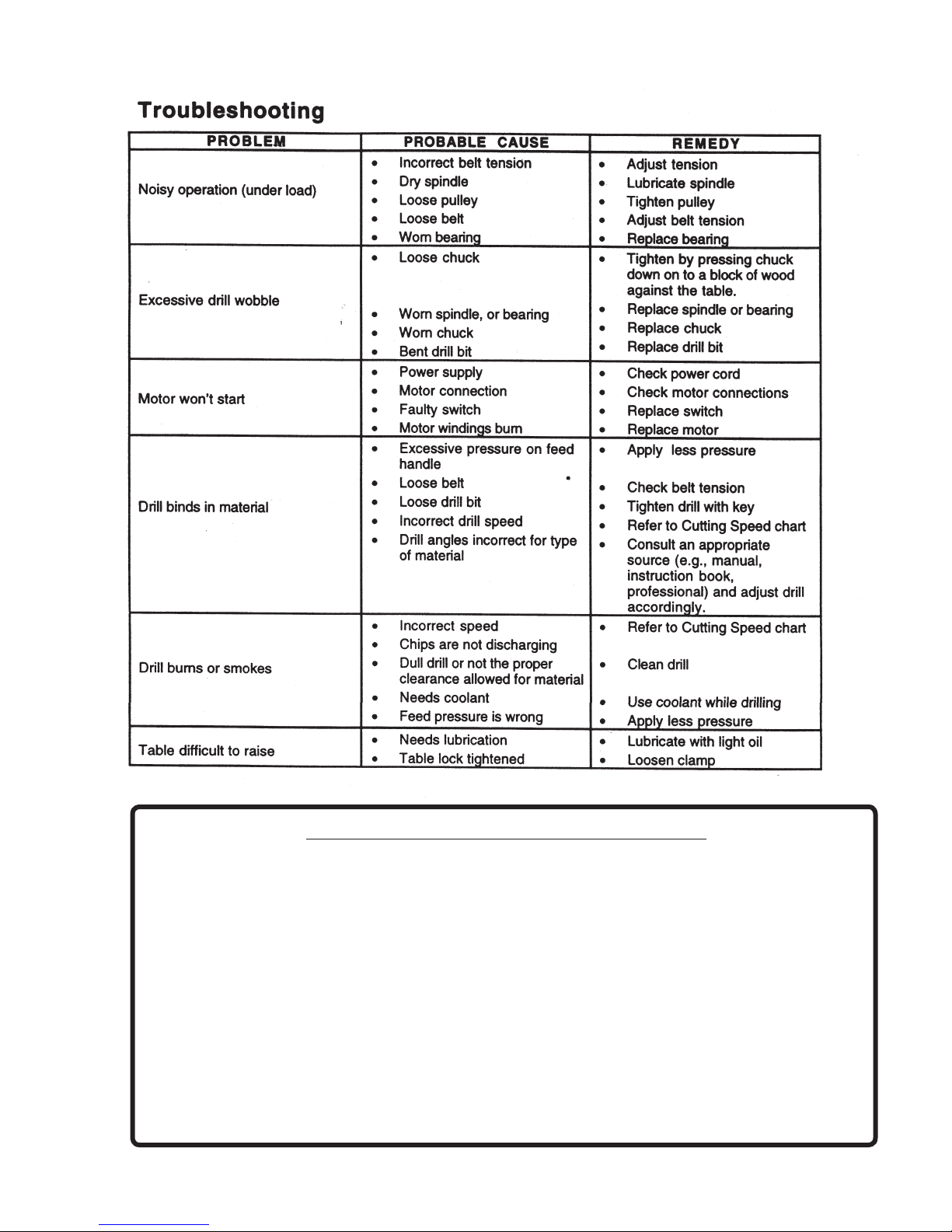

SKU 39955 For technical questions, please call 1-800-444-3353. Page 19
LIMITED 1 YEAR / 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability
standards, and warrants to the original purchaser that for a period of ninety days from date of purchase that
the engine/motor, the belts (if so equipped), and the blades (if so equipped) are free of defects in materials
and workmanship. Harbor Freight Tools also warrants to the original purchaser, for a period of one year from
date of purchase, that all other parts and components of the product are free from defects in materials and
workmanship (90 days if used by a professional contractor or if used as rental equipment). This warranty does
not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations
outside our facilities, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death,
injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the
use of our product. Some states do not allow the exclusion or limitation of incidental or consequential dam-
ages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU
OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANT-
ABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation
charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchan-
dise. If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted from
causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state
to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
REV 08l
