East SDD-90L User manual
DEHUMIDIFIER
SDD-90L
INSTRUCTION MANUAL
SAFTY INSTRUCTIONS ------------------------------------------------------------------------------ 1
SPECIFICATIONS ------------------------------------------------------------------------------------- 2
UNPACKING THE DEHUMIDIFIER ---------------------------------------------------------------- 3
INSTALLATION GUIDE -------------- ---------------------------------------------------------------- 4
OPERATION GUIDE ---------------------------------------------------------------------------------- 6
STRUCTURE AND RUNNING ---------------------------------------------------------------------- 7
OVERALL PARTS ------------------------------------------------------------------------------------- 8
NORMAL MALFUNCTION REMOVAL ----------------------------------------------------------- 9
DIRECTORY
1. 208-240 volts may cause serious injury from electric shock. Disconnect
electrical power before starting installation or servicing. Leave power
disconnected until installation/service is completed.
2. Don’t roll or damage the power cord when install or move the machine
3. Don’t put finger or any other rod like object into the machine
1. Do not tilt the machine more than 45 ° in moving or installation to avoid
damage to the compressor.
2. Working temperature scope of the machine is 5 ℃~ 38 ℃.
3. The room temperature will go up around 3℃from compressor heat
dissipation when dehumidifier running, it’s normal phenomenon, please feel free
to use.
4. It’s not necessary to use dehumidifier when the room temperature is below
10℃, the absolute humidity is quite low at this condition.
5. Please try to seal environment better to increase the effect of dehumidifier.
6. Do not place the machine in the area which may come into contact with water
or chemical.
7. Do not use any relay, extension line or adapter to connect the power of
machine.
8. Do not place the machine next to the stove, heater and other equipment will
dissipate heat, and area with direct sunlight or wind and rain.
9. Do place the plug stably and clean the dust on power line.
10. Do not damage or modify the power line, do not repair by yourself and
disassemble or modify the machine.
11. Do place the drainage tube smoothly for continuously drain.
12.Shutdown the equipment and cut power when in malfunction.
— 1 —
WARNING
CAUTION
SAFTY INSTRUCTIONS

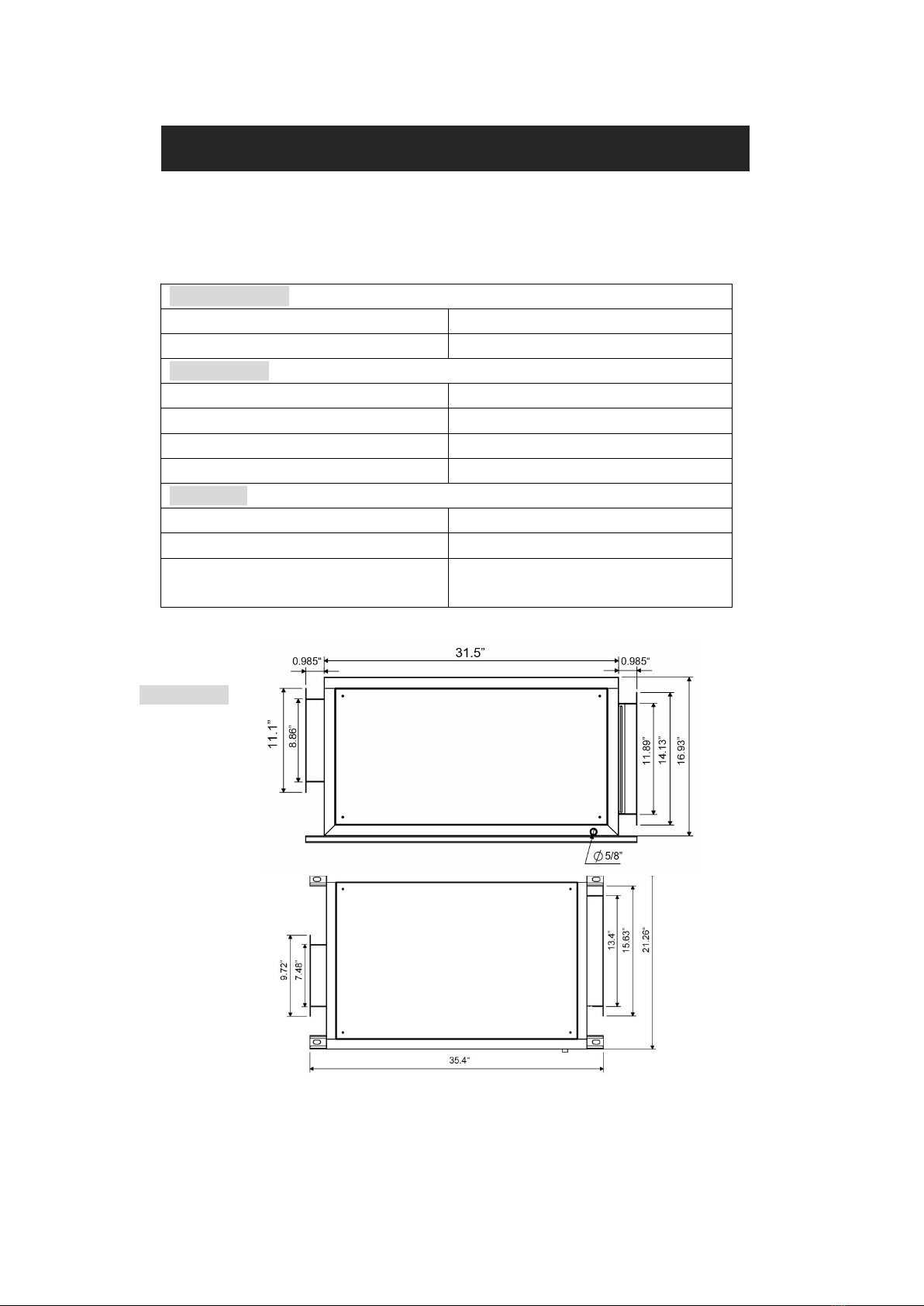

DIMENSIONS
— 2 —
ENVIRONMENTAL
Operating Temperature Range
40°F – 100°F
Operating Humidity Range
RH40% - RH95%
MECHANICAL
Weight
108 lbs (without packaging)
Drain Size
5/8"
Capacity
190 Pints @ 86°F, 80% RH
Airflow
590 CFM (free flow)
ELECTRICAL
Voltage
208~230 VAC ~, 1ø, 60 HZ
Operating Current
3.8A @ 86°F, 80% RH
Efficiency
3.5 L/kW-hr (6.9 pints/kW-hr) @
86°F, 80% RH
SPECIFICATIONS
Unpack the outer wooden case, and remove the protection film to take out
the dehumidifier for installation.
WHAT’S IN THE CASE
Dehumidifier/Drain tube / Filter /Instruction manual
Power cord /Technical label
— 3 —

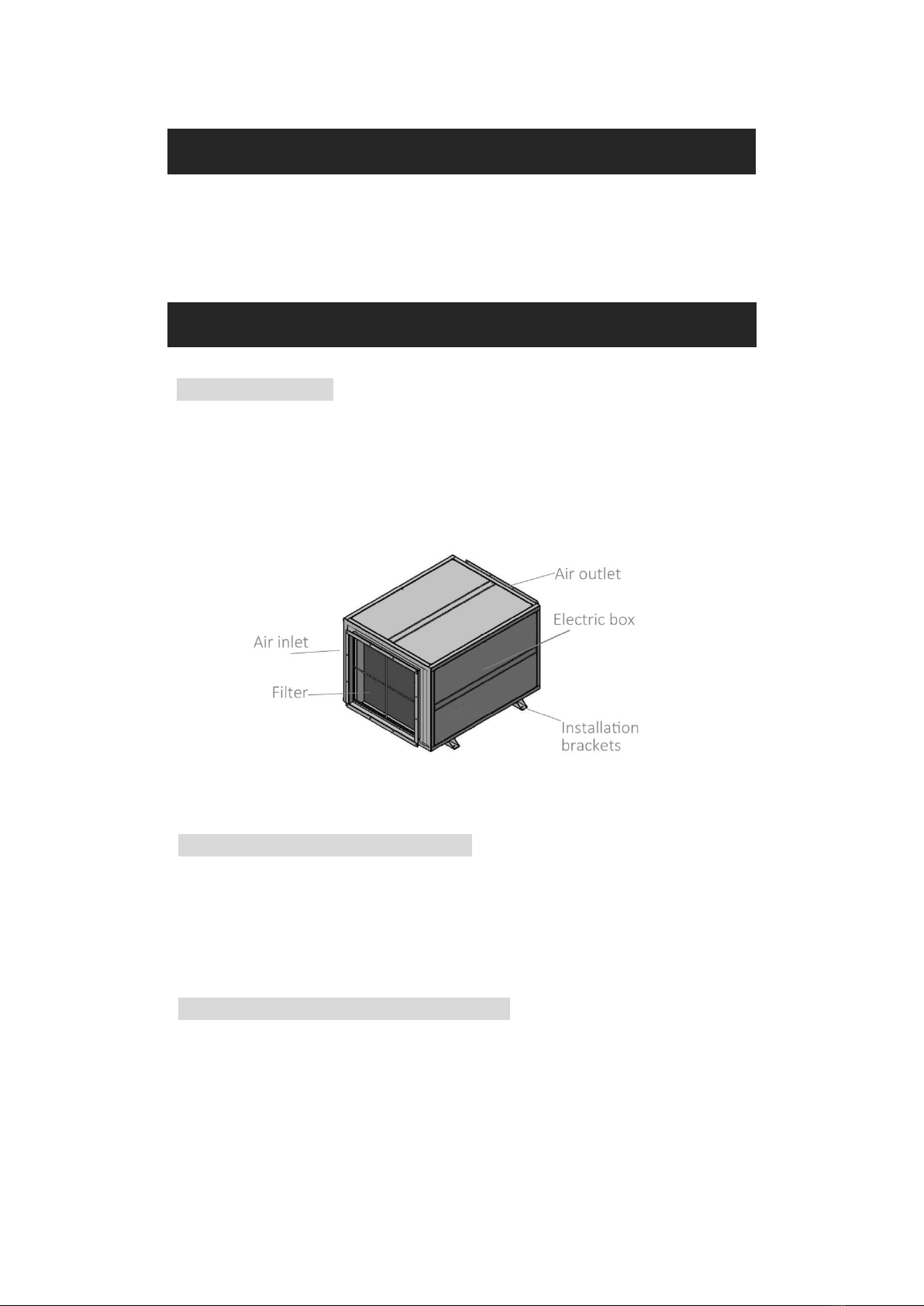

UNPACKING THE DEHUMIDIFIER
Automatic defrost protection function
The dehumidifier will defrost automatically when freezing occurs. The
dehumidifier will start automatically when defrost process is
complete. Default defrost setting occurs when ambient temperature is
under 18℃
Compressor delay start protection function
Manual restart of system within 3 minutes of shutdown, the compressor will
start up within 3 minutes of delay protection.
STRUCTURE AND RUNNING
PREPARING BEFORE INSTALLATION
A. Cut off all the electrical to ensure the safety
B. Make sure the power and drain tunnel
C. Prepare necessary tools like screwdriver, thread rod, spanner etc.
START INSTALLATION
A. Drill four fixing holes on the ceiling according to the position of install
hole on the machine, then install the expansion screw to fix the thread rod.
B. Install the machine through the four thread rods, and adjust the height
according the space to ensure the machine on horizontal level.
C. Connect the drain tube to make sure no leakage, no block for the
drainage.
Connect the power, please make sure the power supply is 208~240v/60hz
and have overload protection.
— 4—
INSTALLATION GUIDE
TOP VIEW
SIDE VIEW
CAUTION IN INSTALLATION
1. Ensure necessary safety measures to avoid incident, electrical must be shut
off during the installation process.
2. Use the strength four thread rods with corresponding screws to fix the
dehumidifier on the ceiling.
3. Ensure the installation of dehumidifier is horizontal to avoid malfunction or
leakage.
4. Ensure drain tube is installed unhindered without overmuch bends.
5. Ensure dehumidifier is installed within space with proper air circulation for air
inlet and air outlet, it is prohibited to install at corner or space with obstructions
what block the inlet or outlet.
— 5 —
Connect power controller to the terminal on the machine, then connect the power
cord with power supply and make sure it is 208-240v single phase 60hz.
Turn power supply on to start the machine.
DAILY MAINTENANCE
1. Do shut down the power supply before maintenance.
2. Wipe the body with soft cloth in daily use. Use a wet hard cloth to wipe dirty
body, or use a soft cloth moistened with a little diluted neutral detergent.
3. Filter Cleaning: it will affect the dehumidifying effect or cause malfunction if
accumulate dust on filter , it needs to be cleaned regularly, clean it at least once a
month.Use dust catcher to remove dust or put filter into clean water (<40 ℃) to
wash, then place filter back after cleaning.
NOTE: The filter cannot be put in sunlight directly or roasted to avoid distortion.
The filter must be placed before power up machine.
4. Non use of equipment :Cut the power or unplug power line. Place equipment in
dry and shaded area.
— 6 —

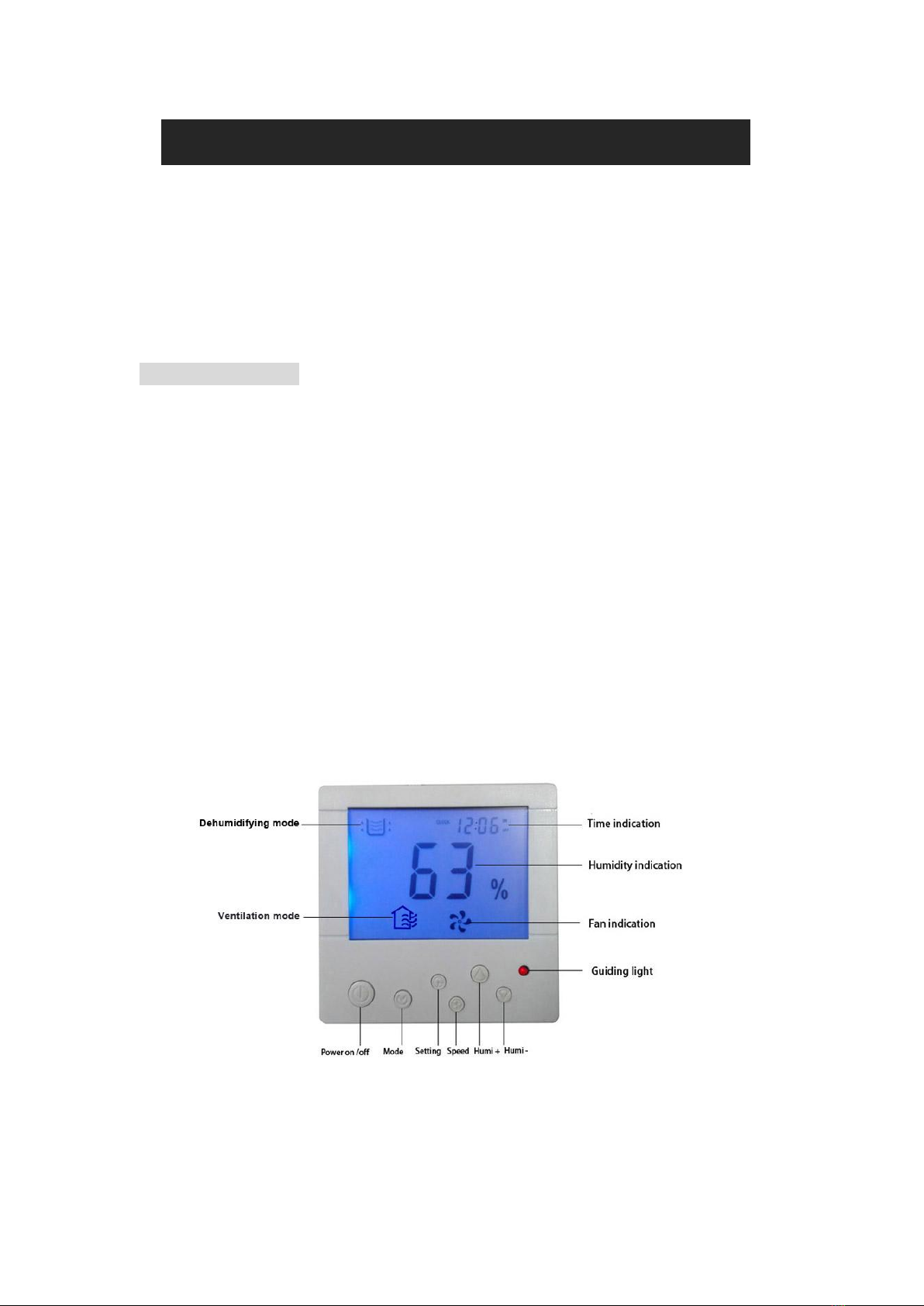

OPERATION GUIDE
1. The screen turn on and display ambient humidity when power on the
dehumidifier
2. Press “Power on/off” button to start the dehumidifier
3. In the dehumidifying mode
Press “Setting” once to set target RH%.
Press “Setting” twice to set timed off hours.
Press “Setting” thrice to set timed off minutes.
Press “Setting” quartic to set timed on hours.
Press “Setting” five times to set timed on minutes.
Press “Setting” six times to set clock hours.
Press “Setting” seven times to set set color minutes.
After pressing “setting”, press the “+”and “-”to set the target
humidity or hours or minutes.
4. “Humi +”Press the key to set the humidity value up with 1%RH scale
in running mode. Press the key to set the hour or minute down with 1
hour or 1 minute scale in timed on/off or clock setting mode.
5. “Humi -”Press the key to set the humidity value down with 1%RH
scale in running mode.Press the key to set the hour or minute down
with 1 hour or 1 minute scale in timed on/off or clock setting mode.
6. “Humidity display”Current ambient humidity display when in standby
/ dehumidifying mode. Blinking when at humidity setting mode.
7. “Guiding light”Blinking when the machine running.
8. “Defrosting indicator light”Blinking when the machine is automatic
defrosting
9. “Timed on/off and clock display”Blinking when in timed on/off or
clock setting mode
10. “Dehumidifying mode”Light on when dehumidifying mode and
Blinking when in the 3 minutes delay protection mode.
— 7—
OPERATION GUIDE
— 8 —
No.
Parts description
No.
Parts description
1
Air inlet flange
11
Air outlet flange
2
Filter
12
Base frame accessories
3
Heat exchanger
13
Base bracket
4
Heat exchanger cover
14
Power cord pressing block
5
Top plate
15
Electrical box
6
High pressure pipe
16
Main control board
7
Low pressure pipe
17
Connection terminal
8
Compressor
18
Fan capacitor
9
Centrifugal fan
19
Compressor capacitor
10
Side plate
20
Drainage accessories
OVERALL PARTS
REMARKS
1. Please contact manufacturer or agent to maintain the malfunction that cannot be
confirmed and removed, don’t disassemble the machine by yourself
2. It will produce noise when the dehumidifier power on or power off, it’s normal.
3. It will produce heat wind at the air outlet, it’s normal
— 9—
MALFUNCTIONS
ANALYZE
REMOVAL
DEHUMIDIFIER IS
NOT WORKING
1. POWER FAILURE
2. POWER OFF
3. POWER IS NOT PLUG IN
4. BLOWN FUSE
1. RESUME POWER
2. POWER ON
3. PLUG IN
4. REPLACE FUSE
BAD
DEHUMIDIFICATION
EFFECT
1. FILTER BLOCKED WITH DUST
2. AIR INLET IS BLOCKED
3. USED IN BAD SEALED ROOM
4. LESS REFRIGERANT
1. WASH FILTER
2. REMOVE BLOCK
3. CLOSE DOOR AND
WINDOWN
4. FILL REFRIGERANT OR
CONTACT WITH
MANUFACTURER
LEAKAGE
1. MACHINE IS NOT
HORIZONTAL
2. DRAIN TUBE IS BLOCKED
1. PLACE THE MACHINE
HORZONTAL
2. WASH OR CHANGE THE
TUBE
NOISE
1. MACHINE IS NOT INSTALLED
STABLE
2. FILTER BLOCKED
1. PLACE THE MACHINE
STABLE
2. WASH THE FILTER
NORMA MALFUNCTION REMOVAL
