Eastar S Series User manual

S SERIES
Portable Multifunctional Power Station Manual
1. Keep S series and the accessories dry and do not
expose them to high heat.
2.Never disassemble, puncture, shock, crash, or incinerate
the product.
3. Recycle and dispose of S series in accordance with
the local regulations.
4. Pay attention to safety when handling the S series.
5. People with disabilities or children should use the
product under the protection of the supervisor.

Glossary
The following terms are used in this document to indicate various levels of potential harm that may be caused by improper
operation.
NOTICE
The instructions, if not properly followed, may result in property damage and minor physical damage.
CAUTION
The instructions, if not properly followed, may result in property damage and serious physical damage.
WARNING
The instructions, if not properly followed, may result in property damage, major accident and serious injury.
WARNING
Read the ENTIRE user manual to be familiar with the features of this product before operating.
Failure to operate the product correctly may result in damage to the product or personal property
and cause serious injury. we will not assume any legal responsibility. DO NOT use the product with
incompatible components or alter the product in any way without following the instructions
provided by US. Otherwise, you cannot get after-sales service from US under warranty condition.
These Safety Guidelines include instructions for safety, operation and maintenance. It is important
to read and follow all the instructions and warnings in the user manual before assembly, setup or
use the product.
Product Safety Guidelines
WARNING
Improper use may result in fire, property damage or personal injury. Make sure to use the product
according to the following safety rules and guidelines
Product Use
1. DO NOT expose the product to any liquids. Do not immerse the product in water. DO NOT leave the batteries out in the
rain or near a source of moisture. Moisture in the device could cause short circuits, component failure, fires or even an
explosion.
2. Must be our official accessories, if necessary, please go to the official website to buy.For the use of other brands of
accessories caused by property damage, we do not assume any responsibility.
3. Never install or remove other modules from the S series when it is turned on. Do Not plug or unplug other modules
when the power of the product is turned on, otherwise the power interface may be damaged.
4. The product should be used in temperatures between -20℃and 60℃. The use of product in environments above
60℃may cause fire or explosion. Using product below -20℃will severely affect the performance of the product. Allow the
product to return to a normal operating temperature before use it.
5. DO NOT use the batteries in strong electrostatic or electromagnetic environments. Otherwise, the battery control board
may malfunction and cause a serious accident during use.
6. Never disassemble or pierce the product in any way. Otherwise, it may leak, catch on fire, or explode.
7. DO NOT use the product if it was involved in a crash or a heavy bump.
8. If the product falls into the water during use,take the product out immediately and put it in a safe and open area. Keep a
safe distance from it until it is completely dry. Never use it again and dispose it properly as described in the Battery Disposal
section below. If the product catches fire, it is recommended to use fire extinguishing equipment in the following order:

water or water mist, sand, fire blanket, dry powder, carbon dioxide fire extinguisher.
9. DO NOT put the machine in a microwave oven or in a pressurized container.
10. Do Not allow pins, wires or other metal pieces to insert to the device case, outlets or controls. Metal pieces may short
circuit the product.
11. Avoid collision. DO NOT place heavy objects on the machine.
12. f there is dirt on any plug or outlet surface, use a dry cloth to clean it. Otherwise, it will cause abrasion and result in
energy loss or inability to charge.
Product Charging
1. Always use our approved charging cables. We does not response to any damage caused by using non-we wecharging
cable.
2. When charging, please place the product on the ground with no flammable or combustible materials around. To prevent
accidents, never leave the machine unattended during charging.
3. DO NOT charge a product immediately after a long heavy load, because theproduct’s temperature may be too high. DO
NOT charge a product until it cools down to room temperature. The product may be unable to charge out of the
temperature range 0℃to 45℃,The ideal charging temperature range is 15℃to 30℃
Product Storage and Transportation
1. Keep the product out of the reach of children. If any children accidentally swallow parts, please go to a doctor
immediately.
2. If a low-battery warning appears, charge the battery before store it. Otherwise, long-term storage may cause damage to
the battery in the product. Batteries in the product will enter hibernation mode if it is depleted and stored for a long time.
Recharge the product can bring the battery out of hibernation.
3. DO NOT place the product near a heat source, such as a car in direct sunlight, a fire source, or a heating stove.
4. Store the product in dry environments. Please keep the machine away from water.
5. Make sure no small metal objects can fall on or around the product while in storage.
6. Never ship a product with a battery power level higher than 60%.
Product Battery Disposal:
1. Dispose the product in specific recycling boxes only after a complete discharge. Batteries are hazardous chemicals.
Please strictly follow your local regulations regarding the battery disposal and recycle.
2. Dispose of the product immediately if it cannot be powered on after over-discharging.
Product Maintenance:
1 . Never store the product in environments below -20℃or above 60℃.
2 . If the product is not used for a long time, the battery life may be reduced.
3 . Fully charge and discharge the battery at least once every 3 months to keep the battery healthy.
S series Use Care and Safety Guide
It is forbidden to carry lithium batteries and equipment with a capacity greater than 160Wh on airplane due to the
regulation; Do Not bring this product on flights.
CONGRATULATIONS
You now own the best quality Portable Battery Generator in the world. This brief pamphlet is meant to help you.
Please take some time to read it before using the product. Read it through to fully understand how to use the
Lithium Generator!

NOTICE
Toturn S series on or off, you need to PRESS and HOLD the ON/OFF system Power Button. To turn on the AC
power outlet, you need to PRESS and HOLD the AC Button after turning on S series. Please follow this
introduction step-by-step to be familiar with each of S series’s ports, buttons, display screens and more.
Get the new machine, please first charge up to 100% before use it.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
WARNING
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
PRODUCT FEATURES
Multi-function portable generator is made not only for emergencies backup power at home,is very useful for camping, or
wherever you need power when you are on the go .with high power/energy, you can keep your electrical devices,
appliances, lights and more going for longer. Variety of quick charging modes And a rich product range
The products are divided into the following series
Standard configuration
1. Built-in MPPT controller , Allows the use of 28-50 volt solar panels to charge up 700w to 1100 watts. Solar panels are
sold separately .
2. Super quick charge PD bothway charge 65W and output 65W , QC 3.0 USB output ,Output of cigarette lighter, DC output
and wireless charging .
3. DC Adapter charge 29.4V5A~10A optional ,this ports can charge by CAR
Optional features
1. S series External AC to DC charger
2. SA series adds built-in AC charging on the basis of S series
3. SAL series adds built-in LED lamp post on the basis of S series
4. SALM series adds radio, bluetooth playback and man-machine dialogue on the basis of SAL series
5. SAA series Support WiFi or GPS connection and APP remote control
According to your use needs, buy the corresponding product series

CONTENTS
S serise User Guide.......................................................1.2.3.4
Page retrieval.........................................................................5
S series product introduction................................................6
Function declaration.............................................................7
User Interface Introduction....................................................8
Solar Panel Connection..........................................................9
Charge..................................................................................1 1
Technical Specifications...................................................12/13
FAQs .....................................................................................14

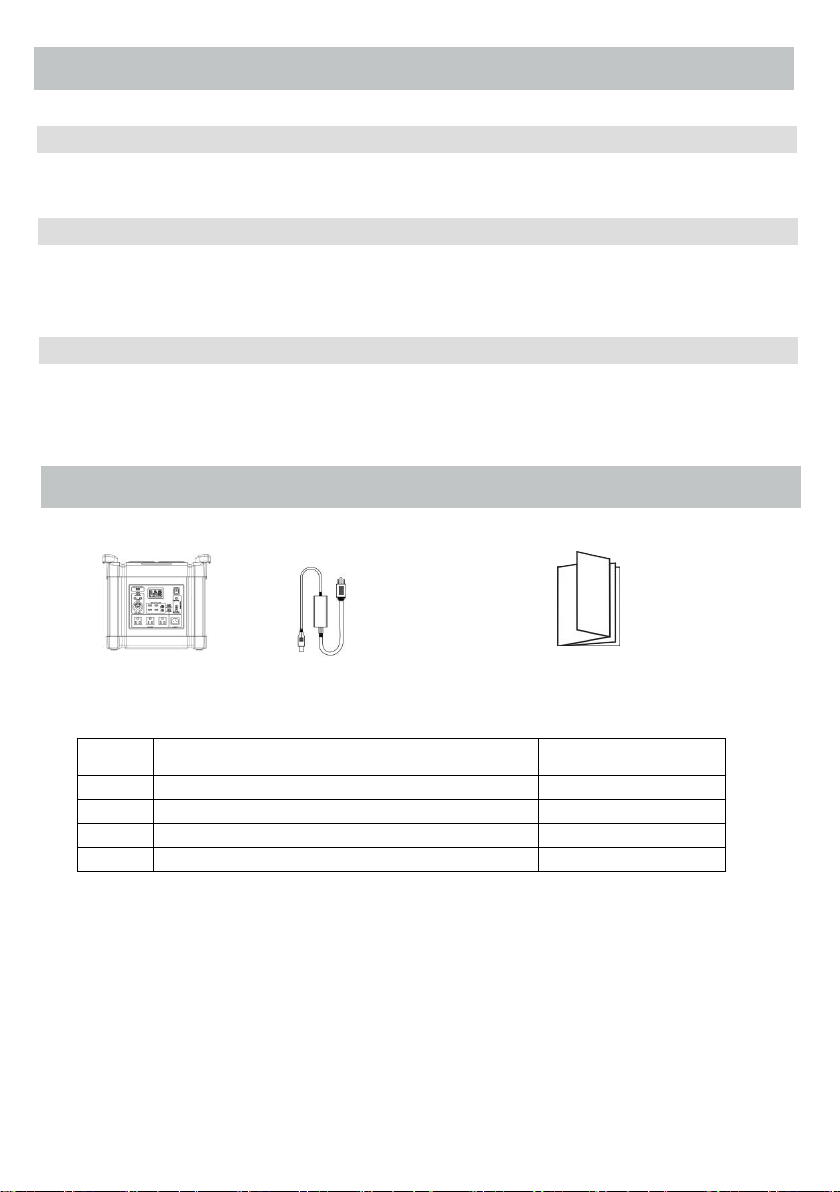

What ’ s in the Box...............................................................14

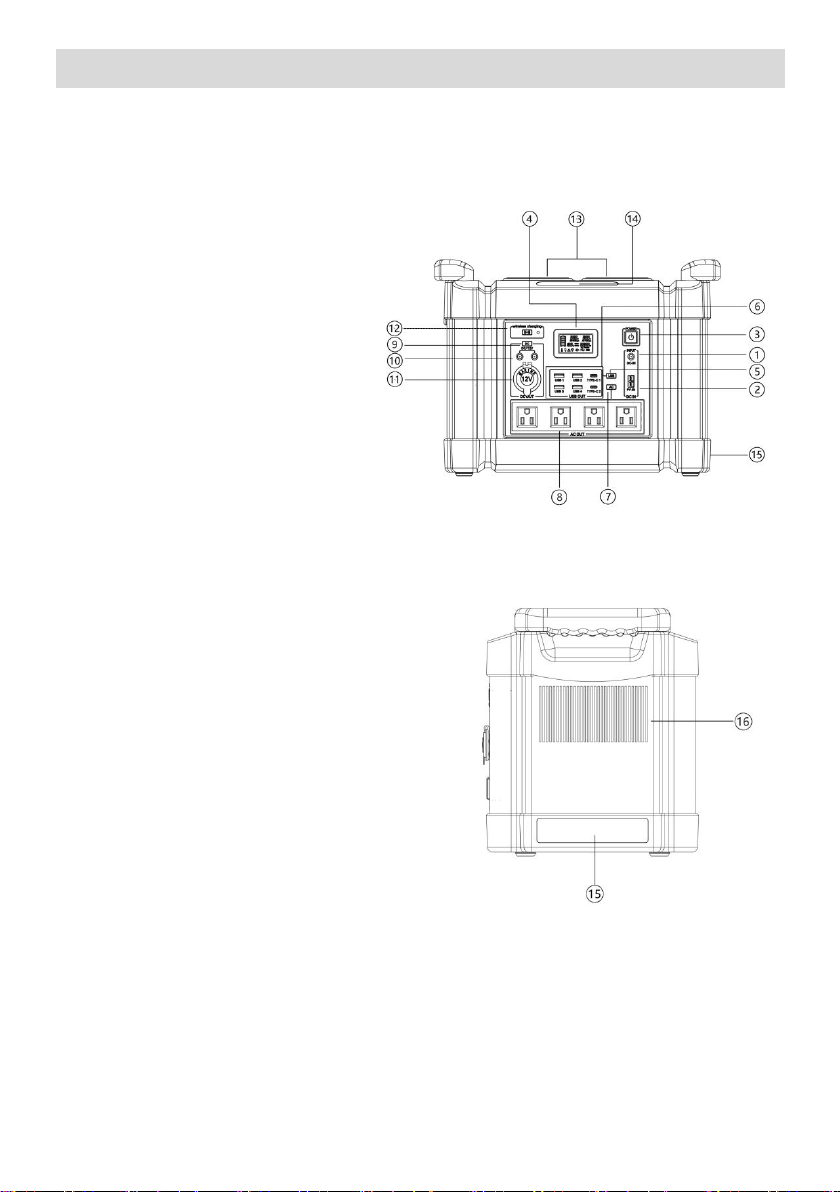

S series product introduction
1. DC charge ports
2. PV charge Ports
3. ON/OFF Button of Power
4. LCD display
5. ON/OFF Button of USB and Type-c
6. QC3.0 USB and Type-c output ports
7. ON/OFF Button of AC output
8. AC output ports
9. ON/OFF Button of DC Output
10. DC Output Ports
11. Output hole of cigarette lighter
12. ON/OFF Button of Wireless charging
13. Wireless charging placement area
14. Product model or brand
15. Detailed product specifications
16. Heat sink window

Function declaration
1. DC charge ports
A. S series has a limit input of 294W, can use 29.4V10A DC charger
B. which supports 12V/24V car charge up to 8A (remember to start the engine, otherwise, the car battery may be drained).

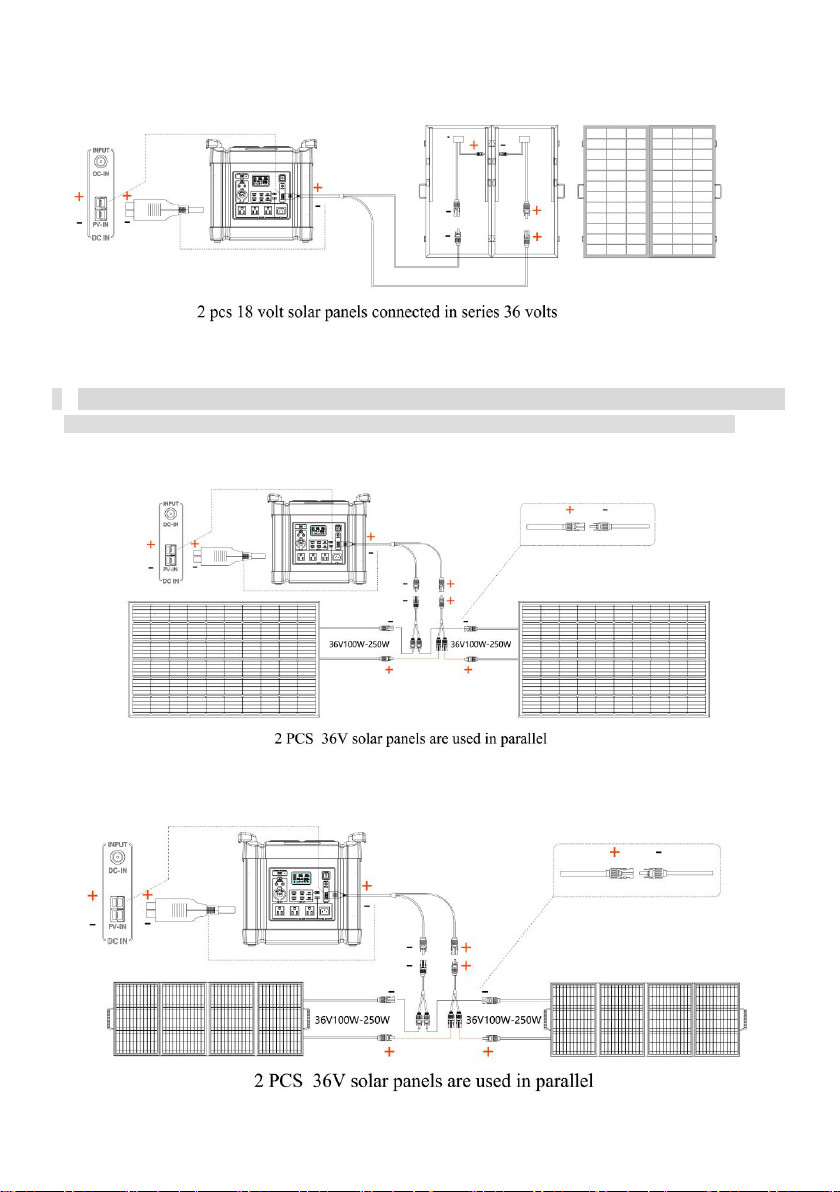

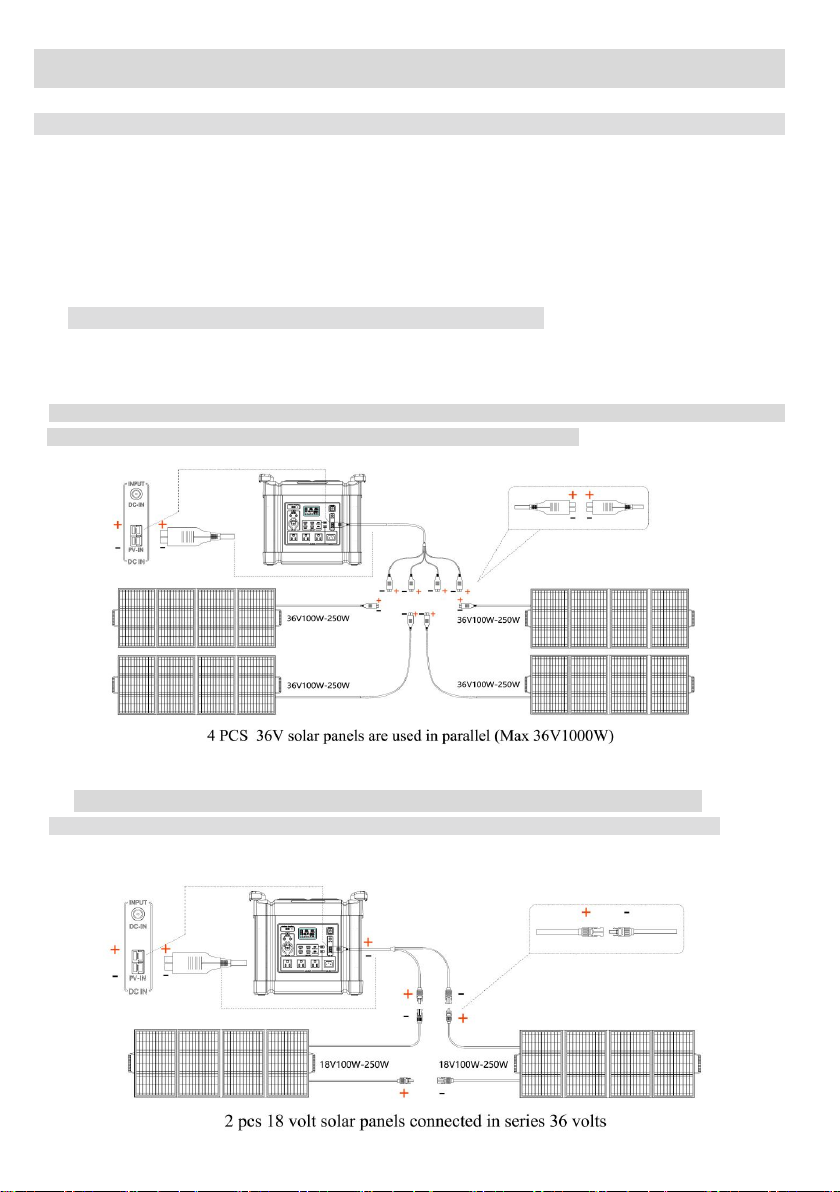

2 . PV charge Ports (Max 1000w 36V)
Support a maximum of 4pcs 36v250w solar panels to be connected in parallel
Or 10pcs 18v100w solar panel , frist 2 pieces in series, then 5 groups of parallel access to the product(Max
1000w 36V)
3 . ON/OFF Button of Power
If you need to use this product, you must turn on the main switch of the power supply before starting other switches.When
not in use, please turn off the sub-switch and the main power switch in time to save energy
4 . LCD display
The LCD screen will display various voltage, power, quantity, use status, charging status and fault
indication,Before using this product, please read the manual and function introduction carefully.
5 . ON/OFF Button of USB and Type-C
Whe you need to use the quick charge function, please turn on the power master switch, and then turn this switch
on.When not in use, please turn it off in time to save energy
6 . QC3.0 USB and bothway PD charge and output (Type-c fast charge and output ports)
2 Pcs QC 3.0 (5V/3A, 9V/2A, 12V/1.5A) output ; 2 pcs 5V2.4A output
PD 65W In/Out (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A)
7 . ON/OFF Button of AC output
When you need to use AC output, turn on the power master switch and then turn this switch on.When not in
use, please turn it off in time to save energy
8 . AC output ports
The connected AC load should be less than the allowable load power of the product
9 . ON/OFF Button of DC Output
When the power master switch is on, then turn on this switch and you can use the DC output jack
10 . DC Output Ports
Max 12v8A , 5.5*2.1mm DC port
11 . Output hole of cigarette lighter
Max 12V10A
12 . ON/OFF Button of Wireless charging
When you need to use Wireless chargeing, turn on the power master switch and then turn this switch on.When
not in use, please turn it off in time to save energy
13 . Wireless charging placement area
If your phone has wireless charging capability, this will provide 2 * 10 watts of wireless charging power
14 . Product model or brand
Put on you model and you brand , if you order us .
15 . Detailed product specifications
The main configuration and parameter information for the product is shown here
16. Heat sink window
If the high power output for a long time, please do not block the vent, conducive to the release of heat in the machine

User Interface Introduction
1, Battery status display
A , remaining battery is shown at 20%,40%, 65%, 80%,100%
B , the battery status bar will increase when charging, discharge work, the battery status bar will slowly reduce
C , low voltage alarm, the battery frame line will flash,Please charge it in time
2, Percentage of battery capacity
current remaining capacity can estimate the time the load can work
3, DC voltage (battery voltage )
Display the voltage of the battery when it is not charged;When accessing external power to charge the product,
the voltage displayed is slightly higher than the battery voltage.
4, AC voltage
Displays the current output AC voltage. During use, please note that the load must be the same AC voltage for
normal use.
5, AC output power
Total power of the current load
6, grid frequency
100-120V60HZ ; 220-240V50HZ
7, type-c
This symbol is shown when the product is charged with a fast charge or discharged with a fast charge
8, QC 3.0
symbol is displayed when USB is used
9, DC output
Displays this symbol when using a 12 volt DC load
10, LED lights
This symbol is displayed when the built-in LED lamp is working
11, Output of cigarette lighter
This symbol is displayed when output with a cigarette lighter
12, warning
Normal not displayed, When the load is too large, the current output exceeds the limit, display this symbol, please
reduce the load power as soon as possible.
13,Temperature display
Normal display, too high temperature will flash, please stop working, wait temperature to drop before us

Solar Panel Connection
How to recharge the S series using solar panels?
If you need to know more about the connection of solar panel, please refer to the Solar Panel User Guide. Here
we focus on demonstrate how one to four solar panel in parallel. The S series can support a 30-50V DC in-
put. When the input exceeds 50V, the S series's overvoltage protection will be triggered. Over voltage may
damage the product. Users should follow these instructions. SR do not provide free repair services for any
product damage caused by connecting many solar panels to the product or incorrect connection, even during
the warranty period.
1. We recommend this type of fittings and connection as a priority
Anderson 4 in 1 cable accessories, can be up to 4 PCS 36V100-250W solar panels connected to the product in parallel for
charging, allowing the maximum access of 36 volt 1000W photovoltaic panels. Suitable for outdoor activities and RV trips
However, SR do not provide free repair services for any damage to the product caused by the quality issue or
improper operation of the third-party solar panels, even in the warranty period.
2. After the series is 36 volts, the maximum cannot exceed 1000 watts
If you have two or four 18 volt solar panel output connectors of MC4, please refer to the following connection.

3 . 36V solar panels can be allowed in parallel, up to a maximum of 1000 watts
If you have two or four 36 volt solar panel output connectors of MC4, please refer to the following connection.

4 . Recharge at home using the included charger
The charger presented randomly is a special charger
（29.4V4.5A-29.4V10A）
, this product does
not accept any other charger whose parameters do not match for charging.Please read
carefully and follow the rules.
This product can be charged with a portable quick charger. Max 65W
5 . Use the car to charge this product
Use the car to charge the product only under very special circumstances. Please note ：that it is best to charge the
product when the car engine is working.When the car engine is not working, the use of the car to charge this product,
a long time will lead to car battery loss.

Choose the appropriate load according to the product model
Note: If the load power used is too large, it will cause the machine to heat too fast, and start protection shutdown.At this
time should reduce the load to use. If you stubbornly use high power load, resulting in damage to the product, will not be
within the scope of warranty.

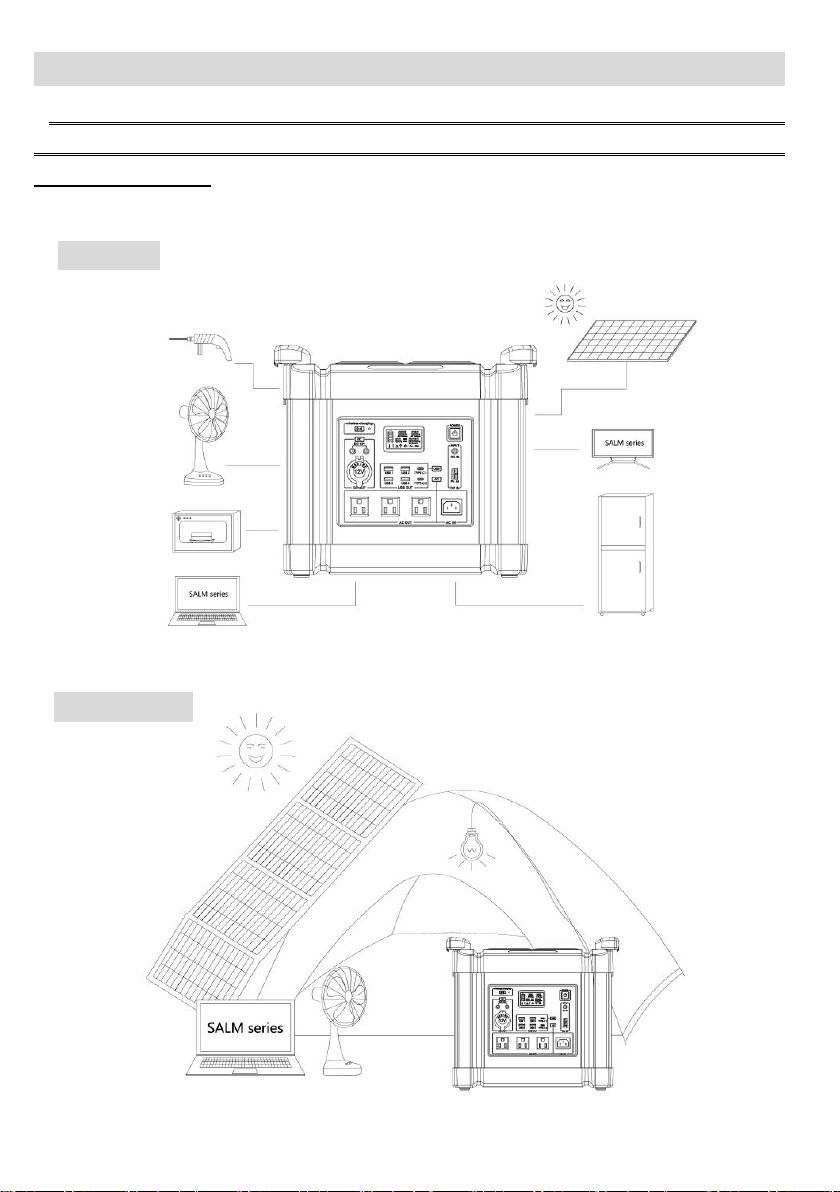

Home Use
Outdoor Use

Technical Specifications
MODEL
S1000
S1500
S2000
S2600
S3100
S4000
S5200
Inverter output
1000W
1500W
2000W
2000W
2000W
2000W
2000W
Peak power
2000W
3000W
4000W
4000W
4000W
4000W
4000W
AC output
220V±10% 50HZ 110V±10% 60HZ
Waveform
Pure sine wave
Frequency Range
50HZ / 60HZ
Lithium battey
capacity
1036Wh
1554Wh
2072Wh
2590Wh
3108Wh
3885Wh
5200Wh
Battery voltage
25.9V~29.4V（options ）(25.6~29.6V)
Life Span
1500 Cycles to 80%+ capacity
Management Systems
BMS with Over Voltage Protection Overload Protection;Over Temperature Protection Short Circuit
Protection;Low Temperature Protection Low Voltage Protection;Overcurrent Protection
Solar charge
20A（26-50V 720w）
30A（26-50V 1100w）
60A（26-50V 2160w）
Adapter charging
AC 220V/110V~29.4V5A (Additional custom is required for higher current )
DC charge
DC Adapter 29.4V5A
Cigarette lighter
output
12V10A max 120w
DC output
２* 12V8A max
USB QC 3.0 output
4PCS 5V/3A, 9V/2A, 12V/1.5A
Type-C Bothway
Charge by USB-C PD 65W ; Output PD 65W, 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
Type-C output
PD 45W, 5V/3A, 9V/3A, 12V/3A, 15V/3A
Wireless charging
2 * 5V10W
LED Lighting lamp
SAL series (2*3W , Built-in LED lights with more power require additional customization ）
Music player
SALM series (FM radio / Bluetooth、3W~5W trumpet , need to choose a higher configuration model ）
Speech control
SALM series (Switch on and off with voice control of various functions , need to choose a higher
configuration model ）
Multimachine parallel
SALM series ( need to choose a higher configuration model )
UPS
SAU series ( need to choose a higher configuration model )
network
communications
SAA series ( need to choose a higher configuration model )
Storage temperature
-10℃~ +45℃
working temperature
-10℃~ +65℃
Warranty
12 months
Testing and certification
UL / CE / FCC / RoHS / PSE / KC
L*W*H ( mm )
384*249*290
384*249*330
384*249*350
384*249*450
Weight ( KG )
14.6
18.2
21
23.2
27.3
30.2
38.1

How do I clean for S series?
How do I store S series?
How do I use S series safely?
FAQs
The S series is a versatile tool on many adventures, so that simple cleaning will likely be required from time to time.
Use dry, non-abrasive cloths to wipe. If you need to clean more thoroughly, we recommend that you use detergent that used for
cleaning mobile phones and computer screens. Do Not expose S series to lots of liquid.
Please store S series in a dry and cool place. DO NOT place it near water. If you need to store S series for a long time,
please charge the battery to around 85%, in order to extend battery life. Then turn off the main switch and store at
room temperature. Charging once every 2 months .
Please use S series in its operating temperature range. Using S series out of the optimal operating temperature
range may cause S series to exceed its safe and effective working limits. DO NOT immerse S series in water. Doing so
will void the warranty. S series is not waterproofed.
S series DC adapter User Manual and warranty card.
NO.
PRODUCT
Quantity (pcs)
1
S series
1
2
Charging Adapter
1
3
User Manual
1
4
Warranty Card
1
What’s in the Box
