Eastern Times Technology YF-258 User manual

Installation diagram
Handle
installation diagram
Rearview mirror
installation diagram
（Installation completion diagram）
材质：128g铜版纸
尺寸：195*120mm
Motorcycle wiring connecting
Wireless charging module connection diagram

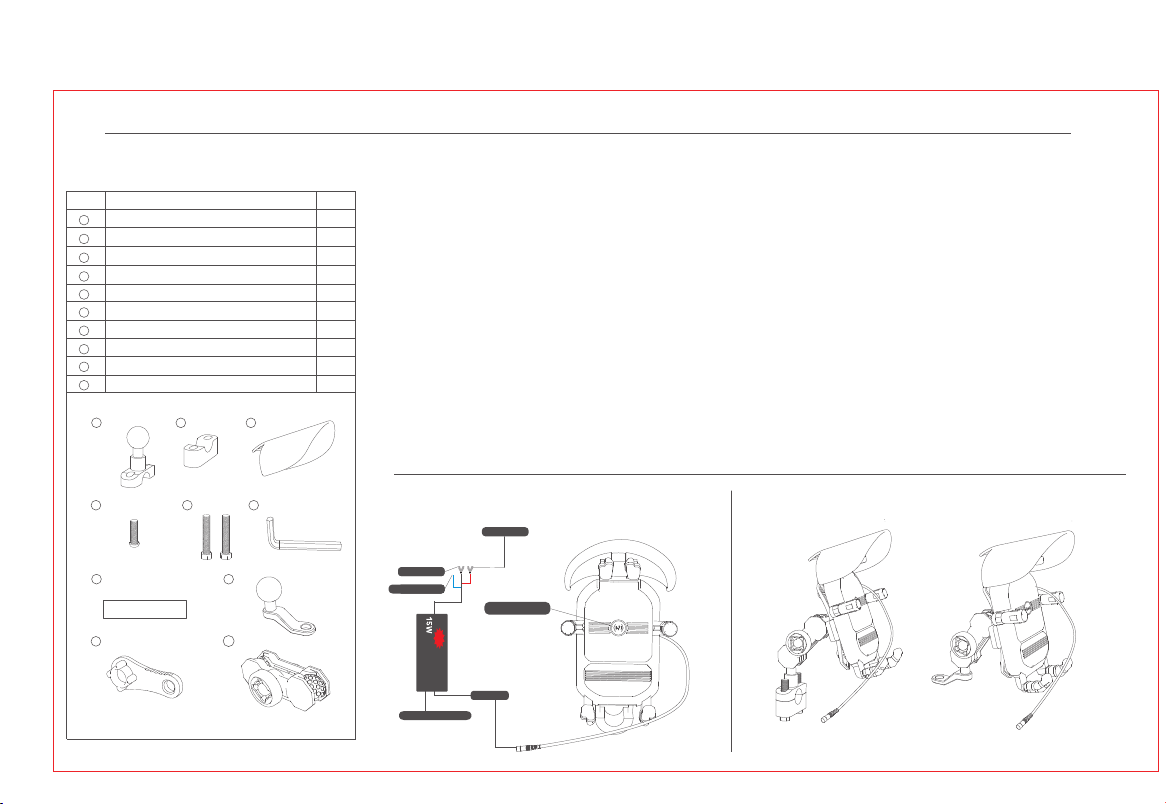

YF-258 Mobile phone rack（charging type）installation instructions
1.ACC wiring method: Connect the red positive line of the power line of
the intelligent anti-loss power box to the positive extreme of "+" of the
battery on the motorcycle, and the black negative line to the negative
extreme of "-" of the battery on the motorcycle. The blue line is the on/
off control end of the intelligent anti-loss power box, and connect the
blue control line to the outlet end of the ignition switch of the motorcy-
cle electric door lock.
2.Conventional wiring method: Connect the red positive pole line and
blue control line of the power line of the intelligent anti-loss power su-
pply box together with the positive extreme of the "+" of the battery on
the motorcycle, and connect the black negative pole line to the negative
end of the "-" of the battery on the motorcycle.
product parameters ：
Spare parts
Number YF-258 Handlebar/mirror accessoryt QTY
1
Aluminum alloy handle upper ball head accessory
1
2Aluminum alloy handle lower accessory 1
1
1
3
M5 hexagonal small wrench (white zinc)
2
4
inner hexagonal stainless steel screw M5 * 30
∅3.5*8 Round head screw
sun visor
1
5
Silicone 3M slip strip single-sided adhesive 70 * 20 * 1.0MM 1
6
Aluminum alloy rearview mirror base ball head accessory 1
7
Anti-theft nut wrench 1
8
Left and right clips 1
9
10
1
910
2 3
4 5
78
6
Power supply instruction
The power supply produced by our company is only used for supporting products of our
company, and can not be used for other products, nor can it be connected to other products
by breaking the wire. The company will not be responsible for the "damage to the original
equipment" caused by the failure to follow the instructions of our company. Hereby state!
Product Name：YF-258
Wireless charging：15W Max Voltage：DC12V-24V Waterproof class： IP67
Service Policy
1. This motorcycle mobile phone rack is only available for daily driving use, strict excessive use, such
as leap, competition, high-intensity cross-country, etc.
2. Check all screws regularly. If they are loose, please tighten them in time.
3.To ensure the best wireless charging effect, place the phone as close to the back of the phone
holder as possible, and use the phone protection case as thin as possible.
1.YF-258 universal wireless charging mobile phone rack can enjoy the service of only replacement without
repair in case of quality problems during normal installation and use within one year from the date of sale.
2. Limited warranty: After the one-year warranty period expires, the manufacturer will provide paid
warranty service, based on the actual cost of material replacement.
3. The Terms of Service are not applicable to the following situations: artificial damage, self-disassembly,
self-modification, destruction of the cable label provided by the factory is inconsistent or
altered.
Please read the relevant after-sales service terms carefully before use. Unpacking and
installation means acceptance of the after-sales service terms.
The Do's And Don'ts
Electric vehicle wiring connecting：
The voltage of the electric vehicle battery is converted to DC12V10A
through the DC-DC step-down module, and then the red positive pole
line and blue control line of thepower line of the intelligent power supply
box are connected together to the positive extreme of "+" at the output
end of the DC-DC step-down module converter. Connect the black nega-
tive wire to the "-" negative extreme at the output end of the DC-DC step-
down module converter.
12V battery positive line
12V battery negative line
12V electric door lock AAC line
Intelligent anti-loss power supply box
DC power line
charging rack
High-ending cycling equipment
damping
15W wireless charging module
