Eastwood Elite TG2000 User manual

TG2000 CORDLESS
TUNGSTEN GRINDER
INSTRUCTIONS
Item #58878

2Eastwood Technical Assistance: 800.343.9353 >> [e-mail]
The EASTWOOD ELITE TG2000 CORDLESS TUNGSTEN GRINDER was specifically designed for
the frequent user. Includes a rechargeable, long-life, 12-volt Lithium-Ion battery that provides ample
power and charge for jobs away from the welding bench, or in the field, with cordless convenience.
Features a long-lasting, double-sided, Diamond Grinding Wheel capable of providing over 200
tungsten sharpening’s before requiring replacement. The high-speed electric motor allows the user
to produce a finely sharpened point, at an ideal 10° or 22.5° preferred angle, in seconds. A unique
tungsten Grinding Guide design accepts both 1/16” and 3/32” diameter tungsten electrodes for both
breaking deformed tips and prepping new tungsten rods.
CONTENTS

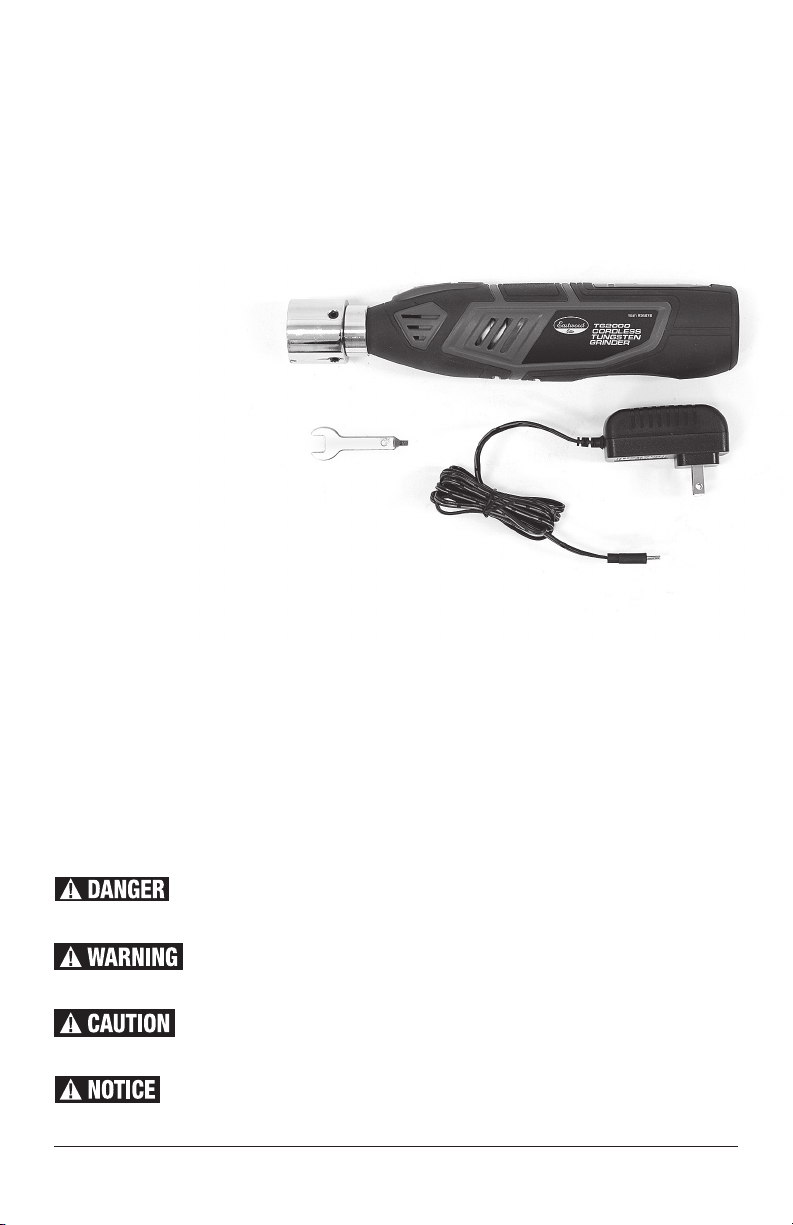

(1) Eastwood Elite Cordless
Tungsten Grinder [A]
(Diamond Grinding
Wheel installed)
(1) Wall Charger [B]
(1) Collet Wrench [C]
SPECIFICATIONS
Wall Charger Input Voltage: 120 VAC, 60Hz
Wall Charger Output: 13.5 VDC, 1500 mA
Battery Specifications: Lithium-Ion, 12 VDC, 2000 mAh
Charger & Tool Certification: ETL
No-Load Speed: 8,000 - 35,000 RPM (Variable Speed)
No-Load Runtime: 20 Minutes
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
SAFETY INFORMATION
The following explanations are displayed in this manual, on the labeling, and on all other information
provided with this product:
A
B
C

To order parts and supplies: 800.343.9353 >> eastwood.com 3
READ ALL SAFETY WARNINGS AND
ALL INSTRUCTIONS!
Failure to follow the warnings and instructions may result in electric shock,
fire and/or serious injury.
Save all warnings and instructions for future reference.
SERIOUS INJURY, FIRE,
AND EXPLOSION HAZARDS!
• Keep Dry – DO NOT operate or store in damp or wet conditions.
• DO NOT drop, short circuit, incinerate, expose to temperatures greater than
140°F [60°C].
• No user serviceable parts inside – DO NOT open tool.
• DO NOT attempt to charge or use this tool if damaged.
• DO NOT operate in explosive atmospheres such as explosive vapors,
flammable liquids, gasses, or dust.
• Not a toy. Keep out of the reach of children.
• Charge tool only according to these instructions.
• DO NOT use any chargers other than the one specifically supplied with
this tool.
HEALTH HAZARD!
• Dust and fine particles are generated while grinding which can contain
hazardous or toxic substances. Breathing this dust can cause many seri-
ous respiratory health conditions. Always use NIOSH approved respiratory
protection while using this Grinder.
EYE INJURY HAZARD!
• Rapidly moving abrasive surfaces can eject metal particles, dirt and debris
at high velocity. Always wear ANSI approved eye protection when operating
this tool.
SAFETY INFORMATION
WARNING! LITHIUM BATTERIES STORE A LARGE AMOUNT OF ENERGY AND WILL
ERUPT IN FLAMES OR VIOLENTLY EXPLODE IF NOT PROPERLY HANDLED.

4Eastwood Technical Assistance: 800.343.9353 >> [e-mail]
INJURY HAZARD!
• The rotating Wheel of this Grinder can quickly catch loose clothing, long hair
or jewelry causing serious personal injury. Keep all loose clothing, long hair,
and jewelry away from operating Grinder.
• Always turn the Grinder switch to the “OFF” position before changing
Wheels or performing maintenance.
• Sharpened tungsten points can cut. Always wear protective work gloves
while handling sharpened tungsten.
INJURY HAZARD!
• This Grinder can eject sparks in use which can ignite flammable materials or
injure others nearby. Do not operate near flammable materials and keep all
persons and pets away from the work area.
HEARING DAMAGE HAZARD!
• This tool may emit high sound levels while operating. Use ANSI approved ear
protection when operating.
VIBRATION INJURY HAZARD!
• This tool will vibrate during use! Repeated exposure to vibration may cause
physical injury.

To order parts and supplies: 800.343.9353 >> eastwood.com 5
FIG. 1FIG. 1
FIG. 2FIG. 2
FIG. 3FIG. 3
FEATURES
The Eastwood Elite TG2000 Cordless Tungsten
Grinder head features six machined slots:
- Two 1/16” slots; one angled at 10° and
one at 22.5° to direct the tungsten at
the preferred angle against the Diamond
Grinding Wheel (FIG 1).
- Two 3/32” slots; one angled at 10° and
one at 22.5° to direct the tungsten at
the preferred angle against the Diamond
Grinding Wheel (FIG 1).
- Two notches (1/16” & 3/32”) cut into
the top, outside edge of the Grinding
Head. These slots are designed to grip
the burned end of tungsten rods for
clean breakage (FIG 1).
OPERATION
• Plug the Wall Charger into a properly
grounded, 120VAC, 60Hz outlet and
plug the USB-C charging cord end into
the charging port at the rear of the
Cordless Tungsten Grinder (FIG 2).
• Allow the battery to charge to full capac-
ity as indicated by the three LED battery
charge indicators (FIG 3) being fully
illuminated. After charging, unplug the
wall charger and USB-C charge plug.
• While holding the Eastwood Elite Cord-
less Tungsten Grinder securely, move
the On-Off Switch (FIG 3) to the “On”
position.
Whenever switched on, the speed
setting will default to a middle
setting of 3. Setting 4 is gener-
ally optimal for tungsten grinding,
however this will vary upon user
preference.
✓
Armature
Lock Button
Power
Switch
Speed
Indicators
Battery
Charge
Indicators
Speed
Adjustment
Paddle
✓
✓
✓
✓
Low High
Low Full
OnOn
OffOff
UpUp
DownDown

6Eastwood Technical Assistance: 800.343.9353 >> [e-mail]
• To begin grinding, allow several sec-
onds for the motor to reach full speed,
then gently place the tungsten into the
proper width slot (FIG 4).
• Slowly and steadily allow the tungsten
to contact the face of the Diamond
Grinding Wheel while rolling the
tungsten to create a sharpened tip. DO
NOT force the tungsten but allow the
abrasive of the Diamond Grinding Wheel
to do the work.
• When the grinding is complete, with-
draw the tungsten and move the On-Off
Switch to the “OFF” position.
BREAKING OFF BURNED
TIPS ON TUNGSTEN
• Place the burned end of the tungsten
into the proper width slot and quickly
move the tungsten to the side to snap it
off (FIG 5).
FLIPPING AND
REPLACING DIAMOND
GRINDING WHEEL
• Using a 3mm Hex Key (not included),
loosen the four Retaining Set-Screws

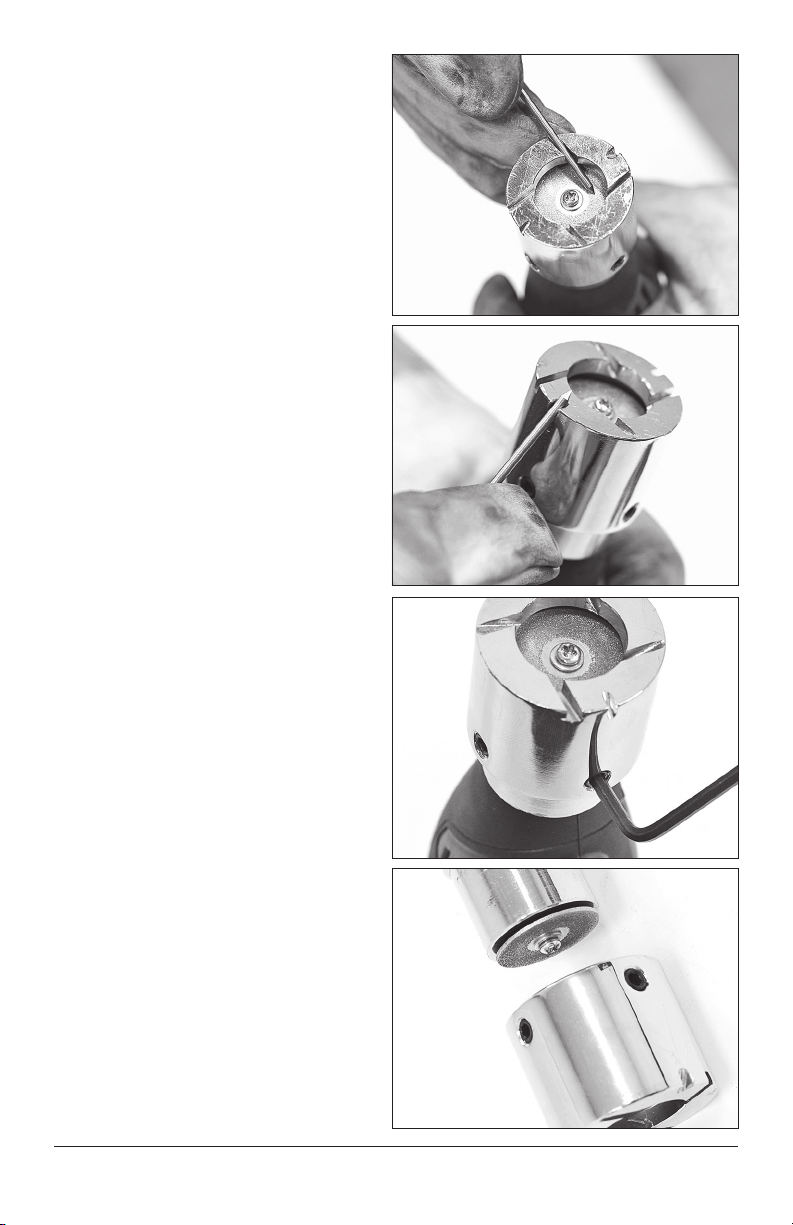

(FIG 6).
• Remove the Grinding Head and set it
aside (FIG 7).
FIG. 4FIG. 4
FIG. 5FIG. 5
FIG. 6FIG. 6
FIG. 7FIG. 7

To order parts and supplies: 800.343.9353 >> eastwood.com 7
• Depress the Armature Lock Button and
using a #1 Phillips screwdriver (not
included), remove the Diamond Grinding
Wheel Retaining Screw (FIG 8).
• Remove and flip the existing Diamond
Grinding Wheel to reveal the fresh abra-
sive surface or replace with a new one.
• Re-install the Retaining Screw and
tighten in place.
• Back out all four of the Retaining Set-
Screws so that the ends are flush with
the I.D. of the Grinding Guide (FIG 9).
• Slip the Grinding Guide back over the
Arbor Housing.
• Tighten all four of the Retaining Set-
Screws an equal amount so that the
Grinding Guide opening is fully con-
centric with the Retaining Screw at the
center of the Diamond Grinding Wheel

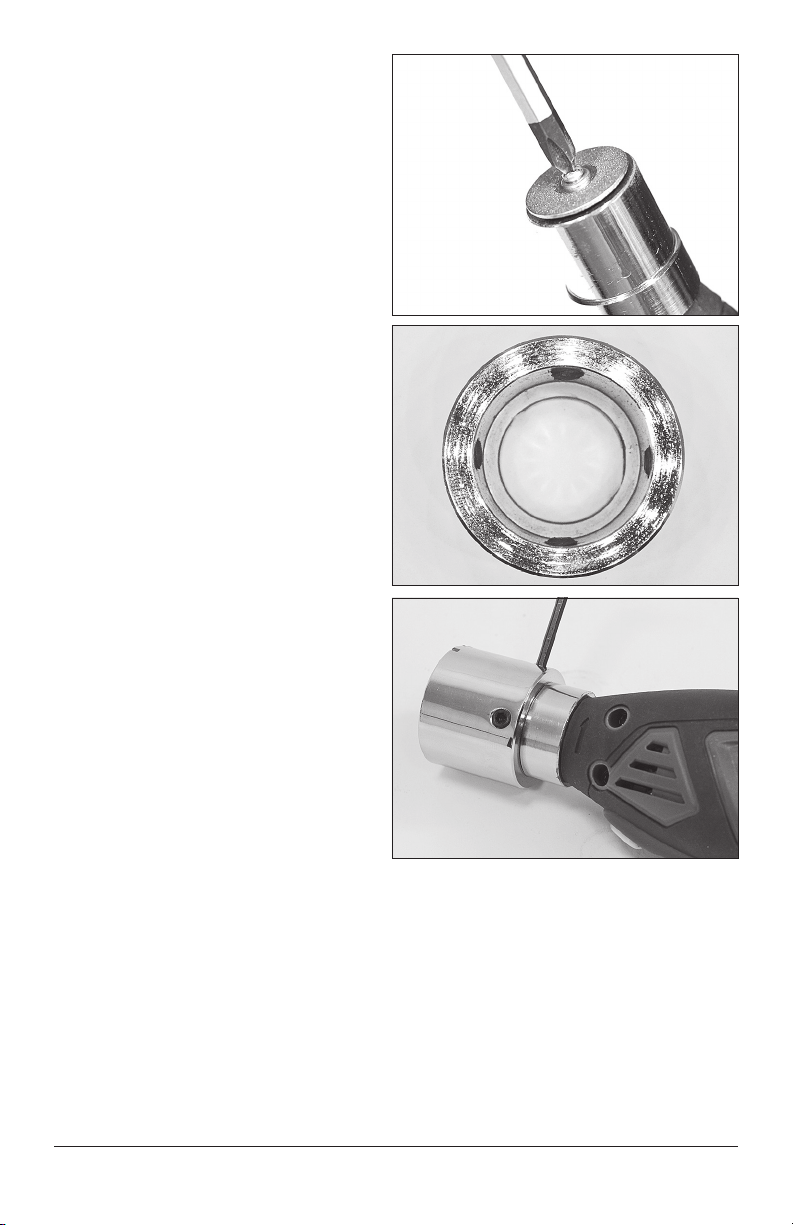

(FIG 10).
• The Eastwood Tungsten Grinder is now
ready for use.
FIG. 8FIG. 8
FIG. 9FIG. 9
FIG. 10FIG. 10

8Eastwood Technical Assistance: 800.343.9353 >> [e-mail]
MAINTENANCE
IMPORTANT NOTE: The following maintenance should be performed before each use:
• Check Diamond Grinding Wheel Retaining Screw and Grinding Guide Retaining Set-Screws
for tightness.
• Inspect Diamond Grinding Wheel for cracks, damage, or premature wear.
• Clean dirt and debris from motor air cooling slots.
BATTERY AND CHARGING
• The charge status is indicated by the three LED indicators below the Speed Adjustment Paddle
(FIG 3). When the tool is not receiving a charge and powered on, they will illuminate to show
battery charge status:
Three bars: Indicates the battery is at or near full charge.
Two bars: Indicates the battery is at an intermediate charge state with a significant
amount of run time left.
One bar: Indicates the battery is low. Consider charging soon.
One bar flashing: Battery is extremely low. Discontinue use and charge immediately.
• If the battery runs out of charge while switched on, the unit will turn off the motor and all
LED indicators will flash rapidly five times before turning off. Switch the unit off and charge
immediately.
• To charge the battery, plug the wall charger into a 120VAC, 60Hz outlet.
• Plug the USB-C charging cord end into the charging port at the rear of the Cordless Tungsten
Grinder (FIG 2).
• The battery charge status will now be indicated by the LED battery charge indicators (FIG 3)
lighting up in a sweeping pattern. As charge progresses, the bar(s) will stay lit and the
remaining will continue to sweep. Once the battery is fully charged all three will remain lit.
• Approximate charge time from depleted to full is two hours.
• After charging, unplug the wall charger and USB-C charge plug.
DO NOT leave the charger plugged into the unit and the wall for extended periods of time.

To order parts and supplies: 800.343.9353 >> eastwood.com 9
NOTES

10 Eastwood Technical Assistance: 800.343.9353 >> [e-mail]
PROBLEM CAUSE CORRECTION
Does Not Run
When Switch
is On
Battery out
of charge Charge the battery
Battery
damaged
Contact Eastwood Technical Assistance:
[e-mail] or 800.544.5118.
Motor Stops
During Use
Battery out
of charge Charge the battery
Battery
damaged
Contact Eastwood Technical Assistance:
[e-mail] or 800.544.5118.
Excessive
Noise and/or
Vibration
Diamond
Grinding Wheel
is damaged
WARNING!
This is an extremely dangerous condition!
Stop Use and replace Diamond Grinding
Wheel!
Motor Runs
but Wheel
Does not Spin
Wheel is Loose.
Check Phillips Head Screw and ensure Wheel
is tight
Collet is Loose
Remove Tungsten Grinding Guide, Wheel, and
Arbor Guide. Using Provided Collet Wrench, ensure
Collet is tight.
Tungsten
Grinder
Overheats
Excessive
pressure being
applied to
tungsten
Allow Diamond Grinding Wheel to cut by rotation
alone. DO NOT Force.
Dirt and debris
buildup in
motor cooling
air slots
Use a brush or compressed air to remove debris.
TROUBLESHOOTING

To order parts and supplies: 800.343.9353 >> eastwood.com 11
PROBLEM CAUSE CORRECTION
Battery Does
NOT Indicate
it is Charging
While Plugged
In
Wall charger
damaged
Contact Eastwood Technical Assistance:
[e-mail] or 800.544.5118.
Battery Does
Indicate it
is Charging
While Plugged
In, but is Not
Reaching a
Higher Charge
State
Battery
damaged
Contact Eastwood Technical Assistance:
[e-mail] or 800.544.5118.
TROUBLESHOOTING

ADDITIONAL ITEMS
#33308 Replacement Diamond Grinding Wheels, 6 Pack
#33309 Replacement Diamond Grinding Wheels, 2 Pack
#20177 3/32” x 7” E3 Purple Tungsten Rods, 2 Pack
#20176 1/16” x 7” E3 Purple Tungsten Rods, 2 Pack
© Copyright 2022 Eastwood Automotive Group LLC 1/22 Instruction item #58878Q Rev 4
If you have any questions about the use of this product, please contact
The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: [e-mail]
PDF version of this manual is available at eastwood.com
The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA
800.343.9353 eastwood.com
