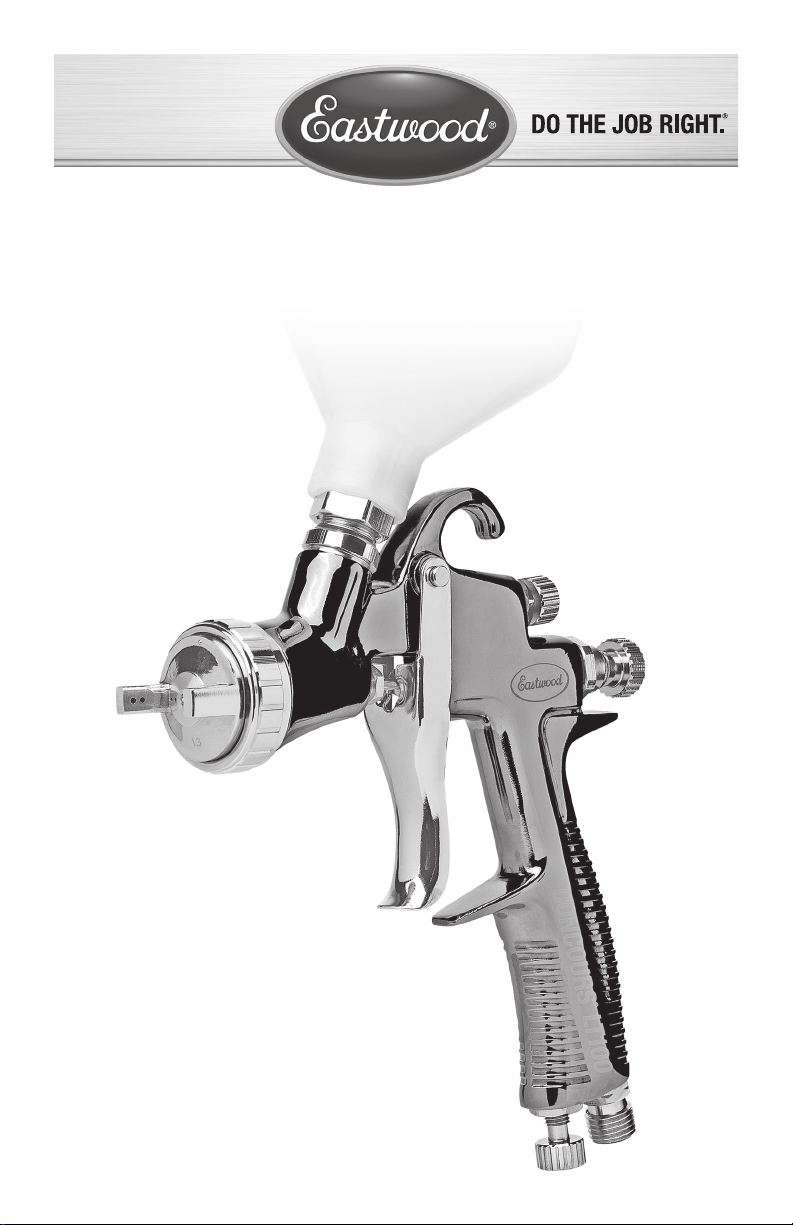

CONCOURS®LT100
HVLP PAINT GUN
INSTRUCTIONS
Item #15639

2Eastwood Technical Assistance: 800.343.9353 >> [e-mail]
The EASTWOOD CONCOURS®LT100 HVLP PAINT GUN has all the features of a professional paint
gun with the added benefit of a specific, low air demand design requiring only 4.5 CFM [120 l/min]
@ 30 PSI [2 Bar]. It is precision engineered, capable of producing a high-quality paint finish and ideal
for the seasoned professional or hobbyist. The body is constructed of a highly durable diecast alloy
with Stainless Steel internal components which are compatible with both solvent and waterborne
coatings. Convenient reference markings on the gun body and control knobs allow for accurate
repeatability of gun settings.
CONTENTS
(1) HVLP Paint Gun
with 1.3mm stainless steel
nozzle/needle set installed
(1) 600ml., solvent resistant,
composite Paint Cup
(1) Paint Cup Inlet Filter
(1) Paint Gun Wrench
(1) Round Cleaning Brush
(1) Rectangular Cleaning Brush
SPECIFICATIONS
• Requires 4.5 CFM [120 l/min] @ 30 PSI [2 Bar]
• 1/4” male NPT air input threads
• M16 x 1.5 NPS paint cup inlet attachment threads
• 1.3 mm stainless steel needle/nozzle set installed (others available)

To order parts and supplies: 800.343.9353 >> eastwood.com 3
READ INSTRUCTIONS
• Thoroughly read and understand these product instructions before using this
equipment. Failure to follow all warnings can result in tool damage or serious
physical injury.
• Keep these product instructions for future reference.
FIRE AND EXPLOSION HAZARD!
• Do Not use near sparks, open flame or another potential ignition source.
Solvents and paints are highly combustible and may ignite or explode.
Keep at least 25’ away from any non-explosion proof compressors, motors,
switches etc.
HEALTH HAZARD!
• Avoid breathing vapors produced by Spray Gun. Always wear appropriate
NIOSH approved breathing apparatus and use in a well-ventilated area.
• Wear appropriate ANSI standard Z87.1 eye protection.
• Wear solvent-resistant gloves.
• Do not allow unprotected persons or pets in the spray area.
BURSTING HAZARD!
• Do not exceed 60 psi (4.1 bar) of air inlet pressure. Permanent paint gun
damage and/or bursting could occur and cause personal injury.
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION used with the safety alert symbol, indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
SAFETY INFORMATION
The following explanations are displayed in this manual, on the labeling, and on all other information
provided with this product:

4Eastwood Technical Assistance: 800.343.9353 >> [e-mail]
INJURY HAZARD!
• This Paint Gun can accidentally spray when handling while connected to an
air supply causing serious personal injury. Always disconnect the Paint Gun
from the air supply before adding paint, changing nozzles, removing clogs or
other maintenance.
• Use only Eastwood Aerosol Injected Cleaner, Eastwood Paint Gun and Equip-
ment Cleaner, acetone or lacquer thinner to clean guns. Use of chlorinated or
halogenated hydrocarbon solvents can corrode aluminum gun components
or emit hazardous reactive gasses.
• Use for spraying paint products only. Do not use for spraying pesticides,
fertilizer, acids or other corrosive materials and solvents.
SAFETY INFORMATION
SET-UP
• Remove all components from carton, identify them and become familiar with their purpose.
• Before use, it is necessary to thoroughly clean out the paint cup as well as the paint gun air
and paint passages with a solvent such as Eastwood PRE, Eastwood Aerosol Injected Cleaner,
Eastwood Paint Gun and Equipment Cleaner or acetone. This is to remove any residual manu-
facturing oils or impurities that may remain. Dry thoroughly.
• A 3/8” I.D. minimum air hose at a 25’ maximum length is strongly recommended for best
results. Smaller I.D. hose and greater length may reduce available CFM and produce unsatis-
factory results.
• A clean, dry, regulated air supply is required. An Eastwood #31633, Eastwood Air CFS, or
equivalent works well.
• To avoid pulsation of pressure when the trigger is depressed, an optionally available, remotely
mounted, main regulator should be set to approx. 40 PSI [2.75 bar] and an optional “on the
gun” regulator (an Eastwood #31834 Concours Pro Regulator works perfectly), initially set to
30 PSI [2 bar], is then used for fine-tuning of gun pressure.

To order parts and supplies: 800.343.9353 >> eastwood.com 5
ASSEMBLY
• Insert the Paint Cup Inlet Filter into
the inlet at the top of the Gun Body
(FIG 1).
• Thread the Gun Cup onto the
threaded inlet at the top of the Gun
Body. Hand Tighten only (FIG 2).
• The Paint Gun is now ready for use.
FIG. 1
FIG. 2
IMPORTANT NOTES BEFORE PAINTING
1. Please note that many variables affect the adjustment of a paint gun including paint viscosity
and type, atmospheric conditions such as humidity, barometric pressure and temperature, as
well as air inlet pressure and operator preference. Always “tune” the gun before each use as
prevailing conditions may not be the same as the previous use.
2. It is always best to test spray on sheets of cardboard or masking paper with the actual paint
you will be applying while making your adjustments to become familiar with the gun and
achieve the ideal Fluid Control Setting.
3. Remember that a small amount of product wasted at this point can avoid disappointment in
your results and the need to re-do your work later.

6Eastwood Technical Assistance: 800.343.9353 >> [e-mail]
GUN SETTINGS
FIG. 3
Air Control
✓
Air
Cap
Fan
Control
Fluid
Control
✓
✓
✓
• Air Cap - Make sure the Air Cap is properly oriented in a horizontal plane to produce a vertical
fan spray pattern by viewing the HVLP Paint Gun from the front. To adjust, loosen Retaining Ring
by rotating counter-clockwise slightly, adjust Air Cap then re-tighten Retaining Ring (FIG 3).
• Fluid Control – The Fluid Control knob (located at mid-rear of gun body) regulates the distance
the Needle travels and the amount of paint flowing through the gun. NOTE: Generally, for higher
viscosity coatings, a wider opening is desired while a closer opening is better suited for lower
viscosity fluids. To adjust, rotate the Fluid Control Knob outward (counter-clockwise as viewed
from the rear) to increase flow and turn inward to reduce flow (FIG 3).
• Fan Control – The Fan Control knob (located at the upper-rear of the paint gun body) controls
the size and shape of the spray pattern of “fan”. Rotating the knob counter-clockwise (as
viewed from the rear of the gun) will produce a larger and softer spray pattern while rotating it
clockwise will result in a smaller, sharper, round pattern. For most painting conditions, a larger,
softer fan is desired (FIG 3).

To order parts and supplies: 800.343.9353 >> eastwood.com 7
• Air Control – The Air Control knob (located at the bottom of the gun handle adjacent to the
air inlet) is opened by rotating in a counter-clockwise direction (as viewed from the bottom of
the gun). This is for “fine tuning” the airflow to the gun. You will generally want to set the inlet
pressure at the regulator, start with the Air Control in the fully open position and decrease air
as needed (FIG 3).
• With practice, you will quickly acquire a “feel” for the
gun and will be producing professional results.
• After achieving optimal knob settings, note their
positions with the numbered indicators on the face of
the knobs. This will assist in quickly “tuning” the gun
in future uses (FIG 4).
GUN CLEAN-UP
• Disconnect air supply to gun.
• Pour unused coating into a proper disposal container, then remove Paint Cup.
• Wipe out any excess coating then thoroughly rinse the Paint Cup with a mild solvent compatible
with the coating being used.
• Attach Paint Cup, then pour a small amount of a solvent compatible with the paint being used
into the Cup, then run solvent through HVLP Gun in a safe area until it flows clear.
• Remove air supply from HVLP Gun.
• Pour out any unused solvent and remove paint cup.
• Allow solvent to dry completely from all components.
As an alternative, #12846Z Eastwood Aerosol Injected Gun Cleaner and
#16154ZP Eastwood Paint Gun and Equipment Cleaner are excellent for
this purpose.
FIG. 4

8Eastwood Technical Assistance: 800.343.9353 >> [e-mail]
PAINT GUN
DISASSEMBLY FOR
ADDITIONAL CLEANING
• Remove Air Cap by unthreading and
removing the chrome Retaining Ring.
• Remove Nozzle with the 19mm hex
of the wrench (included) (FIG 5).
• Unthread and remove Fluid Control
Knob from rear of Paint Gun body
(FIG 6).
• Carefully remove Tension Coil Spring
with Bushing and Needle by firmly
gripping rear of Needle and pulling
out through rear of Paint Gun body
(FIG 7).
REASSEMBLY
• Replace Needle by sliding into bore in
rear of Paint Gun body until it seats.
• Slide Needle Tension Spring w/bush-
ing over the rear of the Needle.
• Replace Nozzle by threading into
front of Gun Body and tighten firmly
with the 19mm hex of the included
wrench (do not-over tighten).
• Replace Air cap by threading Retain-
ing Ring onto Gun Body. Make sure
the air horns of the Air Cap are
oriented properly.
FIG. 5
FIG. 6
FIG. 7

To order parts and supplies: 800.343.9353 >> eastwood.com 9
PROBLEM CAUSE CORRECTION
Gun Produces
an Uneven
Spray Pattern
or Fan
Paint or film
buildup on Air
Cap blocking
air holes
Disconnect air supply and clean buildup from
Air Cap.
Gun “Spits” or
Sputters; Dis-
charges Large
Droplets
Paint or film
buildup on
Needle &
Nozzle
Disconnect air supply and clean buildup from
Needle & Nozzle. NOTE: Use of solvent may be
helpful, removal of the Nozzle may be necessary.
Gun Dispenses
Only a Small
Amount of
Paint or None
at All
Clump or piece
of paint film
blocking paint
inlet port
Disconnect air supply; remove paint cup, remove
blockage from paint inlet area then strain paint
or coating to remove clumps or film.
Heavy
Textured or
“Orange Peel”
Paint Appear-
ance
Paint Gun is
too close to
surface
Keep within 8” to 12”.
Inlet air pres-
sure too low
Increase inlet air pressure and or decrease
fluid flow.
Incorrect thin-
ner/reducer
Check paint manufacturer’s reducing/thinning
instructions.
Incorrect mate-
rial mix ratios Check paint manufacturer’s mix ratio instructions.
Excessive
Runs and Sags
Paint Gun
being moved
too slowly over
surface
Speed up gun motion over surface.
Excessive fluid
flow Decrease fluid flow by adjusting “fluid” knob.
Paint mixed too
thin
Check paint manufacturer’s reducing/thinning
instructions.
TROUBLESHOOTING

10 Eastwood Technical Assistance: 800.343.9353 >> [e-mail]
PROBLEM CAUSE CORRECTION
“Dry” Paint
Appearance
Paint Gun is
too far from
surface.
Keep within 8” to 12”.
Paint Gun being
moved too fast
over surface.
Slow down gun motion over surface.
Inlet air pres-
sure too high.
Decrease gun inlet air pressure and or increase
fluid flow.
Incorrect thin-
ner/reducer.
Check paint manufacturer’s reducing/thinning
instructions.
Thin Paint
Appearance
Paint Gun is
too far from
surface.
Keep within 8” to 12”.
Paint Gun being
moved too fast
over surface.
Slow down gun motion over surface.
Inlet air pres-
sure too high.
Decrease gun inlet air pressure and or increase
fluid flow.
Incorrect thin-
ner/reducer.
Check paint manufacturer’s reducing/thinning
instructions.
Paint Spray
is Sputtering
Paint Gun is
dirty or con-
taminated.
Disassemble and clean gun with suitable solvent.
Nozzle or Air
cap loose. Tighten Nozzle and or Air Cap.
Needle tip or
Nozzle seat
damaged.
Replace Needle/Nozzle set.
Gun being
tipped too far
down.
Operate gun with tip tilted no more than
45º down or up.
TROUBLESHOOTING

PROBLEM CAUSE CORRECTION
“Dry” Paint
Appearance
Paint Gun is
too far from
surface.
Keep within 8” to 12”.
Paint Gun being
moved too fast
over surface.
Slow down gun motion over surface.
Inlet air pres-
sure too high.
Decrease gun inlet air pressure and or increase
fluid flow.
Incorrect thin-
ner/reducer.
Check paint manufacturer’s reducing/thinning
instructions.
Thin Paint
Appearance
Paint Gun is
too far from
surface.
Keep within 8” to 12”.
Paint Gun being
moved too fast
over surface.
Slow down gun motion over surface.
Inlet air pres-
sure too high.
Decrease gun inlet air pressure and or increase
fluid flow.
Incorrect thin-
ner/reducer.
Check paint manufacturer’s reducing/thinning
instructions.
Paint Spray
is Sputtering
Paint Gun is
dirty or con-
taminated.
Disassemble and clean gun with suitable solvent.
Nozzle or Air
cap loose. Tighten Nozzle and or Air Cap.
Needle tip or
Nozzle seat
damaged.
Replace Needle/Nozzle set.
Gun being
tipped too far
down.
Operate gun with tip tilted no more than
45º down or up.
To order parts and supplies: 800.343.9353 >> eastwood.com 11
PROBLEM CAUSE CORRECTION
Gun “Spurts”
at Initial Trig-
ger Pull Then
Evens Out
No main air
regulator in line
causing pres-
sure build up in
air line.
A main remote regulator must be installed air
supply line and set to 40 PSI [2.76 bar].
Air regulator
set too far back
in line causing
pressure build
up in air line.
Install an “On Gun” regulator at inlet of paint gun.
“Dogbone”
Shaped Spray
Pattern
Inlet air pres-
sure too high. Decrease inlet air pressure at gun.
Fluid flow
adjusted too
low.
Increase fluid flow adjustment on gun.
Exaggerated
“Football”
Shaped Spray
Pattern
Inlet air pres-
sure too low. Increase inlet air pressure at gun.
Fluid flow
adjusted
too high.
Decrease fluid flow adjustment on gun.
Paint mixture
too thick.
Check paint manufacturer’s mix ratio instructions
or thin if possible.
TROUBLESHOOTING

© Copyright 2019 Easthill Group, Inc. 2/19 Instruction item #15639Q Rev 3
If you have any questions about the use of this product, please contact
The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: [e-mail]
PDF version of this manual is available at eastwood.com
The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA
800.343.9353 eastwood.com
ADDITIONAL ITEMS
#31633 Eastwood Air CFS Complete Air Filter Regulator
#31834 Concours Pro “On Gun” Regulator
#10041Z Eastwood PRE-Painting Prep, Aerosol
#12846Z Aerosol Injected Paint Gun Cleaner
#16154ZP Eastwood Paint Gun and Equipment Cleaner
#16186 Eastwood Professional Paint Gun Cleaning Set
#14829 Gerson One Step P95 Respirator
#20405 & 20406 Gen-Nex Painters Coveralls
#50207 DeVillbiss DeKups # DPC-11 Adapter
#31624Z Kresto Hand Cleaner, 200ml Tube
#31625 Kresto Cherry Scrubbing Wipes
