Eastwood 20650 User manual

HORIZONTAL/VERTICAL
BANDSAW
INSTRUCTIONS
Item #20650

2Eastwood Technical Assistance: 800.544.5118 >> [e-mail]
The EASTWOOD HORIZONTAL/VERTICAL BANDSAW is a heavy-duty professional quality tool ruggedly designed for many years of reliable service.
This versatile Bandsaw has the capability to be operated in both a horizontal and vertical position while cutting tubing up to 4.5” in diameter.

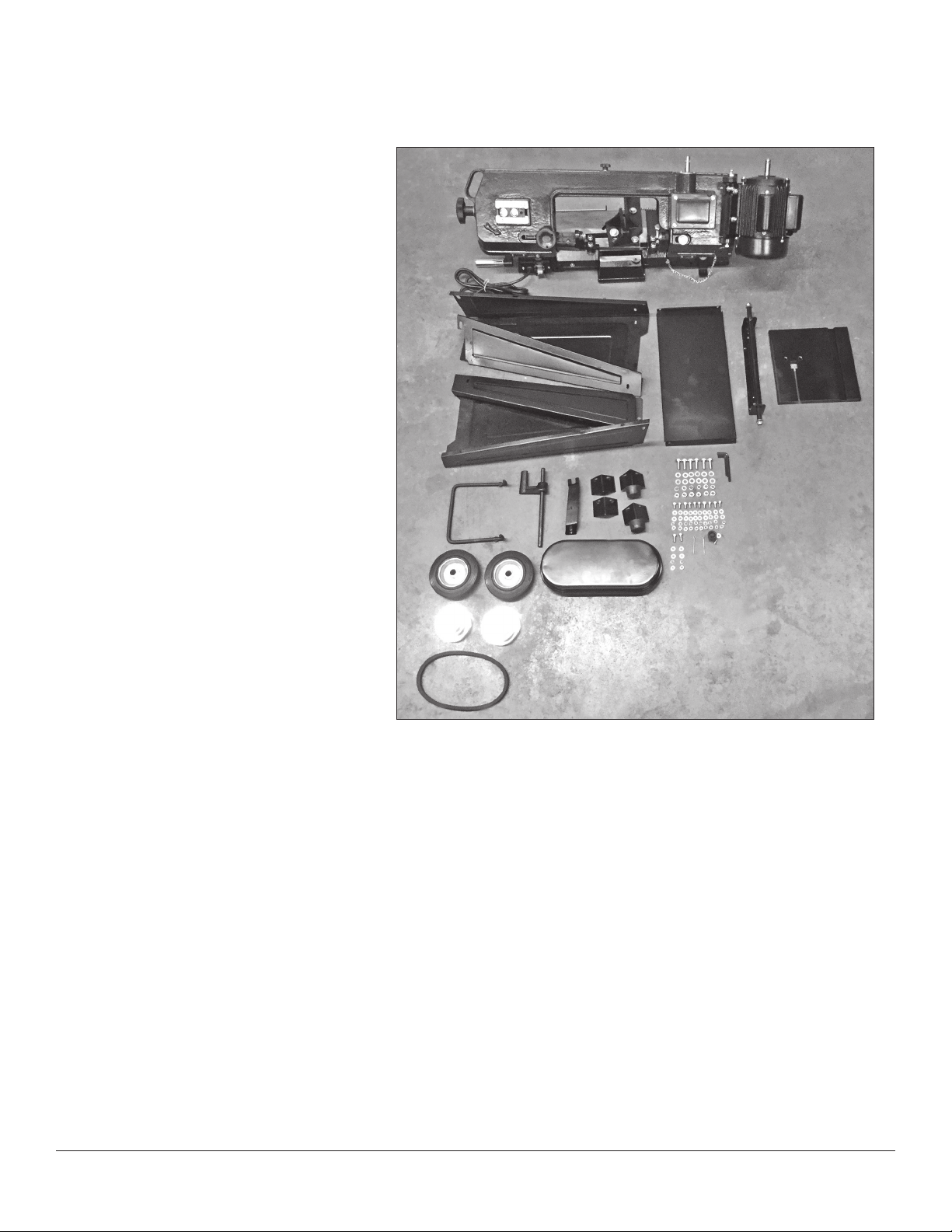

CONTENTS
(1) Saw Assembly
(2) Leg Assemblies
(4) Stand Corner Supports
(1) Pull Handle
(2) Wheels
(2) Drive Pulleys
(1) Drive Belt
(1) Drive Pulley Cover
(1) Work Stop
(1) Tool Tray
(1) Axle Assembly
(1) Vertical Cutting Table
(1) Vertical Cutting Table Support
(6) M8 X 24 Bolts
(12) M8 Flat Washers
(6) M8 Lock Washers
(6) M8 Nuts
(10) M6X12 Bolts
(2) M6X16 Bolts
(24) M6 Flat Washers
(12) M6 Lock Washers
(12) M6 Nuts
(1) 3mm Hex Key
(1) 4mm Hex Key
(1) 5mm Hex Key
SPECIFICATIONS
Input Voltage: 120 VAC, 60 Hz
Input Amperage: 6.5A
Plug Type: 3-prong
Cord Length: 6’- 6”
Certification: CSA
Blade Size: 64.5” X .5” X .025”, 14 TPI
Blade Speeds: (ft./min.): 80, 120, 200
Cutting Capacity: 4.5” Round, 4” X 6” Rectangular
Maximum Cutting Angle: 55°
V-Belt Type: 0-506

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
SAFETY INFORMATION
The following explanations are displayed in this manual, on the labeling, and on all other information provided with this product:
GENERAL SAFETY RULES
Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock. NOTE: Use a minimum 14 gauge insulated cord, no longer than 25’ in length.
To order parts and supplies: 800.345.1178 >> eastwood.com 3

4Eastwood Technical Assistance: 800.544.5118 >> [e-mail]
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off-position before plugging in. Carrying power tools with your finger on the switch or plugging in
power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices
can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which
it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool,
taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result
in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool
is maintained.
GENERAL SAFETY RULES

To order parts and supplies: 800.345.1178 >> eastwood.com 5
SHOCK HAZARD!
• Never operate or store the Bandsaw in damp or wet conditions.
• Plug into a minimum 15 amp circuit. If using an extension cord, it must be AWG 16 or greater, no longer than 25’.
HEALTH AND INJURY HAZARD!
• Saw Blade will cut and cause injury. Always keep hands away from the cutting area and Saw Blade. Do not remove jammed cut off
pieces until blade has stopped.
• To prevent injury, always use the Clamp to hold the material being cut in place.
• Inspect tool before each use for loose or broken components. Maintain proper blade tension, blade tracking, and blade bearing
adjustment at all times. Do not use tool if any components are not adjusted correctly or damaged.
• Turn saw off and unplug when not in use to avoid accidental starts!
• Do not force the machine when cutting material. Excessive force applied to the saw can cause the blade to break!
• Always wear ANSI approved eye protection while operating this tool.
• This tool can emit excessive noise while operating. Wear hearing protection while in use.
• Fine dust can be created by the cutting process. Wear NIOSH approved respiratory protection while operating.
• Always support the entire length of a large work piece to prevent the Bandsaw from tipping while cutting
• Moving parts can be dangerous! Do not operate with any Guard disabled, damaged, or removed. Do not wear loose clothing, jewelry,
etc. & tie back long hair. Do not put fingers near moving parts!
• Exercise caution when unpacking and replacing the Bandsaw Blade. The Blade can be under tension and suddenly un-coil
causing injury.
• Metal may have sharp edges before and after cutting. Handle with gloves and avoid sharp edges.
• For optimal performance and safety, always adjust Blade Guide to just clear work piece. Excessive gap between Blade Guides
can cause un-necessary stress and potential damage.
ADDITIONAL SAFETY INFORMATION

6Eastwood Technical Assistance: 800.544.5118 >> [e-mail]
ASSEMBLY
1. Unfold the two Leg Assemblies
2. Install the two Stand Corner Supports without feet and the Axle
Assembly onto a Leg Assembly. Fasten the Axle Assembly with
M6 X 16 Bolts, Washers, and Nuts and the Corner Supports with
M6 X12 Bolts Washers and Nuts (FIG. 1).
3. Slide Wheels onto the Axle Assembly and fasten with the
pre-installed nuts
4. Install the two Stand Corner Supports with feet onto the other
Leg Assembly and fasten with M6 X 12 Bolts, Washers, and
Nuts (FIG. 2).
5. Insert Handle into the holes located at the top of the Leg Assembly
without wheels.
6. With the help of an assistant, place the Bandsaw assembly on to
a pair of sawhorses or on the corner of a sturdy workbench.
7. Attach Leg Assemblies to the Bandsaw with M8 X 24 Bolts,
Washers, and Nuts. Do not fully tighten.
8. With the help of an assistant, place the Bandsaw with Legs back
on ground.
9. Install Tool Tray and fasten with M6 X 12 Bolts, Washers, and Nuts.
10. With the Bandsaw in a flat and level location, fully tighten all
fasteners.
11. Install the Pulley Motor Cover over the Motor and Gear shafts and
fasten with the pre-installed fasteners (FIG. 3).
12. Install the larger Pulley onto the Motor shaft with the largest pulley
closest to the motor.
13. Install the smaller Pulley onto the Worm Gear Shaft with the smallest
Pulley closest to the gear box.
Always wear ANSI-approved eye protection while
assembling this tool.
This Bandsaw is heavy. To prevent injury, lift heavy
components with the help of an assistant.
FIG. 1
FIG. 2
FIG. 3
• Use caution to prevent loss of Shaft Keys.

To order parts and supplies: 800.345.1178 >> eastwood.com 7
FIG. 4
FIG. 5
1. Using a straight edge align the top of both Pulleys with one another
to ensure optimum performance.( Fig. 4)
2. With the Pulleys aligned, tighten Set Screws.
3. Loosen Motor Tension Bolt, pivot Motor up and install V-belt onto
Pulleys.
4. Release the motor, allowing its weight to tension the V-belt, and
tighten the motor lock bolt.
5. Slide work stop into place and tighten set screw (FIG. 5).
6. Before operating Bandsaw, it is recommended to square the vise
and table bed to the blade. Use a machinist’s square to ensure that
the blade is perpendicular to both the back side of the vise and the
bed of the table. Adjust as necessary.

8Eastwood Technical Assistance: 800.544.5118 >> [e-mail]

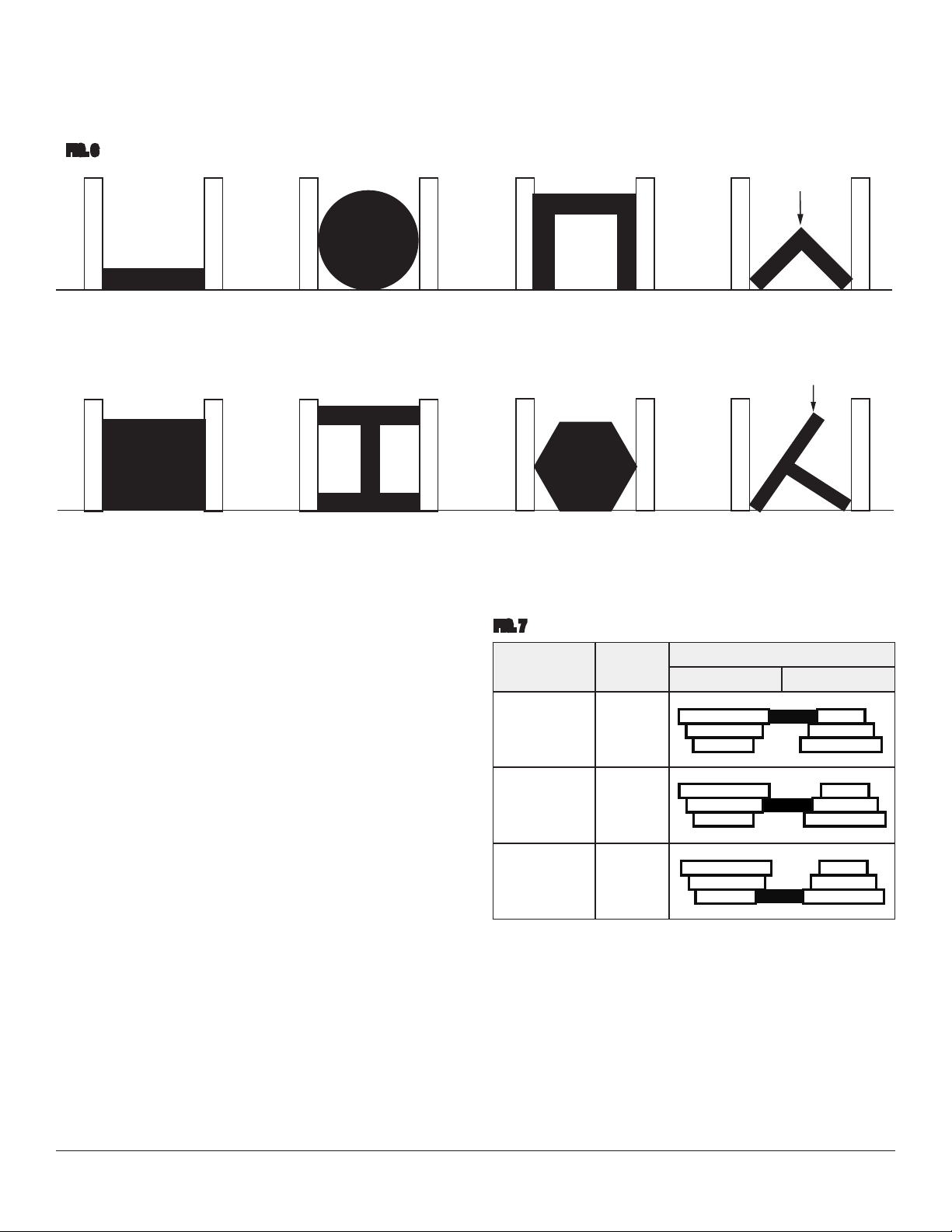

CLAMPING MATERIAL
Pieces to be cut must be properly clamped in the jaws of the saw. Review Fig 6 for references as how to clamp different shapes of material stock.
Flats/Strips Rounds Channels Angles
Squares/Rectangles I-Beams Hexagonals Tees
Knock Off
Sharp Edge
Here With A File
Knock Off
Sharp Edge
Here With A File
FIG. 6
DETERMINING BLADE SPEED
The Eastwood Horizontal / Vertical Bandsaw is capable of operating at blade
speeds of 80, 120 and 200 feet per minute. The best way to determine if the
cutting speed is correct is to examine the chips from the cut. The following
rules apply for examining the cutting chips:
• Burned heavy chips = Reduce Feed and Speed
• Powder like chips = Increase Feed
• Curled silver chips = Ideal Feed and Speed
FIG 7 provides a good reference to determine the necessary speed
for material being cut.
FIG. 7
Material Speed
(RPM)
Pulley Groove
Spindle Motor
Tool Steel,
Stainless Allow
Steels, Bearing
Bronze
80
Medium to High
Carbon Steels,
Hard Brass or
Bronze
120
Low to Medium
Carbon Steels,
Soft Brass, Alu-
minum, Plastic
200

To order parts and supplies: 800.345.1178 >> eastwood.com 9
HORIZONTAL OPERATION
1. Raise Bandsaw Head.
2. Adjust Vise to the desired angle and securely clamp workpiece in the Vise.
3. Ensure that the work piece and Bandsaw are stable and there are no obstructions in the path of the cut.
4. Adjust spring tension for the proper feed rate.
5. Adjust Blade Guides so that they are as close to the work piece as possible without coming in contact with the work piece.
6. Start Bandsaw and wait for the blade to achieve full speed.
7. Lower Bandsaw Head onto the work piece and allow the spring tension to control the feed rate of the Bandsaw Head.
8. Upon the completion of a cut, the saw will automatically shut off. At this time it is safe to raise the Bandsaw Head and remove the work piece.
• Thoroughly read and understand these product instructions before using the Bandsaw.
• Always use the Clamp to hold the material in place.
• Inspect tool before each use for loose or broken components. Do not use tool if any components are damaged.
• Turn saw off and unplug when not in use to avoid accidental starts!
• Do not force the machine when cutting material. Excessive force applied to the saw can cause the blade to break!
• Always wear ANSI approved eye protection while operating this tool.
• This tool can emit excessive noise while operating. Wear hearing protection while in use.
• Fine dust can be created by the cutting process. Wear NIOSH approved respiratory protection while operating.
• Moving parts can be dangerous! Do not wear loose clothing, jewelry, etc. & tie back long hair. Do not put fingers near moving parts!
• Metal may have sharp edges before and after cutting, handle with gloves and avoid sharp edges.
Material Speed
(RPM)
Pulley Groove
Spindle Motor
Tool Steel,
Stainless Allow
Steels, Bearing
Bronze
80
Medium to High
Carbon Steels,
Hard Brass or
Bronze
120
Low to Medium
Carbon Steels,
Soft Brass, Alu-
minum, Plastic
200

10 Eastwood Technical Assistance: 800.544.5118 >> [e-mail]
VERTICAL SETUP
To setup the Bandsaw for vertical cutting operations the following steps
must be taken.
1. Unplug Bandsaw.

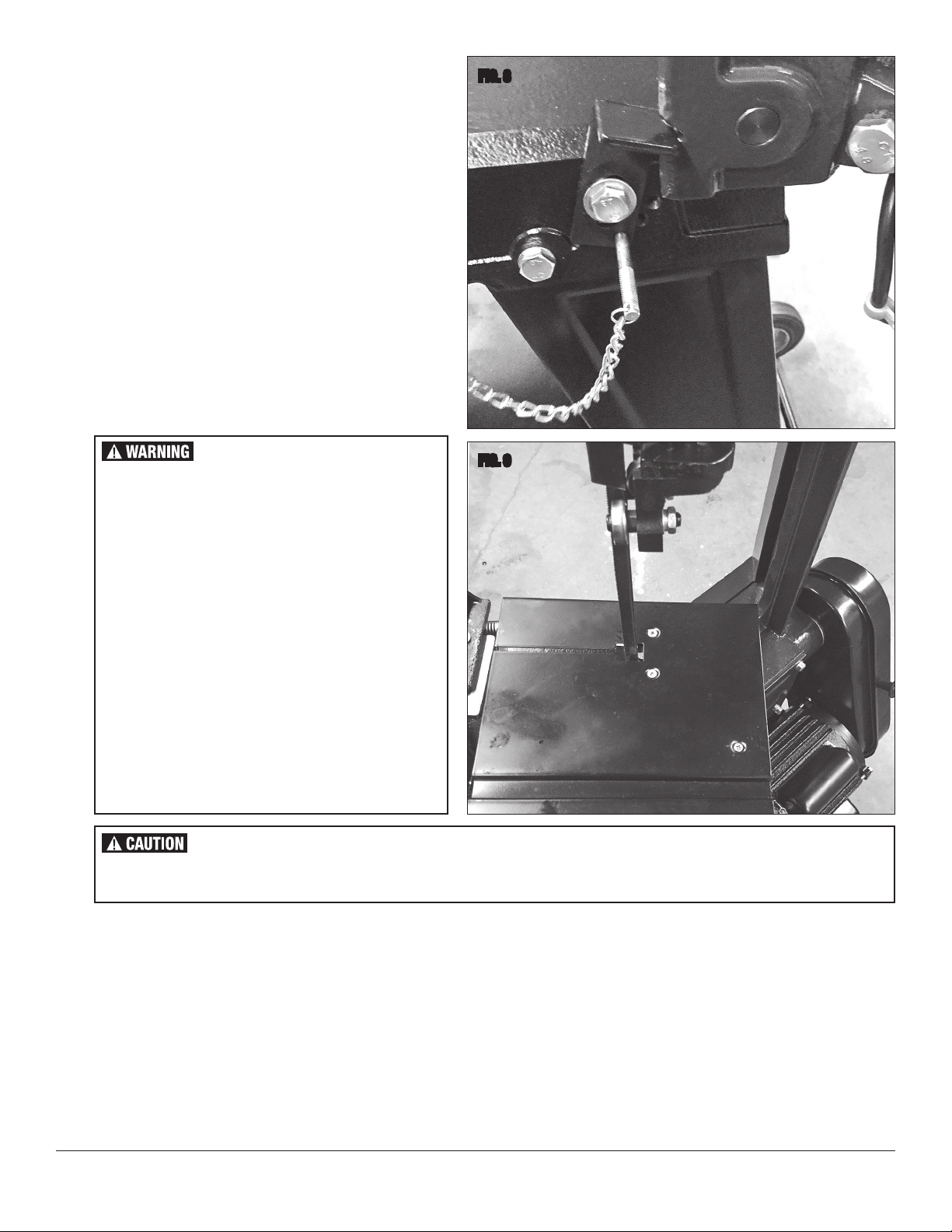

2. Raise Bandsaw Head to the Vertical position and lock in place with
the latch and safety pin (FIG. 8).
3. Remove the two screws fastening the blade guide cover and remove
cover.
4. Install Vertical Cutting Table and fasten with previously removed
screws (FIG. 9).
5. Install the table support bracket with pre-installed hex bolt and
a M6X12 flat head screw, washer, and nut.
6. Use the adjustment bolt to level the cutting surface as needed.
VERTICAL OPERATION
1. Ensure that the work piece and Bandsaw are stable and there are no obstructions in the path of the cut.
2. While keeping both hands on the work piece in a safe location, gradually feed the workpiece into the blade while applying downward pressure.
Do not force the tool.
3. Turn saw off immediately after each cut.
• Thoroughly read and understand these product
instructions before using the Bandsaw.
• Inspect tool before each use for loose or broken
components. Do not use tool if any components are
damaged.
• Turn saw off and Unplug when not in use to avoid
accidental starts!
• Do not force the machine when cutting material.
Excessive force applied to the saw can cause the
blade to break!
• Always wear ANSI approved eye protection while
operating this tool.
• This tool can emit excessive noise while operating.
Wear hearing protection while in use.
• Fine dust can be created by the cutting process.
Wear NIOSH approved respiratory protection while
operating.
• Moving parts can be dangerous! Do not wear loose clothing, jewelry, etc. & tie back long hair. Do not put fingers near moving parts!
• Metal may have sharp edges before and after cutting, handle with gloves and avoid sharp edges.
FIG. 8
FIG. 9

To order parts and supplies: 800.345.1178 >> eastwood.com 11
MAINTENANCE
IMPORTANT NOTE: The following maintenance should be performed before each use:
• Check tightness of all hardware.
• Inspect Saw Blade for damage and proper alignment with vise.
• Inspect for damaged power cords or connections.
• Check belt condition and tension.
• Inspect for broken parts or components.
PERIODIC MAINTENANCE
• Lubricate Vise Screw.
• Lubricate Gear Box.
BLADE REPLACEMENT
1. Unplug Bandsaw from power.
2. Raise Bandsaw Head to the vertical position and insert the locking pin to prevent rotation.
3. Raise lower blade cover and remove thumb screw to open access cover.
4. Loosen the tension knob located on top of the Bandsaw Head and slip the blade off the upper and lower wheels.
5. Install the new blade through both blade guide bearings and around both wheels. The teeth should face downwards between the guide bearings.
6. Ensure the back of the blade is against the shoulder of the upper and lower wheels.
7. Tighten tension knob to optimum blade tension (See section: Blade Tension).
8. Close access cover.
• Exercise caution when unpacking and replacing the Bandsaw Blade. The Blade can be under tension and suddenly un-coil
causing injury.
• Inspect tool before each use for loose or broken components. Maintain proper blade tension, blade tracking, and blade bearing
adjustment at all times. Do not use tool if any components are not adjusted correctly or damaged.
• Thoroughly read and understand these product instructions before maintaining the Bandsaw.

12 Eastwood Technical Assistance: 800.544.5118 >> [e-mail]
BLADE TRACKING
Blade tracking has been preset at the factory and under normal condi-
tions will rarely need to be adjusted. If the blade tracking does need to be
adjusted, follow the steps below.
1. Unplug Bandsaw from power.
2. Raise Bandsaw Head to the vertical position and insert the locking
pin to prevent rotation.
3. Raise lower blade cover and remove thumb screw to open
access cover.
4. Loosen, but do not remove the lowest hex bolt on the blade
tracking mechanism.
5. Adjust the tracking set screw while considering the following
recommendations: Tightening the tracking set screw will move
the blade closer to the shoulder of the upper wheel. Loosening the
tracking set screw will move the blade away from the shoulder of
the upper tracking wheel (FIG.10 ) .
6. Tension the blade (see section: Blade Tension).
7. Reconnect power and ensuring that all objects are away from the blade, turn on the Bandsaw. The blade should track along the shoulder of the wheel
without rubbing against the shoulder. Adjust as necessary.
BLADE TENSION
Blade Tension has been preset for the blade included from the factory but must be reset after each blade replacement.
To set blade tension follow the steps below.
1. Unplug Bandsaw from power.
2. Ensure blade is tracking properly against the shoulder of the wheel without rubbing (see section: Blade Tracking).
3. Adjust blade guides as far apart as possible.
4. Tighten adjustment knob so that the blade is just tight enough to complete a cut without slipping. Measurable blade deflection should be .004” or less.
BLADE GUIDE BEARING ADJUSTMENT
Blade Guide bearings must be adjusted properly to ensure a square cut.
Each Blade Guide Assembly has one bearing with an eccentric bushing
to allow for adjustment.
1. Unplug Bandsaw from power.
2. With the vise perpendicular to the blade, place a machinists square
against the face of the vise and the blade (FIG.11).
3. If the machinists square does not evenly contact the blade while
against the vise, adjust the eccentric bushings as needed so that the
square evenly contacts the blade while the blade is in contact with
the guide bearings.

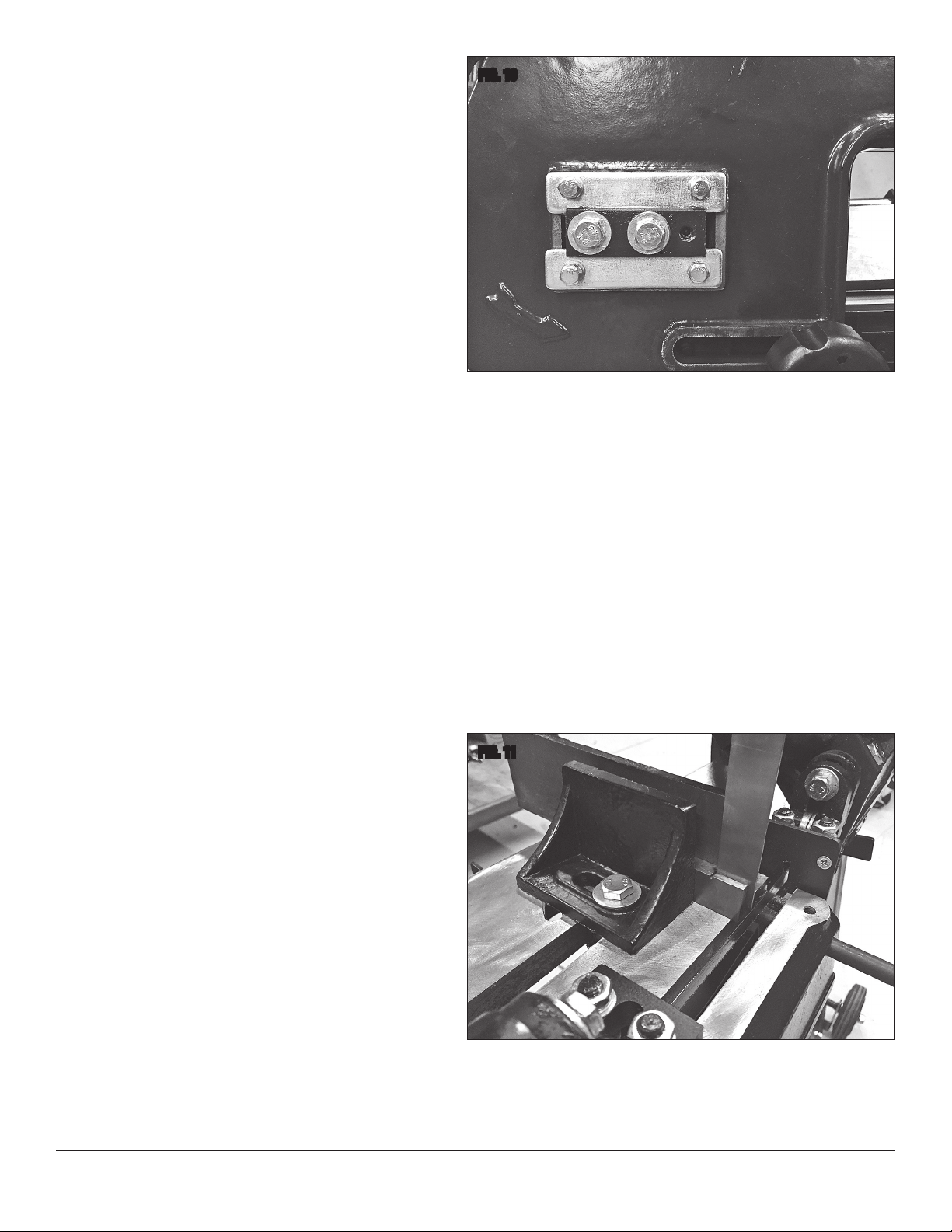

FIG. 10
FIG. 11

To order parts and supplies: 800.345.1178 >> eastwood.com 13
PROBLEM CAUSE CORRECTION
Bandsaw
Slows Down
Excessively
During Cut
Feed Rate is Too High Tighten Spring Tensioner to reduce feed rate.
Incorrect Blade for Material Being Cut Follow material guidelines for each specific saw blade.
Blade is
Becoming Dull
at a Rapid
Pace
Cutting Speed is Too Fast Adjust blade speed to match the material being cut.
Incorrect Blade for Material Being Cut Follow material guidelines for each specific saw blade.
Blade has Too Little Tension Increase Blade tension (see section: Blade Tension).
Overheating
Forcing Machine to Complete Cut Allow the Spring Tensioner to feed material into the saw. Do not push down on
the Saw Head.
Saw Blade is Dull or Damaged Replace Saw Blade.
Excessive Blade Tension Decrease Blade tension (see section: Blade Tension).
Excessive V-Belt Tension Allow the weight of the Motor to set V-Belt tension.
Incorrect Blade for Material Being Cut Follow material guidelines for each specific saw blade.
Excessive
Blade
Breakage
Improper Blade Tension Adjust Blade tension (see section: Blade Tension).
Improper Blade Speed Adjust blade speed to match the material being cut.
Work Piece is Not Secured in Vise Workpiece must be securely clamped in the vise.
Blade is Not Tracking Properly Adjust Wheel alignment so that thew Blade tracks along the shoulder of the
Wheel (see section: Blade Tracking).
Incorrect Blade for Material Being Cut Follow material guidelines for each specific saw blade.
Saw is Starting While Blade is Resting
on Workpiece Saw must be started and then slowly lowered onto the workpiece.
Blade Guides Need Adjusting Adjust Blade Guides (see section: Blade Guide Bearing Adjustment).
TROUBLESHOOTING

NOTES
14 Eastwood Technical Assistance: 800.544.5118 >> [e-mail]

To order parts and supplies: 800.345.1178 >> eastwood.com 15
NOTES

© Copyright 2016 Easthill Group, Inc. 8/16 Instruction Item #20650Q Rev. 0
If you have any questions about the use of this product, please contact
The Eastwood Technical Assistance Service Department: 800.544.5118 >> email: [e-mail]
PDF version of this manual is available online >> eastwood.com/20650manual
The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA
US and Canada: 800.345.1178 Outside US: 610.718.8335
Fax: [phone] eastwood.com
ADDITIONAL AVAILABLE ITEMS
#20651 Replacement Blade
#11797 Throatless Bench Shear
#20198 8” Straight Shear
#14042 Versa-Bend Sheet Metal Brake
#28187 Bead Roller Kit with Mandrels
#20257 Sheet Metal Layout Kit – 5 Piece Kit
#21115 High Capacity Tubing Bender
#20447 Professional Tubing Notcher
#20521 4” Metal Bender
#20638 Expander Wheel
