DESCRIPTION

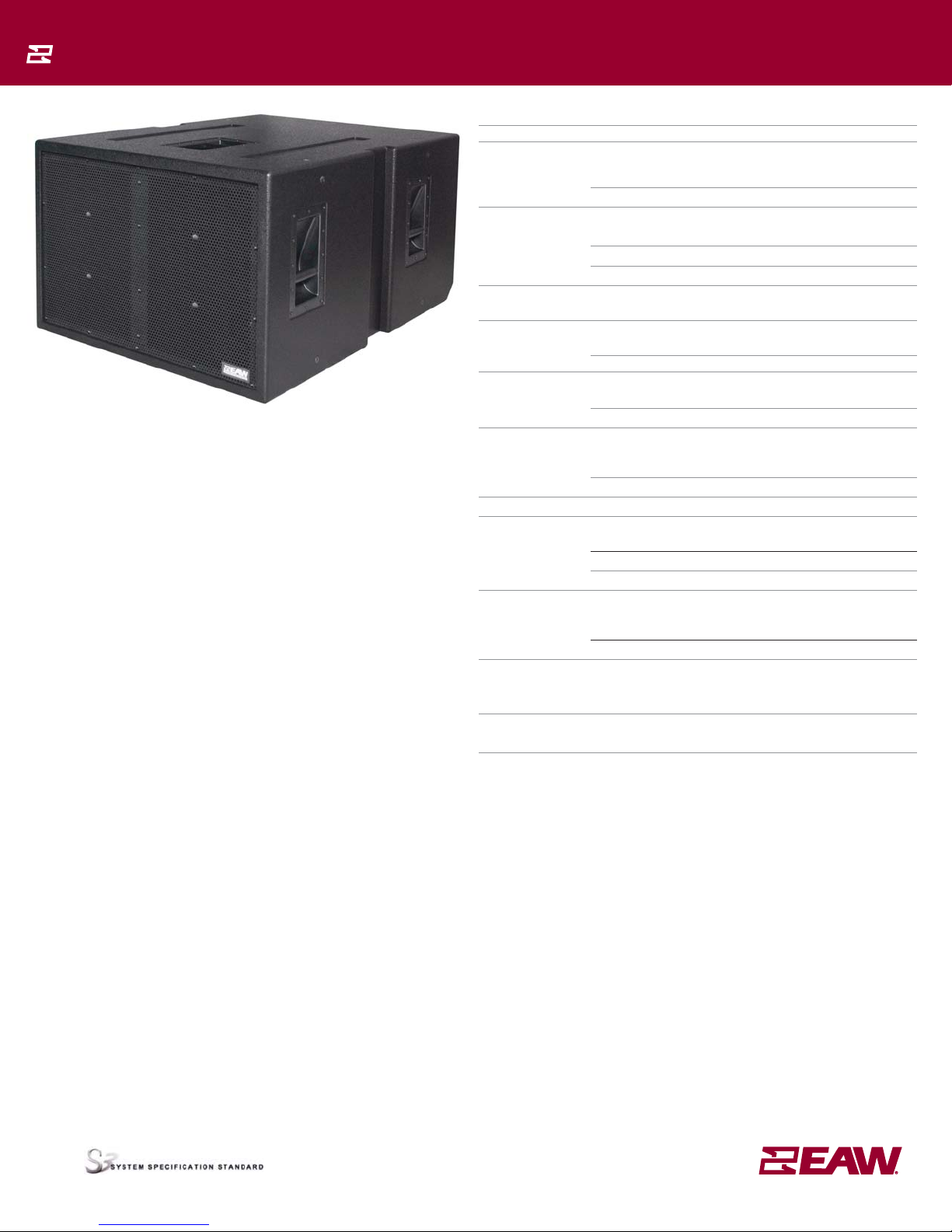

The high output yet incredibly compact SB2001 dual

21-inch cone driver subwoofer is a recommended

companion for all larger format EAW KF Series systems

and will likely find a home in many club environments.

The SB2001 represents a very noteworthy upgrade

to the SB1001/1002 offering in terms of output

capability and low frequency extension (17% larger

voice coils, 59% greater Xmax, and more than double

the volume of air displaced) without much increase in

size. The impressive result is a new and more powerful

workhorse that has greater impact, power handling

and output capability than its celebrated brethren.

Just like the SB1001 the unique driver mounting of

the SB2001 maximizes cone area and allows for the

integration of an extremely low turbulence port while

minimizing frontal area, providing the acoustical

performance and physical configuration well suited for

creating large subwoofer arrays. The enclosure design

additionally integrates sixteen 3/8-16 suspension

points for installation applications and is fully prepped

and ready to receive the user installable quick release

rigging kit accessory for touring applications (coming

soon). The SB2001 is perfectly suited for a wide range

of applications including concert touring, arenas,

large houses of worship, large auditoriums, theaters

and large dance clubs. As always, optimized processor

settings for the UX8800 Digital Signal Processor are

available for download at www.eaw.com

FEATURES

2 x 21 in woofers, vented•

Flying Hardware•

Portable & Installation•

DUAL 21-INCH SUBWOOFER

See NOTES TABULAR DATA for details

CONFIGURATION

Subsystem:

Transducer Loading

SUB 2x 21 in cone Vented

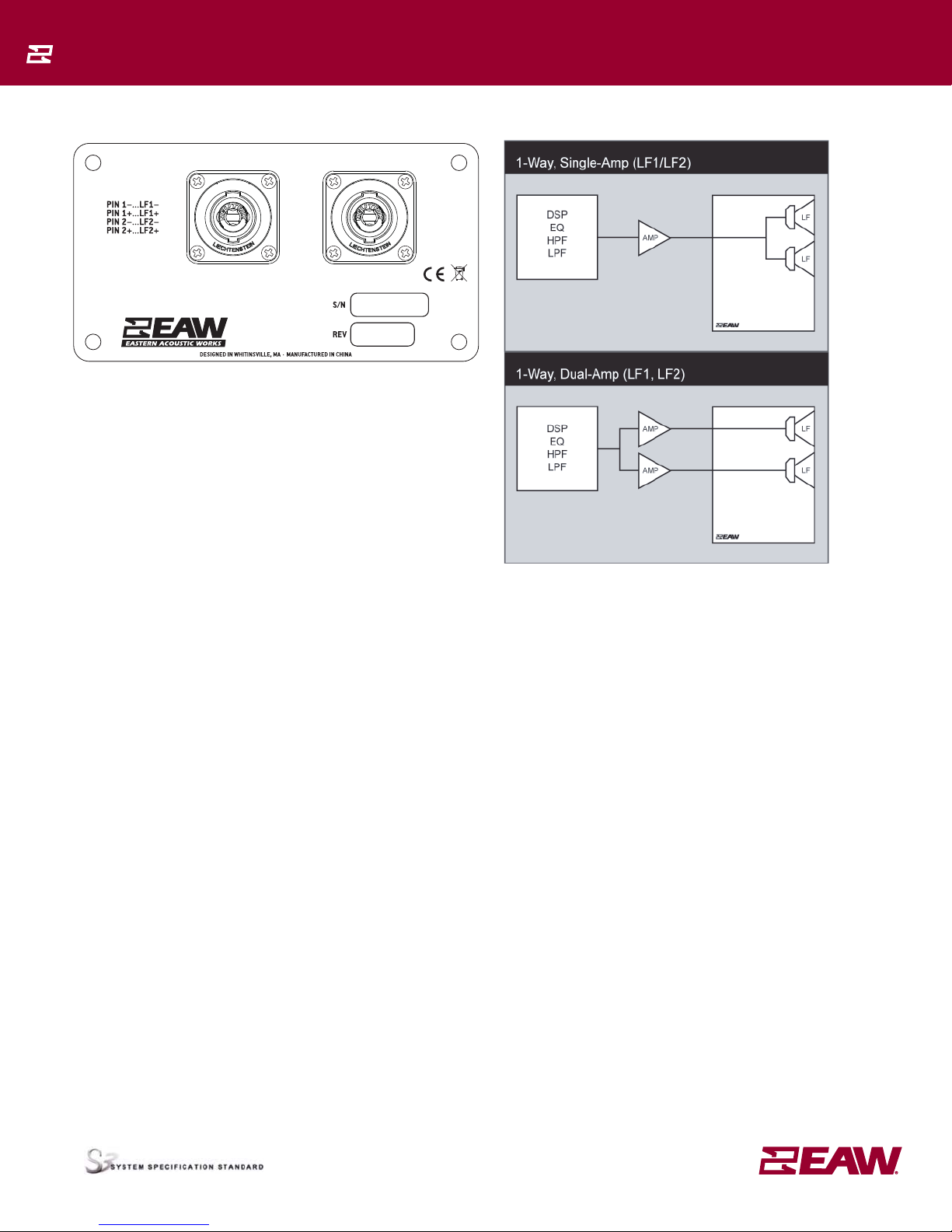

Operating Mode:

Amplifier Channels External Signal Processing

Single-amp LF1 / LF2 DSP w/1-way filter

Dual-amp LF1 / LF2 DSP w/1-way filter

PERFORMANCE

Operating Range: 20 Hz to 190 Hz

Nominal Beamwidth:

Horz 360°

Vert 360°

Axial Sensitivity (SPL):

LF1/LF2 (whole space) 95 dB 20 Hz to 190 Hz

(half space) 101 dB 20 Hz to 190 Hz

Input Impedance (ohms):

Nominal Minimum

LF1/LF2 2 2.5 @ 22 Hz

LF1/LF2 4 (each) 5.0 @ 22 Hz

High Pass Filter: High Pass=>20 Hz, 12 dB/octave Butterworth

Accelerated Life Test:

System LF1/LF2 120 V 3600 W @ 2 ohm

LF1,LF2 120 V (each) 1800 W @ 4 ohm (each)

Transducer (AES) 1800 W (each)

Calculated Axial Output Limit (whole space SPL):

Average Peak

LF/LF2 (whole space) 131 dB 137 dB

(half space) 137 dB 143 dB

ORDERING DATA

Description Part Number

EAW SB2001 Dual 21-inch Subwoofer Black 2034365

Optional Accessories

EAW Caster Pallet SB2001 [PLT2K1] 2035072

SB2001 Specifications group • S

Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel 800 992 5013 / 508 234 6158 • fax 508 234 8251 • www.eaw.com

March 2010Part Number: RD0508 (D) SB2001 SPECEAW products are continually improved. All specications are therefore subject to change without notice.

ENCLOSURE

Material Exterior-grade Baltic birch plywood

Finish Wear resistant textured black paint

Grille Powder-coated perforated steel

NOTE: This drawing has been reduced. Do not scale.

SB2001 Specifications group • S

Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel 800 992 5013 / 508 234 6158 • fax 508 234 8251 • www.eaw.com

March 2010Part Number: RD0508 (D) SB2001 SPECEAW products are continually improved. All specications are therefore subject to change without notice.

1234

PRO ENGINEER

THE INFORMATION CONTAINED

HEREIN IS PROPRIETARY AND

CONFIDENTIAL PROPERTY OF

LOUD TECHNOLOGIES, INC.

UNLESS OTHERWISE SPECIFIED:

ALL DIMENSIONS ARE IN INCHES

DUAL [MM] DIMENSIONS

FOR REF ONLY

TOLERANCE IN INCHES

LINEAR ± 0.13 in / ± 3.3 mm

ANGLES ± 1°

(X.XX) = REF DIMS

NO TOLERANCE IMPLIED

TSC = THEORETICAL SHARP CORNER

DIMENSIONS ACROSS CENTERLINES

TO BE SYMMETRICAL REVISION:

DRAWING NUMBER:

THIRD ANGLE PROJECTION

TITLE:

SCALE:

1 1

www.eaw.com

33.50

[850.9]

22.63

[574.8]

29.61

[752.0]

9.27

[235.6]

25.39

[645.0]

45.00

[1143.0] 6.72

[170.6]

7X 10.93

[277.6]

7X 6.56

[166.6]

9.27

[235.6]

25.39

[645.0] 6.72

[170.6]

1.84

[46.8]

18.82

[478.0]

9.27

[235.6]

25.39

[645.0]

3.93

[99.8] 29.32

[744.8]

2X 4.16

[105.7]

4.16

[105.7]

3.75

[95.3]

20.40

[518.1]

45°

29.61

[752.0]

21.50

[546.0]

10.83

[275.0] 6.57

[166.9]

DATECHANGE NUMBERREV

2/16/10ECOWHT6226B

2033687-CD B

ASHEET OF 0.025

DWG CUSTOMER SB2001

[MECHANICAL SPECIFICATION]

NOTES:

1. SYMBOL INDICATES CENTER OF BALANCE.

2. SYMBOL INDICATES PI ANGLE 3/8-16.

3. WEIGHT APPROX. 200 lb [91 kg].

4. SHIPPING WEIGHT APPROX. 232 lb [105.5 kg].

FRONT

TOP

2X RUNNER

ROUTS

BOTTOM 2X RUNNERS

RIGHT SIDE

DIMENSIONS APPLY

TO BOTH SIDES

BACK

7X HANDLE

SB2001

VIEW A-A

INPUT

10 100 1000 20000

-10

-20

-30

-40

10 100 1000 20000

100

m 10

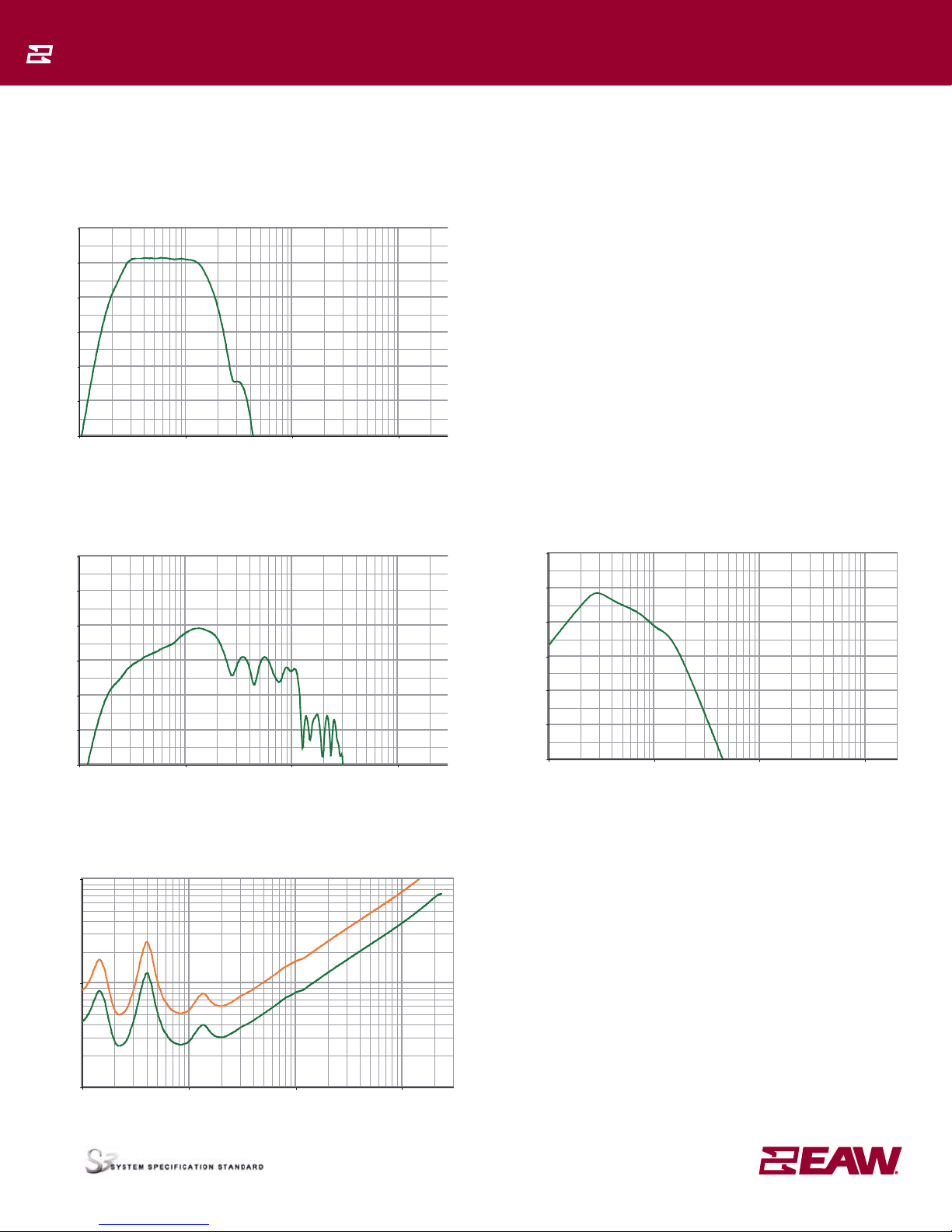

PERFORMANCE DATA

See NOTES GRAPHIC DATA for details

Frequency Response: Unprocessed

LF 1/2 Whole Space = green

Frequency Response: Processed

LF 1/2 Whole Space = green

Frequency Response: Digital Signal Processor

LF = green

Impedance Magnitude

LF 1/2 = green, LF 1, LF 2 (each) = orange

SPL (dB)

10 100 1000 20000

120

110

100

Frequency (Hz) Frequency (Hz)

SPL (dB)

dB re 0.775 V rms

-10

-20

-30

-40

-5010 100 1000 20000

Frequency (Hz)

Ohms

Frequency (Hz)

SB2001 Specifications group • S

Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel 800 992 5013 / 508 234 6158 • fax 508 234 8251 • www.eaw.com

March 2010Part Number: RD0508 (D) SB2001 SPECEAW products are continually improved. All specications are therefore subject to change without notice.

SB2001

NOTES

TABULAR DATA

1. Measurement/Data Processing Systems: Primary - FChart: proprietary EAW software; Secondary - Brüel & Kjær 2012.

2. Microphone Systems: Earthworks M30; Brüel & Kjær 4133

3. Measurements: Dual channel FFT; length: 32 768 samples; sample rate: 48 kHz; logarithmic sine wave sweep.

4. Measurement System Qualication (includes all uncertainties):SPL: accuracy +/-0.2 dB @ 1 kHz, precision +/-0.5 dB 20 Hz to 20 kHz, resolution 0.05 dB; Frequency: accuracy +/-1 %, precision +/-0.1

Hz, resolution the larger of 1.5 Hz or 1/48 octave; Time: accuracy +/-10.4 μs, precision +/-0.5 μs, resolution 10.4 μs; Angular: accuracy +/-1°, precision +/-0.5°, resolution 0.5°.

5. Environment: Measurements time-windowed and processed to eliminate room eects, approximating an anechoic environment. Data processed as anechoic or fractional space, as noted.

6. Measurement Distance: 7.46 m. Acoustic responses represent complex summation of the subsystems at 20 m. SPL is referenced to other distances using the Inverse Square Law.

7. Enclosure Orientation: For beamwidth and polar specications, as shown in Mechanical Specication drawing.

8. Volts: Measured rms value of the test signal.

9. Watts: Per audio industry practice, “loudspeaker watts”are calculated as voltage squared divided by rated nominal impedance. Thus, these are not True Watt units of energy as dened

by International Standard.

10. SPL: (Sound Pressure Level) Equivalent to the average level of a signal referenced to 0 dB SPL = 20 microPascals.

11. Subsystem: This lists the transducer(s) and their acoustic loading for each passband. Sub = Subwoofer, LF = Low Frequency, MF = Mid Frequency, HF = High Frequency.

12. Operating Mode: User selectable congurations. Between system elements, a comma (,) = separate amplier channels; a slash (/) = single amplier channel. DSP = Digital Signal Processor.

IMPORTANT: To achieve the specied performance, the listed external signal processing must be used with EAW-provided settings.

13. Operating Range: Range where the processed Frequency Response stays within -10 dB SPL of the power averaged SPL within this range; measured on the geometric axis. Narrow band

dips are excepted.

14. Nominal Beamwidth: Design angle for the -6 dB SPL points, referenced to 0 dB SPL as the highest level.

15. Axial Sensitivity: Power averaged SPL over the Operating Range with an input voltage that would produce 1 W at the nominal impedance; measured with no external processing on

the geometric axis, referenced to 1 m.

16. Nominal Impedance: Selected 4, 8, or 16 ohm resistance such that the minimum impedance point is no more than 20% below this resistance over the Operating Range.

17. Accelerated Life Test: Maximum test input voltage applied with an EIA-426B dened spectrum; measured with recommended signal processing and Recommended Protection Filter.

18. Calculated Axial Output Limit: Highest average and peak SPLs possible during the Accelerated Life Test. The Peak SPL represents the 2:1 (6 dB) crest factor of the Life Test signal.

19. High Pass Filter: This helps protect the loudspeaker from excessive input signal levels at frequencies below the Operating Range.

GRAPHIC DATA

1. Resolution: To remove insignicant ne details, 1/12 octave cepstral smoothing was applied to acoustic frequency responses and 1/3 octave cepstral smoothing was applied to the beamwidth and

impedance data. Other graphs are plotted using raw data.

2. Frequency Responses: Variation in acoustic output level with frequency for a constant input signal. Processed: normalized to 0 dB SPL. Unprocessed inputs: 2 V (4 ohm nominal impedance), 2.83 V (8

ohm nominal impedance), or 4 V (16 ohm nominal impedance) referenced to a distance of 1 m.

3. Processor Response: The variation in output level with frequency for a constant input signal of 0.775 V = 0 dB reference.

4. Beamwidth: Average angle for each 1/3 octave frequency band where, starting from the rear of the loudspeaker, the output rst reaches -6 dB SPL referenced to 0 dB SPL as the highest level. This method

means the output may drop below -6 dB SPL within the beamwidth angle.

5. Impedance: Variation in impedance magnitude, in ohms, with frequency without regard to voltage/current phase. This means the impedance values may not be used to calculate True Watts (see 9 above).
