EBL S120 User manual

User Manual
Thanks for your purchase from EBL. For the best performance
and safety purposes, please read this manual carefully before
use. Please keep this manual for further reference.
Model: S120
120W Flexible Solar Panel

Package Contents
- 1 -
1x 120W Flexible Solar Panel
1x MC4 Cable
1x Manual
8x Carabiner
10x Velcro Strap
Specifications
English
Model
Max Power (Pmax)
Max Load Voltage (Vmp)
Max Load Current (lmp)
Open-circuit Voltage (Voc)
Short-circuit Current (Isc)
Output Interface
Solar Energy Conversion Rate
Cell Type
Surface Treatment
Wire Material
Net Weight
Size
Operating Temperature
S120
120W
21.7V
5.8A
27V
7.25A
MC4
23%
Monocrystalline Silicon Cell
EVA+ETFE
PVC
2.75KG/±0.5% /6.06lbs
705*1023*3.2mm/27.7*40.2*0.12in
-20℃~ 60℃

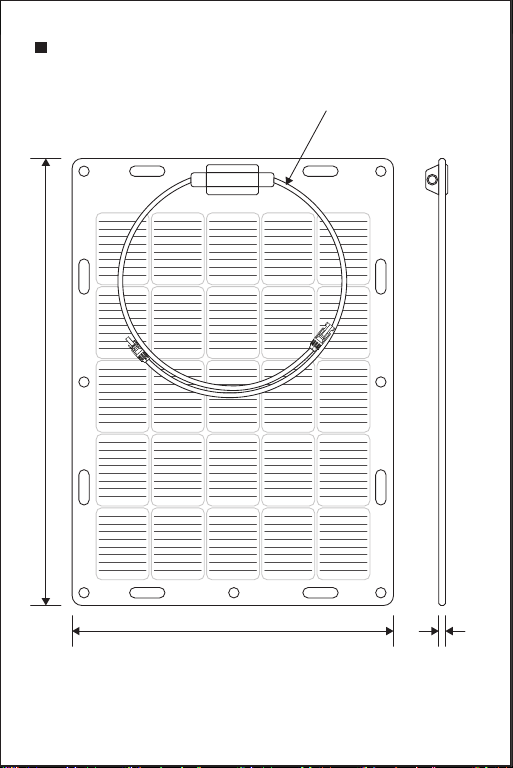

Solar Panel Dimension
- 2 -
1023mm/40.2in
3.2mm/0.12in
705mm/27.7in
1000mm/39.3in

All solar panels must be exposed to direct sunlight, and avoid any
possible shelter like buildings and trees.
Solar panels angled at 30-60 degrees from a flat surface will harvest
the solar energy that is most possible.
If your panels must adhere to other surfaces, you need to avoid the
damp or irregular surfaces as they might bring a bit of distortion after
a long time of sunlight exposure. (we can rescue it after a second
long time exposure.)
Please choose the sunny hours in the day (9:00 am to 5:00 pm) and
panels operate at peak efficiency when the sun is most direct-typi-
cally around mid-day (12:00 am-1:00 pm).
●
●
●
●
- 3 -

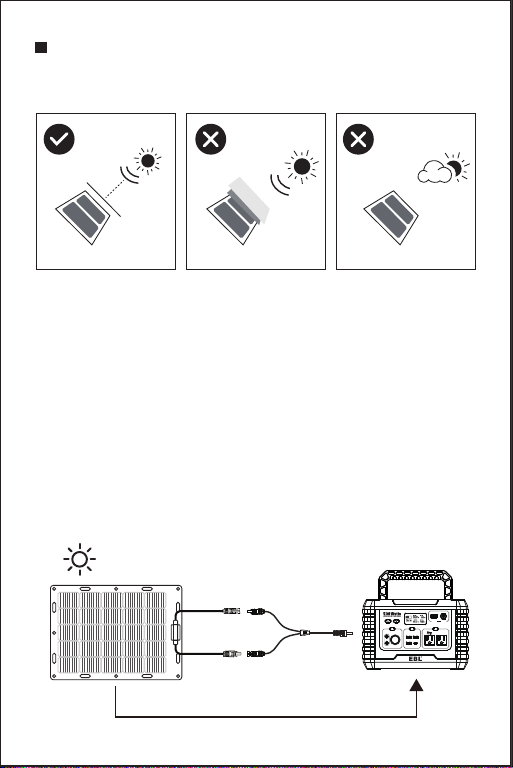

How lt Works
Place your solar panel in an area where you can get the most possible
sunlight and adjust the angle to the sun.
90°
14V8A
DC
12~26V
PV
6AMax.
ACDC USB
QC3.0 QC3.0
QC3.0 PD60W
14V8A
Max.
ACOUTPUT
INPUT
POWER LIGHT
Build a connection between the solar panel and your solar
generators.

- 4 -
How to build the series or parallel connection
The panel is equipped with two stranded, PV-rated, output MC4 cables.
The Positive connector is a male connector and the negative connector
is a female connector, these wires by themselves are rated for series
connections, but could be adapted to hold parallel connections with an
extra MC4 branch Y connectors.
MC4 connectors (Positive to negative, positive to negative)
How to chain multiple solar panels together
It is designed for charging 12V/24V Lead-Acid batteries, including
lithium and other equipment, please do pair the charging with a solar
regulator to protect the battery system from overcharging.
You can add more panels together with MC4 Y connectors to get a
different output: Voltages are additive when Panels are connected
directly in series, and the currents are additive when panels are
connected directly in parallel.
Only panels with similar electrical output should be connected in the
same string to avoid mismatch effects.
●
●
●
Solar panels generate electricity when panels meet sunlight, so
please protect them with a cloth before you plug in a device.
Plugin the cable to the input of your device first, then the other end
of the cable goes towards the output of the solar panel.
You will find a charging sign on your devices, if not, please build the
connection again or replace another charging cable.
If there shows up a charging sign, you can settle your device to a
cool place for better heat dissipation and turn off your device to save
the loss of energy during its running hours.
●
●
●
●

- 5 -

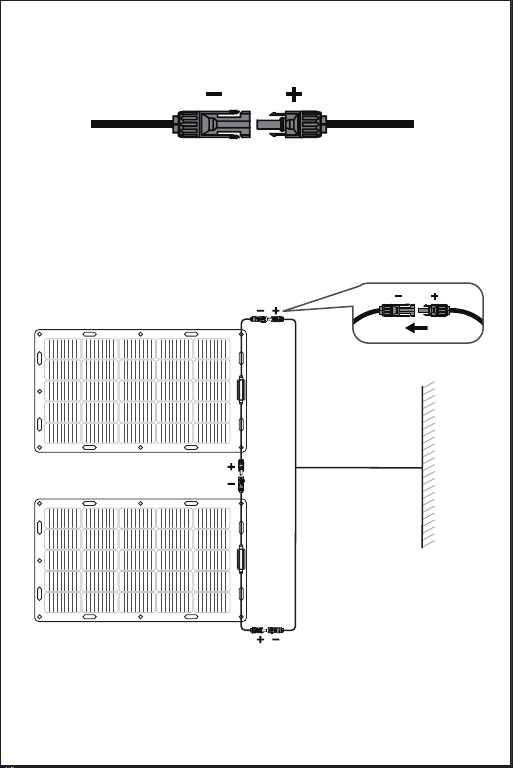

Panels in Series

- 6 -

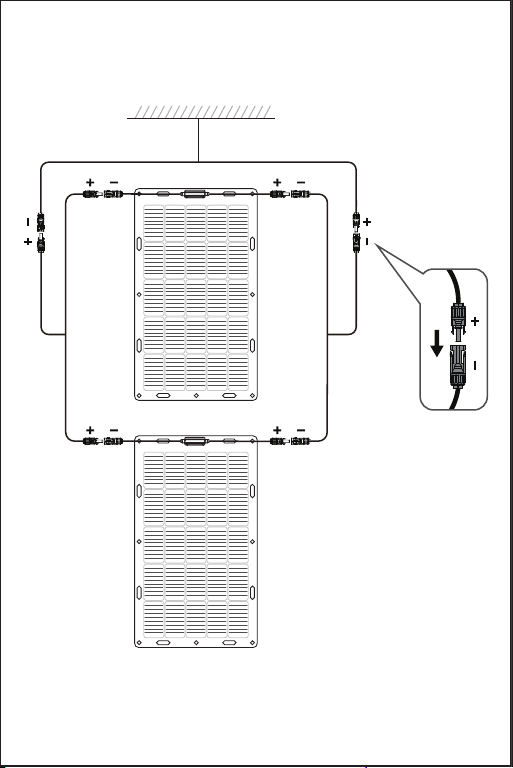

Panels in Parallel

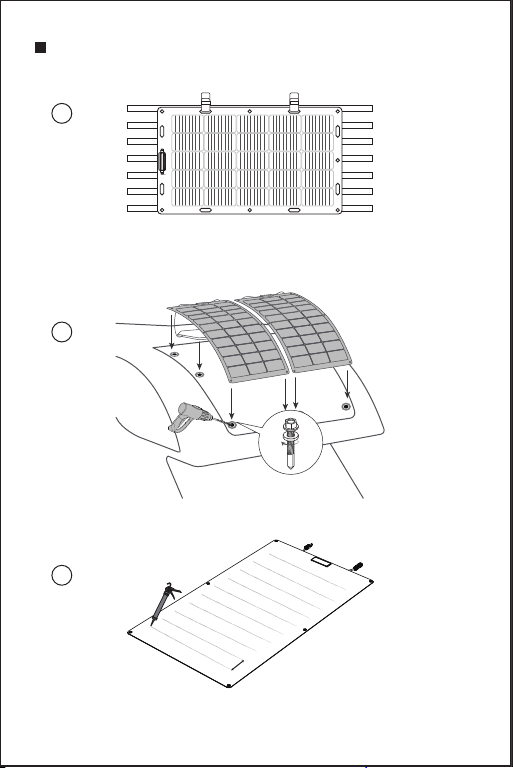

How to Install Solar Panels
- 7 -
1
2
<150mm
3

- 8 -
MC4 Connectors
Keep connectors dry and clean, and ensure that connector caps are
hand tight before connecting the panel.
Do not attempt making an electrical connection with wet, soiled, or
other faulty connectors.
To better preserve its service life, please avoid sunlight exposure
and water immersion of the connectors, and avoid connectors
resting on the ground or roof surface.
Faulty connections will result in electrical shock. Please check all
electrical connections at least once every 6 months. Make sure that
all locking connectors are fully fastened and locked.
1.
2.
3.
4.
4 5

- 9 -
Maintenance
This solar panel is mainly for emergency charging purposes, we do
not suggest a long time of outdoor exposure as it may shorten the
lifespan of this product.
Please handle the solar panel with care, and avoid hitting it with
sharp objects or knocking heavily on it.
It is normal that solar panels got hot during working hours and
please store them in the box after they cool down.
Dirt and dust can accumulate on the surface over time, this can
cause a general decrease in power output, we recommend periodic
cleaning for panels with a mild, non-abrasive cleaning agent.
The Working environment conditions should be at - 20℃ - 60℃.
Storage conditions: temperature arrange( 10 ~ 25℃), humidity(lower
than 60%).
1.
2.
3.
4.
5.
Warranty
All EBL products come with a full 1-year limited warranty from the date
of purchase (accessories excluded). It will be out of guarantee if
damaged due to incorrect use or force majeure. To obtain warranty
service, contact our customer service team at [email protected]
Warm Tips
Please do not try to modify the output interface unless you are a
professional technician, or we are not responsible for such a result.
The solar panel charger is built with an anti-flow resistant preventer
inside, it will not occur the back-flow phenomenon.
Installing a solar PV system may require specialized skills and
knowledge. Otherwise, it is suggested to have it designed or
inquired with a qualified installer.
1.
2.
3.
