ebony convertible booster User manual

motherschoice.com.au
follow us on
the only choice
instruction
manual
Illustrations and designs may vary.
IMPORTANT: KEEP THIS BOOKLET IN THE
PLACE PROVIDED ON THE CHILD RESTRAINT.
ebony
convertible booster
suitable from 9 to 36 kilograms
group I + II + III

•vvv
2
ebony
convertible booster
warnings
In order to protect your child correctly, the Mother’s Choice child safety seat must always be used
and installed as described in these instructions. The fabric cover may be different to the illustrations
shown in this instruction manual.
We are pleased that our Mother’s Choice child safety seat may accompany your child safely. This child
restraint has been approved in accordance with the regulation ECE R44/04, and manufactured under strict
quality control. Please follow all instructions labelled on this child restraint and in the written instruction
manual to instal and use this child restraint. Failure to follow all instructions may result in death or serious
injury in a crash.
IMPORTANT: KEEP THIS GUIDE IN THE PLACE PROVIDED ON THE CHILD RESTRAINT.
If you have any questions regarding its use, please feel free to contact us at [email protected]
or via phone at 0800 628 000 (toll free) between 8:00 am - 5:00 pm Monday to Friday.
Safety:
1. Before installing restraint in a vehicle, carefully read instruction manual. Failure to do so may result
in death or serious injury.
2. DO NOT disassemble, attempt to disassemble, or tamper with any part of this restraint, or change the
way this restraint harnesses.
3. Always keep the restraint secured in the vehicle even when it is unoccupied.
4. This child restraint system is suitable for group I, II, and III (weight: 9kg - 36kg).
5. Any luggage, or other objects liable to cause injury in the event of a collision, shall be properly secured.
6. This child restraint should be changed when it has been subject to violent stresses in an accident.
7. This child restraint should be kept away from sunlight, otherwise it may be too hot for the child’s skin.
8. Always conrm before each use that the child restraint is securely installed. Under emergency, the child
can be released quickly.
9. Keep the restraint away from corrosive objects.
10. DO NOT leave any child in a vehicle unattended.
11. DO NOT use restraint if without cover. DO NOT use any cover not recommended by manufacturer to
replace old cover. The cover constitutes an integral part of the restraint performance.
12. The quality of restraint is insured by manufacturer, but not for second hand restraints.
13. Only suitable if the approved vehicles are tted with 3-point safety-belts, approved to UN/ECE
Regulation No.16 or other equivalent standards.
14. It is important to ensure that any lap strap is worn low down, so that the pelvis is rmly engaged.
15. It is dangerous to make any alterations or additions to the device without the approval of the competent
authority. It is also dangerous to not follow closely the installation instructions provided by the child
restraint manufacturer.
16. DO NOT use any load bearing contact points other than those described in the instructions and marked
in the child restraint.
17. There shall be provisions made so that the instructions can be retained on the child restraint for its life
period.
18. The straps holding the restraint should be tight and the straps restraining the child adjusted to the
child’s body.
19. The rigid items and plastic parts of the restraint must be positioned or installed so that they cannot be
trapped by a movable seat or in a door of the vehicle.

•vvv
3
In order to protect your child correctly, the MOTHER'S CHOICE CHILD SAFETY SEAT must always be used
and installed as described in these instructions. The fabric cover may be different as the picture
shown in manual User instructions.
We are pleased that our MOTHER'S CHOICE CHILD SAFETY SEAT may accompany your child safely.
This child restraint has been approved in accordance with the regulation ECE R44/04, and
manufactured under strict quality control. Please follow all instruction labeled on this child restraint
and in the written instruction manual to install and use this GM0902 child restraint, failure to
follow all instructions can result in death or serious injury in a crash.
IMPORTANT: KEEP THIS GUIDE IN THE PLACE PROVIDED ON THE CHILD RESTRAINT.
If you have any questions regarding its use, please feel free to contact us:[e-mail]
Introduction
Safety paraphrase:
1.Before installing restraint in a vehicle, carefully read instruction manual, or death and serious injury
will occur.
2.DO NOT disassemble, attempt to disassemble, or tamper with any part of this restraint or change
way the restraint harness.
3.Always keep the restraint secured in the vehicle even when it is unoccupied.
4.This child restraint system is suitable for group ⅠⅡⅢ . The weight from 9kg to 36kg.
5.It shall be recommended that any luggage or other objects liable to cause injuries in the event of a
collision shall be properly secured.
6.It shall be recommended that the device should be changed when it has been subject to violent
stresses in an accident.
7.It shall be recommended that the device should be kept away from sunlight; otherwise it may be too
hot for the child’s skin.
8.Always confirm before each use the restraint is securely locked. Under emergency, baby could take
out quickly.
9.Keep the restraint away from the corrosive objects.
10.DO NOT leave any baby in a vehicle unattended.
11.DO NOT use restraint if without cover; DO NOT use any cover not recommended by manufacturer to
replace old cover because the cover constitutes on integral part of the restraint performance.
12.The quality of restraint is insured by manufacturer, but not for second hand restraint.
13.Only suitable if the approved vehicles are fitted with 3 point safety-belts, approved to
UN/ECE Regulation No.16 or other equivalent standards.
14.The importance of ensuring that any lap strap is worm low down, so that the pelvis is firmly engaged,
shall be stressed.
15.A general warning shall be given to the user concerning the danger of making any alterations or
additions to the device without the approval of the competent authority, and a danger of not following
closely the installation instructions provided by the child restraint manufacturer.
16.There shall be explicit warning not to use any load bearing contact points other than those described
in the instructions and marked in the child restraint.
17.There shall be provisions made so that the instructions can be retained on the child restraint for its
life period.
18.The straps holding the restraint should be tight and the straps restraining the child
adjusted to his/her body.
19.The rigid items and plastic parts of restraint must be so located and installed that they can＇t
be trapped by a movable seat or in a door of the vehicle.
The using scope for this restraint:
Using only with baby weighting between 9~36kg.Only use this restraint on the vehicle
disposed over a three point belt system, which are conformed to UN/ECE 16 regulation or in
accordance with other similar norms. Install the restraint on the passenger seat not equipped
with aribag. Always keep the restraint with Forward-Facing,and forbid to secure the restraint
only with vehicle’s lap belt.
Correct fitting/Suitable
Incorrect fitting/Not suitable
Vehicle Application
Only suitable if the approved vehicles are fitted with
3 point safety-belts,approved to UN/ECE
Regulation No.16 or other equivalent standards.
Not to be used on this seat if a passenger front
airbag is active.
Only use on this seat if a lap and diagonal seat
belt is fitted.
12
A
B
A
B
Lap belt
Lap and
diagonal belt
Warning
ebony
convertible booster
introduction
Suitable for use only with a child weighing between 9-36kg. Only use this restraint with
a vehicle tting with a three point belt system, which conforms to UN/ECE 16 regulation
or in accordance with similar regulation. Install the restraint on the passenger seat not
equipped with airbag. To be used only in a forward-facing position. Do not secure the
restraint only with vehicle’s lap belt.

•vvv
4
Quick adjuster strap
Metal harness hook
Quick adjuster lever
ebony
convertible booster
components list

•vvv
5
Quick adjuster strap
Metal harness hook
Quick adjuster lever
Quick adjuster strap
Metal harness hook
Quick adjuster lever
ebony
convertible booster
adjusting harness strap
Check the harness strap height, it must t your child’s height. If not, please adjust harness
strap height.
1.Press the quick adjuster lever with one hand, and then pull shoulder belt harness forward
with other hand to loosen it. (See 1)
2.Remove the shoulder belt harness and the belt cover from the metal harness hook of the
restraint back. (See 2)
3.From front of restraint, pull the shoulder belt harness out of the harness slot. Then re-thread
them through desired height harness slot according to the height of child’s shoulders. (See 3)
4.From back of the restraint, re-attach the shoulder belt harness and the belt cover onto the
metal harness hook again. (See 4/5)
5.Pull the end of the harness adjuster strap towards you to tighten the shoulder belt harness.
(See 6) Notice: The harness must not be twisted.
Note:
1.Before installing the restraint, please ensure
the vehicle seat is fully upright.
2.The harness strap must not be twisted.
3.The restraint backrest must be positioned tight
against the vehicle seat without gap.

•vvv
6
ebony
convertible booster
group I installation (9-18kg)
Car seatinstallation
Group I(9~18kg)

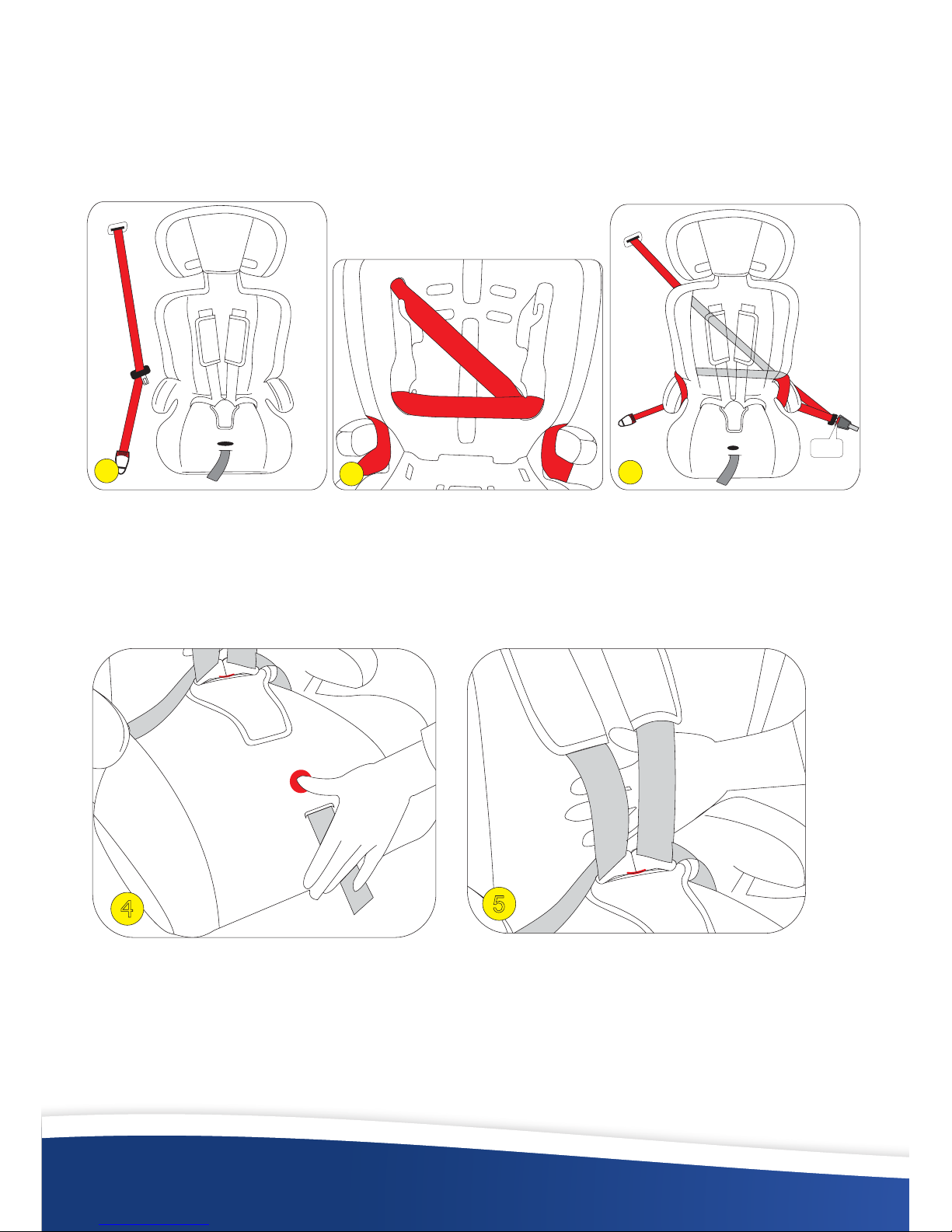

1. Pullout the vehicleseatbelt,
rehtegotgnirB,
.foedisehtnotlebpaldnalanogaideht
You will hear an audible CLICK!
Pleaseconfirmseat belt lays flat and is not twisted. (see )
guidethevehicleseatbeltpassthrough oneside of belt
guide on backrestplacethelapbeltpassthroughthebasearmrestbelow.
.
elkcubehteusnEelkcubtaeselcihevehttleb
tonguesengage in the vehicleseatbuckle
1/2/3
2. Pressthe quickadjuster lever by one hand,and then pull shoulderbelt harness forward by
another hand to loosen it.(See 4 and 5)
3. To unfastenthe harness, release the bucklebypressing the red buttoninwards. Then pull the
harnessclipsandput the harnessstrapsaside.(See6/7/8)
4.Place the babyintothe restraint.(See 9)
5.Slideeach harnessstrap over the child'sshoulders. Insertthebuckle tongues into the buckle
until you hear a noticeable“click”. Pull up on theharnessstrap to ensure the buckletonguesare
engaged.(See10/11/12)
6.Gentlypullharnessadjust straps towards you to tightenthe harness for a comfortableand
snugfit aroundchild.
7.Theharnessstrapsmustbesnugagainst the child. A snugstrap shouldnot allow any slack.
It lies in a relativelystraightlinewithoutsaggingitdoesnot press on the child'sflesh or push
the child'sbodyinto an unnatural position checkthe harnessstrapsneartheshoulders for
slack and adjust as needed. Pressthe red bucklerelease,and remove the bucklethentake out
thechild.
56
5
4
10
“ ”Click
8
7
6
13
“ ”Click
2
9
12
11

•vvv
7
ebony
convertible booster
group I installation (9-18kg)
Car seatinstallation
Group I(9~18kg)
1. Pullout the vehicleseatbelt,
rehtegotgnirB,
.foedisehtnotlebpaldnalanogaideht
You will hear an audible CLICK!
Pleaseconfirmseat belt lays flat and is not twisted. (see )
guidethevehicleseatbeltpassthrough oneside of belt
guide on backrestplacethelapbeltpassthroughthebasearmrestbelow.
.
elkcubehteusnEelkcubtaeselcihevehttleb
tonguesengage in the vehicleseatbuckle
1/2/3
2. Pressthe quickadjuster lever by one hand,and then pull shoulderbelt harness forward by
another hand to loosen it.(See 4 and 5)
3. To unfastenthe harness, release the bucklebypressing the red buttoninwards. Then pull the
harnessclipsandput the harnessstrapsaside.(See6/7/8)
4.Place the babyintothe restraint.(See 9)
5.Slideeach harnessstrap over the child'sshoulders. Insertthebuckle tongues into the buckle
until you hear a noticeable“click”. Pull up on theharnessstrap to ensure the buckletonguesare
engaged.(See10/11/12)
6.Gentlypullharnessadjust straps towards you to tightenthe harness for a comfortableand
snugfit aroundchild.
7.Theharnessstrapsmustbesnugagainst the child. A snugstrap shouldnot allow any slack.
It lies in a relativelystraightlinewithoutsaggingitdoesnot press on the child'sflesh or push
the child'sbodyinto an unnatural position checkthe harnessstrapsneartheshoulders for
slack and adjust as needed. Pressthe red bucklerelease,and remove the bucklethentake out
thechild.
56
5
4
10
“ ”Click
8
7
6
13
“ ”Click
2
9
12
11

•vvv
8
ebony
convertible booster
group II + III installation (15-36kg)
Car seat installation
Group II+III(15~36kgs)
If use the safety seat in group II+III with backrest.
Operate as follows:
3.Place the child car seat on the passenger seat ensuring it is firmly against the
vehicle seat.(See 6)
4.Sit your child on the child car seat with their back against the backrest. Place the seat belt
around your child positioning the lap section of the safety belt under both armrests, then
harness clips until you hear a noticeable “click”.(See 7)
1.Pull out the metal harness yoke from the back of the restraint, then remove the shoulder
belt harness and the belt cover from the metal harness yoke, from front of car seat, pull the
shoulder straps out of the harness slot. Remove the cover of the booster seat, pass the metal
connector down through the hole, pull up the buckle, the whole buckle strap can be removed.
(See 1/2/3)
2.Cut off the front adjusting strap, then the whole harness system can be removed.(See 4/5)
Adjustable headrest:
78
push-pull the headrest for an appropriate position to fix it
“Click”
7
6
4
1
2
3
5
1.Pull out the metal harness hook from the back of the restraint, then remove the shoulder belt
harness and the belt cover from the metal harness hook. From the front of the car seat, pull
the shoulder straps out of the harness slot. (See 1/2)
2.Remove the cover of the booster seat, pass the metal connector down through the opening,
pull up the buckle, and the whole buckle strap can be removed. (See 3/4/5)
If using the safety seat in group II + III with backrest
Operate as follows:

•vvv
9
ebony
convertible booster
group II + III installation (15-36kg)
Car seat installation
Group II+III(15~36kgs)
If use the safety seat in group II+III with backrest.
Operate as follows:
3.Place the child car seat on the passenger seat ensuring it is firmly against the
vehicle seat.(See 6)
4.Sit your child on the child car seat with their back against the backrest. Place the seat belt
around your child positioning the lap section of the safety belt under both armrests, then
harness clips until you hear a noticeable “click”.(See 7)
1.Pull out the metal harness yoke from the back of the restraint, then remove the shoulder
belt harness and the belt cover from the metal harness yoke, from front of car seat, pull the
shoulder straps out of the harness slot. Remove the cover of the booster seat, pass the metal
connector down through the hole, pull up the buckle, the whole buckle strap can be removed.
(See 1/2/3)
2.Cut off the front adjusting strap, then the whole harness system can be removed.(See 4/5)
Adjustable headrest:
78
push-pull the headrest for an appropriate position to fix it
“Click”
7
6
4
1
2
3
5

•vvv
10
ebony
convertible booster
care and maintenance
Cleaning and maintenance of cover
Important:
The cover is a safety feature, never use the child seat without it, don’t put
your child’s safety at risk by using other makes of replacement cover, could
stop the child seat form protecting your child as well as it should.
Notice
1.This is a "Universal" child restraint. It is approved to Regulation No. 44, 04
series of amendments, for general use in vehicles and it will fit most, but not all,
car seats.
2.A correct fit is likely if the vehicle manufacturer has declared in the vehicle
handbook that the vehicle is capable of accepting a "Universal" child restraint
for this age group.
3.This child restraint has been classified as "Universal" under more stringent
conditions than those which applied to earlier designs which do not carry this
notice.
4.If in doubt, consult either the child restraint manufacturer or the retailer.
European safety child seat is sweeping the whole world now.
Certified to ECE R44/04
ECE R44/04
910
Remove the cover from the car seat.
Washing instruction:
The cover is removable and washable at 30°C, line dry only.
P
30°C
Machine
wash,cold
Compatible with
any dry-cleaning
methods
Do not bleach Do not tumble dry Do not iron

•vvv
11
ebony
convertible booster
standards
Cleaning and maintenance of cover
Important:
The cover is a safety feature, never use the child seat without it, don’t put
your child’s safety at risk by using other makes of replacement cover, could
stop the child seat form protecting your child as well as it should.
Notice
1.This is a "Universal" child restraint. It is approved to Regulation No. 44, 04
series of amendments, for general use in vehicles and it will fit most, but not all,
car seats.
2.A correct fit is likely if the vehicle manufacturer has declared in the vehicle
handbook that the vehicle is capable of accepting a "Universal" child restraint
for this age group.
3.This child restraint has been classified as "Universal" under more stringent
conditions than those which applied to earlier designs which do not carry this
notice.
4.If in doubt, consult either the child restraint manufacturer or the retailer.
European safety child seat is sweeping the whole world now.
Certified to ECE R44/04
ECE R44/04
910
Remove the cover from the car seat.
Washing instruction:
The cover is removable and washable at 30°C, line dry only.
P
30°C
Machine
wash,cold
Compatible with
any dry-cleaning
methods
Do not bleach Do not tumble dry Do not iron

Specifications are subject to change without notice.
Copy or reproduction without permission is prohibited.
© 2016 Dorel Australia Pty Ltd. All Rights Reserved.
www.dorel.com.au
motherschoice.com.au
IGC DOREL NEW ZEALAND LTD
14 Sir William Avenue
East Tamaki Auckland 2013
Email: [email protected]
Phone: [phone] (toll free)
Hours: 8:00 am - 5:00 pm Monday to Friday
GM0902 04/16 #017001
