Ecco EW300 Series User manual

Installation and Operation Instructions
REMOTE SPOTLIGHT
Page 1 of 6
Specications:
EW300X
Peak current draw: 1.7A @ 12VDC
Max power: 23.2W @ 12VDC
EW301X
Peak current draw: 2.7A @ 12VDC
Max power: 37.5W @ 12VDC
IMPORTANT! Read all instructions before installing and using. Installer: This manual must be deliv-
ered to the end user. ECCO is not responsible for the misuse of products by un-authorized personnel.
Do not install and/or operate this safety product unless you have read and understand the safety
information contained in this manual.
1. Proper installation combined with operator training in the use, care, and maintenance of emergency warning devices are essential to
ensure the safety of you and those you are trying to protect.
2. Exercise caution when working with live electrical connections.
3. This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high current arc-
ing, which can cause personal injury and/or severe vehicle damage, including re.
4. Proper placement and installation are vital to the performance of this warning device. Install this product so that output performance of
the system is maximized and the controls are placed within convenient reach of the operator so that s/he can operate the system with-
out losing eye contact with the roadway.
5. Do not install this product or route any wires in the deployment area of an air bag. Equipment mounted or located in an air bag deploy-
ment area may reduce the effectiveness of the air bag or become a projectile that could cause serious personal injury or death. Refer
to the vehicle owner’s manual for the air bag deployment area. It is the responsibility of the user/operator to determine a suitable
mounting location ensuring the safety of all passengers inside the vehicle particularly avoiding areas of potential head impact.
6. It is the responsibility of the vehicle operator to ensure during use that all features of this product work correctly. In use, the vehicle op-
erator should ensure the projection of the warning signal is not blocked by vehicle components (i.e., open trunks or compartment
doors), people, vehicles, or other obstructions.
7. The use of this or any other warning device does not ensure all drivers can or will observe or react to a warning signal. Never take the
right-of-way for granted. It is your responsibility to be sure you can proceed safely before entering an intersection, driving against traf-
c, responding at a high rate of speed, walking on or around tra󰀩c lanes.
8. This equipment is intended for use by authorized personnel only. The user is responsible for understanding and obeying all laws re-
garding warning signal devices. Therefore, the user should check all applicable city, state, and federal laws and regulations. The
manufacturer assumes no liability for any loss resulting from the use of this warning device.
WARNING!
Failure to install or use this product according to manufacturer’s recommendations may result in property
damage, serious bodily/personal injury, and/or death to you and those you are seeking to protect! Check wattage
before installing light to avoid possible equipment damage.
!

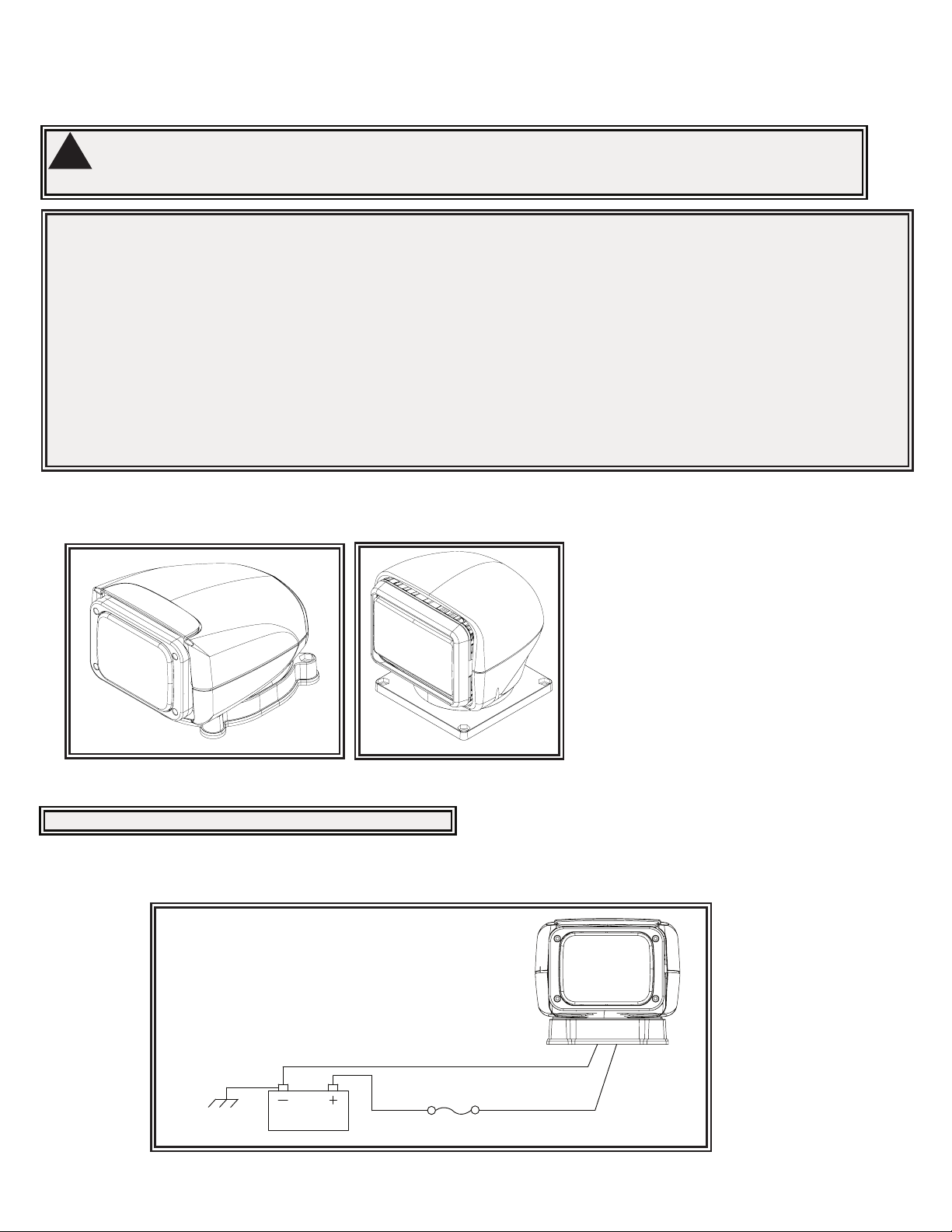

Installation & Mounting:
Caution! When drilling into any vehicle surface, make sure that the area is free from any electrical wires, fuel lines,
vehicle upholstery, etc. that could be damaged.
!
Permanent Mounting:
1. Select a level surface for installation.
2. Drill mounting holes using the base as a template and attach with included hardware.
Page 2 of 6
Carefully remove the unit from its packaging. Examine the unit for transit damage. If damage is found, return the product to your local dealer for
warranty replacement. Do not use damaged or broken parts.
Important! Disable power before wiring the product.
Wiring:
EW300X
Notes:
1. Larger wires and tight connections will provide longer service life for components. For high current wires, it is recommended that
terminal blocks or soldered connections be used with shrink tubing to protect the connections. Do not use insulation displacement
connectors (e.g.,3M Scotchlock type connectors).
2. Route wiring using grommets and sealant when passing through compartment walls. Minimize the number of splices to reduce
voltage drop. High ambient temperatures (e.g., under-hood) will signicantly reduce the current carrying capacity of wires, fuses and
circuit breakers. All wiring should conform to the minimum wire size and other recommendations of the manufacterer and be
protected from moving parts and hot surfaces. Looms, grommets, cable ties and similar installation hardware should be used to
anchor and protect all wiring.
3. Fuses or circuit breakers should be located as close to the power takeoff points as possible and properly sized to protect the wiring
and devices.
4. Particular attention should be paid to the location and method of making electrical connections and splices to protect these points from
corrosion and loss of conductivity.
5. Ground termination should be only made to substantial chassis components, preferably directly to the vehicle battery.
6. Circuit breakers are very sensitive to high temperatures and will “false trip” when mounted in hot environments or operated close to
their capacity.
The wiring for this conguration is as shown in Figure 1 below. All wiring should be a minimum of 18AWG. The positive line must have a 5 amp
fuse, as shown. Routing the ground wire directly back to negative battery terminal is recommended. Pack dielectric grease, such as Dow Corning 4,
around each electric connection exposed to moisture or the ambient environment.
EW301X
GROUND 5 AMP FUSE
BLACK WIRE
RED WIRE
Figure 1

Page 3 of 6
Wireless Remote: Pairing and Programming
1. All remotes operate at 433.92MHz. Operating more than one wireless
remote in close range will cause interference with other units if paired
incorrectly.
2. Power off the spotlight by removing the fuse or disconnecting from
main power. Install the fuse or reconnect to main power, the press the
▲ and ▼ buttons simultaneously within 5 seconds.
3. When programming is successful, the spotlight will ash 1 to 4 times.
Each ash represents which memory slot the wireless remote is
programmed to.
4. One wireless remote can be programmed to 4 spotlights. The
spotlight will remember up to 4 wireless remotes.
5. To program more than one remote, follow existing steps to pair remote
within initial 5 seconds of power up.
6. Each unit can be controlled by a single remote if the single remote is
paired through all four channels as directed above. This means one
vehicle can control up to 4 spotlights with four different remotes.
7. The optional in-dash controller will override the wireless remote.
8. In open air with full powered 23A batteries, the wireless remote will
have a 65M range.
NOTE: The light beam direction is adjustable while the spotlight is off.

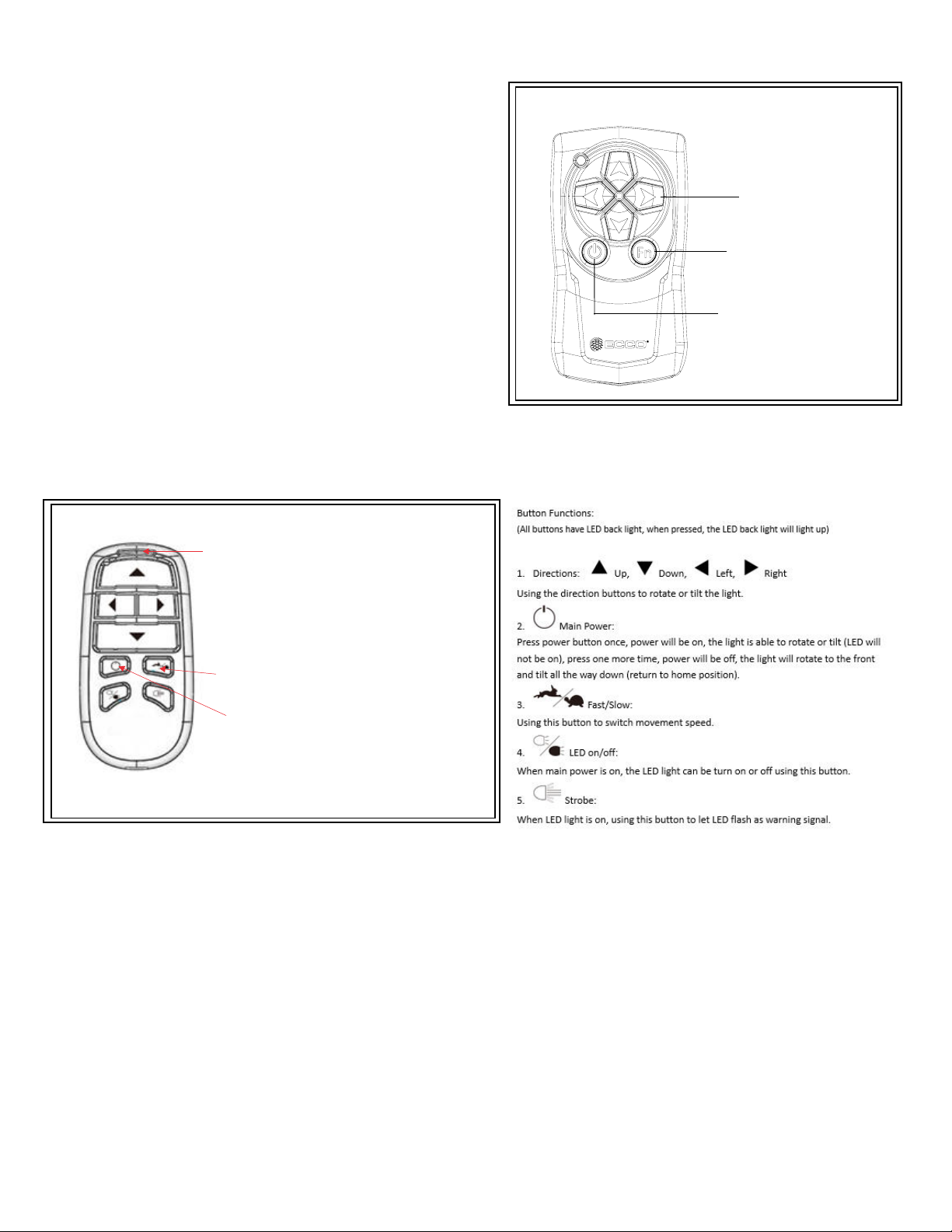

Remote Control Operation for EW300X:
LIGHT BEAM
DIRECTION OPERATION
EW300X: STROBE ON/OFF
EW301X: SPEED FAST/SLOW
ON/OFF
BUTTON
Remote Control Operation for EW301X:
LED INDICATOR:
WHEN ANY BUTTON IS PRESSED, THE LED
INDICATOR WILL BE ON TO SHOW IT IS
TRANSMITTING SIGNALS, GREEN LED
MEANS SUFFICIENT BATTERY POWER, RED
LED MEANS POWER LOW, SUGGEST TO
CHANGE BATTERY.
ON/OFF
BUTTON

Page 4 of 6

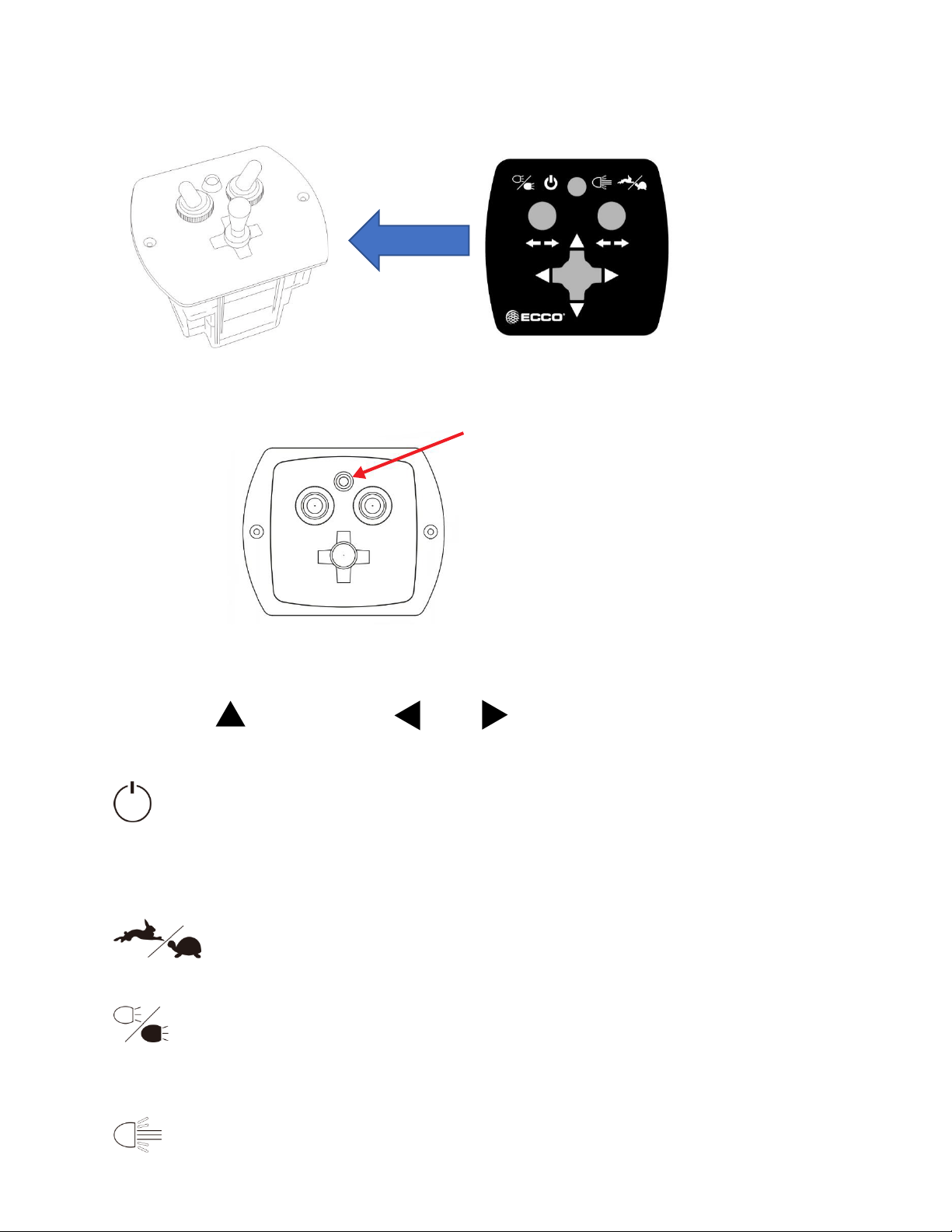

Joystick Control Operation for EW301X:
Wired Dash Mount Joys�ck Control
LED Power Indicator:
This LED power indicator will be
steady on when main power is on
to show the light is power on and
is able to rotate or lt.
Joysck Funcons:
1. Direcons: Up, Down, Le, Right
Switch the joysck to above direcns to rotate or lt the light.
2. Main Power:
Push the switch to the icon once, power will be on, the light is able to rotate or t
(LED will not be on), press one more  power will be o, the light will rotate to
the front and lt all the way down (return to home posion).
3. Fast/Slow:
Push the switch to the icon to switch movement speed.
4. LED on/o:
When main power is on, the LED light can be turn on or oby pushing the switch to
the icon.
5. Strobe:
When LED light is on, push the switch to the icon to let LED sh as warning signal.


Page 5 of 6
Replacement Parts and Accessories:
Description Part No.
Replacement Remote (For use with EW3000 & EW3001) ER3010
Replacement Remote (For use with EW3010 & EW3011) ER3011
Flood Diffuser (For use with EW3010/11) EZ3010F
Colored Lens (For use with EW3010/11) EZ3010X*
In-Dash Joystick Controller (For use with EW3010/11) EZ3011
5 Meter Joystick Cable (For use with EZ3011) EZ3012
5 Meter Joystick Cable Extension (For use with EZ3011) EZ3013
Magnet Mount Kit, Black (For use with EW3000) EZ3014
Magnet Mount Kit, White (For use with EW3001) EZ3015
Magnet Mount Kit, White (For use with EW3011) EZ3016
Magnet Mount Kit, Black (For use with EW3010) EZ3017
Adapter Bracket (For use with EW3010 & EW3011) EZ3010-ADPT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation
Where *X indicates color: A=Amber, R=Red, G=Green

833 West Diamond St
Boise, Idaho 83705
Customer Service
USA 800-635-5900
UK [phone]
AUS [phone]
www.eccoesg.com
Electronics Controls Company “ECCO” (Manufacturer)
ECCO warrants that on the date of purchase, this product will conform to ECCO’s specications for this product (which are
available from ECCO upon request). This Limited Warranty extends for sixty (60) months from the date of purchase.
DAMAGE TO PARTS OR PRODUCTS RESULTING FROM TAMPERING, ACCIDENT, ABUSE, MISUSE, NEGLIGENCE, UN-
APPROVED MODIFICATIONS, FIRE OR OTHER HAZARD; IMPROPER INSTALLATION OR OPERATION; OR NOT BEING
MAINTAINED IN ACCORDANCE WITH THE MAINTENANCE PROCEDURES SET FORTH IN ECCO’S INSTALLATION AND
OPERATING INSTRUCTIONS VOIDS THIS LIMITED WARRANTY.
Exclusion of Other Warranties:
ECCO MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED. THE IMPLIED WARRANTIES FOR MERCHANT-
ABILITY, QUALITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, US-
AGE OR TRADE PRACTICE ARE HEREBY EXCLUDED AND SHALL NOT APPLY TO THE PRODUCT AND ARE HEREBY
DISCLAIMED, EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ORAL STATEMENTS OR REPRESENTA-
TIONS ABOUT THE PRODUCT DO NOT CONSTITUTE WARRANTIES.
Remedies and Limitation of Liability:
ECCO’S SOLE LIABILITY AND BUYER’S EXCLUSIVE REMEDY IN CONTRACT, TORT (INCLUDING NEGLIGENCE), OR
UNDER ANY OTHER THEORY AGAINST ECCO REGARDING THE PRODUCT AND ITS USE SHALL BE, AT ECCO’S DIS-
CRETION, THE REPLACEMENT OR REPAIR OF THE PRODUCT, OR THE REFUND OF THE PURCHASE PRICE PAID BY
BUYER FOR NON-CONFORMING PRODUCT. IN NO EVENT SHALL ECCO’S LIABILITY ARISING OUT OF THIS LIMITED
WARRANTY OR ANY OTHER CLAIM RELATED TO THE ECCO’S PRODUCTS EXCEED THE AMOUNT PAID FOR THE
PRODUCT BY BUYER AT THE TIME OF THE ORIGINAL PURCHASE. IN NO EVENT SHALL ECCO BE LIABLE FOR LOST
PROFITS, THE COST OF SUBSTITUTE EQUIPMENT OR LABOR, PROPERTY DAMAGE, OR OTHER SPECIAL, CONSE-
QUENTIAL, OR INCIDENTAL DAMAGES BASED UPON ANY CLAIM FOR BREACH OF CONTRACT, IMPROPER INSTAL-
LATION, NEGLIGENCE, OR OTHER CLAIM, EVEN IF ECCO OR A REPRESENTATIVE OF ECCO HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. ECCO SHALL HAVE NO FURTHER OBLIGATION OR LIABILITY WITH RESPECT
TO THE PRODUCT OR ITS SALE, OPERATION AND USE, AND ECCO NEITHER ASSUMES NOR AUTHORIZES THE AS-
SUMPTION OF ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH SUCH PRODUCT.
This Limited Warranty denes specic legal rights. You may have other legal rights which vary from jurisdiction to jurisdiction.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages.
920-9914-00 Rev. E Page 6 of 6
