Echogear EGAV-SFSSP User manual

EGAV-SFSSP
INSTRUCTION MANUAL
SATELLITE
SPEAKER STANDS
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the
item to your dealer; contact the ECHOGEAR Pros. Never use damaged parts!
CAUTION: Avoid potential personal injuries and property damage!
•Check your speaker owner’s manual to see if there are any special requirements for mounting your speaker.
•Please read through these instructions completely to be sure you’re comfortable with this easy install process.
• Do not use this product for any purpose not explicitly specified by manufacturer.
• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
• If you do not understand these instructions or have doubts about the safety of the installation,
assembly or use of this product, contact Customer Service.
#YourGearUpgraded
Yea, the boring stuff ... but read it, so you don’t jack things up!
ECHOGEAR.com ECHOGEAR.com
Confuzzled? Contact the ECHOGEAR Pros:
(Germany)
[phone]
(Australia)
[phone]
(North America)
P: 1-855-428-2490
(Europe)
P: [phone]
helpmehelpy[email protected] [e-mail]
6901-602357 00
4 lbs.
(1.8 kg)
"Give it back
to Phil when
you finish"
Speaker Weight Limit:
DO NOT EXCEED
Tools Needed
Phillips Screwdriver

2
04
1Install Carpet Spikes or Plastic Feet
=
What’s in the Box ... What’s IN THE Boooooxx
WARNING: DO NOT FEED TO CHILDREN! This product contains small items that could be a
choking hazard if swallowed. Keep these items away from young children!
M6 x 20
1/4-20 x 1/2 in.
M5 x 12mm
M4 x 7mm
1/4-20 x 12mm
M5 x 15mm
M6
qty. 2
qty. 2
qty. 2 qty. 2 qty. 2
qty. 2
qty. 4
M22
qty. 4qty. 2
qty. 2
qty. 2
qty. 2qty. 2
qty. 2
qty. 8
qty. 2
qty. 8 qty. 8
qty. 2
BOTTOM POLE
TOP POLE
TOP PLATE DOUBLE STICK SPEAKER PAD
ADJUSTING
NUT
DUAL BRACKET
M5 X 12MM
SCREW
M4
WASHER
M4 X 7MM
SCREW
M4 X 10MM
SCREW
1/4-20 X 12MM
SCREW
1/4-20 X 1/2"
SCREW
M5 X 15MM
SCREW
L BRACKET
CARPET SPIKE
BASE
M6 NUT PLASTIC FOOT PAD
M16 NUT
01
02
08 09 10
11
191815
16
17
1413
12
04
03
05 06
07
"Engineers dreamed
up these descriptions
... we had nothing to
do with it"
Toy Surprise
Inside Every Box
qty. 1 qty. 10
20 21
ALLEN KEY
a.k.a. WRENCH
HOOK 'N LOOP
STRAPS
04
06
03
03
FREE
"Scratch [skrach]: A boo boo that
causes temporary or permanent
damage to skin or flooring."
"Hey, nice rug ...
it really ties the
room together."
04 05

3
3-A Rear–Mount Speaker Install
2Attach Pole to Base & Adjust Height
a.1
1 2 3
b.1 b.2 b.3
a.2
b:
Speakers with
Key hole slots
"Old-timey
key shape"
a:
Speakers with
Threaded
Screw Inserts
14
10
14
12
12
13
02
12
13
12
02
03
01
07
20
01
03
02
03
02
03
10
12
11
1-Hole Speaker 2-Hole Speaker
02
01
01
02
15 17
18
19
or
or
18
19
or

4

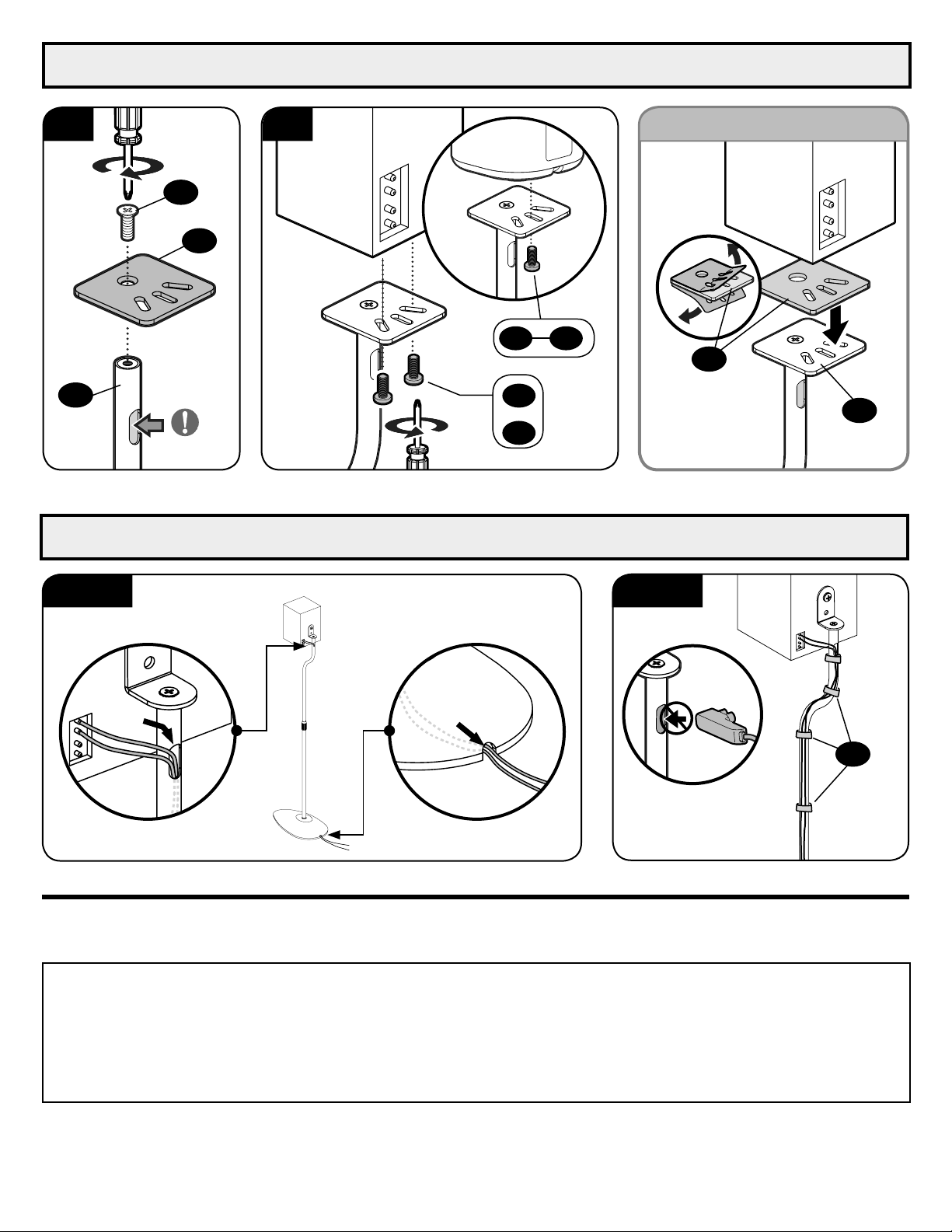

3-B Bottom–Mount Speaker Install
4Route Cable ... and Blast Tunes!
