Ecler ARQISi Series User manual

v.20210722
ARQISi Series
CABINET LOUDSPEAKERS
Architectural Loudspeaker Cabinets
USER MANUAL

2
INDEX
IMPORTANT SAFETY INSTRUCTIONS ............................................................................... 3
IMPORTANT NOTE...................................................................................................................4
INTRODUCTION ........................................................................................................................ 5
MODELS ......................................................................................................................................6
5.1. ARQIS105i ...................................................................................................... 6
5.2. ARQIS106i ...................................................................................................... 6
5.3. ARQIS108i ...................................................................................................... 6
5.4. ARQIS205i...................................................................................................... 7
5.5. ARQIS208i...................................................................................................... 7
5.6. ARQIS110i ...................................................................................................... 8
5.7. ARQIS112i ...................................................................................................... 8
5.8. ARQISSB6Ti.................................................................................................... 8
5.9. ARQISSB10i ................................................................................................... 9
5.10. ARQISSB12i.................................................................................................. 9
5.11. ARQISSB15i.................................................................................................. 9
CONNECTIONS........................................................................................................................10
6.1 ARQISSB6Ti................................................................................................... 10
EQ SETTINGS ...........................................................................................................................11
RECOMMENDED AMPLIFIER ...............................................................................................11
POSITIONING...........................................................................................................................11
INSTALLATION........................................................................................................................12
TECHNICAL SPECIFICATIONS ............................................................................................13
INSTALLATION DIAGRAMS ................................................................................................18
CONTENTS OF THE PACKAGING ......................................................................................21
12.1. ARQIS105i .................................................................................................. 21
12.2. ARQIS106i.................................................................................................. 21
12.3. ARQIS108i .................................................................................................. 21
12.4. ARQIS205i.................................................................................................. 22
12.5 ARQIS208i................................................................................................... 22
12.6. ARQIS110i .................................................................................................. 22
12.7. ARQIS112i.................................................................................................. 22
12.8. ARQISSB6Ti................................................................................................ 23
12.9. ARQISSB10i................................................................................................ 23
12.10. ARQISSB12i.............................................................................................. 23
12.11. ARQISSB15i.............................................................................................. 23

3
IMPORTANT REMARK
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “ dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING (If applicable): The terminals marked with symbol of “ ”
may be of sufficient magnitude to constitute a risk of electric shock. The external wiring
connected to the terminals requires installation by an instructed person or the use of
ready-made leads or cords.
WARNING:To prevent fire or shock hazard, do not expose this equipment to rain or
moisture.
WARNING:An apparatus with Class I construction shall be connected to a mains
socket-outlet with a protective earthing connection.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the
plugs, convenience receptacles, and at the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug the apparatus during lightening sorts or when unused for long periods
of time.

4
13. Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
14. Disconnecting from mains: When switching off the POWER switch, all the
functions and light indicators of the unit will be stopped, but fully disconnecting
the device from mains is done by unplugging the power cable from the mains
input socket. For this reason, it always shall remain easily accessible.
15. Equipment is connected to a socket-outlet with earthing connection by means
of a power cord.
16. The marking information is located at the bottom of the unit.
17. The apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on apparatus.
NOTE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
WARNING:This product must not be discarded, under any circumstance, as
unsorted urban waste. Take to the nearest electrical and electronic waste
treatment centre.
NEEC AUDIO BARCELONA, S.L. accepts no liability for any damage that may be caused
to people, animal or objects due to failure to comply with the warnings above.
IMPORTANT NOTE
Thank you for choosing our Ecler ARQISi Cabinet Loudspeakers!
It is VERY IMPORTANT to carefully read this manual and to fully understand its
contents before any connection in order to maximize your use and get the best
performance from this equipment.
To ensure optimal operation of this device, we strongly recommend that its
maintenance be carried out by our authorised Technical Services.
Ecler ARQISi comes with a 3-year warranty.

5
INTRODUCTION
Based on studying installers and interior design and system integration professionals
as well as on a permanent contact with them, the ARQISi line of speakers is designed
for fixed installation, especially in environments in need of a compact speaker offering
high output, easy installation, long-term reliability and excellent sound quality.
Evolution of the acclaimed ARQIS series, the ARQISi loudspeakers are fine-tuned to
balance the sound across the entire range, improve frequency response, increase power
(ARQIS110i, ARQIS112i), and add a new subwoofer model (ARQISSB12i). The 105,
106 and 108 models include a new wall bracket VEASY, VESA mounting standard
compatible, easy to install and with vertical and horizontal adjustment. The entire range
incorporates a square logo that can be rotated at 90° angles without the need for tools.
The ARQISi series is ideal for shopping centres, sports centres, theatres/auditoriums,
conference rooms, audio-visual presentations, corporate rooms, perimeter
reinforcement in clubs, cafés, restaurants and theme parks among other solutions.

6
MODELS
5.1. ARQIS105i
•Full range, 2-way architectural loudspeaker
•70 WRMS @ 8 Ω
•5,25" woofer
•1" tweeter
•Double INPUT/STACK connector, Euroblock type, with security attachment screws
to avoid accidental disconnection
•VEASY Wall bracket included, allowing for pan & tilt adjustment, employing a single
screw for fastening. Robust, quick and easy to install, including jumps and markings
for repeating speaker orientation.
•Available in black (RAL9005) or white (RAL9003) finish
5.2. ARQIS106i
•Full range, 2-way architectural loudspeaker
•120 WRMS @ 8 Ω
•6,5" woofer
•1" compression driver (rotable)
•Double INPUT/STACK connector, Euroblock type, with security attachment screws
to avoid accidental disconnection
•VEASY Wall bracket included, allowing for pan & tilt adjustment, employing a single
screw for fastening. Robust, quick and easy to install, including jumps and markings
for repeating speaker orientation.
•Metal safety sling included, to avoid drops in case of accidental detachment from the
wall surface
•Available in black (RAL9005) or white (RAL9003) finish
5.3. ARQIS108i
•Full range, 2-way architectural loudspeaker
•150 WRMS @ 8 Ω
•8" woofer
•1" compression driver (rotable)
•Double INPUT/STACK connector, Euroblock + Speakon© type, with security
attachment screws to avoid accidental disconnection
•VEASY Wall bracket included, allowing for pan & tilt adjustment, employing a single
screw for fastening. Robust, quick and easy to install, including jumps and markings
for repeating speaker orientation.
•U-bracket wall-mount accessory compatible, ARQ108UB (not included)
•Metal safety sling included, to avoid drops in case of accidental detachment from the
wall surface
•Available in black (RAL9005) or white (RAL9003) finish

7
5.4. ARQIS205i
•Full range, 2-way architectural loudspeaker
•140 WRMS @ 8 Ω
•2 x 5,25" woofer
•1" compression driver (rotable)
•Double INPUT/STACK connector, Euroblock + Speakon© type, with security
attachment screws to avoid accidental disconnection
•U-bracket wall-mount included, allowing for tilt adjustment
•4x M6 & 12 x M8 cabinet flying points
•Metal safety sling included, to avoid drops in case of accidental detachment from the
wall surface
•Available in black (RAL9005) or white (RAL9003) finish
5.5. ARQIS208i
•Full range, 2-way architectural loudspeaker
•300 WRMS @ 8 Ω
•2 x 8" woofer
•1" compression driver (rotable)
•Double INPUT/STACK connector, Euroblock + Speakon© type, with security
attachment screws to avoid accidental disconnection
•U-bracket wall-mount included, allowing for tilt adjustment
•4x M6 & 12 x M8 cabinet flying points
•Metal safety sling included, to avoid drops in case of accidental detachment from the
wall surface
•Available in black (RAL9005) or white (RAL9003) finish

8
5.6. ARQIS110i
•Full range, 2-way architectural loudspeaker
•300 WRMS @ 8 Ω
•10” woofer
•1" compression driver (rotable)
•Double INPUT/STACK connector, Euroblock + Speakon© type, with security
attachment screws to avoid accidental disconnection
•35 mm mount socket, compatible with SR12 wall bracket (not included) & TRIPO1
floor stand (not included)
•U-bracket wall-mount accessory compatible, ARQ110UB (not included)
•12 x M8 cabinet flying points.
•Available in black (RAL9005) or white (RAL9003) finish
5.7. ARQIS112i
•Full range, 2-way architectural loudspeaker
•500 WRMS @ 8 Ω
•1 x 12" woofer
•1" compression driver (rotable)
•Double INPUT/STACK connector, Euroblock + Speakon© type, with security
attachment screws to avoid accidental disconnection
•35 mm mount socket, compatible with SR12 wall bracket (not included) & TRIPO1
floor stand (not included)
•U-bracket wall-mount accessory compatible, ARQ112UB (not included)
•12 x M8 cabinet flying points.
•Available in black (RAL9005) or white (RAL9003) finish
5.8. ARQISSB6Ti
•6,5" subwoofer + 6,5" pasive radiator
•Ready for 70/100V installations: power selector 60/120W & 8 ohm
•Euroblock connector and spring loaded input terminals
•LPF cut-off frequency selection: OFF/ 120Hz / 150Hz
•Wall-mount hardware included
•Available in black (RAL9005) or white (RAL9003) finish

9
5.9. ARQISSB10i
•1-way surface-mount subwoofer
•150 WRMS @ 8 ohm
•10" woofer
•Euroblock connector and spring loaded input terminals
•LPF cut-off frequency selection: OFF/ 120Hz / 150Hz
•Wall-mount hardware included
•12 x M8 cabinet flying points
•Available in black (RAL9005) or white (RAL9003) finish
5.10. ARQISSB12i
•1-way surface-mount subwoofer
•300 WRMS @ 8 ohm
•10" woofer
•Euroblock connector and spring loaded input terminals
•LPF cut-off frequency selection: OFF/ 120Hz / 150Hz
•Wall-mount hardware included
•12 x M8 cabinet flying points
•Available in black (RAL9005) or white (RAL9003) finish
5.11. ARQISSB15i
•1-way architectural subwoofer
•600 WRMS @ 8 Ω
•15" woofer
•Double INPUT/STACK connector, Speakon© type
•35 mm top-hat mount socket, for pole mount combinations with ARQIS10,
ARQIS12, etc.
•12 x M8 cabinet flying points.
•Available in black (RAL9005) finish

10
CONNECTIONS
The connection cables which connect the amplifiers output and the speaker should be
of good quality, have sufficient conductor area and be as short as possible. The latter
fact is especially important when the distance is long and the load impedance low (4-8
Ω). A cross-section of at least 2.5mm2 is recommended for distances up to 10m; 4 or
6mm2 for longer distances. Following formula gives the required section, assuming 4%
losses:
Cross section in mm2=Length in m
Loudspeaker impedance in Ω
Always respect the polarity. All models have an Euroblock connector, and a second
connector (Euroblock or Speakon®, depending on model), thereby facilitating the
parallel connection of speakers.
6.1 ARQISSB6Ti
ARQISSB6Ti supports high or low impedance operation. In this matter, it has a 3-
position switch on its rear panel that allows to select its working mode.
The 8Ω/120W position corresponds to low impedance operation at a maximum power
of 120W. The 2 positions of the power selector switch for 70/100V line will allow you
to set the maximum power at which each unit will work
(60/120W @ 100V | 30/60W @ 70W) .
Note: The loudspeaker distribution along a 70/100V line historically arises from the
technical requirement to mix loudspeakers of different impedances and/or powers on
the same amplification line or channel, but without any need to worry about the total

11
impedance of the full assembly. Moreover, this solution enables long cable runs with
significantly smaller sections that those usually employed in low-impedance
installations, but with minimum power losses.
WARNING! If the system is accidentally connected with the switch in the 100 V/60 W
position to a low-impedance amplifier, no damage will be caused to the loudspeaker,
but its performance will be well below its specifications. If the loudspeaker is
accidentally connected to a 70 V/100 V network, in the 8 Ωposition, it will be seriously
damaged.
EQ SETTINGS
Download the Ecler ARQISi EQ Settings file for ARQIS105i, ARQIS106i, ARQIS108i,
ARQIS110i, ARQIS112i, ARQIS205i and ARQIS208i, ready to import in EclerNet
Manager software.
RECOMMENDED AMPLIFIER
Following table shows the output power of the amplifier adequate to each acoustic
system:
•ARQIS105i: 140W RMS
•ARQIS106i: 240W RMS
•ARQIS108i: 300W RMS
•ARQIS205i: 280W RMS
•ARQIS208i: 600W RMS
•ARQIS110i: 600W RMS
•ARQIS112i: 1000W RMS
•ARQISSB6Ti: 240WRMS @ 8Ω
•ARQISSB10i: 300W RMS
•ARQISSB12i: 600W RMS
•ARQISSB15i: 1200W RMS
POSITIONING
Consider following general rules:
Place the speakers on a solid and firm surface. Subwoofers placed directly and
horizontally on the ground have a higher output than hanged or directly on the floor,
but vertically. No obstacles should stand between the enclosures and the audience. The
high frequencies are very directive compared to the low frequencies, so that any
obstacle will impair their response. In case large audiences must be addressed, a better
long distance sound propagation will be achieved if the enclosures are flown high
enough.
Download all EASE files by clicking on the image:

12
INSTALLATION
In the ARQISi series, the best way to install the enclosure was studied for each model.
Each model from the ARQIS range is supplied with the optimal installation system. The
models ARQIS106i, ARQIS108i, ARQIS205i, ARQIS208i, ARQIS110i, ARQIS112i can
be installed both horizontally and vertically thanks to the included accessories and the
1" rotable compression driver.

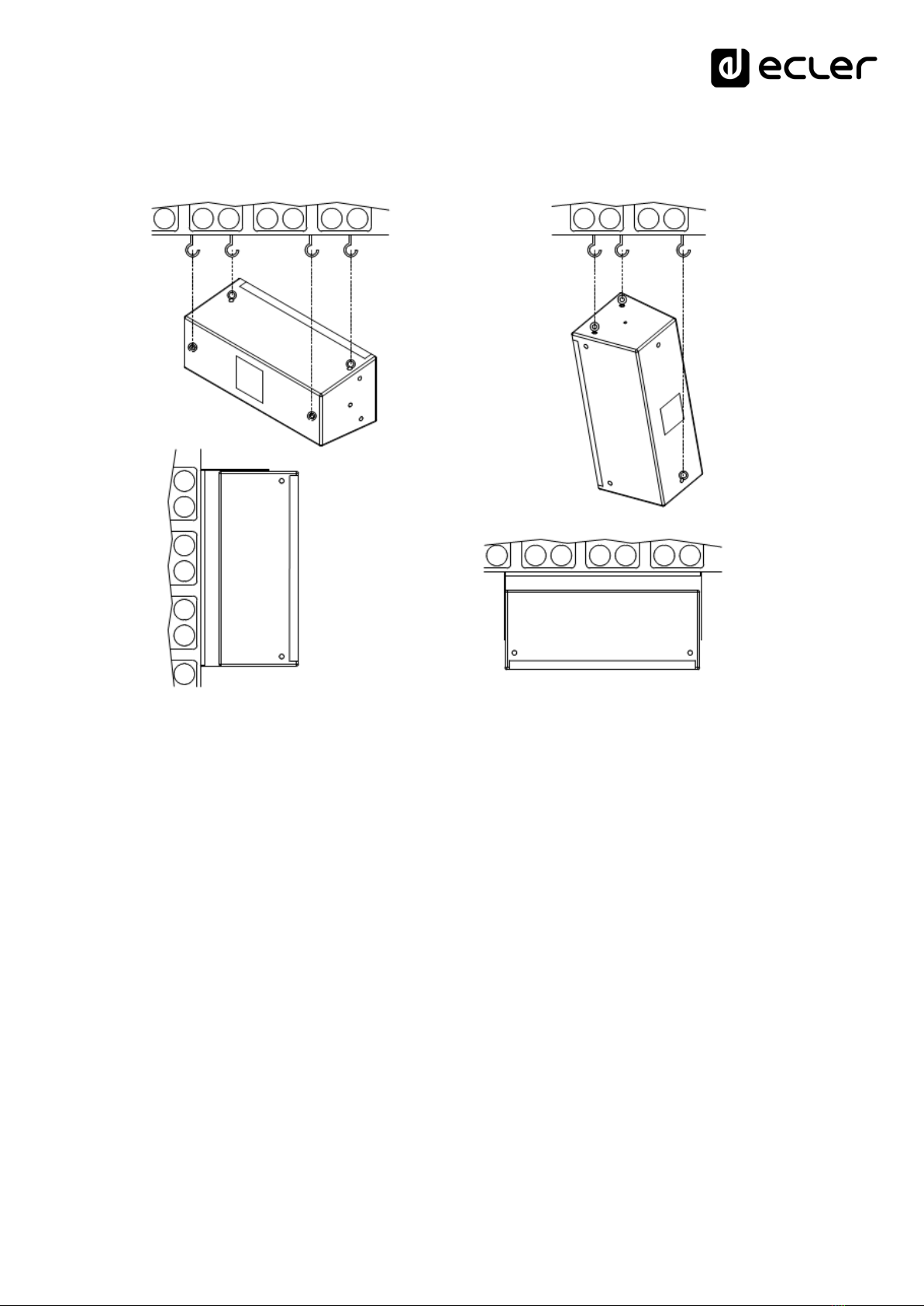

ARQIS205 / ARQIS208 / ARQIS110 / ARQIS 112 / ARQISSB10 / ARQISSB15 also have
built-in M8 rigging points for suspension from a compatible structure or "truss" using
steel cables.
IMPORTANT NOTE: The equipment must in no case be suspended using its carrying
handles (if any); use the appropriate accessories for each application. Whenever a
ceiling/wall mounting bracket is used, it is mandatory to add a redundant safety system.
Use wire ropes, slings or chains of the appropriate diameter to prevent the fall of the
speaker in case the main mounting system is pulled out.

13
TECHNICAL SPECIFICATIONS
ARQIS105i
ARQIS106i
ARQIS108i
Effective Freq. Range1
80 Hz - 20 kHz
75 Hz - 20 kHz
65 Hz - 20 kHz
Coverage angle2
150°x130° (HxV)
140°x160° (HxV)
130°x130° (HxV)
Power handling
70W RMS / 280W Peak
120W RMS / 480W Peak
112dB RMS / 118dB
Peak
Sensitivity3
89dB (1W/1m)
88dB (1W/1m)
90dB (1W/1m)
Maximum SPL4
107dB continuous /
113dB peak
109dB continuous /
115dB peak
109dB continuous /
115dB peak
Recommended
amplifier
140W RMS
240W RMS
300W RMS
Ways
2-Way
2-Way
2-Way
Low frequency driver
5,25" woofer
6" woofer
8" woofer
High frecuency driver
1" tweeter
1" Compression driver
(rotable)
1" Compression driver
(rotable)
Nominal impedance
8Ω
8Ω
8Ω
Crossover filter
3.2kHZ
3.2kHZ
3.5kHZ
Recommended High-
Pass protection filter
80 Hz with minimum 12
dB / octave filter
70 Hz with minimum 12
dB / octave filter
70 Hz with minimum 12
dB / octave filter
Connection type
2 x Euroblock
2 x Euroblock
1 x Euroblock & 1x
SPEAKON
Installation options
surface, WALL,desktop
surface, WALL,desktop
surface, WALL,desktop
Environmental
IP31
IP31
IP31
Enclosure material
MDF
MDF
MDF
Grille material
Steel
Steel
Steel
Grille fixing system
screw fixation
screw fixation
screw fixation
Flying points
4 x M6
8 x M6
6 x M6 & 2 x M8
Operating
temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
<85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
<90% HR
<90% HR
Included accessories
Wall Bracket/3mm ,
4mm, 6mm Allen keys
Wall Bracket/3mm ,
4mm, 6mm Allen keys
Wall Bracket/3mm ,
4mm, 6mm Allen keys
Finished colour
White (RAL 9003) or
black (RAL 9005)
White (RAL 9003) or
black (RAL 9005)
White (RAL 9003) or
black (RAL 9005)
Dimensions
186 x 280 x 210 mm /
7,32 x 11,02 x 8,26 in
217 x 350 x 240 mm /
8,50 x 13,77 x 9,44 in
244 x 280 x 390 mm /
9,60 x 11,02 x 15,35 in
Weight
3.6 kgs / 7.93 lb
7.4 Kg / 16.31 lb
8.4 Kg / 18.51 lb
Pieces per box
1 piece
1 piece
1 piece
Shipping dimensions
365 x 260 x 335 mm /
14,37 x 10,23 x 13,18 in
395 x 290 x 405 mm /
15,55 x 11,41 x 15,94 in
435 x 320 x 445 mm /
17,12 x 12,59 x 17,51 in
Shipping weight
5.5 kg / 12.12 lb
8.7 Kg / 19.18 lb
10.5 Kg / 23.14 lb
110dB below the sound pressure level at specified sensitivity
26dB below the sound pressure level than that at the direction of maximum level, Max. angle between 1 kHz and 4
kHz.
3Measured on-axis, far field and referenced to 1 meter by inverse square law. Average from 100 Hz to 10 kHz.
4Calculated from sensitivity and power handling specifications, exclusive of power compression

14
ARQIS205i
ARQIS208i
Effective Freq. Range1
78Hz-20kHz
73Hz-20kHz
Coverage angle2
150° x 40° (HxV)
130° x 30° (HxV)
Power handling
140W RMS / 560W peak
300W RMS / 1200W peak
Sensitivity3
90dB (1W/1m)
94dB (1W/1m)
Maximum SPL4
111dB continuous / 117dB
peak
119dB RMS / 125dB peak
Recommended amplifier
280W
600W RMS
Ways
2-way, full range
2-way, full range
Low frequency driver
2x 5” woofer
2x 8” woofer
High frecuency driver
1” Compression driver
(rotable)
1” Compression driver (rotable)
Nominal impedance
8Ω
8Ω
Crossover filter
2.3kHZ
2,6 kHz
Recommended High-Pass
protection filter
80 Hz with minimum 12 dB /
octave filter
70 Hz with minimum 12 dB /
octave filter
Connection type
1 x Euroblock & 1x SPEAKON
1 x Euroblock & 1x SPEAKON®
Installation options
Surface, wall, desktop
Surface, wall, desktop
Environmental
IP31
IP31
Enclosure material
MDF
MDF
Grille material
Steel
Steel
Grille fixing system
Screw fixation
Screw fixation
Flying points
4x M6 & 12 x M8
4x M6 & 12 x M8
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
<90% HR
Included accessories
U Bracket / 5mm Allen key /
6mm Allen key
U Bracket / 5mm Allen key /
6mm Allen key
Finished colour
Black (RAL9005) or White
(RAL 9003)
Black (RAL9005) or White (RAL
9003)
Dimensions
480 x 210 x 186 mm /
18.89 x 8.26 x 7.32 in
610 x 244 x 280 mm / 24,01 x
9,60 x 11,02 in
Weight
8,4 kg / 18.52 lb
14,8 kg / 32,62 lb
Pieces per box
1 piece
1 piece
Shipping dimensions
540 x 300 x 265 mm /
21,25 x 11,81 x 10,43 in
670 x 370 x 325 mm / 26,37 x
14,56 x 12,79 in
Shipping weight
9,5 kg / 20.94 lb
16.4 kg / 36.15 lb
110dB below the sound pressure level at specified sensitivity
26dB below the sound pressure level than that at the direction of maximum level, Max. angle between 1 kHz and 4
kHz.
3Measured on-axis, far field and referenced to 1 meter by inverse square law. Average from 100 Hz to 10 kHz.
4Calculated from sensitivity and power handling specifications, exclusive of power compression

15
ARQIS110i
ARQIS112i
Effective Freq. Range1
70 Hz - 19 kHz (-10dB)
70 Hz - 19 kHz (-10dB)
Coverage angle2
110°x110° (HxV)
120°x110° (HxV)
Power handling
300W RMS / 120W Peak
500W RMS / 2000W Peak
Sensitivity3
94dB (1W/1m)
96dB (1W/1m)
Maximum SPL4
119dB continuous / 125dB peak
123dB continuous / 129dB peak
Recommended amplifier
600W
1000W
Ways
2-way, full range
2-way
Low frequency driver
10” woofer
12" woofer
High frecuency driver
1,7” Compression driver
(rotable)
1.7" Compression driver
(rotable)
Nominal impedance
8Ω
8Ω
Crossover filter
2.1 kHz
2.2 kHz
Recommended High-Pass
protection filter
60Hz with minimum 12 dB /
octave filter
58Hz with minimum 12 dB /
octave filter
Connection type
1 x Euroblock & 1x SPEAKON
1 x Euroblock & 1x SPEAKON
Installation options
surface, wall, desktop, 35mm
mount socket
surface, wall, desktop, 35mm
mount socket
Environmental
IP31
IP31
Enclosure material
MDF
MDF
Grille material
Steel
Steel
Grille fixing system
screw fixation
screw fixation
Flying points
12 x M8
12 x M8
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
<90% HR
Included accessories
4x Rubber feet,4x screws
4x Rubber feet,4x screws
Finished colour
Black (RAL9005) or White (RAL
9003)
Black (RAL9005) or White (RAL
9003)
Dimensions
359,6 x 495 x 362,2 mm /
14.15 x 19.48 x 14.25 in
403 x 565 x 380 mm /
15.86 x 22.24 x 14.96 in
Weight
14,8 kg / 32.63 lb
20,0 kg / 44.09 lb
Pieces per box
1 piece
1 piece
Shipping dimensions
460 x 580 x 460 mm / 18,11 x
22,83 x 18,11 in
470 x 650 x 470 mm / 18,50 x
25,59 x 18,50 in
Shipping weight
21 kg / 46,29 lb
26,2 kg / 57,76 lb
110dB below the sound pressure level at specified sensitivity
26dB below the sound pressure level than that at the direction of maximum level, Max. angle between 1 kHz and 4
kHz.
3Measured on-axis, far field and referenced to 1 meter by inverse square law. Average from 20 Hz to 20 kHz.
4Calculated from sensitivity and power handling specifications, exclusive of power compression

16
ARQISSB6Ti
ARQISSB10i
Effective Freq. Range1
50Hz-1,5kHz
54Hz-4kHz
Power handling
120W RMS / 480W peak
150W RMS / 600W peak
Sensitivity3
86dB (1W/1m)
92dB (1W/1m)
Maximum SPL4
107dB RMS / 113dB peak
114dB RMS / 120dB peak
Recommended amplifier
250W RMS
300W
Ways
Subwoofer
Subwoofer
Driver
6,5” Subwoofer + 6,5” passive
radiator
10" woofer
Nominal impedance
8Ω
8Ω
Low-Pass filter selector
OFF / 120Hz / 150Hz
NO
Recommended High-Pass
protection filter
55 Hz with minimum 12 dB /
octave filter
60 Hz with minimum 12 dB /
octave filter
Connection type
Euroblock + spring loaded input
terminals
1 x Euroblock& 1x Terminal
Installation options
Surface, wall, desktop
Surface, wall, desktop
Environmental
IP31
IP31
Enclosure material
MDF
MDF
Grille material
Steel
Steel
Grille fixing system
Screw fixation
Screw fixation
Flying points
2 x M8
2 x M8
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
<90% HR
Included accessories
U Bracket / 5mm Allen key /
6mm Allen key
U Bracket / 5mm Allen key /
6mm Allen key
Finished colour
Black (RAL9005) or White (RAL
9003)
Black (RAL9005) or White
(RAL 9003)
Dimensions
250 x 390 x 130 mm /
9.84 x 15.35 x 5.11 in
600 x 442 x 228 mm /
23.62"x17.40"8.97"
Weight
8,2 kg / 50,70 lb
16.5 Kg / 36.37 lbs
Pieces per box
1 piece
1 piece
Shipping dimensions
535 x 535 x 470 mm / 21,06 x
21,06 x 18,50 in
690 x 537 x 355 mm /
27.16 x 21.14 x 13.97
Shipping weight
10.2 Kg / 22.48 lb
18,7 Kg / 41.22 lbs
110dB below the sound pressure level at specified sensitivity
3Measured on-axis, far field and referenced to 1 meter by inverse square law. Average from 100 Hz to 1 kHz.
4Calculated from sensitivity and power handling specifications, exclusive of power compression

17
ARQISSB12i
ARQISSB15i
Effective Freq. Range1
44Hz-4kHz
31Hz-3kHz
Power handling
300W RMS / 1200W peak
600W RMS / 2400W peak
Sensitivity3
95dB (1W/1m)
97dB (1W/1m)
Maximum SPL4
120dB RMS / 126dB peak
125dB RMS / 131dB peak
Recommended amplifier
600W
1200W
Ways
1 way
1 way
Driver
12” woofer
15” woofer
Nominal impedance
8Ω
8Ω
Crossover filter
No
No
Recommended High-Pass
protection filter
45 Hz with minimum 12 dB /
octave filter
40 Hz with minimum 12 dB /
octave filter
Connection type
2x SPEAKON®
2x SPEAKON®
Installation options
Surface, wall, desktop
Surface, wall, desktop
Environmental
IP31
IP31
Enclosure material
Plywooden
Plywooden
Grille material
Steel
Steel
Grille fixing system
Screw fixation
Screw fixation
Flying points
12 x M8
12 x M8
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
<90% HR
Included accessories
4x Rubber feet / 4x Screws
4x Rubber feet / 4x Screws
Finished colour
Black (RAL9005)
Black (RAL9005)
Dimensions
445 x 445 x 375 mm / 17.51 x
17.51 x 14.76 in
534 x 525 x 460 mm / 21.02 x
20.67 x 18.11 in
Weight
23 kg / 50,70 lb
32 kg / 70,54 lb
Pieces per box
1 unit
1 unit
Shipping dimensions
535 x 535 x 470 mm / 21,06 x
21,06 x 18,50 in
624 x 615 x 555 mm / 24,56 x
24,21 x 21,85 in
Shipping weight
21.7 kg / 47.84 lb
36.2 kg / 79.8 lb
110dB below the sound pressure level at specified sensitivity
3Measured on-axis, far field and referenced to 1 meter by inverse square law. Average from 100 Hz to 1 kHz.
4Calculated from sensitivity and power handling specifications, exclusive of power compression

18
INSTALLATION DIAGRAMS

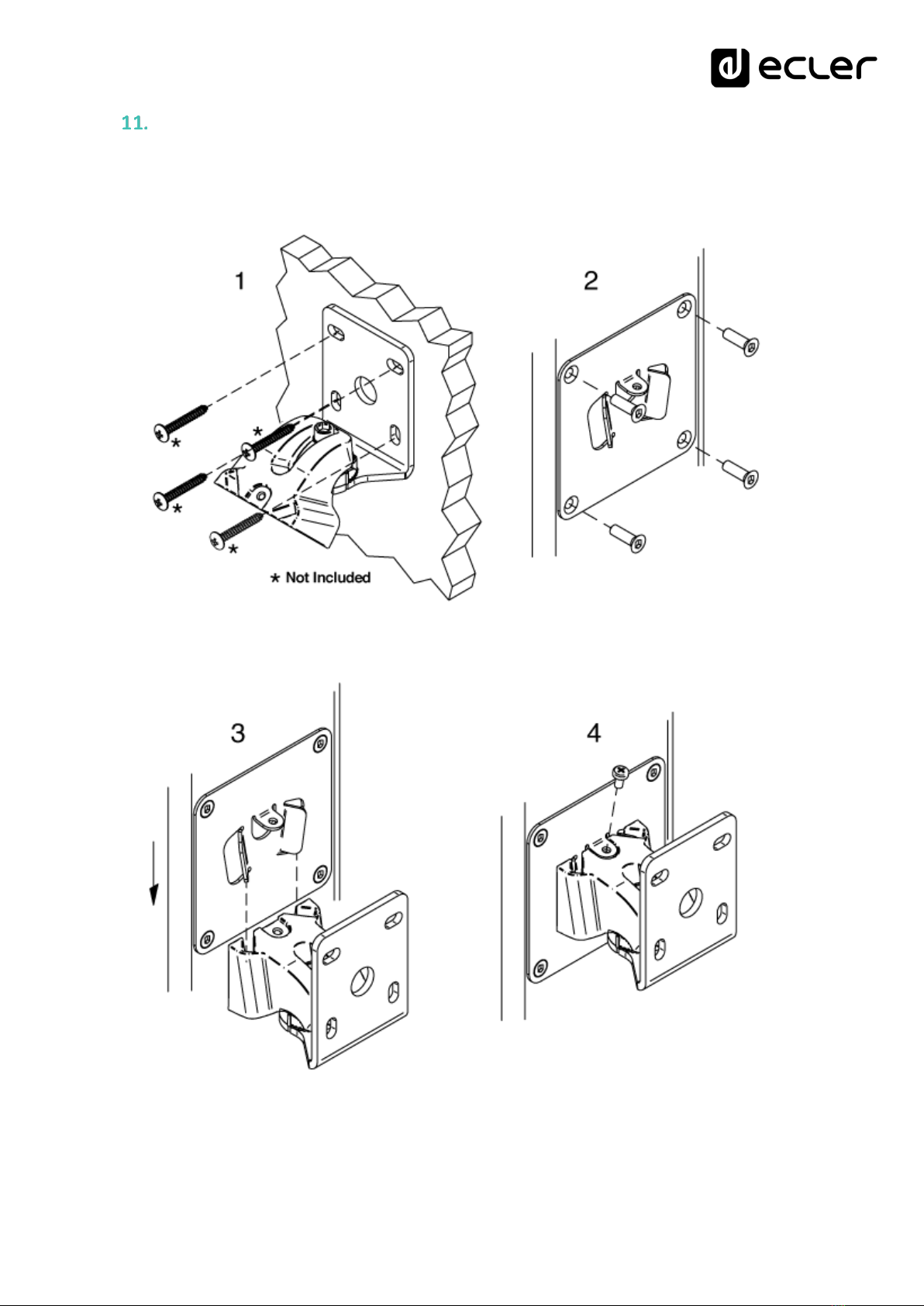

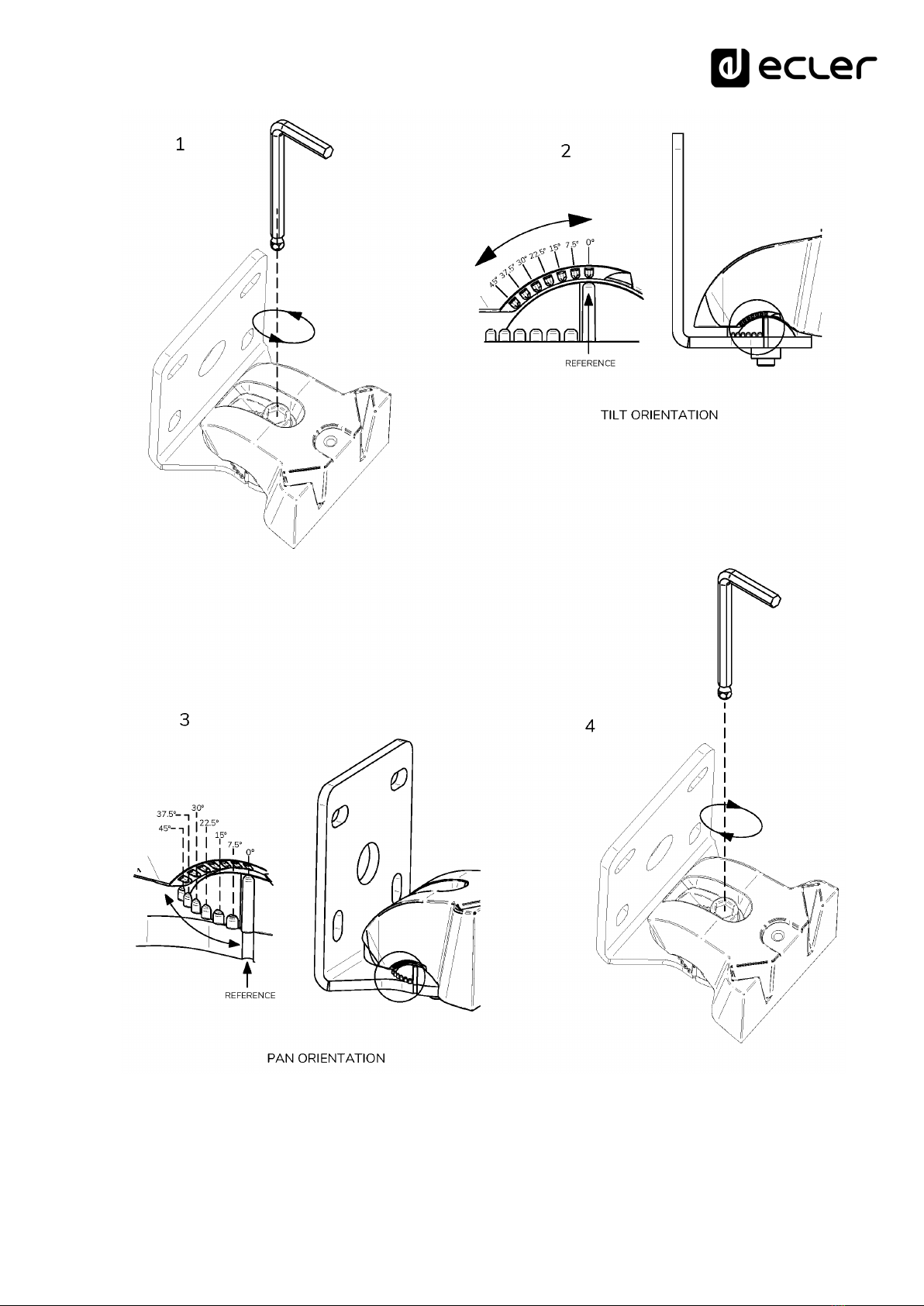

Mounting the VEASY wall bracket (ARQIS105i, ARQIS106I, ARQIS108i)

19

20
11.2. ARQIS series installation
Example of horizontal and vertical installation using the included flying points or the U-bracket
(included in 205i, 208i and SB6Ti models, optional for 108i, 110i and 112i models),
