Ecler eMOTUS8OD User manual

v. 20190715
eMOTUS8OD
WALL SPEAKERS
Outdoor Passive Speaker
USER MANUAL

2
INDEX
1. IMPORTANT REMARK ..........................................................................................................3
2. IMPORTANT SAFETY INSTRUCTIONS .............................................................................3
3. IMPORTANT NOTE ................................................................................................................5
4. INTRODUCTION ..................................................................................................................... 5
5. MAIN FEATURES....................................................................................................................5
6. CABLE CONNECTIONS .........................................................................................................6
7. LOCATION, ASSEMBLY AND START-UP.........................................................................7
8. REAR PANEL........................................................................................................................... 9
9. ESPECIFICACIONES TÉCNICAS..........................................................................................9
10. PACKAGE CONTENTS ........................................................................................................10

3
1. IMPORTANT REMARK
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING (If applicable): The terminals marked with symbol of “ ” may be of
sufficient magnitude to constitute a risk of electric shock. The external wiring connected
to the terminals requires installation by an instructed person or the use of ready-made
leads or cords.
WARNING:To prevent fire or shock hazard, do not expose this equipment to rain or
moisture.
WARNING:An apparatus with Class I construction shall be connected to a mains
socket-outlet with a protective earthing connection.
2. IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.

4
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the
plugs, convenience receptacles, and at the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug the apparatus during lightening sorts or when unused for long periods of
time.
13. Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
14. Disconnecting from mains: Switching off the POWER switch all the functions
and light indicators of the amplifier will be stopped, but fully disconnecting the
device from mains is done unplugging the power cord from the mains input
socket. For this reason, it always shall remain readily operable.
15. Equipment is connected to a socket-outlet with earthing connection by means of
a power cord.
16. The marking information is located at the bottom of apparatus.
17. The apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on apparatus.
NOTE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
WARNING:This product must not be discarded, under any circumstance, as
unsorted urban waste. Take to the nearest electrical and electronic waste
treatment centre.
NEEC AUDIO BARCELONA, S.L. accepts no liability for any damage that may be
caused to people, animal or objects due to failure to comply with the warnings above.

5
3. IMPORTANT NOTE
Thank you for choosing our outdoor passive speaker eMOTUS8OD!.
It is VERY IMPORTANT to carefully read this manual and to fully understand its
contents before any connection in order to maximize your use and get the best
performance from this equipment.
To ensure optimal operation of this device, we strongly recommend that its maintenance
be carried out by our authorised Technical Services.
Ecler eMOTUS8OD comes with a 1 year warranty.
4. INTRODUCTION
eMOTUS8OD is an 8" loudspeaker designed for outdoor installation. A compact and
professional loudspeaker, with high performance and at a very attractive cost. Its
fantastic performance and exclusive design means that it can be easily integrated into a
large number of applications: theme parks, urban spaces, gardens, etc. Available in
white and black.
5. MAIN FEATURES
Two-way speaker, an 8" woofer and a 1” tweeter
100WRMS @ 8Ω
Power selector: 60 / 30 / 15 / 7,5 W for 70/100V line (+ 3,75W position for 70V
line) and 8Ω position
Designed for exteriors
IP65 Rating
Rubber cover to protect rear connections
Available in white and black

6
6. CABLE CONNECTIONS
The eMOTUS8OD supports high or low impedance operation. In this sense, its rear
panel has a 5-position switch to select its working mode. The first 4 positions allow the
system to work in high impedance and the fifth in low impedance. (*) The 4 positions of
the 100 V line power selector will allow you to configure the maximum power that each
unit will work with. Thus, in areas where a low sound level is desired, the lower
positions 7,5 or 15 W will be used; while in areas where a higher level is desired, the
upper positions 30 or 60 W will be used. If the loudspeaker is used in 70V installations,
the 3,75W position can also be used. In the case of 50V installations, the positions
corresponding to the 100V position will be reduced by a quarter.
The fifth position corresponds to low impedance operation (100 WRMS @8). If you
choose this configuration, you must take into account the limitations of the amplifier
when connecting multiple speakers to its output, especially if the impedance of the set
drops below 4. It is also important that the connection cable between the amplifier
outputs and the speakers be of good quality and as short as possible; this is especially
important when the distances to be covered are large and the impedance of the
speakers is low.
(*) Note: The 100V/70V line speaker distribution system historically arose from the
technical need to mix loudspeakers of different impedances and/or powers on the same
line or amplifier channel, all without having to worry about the total impedance of the
resulting set. Additionally, this solution allows to use, with minimum power losses, long
cable runs and of a significantly lower section than the one usually used in the low
impedance installation..

7
WARNING!: eMOTUS8OD is supplied as standard with the switch in the 100V/60W
position. If you accidentally connect the system to a low impedance amplifier, it will
not cause any damage to the loudspeaker but it will perform well below its
performance. If you accidentally connect the loudspeaker to a 100V network with the
switch in a 8Ωposition, it will be severely damaged.
7. LOCATION, ASSEMBLY AND START-UP
On the packaging of the eMOTU8OD you will find everything you need to complete the
installation of the unit.
The following general rules shall be observed:
Always install the unit on solid and firm surfaces.
For good sound reproduction there must be no obstacle between the speakers
and the audience.
Adapt the sound pressure levels to the needs of reproduction.
On the packaging of the eMOTUS8D you will find everything you need to complete the
installation of the two units:
Two articulated wall mounting brackets
5mm Allen key
Two metal security cords (slings) against possible detachments, with their
corresponding screws and fixing washers.
Two two-terminal Euroblock connectors
8 adhesive feet for tabletop placement
Quick User Guide
Warranty Card

8
Wall installation procedure:
1. Drill three 6 mm holes in the wall, matching the position of the holes in the bracket.
2. Insert three 6 mm wall plugs into them.
3. Fasten the safety sling on the speaker using the provided screw and hook up the
sling’s carabiner-ended side a to a secure anchor point.
4. Place the bracket in place, previously passing the speaker line and speaker wire
through the square hole in the bracket. Attach the bracket to the wall. Connect the
speaker cable to the connector on the back of the box using the supplied Euroblock
connector. Pay attention to the correct polarity of the terminals and that the cable
passes through the square-shaped hole in the bracket. It is recommended that the
supplied protective cover be fitted when the speaker is installed outdoors.
5. Place the speaker in its final position by sliding it vertically downward so that the
guide on its back side matches the guide on the bracket.
6. Hold the safety wire at the back of the speaker so that the speaker does not
accidentally fall and cause damage to property and/or personnel.
7. Orient the loudspeaker to the desired position on the vertical and horizontal axes.
Tighten the Allen screws on the bracket to fix this position on both axes.
8. Set the power selector to the desired position.

9

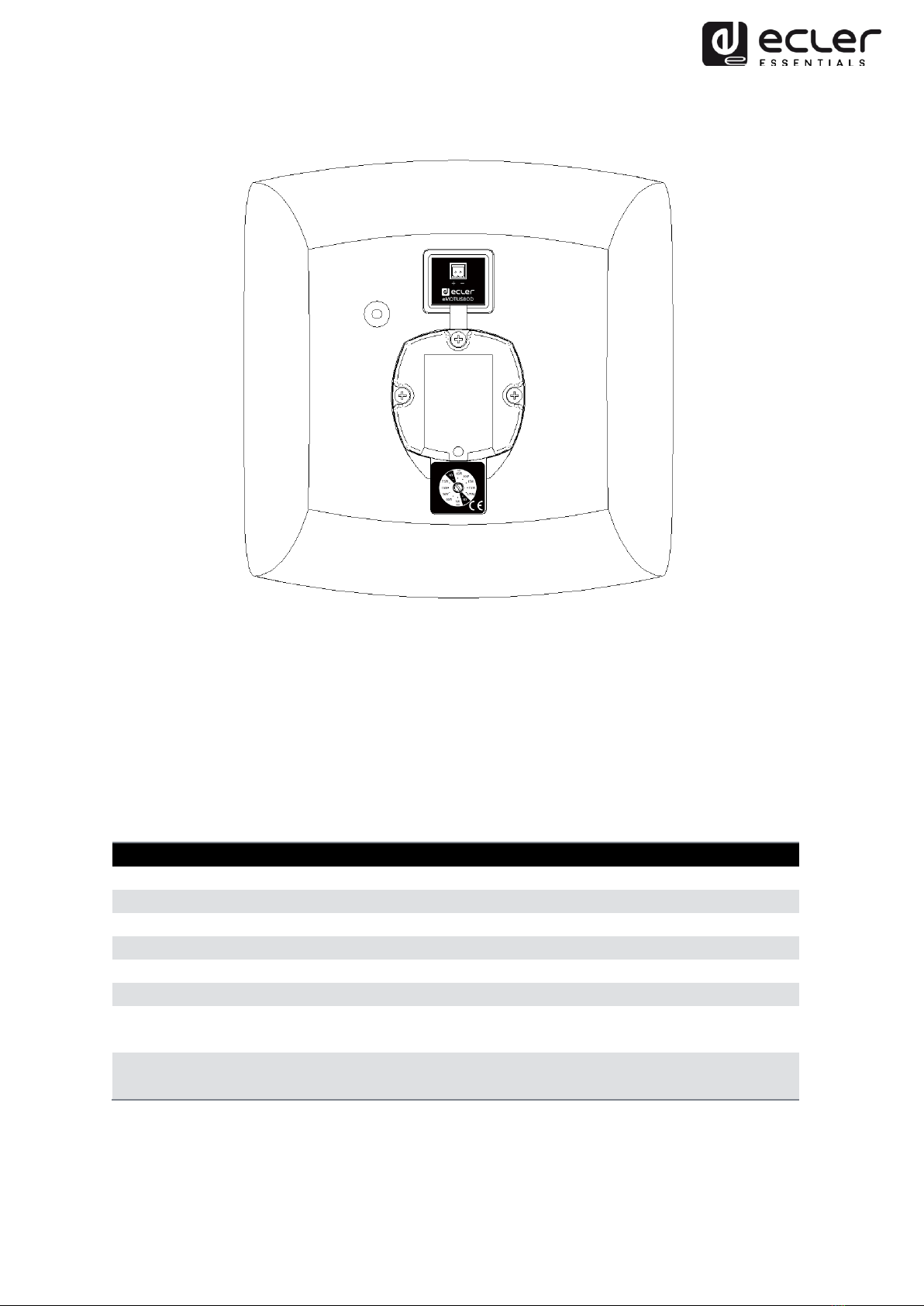

8. REAR PANEL
1. 2-pin Euroblock connector
2. Anchorage point of the safety cable
3. Power selector
9. ESPECIFICACIONES TÉCNICAS
eMOTUS5OD
Power
100 WRMS / 200 W Program
Impedance
8 Ω / 100V
Power selector
60W / 30W / 15 / 7.5W / 3.75W & 8Ω
Frequency response (±10dB)
30Hz –20kHz
Sensitivity 1W/1m
89dB
Construction
Aluminum grill, ABS cabinet
Dimensions (WxDxH)
268x242x264mm - Not including brackets;
268x327x264mm - Including brackets
Weight
4.25 kg –Not including accessories;
4.75 kg –Including accessories

10
10. PACKAGE CONTENTS
2 x eMOTUS8OD speakers
2 x articulated wall mounting brackets
5mm Allen key
2 x metal security hoses against possible detachment, with their corresponding
screws and fixing washers
8 x Adhesive feet for desktop speaker placement
Weatherproof rear connection covers
Quick User Guide
Warranty Card

11
All product characteristics are subject to variation due to production tolerances.
NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or
manufacturing that may affect these product specifications.
