ECO-WORTHY GA1012P User manual

User Manual
3000W Hybrid Inverter
Tel：E-mail:[e-mail] Web:www.eco-worthy.com
[phone](EU)
1-866-939-8222(US)

Contents
Safety Instructions
Introduction
Features
Product Overview
Installation
Unpacking And Inspection
Preparation
Mounting The Unit
Battery Connection
Ac Input/Output Connection
PV Connection
Final Assembly
Operation
Power On/Off
Operation And Display Panel
Function Setting Operation
Battery Equalization Description
Fault And Alarm Description
Trouble Shooting
Technical Datasheet
.....................................................1
............................................................2
................................................................2
......................................................3
..............................................................5
............................................5
.............................................................5
.....................................................5
...................................................6
..........................................8
.......................................................10
.......................................................11
.............................................................12
.........................................................12
.......................................12
..........................................16
....................................26
.........................................28
.....................................................30
.................................................31

WARNING: This chapter contains important safety and operating instructions.
Read and keep this manual for future reference.
1.Before using the unit read all instructions and cautionary markings on the
unit, the batteries and all appropriate sections of this manual.
2.Do not disassemble the unit Take it to a qualified service center when service
or repair is required. Incorrect re-assembly may result in a risk of electric shock
or fire.
3.To reduce risk of electric shock, disconnect all wirings before attempting any
maintenance or cleaning. Turning off the unit will not reduce this risk.
4.CAUTION-Only qualified personnel can install this device with battery.
5.NEVER charge a frozen battery.
6.For optimum operation of this inverter/charger, please follow required spec to
select appropriate cable size. It's very important to correctly operate this
inverter/charger.
7.Be very cautious when working with metal tools on or around batteries. A
potential risk exists to drop a tool to spark or short circuit batteries or other
electrical parts and could cause an explosion.
8.Please strictly follow installation procedure when you want to disconnect AC
or DC terminals, Please refer to INSTALLATION section of this manual for the
details
9.GROUNDING INSTRUCTIONS -This inverter/ charger should be connected
to a permanent grounder wiring system. Be sure to comply with local require-
ments and regulation to install this inverter.
10.NEVER cause AC output and DC input short circuited. Do NOT connect to
the mains when DC input short circuits.
-1-
Safety Instructions

This is a multi-function Inverter/charger, combining functions of inverter, solar
charger and battery charger to offer uninterruptible power support with portable
size. Its comprehensive LCD display offers user-configurable and easy-acces-
sible button operation such as battery charging current, AC/solar charger priori-
ty, and acceptable input voltage based on different applications.
Features
Ƈ3XUHVLQHZDYHLQYHUWHU
Ƈ&RQILJXUDEOHLQSXWYROWDJHUDQJHIRUKRPHDSSOLDQFHVDQGSHUVRQDOFRPSXW-
ers via LCD setting
Ƈ&RQILJXUDEOHEDWWHU\FKDUJLQJFXUUHQWEDVHGRQDSSOLFDWLRQVYLD/&'VHWWLQJ
Ƈ&RQILJXUDEOH$&6RODU&KDUJHUSULRULW\YLD/&'VHWWLQJ
Ƈ&RPSDWLEOHWRPDLQVYROWDJHRUJHQHUDWRUSRZHU
Ƈ$XWRUHVWDUWZKLOH$&LVUHFRYHULQJ
Ƈ2YHUORDG2YHUWHPSHUDWXUHVKRUWFLUFXLWSURWHFWLRQ
Ƈ6PDUWEDWWHU\FKDUJHUGHVLJQIRURSWLPL]HGEDWWHU\SHUIRUPDQFH
Ƈ&ROGVWDUWIXQFWLRQ
The following illustration shows basic application for this inverter/charger.lt also
includes following devices to have a complete running system:
Ƈ*HQHUDWRURU8WLOLW\
Ƈ39PRGXOHV
This inverter can power all kinds of appliances in home or environment,includ-
ing motor-type appliances such as tube light, fan, refrigerator and air condition-
er.
-2-
Introduction

11.Circuit breaker
12.USB communication port
13.RS-232 communication port
6.Power on/ off switch
7.AC input
8.AC output
9.PV input
10.Battery input
1.LCD display
2.Status indicator
3.Enter
4.Up/Down
5.Esc
-3-
Product Overview

Unpacking and Inspection
Before installation, please inspect the unit. Be sure that nothing inside the pack-
age is damaged. You should have received the following items inside of pack-
age:
Ƈ7KHXQLW
Ƈ8VHUPDQXDO
Preparation
11.Circuit breaker
12.USB communication port
13.RS-232 communication port
-5-
Installation

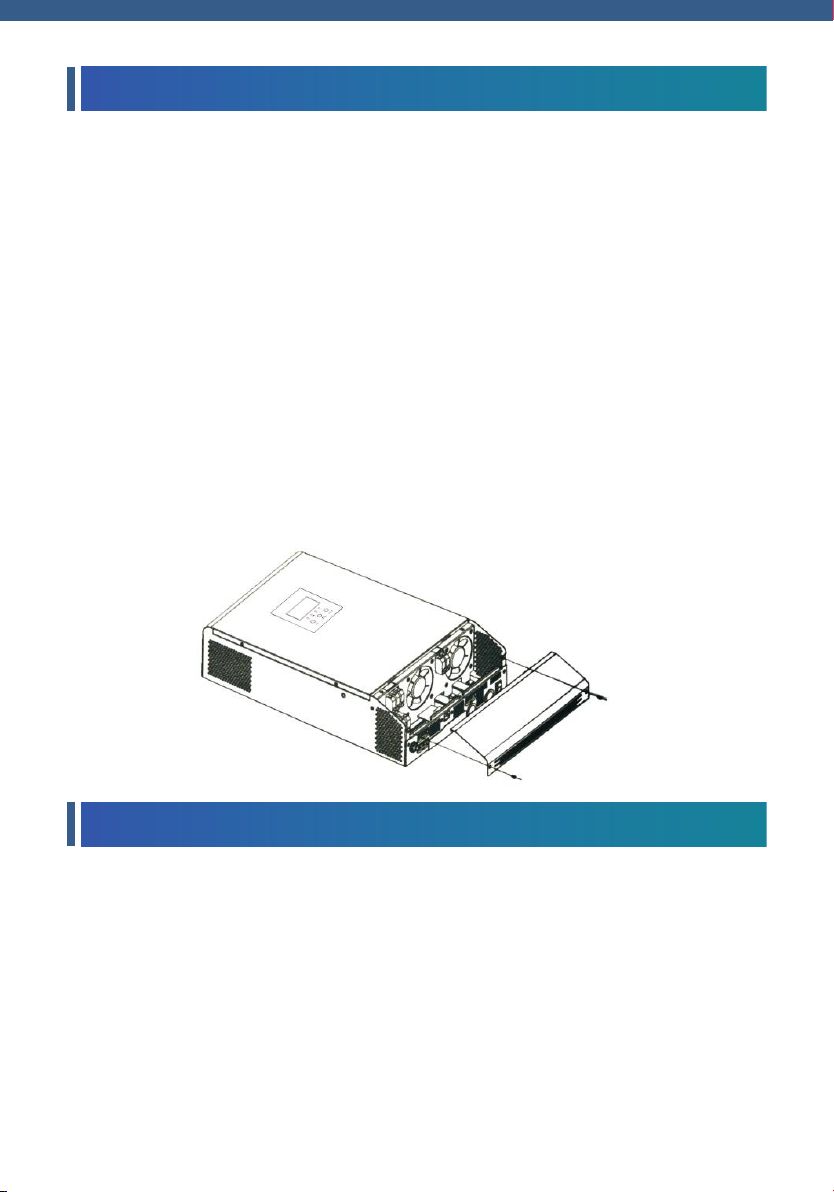

Before connecting all please take off bottom cover by removing two screws as
shown below.
Consider the following points before selecting where to install:
Do not mount the inverter on flammable construction materials.
Mount on a solid surface
Install this inverter at eye level in order to allow the LCD display to be read at all
times.
For proper air circulation to dissipate heat, reserve a clearance of 20 cm to the
side and 50 cm above and below the unit.
Mounting the Unit

The ambient temperature should be between and
to ensure optimal operation.
The recommended installation position is to adhere
to the wall vertically.
Be sure to keep other objects and surfaces as
shown in the diagram to guarantee sufficient heat
dissipation and to have enough space for removing
wires.
IT’S SUITABLE FOR MOUNTING ON CONCRETE
OR OTHER NON-COMBUSTIBLE SURFACE
ONLY.
Install the unit by screwing two screws.
•Use the M6*80mm expansion screws on 1 and 2.
•Use M4or M5 scrrew on 3.
Please follow below steps to implement battery
connection:

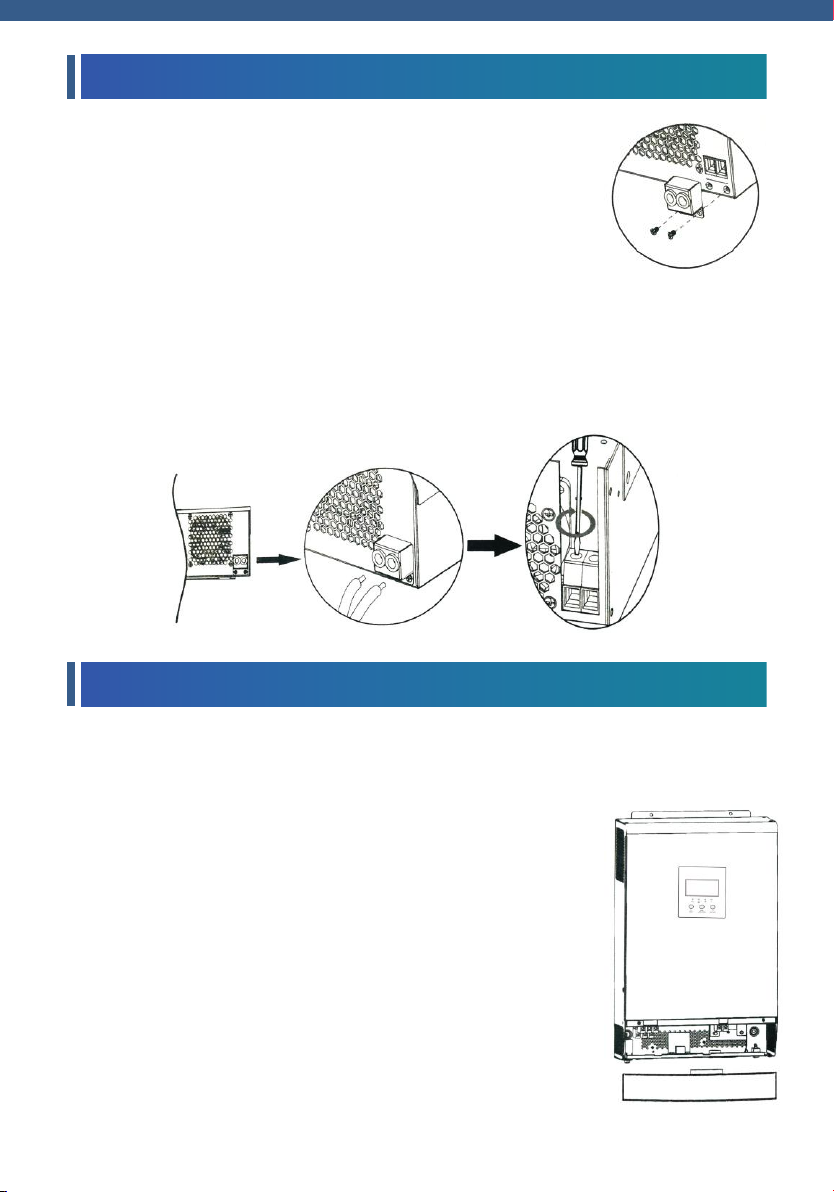

1.Remove insulation sleeve 18 mm for positive and
negative conductors.
2.Fix strain relief plate to the inverter by supplied
screws as below:
-6-
Battery Connection
CAUTION: For safety operation and regulation compliance, it's better to install
a separate DC fuse or breaker between battery and inverter.
WARNING! All wiring must be performed by a qualified personnel.
WARNING! It's very important for system safety and efficient operation to use
appropriate cable for battery connection.

Insert the battery wires flatly into battery connectors of inverter and make sure
the bolts are tightened. Make sure polarity at both the battery and the
inverter/charge is correctly connected and conductors are tightly screwed into
the battery terminals.
To firmly secure wire connection, you may fix the wires with cable tie.
Please follow below steps to implement battery connection:
-7-

CAUTION
Before connecting to AC input power source, please Install a separate breaker
between inverter and AC input power source. This will ensure the Inverter can
be disconnected during maintenance and fully protected from over current of
AC input. The recommended spec of breaker is 32A for 3. 5KW and 50A for 5.
5KW.
CAUTION! 1 There are two terminal blocks with " IN " and " OUT" markings.
Please do NOT misconnect input and output connectors.
WARNING! All wiring must be performed by qualified personnel.

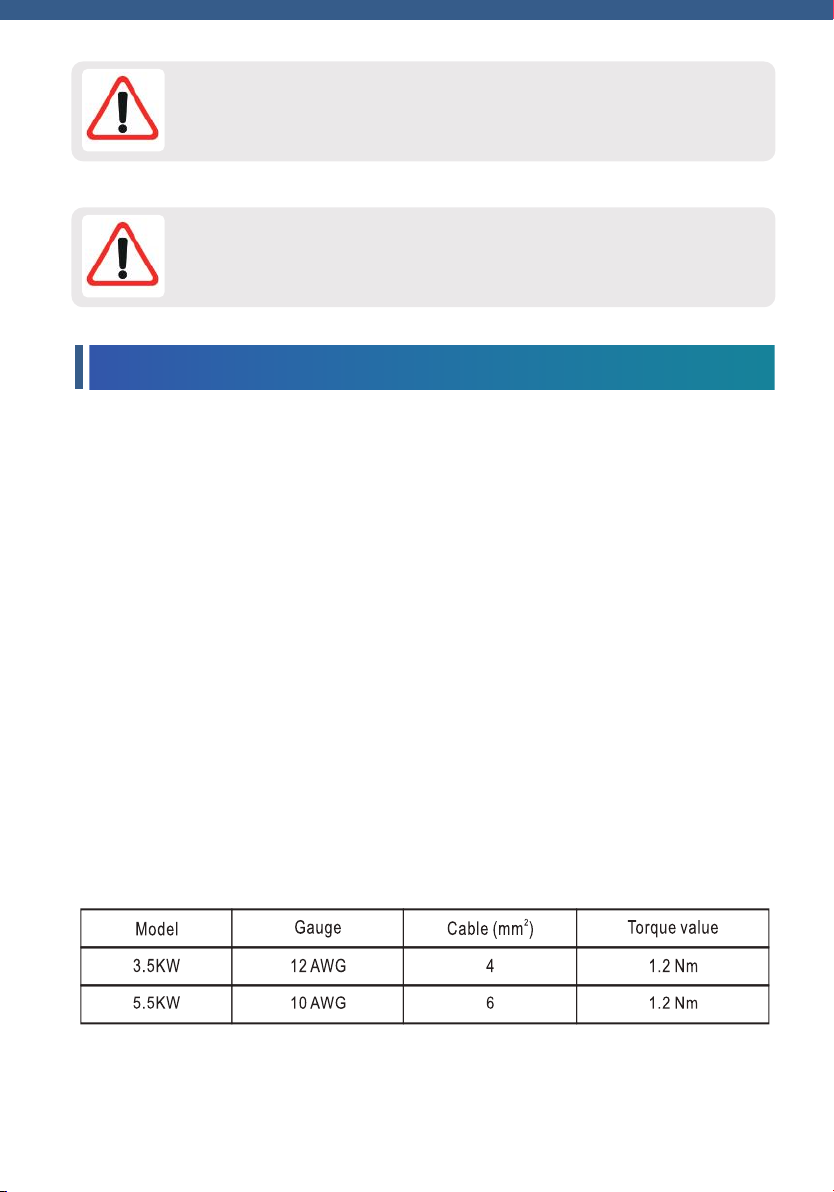

WARNING! It's very important for system safety and efficient operation to use
appropriate cable for AC input connection. To reduce risk of injury, please use
the proper recommended cable size as below.
-8-
AC Input Output Connection
WARNING: Shock Hazard
Installation must be performed with care due to high battery voltage in
series.
CAUTION!
Be sure in the final connection, positive( + ) must be connected to
positive( + ) and negative( -) must be connected to negative (-)

-9-
Please follow below steps to implement AC input/ output connection
1.Before making AC input/output connection be sure to open DC protector or
disconnector first.
2.Remove insulation sleeve 10mm for six conductors. And shorten phase L and
neutral conductor N3 mm.
3.Insert AC input wires according to polarities indicated on terminal block and
tighten the terminal screws. Be sure to connect PE protective conductor( )first.
5. Make sure the wires are securely connected
CAUTION: Appliances such as air conditioner are required at least 2~3 minutes to
restart because it's required to have enough time to balance refrigerant gas inside of
circuits. If a power shortage occurs and recovers in a short time, it will cause damage to
your connected appliances.
To prevent this kind of damage, please check with manufacturer of air conditioner if it's
equipped with time-delay function before installation. Otherwise, this inverter/ charger
will trig overload fault and cut off output to protect your appliance but sometimes it still
causes internal damage to the air conditioner.

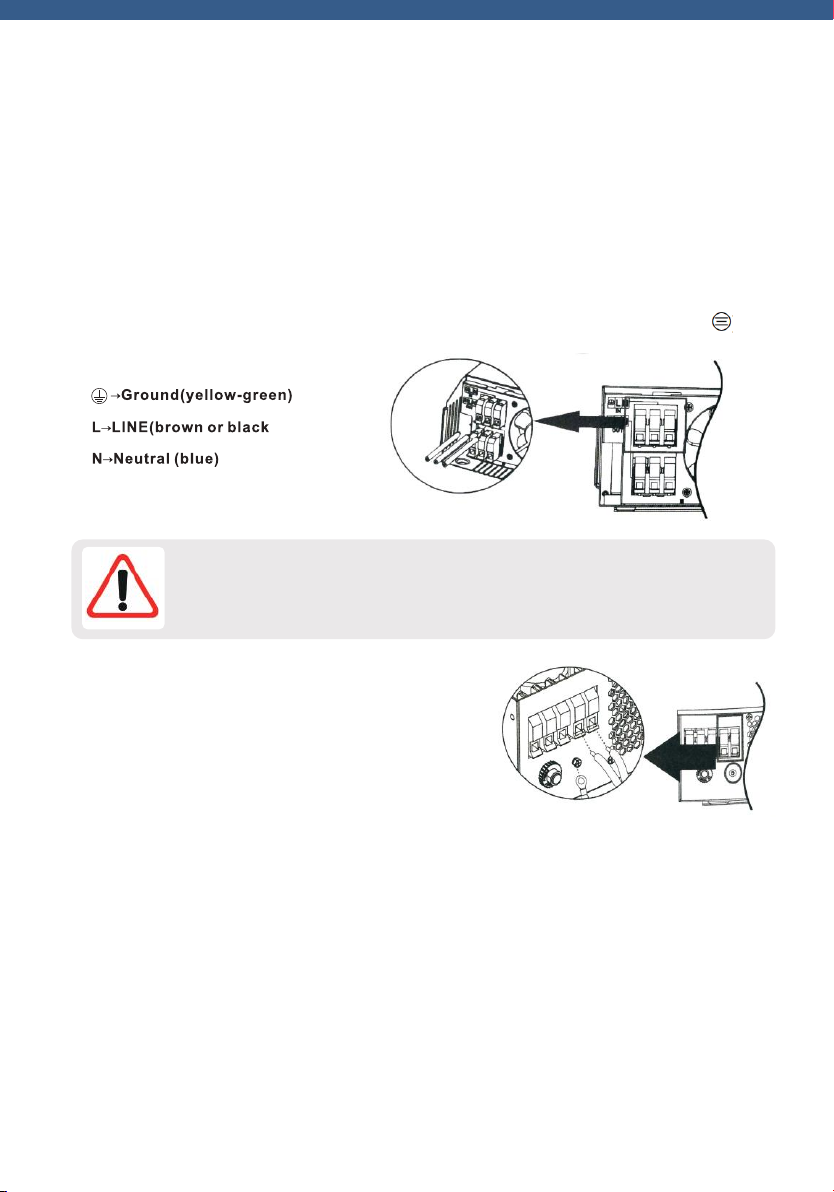

4.Then, insert AC output wires according to
polarities indicated on terminal block and
tighten terminal screws Be sure to connect
PE protective conductor ((J))first.
WARNING:
Be sure that AC power source is disconnected before attempting to
hardwire it to the unit.

CAUTION: Before connecting to modules, please install separately a DC
circuit breaker between inverter and PV modules.
WARNING! It's very important for system safety and efficient operation to use
appropriate cable for PV module connection. To reduce risk of injury, please
use the proper recommended cable size as below.
When selecting proper modules, please be sure to consider below parameters:
1.Open Circuit Voltage( Voc) of modules does not exceed max PV array
open-circuit voltage of the inverter.
2.Open circuit Voltage( Voc) of modules should be higher than the minimum
battery voltage.
Take 250W PV module as an example. The recommended module configura-
tions are listed as below table.
PV Connection
PV Module Selection:
-10-

3. Check the correct polarity of wire from PV modules and PV input connectors.
Connect positive pole( + ) of connection wire to positive pole( + ) of PV input
connector. Connect negative pole (-)of connection wire to negative pole(-) of PV
input connector. Screw two wires tightly.
After connecting all wirings, please put bottom cover back by screwing two
screws as shown below.
PV Module Wire Connection
Final Assembly
1.Remove insulation sleeve 10 mm for positive and nega-
tive conductors.
2.Fix wire cover to the inverter with supplied screws as
below:
Communication Connection
1. Please use supplied communication cable to connect to
inverter and PC. Insert bundled CD into a computer and
follow the on-screen instructions to install the monitoring
software.
2.W-Fi cloud communication(optional):
please use supplied communication cable to connect to
inverter and Wi-Fi module. Download APP and installed it
from APP store. The inverter status would be shown by
mobile phone APP or webpage of computer.
-11-

Once the unit has been properly installed and the batteries are connected well,
simply press On/Off switch (located on the button of the case)to turn on the unit.
Operation And Display Panel

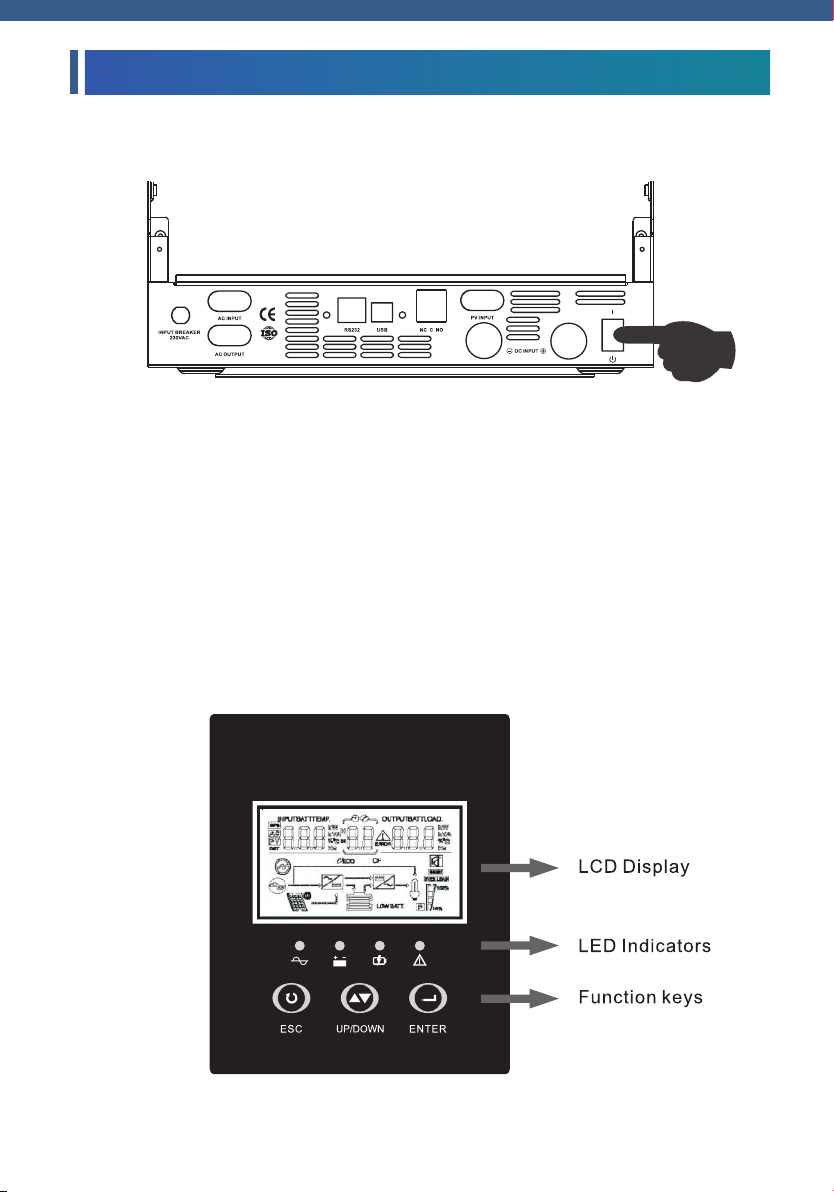

The operation and display , shown in below chart, is on the front panel of the
inverter. It includes four indicators, three function buttons and a LCD display
Operation
-12-
Power ON/OFF

Function setting: Press ENTER for more than 2 seconds on the display page to enter
the setting page. And then press the ENTER button to turn and select the different
setting pages.
Page turning: Press UP/D0WN button on any page to switch the pages.
After setting a single option, press ESC button and then press UP/D0WN to select
other option settings.
Confirm to save the settings: On the setting page, press ESC for 2 seconds to return
to the main page and save the settings.
On: The mains piwer is normal and is working
Flashing: The mains power is normal, but not working
Off: The mains is abnormal
On: The unit is working in battery output mode
Off: Other states
On: The battery is being charged in float mode
Flashing: battery is charging at constant voltage
Off: other states
On: Inverter failure
Flashing: The inverter has an alarm
Off: Inverter is normal
Buttons
Indicators
-13-
Button
ENTER
UP/DOWN
ESC
Indicator
LED-G
LED-Y
LED-Y
LED-R
Name
Input indicator(Green)
Inverter indicator(Yellow)
Battery indicator(Yellow)
Warning indicatr(Red)
Instruction
Instruction
Fault
PV voltage/input voltage lost or recovered
Power switch on/off
All other alarms
(low battery alarm only beep in battery mode)
Buzzer
Buzzer warning
Long beep for ten seconds and stops
beeps for one seconds and stops
Beep for three seconds and stops
Instruction

Parameter query
There are total ten pages. Press UP/DOWN button to turn the page. Pages
information includes: the input and output voltage, input and output frequency,
battery, PV voltage and current, load info, software version, etc.
If warning occurs, an warning information page will be added. If the inverter
fails, the fault code will be displayed on the page.
The main page will display fault or alarm information if fault exists. When the
inverter has no fault or alarm, the main page displays output voltage and
frequency information by default.
Press the UP/DOWN button for more than 1 second, the LCD will enter the
automatic page turning mode: automatically turn the displayed page every 2
seconds, and long press the UP/DOWN button again to exit the automatic
page turning mode.

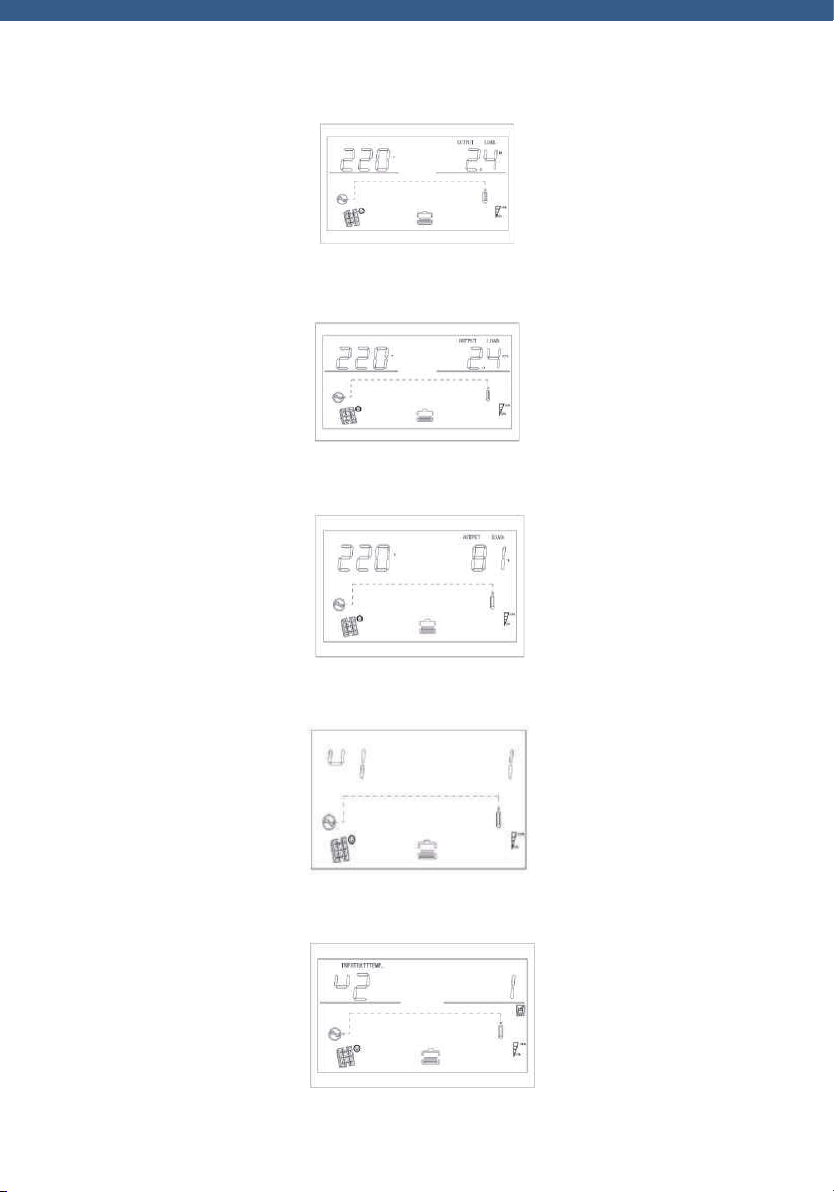

Display page 1 (main page): inverter input and output voltage
Display page 2: inverter input and output frequency
Display page 3: battery information, battery voltage and battery capacity
-14-

Display page 4: output information, output voltage and output active power
Display page 5: output information, output voltage and output complex power
Display page 6: output information, output voltage and load percentage
Display page 7: inverter system software version
Display page 8: MPPT system software version
-15-

-16-
Function setting operation:
• Press ENTER for more than 2 seconds to enter the function setting page.
Press ENTER to select the function. After turning the page to the desired func-
tion setting page, the corresponding function words will flash.
• Press ENTER to enter the setting page of the selected function. At this time,
the name of the selected function will light up, and the left side value will flash.
Press UP/DOWN to select the value of the desired function parameter.
• After turning the page to the desired function parameter, press ENTER to
complete the function setting. At this time, the value of the function will light up
and stop flashing.
Press the ESC for more than 2 seconds, the function will be successfully set,
and at the same time exit the function setting page and return to the main
display page.(You can also do not operate, and automatically jump back to the
main display page after waiting for up to 30S)

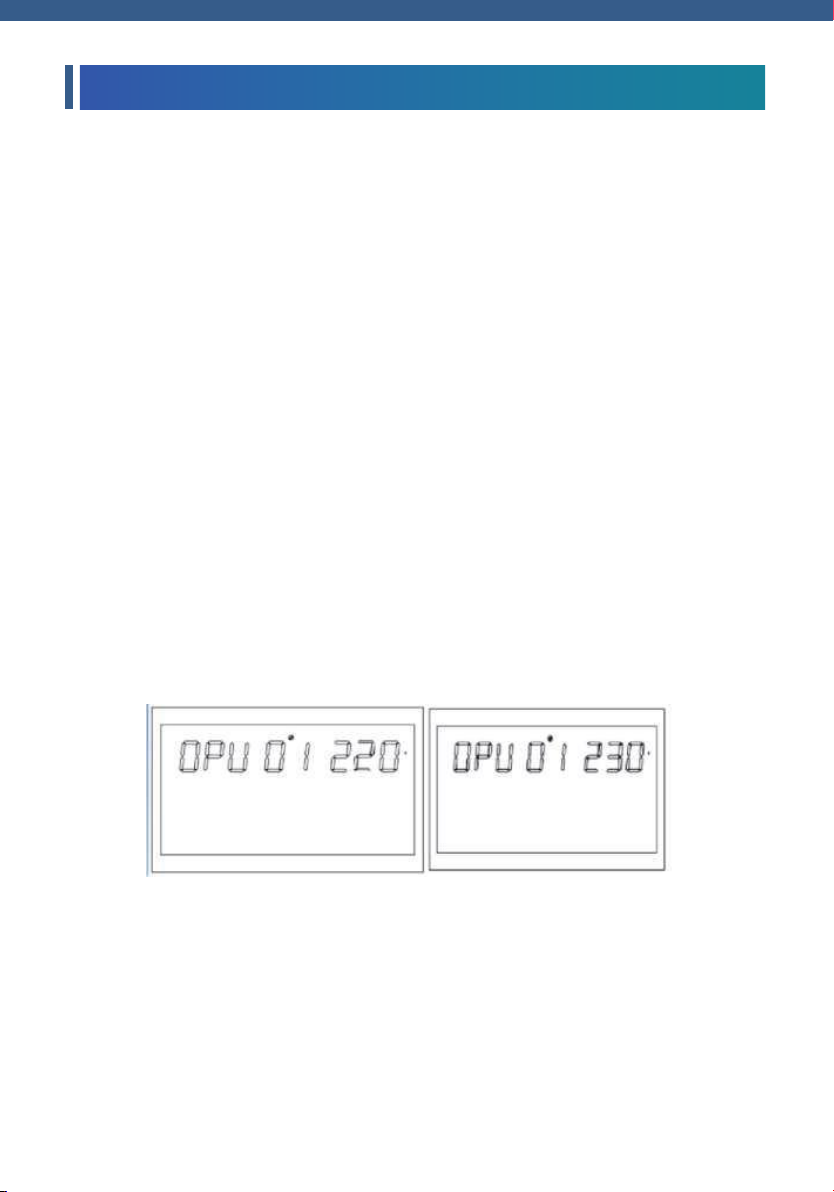

Output voltage (OPU)
The default output voltage is 230V
208V, 220V, 230V, 240V can be set.
Setting conditions: All states can be set, and the settings will take effect when
the unit restarted next time.
Function setting operation

-17-
Output frequency (OPF)
Set the inverter output frequency. Default is 50Hz
50Hz and 60Hz can be set
Setting conditions: All states can be set, and the settings will take effect when
the unit restarted next time.
Output priority (OPP)
Set the inverter priority, the default is GRD: mains output priority
The second is PU(PV): PV output priority
The third is PBG: photovoltaic cell mains output
Setting conditions: All states can be set.

-18-

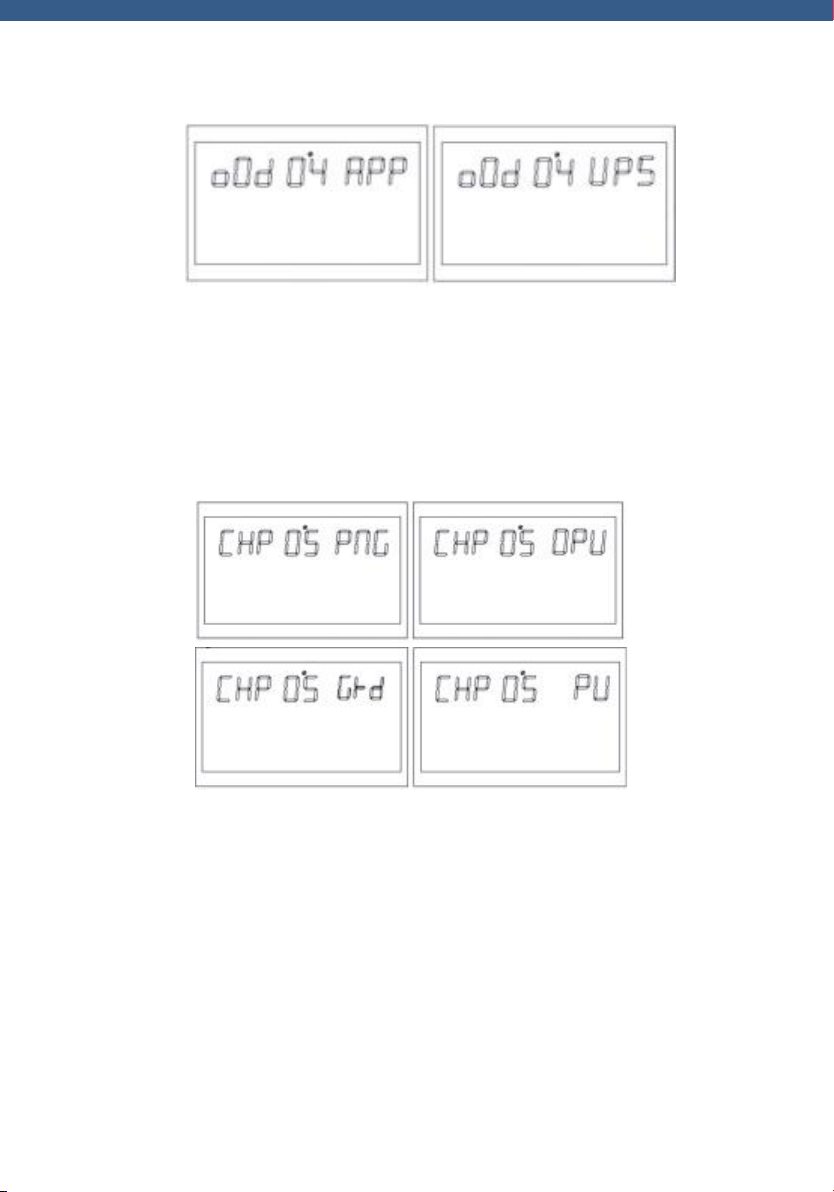

Output mode (MOD)
Set the inverter output mode, the default is APP: Appliance, for home applianc-
es
The second is inverter, which is used for equipment such as computers.
Setting conditions: All states can be set.
Charging priority (CHG)
Set the inverter charging priority, the default is PNG (PV and Grid): PV and Grid
are charing at the same time
The second is OPV (Only PV): only photovoltaic charging
The third is GRD (Grid): mains charging priority
The fourth is PV: PV charging first
Setting conditions: All states can be set.

-19-

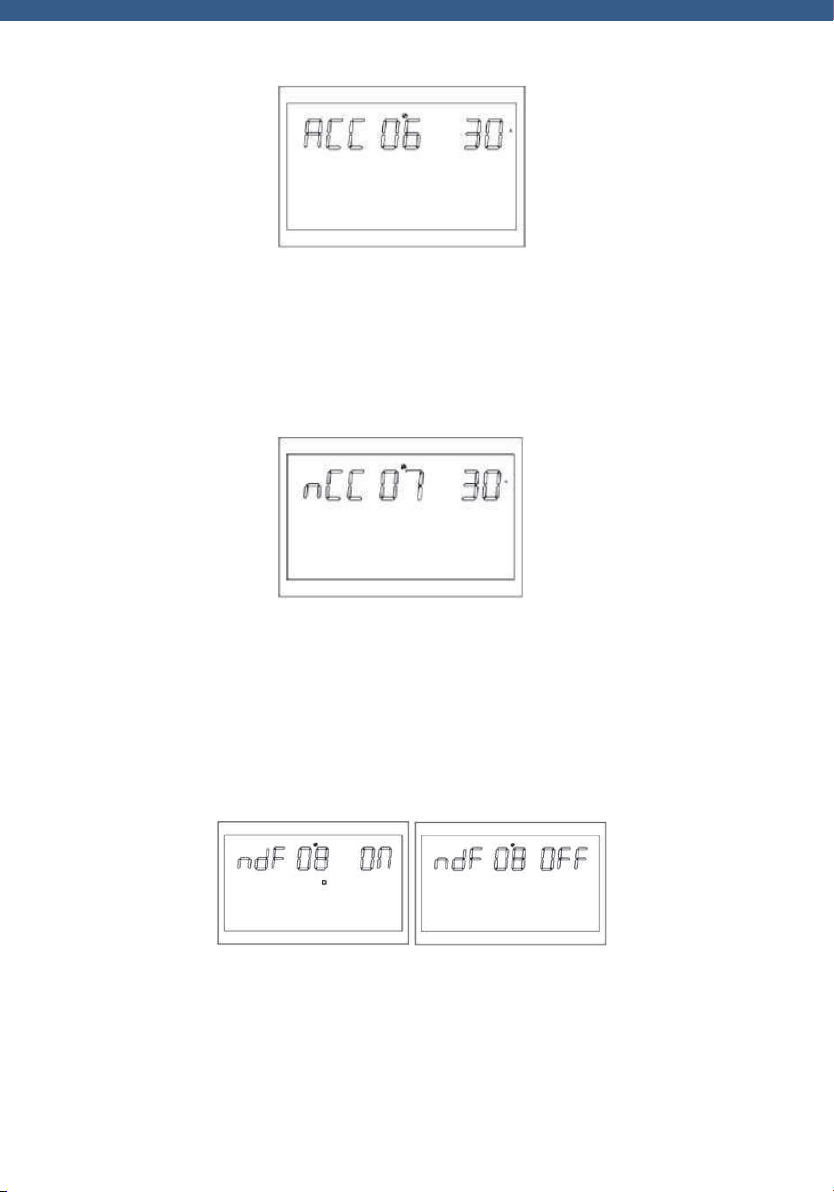

Mains charging current (RCC)
Set the maximum value of the inverter's mains charging current. The default
mains charging current is 40A
Range [1-60A]
Setting conditions: All states can be set.
Maximum charge current (MCC)
Set the maximum charging current value of the inverter. The maximum
charging current refers to the maximum value of PV and mains charging
current.
Optional: 10/20/30/40/50/60/70/80/90/100/110/120A
Setting conditions: All states can be set.
Menu Front (MDF)
Return to the main page settings, the default setting is ON.
When set to ON, the function setting is completed within 30s, and the LCD
interface will return to the home page
If it is set to OFF, after the function setting is completed, the LCD will remain in
the setting interface.
Setting conditions: All states can be set.
