Eco ESC-2420 Quick start guide

ESC-2420_rev09092008
ESC-2420
ESC-2420P
Operational Manual
Wall Clock Covert Camera
z1/3” D&N Sony CCD
z420 TV Lines
z3.7mm Pinhole Lens
z0.5 Lux @ F2.0
z20° Vertical Swivel Camera Adjustment
zHigh Quality Picture, Aesthetic, & Easy to Install
zAuto Gain Control (AGC)
zAuto Exposure (AE)
zAperture Correction
zAnti-Color Rolling
z12V DC (+/- 10%)
Model ESC-2420 ESC-2420P
TV System NTSC PAL
Image Sensor 1/3” D&N Sony CCD
DSP Sony
Total Pixels 510(H) × 492(V) 500(H) × 582(V)
Scanning System 2:1 Interlace
Resolution 420 TV Lines
Minimum Illumination 0.5 Lux @ F2.0
S/N Ratio More than 48dB
Electronic
Shutter Speed Auto & Up to 1/100.000
Synchronization Internal
Lens 3.7mm Pinhole Lens
Auto White Balance ATW with MCT Technology (Multi-Color Temp)
Auto Gain Control Full Auto
Aperture Correction 2H Mode of H.V. Aperture Correction
Power Supply 12V DC (+/- 10%)
Power Consumption 110mA +/- 10% under 12V DC
Storage Temperature -22°F ~ 140°F / -30°C ~ +60°C
Operation
Temperature -4°F ~ 113°F / -10°C ~ +45°C
Dimensions 13.98”(D) x 2.24”(H)
355mm(D) x 57mm(H)
* Specifications are subject to change without notice
zOne (1) ESC-2420/ESC-2420P Camera with
power/video cable
zOne (1) Operational Manual
20° Vertical Swivel Range for Adjusting Camera Angle

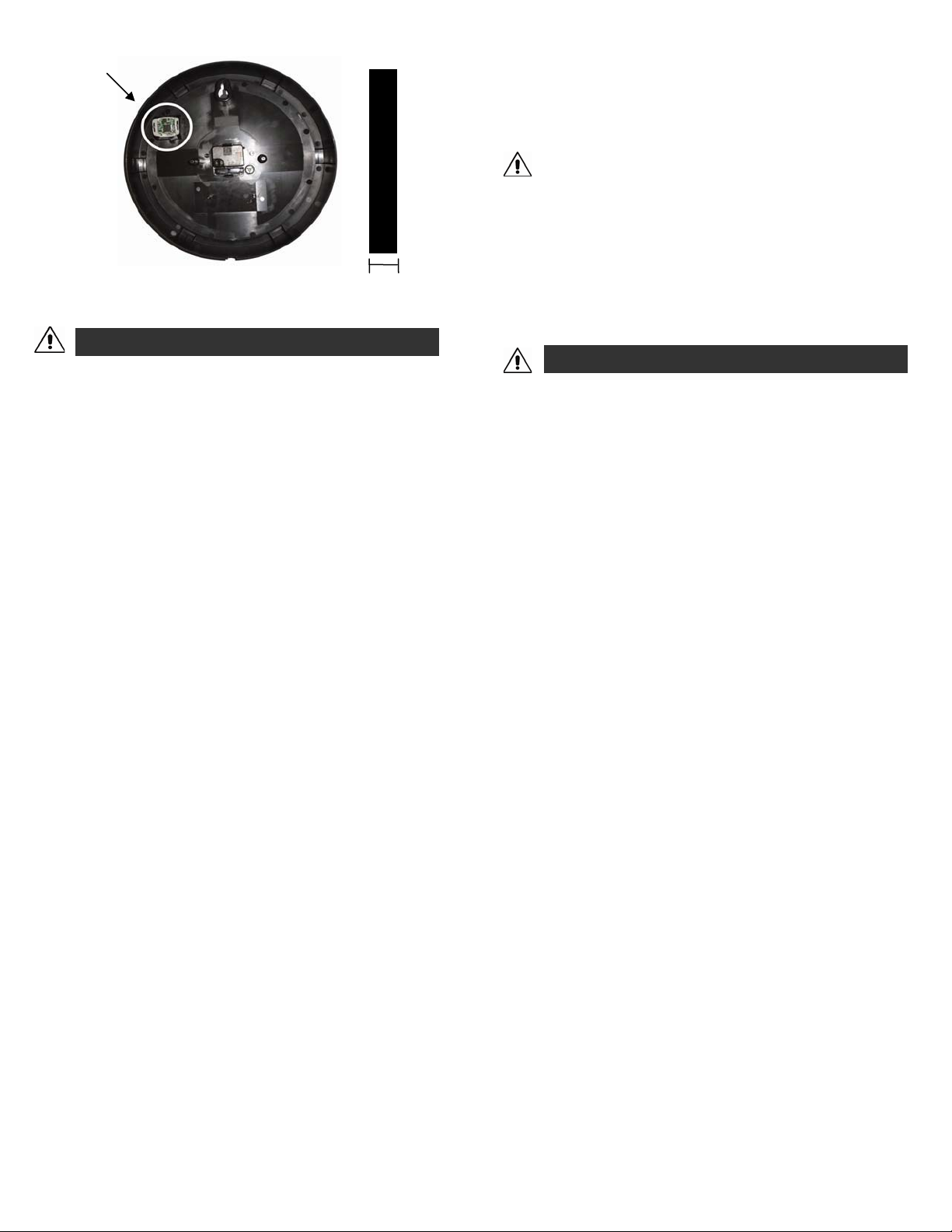

Parts Assembly
Pinhole Camera
355mm (H)
FEATURES
SPECIFICATIONS
Please read the Operational Manual
before attempting to use this product.
LIST OF COMPONENTS
INSTALLATION

ESC-2420_rev09092008
1. Never point the camera toward the sun
Do not expose the lens directly to the sun or to strong light as this
may damage the pick-up device.
2. Handle this camera with care
Avoid any shock or bumping of the camera. Improper handling
could damage the camera.
3. Requires a proper operating environment
This camera is designed for indoor use. The allowable
temperature range for operation of this camera is between
-4°F ~ 113°F / -10°C ~ +45°C and the allowable humidity is
85%RH maximum.
4. Clean the front face to the pick-up device
It is recommended that the pick-up device surface be cleaned
before lens installation or whenever the lens is changed. Cleaning
should be done by using a chamois, a very fine soft cloth, lens
tissue, or cotton tipped applicator and ethanol to carefully
remove any fingerprint or dust.
5. Check the power source voltage
The power source voltage should be within the specified range.
(Camera must meet the specifications). Camera must be
connected to a surge protector at all times.
6. Objects and liquid entry
Never push objects of any kind into this camera as this may touch
dangerous voltage points of short out parts that could result in a
fire or electric shock. Never spill any kind of liquid on the video
product.
7. Servicing
Do not attempt to service this video product by yourself as
opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all service to qualified servicing
personnel.
8. Damage requiring service
Unplug this video product from the wall outlet and refer service to
qualified servicing personnel under the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the
video product.
c. If the video product has been exposed to rain or water.
d. If the video product has been dropped or the cabinet has
been damaged.
e. When the video product exhibits a distinct change in
performance.
9. Please follow your local privacy laws and regulations
when using this camera in a public setting. O.K.I.USA is
not responsible for any improper usage of this camera.
ADDITIONAL CAUTIONS:
zMake sure the power supply is 12V DC.
zWrong cable connections will cause malfunction
and/or damage the camera.
zPlease avoid places where direct sunlight may
shine on the camera, as the CCD can be damaged.
zPlease avoid places where there are frequent
vibrations or shocks.
This product is covered under warranty for one year from the
date of purchase. The warranty will automatically be voided if
any of the following occurs:
1. Camera sticker is removed
If the camera sticker is removed, we will not be able to
confirm any information regarding when and where the
product was purchased. We have no other way to verify the
purchase record without the serial number on the camera
sticker; therefore, it should not be removed.
2. Camera is modified in any way
If the camera is scratched, damaged, or modified in a manner
not described in this manual, the warranty will be voided
immediately. It is the customer’s responsibility to keep the
camera in good condition.
3. Video or power cable is cut
The video cable and the power cable should not be tampered
with. Cutting or modifying of the cables will result in
termination of the warranty.
57mm (W)
CAUTIONS
WARRANTY
Pinhole Camera
