Ecofrog Avatar User manual

USER MANUAL
Version 1.4
FOR A BETTER TOMORROW

CONTENTS
Caring for the environment, a responsibility for us all
Welcome to the ECOFROG family!
The ECOFROG system
O3zone technology and its properties
Notes and preliminary remarks on this manual
Package content
Avatar applications
Technical specications
Instructions for use and safety considerations
Warnings/safety measures
Hazard identication. Classication of the substance generated in
situ (ozone) and of the ozonised water solution
Water requirements
Avatar dimensions

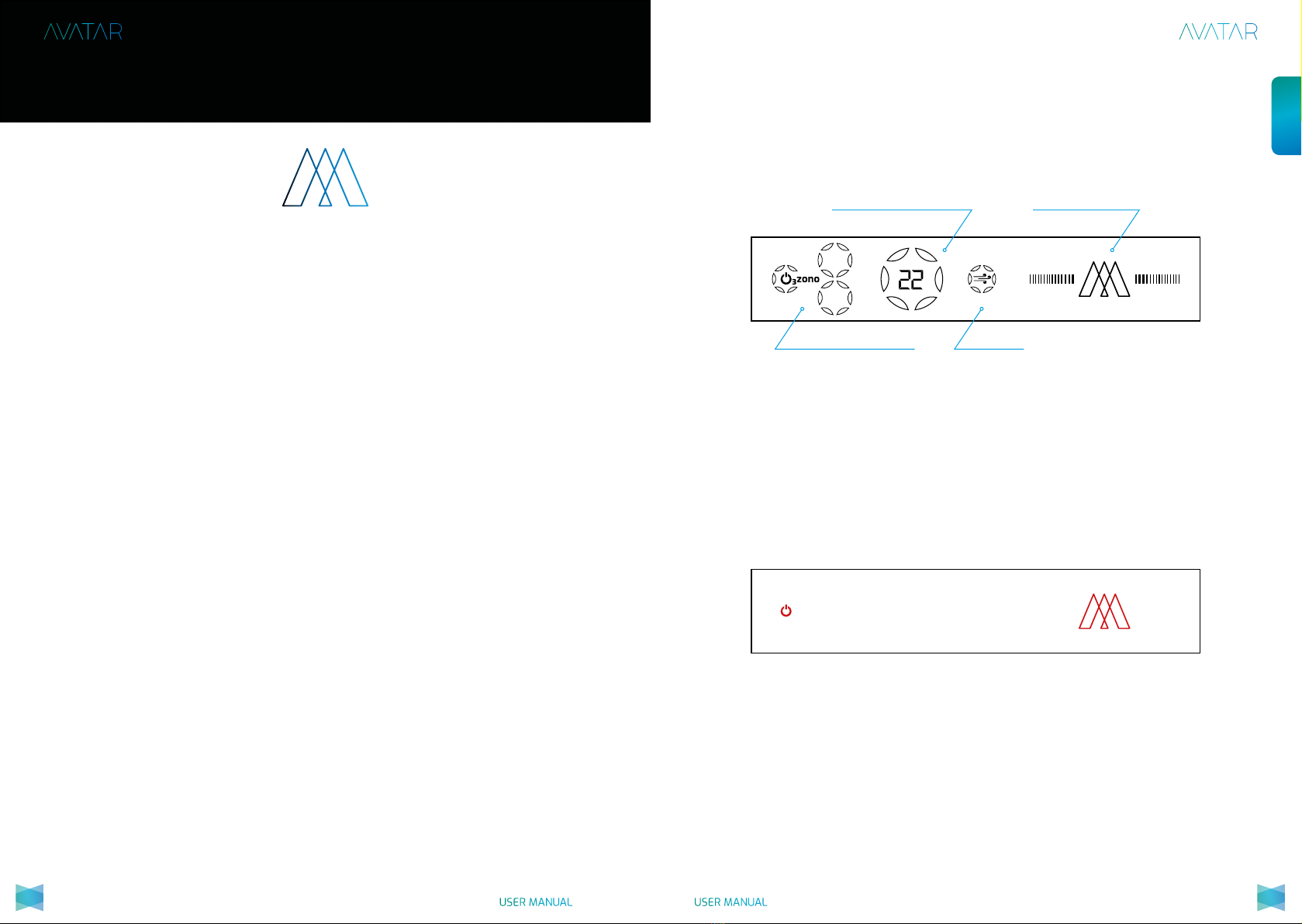

LED panel
Fault indicator
Troubleshooting
Instructions for use:
- Washing clothes
- Surface cleaning
- Cleaning of cooking plates
- Cleaning of cutlery and utensils
- Cleaning of cutting machines
Frequently asked questions
Warranty specications
Pag.
5
7
9
11
13
16
16
18
18
20
22
23
24
27
30
30
32
33
34
35
36
37
39
41
USER MANUAL
English

The ECOFROG project was created as a solution to meet an increasing demand
from our society in recent years: the creation of eco-friendly cleaning systems
that are healthy for users. Although according to their nature and denition,
cleaning systems should, in principle, be eco-friendly and healthy for humans,
the majority of solutions are not. What is more, the majority of these solutions
discharge pollutants into our rivers and seas, causing increasingly more
important environmental problems in quantitative and qualitative terms.
They also cause health problems to both families and cleaning professionals.
ECOFROG's exclusive cleaning system, which involves the generation of ozone
and its instantaneous mixing with water, the resulting product of which is
ozonised water, not only cares for the environment and human health, but
also cleans, deodorises, degreases and disinfects.
Caring for the environment, a responsibility for us all.
54 USER MANUAL USER MANUAL
English

REDUCE REUSE RECYCLE
Today, ECOFROG has a range of products to cover a wide range of needs.
Avatar, our agship for professional use; Wash by Ecofrog, the perfect
complement to Avatar for use in industrial dishwashers; Elektra, intended
primarily for domestic use; Ecofrog Commercial Purier, intended for
industrial use and with a higher water ow capacity.
In this manual we present Avatar.
Welcome to the ECOFROG family!
@ecofrog.ocial
www.ecofrog.es
@ecofrog
@EcoFrog.Ocial
Find out all the information at the Ecofrog Factory:
Or visit the ocial website of your distributor.
ECOFROG’sMIND IS AGREEN FUTURE
76 USER MANUAL USER MANUAL
English

The eciency of the ECOFROG system applied to domestic use, thanks
to its exclusive, patented O3zone technology, has led to the project being
developed in other professional channels and areas, with dierent needs
and requirements, for a highly varied sector, towards eco-friendly, healthy
cleaning and disinfection. Hotels, restaurants, caterers, bakeries, food
handling companies, hospitals, schools, nursing homes, laundries, spas,
gyms and other businesses are already beneting from this technology that
generates ozonised water instantly.
The ECOFROG system
Savings Ecological Healthy Logistics
For a beer tomorrow
98 USER MANUAL USER MANUAL
English

Washing with ozonised water is the most ecient way to disinfect, with the
additional advantage that it produces no chemical waste.
The properties of ozonised water guarantee the reduction of viruses, bacteria
and other pathogens in food, on surfaces and in industrial machinery.
What is ozonised water?
Ozonised water is the result of generating ozone (also called O3, which is
composed of three oxygen atoms) in situ and dissolving it immediately in
water.
Properties:
> Cleaner - degreaser - deodoriser - disinfectant
> High disinfection rate (99.9%)*
> Eliminates all types of surface pollutants.
> No chemical waste.
> Does not require rinsing.
> Does not leave odours.
> Acts in less time than other chemical products.
O3zone is generated through the technology used by the whole range of
ECOFROG products. This is injected immediately into the water molecule and
provides high stability in the resulting mixture (ozonised water), allowing you
to clean, degrease, deodorise and disinfect. Due to the disinfectant nature of
the ozonised water obtained, the ECOFROG system also allows a signicant
reduction in the consumption of chemical products when doing laundry and
a reduction of more than 80% when disinfecting surfaces and utensils/tools,
both in professional and domestic environments.
O
3zone technology and its properties
*Bactericidal activity test no. 492324 performed in the laboratory by ACONSA at a maximum water temperature of 35°C.
*Bactericidal activity (UNE 13697:2015 regulation), fungicidal activity (UNE 13697:2015 regulation) and virucidal activity (UNE
14476:2014 + A2 regulation) test carried out by the INOQUA Food Health Institute.
1110 USER MANUAL USER MANUAL
English

1.- Always keep this manual in a safe place so that you can consult it when
necessary.
2.- Before using the product, read the manual carefully and follow all
instructions and safety measures specied in it.
3.- The manual describes the performance of the product in detail, so the
company is not responsible for any other uses that the nal consumer may
perform and which are not described in this product manual.
4.- Our company shall not be liable for any kind of damage resulting from use
of the product in a way that is not indicated in the manual, or from failure to
comply with the safety and prevention measures indicated in the manual, or
from an operating error in accordance with the instructions in this manual.
5.- Do not disassemble, repair, modify or tamper with this product, as any
such action will void the product warranty. In the event of a fault or problem
with Avatar, contact your nearest dealer or the ocial ECOFROG FACTORY
technical service on [phone]. Do not remove or break the warranty
seal of the product under any circumstances, as any tampering with the seal
will result in the forfeiture of the product warranty.
6.- Keep the Avatar packaging for 14 calendar days in case you wish to return
the product.
Notes and remarks on this manual
1312 USER MANUAL USER MANUAL
English

7.- Do not insert or use any power adapter that is not originally supplied by
our company for this equipment as this could cause permanent damage in
the circuits of the unit during use. In such cases, the product warranty will be
forfeited.
8.- The manufacturer shall not be liable for any damage or malfunction that
may occur due to any kind of impact or blow that the product may have
received once it has been delivered or installed by the ocial service.
9.- Our company is not liable for any loss, direct or indirect damage caused by
users or third parties, owing to the incorrect use of Avatar.
10.- The contents of this manual are subject to changes without prior notice.
The latest version will be published on our website for your information.
1514 USER MANUAL USER MANUAL
English

Package contents
You will nd the following articles in the product box:
- Avatar
- Protective cover for Avatar designed as a multi-purpose bag.
- Sheet explaining how to download the user manual.
- Avatar hanging bracket.
- Assembly screws and plugs (6 mm Ø)
- 1 Power supply transformer.
- 1 3/4" water supply hose.
- 1 Tap.
- 1 1/2" tap connector.
- 1 Tap bracket with screws and plugs.
Avatar applications
Avatar is an eco-friendly, multi-application appliance that connects easily to
the washing machine, in the kitchen, or any other area with a water connection,
supplying tap water with O3zone and providing its exceptional qualities.
Thanks to Avatar's double water outlet, it can also be used as a dispenser for
cleaning and disinfecting oors, glass, worktops and surfaces in general, as
well as being used for outdoor and vehicle cleaning.
The O3zone generated by Avatar is immediately dissolved in the mains water
supply, softening it, breaking down dirt and disinfecting 99.9%* of bacteria on
all materials and surfaces. In addition, it does not store the water, meaning
that it puries and uses the water at the same time to avoid secondary
contamination from storage.
Avatar can work with hot water up to 35°C and has three levels of ozone; high
level (100%), low level (50%) and a non-ozone level (0%). These are controlled
by the touch button on the right-hand side of the machine.
Avatar carries out the following main functions:
> Cleans, degreases, deodorises and disinfects.
> Decontaminates and puries.
> Cleans and softens.
> Saves energy and helps to improve the environment.
> Consumes in an intelligent and reduced manner.
*Bactericidal activity test no. 492324 performed in the laboratory by ACONSA at a maximum water temperature of 35°C.
*Bactericidal activity (UNE 13697:2015 regulation), fungicidal activity (UNE 13697:2015 regulation) and virucidal activity (UNE
14476:2014 + A2 regulation) test carried out by the INOQUA Food Health Institute.
1716 USER MANUAL USER MANUAL
English

Instructions for use and safety considerations
Technical specications
Model:
Inlet / Electrical consumption:
Outlet / Electrical power:
Ozone level (3 levels):
Maximum eectiveness of O3zone in water:
Water ow:
Minimum water pressure:
Maximum water pressure:
Operating temperature:
O3zone concentration:
Product dimensions:
Net weight:
Avatar
AC 100 - 240V/50 - 60 Hz
DC 12V 3A
100% - 50% - 0%
2 hours in an open container (1)
5 hours in a covered container (2)
2.5l/min - 6l/min
14.5 psi
50.8 psi
Water 5~35°C
0.5 - 1.2 mg/l
38 cm x 25.5 cm x 8.1 cm
2.8 kg
If connecting Avatar to the washing machine, use only the new hose
provided with this unit.
Use a soft cloth moistened with ozonised water. Do not clean the Avatar
equipment with chemicals.
Avatar requires its own transformer to be connected to the electricity
supply.
Avatar is designed for professional use, but is also suitable for domestic
use. It is possible to use it in business, commercial or industrial contexts
as a natural disinfectant to clean surfaces and for use with washing
machines with a capacity of up to 12 kg. (Ask your distributor for the
Ecofrog Commercial Purier industrial model).
Do not exceed temperatures above 40°C as this may damage the Avatar
piping system.
Do not use Avatar with the cover open.
Do not install Avatar horizontally or at an angle.
NEVER use a power transformer other than that supplied with Avatar.
Install Avatar in an adequately ventilated location.
Before using the product, read the manual carefully and follow all
instructions and safety measures specied in it.
The devices are to be used in a controlled manner.
The maximum water inlet pressure is 3.5 Bar static (50.8 psi).
This product user manual provides information on the possible health risks
that may result from exposure to ozone, as well as on the safety measures to
be taken during the generation of ozone for dissolution in water, the handling
of the product to obtain ozone and in the application of the ozone generated
with regard to its possible uses as a deodoriser, degreaser and disinfectant.
(1) Bactericidal activity test no. 500872 - 501060 carried out in the ACONSA laboratory.
(2) Bactericidal activity test no. 506896 - Eectiveness of ozone at 5h of production in a closed container carried out by
ACONSA.
1918 USER MANUAL USER MANUAL
English

- Do not apply ozonised water onto people or animals.
- Before applying ozonised water to surfaces, the area to be disinfected must
be properly ventilated.
- Ozonised water is neither ammable nor combustible.
- Do not apply ozonised water on unpackaged food.
- If ozonised water comes into contact with the eyes or skin, rinse with plenty
of water.
- Under no circumstances should the resulting solution be ingested. If ozonised
water is accidentally swallowed, rinse your mouth out with plenty of water
and consult your doctor about the symptoms you are experiencing.
- Respiratory protection is not required if the instructions
for use regarding ozone generation in situ and dissolution in water are
followed and if the maximum exposure limits established for this operation
are adhered to. The concentration of ozone in the air at the time of dissolution
in water remains below the exposure limit indicated in the exposure limit
information (0.02 ppm, equivalent to 0.1 mg/m3) provided that the handling
instructions set out in this manual are followed.
Warnings / safety measures
FDA (Food and Drug Administration)
OSHA (Occupational Safety and
Health Administration)
NIOSH (National Institute of Occupa-
tional Safety and Health)
EPA (Environmental Protection
Agency)
WHO (World Health Organisation)
Mandates that ozone production from indoor medical devices shall
not exceed 0.05 ppm.
Requires workers not to be exposed to an average concentration of
more than 0.10 ppm for 8 hours.
Recommends an upper limit of 0.10 ppm, which should not be exceed-
ed at any time.
Sets a maximum 8-hour average outdoor concentration of 0.08 ppm.
Sets a limit of 0.10 mg/m3 for a maximum daily average of eight hours.
OZONE EXPOSURE LIMITS
Occupational exposure limits for ozone are determined by INSST 2011:
INSST (Spanish National Institute for
Safety and Health at Work)
This establishes dierent exposure limit values VLA-ED® depending on
the type of work carried out or its duration:
HEAVY, MODERATE OR LIGHT WORK ≤ 2 hours:
0.20 ppm or 0.40 mg/m3
HEAVY work: 0.05 ppm or 0.10 mg/m3
MODERATE work: 0.08 ppm or 0.16 mg/m3
LIGHT work: 0.10 ppm or 0.20 mg/m3
OZONE EXPOSURE LIMITS
Ozone exposure limits, according to dierent international organisations, are
the following:
The airborne ozone concentrations detected in the manufacturer's tests
indicate that:
> During ozone production and dissolution in water by the Avatar equipment,
part of the ozone produced is not dissolved and remains in gaseous form,
passing into the air as it leaves the equipment.
2120 USER MANUAL USER MANUAL
English

1. Hang Avatar in the location assigned for its installation.
2. Connect the water supply hose.
3. Purge the water line for 5 seconds. To do this,run water through Avatar
using the hose and tap.
4. Connect Avatar to the power supply.
5. Start enjoying its properties and benets.
Starting up Avatar
A water pressure range of 1 to 3.5 BAR static is optimal for proper Avatar
operation. Water quality may aect the performance of the apparatus. For
higher water quality please contact Ecofrog's technical service.
Water Requirements
> According to the conditions under which ozonised water is produced, ozone
concentrations in the air do not exceed the established values (TLVs) for 8
hours of occupational exposure.
> Considering that the normal use time of the equipment is between 30
seconds and 1 minute (5.5 litres/minute at 3.5 Bar static pressure), ozone
exposure is not signicant.
> Under normal conditions of use, and following the usage instructions in
this users manual, no special protective measures are required, taking into
account adequate ventilation of the area and the production times. It is
recommended that the shower head included with Avatar is always used, and
that this is submerged into the lling container.
Hazard identication. Classication of the substance generated
in-situ (ozone) or of the ozonised water solution
Classication of the substance generated in situ (ozone) or in solution
(ozonised water):
Exposure to ozone gas, which is generated in situ by our product for its
exclusive dissolution in water, could cause headaches, eye and respiratory
tract irritation.
> The level of exposure depends on the duration and the work to be
performed. It is therefore very important to follow the instructions in this
manual regarding the use of the product, and to respect the exposure limits
in order to avoid possible risks and their consequences.
> Description of rst aid in relation to ozone generation and the solution
obtained (ozonised water):
-If exposure or ventilation limits for the area are not complied with and
inhalation symptoms aecting the respiratory tract or eye irritation occur:
MOVE THE AFFECTED PERSON TO AN UNCONTAMINATED AREA AND CONSULT
A DOCTOR.
- The product must not be ingested. In case of accidental ingestion of ozonised
water: RINSE THE MOUTH AND CONTACT A DOCTOR IF SYMPTOMS APPEAR.
- The product must not be applied to the skin of humans or animals. The
dissolution concentrations produce no skin irritation. Should these appear:
RINSE THE AREA WITH PLENTY OF WATER AND CONSULT A DOCTOR.
2322 USER MANUAL USER MANUAL
English

LEDdisplay
O3zone level touch
selector
Inlet"INLET"
1/2" Outlet "OUTLET"
380mm
3/4" outlet "OUTLET"
O3zone level touch
selector
Avatar dimensions
255mm
81mm
2524 USER MANUAL USER MANUAL
English

The control panel shows Avatar's operation:
When Avatar is on stand-by, it is connected to the power supply and ready to
operate automatically once water ows inside, without the need to press any
button.
Avatar is automatic and turns on when water passes through it. The LED panel
lights will switch on only when water is passing through the system.
Water temperature Avatar Icon
Dryer
LED panel
Stand-by:
100%
50%
o
C
Generation of O3zone
WELCOME TO (R)EVOLUTION
2726 USER MANUAL USER MANUAL
English

Avatar has a blue touch button on the right-hand side, to control the level of
O3zone generation. Whenever the Avatar is started-up, 100% of the O3zone
level will be generated by default. It can only be modied by touching the
button. With one press, Avatar will generate 50% O3zone and by pressing
twice it will stop generating O3zone in the water. By pressing again, the Avatar
will be programmed to generate 100%.
Generation of O3zone
Touch controller for the
O3zone generation
level
100%
50%
100%
50%
100%
50%
Generation at 100% Generation at 50% NO Generation
For white clothes or with stubborn stains, the 100% generation level is
recommended.
For more delicate laundry (linen, silk...), select the 50% generation level.
Tip for washing machine use:
Note: The dryer is used to remove internal humidity and to ensure the eciency
of the device.
o
C
The water temperature with which the Avatar is working is displayed on the
control panel. If a sensor fails and does not indicate the temperature properly,
this does not mean that the device is no longer generating O3zone.
The dryer switches on automatically when the Avatar is operating and stops
when it is no longer in operation. After 3 hours from when the Avatar was last
in operation, the dryer will switch on for approximately 30 minutes. Once the
process has ended, the symbol will automatically turn o and the Avatar will
go to stand-by.
The Avatar icon will switch on in blue and will light up the progress bars to
signal that the Avatar is working correctly and generating O3zone.
Water temperature:
Dryer:
Working progress:
2928 USER MANUAL USER MANUAL
English

If a fault occurs, the light will change to red and start ashing. Avatar is able
to detect in which element a fault has occurred and will indicate this in the
control panel:
Fault indicator
Troubleshooting
Fault in the generation
of O3zone
Fig. 1 Fig. 2
Fault in the dryer
1. The machine does not turn on
There is a problem with the power source or the hose.
Check the cables are securely connected and ensure the hose is correctly con-
nected to the “INLET” and “OUTLET” points and that the cold water tap is turned
on. Then unplug and plug in the Avatar supply cable.
2. Fault in the O3zone generator (Fig. 1)
Unplug Avatar and restart it after 3 minutes; if the blue light comes on when
restarted then the equipment is working correctly; if the ashing red light co-
mes on, contact your dealer
3. There is no smell of ozone on the clothes
1.- Check that you have chosen the appropriate ozone level.
2.- If the problem persists, there may be a fault in the ozone generator.
4. Water does not ow out through the outlet or comes out intermittently
There may be a limescale build up or water residue obstructing the Avatar ducts.
Change the hose so that it connects the water tube to the Avatar “OUTLET” and
the extraction (or outlet) hose to the "INLET" and direct it to a bucket. Then open
the tap and let water ow through the Avatar for one or two minutes.
By circulating the water in Avatar in the opposite direction to the usual direction
of the circuit, the aim is to dislodge anything that may be creating an obstruc-
tion. Contact your dealer if the problem persists.
5. The clothes have been bleached
Check that you have chosen the appropriate ozone level.
6. Lather is left behind after the rst few uses
Detergent residues are being removed from your clothes and/or washing ma-
chine. This can take several washes depending on the amount of residue that
remains in the clothing bres and/or washing machine.
7. Avatar emits a continuous beeping sound and the LED panel does not light up.
If Avatar emits a continuous beeping sound and the LED panel does not light up
on startup, excessive pressure may be causing the machine to be out of service.
This problem is external to Avatar and is not due to a machine malfunction. The
solution is to install a pressure regulator on the AVATAR inlet. To ensure opti-
mum performance, the static pressure should not exceed 3.5 bar.
In the hypothetical case that the static pressure is exceeded, a pressure regula-
tor must be installed on the AVATAR water inlet.
3130 USER MANUAL USER MANUAL
English

Instructions for use
To obtain ozonised water to apply to surfaces and/or utensils, it is important to
bear in mind the fact that the machine generates around 5.5 litres per minute
with a static water pressure of 3.5 Bar, which is more than enough time to ge-
nerate the amount of water required for the purpose described.
The exposure time for ozonised water production must not exceed 5 minutes
in an adequately ventilated area. The ozonised water obtained must be used
for the described cleaning, disinfecting, degreasing and deodorising uses within
a maximum of 2 hours in an open container and 5 hours in a closed container
from the time the ozonised water is generated.
Under normal conditions of use, no special protective measures are required,
taking into account adequate ventilation of the area and production times. It is
recommended that you use the outlet shower supplied with Avatar and always
immerse this in the lling container.
Avatar can work with washing machines up to a maximum load of 12 kg.
Once installed, Avatar will automatically interact with the washing machine, so
you will not have to change your method and you will be able to continue using
the washing programs you were using previously.
The wash temperature should be between cold up to a maximum of 40°C.
It is always advisable to set the Avatar ozone concentration at 100% except with
more delicate clothes (linen, silk...) where we suggest that you choose a 50%
ozone generation level.
Note: See section on ozone generation on page 28.
We recommend that you treat stubborn stains as you did prior to using
Avatar. For typical stains, using Avatar will allow you to reduce the amount of
detergent or stop using it altogether.
Instructions for WASHING CLOTHES
3332 USER MANUAL USER MANUAL
English

SEQUENCE 1:CLEANING
RECOMMENDATIONS: If there is a lot of organic material adhered to the surface to be cleaned, it is recommended to use water at a maximum tem-
perature of 35ºC, and to leave ozonised water to work for the maximum time. Repeat sequence 1 if the dirt persists. INDICATION: Rinsing with running water is not required after the last step in any of the two sequences.
STEP 1: Fill the spray marked O3with
ozonised water generated using the Ecofrog system.
STEP 2: Spray the surface you wish to clean with ozonised water.
STEP 1: Spray the surface you wish to disinfect with
ozonised water.
STEP 3: Leave to work for 1 to 5 minutes.
STEP 2: Leave to work for 1 to 5 minutes.
STEP 4: Rub with a scouring pad until the dirt is removed.
STEP 3: Wipe with paper, dishcloth or dry cloth.
SEQUENCE 2:DISINFECTION
Use on SURFACES Instructions for use on COOKING PLATES
SEQUENCE 1:CLEANING AND DISINFECTION
RECOMMENDATIONS: It is recommended to pour ozonised water directly onto the grill surface, so that there is more quantity of water and greater
eect.
INDICATION: Rinsing with running water is not required once this last step has been done.
STEP 1: Turn o the grill and leave to cool to 30ºC STEP 4: Leave for 5 to 10 minutes.
STEP 2: Remove any loose residue STEP 5: Rub with a scouring pad until the dirt is removed.
STEP 3: Spray the grill with ozonised water. STEP 6: Dry with paper.
0
30
100 175
220
3534 USER MANUAL USER MANUAL
English

Instructions for use on CUTLERY and UTENSILS
RECOMMENDATIONS: If there is a lot of organic material adhered to the surface to be cleaned, it is recommended to use water at a maximum tem-
perature of 35ºC, and to leave ozonised water to work for the maximum time. Repeat sequence 1 if the dirt persists. INDICATION: Rinsing with running water is not required once this last step has been done.
STEP 1: Fill the spray marked with O3with
ozonised water generated by the Ecofrog system.
STEP 2: Remove organic remains man- ually
STEP 3: Spray with ozonised water and leave to work for 1 to 5 minutes.
STEP 4: Rub until the dirt is removed and then dry with paper.
SEQUENCE 1:CLEANING AND DISINFECTION PROCEDURE
Instructions for use on SLICING MACHINES
RECOMMENDATIONS: If there is a lot of organic material adhered to the surface to be cleaned, it is recommended to use water at a maximum tem-
perature of 35ºC, and to leave ozonised water to work for the maximum time. Repeat sequence 1 if the dirt persists. INDICATION: Rinsing with running water is not required once this last step has been done.
STEP 1: Fill the spray marked O3 with the ozonised
water generated by the Ecofrog system.
STEP 2: Turn o and unplug the machine
STEP 3: Remove organic re- mains manually
STEP 4: Spray with ozonised water and leave to work for 1 to 5 minutes.
STEP 5: Rub until the dirt is removed and then dry with paper.
SEQUENCE 1:CLEANING AND DISINFECTION PROCEDURE
3736 USER MANUAL USER MANUAL
English

Frequently asked questions
Do stubborn stains need to be pre-treated?
We recommend that you treat stains exactly as you have always done. Using
the Avatar, stubborn stains must be treated in the same way as before. For
everyday dirty clothes, using Avatar will allow you to use less detergent or
none at all.
Does Avatar work with all types of water?
Avatar works with all water qualities that reach homes via the mains water
supply, but the better the water quality (less lime, for example) the better the
results. If you have hard water, we recommend you use a water softener and/
or a pre-lter for chlorine. It cannot be used with salt water.
Does Avatar work with industrial washing machines
No, Avatar is designed to work ideally in washing machines up to 8 kg, and can
work up to a maximum of 12 kg. We have a specic model designed for higher
capacity washing machines and industrial systems.
Is it possible to drink water extracted from Avatar?
Avatar water cannot be drunk or ingested.
The water treated by Avatar must be used only for cleaning, disinfecting,
degreasing and deodorizing, and can be applied to dishes, oors and surfaces,
windows and glass, bathrooms, among other surfaces; as well as utensils and
tools, both at professional and domestic level. It can also be used to wash
clothes with washing machines that take up to 12 kg.
3938 USER MANUAL USER MANUAL
English
