Ecojay SMartZone-2X Guide

SMARTZONE
ecojay
POWER
DAMPER 1
24V
24C
Z1-PO
Z1-PC
RC
RH
COM
W2
O/B
Y1
Y2
G
EQUIPMENT
REMOVE TO SEPARATE
RC & RH TERMINALS
COM
ZONE 1 STAT
R
EC
Y
G
O/B
W
ZONE 2 STAT
R
C
Y
G
O/B
W
DAMPER 2
Z2-PO
Z2-PC
COM
C
SMART LINK
1
GND
2
SA SENSOR
SA1
SA2
W1
EH
ecojay
SMARTZONE
ZONE 3 STAT
R
C
Y
G
O/B
W
ZONE 4 STAT or FA
R
C
Y
G
O/B
W
DAMPER 3
Z3-PO
Z3-PC
COM
DAMPER 4
Z4-PO
Z4-PC
COM
FRESH AIR
SMARTZONE
4X
ZS4X
2.0
8E
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
THERMOSTATS:
HEAT PUMP
OR
GAS/ELECTRIC
EASY-TO-READ
DISPLAY
LEDs SHOW
HEAT & COOL
CALLS
(NO VOLTMETER
REQUIRED)
SCREWLESS
WIRING TERMINALS
FRESH AIR CONTROL
(4X ONLY)
SIMPLE SETUP AND
CONFIGURATION
EQUIPMENT:
GAS/ELECTRIC or
HEAT PUMP
(Inc. DUAL FUEL)
2-STAGE Cooling
3-STAGE Heating
SUPPLY AIR TEMP
SENSOR INCLUDED
EXPANDABLE
TO 20 ZONES
DAMPERS:
2-WIRE or 3-WIRE
LEDs SHOW
POSITION
RED = CLOSED
GREEN = OPEN

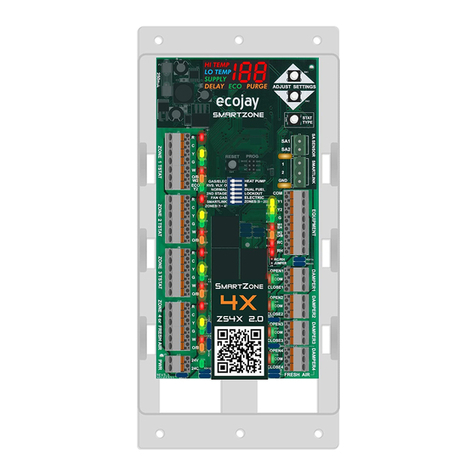

INSTALLATION &
OPERATION ecojay
4 ZONE –ZS4X
VERSION 8E FIRMWARE

COMM –3 WIRE COMMUNICATIONS TO SMARTLINK (BLUE) [USE CAT3/5/6 CABLE ONLY]
10K TYPE III THERMISTOR (INCLUDED)
SA SENSOR –4" SUPPLY AIR TEMPERATURE SENSOR STAINLESS STEEL PROBE
POWER
-- - OUTPUTSINPUTS
EQUIPMENT
DAMPERS
PROTECTION
SYSTEM
SMARTZONE-2X
SMARTZONE-4X
THERMOSTAT
TEMPERATURE
14VA MAX (375 MA @ 24VAC) [2X = 12VA, 8X = 28VA]
IF MULTIPLE TRANSFORMERS ARE USED IN 8X SYSTEM, THE PRIMARY AND SECONDARY
POLARITIES MUST BE THE SAME FOR BOTH TRANSFORMERS AND ON BOTH ZS4X BOARDS.
14VA + STATS (2VA EA.) + DAMPERS (3- 10 VA EA.)= TOTAL TRANSFORMER SIZE
INTEGRATED 5X20MM 250MA FUSE- ONE REPLACEMENT ALSO INCLUDED.
(FIELD SUPPLIED TRANSFORMER SHOULD ALSO BE FUSED)
10 AMP @ 24VAC CONTACT RATING
RH –24VAC HOT FROM HEATING TRANSFORMER ON EQUIPMENT (RED)
RC –24VAC HOT FROM COOLING TRANSFORMER ON EQUIPMENT (RED)
C–24VAC COMMON FROM TRANSFORMER ON EQUIPMENT (NONE)
Y1 –1ST STAGE COMPRESSOR (YELLOW)
Y2 –2ND STAGE COMPRESSOR (YELLOW)
G–FAN (GREEN)
W1/EH –1ST STAGE HEAT OR EMERGENCY HEAT (RED)
W2/OB –2ND STAGE HEAT OR REVERSING VALVE (ORANGE)
10 AMP @ 24VAC CONTACT RATING (40VA)
POWER-CLOSE / SPRING-OPEN DAMPERS (10VA)
POWER-OPEN / SPRING-CLOSE DAMPERS (10VA)
POWER-OPEN / POWER-CLOSE DAMPERS (3VA)
LABEL –DESCRIPTION (LED COLOR)
R –24VAC HOT (RED)
C –COMMON (NONE)
Y –COMPRESSOR (YELLOW)
G –FAN (GREEN)
W –HEAT OR EMERGENCY HEAT (RED)
O/B –REVERSING VALVE (ORANGE)
EC –ECONOMY INPUT (GREEN) - ZONE ONE ONLY
SMARTLINK
SPECIFICATIONS
SETTINGS
ECONOMIZER LIMIT
AUX HEAT LIMIT
HI LIMIT
LO LIMIT HEAT CUT-OUT [DEFAULT = 135 GAS / 120 HEAT PUMP] RANGE:
COOL CUT-OUT [DEFAULT = 48] RANGE:
AUX HEAT CUT-OUT [DEFAULT = 90 HEAT PUMP ONLY] RANGE: 90 - 94
ECONOMIZER CUT-OUT [DEFAULT = 60] RANGE: 58 - 68
FRESH AIR TIME
THERMOSTAT TYPE GE = GAS/ELECTRIC, HP = HEAT PUMP,
G2 = 2 STAGE GE, H2 = 2 STAGE HP, FA = FRESH AIR
# OF MINUTES PER HOUR FRESH AIR RUN TIME [DEFAULT = 0] RANGE: 0 - 60
1 2
3 4
5 6
7 8
9 10
11 12
13 14
FRONT BACK:
TROUBLE-
SHOOT
WIRING
CONTENTS,
CHECKLIST
SMARTZONE GUIDE
AIRFLOW,DUCT
DESIGN& BYPASS
MOUNTING, SUPPLY
SENSOR, DIP SWITCHES
STAT TYPE, LIMIT
ADJUST, DISPLAY
OPERATIONS &
STAGING
20 ZONES
& FRESH AIR
DESIGN & DAMPERSINSTALLSETUPOPERATIONADVANCED
CONTENTS
ecojay
SMARTZONE
2X
ZS2X
2.0
8E
HI TEMP
LO TEMP
SUPPLY PURG
E
DELAY ECO
2 ZONE
ZS2X-2.0
MADE
IN THE
USA
5YEAR LIMITED
WARRANTY 888-523-3265
ecojay.com
MADE
IN THE
USA
5YEAR LIMITED
WARRANTY 888-523-3265
ecojay.com
1
ecojay
SMARTZONE
4X
ZS4X
2.0
8E
HI TEMP
LO TEMP
SUPPLY PURG
E
DELAY ECO
4 ZONE
ZS4X-2.0
VERSION 8E FIRMWARE
HVAC EQUIPMENT
ZONING CHECKLIST
q DESIGN ALL ZONES TO BALANCE THE CFM EVENLY (EACH ZONE SHOULD BE
SIMILAR IN SIZE).
q AVOID CREATING SMALL ZONES (< 20% OF TOTAL CAPACITY).
q USE PROPER EXCESS (SURPLUS) AIR-FLOW MANAGEMENT INCLUDING
THESE TECHNIQUES –BYPASS DUCT/DAMPER, DUMP ZONE(S) OR ADJUST
DAMPERS MAX CLOSE SETTINGS TO ALLOW LEAKAGE
q ECOJAY RECOMMENDS THE USE OF A BYPASS DUCT/DAMPER THAT IS
LARGE ENOUGH TO ACCOMMODATE THE TOTAL SYSTEM CFM CAPACITY
MINUS THE CFM CAPACITY OF THE SMALLEST ZONE
q REFER TO DUCT DESIGN & BYPASS
q CALCULATE MINIMUM 24VAC TRANSFORMER VA CAPACITY
q CHECK PRIMARY AND SECONDARY VOLTAGE FOR ZONING TRANSFORMER.
MAKE SURE SEPARATE TRANSFORMER AND CIRCUIT IS USE FROM
EQUIPMENT TRANSFORMER
q SELECT MOUNTING LOCATION THAT PROVIDES SPACE AND EASY PATH TO
RUN WIRES
q MOUNT THERMOSTATS WHERE NOT EXPOSED DIRECTLY TO AIR STREAM
FROM SUPPLY AIR GRILLS, RADIANT HEAT FROM WINDOWS OR
SKYLIGHTS, OR TOO CLOSE TO RETURN AIR
q USE THERMOSTATS THAT ARE NOT POWER STEALING OR TRIAC BASED
q GAS/ELECTRIC OR HEAT PUMP STATS CAN BE USED ON HEAT PUMP
EQUIPMENT (HEAT PUMP STAT IS REQUIRED ON ZONE 1 ONLY IF
EMERGENCY HEAT CONTROL IS NEEDED). NOTE: USE ONLY GAS/ELECTRIC
STATS WITH GAS/ELECTRIC EQUIPMENT.
DUCT & DAMPERS
SMARTZONE & THERMOSTATS
q PERFORM BASIC EQUIPMENT CHECK INCLUDING COMPRESSOR,
REFRIGERANT CHARGE, BLOWER, FURNACE, FILTER BEFORE INSTALLING
OR STARTING UP SMARTZONE SYSTEM.
SPECS
2

3
ASSUME 4-TON EQUIPMENT WITH 10" ROUND SMALLEST ZONE
1600 CFM (EQUIPMENT)
–400 CFM (SMALLEST ZONE –NORMAL CFM )
= 1200 CFM NEEDED
SO, FROM THE ROUND DAMPER MAX CFM,
A14" ROUND DAMPER SHOULD BE USED FOR BYASS.
EXAMPLE
2 -2.5 10"
3 -3.5 12"
4 -4.5 14"
5 14 -16"
UNIT SIZE ROUND DAMPER
(TONS) SIZE (INCHES)*
BYPASS DAMPER “RULE OF THUMB”
BELOW CHART ASSUMES 400 CFM PER TON *USE
NEXT SIZE UP ROUND BYPASS DAMPER FOR ANY
SYSTEM WITH A SINGLE ZONE LESS THAN 200 CFM.
A PROPERLY SIZED BYPASS DAMPER AUTOMATICALLY MAINTAINS CONSTANT PRESSURE INSIDE THE
SUPPLY AIR DUCT WHEN ZONES OPEN AND CLOSE. WHEN THE CORRECT SIZE BYPASS DAMPER IS
INSTALLED AND ADJUSTED ACCURATELY, IT WILL BE FULLY CLOSED WHEN ALL ZONES ARE CALLING
(NO AIR BYPASSING) AND WILL OPEN PROPORTIONATELY AS ZONE DAMPERS CLOSE.
RECTANGULAR CFM
* SURFACE AREA IN SQ. FT. =
(“HEIGHT” X “WIDTH”) / 144
NORMAL CFM =
(SURFACE AREA IN SQ. FT.*) X 600 FPM
MAX CFM =
(SURFACE AREA IN SQ. FT.*) X 900 FPM
6”100 200
7”150 250
8”200 300
9”300 450
10”400 600
12”600 900
14”900 1400
16”1400 2000
DAMPER NORMAL MAX
SIZE CFM CFM
ROUND CFM CHART
BYPASS - PRESSURE RELIEF
BYPASS SIZING
SELECT A DAMPER SIZE WITH A MAX CFM GREATER THAN THE CFM-NEEDED TO BYPASS. USE
THE FORMULA BELOW TO CALCULATE CFM NEEDED TO BYPASS AND THE ROUND DAMPER CFM
CHART TO CHECK MAX CFM.
TYPICALLY 400
CFM PER TON
USE A BYPASS DAMPER THAT
HAS LARGER “MAX CFM”
800 2
1200 3
1600 4
2000 5
EQUIPMENT AIRFLOW
CAPACITY IN CFM (HIGH SPEED)
CFM OF
SMALLEST ZONE
CFM-NEEDED
TO BYPASS
USE “NORMAL CFM”
BYPASS
DUCT
RETURN AIR
FILTER
SUPPLY
AIR
EVAP.
COIL
(COOLING)
BLOWER
(FAN)
FURNACE
(HEATING)
FRESH
AIR
AIR NOISE
SHOULD BE ALWAYS BE MINIMIZED AND IN A ZONING SYSTEM WITH OPENING &
CLOSING DAMPERS IT CAN BE MORE CHALLENGING. INSTALL THE DAMPER AS
CLOSE AS POSSIBLE TO THE SUPPLY PLENUM TO PREVENT AIR NOISE
TRANSMISSION INTO THE CONDITIONED SPACE. TO MINIMIZE NOISE AND
MAINTAIN ADEQUATE THROW, SUPPLY AIR DUCT SYSTEM SHOULD BE DESIGNED
TO PROVIDE 600 TO 700 FPM VELOCITY AIRFLOW. THIS CAN BE ACHIEVED BY
PROVIDING LARGE ENOUGH DUCTS/DAMPERS TO SUPPLY THE VOLUME (CFM)
OF AIR NEEDED FOR THE ZONE. USE THE “NORMAL CFM” CHART TO CHECK
ROUND DUCT SIZE(S) THAT WILL ACHIEVE THIS VELOCITY.
►FOR ZONES WITH MULTIPLE DAMPERS, THE TOTAL ZONE CFM IS THE SUM OF
ALL THE DAMPERS “NORMAL CFM”
►FOR RECTANGULAR DUCT SYSTEMS USE THE RECTANGULAR CFM EQUATION
PROVIDED FOR “NORMAL CFM”
ZONE BALANCING
TO MAINTAIN OPTIMAL EQUIPMENT PERFORMANCE IN A TYPICAL ZONING APPLICATION, IT IS PREFERABLE TO DESIGN ALL ZONES TO BE
CLOSE TO EQUAL IN SIZE.(IN TERMS OF CFM). THIS DOES NOT MEAN THAT EVERY ZONE MUST HAVE EXACTLY THE SAME CFM REQUIREMENTS
BUT THE SYSTEM WILL WORK MOST EFFICIENTLY IF THEY ARE APPROXIMATELY THE SAME SIZE. FOLLOWING THIS GUIDELINE WILL MINIMIZE
THE AMOUNT OF PRESSURE RELIEF (BYPASS) NECESSARY. FOR MOST RESIDENTIAL ZONING INSTALLATIONS USING SINGLE SPEED
EQUIPMENT, AVOID CREATING MORE THAN THREE ZONES WITH NO ZONE SMALLER THAN 20% OF THE TOTAL EQUIPMENT CFM CAPACITY.
SMARTZONE DUCT SYSTEM
A ZONING SYSTEM CAN TYPICALLY USE THE SAME DUCT SIZING AS A TRADITIONAL SINGLE-THERMOSTAT SYSTEM IF THE PRESSURE RELIEF
IS INSTALLED CORRECTLY AND THE SYSTEM IS 4 OR LESS ZONES. TO MINIMIZE BYPASS AIR FLOW, INCREASE THE DUCT CAPACITY BY ONE
SIZE FOR EACH ZONE LESS THAN 25% OF THE TOTAL SYSTEM AIR FLOW CAPACITY AS SYSTEMS GET LARGER THAN 4 ZONES, IT MAY
BECOME NECESSARY TO INCREASE THE DUCT & DAMPER SIZES OF THE SMALLER ZONES (OR ALL THE ZONES) IN ORDER TO MINIMIZE THE
AMOUNT OF PRESSURE RELIEF NEEDED WHEN ONLY THE SMALLEST ZONE IS OPEN.
NOTE: CONNECT DAMPERS DIRECTLY TO THE PLENUM WHEN POSSIBLE AND BRANCH OFF SMALLER DUCTS GOING TO DIFFERENT AREAS
WITHIN THE ZONES. USING THIS TRUNK/BRANCH DUCT DESIGN WILL MINIMIZE COST AND REDUCE AIR NOISE.
DESIGN & PRE-INSTALL
RETURN AIR
PROBLEMS WITH ZONING CAN
OCCUR WHEN THE RETURN AIR
REGISTERS OR DUCT ARE
UNDERSIZED. INSUFFICIENT CFM
WILL PREVENT SATISFYING VELOCITY
REQUIREMENTS WHEN ALL DAMPERS
ARE OPEN. TO ENSURE THE RETURN
AIR IS LARGE ENOUGH, VERIFY THAT
ITS SURFACE AREA IS SUFFICIENT TO
PASS FULL SPEED BLOWER CFM.
ENSURE ALL ZONES HAVE
UNRESTRICTED AIRFLOW PATH
“BACK” TO A RETURN AIR GRILL
EQUIVALENT TO THE ZONE CFM.
ROUND AND RECTANGULAR DAMPERS
SPRING DAMPERS USE A MOTOR TO POWER THE DAMPER BLADE IN ONE
DIRECTION AND A SPRING TO MOVE THE BLADE IN THE OPPOSITE DIRECTION.
WHEN POWER IS APPLIED TO THE DAMPER, THE MOTOR MOVES THE BLADE.
WHEN POWER IS REMOVED, THE SPRING MOVES THE BLADE IN THE OPPOSITE
DIRECTION.
WARNING: SPRING DAMPERS CONSUME MORE ELECTRICITY THAN POWER-OPEN/
POWER-CLOSE DAMPERS. (10 TO 12 VA WHEN POWERED)
POWER DAMPERS POWER OPEN /POWER CLOSE DAMPERS USE THREE WIRES
TO POWER THE DAMPER OPEN OR POWER IT CLOSED. THE ZONE PANEL IS
RESPONSIBLE FOR SUPPLYING A 24VAC SIGNAL TO EITHER THE PO (POWER
OPEN) OR PC (POWER CLOSED) TERMINAL OF THESE DAMPERS. PRIMARY
ADVANTAGES OF POWER OPEN/POWER CLOSE DAMPERS INCLUDE LOWER
POWER CONSUMPTION, QUIET
OPERATION AND GREATER RELIABILITY. (2.5 TO 3VA)
4

4
4
MOUNTING
2
2
RETURN AIR
FILTER
2 FEET
MINIMUM
DOWN-FLOW
OF COIL
SUPPLY
AIR
EVAP.
COIL
(COOLING)
BLOWER
(FAN)
FURNACE
(HEATING)
SMARTZONE
POWER
DAMPERS
THERMOSTATS
5
TEMP SENSOR PLACEMENT
GAS/ELECTRIC
OR DUAL FUEL
AFTER
COIL,
BEFORE
BLOWER
TRANSFORMER SIZING
1 SMARTZONE-4X (14 VA)
+ 4 POC DAMPERS (3 VA X 4)
+ 4 THERMOSTATS (2 VA X 4)
= 37 VA
EXAMPLE
TRANSFORMER CALCULATION:
SO, FOR THIS EXAMPLE OF A BASIC 4-ZONE SYSTEM, A
40VA TRANSFORMER WITH A 2 AMP FUSE CAN BE USED.
SEE PAGE 5 FOR MORE INFO ABOUT FUSE SIZE.
24VAC TRANSFORMER (NOT INCLUDED) MUST BE SIZED
AND FUSED BASED ON THE SMARTZONE CONTROLLER,
TOTAL DAMPERS AND THERMOSTATS
POWER
14 VA
12VA
3 VA
10 VA
2 VA
ECOJAY Device
SmartZone-4X
SmartZone-2X
Power Open/Close Damper
Spring Return Damper
Typical Thermostat
SAS (INCLUDED)
HEAT PUMP
B
DUAL FUEL
ELECTRIC
GAS/ELECT
RVS. VLV. O
NORMAL
FAN GAS
LOCKOUT2nd STAGE
SMART LINK
ZONES (1 –4)
ZONES (5 –20)
1
2
3
5
4
6
ALWAYS TO THE LEFT EXCEPT
FOR 5 THROUGH 20 ZONES
(DETAILS IN ZONING GUIDE)
ENERGIZES FAN AFTER 90
SECOND DELAY WITH HEATING
2ND STAGE ACTIVE (NORMAL)
AUX HEAT = COMPRESSOR
& ELECTRIC HEAT STRIPS
REVERSE VALVE IN COOLING
EQUIPMENT: GAS / ELECTRIC
(STANDARD HEAT-COOL)
ALWAYS TO THE LEFT, EXCEPT
FOR 5 THROUGH 20 ZONES
(DETAILS IN ZONING GUIDE)
ENERGIZES FAN IMMEDIATELY
WITH HEATING
2ND STAGE WILL NOT ENERGIZE
IF ONLY ONE ZONE OPEN
AUX HEAT = GAS HEAT ONLY
(NO COMPRESSOR)
REVERSE VALVE IN HEATING
EQUIPMENT: HEAT PUMP
(INCLUDING DUAL FUEL)
1
2
3
4
5
6
DIP SWITCHES
1
1
ecojay
DAMPER 1
Z1-PO
Z1-PC
RC
RH
COM
W2
O/B
Y1
Y2
G
EQUIPMENT
COM
DAMPER 2
Z2-PO
Z2-PC
COM
SMART LINK
1
GND
2
SA SENSOR
SA1
SA2
W1
EH
ecojay
SMARTZONE
DAMPER 3
Z3-PO
Z3-PC
COM
DAMPER 4
Z4-PO
Z4-PC
COM
FRESH AIR
SMARTZONE
4X
ZS4X
2.0
ADJUST SETTINGS
STAT
TYPE
8E
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
POWER
24V
24C
R
EC
Y
G
O/B
W
ZONE 2 STAT
R
C
Y
G
O/B
W
C
ZONE 3 STAT
R
C
Y
G
O/B
W
ZONE 4 STAT /FA
R
C
Y
G
O/B
W
ZONE 1 STAT
INSTALLATION
3
3POWER
TRANSFORMER
DO NOT CONNECT
UNTIL ALL WIRING
HAS BEEN
COMPLETED
RETURN AIR
FILTER
EVAP. COIL
BLOWER
(FAN)
SUPPLY AIR
ELECTRIC AUX / EMER.
(HEATING)
HEAT PUMP W/
ELECTRIC HEAT
NOTE: IMPROPER CONFIGURATION OF DIP
SWITCHES CAN RESULT IN EQUIPMENT DAMAGE.
CONFIGURE BEFORE POWERING SMARTZONE.
6

ecojay
POWER
DAMPER 1
24V
24C
Z1-PO
Z1-PC
RC
RH
COM
W2
O/B
Y1
Y2
G
EQUIPMENT
REMOVE TO SEPARATE
RC & RH TERMINALS
COM
ZONE 1 STAT
R
EC
Y
G
O/B
W
ZONE 2 STAT
R
C
Y
G
O/B
W
DAMPER 2
Z2-PO
Z2-PC
COM
C
SMART LINK
1
GND
2
SA SENSOR
SA1
SA2
W1
EH
ecojay
SMARTZONE
ZONE 3 STAT
R
C
Y
G
O/B
W
ZONE 4 STAT or FA
R
C
Y
G
O/B
W
DAMPER 3
Z3-PO
Z3-PC
COM
DAMPER 4
Z4-PO
Z4-PC
COM
FRESH AIR
SMARTZONE
4X
ZS4X 2.0
ADJUST SETTINGS
STAT
TYPE
8E
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
WIRING
7
5
5
C
R
G
Y
W
ZONE 2
ZONE 2 STAT
C
R
G
Y
W
ZONE 4
COLOR
RED
BLUE/BLK
YELLOW
GREEN
WHITE
TERMINAL
24VAC (HOT)
24VAC (COMMON)
COMPRESSOR (COOLING)
FAN (BLOWER)
HEAT (ELECT. OR GAS)
THERMOSTAT GE
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
GAS/ELECTRIC
18-20 AWG SOLID WIRE
C
R
G
Y
EH
ZONE 1
COLOR
RED
BLUE/BLK
YELLOW
GREEN
WHITE
ORANGE
TERMINAL
24VAC (HOT)
24VAC (COMMON)
COMPRESSOR (COOLING)
FAN (BLOWER)
EMERGENCY HEAT
O / B (REVERSING VLV)
THERMOSTAT HP
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
HEAT PUMP
OB
C
R
G
Y
W
ZONE 3
ZONE 3 STAT
24VAC (COM) EQUIPMENT
1ST STAGE COMPRESSOR
2ND STAGE COMPRESSOR
FAN (BLOWER)
1ST STAGE HEAT [EMERGENCY HEAT]
2ND STAGE HEAT [REVERSING VALVE]
24VAC (R-COOLING)
24VAC (R-HEATING)
EH
O/B
PC
PO
COM
POWER OPEN
POWER CLOSE
APDM-2
24 VAC (2VA)
SPRING OPEN
POWER CLOSE
ASDM-2
24 VAC (10VA)
DEDICATED
CIRCUIT
BREAKER
PREFERED
NOTE: ALWAYS DISCONNECT POWER TO SMARTZONE
WHILE MAKING ANY WIRING CHANGES.
DO NOT USE EQUIPMENT TRANSFORMER
24 VAC
(COMMON)
TRANSFORMER
PRIMARY
DAMPERS
SUPPLY TEMP
EQUIPMENT REQUIRES SEPARATE TRANSFORMERS FOR HEAT AND COOL.
NOTE: RELAYS: [ Y1, Y2, & G] SEPARATE FROM RELAYS: [W1/EH & W2/OB]
C
Y1
Y2
G
W1
W2
RC
RH
RC / RH JUMPER FACTORY INSTALLED ONLY REMOVE IF THE
UP TO 2-STAGE COOL & 3-STAGE HEAT
EQUIPMENT
NORMAL
HEAT PUMP
B
DUAL FUEL
ELECTRIC
GAS/ELECT
RVS. VLV. O
FAN GAS
LOCKOUT2nd STAGE
SMART LINK
ZONES (1 –4)
ZONES (5 –20)
INSTALLATION
24VAC DAMPERS CAN BE USED INCLUDING TWO-WIRE
OR THREE-WIRE DAMPERS. 40 VA PER ZONE MAX.
DO NOT CONNECT POWER UNTIL
ALL WIRING IS COMPLE
SPRING OPEN
POWER CLOSE
ASDM-2
24 VAC (10VA)
IF ZONE 4 USED FOR FRESH AIR A SPRING CLOSE
DAMPER CAN BE USED TO “FAIL CLOSE”
ECO / AWAY MODE
EXPAND TO
20 ZONES
BUILT-IN
FRESH AIR
CONTROL
(IAQ)
SEE NEXT
PAGE
R
Y
G
O/B
W
C
ZONE 1 STAT
EC
ZONE 1 STAT
CLOSE SWITCH TO ACTIVATE ECO MODE. A
STANDARD WALL-SWITCH OR A SENSOR
WITH DRY CONTACT CAN BE USED. WHEN
ECO MODE ACTIVATED, ONLY ZONE 1
THERMOSTAT WILL BE ABLE TO ENERGIZE
THE EQUIPMENT. ALL OTHER ZONES
THERMOSTATS WILL OPERATE DAMPERS
NORMALLY WHEN ZONE 1 HAS ENERGIZED
EQUIPMENT BUT WILL NOT BE ABLE TO
MAKE EQUIPMENT CALLS THEMSELVES
TRANSFORMER FUSE
FUSE SIZE
2A
3A
4A
TRANSFORMER (24V)
40 VA
75 VA
100 VA
TRANSFORMER FUSE SIZE
RULE OF THUMB
8

2
2
SET THERMOSTAT TYPE
1
1
CONFIGURATION
ADJUST HI AND LO LIMIT
FOR PROTECTION, THE EQUIPMENT WILL NOT RUN ABOVE OR BELOW LIMITS. SEE EQUIPMENT STAGING FOR DETAILS.
ON HEAT PUMP EQUIPMENT ONLY, EITHER GAS/ELECTRIC OR HEAT PUMP THERMOSTATS CAN BE USED. THE SMARTZONE CONTROLLER
MUST BE SET FOR THE THERMOSTAT TYPE BEING USED OR THE EQUIPMENT WILL NOT OPERATE PROPERLY WITH POTENTIAL RISK OF
DAMAGE. SET THE THERMOSTAT TYPE AS SHOWN BELOW USING THE “STAT TYPE” AND “ARROW” BUTTONS.
NOTE: WHEN GAS/ELECTRIC EQUIPMENT, THIS OPTION IS NOT AVAILABLE, ALL THERMOSTATS WILL BE GAS/ELECTRIC. NOTE 2: WHEN
USING SMARTLINK FOR 5+ ZONE SYSTEM, SECONDARY CONTROLLER STAT TYPE MUST ALSO BE SET USING THE SAME METHOD.
SET HIGH TEMP LIMIT (CUT-OUT)
SET LOW TEMP LIMIT (CUT-OUT)
NOTE: CHANGING EITHER THE LOW OR HIGH TEMP LIMIT WILL ALSO AFFECT THE STAGING CUT-IN AND CUT-OUT TEMPERATURES
SETTINGS. ADJUSTING THESE CAN CAUSE STAGING TO OCCUR SOONER OR LATER . SEE EQUIPMENT STAGING FOR MORE DETAILS.
SET AUX. HEAT LIMIT (CUT-IN)
SET ECONOMIZER MODE LIMIT (CUT-OUT)
DISPLAY
8E
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
MULTI-FUNCTION DIGITS SHOW SUPPLY TEMPERATURE, CUT-OUT TEMPERATURES
(HIGH AND LOW), ZONE THERMOSTAT TYPES, FRESH-AIR TIME.
DELAY
SMARTZONE CONTROLLER HAS SATISFIED ALL
CALLS AND WILL DELAY 3 MIN BEFORE INITIATING
ANY ADDITIONAL CALLS, COUNTDOWN TIMER ON
DIGITS SEC. IF CALL MADE.
I80
PURGE
SYSTEM IS IN PURGE MODE FOR EQUIPMENT
CHANGEOVER (FAN [G] AND DAMPERS CONTINUE TO
OPERATE, COUNTDOWN TIMER ON DIGITS SEC.)
I80
SETTING HIGH TEMP LIMIT –PRESS UP OR DOWN
ARROW BUTTONS TO ADJUST THE HIGH TEMP LIMIT
(FACTORY DEFAULT: HEAT PUMP –120OF; ELECTRIC
HEAT –135OF; GAS HEAT –135OF)
HI TEMP
HIGH TEMP LIMIT SENSED, SMARTZONE CONTROLLER
DE-ENERGIZES EQUIPMENT HEAT OUTPUT FOR A
MINIMUM OF 3 MINUTES (FAN [G] AND DAMPER
OUTPUTS CONTINUES TO OPERATE)
(FLASH)(ON)
LO TEMP
LOW TEMP LIMIT SENSED, SMARTZONE
CONTROLLER DE-ENERGIZES EQUIPMENT COOL
OUTPUT FOR A MINIMUM OF 3 MINUTES (FAN [G]
AND DAMPER OUTPUTS CONTINUE TO OPERATE)
SETTING LOW TEMP LIMIT –PRESS THE UP OR
DOWN ARROW BUTTONS TO ADJUST THE LOW
TEMP LIMIT (FACTORY DEFAULT 48O F)
(FLASH)(ON)
SUPPLY
SUPPLY AIR TEMPERATURE
DISPLAYED NORMALLY
“--“ = SAS DISCONNECTED
IF ZONE 4 HAS BEEN CONFIGURED FOR FRESH AIR AND
FRESH AIR IS BEING CURRENTLY SATISFIED. FAN
SHOULD BE RUNNING AND ZONE 4 (FA DAMPER)
ENERGIZED IN THE OPEN POSITION
ECO
EC INPUT ON ZONE 1 IS ENERGIZED AND SYSTEM IS IN
ECONOMY MODE. ONLY ZONE 1 CAN INITIATE
EQUIPMENT CALLS, OTHER ZONES WILL ONLY OPEN AND
CLOSE DAMPERS AS NEEDED.
(FLASH)(ON)
SE = SETTING CHANGES STORED IN MEMORY,
THIS WILL SHOW UP AFTER ADJUSTING
ANY SETTING INCLUDING STAT TYPE, LIMIT
TEMPERATURES, AND FRESH AIR TIME.
PRESS THE STAT
TYPE BUTTON... PRESS THE UP AND
DOWN ARROWS
IF FA IS SELECTED, ZONE 4
DAMPER WILL OPERATE AS A
FRESH AIR DAMPER.
SEE FRESH AIR FOR DETAILS
ZONE: I
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
H2 AND G2 ONLY ON ZONE 1 ALLOW
THERMOSTAT TO CONTROL STAGING.
SEE ZONE 1 STAGING FOR DETAILS
OPERATION
HOLD
HOLD
9
GE = GAS / ELECTRIC
HP = HEAT PUMP
G2 = 2 STAGE GAS/ELECTRIC
H2 = 2 STAGE HEAT PUMP
4
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
ZONE:
PRESS & RELEASE THE ▲”UP” ARROW BUTTON WHEN THE DISPLAY IS SHOWING SUPPLY TEMPERATURE.
THE “HI TEMP” INDICATOR WILL FLASH AND THE DIGITS WILL SHOW THE CURRENTLY SET TEMPERATURE. THIS HIGH LIMIT CUT-OUT CAN BE
ADJUSTED UP OR DOWN USING THE ▲▼BUTTONS. SEE EQUIPMENT STAGING BELOW FOR MORE DETAILS.
PRESS & RELEASE THE ▼”DOWN” ARROW BUTTON WHEN THE DISPLAY IS SHOWING SUPPLY TEMPERATURE.
THE “LO TEMP” INDICATOR WILL FLASH AND THE DIGITS WILL SHOW THE CURRENTLY SET TEMPERATURE. THIS LOW LIMIT
CUT-OUT CAN BE ADJUSTED UP OR DOWN USING THE ▲▼BUTTONS. SEE EQUIPMENT STAGING BELOW FOR MORE DETAILS.
I35
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
48
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
90
HI TEMP
LO TEMP
SUPPLY PURGEDELAYECO
PRESS & HOLD THE ▲”UP” ARROW BUTTON FOR 5 SECONDS WHEN THE DISPLAY IS SHOWING SUPPLY
TEMPERATURE. WHEN RELEASED THE “HI LIMIT” AND “DELAY” INDICATORS WILL FLASH AND THE DIGITS WILL
SHOW THE CURRENTLY SET TEMPERATURE (DEFAULT = 90, ADJUSTABLE FROM 90 TO 94 USING ▲▼BUTTONS)
OR
GE
FA = FRESH AIR
GE HP
OR
PRESS & HOLD THE ▼”DOWN” ARROW BUTTON FOR 5 SECONDS WHEN THE DISPLAY IS SHOWING SUPPLY
TEMPERATURE. WHEN RELEASED THE “HI LIMIT” AND “ECO” INDICATORS WILL FLASH AND THE DIGITS WILL
SHOW THE CURRENTLY SET TEMPERATURE (DEFAULT = 60, ADJUSTABLE FROM 58 TO 68 USING ▲▼BUTTONS)
ZONES: 2
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
3
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO GE HP
60
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
ADJUST
SETTINGS
STAT
TYPE
GE
PURGECO
OR
WARNING:
USING THIS FEATURE
REDUCES THE
EFFECTIVENESS OF
SMARTZONE'S ENERGY
SAVING STAGING
CONTROLS AND MAY
INCREASE ENERGY USAGE.
WITH ZONE 1 “STAT TYPE” SET TO G2 OR H2, DIP # 4
· OFF (DEFAULT) –SMARTZONE’S ONBOARD STAGING CONTROL [TIME&TEMP]
WILL CONTINUE TO OPERATE 2ND STAGE. ZONE 1 STAT WILL BE ABLE TO
ENERGIZE 2ND STAGE EARLY BUT WILL NOT PREVENT 2ND STAGE FROM
OCCURRING.
· ON (LOCKOUT) –SMARTZONE’S ONBOARD STAGING CONTROL DISABLED AND
ZONE 1 THERMOSTAT WILL BE ABLE TO CONTROL STAGING. (THIS INCLUDES
AUXILIARY HEAT FOR HEAT PUMP)
ZONE 1 STAGING CONTROL ALLOWS A MULTI-STAGE THERMOSTAT CONNECTED
TO ZONE 1 TO CONTROL UP TO 2 COOL AND 3 HEAT STAGES. G2 (GAS/ELECTRIC)
OR H2 (HEAT PUMP) THERMOSTAT TYPE CAN BE SELECTED IN HEAT PUMP MODE.
NOTE: SMARTZONE WILL DELAY 60 SECONDS BETWEEN 1ST STAGE START AND 2ND STAGE
START. ALSO, A 3 MINUTE MINIMUM OFF TIME IS IMPLEMENTED FOR ALL EQUIPMENT
CALLS. STAGING FROM ZONE 1 THERMOSTAT WILL NOT OVER-RIDE THESE TIME DELAYS.
NOTE 2: WHEN ZONE 1 STAT TYPE IS SET TO G2 OR H2, “ECO MODE” IS DISABLED. TO
ENABLE ECO MODE, SET ZONE 1 STAT TYPE TO GE OR HP.
ZONE 1 STAGING
G2
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
ZONE 1 STAT
R
EC
Y
G
O/B
W
C
C
R
Y1
W2
G
W1
Y2
GAS/ELECTRIC
MULTI-STAGE
THERMOSTAT
R
EC
Y
G
O/B
W
C
ZONE 1 STAT
C
R
Y1
Y2
G
(Aux/EH)
O/B
HEAT PUMP
MULTI-STAGE
THERMOSTAT
H2
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
10

MODES & STAGING
TIME DELAY
TIME DELAY IS DESIGNED FOR EQUIPMENT PROTECTION. AFTER CALLS FROM ALL ZONES HAVE BEEN SATISFIED AND THE EQUIPMENT IS DE-
ENERGIZED, A 3-MINUTE TIME DELAY WILL BE COMPLETED BEFORE NEW THERMOSTAT CALLS WILL BE PROCESSED. DURING THE DELAY ALL
DAMPERS OPEN AND THE EQUIPMENT WILL NOT RUN. DURING DELAY THE DIGITAL DISPLAY WILL COUNT DOWN THE NUMBER OF SECONDS
LEFT DURING PURGE TIME IF A NEW CALL IS ENERGIZED. NOTE: ALTHOUGH SMARTZONE WILL NOT ENERGIZE THE FAN (OR EQUIPMENT)
DURING DELAY, THE EQUIPMENT BEING USED MAY HAVE A BUILT IN CONTROL THAT CAUSES THE FAN TO CONTINUE RUNNING.
A 3 MINUTE PURGE OF THE SUPPLY AIR PLENUM IS INITIATED DURING OPPOSING-CALL CHANGEOVER. (SWITCHING FROM HEAT TO COOL
OR COOL TO HEAT) DURING THE PURGE, THE FAN WILL REMAIN ENERGIZED TO PURGE EXISTING SUPPLY AIR TEMPERATURE AND TO
ALLOW EQUALIZATION OF HVAC SYSTEM PRESSURES BEFORE ENERGIZING THE OPPOSING MODE CALL. DURING THE PURGE MODE,
ZONE(S) CALLING FOR THE OPPOSITE MODE WILL HAVE DAMPER(S) CLOSED. ALL OTHER DAMPERS (NON-CALLING ZONE(S) AND ZONE(S)
CALLING FOR MODE LAST ENERGIZED) WILL REMAIN OPEN DURING PURGE MODE. DURING PURGE THE DIGITAL DISPLAY WILL COUNT
DOWN THE NUMBER OF SECONDS LEFT DURING PURGE TIME (SEE “AUTO CHANGEOVER”)
AUTO CHANGEOVER
IT IS POSSIBLE TO HAVE A ZONE(S) CALLING FOR COOL AND ANOTHER ZONE(S) CALLING FOR HEAT (CALLED “OPPOSING CALLS”). WHEN
OPPOSING CALLS EXIST, EACH ACTIVE MODE RUNNING ON THE EQUIPMENT WILL BE LIMITED TO A MAXIMUM RUN TIME OF 15 MINUTES
STARTING WHEN THE OPPOSING MODE CALL IS RECEIVED. IF THE ACTIVE MODE DOES NOT SATISFY THE CALLING ZONE(S) IN THIS 15
MINUTE INTERVAL, SMARTZONE WILL INITIATE A CHANGEOVER PROCESS. CHANGEOVER: DE-ENERGIZE THE ACTIVE MODE AND INITIATING
A 3 MINUTE PURGE (SEE PAGE 3 FOR MORE ABOUT PURGE). DURING PURGE, ALL DAMPERS OPEN DURING THE PREVIOUSLY ACTIVE MODE
REMAIN OPEN AND THE FAN REMAINS ENERGIZED TO NEUTRALIZE THE SUPPLY AIR TEMPERATURE BEFORE ENERGIZING THE OPPOSING
CALL MODE ON THE EQUIPMENT CHANGEOVER PROCESS.
►EMERGENCY HEAT CAN ONLY BE OPERATED BY A HEAT PUMP THERMOSTAT CONNECTED TO THE ZONE 1 “W” THERMOSTAT TERMINAL.
►IF ZONE 1 THERMOSTAT CALLS FOR EMER. HEAT, THE SMARTZONE SYSTEM WILL BE LOCKED INTO EMERGENCY HEAT.
►THE COMPRESSOR WILL NOT ENERGIZE AND ONLY HEATING CALLS WILL BE RECOGNIZED FROM ANY ZONE OTHER THAN ZONE ONE.
ONLY W1/EH AND G WILL BE ALLOWED TO ENERGIZE WHILE SMARTZONE IS LOCKED INTO EMERGENCY HEAT. (IE. COMPRESSOR &
COOLING CALLS WILL BE LOCKED OUT) ALL COOLING CALLS FROM ZONES 2 THRU 20 WILL BE IGNORED AND ANY HEATING CALL FROM
THESE ZONES WILL BE TREATED BY THE SMARTZONE SYSTEM AS EMER. HEAT.
►TO UNLOCK AND TAKE THE SYSTEM OUT OF EMER. HEAT, REMOVE THE EMER. HEAT CALL AT THE ZONE 1 THERMOSTAT AND MAKE A
CALL FOR COMPRESSOR HEAT OR COOLING FROM THIS THERMOSTAT.
EMERGENCY HEAT
DUAL FUEL (FOSSIL FUEL AUX / EM HEAT)
IN DUAL FUEL MODE, THE COMPRESSOR(S) WILL NOT RUN WHEN AUXILIARY HEAT IS ENERGIZED. SMARTZONE CONTROLS DUAL FUEL SO A
“DUAL FUEL KIT” AND HEAT PUMP THERMOSTATS ARE NOT REQUIRED. GAS/ELECTRIC THERMOSTATS MAY BE USED WITH A HEAT PUMP
SYSTEM, HOWEVER, USE A HEAT PUMP STAT FOR THE ZONE 1 THERMOSTAT TO CONTROL EMERGENCY HEAT (DESCRIBED ABOVE). ALWAYS
INSTALL THE HEAT PUMP EVAPORATOR DOWNSTREAM OF THE FURNACE, THIS PREVENTS CONDENSATION IN THE HEAT EXCHANGER DURING
THE COOLING MODE. SEE EQUIPMENT STAGING FOR MORE DETAILS ABOUT DUAL FUEL.
PURGE
1
THE SMARTZONE CONTROLS EQUIPMENT STAGING AUTOMATICALLY BASED ON TIME AND SUPPLY AIR TEMPERATURE. (THIS TEMPERATURE IS
READ BY THE INCLUDED SUPPLY AIR TEMP SENSOR –SAS) NOTE: WITHOUT THIS SENSOR INSTALLED, THE SMARTZONE WILL NOT RUN 2ND
STAGE OR OPERATE ANY DAMPERS. TIME AND TEMPERATURE SETTINGS VARY ACCORDING TO THE TYPE OF EQUIPMENT HI/LO TEMP LIMIT
SETTINGS. STAGING WILL OCCUR ONLY WHEN THE MINIMUM RUN-TIME AND TEMPERATURE RANGE CONDITIONS ARE MET. THE FACTORY
DEFAULT SETTINGS FOR TEMPERATURE CUT-IN AND CUT-OUT ARE ADJUSTABLE. (SEE “HI & LO LIMIT ADJUST”)
NOTE: G WILL ENERGIZE IMMEDIATELY WITH 1ST STAGE IF DIP SWITCH #5 IS SET TO
“ELECTRIC”. IF SET TO THE DEFAULT OF “GAS”, G WILL ENERGIZE AFTER 90 SECONDS.
OPERATION
11
EQUIPMENT
W2
O/B
Y1
Y2
G
W1
EH
EQUIPMENT
W2
O/B
Y1
Y2
G
W1
EH
EQUIPMENT
W2
O/B
Y1
Y2
G
W1
EH
EQUIPMENT
W2
O/B
Y1
Y2
G
W1
EH
EQUIPMENT
W2
O/B
Y1
Y2
G
W1
EH
EQUIPMENT
W2
O/B
Y1
Y2
G
W1
EH
EQUIPMENT
W2
O/B
Y1
Y2
G
W1
EH
EQUIPMENT
W2
O/B
Y1
Y2
G
W1
EH
COOLING 1ST STAGE
2ND STAGE
GAS/ELECTRIC OR HEAT PUMP
CUT OUT: < LO TEMP +4⁰
CUT IN: > LO TEMP +10⁰
CUT OUT: < LO TEMP
1ST STAGE STARTS WITH ANY CALL
FROM A THERMOSTAT FOR COOL
· 2ND STAGE OCCURS AFTER 8 MINUTES OF 1ST STAGE, IF
SUPPLY TEMP WARMER THAN LO TEMP + 10°
· AFTER 3 MINUTES OF MINIMUM RUN, EQUIPMENT WILL
RETURN TO 1ST STAGE IF SUPPLY TEMP IS COOLER THAN LO
TEMP + 4°
· IF SUPPLY TEMP IS COOLER THAN LO TEMP (SEE ADJUST
LIMITS) FAN WILL RUN BUT Y1 WILL DE-ENERGIZE FOR 3
MINUTES AND UNTIL SUPPLY TEMP IS WARMER THAN LO TEMP
(DEFAULT = 48°F)
1ST STAGE
2ND STAGE
CUT OUT: > LO TEMP –10⁰
CUT IN: < HI TEMP –25⁰
CUT OUT: > HI TEMP
HEATING
GAS / ELECTRIC
1ST STAGE STARTS WITH ANY CALL
FROM A THERMOSTAT FOR HEAT
· 2ND STAGE OCCURS AFTER 8 MINUTES OF 1ST STAGE, IF
SUPPLY TEMP COOLER THAN HI TEMP –25°
· AFTER 3 MINUTES OF MINIMUM RUN, EQUIPMENT WILL
RETURN TO 1ST STAGE IF SUPPLY TEMP IS WARMER THAN HI
TEMP –10°
· IF SUPPLY TEMP IS WARMER THAN HI TEMP (SEE ADJUST
LIMITS) FAN WILL RUN BUT W1 WILL DE-ENERGIZE FOR 3
MINUTES AND UNTIL SUPPLY TEMP IS COOLER THAN HI TEMP
(DEFAULT = 135°F)
8 MIN UNTIL 2ND
8 MIN UNTIL 2ND
NOTE: O/B WILL ALSO ENERGIZE IF DIP SWITCH #2 IS SET TO “B”
1ST STAGE
2ND STAGE
CUT OUT: > LO TEMP –4⁰
CUT IN: < HI TEMP –15⁰
CUT OUT: > HI TEMP
HEATING
HEAT PUMP
1ST STAGE STARTS WITH ANY CALL
FROM A THERMOSTAT FOR HEAT
· 2ND STAGE OCCURS AFTER 4 MINUTES OF 1ST STAGE, IF
SUPPLY TEMP COOLER THAN HI TEMP –15°
· AFTER 3 MINUTES OF MINIMUM RUN, EQUIPMENT WILL
RETURN TO 1ST STAGE IF SUPPLY TEMP IS WARMER THAN
HI TEMP –4°
· IF SUPPLY TEMP IS WARMER THAN HI TEMP (SEE ADJUST
LIMITS) FAN WILL RUN BUT Y1 WILL DE-ENERGIZE FOR 3
MINUTES AND UNTIL SUPPLY TEMP IS COOLER THAN HI TEMP
(DEFAULT = 120°F)
4 MIN UNTIL 2ND
NOTE: O/B WILL ALSO ENERGIZE FOR HEAT PUMP ONLY IF DIP SWITCH #2 IS SET TO “O”
AUXILIARY
CUT IN: < 90⁰
DUAL FUEL NORMAL
CUT OUT: > 100⁰
6 MIN UNTIL AUX
· AUXILIARY HEAT OCCURS AFTER TWO
MORE MINUTES (6 MINUTES TOTAL)
IF SUPPLY TEMP COOLER THAN AUX
HEAT CUT IN (90°DEFAULT)
[ADJUST: 90 TO 94]
· NORMAL: EQUIPMENT WILL RETURN
TO 2ND STAGE IF SUPPLY TEMP IS
WARMER THAN 100°
· DUAL FUEL: EQUIPMENT WILL CONTINUE IN DUAL FUEL UNTIL CALL(S) SATISFIED. HI TEMP LIMIT WILL BE
THE GAS/ELECT “HI LIMIT” (TEMPORARILY SWITCH DIP SWITCH #1 TO GAS/ELECT TO ADJUST DUAL FUEL “HI LIMIT”)
HEAT PUMP ONLY:
I80
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
I80
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
12

20 ZONES - SMARTLINK
ecojay
DAMPER 1
Z1-PO
Z1-PC
RC
RH
COM
W2
O/B
Y1
Y2
G
EQUIPMENT
COM
DAMPER 2
Z2-PO
Z2-PC
COM
SMART LINK
1
GND
2
SA SENSOR
SA1
SA2
W1
EH
ecojay
SMARTZONE
DAMPER 3
Z3-PO
Z3-PC
COM
DAMPER 4
Z4-PO
Z4-PC
COM
FRESH AIR
SMARTZONE
4X
ZS4X
2.0
ADJUST SETTINGS
STAT
TYPE
8E
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
POWER
24V
24C
R
EC
Y
G
O/B
W
ZONE 2 STAT
R
C
Y
G
O/B
W
C
ZONE 3 STAT
R
C
Y
G
O/B
W
ZONE 4 STAT /FA
R
C
Y
G
O/B
W
ZONE 1 STAT
ZONES
1 –4
HEAT PUMP
B
DUAL FUEL
ELECTRIC
GAS/ELECT
RVS. VLV. O
NORMAL
FAN GAS
LOCKOUT2nd STAGE
SMART LINK
ZONES (1 –4)
ZONES (5 –20)
1
2
3
5
4
6
ON ZONES 1-4, CONFIGURE DIP
SWITCHES #1-5 NORMALLY. SEE
DIP SWITCHES
ON ZONES 1-4 MAKE SURE DIP
SWITCH #6 IS TO THE LEFT
1
2
3
5
4
6
ZONES
17 –20
ON ZONES 5 THRU 20
BOARDS, CONFIGURE DIP
SWITCHES #1 –3 NORMALLY
& #4 –6 AS SHOWN BELOW
NOTE: IF MULTIPLE TRANSFORMERS ARE USED
FOR A SMARTLINK APPLICATION, THE PRIMARY
AND SECONDARY POLARITY MUST BE THE SAME
ON ALL SMARTZONE-4X BOARDS.
24VAC
24VAC
*MORE THAN 8 ZONES REQUIRES SMARTZONE-4X “8E” FIRMWARE. FIRMWARE VERSION SHOWN ON DISPLAY AFTER RESET OR POWER UP.
CONNECT
EQUIPMENT & SAS ONLY
TO MAIN “ZONES (1-4)”
SMARTZONE-4X
CONTROLLER
NOTE: FRESH AIR & ZONE 1 STAGING CONTROLLED THROUGH
THE ZONES 1-4 SMARTZONE BOARD. CONNECT EQUIPMENT &
SUPPLY TEMP SENSOR ONLY TO ZONES 1-4 SMARTZONE BOARD.
ecojay
ecojay
SMARTZONE
4X
ZS4X
2.0
4
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
ecojay
ecojay
SMARTZONE
4X
ZS4X
2.0
3
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
ecojay
ecojay
SMARTZONE
4X
ZS4X
2.0
2
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
ecojay
ecojay
SMARTZONE
4X
ZS4X
2.0
I
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
1
2
3
5
4
6
ZONES
5 –8
1
2
3
5
4
6
ZONES
9 –12
1
2
3
5
4
6
ZONES
13 –16
CONNECT UP TO FIVE SMARTZONE-4X BOARDS TO
CREATE 8, 12, 16, OR 20 ZONE SYSTEMS
BLUE LED FLASHING
INDICATES
COMMUNICATION
ESTABLISHED. IF NOT
FLASHING, CHECK
SMARTLINK WIRING
SMART LINK
1
GND
2
WIRE USING CAT5 OR
CAT6 SOLID CORE WIRE
1
GND
21
GND
2
ADVANCED FEATURES
FRESH AIR CONTROL (IAQ)
SMARTZONE-4XCANAUTOMATICALLYENERGIZEFAN (G)AND
OPENTHEFRESHAIR DAMPER(ZONE4)FORA CONFIGURABLE
#MINUTESPERHOUR(FRESHAIRRUNTIME)
ASHRAE 62.2
FRESH AIR CFM
Floor
Area BEDROOMS
0-12-34-56-7>7
< 1500 30 45 60 75 90
1501- 3000 45 60 75 90 105
3001- 4500 60 75 90 105 120
4501- 6000 75 90 105 120 135
6001- 7500 90 105 120 135 150
>7500 105 120 135 150 165
[(TOTAL SQ. FT.)/100]
+ [(# OF BEDROOMS+1) X 7.5 ]
1DETERMINE THE FRESH AIR CFM TO COMPLY WITH ASHRAE 62.2 USING THE TABLE BELOW
OR THIS FORMULA:
CLOSED = ENABLED, OPEN = DISABLED
WHENZONE4ISCONFIGUREDASFRESHAIR,CONNECTINGA
SWITCHORSENSOR(24VAC)TOTHE ZONE4THERMOSTAT
TERMINALSWILLACTIVATEADVANCEDFRESHAIR FEATURES.
ADVANCED FRESH AIR
►Y=ECONOMIZER
►G=DEMANDFRESHAIR
►W=ONLYWITHEQUIPMENT
►O/B=FRESHAIROFF
FORBASICFRESHAIR:DONOTCONNECTTOTHESETERMINALS.
FRESH AIR RUN TIME = 60 X FRESH AIR CFM
MEASURED-CFM
FRESH AIR CONFIGURATION
4
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
FA
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
2
3
PRESS ▲▼ TO SELECT
THE # OF MINUTES PER
HOUR FOR FRESH AIR RUN
TIME (IN 5 MINUTE
INCREMENTS)
PRESS STAT TYPE BUTTON
TO SELECT ZONE 4
PRESS UP▲BUTTON
TO SELECT FA
PRESS STAT TYPE AGAIN
4
0
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
I5
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
5
PRESS STAT TYPE AGAIN
(OR WAIT 5 SECONDS) TO
STORE SETTINGS
1
SE
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
ADJUST SETTINGS
STAT
TYPE
FA
HI TEMP
LO TEMP
SUPPLY PURGEDELAY ECO
FRESH AIR OPERATION
FRESH AIR RUN-TIME IS ATTEMPTED DURING EQUIPMENT CALLS
BUT WILL BE “MADE-UP” AT THE END OF THE HOUR
AUTOMATICALLY TO SATISFY THE FRESH AIR RUN-TIME SET BY
USER EVEN IF EQUIPMENT HAS NOT RUN
R
Y
G
O/B
W
C
ZONE 1 STAT
ZONE 4 STAT
2MEASURE THE CFM PROVIDED BY THE FRESH AIR DAMPER WITH AN ANEMOMETER
3CALCULATE FRESH AIR RUN TIME AND SET THIS # AS DESCRIBED ABOVE IN STEP 4
13 14

ECOJAY LLC
1527 W STATE HIGHWAY 114
SUITE 500-281
GRAPEVINE, TX 76051
MORE INFORMATION @ ecojay.com
SMARTZONE
SMARTZONE
SCAN WITH SMARTPHONE
SMARTZONE.ECOJAY.COM
- [2, 5, 6] EQUIPMENT CALLS DON’T MATCH
THERMOSTAT CALLS
(STAT CALLS FOR HEAT, EQUIPMENT CALLS FOR
COOL AND VICA VERSA)
- [5, 6, 7] NO TEMPERATURE ON DISPLAY
- [3, 5, 6, 7] NO DISPLAY
- [5, 7] NO GREEN POWER LED
- [1, 2, 5, 6, 7] STATS ARE CALLING BUT
EQUIPMENT IS NOT
- [1, 2, 6, 7] EQUIPMENT IS CALLING BUT STATS
ARE NOT
- [1, 3, 4] NOISE AT AIR REGISTER
- [1, 3, 4, 6C] SHORT CYCLING EQUIPMENT
- [1, 3, 4, 6C] CONDENSATION ON PLENUM
- [1, 5, 6, 7] NOT STAGING PROPERLY
- [2, 6, 7] THERMOSTATS NOT CALLING
- [1, 2, 5, 6, 7] EQUIPMENT NOT CALLING
- [3, 5, 6, 7] DAMPERS NOT OPENING/CLOSING
- [3, 5, 6, 7] DAMPER LEDS NOT CORRECTLY
SHOWING OPERATION
- [2, 6, 7] STAT LEDS DO NOT MATCH STAT CALLS
- [1, 3, 4, 6, 7] PLENUM TEMPERATURE NOT
READING CORRECTLY
- [1, 3, 4] NOT ENOUGH AIRFLOW IN THE LOAD
SPACE
- [1, 3, 4] NOT PROPERLY HEATING OR COOLING
SPACE WHEN ALL ZONES CALLING
- [3, 4] NOT PROPERLY HEATING OR COOLING WHEN
CERTAIN ZONES CALL
- [6, 7] NOT CHANGING-OVER FROM EQUIPMENT
MODES PROPERLY
- [1, 2, 3, 4, 6] EMERGENCY HEAT NEVER
ENERGIZES / AUX. HEAT ENERGIZES TOO SOON
REFRIGERANT CHARGE, FAN SPEED, WIRING, POWER, ETC
(ANY PROBLEM ASSOCIATED WITH THE EQUIPMENT)
A. INCOMPATIBLE (POWER STEALING/NO COMMON)
B. DEFECTIVE THERMOSTAT
C. WIRING DEFECT
D. “STAT TYPE” SETUP (HEAT PUMP ONLY)
A. ACTUATOR FAILURE
B. MECHANICAL FAILURE (INCLUDING INSULATION)
C. DUCT SIZING (NOT ENOUGH OR TOO MUCH CFM)
D. WIRING DEFECT
A. ACTUATOR FAILURE
B. SENSOR (STATIC PRESSURE SENSOR DEFECT)
C. MECHANICAL FAILURE
D. SETUP (MODULATING CALIBRATION OR WEIGHT ARM SETTING)
E. ORIENTATION OF INSTALLATION (SPC OR BAROMETRIC BYPASS)
F. IMPROPER SIZING (NOT ENOUGH CFM CAPACITY)
G. WIRING DEFECT
A. TRANSFORMER FUSE
B. WIRING DEFECT
C. PRIMARY CIRCUIT PROBLEM (SHARED/CAPACITY, BREAKER)
D. IMPROPERLY SIZED TRANSFORMER (NOT ENOUGH VA)
E. DEFECTIVE TRANSORMER
A. DIP SWITCHES SET INCORRECTLY
B. THERMOSTAT "TYPE" (FOR HP MUST MATCH THERMOSTATS)
C. TEMPERATURE LIMIT SETTINGS (HI & LO LIMITS SHOULD BE SET TO
MATCH APPLICATION)
D. TEMPERATURE SENSOR LOCATED INCORRECTLY OR NOT PLUGGED IN
E. ECO MODE SETTING
F. FRESH AIR SETTINGS
A. WIRING (ENSURE WIRED STRIPPED AT LEAST 1/3")
B. FUSE (FIELD REPLACABLE 300 MA, SPARE INCLUDED)
C. DEFECTIVE COMPONENT (REPLACE BOARD ONLY IN THIS CASE)
HVAC EQUIPMENT
THERMOSTATS
ZONE DAMPERS/DUCT
PRESSURE BYPASS/RELIEF
POWER
SMARTZONE SETUP/CONFIG
SMARTZONE CONTROL PANEL
POSSIBLE CAUSESYMPTOM
TROUBLESHOOTING
1
2
3
4
5
6
7
ecojay
888-523-3265
