Ecotherm Storage Water Heater Manual

HEAT TRANSFER TECHNOLOGY
®
ECOTHERM
www.ecotherm.com
Operating and Maintenance
Instructions
Storage Water Heaters

2
ECOTHERM
HEAT TRANSFER TECHNOLOGY
®
Operating and Maintenance Instructions - Storage Water Heaters

3
ECOTHERM
HEAT TRANSFER TECHNOLOGY
®
Operating and Maintenance Instructions - Storage Water Heaters
1. Introduction
1.1 Preparing for installation 4
1.1.1 Unpacking the storage tanks 5
1.1.2 Check valves for cold water supplie and circulation connections 5
1.1.3 Filter recommendations 5
1.1.4 Heating water pressure 5
1.1.5 Expansion tank 5
1.1.6 Tank legs 5
1.1.7 Copper piping and water bourne chloride ions 5
a) Isolating connectors 5
    b)Non-sacricialelectricanode        5
c) Simple repair 5
2. Safety instructions and general assembly 6 - 7
2.1 Safety instructions 6
2.2 Description 6
2.3 Delivery 6
2.4 Tank insulation 7
2.4.1 Mounting of insulation 7
2.4..2 Recycling of insulation 7
3. Filling and venting the system 8
3.1 Commissioning the system 8
3:2 Flushing the system 8
4.2 Filling the storage tank 8
4. Cleaning and servicing
4.1 Cleaning / Servicing of the storage tank 8 - 9
4.1.1 Important checks 8
4.2 Closing and opening of the storage tank 8
4.2.1 Attentions for servicing 9
4.3. Servicing 9
5. Safety instructions and general assembly 10
5.1 General 10
5.2 Warranty 10
5.2.1 Warranty 10
5.2.2 Additional warranty conditions for the stainless steel storage tank 10
5.2.3 Liability 10
5.2.4 Validity clause 10
5.2.5 Choice of law 10
6. Technical data 12
6.1 Operating instructions 12
Contents

4
ECOTHERM
HEAT TRANSFER TECHNOLOGY
®
Operating and Maintenance Instructions - Storage Water Heaters
1. Introduction
Congratulations!
With the purchase of your storage water heater from ECOTHERM you have opted for a device incorporating the
ultimate in hygiene, economy, reliability and functionality. We are convinced that your users will enjoy the benets of
your storage water heater for a long time.
This manual contains vital information on starting-up and service of your ECOTHERM storage water heater.
Please read this information carefully before starting up and familiarise yourself with the operating processes
required.
Compliance with all instructions is the basis of smooth and trouble-free operation of the ECOTHERM storage water
heater and safeguards your rights in the event of warranty claims.
Introduction

5
ECOTHERM
HEAT TRANSFER TECHNOLOGY
®
Operating and Maintenance Instructions - Storage Water Heaters
1.1 Preparing for installation
1.1.1 Transport, handling and
unpacking
The storage water heater may only
be transported in depressurised
condition. Suitable stops should be
used to ensure that no deformation
or other damage to the outer
surfaces or sealing surfaces occurs
during transport. The storage
tank must not be allowed to strike
supports, flanges, etc. The tank
may only be set down and rested
upon suitable supports (wooden
frame, palettes), which are supplied
with the heater. Point loading of the
tank wall can lead to impermissible
deformations. Transport and storage
at temperatures below the frost
limit (0°C) are not permitted (frost
hazard due to any residual water
in the tank). All openings, such as
filler necks, flanges, etc., should be
sealed using suitable means, which
may only be removed by competent
personnel (caution: do not damage
sealing surfaces!) When removing
the components from the packaging
it is necessary to proceed with great
care. If storage tanks are removed
from a container, care should be
taken that the breathers that protrude
from the top of the tank are not
damaged or bent when passing the
opening.
1.1.2 Non-return valves for cold
water supply and circulation
connections
Non-return valves must be provided
for the secondary domestic cold water
supply and circulation connections, in
order to avoid possible convectional or
expansive back ow of heated water.
1.1.3 Filter recommendations
To avoid damage to pumps and fouling
of heat exchangers by intake of foreign
bodies, ECOTHERM recommends that
strainers be placed in front of supply
connections as follows:
Primary circuit heating water supply:
Strainer mesh size 150 - 200 µm.
Secondary circuit cold water supply:
Strainer mesh size 50 - 60 µm
1.1.4 Primary circuit heating water
pressure from boiler
The heating water supply to the heat
exchanger has minimum pressure
requirement of 1.5 bar, and a maxi-
mum of 10 bar. Failure to observe this
requirement may potentially expose
the primary circuit to negative pressure
aeration. ECOTHERM recommends
that a closed expansion vessel with
pressurised ll-up be tted to the pri-
mary circuit.
1.1.5 Secondary circuit expansion
vessel
An expansion vessel connected to
the domestic hot water supply line is
required to allow for the increase of
water volume during heating. Failure
to observe this requirement may result
in regular small losses of heated do-
mestic water through the ECOTHERM
product‘s own pressure safety valve
during heating.
1.1.6 Tank legs
Tank legs MUST NOT under any
circumstances be screwed or xed to
the oor, otherwise expansion strain
will cause cracks, which may lead to
leakage. The tank must be placed on
the oor, supported by its legs, which
must be able to move slightly as
the tank expands or contracts. (The
screw holes in the base of the legs
are for transportation purposes only.)
1.1.7 Copper piping and water
bourne chloride ions
The following applies to installations
with copper piping and water borne
chloride ions (> 100 mg/litre):
1.1.7a Isolating connectors
All connections must be electrically
isolated from the copper piping using
the special isolating ange kits and
isolating screw connectors provided.
1.1.7b Non-sacricial electric anode
Where supplied the non-sacricial elec-
tric anode must be connected to the
mains power supply and be operational
at all times, in order to inhibit galvanic
transport of material away from stain-
less steel surfaces.
1.1.7c Simple repair of stainless steel
tanks
Please note that in the unlikely event
of pitting occurring, affected stainless
steel areas can be quickly and cheaply
repaired to 100% serviceability on site
by your local ECOTHERM Support
Centre using specialised techniques
developed by ECOTHERM. Stainless
steel therefore offers the best possible
choice for better hygiene, durability and
longer life.
Introduction

6
ECOTHERM
HEAT TRANSFER TECHNOLOGY
®
Operating and Maintenance Instructions - Storage Water Heaters
2.3 Safety guidelines
Installation and connection should
only be carried out by approved
contractors in accordance with
applicable regulations and technical
specications.
Approved safety devices shall be
installed In the cold water supply.
The operating pressure stated on the
rating plate must not be exceeded.
With higher line pressure, a pressure
reducer should be tted, whose
function can be controlled by a
downstream test valve.
The safety valve shall be tted in the
cold water pipe and there should be
no mean of isolating this valve from
the vessel. Fitting of dirt traps or other
restrictions in the supply line is not
permitted. The safety valve shall be
installed to react at the permissible
operating pressure at the latest.
The cross section of safety valve
piping (max. 2 elbows, max. length 2
m) shall be at least that of the safety
valve. The outlet of the safety valve
should ow into an tundish to enable
observation, and the drainage piping
should be arranged to ensure that any
blow-off of steam or hot water cannot
cause danger to persons present.
The drainage piping after the tundish
must be of at least twice the cross
section of the valve inlet. Safety valve
and and drainage pipes shall be
designed frost-proof and may not be
routed to atmosphere. In the vicinity
of the safety valve a warning sign
shall be provided bearing the following
inscription:
Electrical connection must only
be carried by qualied specialist
personnel of an accredited electrical
contractor. For electrical connection,
the ÖVE and TAEV regulations with
the appropriate design specications
shall be complied with.
For cleaning and service of the system
the electric power supply must be
disconnected.
Prior to initial start-up the entire water
heater must be carefully ushed and
checked for proper installation. Initial
start-up may only be performed by an
ECOTHERM service engineer.
For safety reasons, it is normal
for small quantities of water to
escape from the safety valve
during initial heating. Do not
block the safety valve.
Safety Instructions and General Information
2. Safety Instructions and General Information
Nominal volumes
Litres
Dimension of valve (minimum)
(it applies the size of the input connection)
Heating performance
kW (maximum)
up to 200 R or Rp 1/2 75
>200 up to 1000 R or Rp 3/4 150
2.2 Description
Technical data and connection
drawing see at our product brochure.
2.3 Delivery
The storage water heaters are pre-
assambled in the factory for simple
on-site installation.

7
ECOTHERM
HEAT TRANSFER TECHNOLOGY
®
3
3
3
4
4
1
2
3
3
5
6
4
4
1
2
3
6

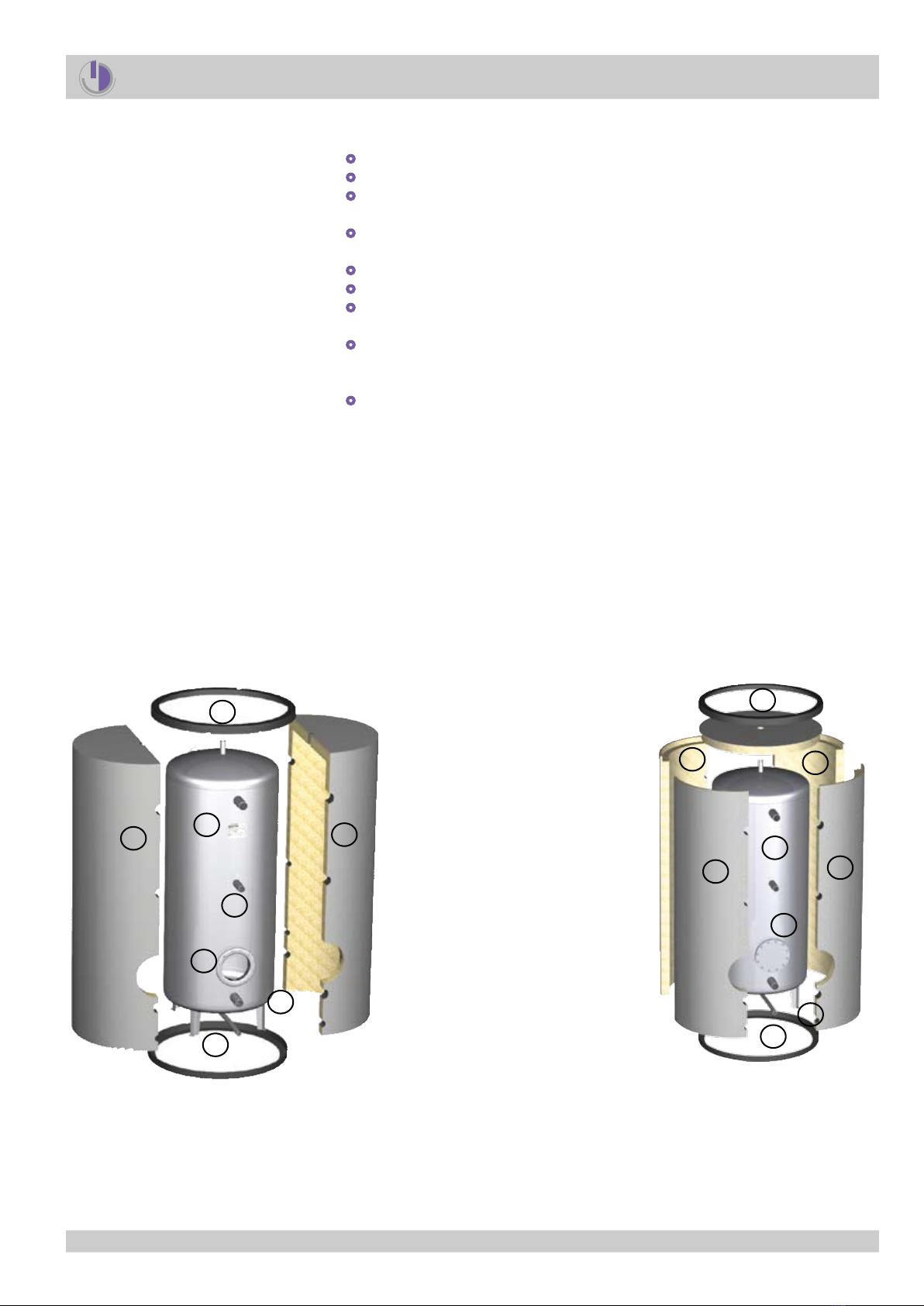

1 Storage tank
2 Storage legs
3 PU hard shell insulation with grey
aluminium or polystyrol casing
4 Clamping rings, removeable
5 Rating plate
6 Flange connections
2.4.2 Insulation mounting
●Unpack the polyurethane hard shells and check for damage.
● Push soft foam seals over the sleeves or t on the storage tank.
● Fit shells to the heater and loosely close the at clamping ring in the middle
of the insulation.
●Only for quarter-shell insulation: rest the (two) halves of the cover on the
top edge of the insulation.
●Fit the top angled clamping ring and tighten slightly.
●Two clamping rings: now slide the centrally mounted clamping ring to the base.
● Three clamping rings: the second clamping ring remains in the middle, t
the third at the bottom.
●Finally, tension the clamping rings alternately.
Warning!
Excessive tension damages the plastic parts.
●Fit stick-on and covering rosettes
Operating and Maintenance Instructions - Storage Water Heaters
Quarter shell insulation
Half shell insulation
Safety Instructions and General Information
2.4 Storage insulation
A optimizing insulation of the storage
tank and the piping should be rati-
onal at the new hot water system.
The insulation is made of CFS free
polyurethane foam, removable with
„ÖKO“-polystyrole casing .
More about the thickness you can
nd in our brochure, yers and cur-
rent price list
2.4.1 Recycling guarantee
Heat insulation kit
(hard shell insulation)
Hard shell insulation is taken back
by the manufacturer after the end of
its service life. It is guaranteed that
new products will be manufactured
from returned insulation according to
a patented recycling procedure. This
gives our customers a guarantee of
full reuse.

8
ECOTHERM
HEAT TRANSFER TECHNOLOGY
®
3.3 Filling the storage tank
●Set the opening pressure of the safety valve (observe manufacturer’s
figures). The safety valve must open at the permissible operating pressure
of the storage tank at the latest.
●Set the pressure reduction valve to approx. 0.8 times the opening pressu
re of the safety valve (observe manufacturer’s gures).
●On the storage tank, open the shut-off valves to the hot water outlet or
circulation pipe.
●Close drain valve, open hot water tap, open cold water shut-off valve and
slowly ll storage tank.
●Close hot water tap when it is clear that only water is being discharged.
●Open safety valve slightly until it is clear that only water is being discharged.
●Check water pipes for leaks.
● Check all connections and the ange for leaks.
Operating and Maintenance Instructions - Storage Water Heaters
Commissioning, lling, venting and servicing the system
3. Commissioning
3.1 Commissioning
Commissioning may only take place
when the heater has been properly
installed in a system and the approp-
riate limitation devices provided and
set up, the set-up conditions have
been fullled and the installation has
been checked for proper tting, set-
up conditions and safe operation.
When starting up, the heater should
be continuously observed and
checked for any leaks. In normal
operation the storage tank may only
be operated if equipment required for
safety reasons is continuously effec-
tive and is not disabled or its function
according to the specications modi-
ed during operation. The heater was
designed for static operation.
3.2 Flushing the system
Prior to initial commissioning the enti-
re system should be carefully ushed.
Foreign bodies in the system impair
the working order or safety of the de-
vice. Approved safety devices should
be tted in the cold water supply pipe.
4. Cleaning and servicing
4.1 Cleaning and servicing of tank
vessel
ECOTHERM storage water heater
will increase its life and reliability.
Depending on water condition, regu-
lar checks of the inner tank vessel
are recommended. (min. 1x/year)
4.1.1 Important checks!
Control the tightness of the ange
and the storagetank periodical.
ECOTHERM cannot accept any liabi-
lity for damage caused by water. After
every maintenance of the ange, a
new seal must be installed.
Before starting-up the pressure ves-
sels it is absolutly necessary to re-tig-
hten the bolts! Bolt torque setting Nm
see at rating plate.
Do not cross thread the bolts.Prior to
tting, check screws for damage to
threads.
4.2 Closing and opening the storage tank
Storage tanks must be sealed such that all seals provided are used in
accordance with specications. Sealing surfaces must be clean and unda-
maged. Screwed sealing plugs may only be carefully and uniformly tightened
as far as necessary for sealing. The quoted tightening torques should be
adhered to. The screws may not be released on pressurised storage tanks.
Seals and inspection openings on the storage tank may not be opened until
the pressure has been equalised with the atmosphere. The pressure equali-
sation with the atmosphere should take place after the closing of the pressu-
rised supply pipe by loosening or aerating, whilst observing the pressure gau-
ge. After this, the screwed sealing plugs are loosened such that they can still
retain the sealing cover. Then this should be opened slightly and loosened
until it no longer adheres to its seat.

3
1
2
9
ECOTHERM
HEAT TRANSFER TECHNOLOGY
®
4.2.1 For servicing
●Disconnect the appliance from the power supply.
●Drain the tank via the drain valve (Item 1).
●Remove the flange cover (Item 2).
●Lime scale deposits and contamination can be flushed out via the drain valve.
●Re-fit the flange cover after cleaning
(check condition of gasket (Item 3) and replace, if required).
●After charging and venting the system check all connections for tightness.
● A damp cloth is sufficient for the cleaning of external parts. Abrasive cleaning
agents and solvents should be avoided.
Operating and Maintenance Instructions - Storage Water Heaters
Cleaning and Servicing
4.3 Servicing
All damaged sealing elements, e.g. worn, cracked and bent screws, broken or
otherwise damaged nuts, bent brackets or clamps, damaged seals may no lon-
ger be used and should be replaced by others of the same type.
Maintenance tasks that can jeopardise the safety of the storage tank, and
measures that change the material properties, e.g. by welding, cold and hot
deformation, may only be performed in accordance with the national regulations
of the country where the storage tank is installed.
Before starting-up the pressure
vessels it is absolutly necessary to
re-tighten the bolts!
torque ...xx Nm → look at rating plate
Before opening the ange make
sure you have a new gasket ready!

10
ECOTHERM
HEAT TRANSFER TECHNOLOGY
®
2.2 Guarantee
2.2.2 Warranty
ECOTHERM stainless steel products are
supplied with a manufacturer’s warranty against
leakage subject to the General Terms and
Condition of Trade. Warranty claims require
compliance with the items listed in chapter 1.1
on page 4, as well as the following:
Goods should be checked for completeness on
delivery and for external or hidden defects on
delivery. In the event of any doubt ECOTHERM
shouldbenotiedimmediately.
The warranty period is:
5 years on stainless steel goods manufactured
by us.
1 year on everything else (e.g. buffer tanks,
additional goods purchased, accessories)
The warranty covers the free replacement of
parts, where it can be proved that the defect
is due to material, production or construction
faults. The warranty does NOT cover:
●Dismantling and re-assembly costs
●Consequential damages or profit loss
which may arise from a defect.
Warranty claims have no delaying
effect on the payment dates and other
demands.
The warranty is no longer valid:
●if the warranty conditions are not met
●if damages are caused by misuse or
operating errors.
●If there is evidence of abuse and
improper operation
●If there are violations of the official or
legal regulations
The ECOTHERM storage water heater is
exclusively designed for use in closed-circuit
installations.
Operating and Maintenance Instructions - Storage Water Heaters
5. Warranty, liability and choice of law
5.1 General
These installation and operating instructions are part of the ECOTHERM storage
water heater and shall be handed to user and read carefully to ensure that the
safety aspects are observed at all times.
In the event of sale and re-sale of the ECOTHERM storage water heater to
third parties the installation and operating instructions shall be supplied to the
purchaser.
We would therefore ask you to keep these instructions safely near the
appliance.
ECOTHERM cannot accept any
liability arising from improper use,
installation or non-compliance
with installation and operating
instructions.
Warranty, liability and choice of law
Any other use shall be deemed as not
conforming with the intended purpose
and shall be excluded from any warranty
claims. Prior to installation and start-up of
the ECOTHERM storage water heater the
technicalspecicationshouldbecheckedto
ensure safe and proper use.
In the event of the ECOTHERM storage
water heater being damaged or functioning
unsatisfactorily,please refrainfromattempting
repairs yourself and instead notify your
service agent. Repairs may only be carried
out by an ECOTHERM service engineer
using only original ECOTHERM spare parts.
Non-compliance with these stipulations may
affect function and operational safety of the
ECOTHERM storage water heater and will
invalidate any warranty claims.
Installationshouldbecarriedoutinaccordance
with all applicable regulations and guidelines
an also in accordance with manufacturer‘s
specicationsbyanauthorisedandqualied
installer.
Faulty and improper installation may cause
damage to persons, animals and materials
for which ECOTHERM cannot accept any
liability whatsoever.
For hygienically faultless and safe operation
we recommend regular servicing. Contact
your nearest ECOTHERM Support Centre
for further information. (See Internet www.
ecotherm.com for current address list)
The details and data published in this
technicaldocument reectthe currentstate
of developments. ECOTHERM reserves at
the right to modications serving technical
progress at any time, without any obligation
whatsoever.
2.2.2 Additional warranty conditions
for the stainless steel storage tank
The warranty period of 5 years for the
stainless steel storage tank is valid under the
following additional conditions:
1. Connections mounted only from state
licensed installation company.
2. The assembly of a fine filter in the cold
water inlet
3. Only stainless steel dummy plugs and
immersion sleeves are used
4. Water of drinking water quality and with
a chlorine content of less than 70 mg
CI/L should be used. If the chlorine
content is higher there must be
sufficient externally powered anodes in
continuous operation.
5. Connecting piping of copper or steel are
to be separated electrically (electronic
separation joint or and electronic
separation sleeves with flange connections)
6. The tank legs are left free standing and
not screwed to the floor
2.2.3. Liability
As regards direct or indirect damages
which arise due to inadequate delivery and
performance, we will only be liable in as
far as a defect can be proved to have
been caused. We assume no liability for
consequential damages or loss of profit.
2.2.4 Validity clause
If individual clauses were to invalidate this
condition, this does not affect the validity of
the remaining conditions.
2.2.5. Choice of law
Austrian law is valid. Place of performance
and jurisdiction is Linz, Austria.

11
ECOTHERM
HEAT TRANSFER TECHNOLOGY
®
Operating and Maintenance Instructions - Storage Water Heaters
Notes

ECOTHERM
Distribution & Service:
Distribution & Service:
ECOTHERM Austria GmbH, Karlinger Str. 8, A-4081 Hartkirchen, Europe
[email protected] Tel.:[phone] Fax:[phone]
HEAT TRANSFER TECHNOLOGY
ECOTHERM
High Capacity Water Heaters & Boilers
®
ECOTHERM
HEAT TRANSFER TECHNOLOGY
®
20081104 EF-OP_e
© Copyright ECOTHERM, Austria GmbH, all rights reserved. Subject to change without notice.
Medium / Fluid drinking water
acceptable min./max. temperature (TS): °C see rating plate
acceptable min./max. pressure (PS): bar see rating plate
Periphery temperature min./max.: °C 10/50
Type of load: static
Tightness test realised Date: inspected from:
Final check realised Date: inspected from:
6.1 Operating conditions:
Technical Data
6. Technical Data
