ecoTree SLB-120 User manual

Contents
Contents
Product Overview
Safety Cautions
Mechanism of HOCl Generation
Specification
Limited Warranty 25
24
22
18
16
14
12
5
4
3
How to Use
Troubleshooting
Installation
Component Identification
SLB - 120 HOCl Generation System
3
01.
02.
03.
04.
05.
06.
07.
08.
09.
10.

Product
Overview
Main Body SLB-120 1 ea
1 set
Flow Regulator
Power Cable 1 ea
Connecting Tube 5 m
Chlorine Test Paper 1 ea
Make sure to check there is no damage caused by external shock to the box before opening the package.
SLB - 120 Product Overview
4
Booster Pump
1 ea
1 ea
Prefilter

Safety
Cautions
Thank you for choosing ecoTree™ HOCl Generation System.
Please read this user's manual before installation to ensure proper use and maintenance.
If there are any problems while using this device, please refer to user’s manual for troubleshooting.
The contents of this manual are subject to change.
This manual provides safety information for intended use of this device and for protecting the users from
unexpected injuries or damages.
Please read carefully the guidelines and warnings herein before installation and operation.
Indicates a hazardous situation which could result in death or serious injury.
Indicates important information for first aid.
Indicates a situation which could result in slight physical injury or damage to the device.
Warning
Caution
Attention
SLB - 120 Safety Cautions
5

Precautions for Installation
1. Install the HOCl storage tank in a well ventilated place. Avoid direct sunlight. (If you want to install the device outdoors, please contact your local seller.)
2. Do not install in humid place. (Avoid places where condensation may occur, especially during winter.)
3. Water supply condition: Temperature: 10~40℃(50℉~104℉), Flow Rate : 1.3~2.0 L/min, Water Pressure : 3 - 5 bar
4. Check the pH of the water before installation.
5. Do not block the HOCl outlet.
6. When installing on a table, install it horizontally on a stable table.
7. For the optional specifications, contact your local seller.
8. If re-location is needed after installation, contact your local seller.
1. Do not install in an enclosed place without ventilation. (Install in a well-ventilated area.)
2. Do not install in areas of explosion hazard or flammable material.
3. Do not install in high temperature areas (over 40℃(104℉)) and keep away from direct water drop or water splashing.
4. Use only the power cable supplied with the device.
5. Do not change or replace the fuse of the power socket arbitrarily.
SLB - 120 Safety Cautions
Warning
6

Cautions for Use
Caution
This device is for single-phase
AC 100~240V, 50~60Hz only.
Hold the power plug when unplugging.
Please contact your local seller
for repair of the power plug.
If the main unit is submerged, it may
cause an electric shock. Unplug the
power plug from the electric outlet, pull
up the main unit and ask your local seller
to repair it.
If the electric outlet is wet, unplug the
power plug and dry it completely before
use.
Do not use damaged power plug or
loose socket outlets.
This may cause a fire or electric shock.
Do not pull the power cord.
This may cause a fire or electric shock.
Do not touch the power plug with
wet hands.
Do not twist or press the power cord
and make sure it is not broken.
Be sure to unplug the power plug when
moving, repairing, or inspecting the device.
If not in use for a long time, close the water
supply valve and unplug the power plug.
Do not use multiple electrical appliances
in one outlet at the same time.
Do not attempt to repair or modify the
power cord arbitrarily.
In case of a power failure, unplug the
power plug of the device before power
is back on.
SLB - 120 Safety Cautions
Warning
7
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.

Cautions during Operation
1. If the device is not in use for a long time, remove the HCl solution bottle from the device and keep it separately.
2. For HCl replacement, refer to the user’s manual. (p.17)
3. For other components replacement, contact your local seller.
1. When detecting strong chlorine odor, stop operation immediately, ventilate the area and contact your local seller.
2. Ensure there is adequate ventilation while using the device.
3. Do not operate if there is a leakage.
4. Do not operate with wet hands.
5. Do not modify or disassemble the device arbitrarily. Any damage or device failure caused by improper, incorrect and unintended use
is not covered with warranty.
SLB - 120 Safety Cautions
Warning
8

HOCl Cautions
1. HOCl must be kept in a storage tank made of PE, PVC or FRP.
2. When HOCl is exposed to organic materials, it may reduce the sterilizing ability.
3. Note that the sterilizing ability of HOCl will decrease rapidly when HOCl is exposed to light.
4. When using stored HOCl, check the pH and chlorine concentration before use.
1. Do not add anything to HOCl. If any chemicals added, this may generate chlorine gas.
2. Do not use HOCl at 50℃(122℉) or higher.
3. Do not use HOCl in enclosed places.
4. Do not place HOCl storage tank nearby the inflammables.
※For more information, please refer to the Safety Data Sheet (SDS) provided by your local seller.
SLB - 120 Safety Cautions
Warning
9

Precautions for handling 3% HCl Solution
1. Use only the 3% HCl solution supplied with the device.
2. When handling, wear protective goggles, gloves and clothes if necessary. Also wash your hands thoroughly after handling.
3. If the 3% HCl is spilled on metal, rinse with sufficient amount of water.
4. Do not subdivide or transport into other containers.
5. Do not reuse the container. Used container should be washed with water before disposal.
6. Make sure to ventilate when using. Chlorine gas may be generated.
7. When spilled on the floor or appliances, wash it with plenty of water.
8. Keep away from direct sunlight.
9. Handle carefully during transportation as it may leak.
1. 3% HCl solution is highly corrosive.
2. Skin contact may cause burns or inflammation.
3. Inhalation or ingestion may cause irritation.
4. Do not mix with other chemicals.
5. Eye contact may cause blindness.
6. Use it only for intended use.
※For more information, please refer to the Safety Data Sheet (SDS) provided by your local seller.
SLB - 120 Safety Cautions
Warning
10

Attention
The following situations require first aid.
Skin contact ▶Immediately wash skin with plenty of water.
Contact on clothing or shoes ▶Remove contaminated clothing or shoes and wash skin with plenty of water.
Do not try to neutralize the acid with alkaline solution.
Eye contact ▶Do not rub your eyes and wash immediately with running water for at least 15 minutes.
Ingestion ▶Drink plenty of water and immediately contact a doctor.
Inhalation ▶Move to a place where there is fresh air.
SLB - 120 Safety Cautions
11

Mechanism of
HOCl Generation
ecoTree SLB-120
ecoTree SLB-120 uses un-divided electrolytic cell system.
It generates Hypochlorous acid (HOCl) through electrolysis of 3%
HCl and dilution with water.
Electrolysis
In general, electrolysis refers to the oxidation-reduction reaction of
an electrolyte using electric current. HOCl, widely known as an eco-
friendly disinfectant, is generated by this mechanism.
SLB-120
HOCl Generating System
12

SLB - 120 Mechanism of HOCl Generation
Chlorine Concentration : 20 ~ 40 ppm
HOCl Solution pH : 5.0 ~ 6.5
13
HOCl Generation Process

②
Component
Identification
⑤
Front
Rear
⑥
⑦
⑧
⑪
⑨
⑫
③
①
⑩
④
①Main body
②Power button
③Display
④Mechanical compartment
⑤Control panel
⑥Raw material container
⑦Power connection
⑧Control panel vent
⑨Mechanical compartment vent
⑩Level sensor connection
⑪HOCl outlet
⑫Water supply connection
SLB - 120 Component Identification
14

Button
Press 1~2 seconds to enter system menu.
Press to return to the previous menu .
Press to move to the next menu or the lower line.
Press to move to the previous menu or the upper line.
Press 1~2 seconds to start and stop HOCl generation.
SystemstatusSysteminformation
Front control panel User interface
15
Menu Description
Date Displays the date information.
Flow rate Displays the current water flow rate.
OP(Time) Operation: Displays the current running time after power on.
TOP(Time) Total Operation: Displays total running time.
SLB - 120 Component Identification
Description

Installation
SLB-120 Installation and Operation
SLB - 120 Installation
16
HOCl
Generation System

Table
>80cm
(32”)
SLB - 120 Installation
Use supplied 3% HCl for ecoTree™ only.
The specifications of the tank shall be changed depending on the local conditions and purpose of use.
Installation of 3% HCl solution tank Installation site & Connection
①Open the 3% HCl solution tank cover.
②Open the cap of 3% HCl solution tank.
③Fill up the 3% HCl solution in the 3% HCl solution tank.
④Close the cap of 3% HCl solution tank.
⑤Adhere the 3% HCl solution tank to the 3% HCl solution level sensor.
⑥Close the 3% HCl solution tank cover. (Close the tank cover carefully.)
3% HCl solution tank
Cap
3% HCl solution
tank cover
3% HCl solution level sensor
①Install the device on a horizontal table.
②In order to replace the 3% HCl solution tank, secure at least 80cm(32”) space from the wall.
③On the back side, secure at least 10cm(4”) from the wall to ensure proper ventilation.
④Using tap water is recommended for HOCl quality.
⑤Check the flow rate of water is 2 L/min. Please contact your local seller if it is less than 2 L/min.
⑥Single-phase 110v or 220v is required.
Table
Wall
Side
>10cm
(4”)
17

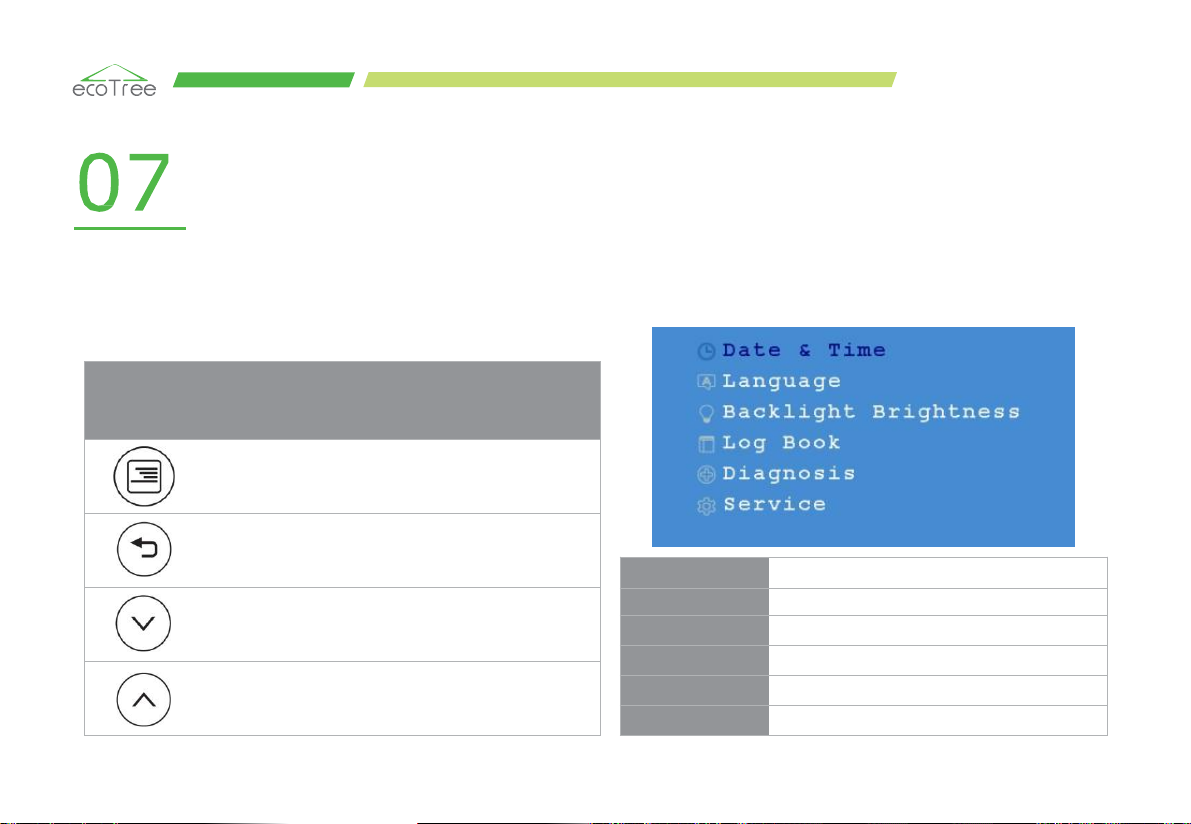

Date& Time Set the date and time.
Language Select English or Korean.
Backlight Brightness Adjust LCD brightness.
Log Book Record and store the operation history.
Diagnosis Self-check for normal operation.
Service Only for a qualified technician.
Press 1~2 seconds to enter system menu.
Press to return to the previous menu.
Press to move to the next menu or the lower line.
Press to move to the previous menu or the upper line.
How to use
Menu Button Menu Screen
SLB - 120 How to use
18
Button Description

②Power Socket
④Control Panel
①Power Switch
③Power Button ⑤LCDDisplay
SLB - 120 How to use
[Rear]
[Front]

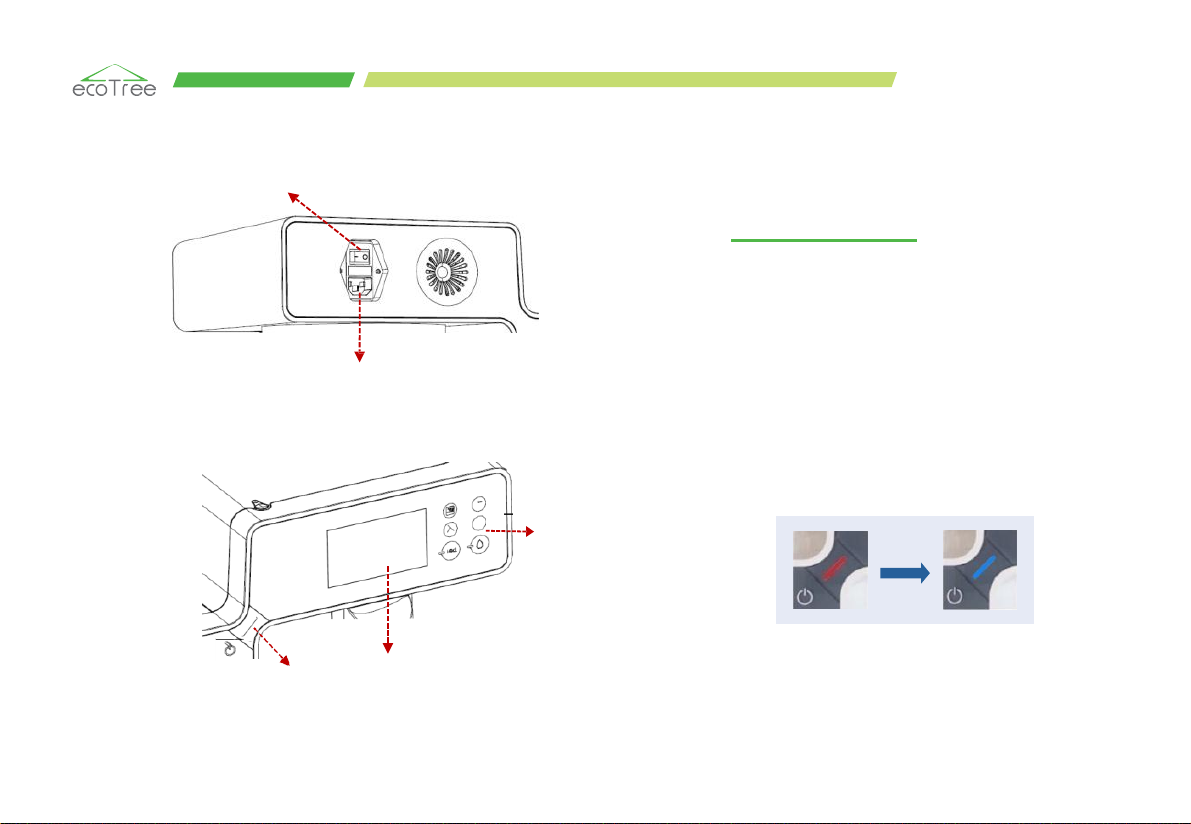

After Installation
Connect the power plug into ②Power Socket
and turn on ①Power Switch to operate.
The ③Power Button lights on in red.
When press ③Power Button for 1-2 seconds,
it turns to blue.
The self-diagnosis starts automatically.
19
1_
2_
3_
4_

Status : Process Checking Status : Complete
Status : Initializing Fail
Status : Standby

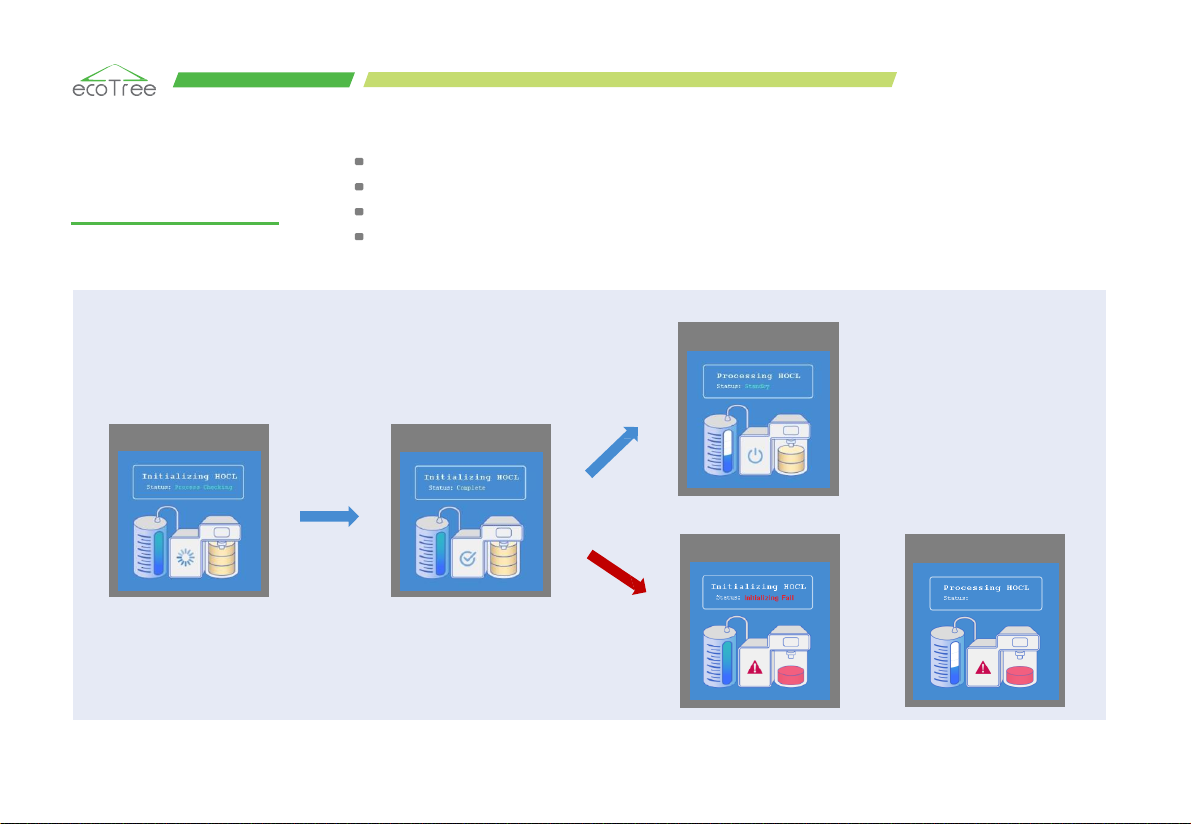

Starting System
[Graphic User Interface]
When the system is powered on, the HOCl Generation System automatically checks internal components.
①Process Checking message is shown on the display and then, ②Complete message is displayed.
If there is no error, ③Standby message is displayed.
If either ④Initializing Fail or ⑤Multiple Errors is displayed, check the troubleshooting section.
SLB - 120 How to use
20
Status : Multiple Errors
①②
⑤
③
④
or M u l t i p l e E r r o r s

Status : Operating
Status : Stop

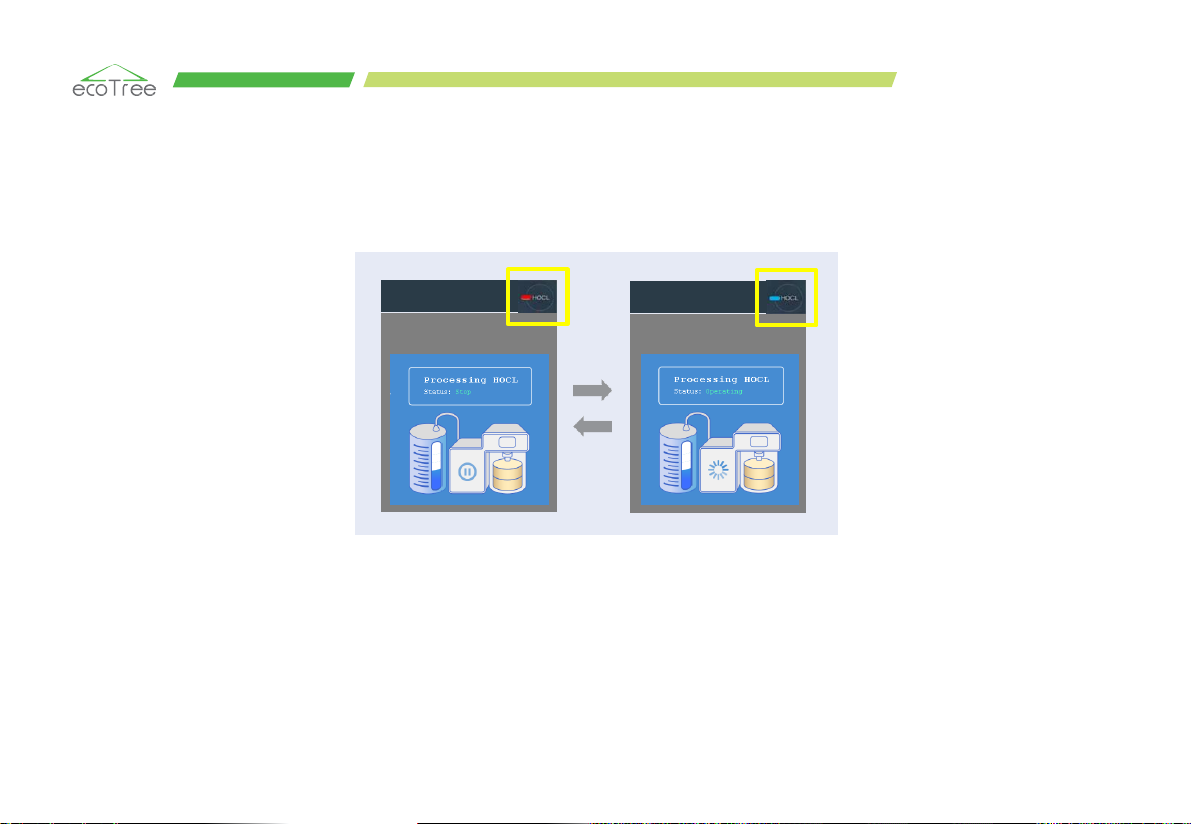

①When the system initializing is completed, press the HOCl button for 1 –2 seconds
to change red LED to blue LED, then HOCl generation starts.
②The generated HOCl will be storedin a storage tank.
③To stop the HOCl generation, press HOCl button for 1 –2 seconds.
SLB - 120 How to use
21
Start/stop HOCl generation
①
③

Troubleshooting
[HCl level Sensor error message]
[Flow Rate error message]
Processing HOCl / Status
: 3% HCl Change
Processing HOCl / Status
: Flow Rate High / Low / FSS Missing
[Cause] 1
The level of 3% HCl solution is too low.
[Action] 1
Refill with the new 3% HCl solution tank.
22
SLB - 120 Troubleshooting
[Cause] 2
[Action] 2
The 3% HCl solution tank is not adherent to the 3% HCl solution level sensor.
Tightly adhere the 3% HCl solution tank to the 3% HCl solution level sensor.
[Cause] 1
The flow rate is low.
[Action] 1
Make sure the water pipe is fully opened.
[Cause] 2
The flow rate is high.
[Action] 2 & 3
Please contact your local seller.
[Cause] 3
Flow Sensor Signal (FSS) is missing.
F l o w R a t e H i g h
F l o w R a t e L o w
F S S M i s s i n g
Processing HOCl / Status
: Initializing Fail
If 1 out of the error message in this manual occurs.
Processing HOCl / Status
: Multiple Errors
If more than 1 error message in this manual occurs.
[Action]
Check the Log Book.
Refer to troubleshooting and take correct actions
for each case.
