Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT!
We hope it brings you many years of satisfaction. We trust the purchase of your
new robot will help keep your home clean and provide you more quality time to
do other things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in
this Instruction Manual, please contact our Customer Service Center where a
technician can address your specic problem or question.
For more information, please visit the ECOVACS ROBOTICS official website:
www.ecovacs.com
The Company reserves the right to make technological and/or design changes
to this product for continuous improvement.
Thank you for choosing DEEBOT!
Benutzerhandbuch............................................................25
DE
Manuale d'uso .................................................................103
IT
..................................................51
Manual de instrucciones
ES
.......................................................77
Manuel d'instructions
FR
..............................................................2
Instruction Manual
EN
EU-Declaration of conformity.............................................129

EN
1. Important Safety Instructions......................................................................2
2. Package Contents and Technical Specications ......................................6
2.1 Package Contents ....................................................................................6
2.2 Specications ...........................................................................................6
2.3 Product Diagram.......................................................................................7
3. Operating and Programming.......................................................................9
3.1 Notes Before Cleaning .............................................................................9
3.2 Quick Start..............................................................................................10
3.3 Cleaning Mode Selection........................................................................13
3.4 Programming the Robot .........................................................................15
3.5 Indicator Light and Alarm Sounds...........................................................17
4. Maintenance................................................................................................19
4.1 Dust Bin and Filters ................................................................................19
4.2 Main Brush and Side Brushes................................................................20
4.3 Other Components .................................................................................21
4.4 Regular Maintenance .............................................................................22
5. Troubleshooting .........................................................................................23
Contents
.......................................................77

EN
2
1. Important Safety Instructions
When using an electrical appliance, basic precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE.
SAVE THESE INSTRUCTIONS
1. This Appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
Appliance in a safe way and understand the hazards involved.
Children shall not play with the Appliance. Cleaning and user
maintenance shall not be made by children without supervision.
2. Clear the area to be cleaned. Remove power cords and small
objects from the floor that could entangle the Appliance. Tuck
rug fringe under the rug base, and lift items such as curtains and
tablecloths off the oor.
3. If there is a drop off in the cleaning area due to a step or stairs,
you should operate the Appliance to ensure that it can detect the
step without falling over the edge. It may become necessary to
place a physical barrier at the edge to keep the unit from falling.
Make sure the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only use attachments
recommended or sold by the manufacturer.
5. Please make sure your power supply voltage matches the power
voltage marked on the Charging Dock.
6. For INDOOR household use ONLY. Do not use the Appliance in
outdoor, commercial or industrial environments.
7. Non-rechargeable batteries are prohibited.
8. Do not use without dust bin and/or lters in place.
9. Do not operate the Appliance in an area where there are lit
candles or fragile objects.
10. Do not use in extremely hot or cold environments (below
-5˚C/23˚F or above 40˚C/104˚F).

EN 3
1. Important Safety Instructions
11. Keep hair, loose clothing, fingers, and all parts of body away
from any openings and moving parts.
12. Do not operate the Appliance in a room where an infant or child
is sleeping.
13. Do not use Appliance on wet surfaces or surfaces with standing
water.
14. Do not allow the Appliance to pick up large objects like stones,
large pieces of paper or any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable or combustible
materials such as gasoline, printer or copier toner, or use in
areas where they may be present.
16. Do not use Appliance to pick up anything that is burning or
smoking, such as cigarettes, matches, hot ashes, or anything
that could cause a re.
17. Do not put objects into the suction intake. Do not use if the
suction intake is blocked. Keep the intake clear of dust, lint, hair,
or anything that may reduce air ow.
18. Take care not to damage the power cord. Do not pull on or
carry the Appliance or Charging Dock by the power cord, use
the power cord as a handle, close a door on the power cord,
or pull power cord around sharp edges or corners. Do not run
Appliance over the power cord. Keep power cord away from hot
surfaces.
19. If the power cord is damaged, it must be replaced by the
manufacturer or its service agent in order to avoid a hazard.
20. Do not use the Charging Dock if it is damaged.
21. Do not use with a damaged power cord or receptacle. Do not
use the Appliance or Charging Dock if it is not working properly,
has been dropped, damaged, left outdoors, or come in contact
with water. It must be repaired by the manufacturer or its service
agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning or maintaining the
Appliance.

EN
4
1. Important Safety Instructions
23. The plug must be removed from the receptacle before cleaning
or maintaining the Charging Dock.
24. Remove the Appliance from the Charging Dock, and turn OFF
the power switch to the Appliance before removing the battery
for disposal of the Appliance.
25. The battery must be removed and discarded according to local
laws and regulations before disposal of the Appliance.
26. Please dispose of used batteries according to local laws and
regulations.
27. Do not incinerate the Appliance even if it is severely damaged.
The batteries can explode in a re.
28. When not using the Charging Dock for a long period of time,
please unplug it.
29. The Appliance must be used in accordance with the directions
in this Instruction Manual. ECOVACS ROBOTICS cannot be
held liable or responsible for any damages or injuries caused by
improper use.
30. The robot contains batteries that are only replaceable by skilled
persons. To replace or remove the battery, please contact
Customer Service.
31. If the robot will not be used for a long time, fully charge the robot
and power OFF for storage and unplug the Charging Dock.
32.WARNING: For the purposes of recharging the battery, only
use the detachable supply unit DK18-190060H-V provided with
this appliance.
33. The Remote Control pre-installs two non-rechargeable AAA
batteries. To replace the battery of the Remote Control, please
turn over the Remote Control, press and remove its Battery
Cover. Remove the batteries, and insert the new batteries with
the correct polarity. Reassemble the Battery Cover.
34. Non-rechargeable batteries are not to be recharged.
35. Different types of batteries or new and used batteries are not to
be mixed.

EN 5
Correct Disposal of this Product
This marking indicates that this product should not be disposed
of with other household waste throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To recycle your used
device, please use the return and collection systems or contact
the retailer where the product was purchased. They can safely
recycle this product.
For EU Countries
1. Important Safety Instructions
36. Batteries of the Remote Control are to be inserted with the
correct polarity.
37. Exhausted batteries are to be removed from the Appliance and
safely disposed of.
38. If the Remote Control is to be stored unused for a long period,
the batteries should be removed.
39. The supply terminals are not to be short-circuited.
To disable Wi-Fi module on DEEBOT, power the robot ON.
Place the robot on the Docking Station making sure the Charging
Contacts on DEEBOT and the Docking Station Pins make a
connection.
Press and hold the AUTO Mode Button on the robot for 10
seconds until DEEBOT emits 3 beeps.
To enable Wi-Fi module on DEEBOT, power the robot OFF and
then power ON. The Wi-Fi module is turned on when DEEBOT is
restarted.

EN
6

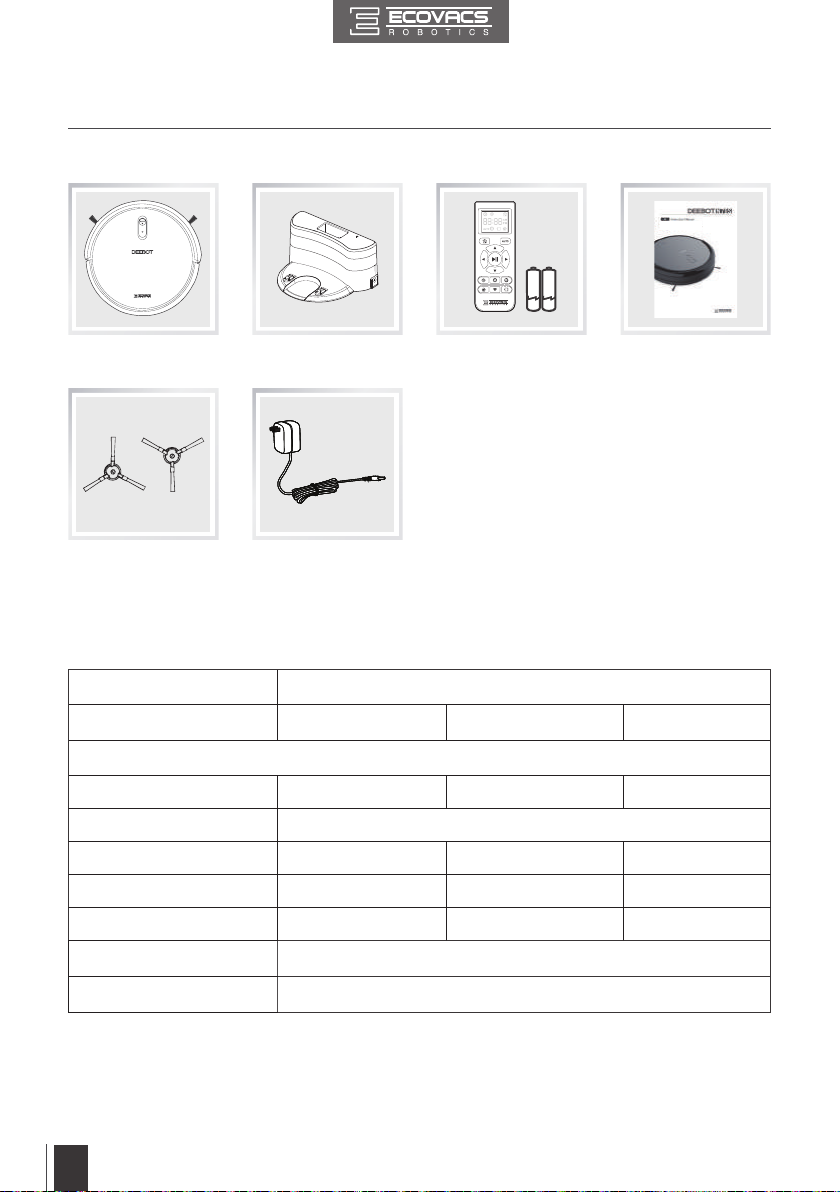

2. Package Contents and Technical Specications
2.1 Package Contents
Robot
(2) Side Brushes Power Adapter
Charging Dock with
Power Adapter
Remote Control
(with battery)
Instruction Manual
Model DN622.11
Working Voltage 14.4V DC Rated Power 25W
Charging Dock
Rated Input Voltage 19V DC Rated output current 0.6A
Power Adapter Model DK18-190060H-V
Rated Input Voltage 100-240V AC Rated Input Current 0.5A
Rated output Voltage 19V DC Rated output current 0.6A
Remote Control Model RC1507 Input Voltage 3V DC
Off/Standby Mode Power Less than 0.50 W
Networked Standby Power Less than 2.00 W
2.2 Specications
* Technical and design specications may be changed in the course of continuous product improvement.

EN 7
2.3 Product Diagram
Robot
1. Anti-Collision Sensors and Bumper
2. Control Panel
3. Dust Bin Release Button
4. Charging Contacts
5. Battery Cover
6. Driving Wheels
7. Power Adapter Port
8. Power Switch
9. Anti-Drop Sensors
10. Universal Wheel
11. Side Brushes
12. Main Brush
13. Dust Bin
2. Package Contents and Technical Specications
Charging Dock
1. Power Indicator Light
2. Power Adapter
3. Power Adapter Port
4. Charging Dock Pins
1. AUTO Mode Button
2. Wi-Fi Indicator Light
Control Panel
1
2
4
3
5
6
78
9
10
11
12
13
1
2
1
2
3
4

EN
8
2. Package Contents and Technical Specications
Remote Control
1. LCD Screen
2. Return to Charger Mode Button
3. AUTO Mode Button
4. Direction Control Buttons
5. START/PAUSE Button
6. Time Scheduling Button
7. Set Current Time Button
8. Spot Cleaning Mode Button
9. Single Room Mode Button
10. Network Setup Button
11. Edge Cleaning Mode Button
12. Infrared Emitter
Dust Bin
1. Filter Net
2. Sponge Filter
3. High Efciency Filter
4. Dust Bin Cover
5. Dust Bin
6. Dust Bin Release Button
2
5
6
9
10
1
2
3
6
5
4
1
12
3
4
7
8
11

EN 9

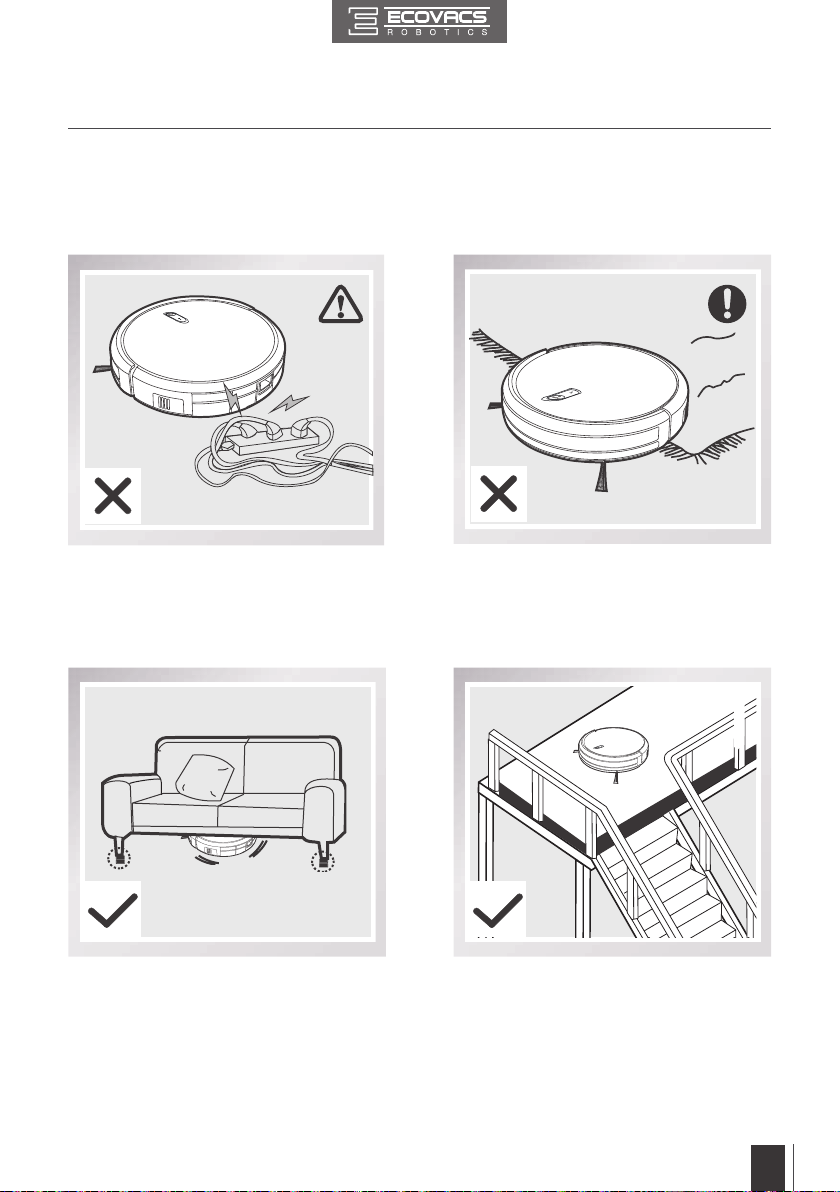

3.1 Notes Before Cleaning
Before operating DEEBOT, take a few moments to survey the area to be
cleaned and remove any obstacles.
Remove power cords and small objects from
the oor that could entangle the product.
Please be aware that the robot needs at
least an 8 cm (3”) clearance to clean under
furniture without complications.
The product is not suitable for use on long-pile
carpet. Before using the product near an area
rug or on a short-pile area rug with tasseled
edges, please fold area rug edges under
themselves.
If there is a step or stairs in the cleaning area,
please operate DEEBOT to ensure its Anti-
Drop Sensors can detect the drop off. It may
be necessary to place a physical barrier at the
edge of the drop off to keep the unit from falling
over the edge.
3. Operating and Programming

EN
10
3. Operating and Programming
* When DEEBOT is not cleaning, it is suggested to keep it powered ON and charging instead
of powered OFF.
3.2 Quick Start
Charging Dock Placement
■Connect the Power Adapter to the Charging Dock.
■ Place the Charging Dock on a level oor surface against the wall with the base perpendicular
to the ground. Keep the immediate area 2m (6.6’) in front of the charger and 1 m (3.3’) on both
sides of the charger clear of objects and reective surfaces.
■Plug the Charging Dock in. The Power Indicator Light on the Charging Dock glows.
■Attach Side Brushes to the bottom of
DEEBOT by pressing a brush into each
slot until it clicks.
■Turn the robot’s Side Power Switch to
the ON position. “l” indicates ON and
“O” indicates OFF. DEEBOT is powered
ON when button glows a continuous
BLUE.
1
Install Side Brushes
2
Power ON
3

EN 11
3. Operating and Programming
* Make sure to turn the robot’s Power Switch on before charging.
* button blinks when DEEBOT is charging. button stops glowing after DEEBOT is fully
charged.
* To choose another Cleaning Mode, please refer to section 3.3 Cleaning Mode Selection for
details.
* DEEBOT can be directed using the Direction Control Buttons on the Remote Control when it
is paused.

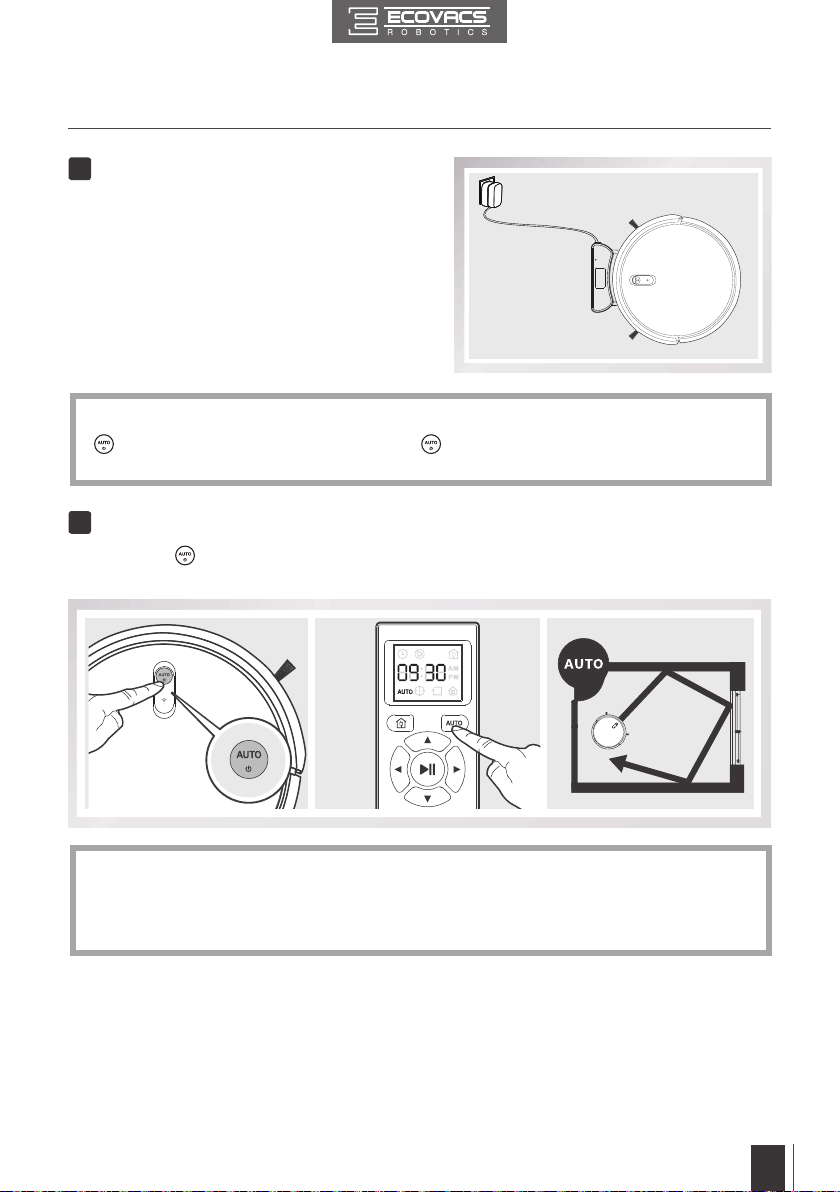

■Place DEEBOT on the Charging Dock
making sure the Charging Contacts on
DEEBOT and the Charging Dock Pins make
a connection.
■Charge DEEBOT for at least 4 hours before
the rst use.
■Press the button on DEEBOT or the AUTO Mode Button on the Remote Control. DEEBOT
starts to work immediately in AUTO Cleaning Mode.
4
5
Charge DEEBOT
Start

EN
12
6Pause
3. Operating and Programming
7Power OFF
■Pause DEEBOT by pressing the
button on DEEBOT or the START/
PAUSE Button on the Remote Control.
■Turn the robot’s Side Power Switch to
the ON position. “l” indicates ON and “O”
indicates OFF.
* The AUTO Mode Button on the robot's Control Panel stops glowing when the robot is paused
for more than 10 minutes. Press AUTO Mode Button on the robot or press any button on the
Remote Control to start the DEEBOT immediately.
* When DEEBOT is not cleaning, it is suggested to keep it powered ON and charging instead
of powered OFF.

EN 13
3. Operating and Programming
* For models with app-connectivity, various functions can be performed using the ECOVACS
App.
3.3 Cleaning Mode Selection
DEEBOT has several cleaning modes to choose from to effectively clean different oors.Cleaning
modes are selected using the Remote Control.
■This mode is applicable for an area of highly
concentrated dirt or dust. In Spot Cleaning
Mode, DEEBOT focuses on a specic area
to clean. DEEBOT cleans the area in a spiral
pattern using MAX suction power and stops
when it completes Spot Cleaning.
■To start Spot Cleaning Mode, press Spot
Cleaning Mode Button on the Remote
Control.
2Spot Cleaning Mode
( Less than 3 minutes)
■This is the most commonly used mode. In
AUTO Cleaning Mode, DEEBOT cleans in
a straight line and changes direction when it
meets an obstacle.
■To start AUTO Cleaning Mode, Press the
button on DEEBOT or the AUTO Mode
Button on the Remote Control.
1AUTO Cleaning Mode

EN
14
■This mode is used when DEEBOT only
needs to clean a single room. To start Single
Room Cleaning Mode, press the Single
Room Mode Button on the Remote Control.
■When battery power gets low, DEEBOT
automatically switches to Return to Charger
Mode and returns to the Charging Dock to
recharge itself.
4
5
Single Room Mode
Return to Charger Mode
* The room must be contained for Single
Room Mode to function properly. Close
doors to the room entrance and exit to
contain the room.
* DEEBOT can also be sent back to the
Charging Dock at any time by pressing the
Return to Charger Button on the Remote
Control.
■This mode is good for cleaning the edges
and corners of a room. In Edge Cleaning
Mode, DEEBOT cleans along a border using
MAX suction power (e.g. wall).
■To start Edge Cleaning Mode, press the
Edge Cleaning Mode Button on the Remote
Control.
3Edge Cleaning Mode
*Use the App to adjust the suction power of any Cleaning Mode already in process.
3. Operating and Programming

EN 15
3. Operating and Programming
DEEBOT has a Time Scheduling function. DEEBOT can be programmed to automatically clean at a
specic time using the Remote Control, even if nobody is at home. The current time of day and the
cleaning times are scheduled using the Remote Control.
Press button on the Remote Control and the
“hour" (rst two digits) ashes on the Remote
Control LCD Screen.
Press button on the Remote Control to
conrm and save the current time of day.
Press the up and down Direction Control
Buttons to adjust “hour” and “minute” number.
Press the left and right Direction Control Buttons
to switch between “hour” and “minute.”

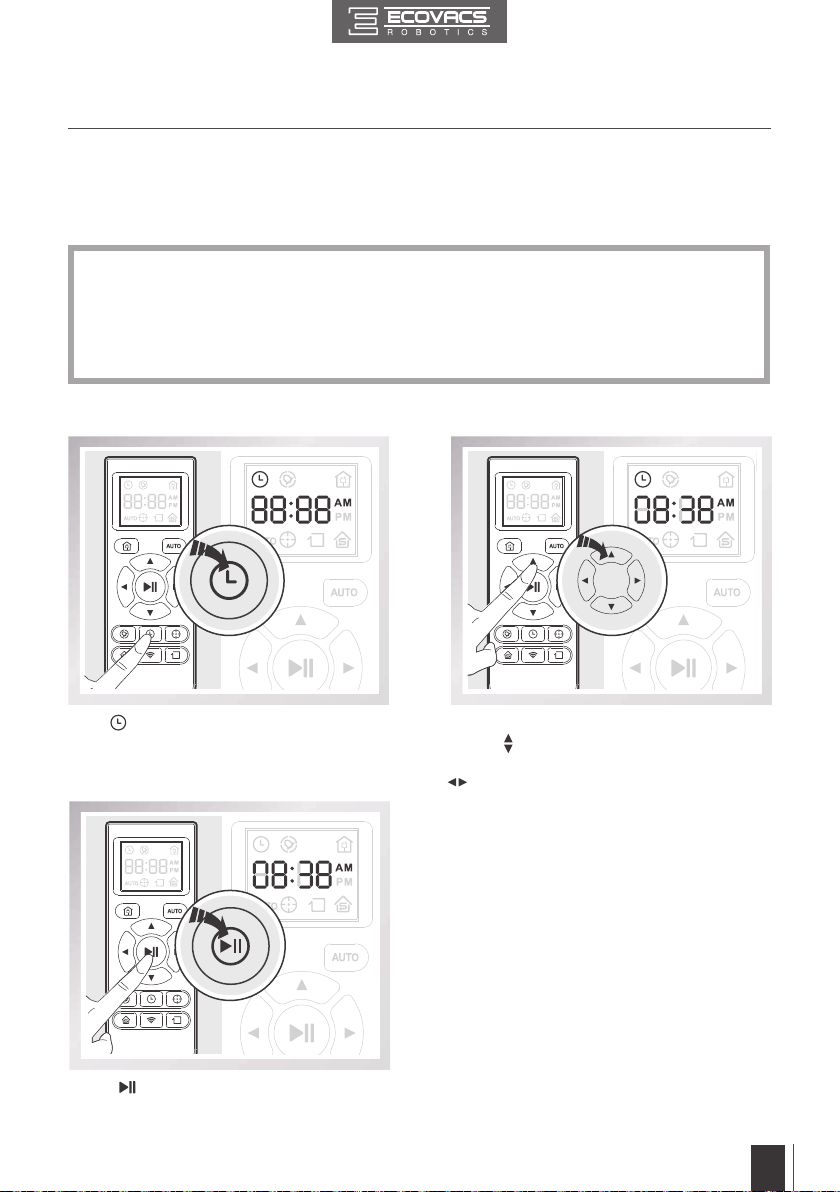

3.4 Programming the Robot
Set the Current Time of Day
* All scheduled cleanings are performed in AUTO Cleaning Mode.
* The Remote Control uses a 12-hour clock with “AM” and “PM” indicators.
* DEEBOT loses the current time of day and schedule once it is powered OFF. Reset the
current time of day and schedule the cleaning time when power on the DEEBOT again.
* It is suggested to keep it powered ON and charging instead of powered OFF.

EN
16
Press button on the Remote Control and
the “hour” (first two digits) flashes on the
Remote Control Screen.
Press button on the Remote Control to
confirm and save the scheduled cleaning
time. DEEBOT beeps. DEEBOT automatically
cleans at the scheduled cleaning time every
day.
To cancel the scheduled cleaning time, press
and hold button for 3 seconds until
disappears from the Remote Control LED
Screen and the robot beeps. The scheduled
cleaning time is cancelled.
Press the up and down Direction Control
Buttons to adjust “hour” and “minute”
number. Press the left and right Direction
Control Buttons to switch between “hour”
and “minute.”
Schedule the Cleaning Time using Remote Control
Cancel Scheduled Cleaning Time
using Remote Control
3. Operating and Programming

EN 17
3. Operating and Programming
If DEEBOT detects a problem, it emits alarm beeps and the AUTO Mode Button flashes RED or
glows RED.
3.5 Indicator Light and Alarm Sounds
AUTO Mode Button Status
Flashes BLUE The robot is charging.
Flashes RED or glows a continuous RED The robot has a problem.
Glows a continuous RED The robot has low battery.
Glows a continuous BLUE The robot is cleaning.
Alarm Sound Problems Solution
One Beep The robot is suspended or
stuck.
Place the robot on an even surface, or
remove the obstacles, and restart the robot.
Two Beeps Anti-Collision Bumper
Malfunction
Check the Anti-Collision Bumper for debris
and remove the debris.
Three Beeps Anti-Drop Sensors Malfunction Clean Anti-Drop Sensors as described in
section 4 Maintenance.
Four Beeps Low Battery Manually place the robot on the Charging
Dock to charge.
Indicator Light
Alarm Sounds
Flashing RED:

EN
18
3. Operating and Programming
Alarm Sound Problems Solution
One Beep Driving Wheel malfunction
Check Driving Wheel for tangled hair or
debris and clean as described in section 4
Maintenance.
Two Beeps Side Brush malfunction
Check Side Brushes for tangled hair or
debris and clean as described in section 4
Maintenance.
Three Beeps Dust Bin malfunction Empty the Dust Bin as described in section
4 Maintenance.
Four Beeps Main Brush malfunction
Check Main Brush for tangled hair or
debris and clean as described in section 4
Maintenance.
Glowing a continuous RED:
