Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of
satisfaction. We believe that your new robot will help keep your home clean and give you more quality time to do other
things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our

www.ecovacs.com
The company reserves the right to make technological and/or design changes to this product for continuous improvement.
Thank you for choosing DEEBOT!
Instruction Manual ............................................................................................................2
EN
Manual Arahan ................................................................................................................66
MS
TH
AR
说明书................................................................................................................................45
ZH
說明書................................................................................................................................24
ZH-TW
........................................................................................................88
.....................................................................................................................110

3
EN
1. Important Safety Instructions...........................................................................................................................................4
2. Package Contents .............................................................................................................................................................7
3. Operating and Programming..........................................................................................................................................10
4. Maintenance.....................................................................................................................................................................15
5. Status Indicator Light and Alarm Sounds.....................................................................................................................19
6. Troubleshooting ..............................................................................................................................................................20
.................................................................................................................................................23
Contents

4
EN
1. This Appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the Appliance in a safe way
and understand the hazards involved. Children
shall not play with the Appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
2. Clear the area to be cleaned. Remove power

entangle the Appliance. Tuck rug fringe under
the rug base, and lift items such as curtains and

3. If there is a drop off in the cleaning area due to a
step or stairs, you should operate the Appliance
to ensure that it can detect the step without
falling over the edge. It may become necessary
to place a physical barrier at the edge to keep
the unit from falling. Make sure the physical
barrier is not a trip hazard.
4. Only use as described in this manual. Only
use attachments recommended or sold by the
manufacturer.
5. Please make sure your power supply voltage
matches the power voltage marked on the
Docking Station.
6. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial or
industrial environments.
7. Non-rechargeable batteries are prohibited.
8. Do not use without dust bin and/or filters in
place.
9. Do not operate the Appliance in an area where
there are lit candles or fragile objects.
10. Do not use in extremely hot or cold


11. 
of body away from any openings and moving
When using an electrical appliance, basic precautions should always be

READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE.
SAVE THESE INSTRUCTIONS
1. Important Safety Instructions

5
EN
parts.
12. Do not operate the Appliance in a room where
an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or
surfaces with standing water.
14. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or any
item that may clog the Appliance.
15. Do not use Appliance to pick up flammable or
combustible materials such as gasoline, printer
or copier toner, or use in areas where they may
be present.
16. Do not use Appliance to pick up anything that
is burning or smoking, such as cigarettes,
matches, hot ashes, or anything that could

17. Do not put objects into the suction intake. Do
not use if the suction intake is blocked. Keep the
intake clear of dust, lint, hair, or anything that

18. Take care not to damage the power cord. Do
not pull on or carry the Appliance or Docking
Station by the power cord, use the power cord
as a handle, close a door on the power cord, or
pull power cord around sharp edges or corners.
Do not run Appliance over the power cord. Keep
power cord away from hot surfaces.
19. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. Do not use the Docking Station if it is damaged.
21. Do not use with a damaged power cord or
receptacle. Do not use the Appliance or Docking
Station if it is not working properly, has been
dropped, damaged, left outdoors, or come in
contact with water. It must be repaired by the
manufacturer or its service agent in order to
avoid a hazard.
22. Turn OFF the power switch before cleaning or
maintaining the Appliance.
23. The plug must be removed from the receptacle
before cleaning or maintaining the Docking
Station.
24. Remove the Appliance from the Docking
Station, and turn OFF the power switch to
1. Important Safety Instructions

6
EN
the Appliance before removing the battery for
disposal of the Appliance.
25. The battery must be removed and discarded
according to local laws and regulations before
disposal of the Appliance.
26. Please dispose of used batteries according to
local laws and regulations.
27. Do not incinerate the Appliance even if it is
severely damaged. The batteries can explode in

28. When not using the Docking Station for a long
period of time, please unplug it.
29. The Appliance must be used in accordance
with the directions in this Instruction Manual.
ECOVACS ROBOTICS cannot be held liable or
responsible for any damages or injuries caused
by improper use.
30. The robot contains batteries that are only
replaceable by skilled persons. To replace or
remove the battery, please contact Customer
Service.
31. If the robot will not be used for a long time, fully
charge the robot and power OFF for storage
and unplug the Docking Station.
1. Important Safety Instructions
32. WARNING: For the purposes of recharging
the battery, only use the detachable supply unit
CH1630A provided with this appliance.
33. The Remote Control pre-installs two non-
rechargeable AAA batteries. To replace the
battery of the Remote Control, please turn
over the Remote Control, press and remove
its Battery Cover. Remove the batteries, and
insert the new batteries with the correct polarity.
Reassemble the Battery Cover.
34. Non-rechargeable batteries are not to be
recharged.
35. Different types of batteries or new and used
batteries are not to be mixed.
36. Batteries of the Remote Control are to be
inserted with the correct polarity.
37. Exhausted batteries are to be removed from the
Appliance and safely disposed of.
38. If the Remote Control is to be stored unused for
a long period, the batteries should be removed.
39. The supply terminals are not to be short-
circuited.

7
EN
2.1 Package Contents
Robot
Remote Control with
Batteries
Sponge Filter and High


Docking Station
Multi-Function Cleaning
Tool
Instruction Manual+
Quick Start Guide
Note: Figures and illustrations are for reference only and may differ from actual product appearance.

2. Package Contents

8
EN
Anti-collision Sensors and
Bumper
2.3 Product Diagram
Robot
AUTO Mode Button
VSLAM Camera
Power Switch
Reset Button
Dust Bin
Release Button
Anti-drop Sensors
Main Brush Option
Charging Contacts
Flow Sensor
Universal Wheel
Side Brushes
Bottom View
2. Package Contents

9
EN
2. Package Contents
Docking Station Remote Control
START/PAUSE Button
Edge Cleaning Mode
Button
Direction Control Buttons
Spot Cleaning Mode Button
Return to Charger
Mode Button
Infrared Signal Generator
Docking Station Pins

10
EN
Before using the product on a rug with tasseled edges, please fold the
rug edges under.
WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water.
It may be necessary to place a physical barrier at the edge of a drop to
stop the unit from falling over the edge.
       
could be obstructed by.

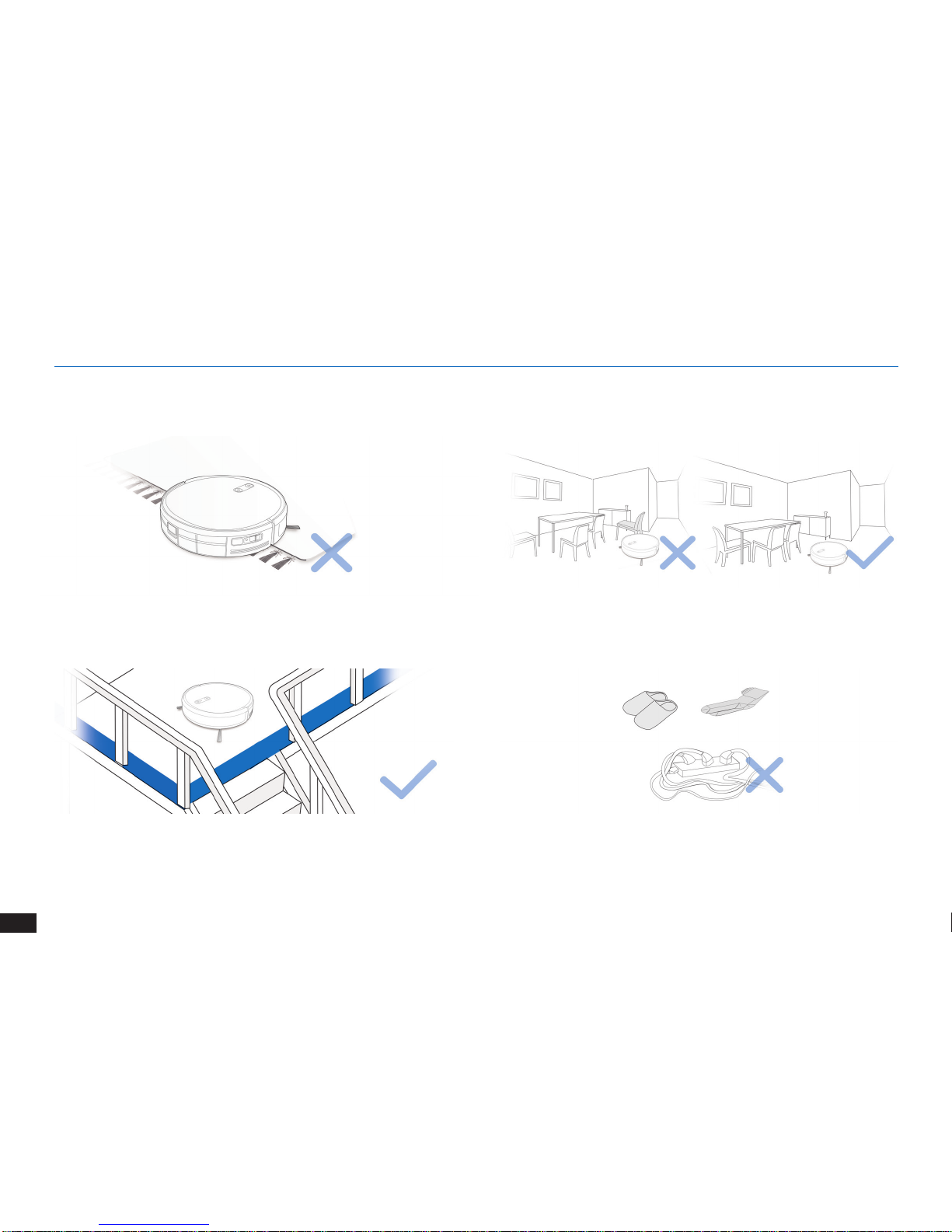

3.1 Notes Before Cleaning
Tidy up the area to be cleaned by putting furniture, such as chairs, in
their proper place.
3. Operating and Programming

11
EN
3. Operating and Programming
1Remove Protective Strip 2Charging Dock Placement 3Install Side Brushes
4Power ON
3.2 Preparation
Note: When DEEBOT completes the cleaning cycle or when battery power gets low, DEEBOT
automatically returns to the Charging Dock to recharge itself.
5Charge DEEBOT

12
EN

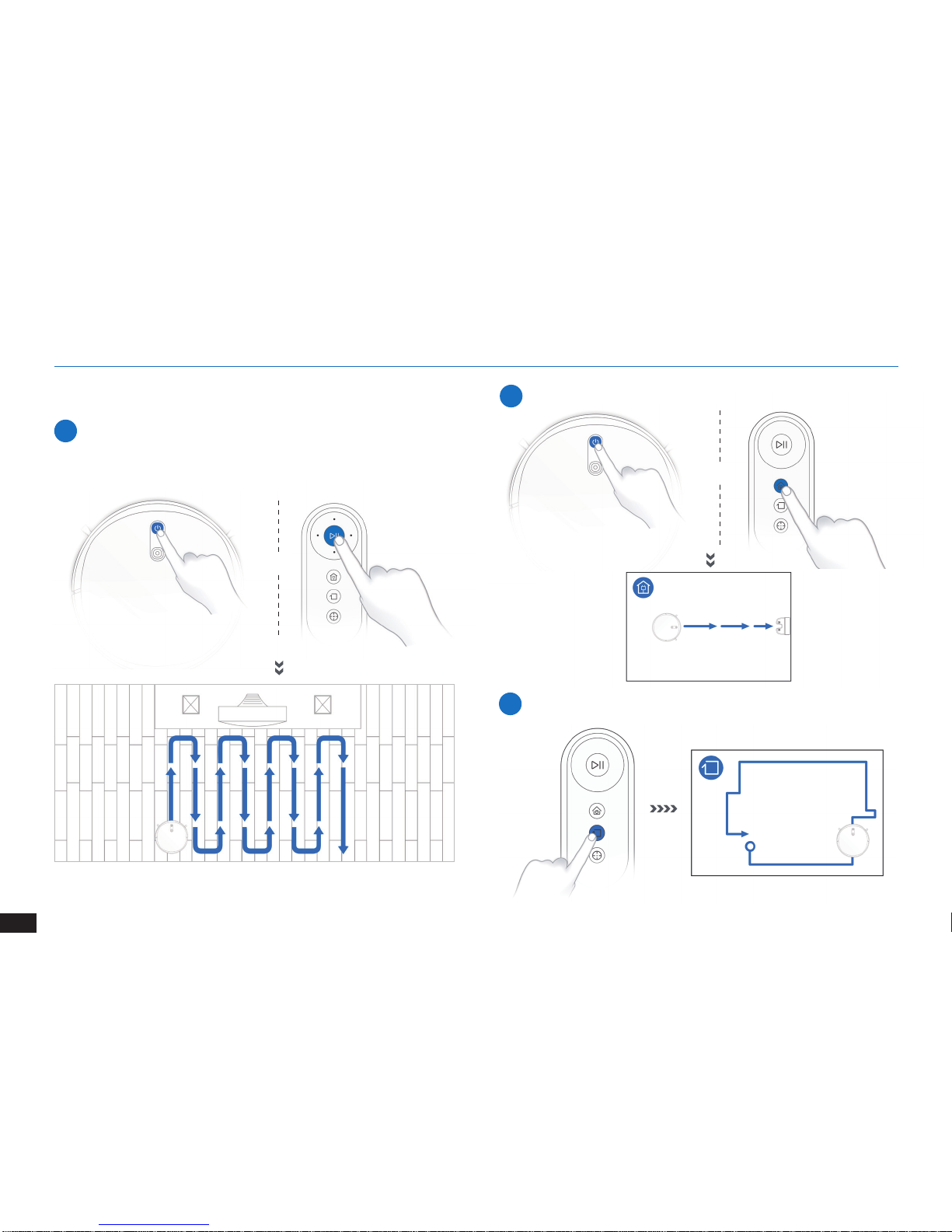

3.3 Selecting Cleaning Mode
1AUTO Cleaning Mode
A Programmed Cleaning Pattern      
selected by default.
OR
OR
2Return to Charging Dock

3Edge Cleaning Mode
3. Operating and Programming

13
EN
3. Operating and Programming
All the functions mentioned above can be enabled on the App.
Download ECOVACS App to access more features, including Max
Mode, Scheduled Cleaning, etc.

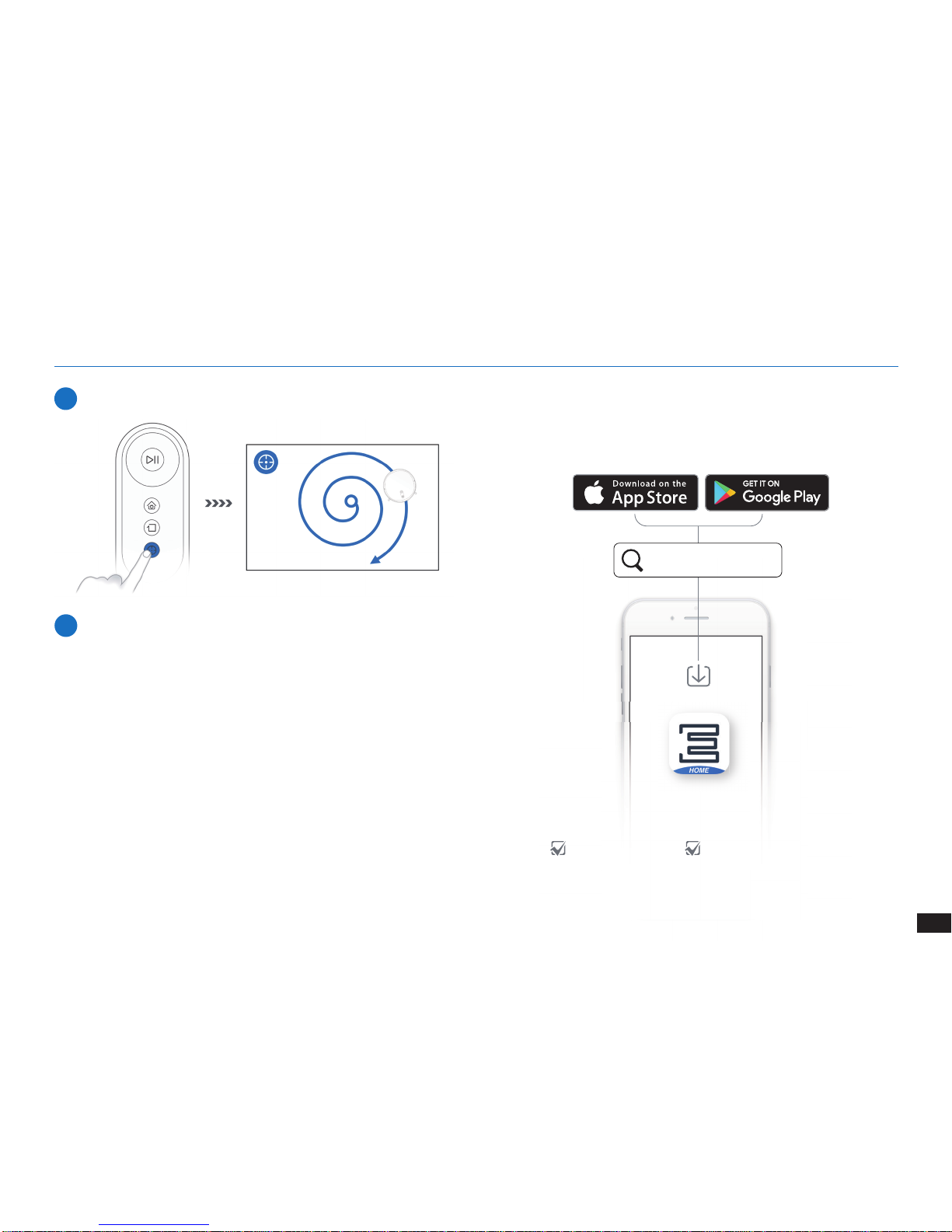

5Continuous Cleaning
DEEBOT automatically navigates itself back to the Docking Station to

cleaning where it left off.
iOS 9.0 or later Android 4.0 or later
2
ECOVACS HOME
4Spot Cleaning Mode (Less than 3 minutes)

14
EN
3. Operating and Programming
3.4 Pause, Wake Up, Power Off
1Pause 2Wake Up
Note: The robot’s Control Panel stops glowing after the robot is paused
for a few minutes. Press the AUTO Mode Button on DEEBOT to wake
up the robot.
Press the AUTO button on DEEBOT to wake it up
3Power OFF
Note: When DEEBOT is not working, it is recommended to keep it
switched ON and charging.
OR
OR

15
EN
Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Charging Dock.
Dust Bin

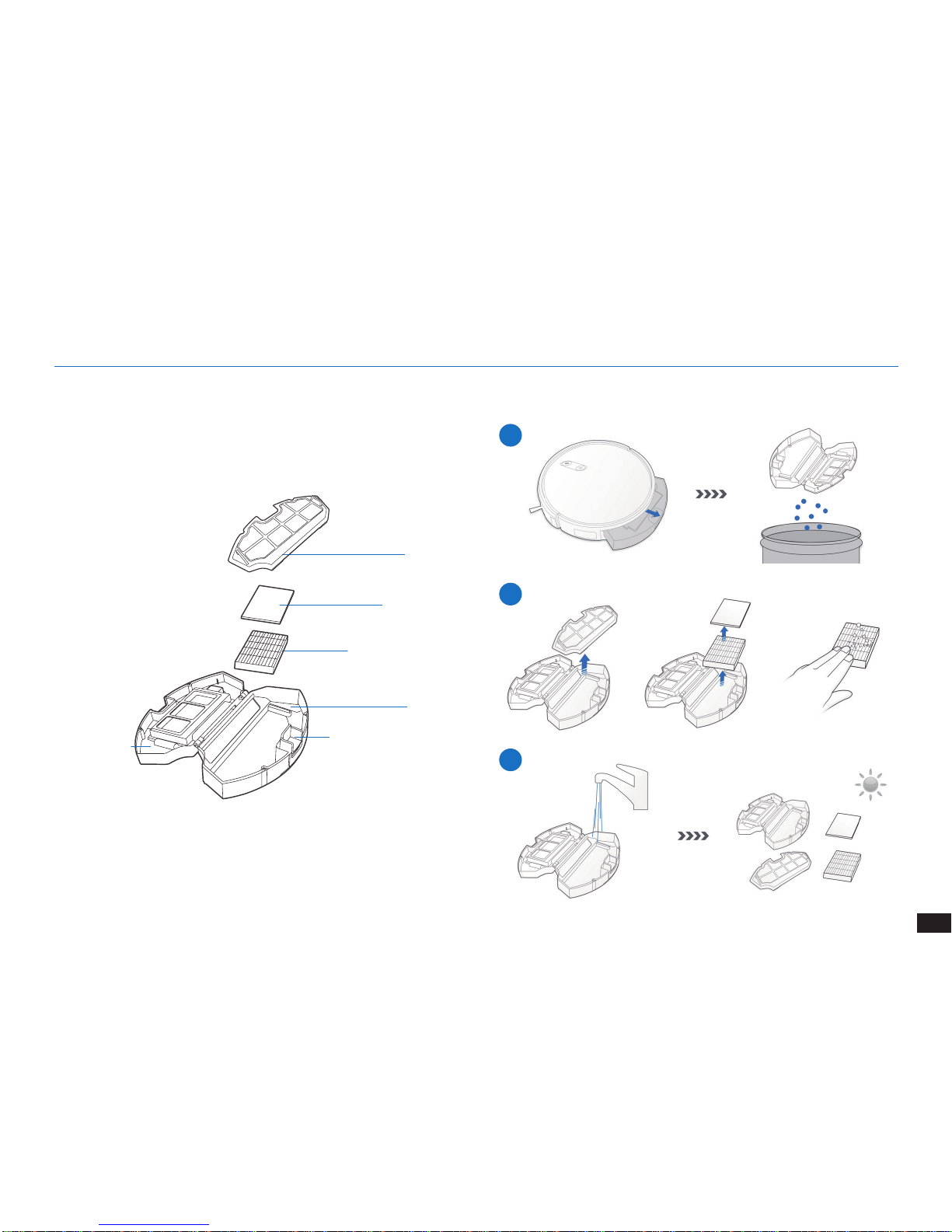

4.1 Dust Bin and Filters
1
2
3
Filter Net
Sponge Filter

Dust Bin
Dust Bin Release Button
Dust Bin Cover
4. Maintenance

16
EN
Main Brush
4.2 Main Brush and Side Brushes
Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
1
4
2
5
3
4. Maintenance

17
EN
4. Maintenance
4.3 Other Components
Side Brushes
1 2 3

18
EN
Note: Before cleaning the robot’s Charging Contacts
and Charging Dock Pins, turn the robot OFF and
unplug the Charging Dock.
4. Maintenance

19
EN
4. Maintenance
4.4 Regular Maintenance
To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: 
Robot Part Maintenance Frequency Replacement Frequency
Side Brush Once every 2 weeks Every 3-6 months
Main Brush Once per week Every 6-12 months
 Once per week Every 3-6 months
Universal Wheel
Anti-Drop Sensors
Bumper
Charging Contacts
Charging Dock Pins
Once per week /

20
EN
5. Indicator Light and Alarm Sounds
Indicator Light
DEEBOT will tell you something is wrong with an alarm indicator light and sounds. More detailed support is available through the ECOVACS App and
online website.
Scenario Indicator Light
The robot is cleaning AUTO Mode Button glows a solid WHITE
The robot is charging 
The robot has low battery AUTO Mode Button glows a solid RED
The robot has a problem 
Programmed Cleaning Pattern is enabled Cleaning Mode Switch Indicator lights up
