Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our
Customer Service Center where a technician will be able to help you with your specific problem or question.
For more information, please visit the ECOVACS ROBOTICS official website: www.ecovacs.com
The company reserves the right to make technological and/or design changes to this product for continuous
improvement.
Thank you for choosing DEEBOT!

2
EN
Contents
1. Important Safety Instructions ..........................................................................................................................................4
2. Package Contents .............................................................................................................................................................8
3. Operating and
Programming ..........................................................................................................................................11 4.
Maintenance ....................................................................................................................................................................17 5.
Indicator Light ..................................................................................................................................................................23
6.
Troubleshooting ...............................................................................................................................................................24
7. Technical
Specifications .................................................................................................................................................28

3
EN
1. Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical Appliance, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE SAVE
THESE INSTRUCTIONS
1. This Appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the Appliance
by a person responsible for their safety.
2. Children should be supervised to ensure that
they do not play with the Appliance.
3. Clear the area to be cleaned. Remove power
cords and small objects from the floor that
could entangle the Appliance. Tuck rug fringe
under the rug base, and lift items such as
curtains and tablecloths off the floor.
4. If there is a drop off in the cleaning area due
to a step or stairs, you should operate the
Appliance to ensure that it can detect the
step without falling over the edge. It may
become necessary to place a physical
barrier at the edge to keep the unit from
falling. Make sure the physical barrier is not a
trip hazard.
5. Only use as described in this manual. Only
use attachments recommended or sold by
the manufacturer.
6. Please make sure your power supply source
voltage matches the power voltage marked
on the Docking Station.
7. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial or
industrial environments.
8. Use only the original rechargeable battery
and Docking Station provided with the
Appliance from the manufacturer. Non-
rechargeable batteries are prohibited. For

4
EN
battery information, please refer to
Specifications section.
9. Do not use without dust bin and/or filters in
place.
10. Do not operate the Appliance in an area
where there are lit candles or fragile objects.
11. Do not use in extremely hot or cold
environments (below -5˚C/23˚F or above
40˚C/104˚F).
12. Keep hair, loose clothing, fingers, and all
parts of body away from any openings and
moving parts.
13. Do not operate the Appliance in a room
where an infant or child is sleeping.
14. Do not use Appliance on wet surfaces or
surfaces with standing water.
15. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or
any item that may clog the Appliance.
16. Do not use Appliance to pick up flammable
or combustible materials such as gasoline,
printer or copier toner, or use in areas where
they may be present.
17. Do not use Appliance to pick up anything that
is burning or smoking, such as cigarettes,
matches, hot ashes, or anything that could
cause a fire.
18. Do not put objects into the suction intake.
Do not use if the suction intake is blocked.
Keep the intake clear of dust, lint, hair, or
anything that may reduce air flow.
19. Take care not to damage the power cord. Do
not pull on or carry the Appliance or Docking
Station by the power cord, use the power
cord as a handle, close a door on the power
cord, or pull power cord around sharp edges
or corners.
Do not run Appliance over the power cord.
Keep power cord away from hot surfaces.
20. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
21. Do not use the Docking Station if it is
damaged. The power supply is not to be
repaired and not to be used any longer if it is
damaged or defective.

5
EN
22. Do not use with a damaged power cord or
receptacle. Do not use the Appliance or
Docking Station if it is not working properly,
has been dropped, damaged, left outdoors,
or come in contact with water. It must be
repaired by the manufacturer or its service
agent in order to avoid a hazard.
23. Turn OFF the power switch before cleaning
or maintaining the Appliance.
24. The plug must be removed from the
receptacle before cleaning or maintaining the
Docking Station.
25. Remove the Appliance from the Docking
Station, and turn OFF the power switch to
the Appliance before removing the battery for
disposal of the Appliance.
26. The battery must be removed and discarded
according to local laws and regulations
before disposal of the Appliance.
27. Please dispose of used batteries according
to local laws and regulations.
28. Do not incinerate the Appliance even if it is
severely damaged. The batteries can
explode in a fire.
29. When not using the Docking Station for a
long period of time, please unplug it.
30. The Appliance must be used in accordance
with the directions in this Instruction Manual.
ECOVACS ROBOTICS cannot be held liable
or responsible for any damages or injuries
caused by improper use.
31. The robot contains batteries that are only
replaceable by skilled persons. To replace
the robot’s battery, please contact Customer
Service.
32. If the robot will not be used for a long time,
power OFF the robot for storage and unplug
the Docking Station.
33. WARNING: For the purposes of recharging
the battery, only use the detachable supply
unit CH1822 provided with the Appliance, or
CH1918 sold separately as an accessory.
34. This Appliance can be used by children aged
from 8 years and above and persons with

6
EN
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they
have been given supervision or instruction
concerning use of the Appliance in a safe
way and understand the hazards involved.
Children shall not play with the Appliance.
Cleaning and user maintenance shall not be
made by children without supervision. (For
Europe)
To satisfy RF exposure requirements, a
separation distance of 20 cm or more should
be maintained between this device and
persons during device operation.
To ensure compliance, operations at closer
than this distance is not recommended. The
antenna used for this transmitter must not be
colocated in conjunction with any other
antenna or transmitter.
For EU Countries
For EU Declaration of Conformity information,
visit https://www.ecovacs.com/global/compliance
Correct Disposal of this
Product
This marking indicates that this product
should not be disposed of with other household
waste throughout the EU. To prevent possible
harm to the environment or human health from
uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of
material resources. To recycle your used
Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
Direct current
Alternating current

7
EN
device, please use the return and collection
systems or contact the retailer where the
product was purchased. They can safely
recycle this product.
2. Package Contents/2.1 Package Contents
Robot Docking Station Instruction Manual Side Brushes
Mopping Pad Plate
Washable Mopping Pad
Disposable Mopping Pads
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specifications are subject to changes without notice.

8
EN
2. Package Contents/2.2 Product Diagram
Robot

9
EN

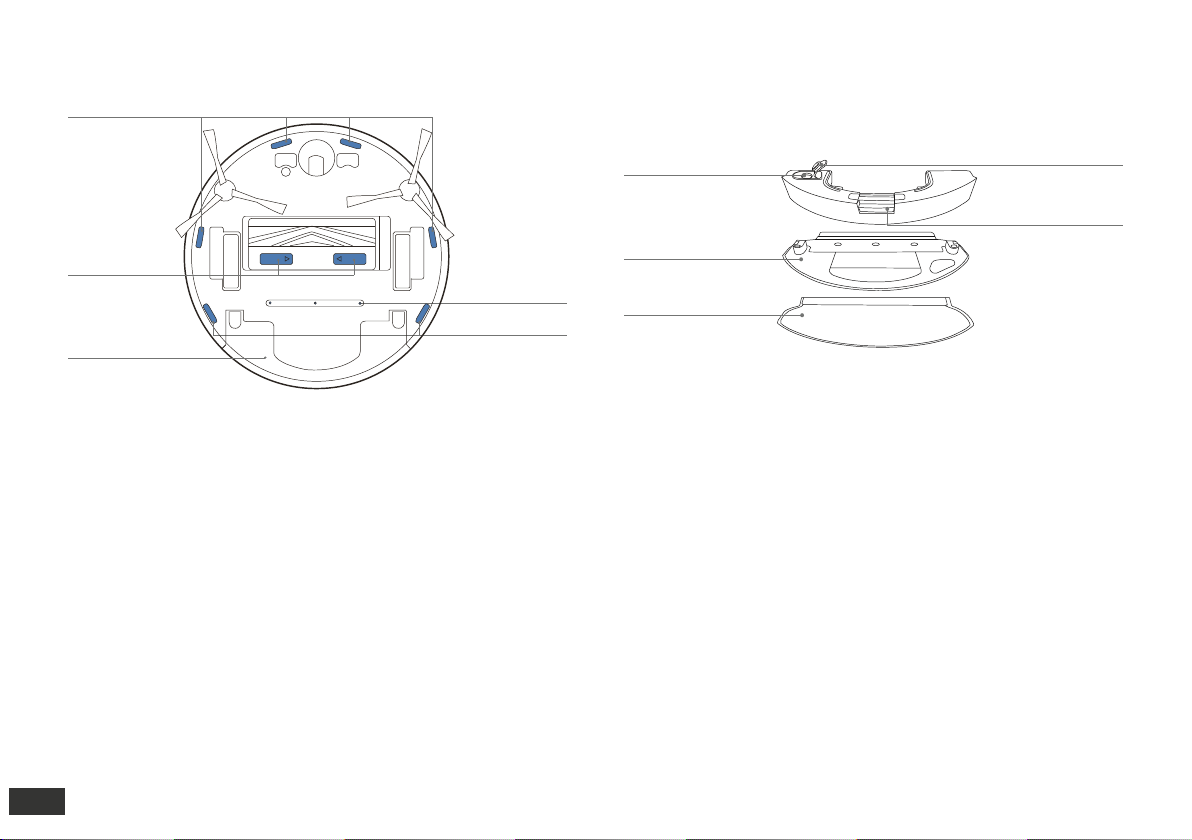

Anti-drop Sensors Reservoir

10
EN
Reservoir
Main Brush
Release Button
Water Outlet
Anti-drop Sensors
Water Inlet
Mopping Pad
Water Inlet Cover
Reservoir Release
Button
Mopping Pad Plate

3. Operating and Programming
11
EN
/3.1 Notes Before Cleaning

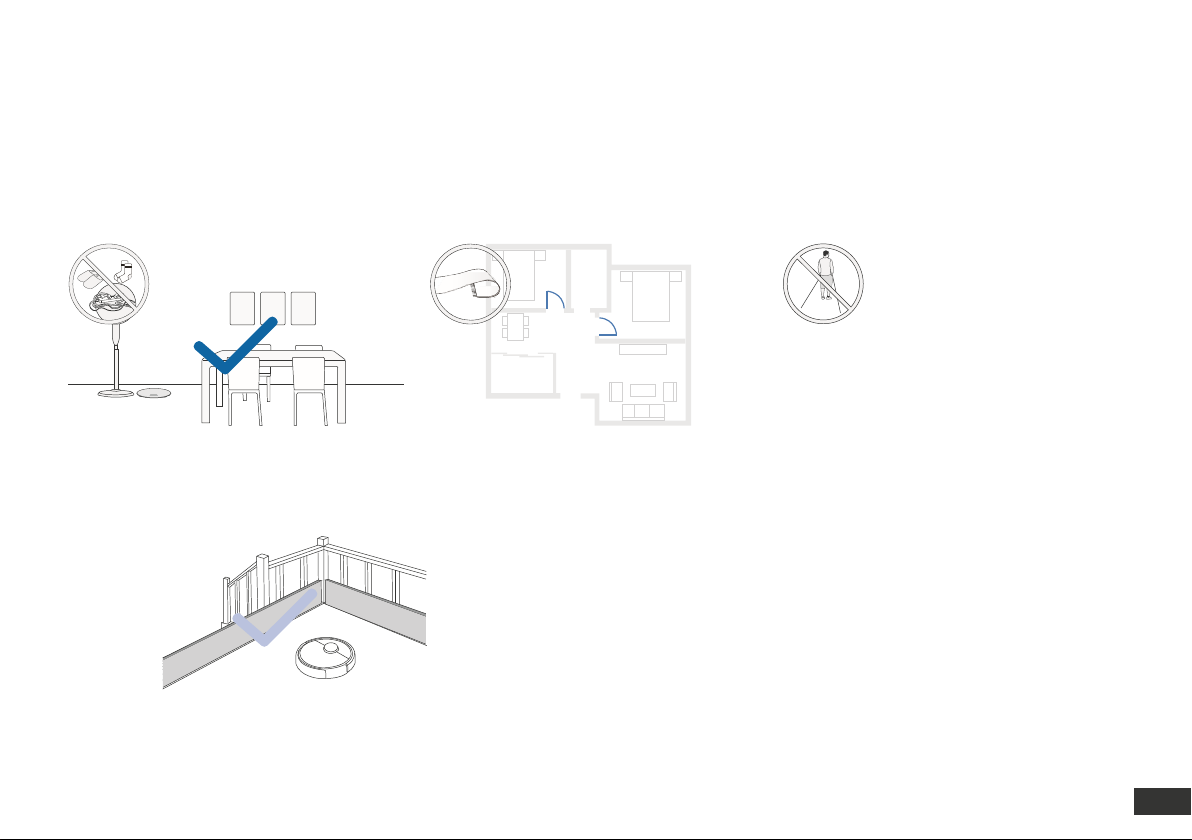

Tidy up the area to be cleaned by putting During the first use, make sure each room door furniture,
such as chairs, in their proper place. is open to help DEEBOT fully explore your house.
It may be necessary to place a physical
barrier at the edge of a drop to stop the
Put away objects including Before using the product on a rug cables, cloths and
slippers, with tasseled edges, please fold etc. on the floor to improve the the rug
edges under. cleaning efficiency.
unit from falling over the edge.
Please do not stand in narrow
spaces, such as hallways,
and make sure not to block
the Detection Sensor.

3. Operating and Programming
12
EN
/3.2 Quick Start

3. Operating and Programming
13
EN
1

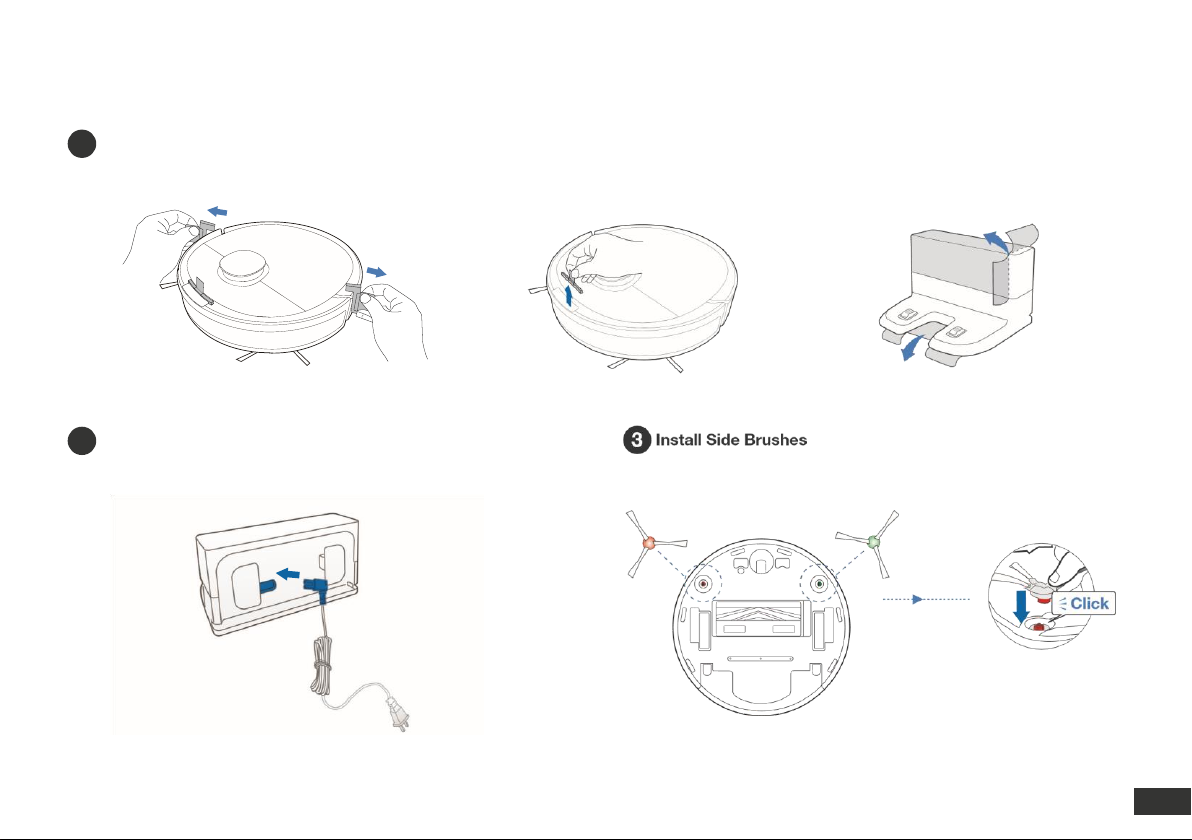

Remove Protective Strips and Films
2
Assemble Docking Station

3. Operating and Programming
14
EN
/3.3 Charging DEEBOT
1 Docking Station Placement 3 Charge DEEBOT
2 Power ON
Note: I = ON, O = OFF.
DEEBOT cannot be charged when being powered OFF.
Empty remaining water from the Reservoir and remove the Reservoir
and the mopping pad plate before charging DEEBOT.
* You can also purchase an Auto-Empty Station that automatically
empties your DEEBOT's dustbin. Explore more accessories at
www.ecovacs.com/global.
/3.4 ECOVACS HOME App
To enjoy all available features, it is recommended to control your DEEBOT via the ECOVACS HOME app.
Before you start, make sure that: Wi-Fi Indicator Light
flashes when DEEBOT is charging.
goes out when DEEBOT is
fully charged.
4

3. Operating and Programming
15
EN
•Your mobile phone is connected to a Wi-Fi network.
•The 2.4GHz band wireless signal is enabled on your router.
•The Wi-Fi indicator light on DEEBOT is slowly flashing.
Tips:
If you have any problems during the Wi-Fi setup process, refer to the Troubleshooting >
Wi-Fi Connection section in this manual.
Slowly flashing
Disconnected to Wi-Fi or
waiting for Wi-Fi connection
Rapidly flashing
Connecting to Wi-Fi
Solid
Connected to Wi-Fi

3. Operating and Programming
16
EN
/3.5 Operating DEEBOT
During the first cleaning, please supervise DEEBOT and assist it should there be a problem.
Start
Pause 3Return to Charge
1
2

3. Operating and Programming
17
EN

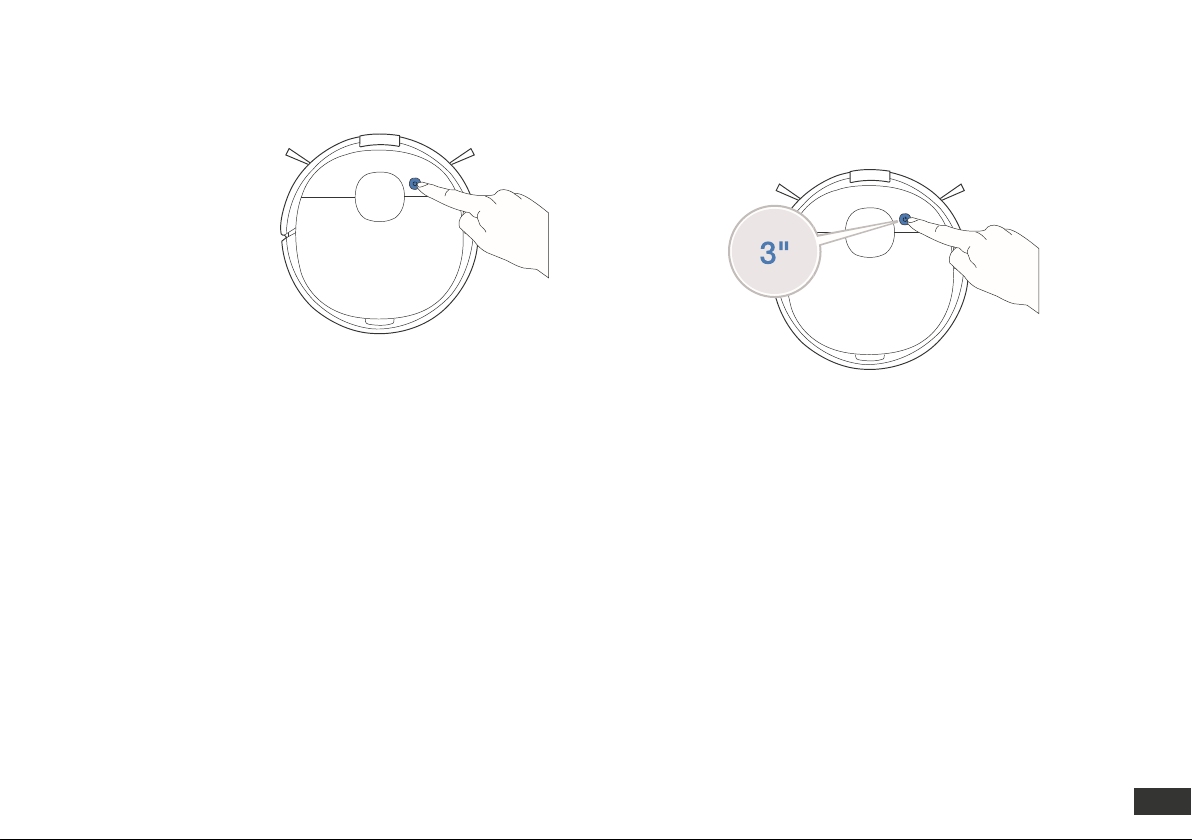

Pressing for 3 seconds to send DEEBOT back to the
Docking Station.
Note: The robot’s Control Panel stops glowing after the robot is paused for a few minutes.
Press the AUTO Mode Button on DEEBOT to wake up the robot.

3. Operating and Programming
18
EN
/3.6 OZMO Mopping System
Note: To prolong the service life of the reservoir, it is recommended
Note: When DEEBOT is mopping, DEEBOT automatically detects to
use purified water or softened water for OZMO mopping the carpet and
keeps away from it. If you need
to clean the carpet,
system.
1

4. Maintenance
19
EN
/4.1 Regular Maintenance
To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
Robot Part
Maintenance Frequency
Replacement Frequency
Disposable Mopping Pad
/
Replace after each use
Washable Mopping Pad
After each use
Every 50 washes
Reservoir/Mopping Pad Plate
After each use
/
Side Brush
Once every 2 weeks
Every 3-6 months
Main Brush
Once per week
Every 6-12 months
Sponge Filter/ High Efficiency Filter
Once per week
Every 3-6 months
Universal Wheel
Anti-Drop Sensors Bumper
Charging Contacts
Docking Station Pins
Once per week
/
A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.
/4.2 OZMO Mopping System
Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.
