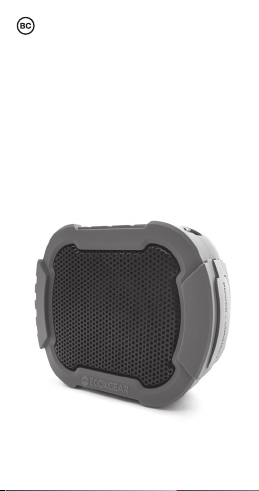

EcoxGear EcoRoam 20+ User manual

EcoRoam20+
Models: GDI-EXPRL200...220
User Guide

Quick Start
Open Cap on the Side
Panel, shown below
Turn on the Main
Power Switch
Press the Standby
Button to power
on your EcoRoam20+
Search your Bluetooth
Connection on your
Smart Device
Pair & Play
1
2
3
4
5
the original owner who purchases the unit
from an authorized dealer. Transfers do not
qualify for warranty protection. ECOXGEAR
reserves the right to replace any out-of-stock
or discontinued product with a comparable
product. Discontinued products may not
be available for warranty replacement. Any
contents are NOT covered by the limited
manufacturer’s warranty. Warranty terms may
be revised without notification at the discretion
of the manufacturer. Please visit
www.ecoxgear.com.au for additional product &
warranty information.
NOTE: Product registration does not
constitute proof of purchase for the warranty
process. Please keep all receipt and purchase
records as your evidence of the date and place
of purchase.
EcoRoam20+ by ECOXGEAR, ECOXGEAR is
the registered trademark of ENFINITY PTY LTD
Designed and Engineered in the USA.
Made in China.
Patent Pending.

6) AVOID prolonged exposure to ultraviolet
radiation (UV sunlight) and strong
magnetic fields.
7) Periodically check the rubber seal for
premature wear.
8) Periodically clean the rubber with a soft
moist cloth and ensure no objects such as
dirt, hair, or sand are on the rubber seal ring.
Do NOT use any oily solvent or chemicals
for cleaning.
9) Rinse off the unit with tap water after use in
salt water or swimming pool.
10) Power and / or charge the built-in
rechargeable battery for portable use by
connecting the USB cord to a computer
USB connection or to an AC outlet using the
AC-to-USB cord 5V, 1A power adapter
intended for use with the unit.
11) Noise and audio distortion may occur when
the batteries are nearing end of charge.
12) Do NOT remove the built-in battery. Do
NOT remove the grill covers.
LIMITED MANUFACTURER’S
WARRANTY:
The EcoRoam20+ is covered by a 1-year limited
warranty that covers defects in workmanship
and / or materials for a period of 1 year from
original purchase date. This warranty does
not apply to any products which have been
abused, neglected, modified, or used for a
purpose other than the one for which they were
manufactured. Please refer to the above care
and maintenance instructions for suggested
care details. The warranty is valid only for
LED Status Indicators
Battery Indicator, Bluetooth,
Wireless Pairing
Control Buttons
Battery Level Indicators

Standby Power
Press the Standby Power
Button once to power On/Off.
IMPORTANT: Standby Power
function will NOT operate when
the Master Power is set OFF.
Master Power Switch under the
cap on the Side Panel must
be set ON for Standby & your
EcoRoam20+ to operate.
Bluetooth
Once turned on, the
EcoRoam20+ will search for
your Bluetooth. Refer to Set
Up Recommendations 1-2-3
part for details.
3
Control Buttons
& Operations
2) Never use your ECOXGEAR if you have
dropped it or thrown it against a hard
surface which may have destroyed the
integrity of the speakers, housings, or
gaskets. In the event of a severe impact to
your unit please return the unit to
ECOXGEAR to review for potential damage.
3) Never open the cap in a water environment.
This could cause water to ingress into the
unit which could potentially be hazardous
and cause a fire or a spark.
4) Never connect a device to the auxiliary input
jack when in a water environment. The
auxiliary jack should only be used in a
dry environment.
5) Never attempt to fix, repair your ECOXGEAR
unit. Please send it back to ECOXGEAR for
any assessments and repairs.
CARE, MAINTENANCE,
& PRECAUTIONS:
1) The unit is waterproof only when the cap is
properly closed.
2) Close the cap properly before use. If the unit
is placed in water without the cap properly
closed, water may enterinto the unit and
void your warranty.
3) Dry unit completely before opening the cap.
Do NOT open the cap if wet or in a
wet environment.
4) Do NOT apply excessive force to any
surfaces of the unit when wet or in a
wet environment.
5) Do NOT use or store the unit in places with
high temperature.

You should always
1) Use the EcoRoam20+ speaker in
accordance with any music or noise rules
and regulations.
2) Use the proper EcoRoam20+ mounts if you
intend to mount the unit.
3) Properly seal the EcoRoam20+ prior and
after each use when in humid or water
environments to avoid water damage to the
internal components. Salt water / air is
particularly corrosive. Always make sure that
the gaskets are sealed when in salt water
environment and the unit properly rinsed off
after use.
4) Properly clean the EcoRoam20+ and ensure
the gaskets have no sand, dirt, or water on
them prior to storage or removing the
back cover.
5) Store your unit with all caps properly sealed
to avoid long term internal moisture
damage inside your unit.
6) Completely dry and clean your EcoRoam20+
prior to attempting to charge the unit.
7) Return the EcoRoam20+ to ECOXGEAR if
you suspect water ingress into the unit or if
the unit has experienced a severe impact
that may have affected the integrity of the
unit to take on water.
You should never
1) NEVER charge your EcoRoam20+ if you
suspect water has entered the device.
Charging a device with water inside could
be potentially hazardous and cause fire
or a spark.
Wireless Stereo
Pairing Button
This functionality is
ONLY available with two
EcoRoam20+ units. Refer to
Wireless Stereo Pairing of
Two Speakers for details.
Speaker Volume
Press to decrease or to
increase Speaker Volume.
NOTE: Some Bluetooth devices
may require to be manually set
for maximum audio level.
Your EcoRoam20+ will beep
to indicate when maximum
or minimum volume setting
is reached.
Track Selection
Press button once to select
Previous Song track & Next
Song track .

WARNING: Danger of explosion if battery is
incorrectly replaced.
ATTENTION: Do NOT dispose of in a landfill.
Contact
a
certified recycling
dispose of the unit.
ATTENTION: AC adapter is a device forming a
part of the main plug;
therefore, an AC adapter can
always be readily disconnected
from AC socket-outlet.
SAFETY:
This product has a limited life span of use and
should be replaced when it shows obvious
signs of wear.
Do not modify or remove any original
component parts of the speaker. Doing so
could cause damage to the unit allowing water
to ingress. A unit with water ingress should not
be charged due to potential risk of fire or shock.
Do not attempt to mount the unit except with
the approved ECOXGEAR mounts. Doing so
could cause damage to the unit allowing water
to ingress. A unit with water ingress should not
be charged due to potential risk of fire or shock.
Please exercise care and good judgment when
using your ECOXGEAR speaker. Audio levels
should be appropriate to your environment,
comply with all local regulations, and always
ensure that you can hear and be aware of any
potential hazards around you.
Play/Pause/
Answer/EcoTalk
Press button once to pause &
play song tracks and to answer
mobile calls (MUST be paired
with Bluetooth).
Press & hold the button for
two seconds to activate the
voice assistant on your device
(Siri, OK Google, etc.). Once
activated, the speakerphone
mic on your EcoRoam20+ will
hear your voice commands
and transfer them to the voice
assistant on your device.
NOTE: Before using the EcoTalk
function, your device must be
connected to the EcoRoam20+
via Bluetooth. Not all devices
have voice assistant
functionality; refer to your
device for details.
agent to

water, clean it thoroughly after use with
fresh water.
The USB cables and unit with an improperly
fitted cap are NOT waterproof.
To prevent fire or shock, do NOT attempt
to charge this unit if it is wet or you suspect
water has entered the unit. In this situation,
please return the unit to ECOXGEAR for a free
assessment. If we have found that the unit has
carried water, we will repair or replace the unit
free of charge.
SAFETY ADVISORY & WARNING:
Read and follow all instructions.
Use only as intended.
CAUTION: Do NOT open to repair. A
qualified technician must carry
out repair work.
ATTENTION: Do NOT charge while the unit is
wet. Towel dry the unit AND
make sure all connections
are dry BEFORE plugging in the
charging connector. Failure to do
so may result in electrical
damage to the unit and may
void the warranty.
WARNING: EcoRoam20+ has a built-in
Lithium battery. The battery
must NOT be used in or near
an open heat source or
excessive heat.
Battery Indicator
Connect USB to power
source. LED on the top panel
indicates USB connection
charging status.
RED: charge in process
GREEN: full charge complete
NOTE: There also are four
LED Battery Level Indicators
located on the top of the unit.
Each LED represents 25% of a
charge. Four full LEDs indicate
a full charge.
Light Modes
Press button to cycle through
five modes:
Mode 1: Off
Mode 2: Red Light
Mode 3: Green Light
Mode 4: Music Sync
Mode 5: Color Fade

Set Up
Recommendations 1-2-3
Charge Your
EcoRoam20+
Before you power on your
EcoRoam20+, connect the USB
Micro port to the USB cable
and a 5V, 1A power source to
fully charge your EcoRoam20+
for best performance.
NOTE: Before using your EcoRoam
20+ for the first time, charge the
unit until all battery level indicators
are green, indicating a full charge.
Approximately 3 hrs. of charging is
required from a low to a full charge.
Power source options include the
USB connection to your computer
or a power outlet using a 5V, 1A
USB to AC power adapter. It is
recommended to always use the
USB cable included with your
EcoRoam20+.
1
receiver is connected, consult the dealer or an
experienced radio/TV technician for help.
RF WARNING STATEMENT:
The device has been evaluated to meet
general RF exposure requirement. The device
can be used in portable exposure condition
without restriction.
PRODUCT USE AND PROTECTION:
Read and follow all instructions.
Use only as intended.
The ECOXGEAR Bluetooth speaker is intended
to be used indoors or outdoors and in land
or water environments. The speaker has been
tested to IP67 waterproofing standards, which
means the speaker can be submerged in up
to 3feet to 1meter of water for 30 minutes
without any damage. However, the speaker is
NOT intended for constant underwater use.
Always make sure the cap(s) / covers(s) are
clean, free from sand or debris, and correctly
fitted. The speaker will only meet IP67 ratings if
all rubber seals, gasket(s), and cover(s) / cap(s)
are in place. If you notice a muffling of audio
after submersion, gently shake the unit to clear
excess water. If your speaker is exposed to salt

FCC STATEMENT:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1) This device may not cause harmful
interference, and
2) This device must accept any interference
received, including interference that may
cause undesired operation.
WARNING: Changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested
and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures: reorient
or relocate the receiving antenna, increase
the separation between the equipment and
receiver, connect the equipment into an outlet
on a circuit different from that to which the
Power On, Battery, &
LED Status Indicators
Once fully charged, press the
Standby Power Button on
the top of your EcoRoam20+.
You will see the green LED
light & you will hear, “Speaker
on. Ready to connect.” when
powering on.
IMPORTANT: Make sure that the
Main Power Switch, located in
the side compartment under the
cap, is set in the ON position. If
the switch is in the OFF position,
your EcoRoam20+ will not be able
to turn on using the Standby
Power Button.
The LED battery level indicators
are located on the top of the unit.
Each bar represents 25% of a
charge, with 4 full LEDs indicating
a full charge.
Audio playback time over
Bluetooth connection is
approximately 15 hours.
2

Bluetooth Pairing
& Your Audio
Connecting With
Bluetooth: Connect To Your
Smart Device & Play Audio
When your EcoRoam20+ is turned
on, the LED Bluetooth Status
Indicator on the top panel will
flash blue, indicating the unit is
ready to pair.
Turn on Bluetooth on your
Bluetooth device (Smart Device)
and set the device in pairing
mode. Available Bluetooth
connections shall appear. Select
the ECOXGEAR speaker from
the list of discovered devices on
your Bluetooth device. Wait for a
few seconds until the connection
is completed.
NOTE: Bluetooth connection
feature is found in the Settings
section of most mobile
phones and other Bluetooth
enabled devices.
3
For Charging
AC (5V, 1A) USB Wall Outlet
Power Adapter
For Mounting
Suction Cup Mount (¼” mount)
Handlebar Mount Adapter
(¼“ mount)
Optional Accessories

USB Cable
User Guide
What’s in the Box
EcoRoam20+
EcoRoam20+
Models: GDI-EXPRL200...220
User Guide
When the ECOXGEAR selection
is made and the Bluetooth
connection is completed, your
EcoRoam20+ will announce, “Your
phone is connected.”
Once connected, select and play
your desired audio.
Pairing Mode: If the LED is not
flashing or if you wish to place
your EcoRoam20+ in pairing mode,
press and release the Bluetooth
button on the top panel. Your
EcoRoam20+ shall announce,
“Ready to connect” when ready to
pair to a new device.
NOTE: Your EcoRoam20+ shall
sync & wirelessly pair with most
Bluetooth enabled devices. The
unit remembers the last device
paired and will automatically
search for previous connections
when the speaker is turned on or
when a device comes back into
Bluetooth range. If a connection
is lost due to range, the speaker

will look to re-establish that
connection. If Bluetooth is
turned off on your Smart Device,
the EcoRoam20+ may not
automatically look for the device.
RECOMMENDATION: If you
are not familiar with Bluetooth
pairing for your Smartphone or
other Smart Device, refer to the
User Guide for your Smartphone
to learn how to add and pair a
new device (EcoRoam20+ for
instance) to your Smartphone
using Bluetooth.
Bluetooth Pairing & Connections:
Once paired, should you have an
issue switching between Bluetooth
connections between devices,
open the Bluetooth Section within
the device currently connected
to the EcoRoam20+ and delete
the Bluetooth connection. The
EcoRoam20+ will then be available
to pair & connect to an alternate
Bluetooth enabled Smartphone /
Audio Device.
Mount Attachment Point
¼” diameter
Pairing Speakers
Up to 30 ft / 9.1 m between
paired speakers
Charging Options
USB cable to USB outlet, to 5V
AC adapter, or to Computer
Charging Time
Approximately 3 hours
Recommended Storage
(Battery) Temperature
15°C
Operating Temperature
-5°C to 40°C
Waterproof/Dustproof Rating
IP67

Unit Weight
15 ounces
Output Power
15W Max Amp,
x1 woofer (Ø3”)
S/N Ratio
88dB +/- 3dB
Power Source
3.7V, 2600mAh
Lithium Ion Battery
USB Input
5V, 1A
Frequency Range
125Hz-18,000Hz
Bluetooth
Bluetooth® 4.2
Up to 30 m
Play Time
15+ hours from full charge
Wireless Stereo Pairing
of Two Speakers
First Time Pairing
Two Speakers:
When you have two EcoRoam
20+ speakers and want to
wirelessly pair them for stereo
sound, power on the two
speakers, making sure neither
is connected to a phone.
Next, press the Wireless Pairing
Button on only one speaker
(either of the two speakers).
This speaker (Speaker A) will
announce, “Pairing speakers.”
Wait approximately 3-10
seconds for the units to pair.

When paired, the speakers will
announce, “Speakers paired,”
and the LED Wireless Stereo
Pairing Indicator will turn solid
blue on both units. Speaker
A will announce, "Ready to
connect," indicating that it is
ready to pair to your phone.
Pair Speaker A to your phone
by selecting ‘ECOXGEAR’
from the list of discovered
Bluetooth devices on your
Smartphone. Once connected,
Speaker A will announce, “Your
phone is connected.” Once
connected, select and play your
desired audio.
Re-Pairing Same Two Speakers
After Already Paired Once:
Power on the two EcoRoam20+
units. Wait approximately
3-5 seconds and speakers
will automatically re-pair to
each other.
Unit Dimensions
Mount Attachment Point
Specifications
11.4cm
13.9cm
5.8cm

Important: Maintaining
Waterproofness
Your EcoRoam20+ is only
waterproof when the cap
is properly closed. In order
to properly close the cap,
push firmly to be sure the
cap fits flat and flush along
the edges with the panel.
If not properly closed the
unit is NOT watertight and
may not float.
The speakers will announce,
“Speakers paired” and the LED
Indicator will turn solid blue on
both units.
To un-pair two paired
speakers, PRESS AND HOLD
the Bluetooth Button for 5
seconds on either speaker.
NOTES:
• Un-pairing the two
speakers by pressing the
Bluetooth Button will also
clear the Bluetooth pairing
records on that speaker.
• The pairing functionality is
ONLY available with two
EcoRoam20+ units with a
distance of up to 9.1m from
each other. It only works
when using Bluetooth as
your audio source.

Master Power Switch
& Connections
Master Power Switch
EcoRoam20+ has a separate
Master Power Switch and a
Standby Button. The switch
MUST be set to the ON position
to power your EcoRoam20+. Once
the switch is set to ON, use the
Standby Button located on the
Top Panel to turn the unit On/Off.
NOTE: When not in use for
extended periods, turn the Master
Power off to preserve battery life.
IMPORTANT: Standby Power
function will NOT operate when
the Master Power is set to OFF.
AUDIO
AUX-IN
INPUTOFF ON
5V, 1A
Audio AUX-IN
Connect an audio device using
the 3.5mm cable connection
as an alternative to a Bluetooth
connection to your EcoRoam20+.
NOTE: Volume level must
be controlled from the audio
device when connected to the
AUX-IN connection.
Input
Connect the USB cable to the
USB micro Input to charge
your EcoRoam20+.
RECOMMENDATION: Use the
USB cable included in the box.
NOTE: Charge time from low
to full charge is approximately
3 hours.
While playing audio, EcoRoam
20+ can be charged.
CAUTION: Do NOT charge if
unit and/or connections are wet
or damp.

Master Power Switch
& Connections
Master Power Switch
EcoRoam20+ has a separate
Master Power Switch and a
Standby Button. The switch
MUST be set to the ON position
to power your EcoRoam20+. Once
the switch is set to ON, use the
Standby Button located on the
Top Panel to turn the unit On/Off.
NOTE: When not in use for
extended periods, turn the Master
Power off to preserve battery life.
IMPORTANT: Standby Power
function will NOT operate when
the Master Power is set to OFF.
AUDIO
AUX-IN
INPUTOFF ON
5V, 1A
Audio AUX-IN
Connect an audio device using
the 3.5mm cable connection
as an alternative to a Bluetooth
connection to your EcoRoam20+.
NOTE: Volume level must
be controlled from the audio
device when connected to the
AUX-IN connection.
Input
Connect the USB cable to the
USB micro Input to charge
your EcoRoam20+.
RECOMMENDATION: Use the
USB cable included in the box.
NOTE: Charge time from low
to full charge is approximately
3 hours.
While playing audio, EcoRoam
20+ can be charged.
CAUTION: Do NOT charge if
unit and/or connections are wet
or damp.

Important: Maintaining
Waterproofness
Your EcoRoam20+ is only
waterproof when the cap
is properly closed. In order
to properly close the cap,
push firmly to be sure the
cap fits flat and flush along
the edges with the panel.
If not properly closed the
unit is NOT watertight and
may not float.
The speakers will announce,
“Speakers paired” and the LED
Indicator will turn solid blue on
both units.
To un-pair two paired
speakers, PRESS AND HOLD
the Bluetooth Button for 5
seconds on either speaker.
NOTES:
• Un-pairing the two
speakers by pressing the
Bluetooth Button will also
clear the Bluetooth pairing
records on that speaker.
• The pairing functionality is
ONLY available with two
EcoRoam20+ units with a
distance of up to 9.1m from
each other. It only works
when using Bluetooth as
your audio source.

When paired, the speakers will
announce, “Speakers paired,”
and the LED Wireless Stereo
Pairing Indicator will turn solid
blue on both units. Speaker
A will announce, "Ready to
connect," indicating that it is
ready to pair to your phone.
Pair Speaker A to your phone
by selecting ‘ECOXGEAR’
from the list of discovered
Bluetooth devices on your
Smartphone. Once connected,
Speaker A will announce, “Your
phone is connected.” Once
connected, select and play your
desired audio.
Re-Pairing Same Two Speakers
After Already Paired Once:
Power on the two EcoRoam20+
units. Wait approximately
3-5 seconds and speakers
will automatically re-pair to
each other.
Unit Dimensions
Mount Attachment Point
Specifications
11.4cm
13.9cm
5.8cm

Unit Weight
15 ounces
Output Power
15W Max Amp,
x1 woofer (Ø3”)
S/N Ratio
88dB +/- 3dB
Power Source
3.7V, 2600mAh
Lithium Ion Battery
USB Input
5V, 1A
Frequency Range
125Hz-18,000Hz
Bluetooth
Bluetooth® 4.2
Up to 30 m
Play Time
15+ hours from full charge
Wireless Stereo Pairing
of Two Speakers
First Time Pairing
Two Speakers:
When you have two EcoRoam
20+ speakers and want to
wirelessly pair them for stereo
sound, power on the two
speakers, making sure neither
is connected to a phone.
Next, press the Wireless Pairing
Button on only one speaker
(either of the two speakers).
This speaker (Speaker A) will
announce, “Pairing speakers.”
Wait approximately 3-10
seconds for the units to pair.
