Edco Magna-Trap 2DHDP-18P User manual

E-2DHDP18P-PL-0521
Page 1
PARTS LIST MANUAL
HEAVY-DUTY FLOOR GRINDER / POLISHER
REVISED STARTING
SERIAL # 210310050
PROPANE MODEL 2DHDP-18P
SKU # 58200
READ AND UNDERSTAND THE OPERATOR’S SAFETY MANUAL THOROUGHLY
BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT.
Death or serious injury could occur if this machine is used improperly.
Printed in USA
JWA ©2021
®
Go to Discount-Equipment.com to order your parts

Discount-Equipment.com is your online resource for quality parts & equipment.
Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101
Need parts?
Click on this link: http://www.discount-equipment.com/category/5443-parts/ and
choose one of the options to help get the right parts and equipment you are looking
for. Please have the machine model and serial number available in order to help us
get you the correct parts. If you don’t find the part on the website or on one of the
online manuals, please fill out the request form and one of our experienced staff
members will get back to you with a quote for the right part that your machine needs.
We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,
Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,
Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack,
Lull, Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic,
Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti,
Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S.
Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin,
Rice, CH&E, General Equipment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent,
Stanley, Tamco, Toku, Hatz, Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air,
APT, Wylie, Ingersoll Rand / Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith
Surface Prep,Small Line, Wanco, Yanmar

E-2DHDP18P-PL-0521
Page 2

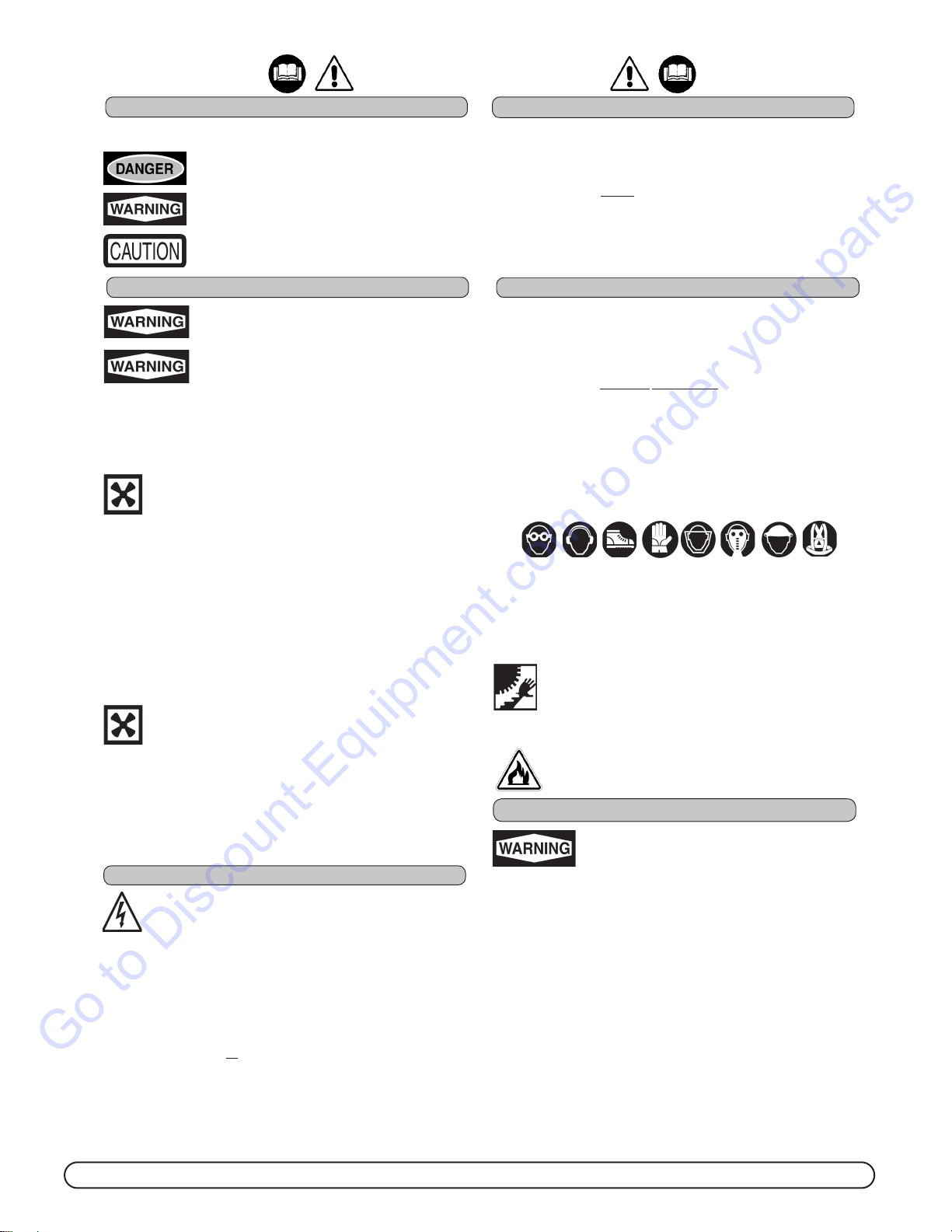

•Engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth
defects or other reproductive harm.
•Tilting a gasoline powered machine tted with an
EPA approved vented charcoal lter gas cap, beyond
20° can cause fuel leakage. If a leak occurs, do not
start or run the engine until the leak is xed. Eliminate all other ignition
sources in the immediate area (no smoking, ares, sparks or ames).
Use approved gasoline absorbing material to contain the fuel leakage.
Then use clean, non-sparking tools to collect absorbed materials then
dispose of these contaminants properly.
•Gasoline is extremely ammable and poisonous. It should
only be dispensed in well ventilated areas, and with a cool
engine.
• Small gasoline engines produce high concentrations of
carbon monoxide (CO) example: a 5 HP 4 cycle engine operation in
an enclosed 100,000 cu. ft. area with only one change of air per hour
is capable of providing deadly concentrations of CO in less than fteen
minutes. Five changes of air in the same area will produce noxious
fumes in less than 30 minutes. Gasoline powered equipment should
not be used in enclosed or partially enclosed areas. Symptoms of CO
poisoning include, head-ache, nausea, weakness, dizziness, visual
problems and loss of consciousness. If symptoms occur - get into
fresh air and seek medical attention immediately.
• Never refuel a hot engine or an engine while it is running.
• Engines are shipped from factory without fuel/oil.
SAFETY MESSAGES
Indicates an imminent hazard which, if not avoided,
will result in death or serious injury.
Indicates an imminent hazard which, if not avoided,
can result in death or serious injury.
Indicates hazards which, if not avoided, could result in
serious injury and or damage to the equipment.
• Safety Instructions are proceeded by a graphic alert symbol of DANGER,
WARNING, or CAUTION.
GASOLINE / PROPANE POWERED EQUIPMENT
• Do not disconnect power by pulling cord. To disconnect, grasp the
plug, not the cord.
•Unplug power cord at the machine when not in use and before servic-
ing.
• Switch motor OFF before disconnecting power.
• Never use frayed, damaged, taped or under rated extension cords.
Electrical shock could result in death or serious injury to the operator
and damage to the equipment.
• Assure you are using the proper extension cord length.
•Equipment should only be operated by trained personnel in good
physical condition and mental health (not fatigued). The operator and
maintenance personnel must be physically able to handle the bulk
weight and power of this equipment.
•This is a one person tool. Maintain a safe operating distance to other
personnel. It is the operators’ responsibility to keep other people (work-
ers, pedestrians, bystanders, etc.) away during operation. Block o
the work area in all directions with roping, safety netting, etc.
Failure to do so may result in others being injured by ying debris or
exposing them to harmful dust and noise.
• This equipment is intended for commercial use only.
•For the operator’s safety and the safety of others, always keep all
guards in place during operation.
• Never let equipment run unattended.
• Personal Protection Equipment and proper safety attire must be worn
when operating this machinery. The operator must wear approved
safety equipment appropriate for the job such as hard hat and safety
shoes when conditions require. Hearing protection MUST be used
when operational noise levels of this equipment may exceed 85db.
Eye protection MUST be worn at all times.
GENERAL INSTRUCTIONS
Keep body parts, loose clothing and accessories away from
moving parts. Failure to do so could result in dismemberment
or death.
• Do not modify the machine.
• Stop motor/engine when adjusting or servicing this equipment. Maintain
a safe operating distance from ammable materials. Sparks
from the cutting-action of this machine can ignite ammable
materials or vapors.
•Propane is extremely ammable and is heavier than air
and tends to settle in low areas where a spark or ame could
ignite gas. DO NOT start or operate this propane engine in
a poorly ventilated area where leaking propane gas could accumulate
and endanger safety of persons in area. If headache develops, shut o
machine. Have it checked for carbon monoxide emissions by a qualied
technician before using it again. To ensure personal safety, installation
and repair of propane fuel supply systems must be performed only by
qualied technicians. Carbon monoxide emissions from this machine are
greatly increased due to a dirty combustion air cleaner.
Extreme care must be taken when operating electric models
with water present: Ensure power cord is properly grounded,
is attached to a Ground-Fault-Interrupter (GFI) outlet, and is
undamaged.
• Check all electrical cables - be sure connections are tight and cable
is continuous and in good condition. Be sure cable is correctly rated
for both the operating current and voltage of this equipment.
•Improper connection of the equipment grounding conductor can
result in a risk of electric shock. Check with qualified electrician or
service person if there is any doubt as to whether the outlet is properly
grounded. Adhere to all local codes and ordinances.
•NOTE: In the event of a malfunction or breakdown, grounding provides
a path of least resistance for the electric current to dissipate. The motor
is equipped with a grounded plug and must be connected to an outlet
that is properly installed and properly grounded. DO NOT modify the
plug provided on the motor. If the plug does not fit the outlet have a
qualified electrician install the proper receptacle.
ELECTRICAL POWERED EQUIPMENT
DUST WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains chemi-
cals known to cause cancer, birth defects, or other
reproductive harm. Materials being removed can be toxic or hazardous.
A breathing respirator is required to help protect the operator.
Some examples of these chemicals are:
• Lead from lead-based paints.
•Crystalline silica from bricks, concrete and other
masonry products.Your risk of exposure to these chemi cals varies de-
pending on how often you do this type of work. To reduce your risk: work
in a well ventilated area, use a dust control system, such as an industrial-
style vacuum, and wear approved personal safety equipment, such as a
dust/particle respirator designed to filter out microscopic particles.
• See more on the importance of dust prevention and silica warnings
at: osha.gov/silica
ELECTRICAL POWERED EQUIPMENT CONTINUED
SAFETY INFORMATION
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 3
Section Page Number
Safety Messages and General Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
How To Order Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Illustration 1: Main Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4, 5

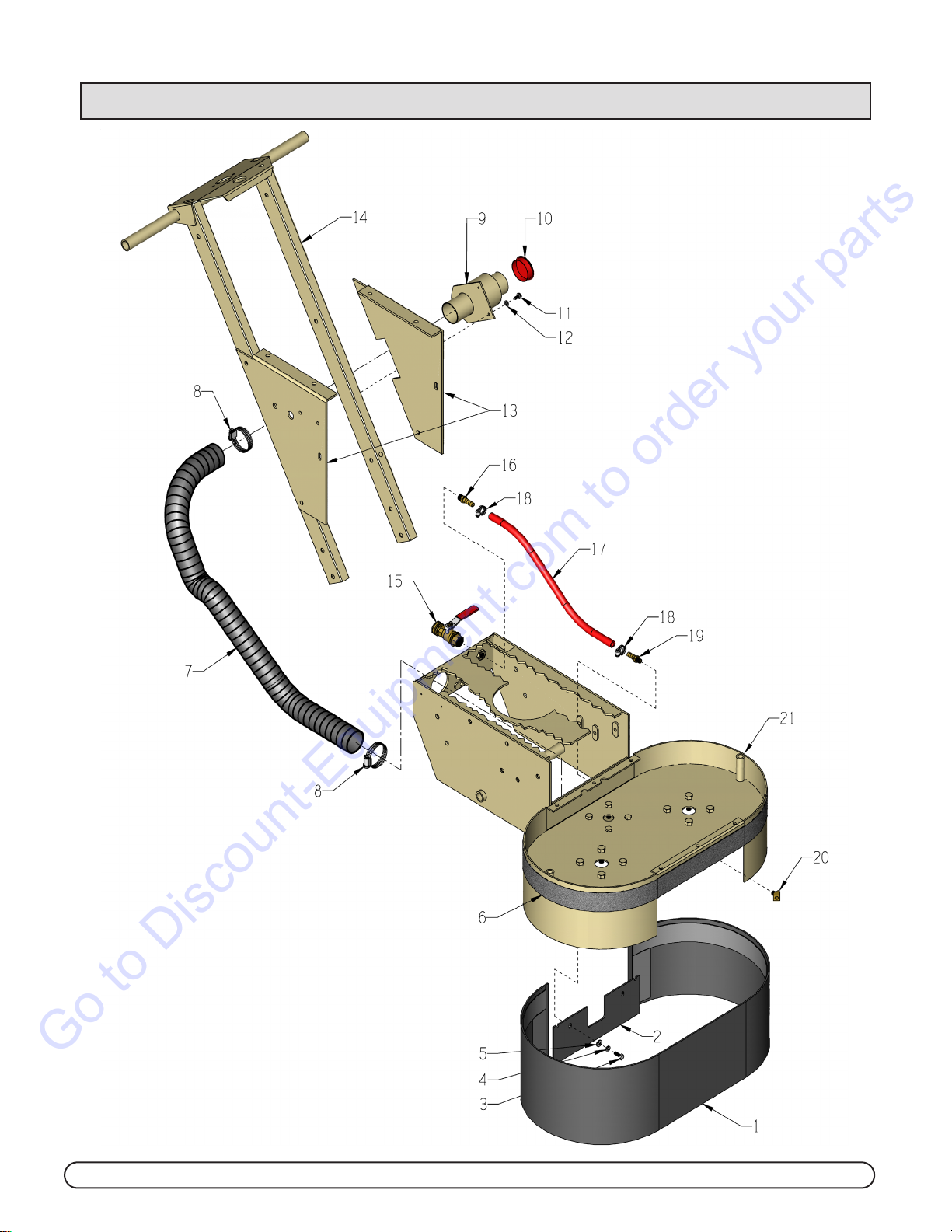

Illustration 2: Handle & Wheel Carriage Grouping . . . . . . . . . . . . . . . . . . . . . . . . 6, 7
Illustration 3: Skirt, Vacuum Port & Water Hook-Up Grouping . . . . . . . . . . . . . . . 8, 9

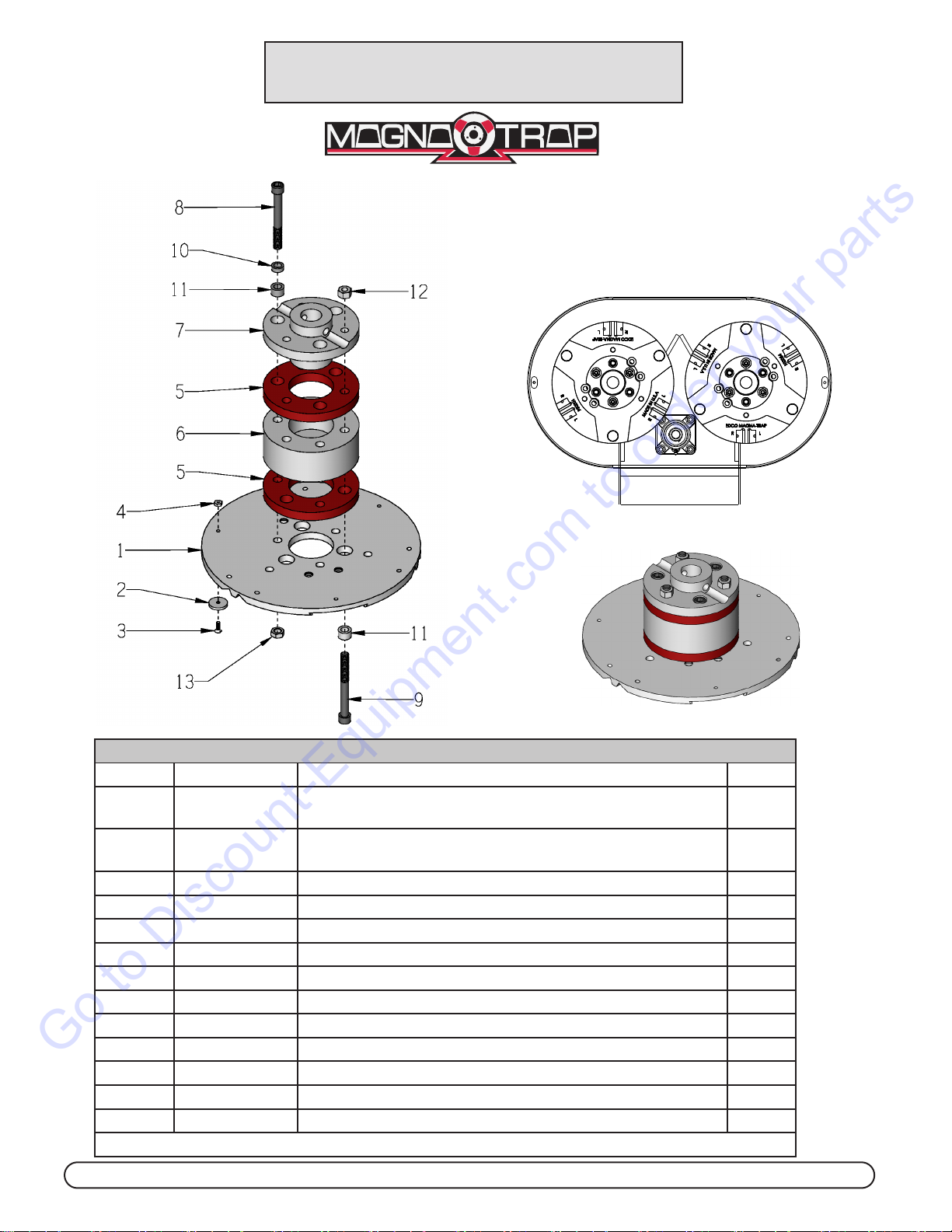

Illustration 4: Standard Grinding Disc Assemby . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Illustration 5: Optional Polishing Disc Assemby . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Illustration 6: Propane Engine & Belt Drive Grouping . . . . . . . . . . . . . . . . . . . . . . 12, 13
Illustration 7: Propane Tank Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 15
Illustration 8: Electrical Component Grouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Key Switch Wire Harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Other Wire Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Decal Sheet 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Decal Sheet 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Limited Equipment Warranty of Sale - Terms & Conditions . . . . . . . . . . . . . . . . . . 23
STOP: Before Using this Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
TABLE OF CONTENTS
PARTS LIST MANUAL
HEAVY-DUTY FLOOR GRINDER/POLISHER
PROPANE MODEL
®
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 4
ILLUSTRATION 1:ILLUSTRATION 1:
MAIN GROUPINGMAIN GROUPING
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 5
PARTS LISTING - ILLUSTRATION 1 : MAIN GROUPING
ITEM # PART # DESCRIPTION QTY.
1 77501 MAIN FRAME 1
2 77502 COVER, GEAR CASE 1
3 10005 PLUG, HOLE 7/8” BRIGHT ZINC 1
4 11697 SCREW, FLANGE HEX 1/4-20 X 3 2
5 10018 SCREW, CAP 1/4-20 X 3/4 6
6 10038 WASHER, LOCK 1/4 ZINC 8
7 10602 WASHER, FLAT 1/4 SAE ZINC 6
8 77008 BEARING, BALL 1” 4-HOLE FLANGE, ND 4
9 10450 WASHER, LOCK 7/16 ZINC 16
10 10481 NUT, HEX 7/16-20 ZINC 16
11 77009 BEARING, BALL 3/4” 4-HOLE FLANGE 2
12 50541 ADAPTER, GREASE FIT. 1/8PT X 1/4-28 1
13 10699 PIPE NIPPLE 1/8NPT X 2” (BLACK) 1
14 10585 PIPE COUPLING 1/8 NPT (BLACK STEEL) 1
15 10953 FITTING, GREASE 1/8 NPT STRAIGHT 1
16 10960 FITTING, GREASE 1/4-28 X 45° 3
17 10309 SCREW, CAP 3/8-24 X 1-1/4 ZINC 4
18 10811 WASHER, LOCK 3/8 ZINC 4
19 10014 NUT, HEX 3/8-24 ZINC 4
20 77346 SHAFT, LARGE GEAR 1”DIA X 7”L 2
21 77012 GEAR, SPUR 112 TOOTH (DRIVEN) 2
22 63056 PIN, H.D.COILED SPRING 3/8 X 2-1/2 2
23 77011 SHAFT, PINION GEAR 3/4DIA X 7-3/8”L 1
24 10037 PIN, ROLL 1/4 X 1-1/2 1
25 77053 GEAR, SPUR 25 TOOTH (PINION) 1
26 10009 WASHER, FLAT 3/4 SAE ZINC 1
27 101201 MT GRINDING DISC ASSEMBLY
(REFER TO ILLUSTRATION 4 FOR BREAKDOWN)
2
28 10007 PIN, ROLL 3/8 X 2-1/2 2
29 100961 HOOD, PROPANE MODEL 1
30 10025 WASHER, FLAT 3/8 SAE ZINC 2
31 10811 WASHER, LOCK 3/8 ZINC 2
32 10907 SCREW, CAP 3/8-16 X 3/4 2
33 77506 WEIGHT BLOCK, 40 LB. 2
34 59117 LEVEL, SCREW ON 1
35 11871 SCREW, MACHINE FHP 8-32 X 1-1/4 2
36 10462 NUT, KEPS LOCK 8-32 ZINC (NOT SHOWN) 2
37 77532 LIFTING BAIL 1
38 10025 WASHER, FLAT 3/8 SAE ZINC 4
39 10811 WASHER, LOCK 3/8 ZINC 4
40 10309 SCREW, CAP 3/8-24 X 1-1/4 ZINC 4
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 6
ILLUSTRATION 2:ILLUSTRATION 2:
HANDLE & WHEEL CARRIAGE GROUPINGHANDLE & WHEEL CARRIAGE GROUPING
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 7
PARTS LISTING - ILLUSTRATION 2 : HANDLE & WHEEL CARRIAGE GROUPING
ITEM # PART # DESCRIPTION QTY.
1 77533 HANDLE BAR, PROPANE MODEL 1
2 10608 GRIP, HAND 1” MODEL AT 2
3 10029 SCREW, CAP 3/8-24 X 1-3/4 4
4 10025 WASHER, FLAT 3/8 SAE ZINC 8
5 10004 NUT, HEX LOCK 3/8-24 ZINC 4
6 77508 HANDLE EXTENSION 1
7 77528 PLUG, BLACK 1”RD. TUBING 10-14 GA. 2
8 10030 SCREW, CAP 3/8-24 X 2 2
9 10025 WASHER, FLAT 3/8 SAE ZINC 4
10 10004 NUT, HEX LOCK 3/8-24 ZINC 2
11 65019 HANDWHEEL, SMALL W/ 5/8-8 X 13”ROD 1
12 14023 KNOB, BALL 1-3/8 W/ 1/2-13THD, BLK. 1
13 50550 SLEEVE, BRASS 1/2” TAPERED 1
14 10346 SCREW, SKT. HD. CAP 1/2-13 X 4-1/2 1
15 80009 BEARING, BALL 5/8” 2-HOLE (NO G.F.) 1
16 55010 SPACER, HANDWHEEL 5/8”ID X 3/4”L 1
17 10096 COLLAR, LOCKING 5/8”ID 2
18 10412 BOLT, CARRIAGE 1/4-20 X 1 2
19 10602 WASHER, FLAT 1/4 SAE ZINC 2
20 10861 NUT, KEPS LOCK 1/4-20 ZINC 2
21 10808 FITTING, GREASE 1/4-28 STRAIGHT 1
22 77534 LINKAGE, LOWER 1
23 10343 SCREW, CAP 1/2-20 X 2-1/2 1
24 10154 NUT, HEX NYLON LOCK 1/2-20 ZINC 1
25 77510 CARRIAGE, WHEEL 1
26 77537 FORK SHAFT 3/4”DIA. X 13-3/4”L 1
27 68008 WHEEL 8 X 1-5/8 X 3/4”BRG., POLY 2
28 77520 WHEEL 4 X 1-1/2 X 3/4”BRG., POLY 2
29 10009 WASHER, FLAT 3/4 SAE ZINC 14
30 10428 COLLAR, LOCKING 3/4”ID 6
31 77501 MAIN FRAME (REFER TO ILLUS. 1) 1
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 8
ILLUSTRATION 3: SKIRT, VACUUM PORT & WATER HOOK-UP GROUPINGILLUSTRATION 3: SKIRT, VACUUM PORT & WATER HOOK-UP GROUPING
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 9
PARTS LISTING - ILLUSTRATION 3 :
SKIRT, VACUUM PORT & WATER HOOK-UP GROUPING
ITEM # PART # DESCRIPTION QTY.
1 77529 RUBBER SKIRT 1/8 X 8 X 58 W/VELCRO 1
2 77504 RUBBER SKIRT, REAR 1/8 X 4 X 11 1
3 10018 SCREW, CAP 1/4-20 X 3/4 2
4 10038 WASHER, LOCK 1/4 ZINC 2
5 10602 WASHER, FLAT 1/4 SAE ZINC 2
6 77556 VELCRO-HOOK ONLY 2” X 72”
1 PIECE CUT 57-1/4”L & 2 PIECES CUT 4-1/2”L
1
7 77551 HOSE, FLEX 2”ID X 36”L 1
8 10766 CLAMP, HOSE, SAE #32, ADJ. TO 2-1/2 2
9 77538 VACUUM PORT 1
10 65021 CAP/PLUG 2” RED PLASTIC, FLANGED 1
11 10846 SCREW, CAP STSHW 1/4-20 X 1/2 2
12 10038 WASHER, LOCK 1/4 ZINC 2
13 ----- SIDE PANELS, HANDLE (REFER TO ILLUS. 7) 2
14 77533 HANDLE BAR, PROP. MODEL (REFER TO ILLUS. 2) 1
15 10711A VALVE & HOSE CONNECTOR ASSY. 1
16 50075 BARB, 3/8 HOSE X 1/4MPT (BRASS) 1
17 77521 HOSE 3/8”ID X 18”L 1
18 10714 CLAMP, HOSE, SAE #4, ADJ. TO 5/8” 2
19 10694 BARB, 3/8HOSE X 1/8MPT 1
20 10772 ELBOW, STREET 1/8NPT X 45 (BRASS) 1
21 77501 MAIN FRAME (REFER TO ILLUS. 1) 1
Go to Discount-Equipment.com to order your parts

Discount-Equipment.com is your online resource for quality parts & equipment.
Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101
Need parts?
Click on this link: http://www.discount-equipment.com/category/5443-parts/ and
choose one of the options to help get the right parts and equipment you are looking
for. Please have the machine model and serial number available in order to help us
get you the correct parts. If you don’t find the part on the website or on one of the
online manuals, please fill out the request form and one of our experienced staff
members will get back to you with a quote for the right part that your machine needs.
We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,
Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,
Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack,
Lull, Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic,
Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti,
Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S.
Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin,
Rice, CH&E, General Equipment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent,
Stanley, Tamco, Toku, Hatz, Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air,
APT, Wylie, Ingersoll Rand / Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith
Surface Prep,Small Line, Wanco, Yanmar

E-2DHDP18P-PL-0521
Page 10
ILLUSTRATION 4:ILLUSTRATION 4:
STANDARD GRINDING DISC ASSEMBLYSTANDARD GRINDING DISC ASSEMBLY
®
PART # 101201
ITEM # PART # DESCRIPTION QTY.*
1-13 101201 MT GRINDING DISC ASSEMBLY 1
1 100054 10” UNIVERSAL MAGNA-TRAP DISC
(INCLUDES MAGNETS)
1
2 36064 MAGNET, NEODYMIUM RING 7/8 X 1/8
(BOLT ON REPLACEMENT)
3
3 10647 SCREW, FLAT HD PHILLIPS 8-32 X 1/2 3
4 10462 NUT, KEPS LOCK 8-32 ZINC 3
5 100055 RING, RUBBER, 4-1/2”OD X 1/2”THK 2
6 100985 HUB SPACER, MAGNA-TRAP DISC, 2DHD 1
7 100057 HUB, GRINDER DISC 1
8 11855 SCREW, SKT. HD. CAP 3/8-24 X 3-1/4 3
9 11856 SCREW, SKT. HD. CAP 3/8-24 X 3-1/2 3
10 10113 SPACER, STEEL 9/16OD X 3/8ID X 7/32 3
11 10011 SPACER, STEEL 5/8OD X 3/8ID X 3/8T 6
12 10004 NUT, HEX LOCK 3/8-24 LOCK (USE RED LOCTITE) 3
13 11725 NUT, HEX JAM 3/8-24 ZINC (USE RED LOCTITE) 3
*NOTE: QUANTITIES ARE BASED ON 1 DISC. 2 DISC ARE REQUIRED.
DISC ARRANGEMENT
INSTALL DISC IN OPPOSITE DIRECTIONS
SO THEY PASS EACH OTHER AT THE
CENTER IN ALTERNATING SEQUENCE.
BOTTOM VIEW
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 11
ILLUSTRATION 5:ILLUSTRATION 5:
OPTIONAL POLISHING DISC ASSEMBLYOPTIONAL POLISHING DISC ASSEMBLY
®
ITEM # PART # DESCRIPTION QTY.*
1-13 77535
MT POLISHING DISC ASSEMBLY
1
1 75175
DISC ONLY, POLISHING, 2DHD
1
2QC-HOLDER-EDCO
HOLDER, MAGNETIC QUICK CHANGE
3
3 10147
SCREW, FLAT HD SKT 1/4-20 X 3/4
6
4 L18567
DISC TOP PLATE, POLISHING
1
5 11614
SCREW, CAP 1/2-20 X 3/4
3
6 10045
WASHER, LOCK 1/2 ZINC
3
7 86017
COUPLING, MORFLEX 402 CENTER
1
8 77518
FLANGE, MORFLEX COUPLING
1
9 10114
SCREW, SKT. HD. CAP 3/8-24 X 2-1/4
4
10 11695
WASHER, 1.1210 X .3750 X .1280
2
11 10811
WASHER, LOCK 3/8 ZINC
2
12 86343
BUSHING, RUBBER 1-1/4 X 3/4 X 3/8
4
13 10004
NUT, HEX LOCK 3/8-24 ZINC
4
*NOTE: QUANTITIES ARE BASED ON 1 DISC. 2 DISC ARE REQUIRED.
PART # 77535
DISC ARRANGEMENT
BOTTOM VIEW
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 12
ILLUSTRATION 6: PROPANE ENGINE & BELT DRIVE GROUPINGILLUSTRATION 6: PROPANE ENGINE & BELT DRIVE GROUPING
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 13
PARTS LISTING - ILLUSTRATION 6 : PROPANE ENGINE & BELT DRIVE GROUPING
ITEM # PART # DESCRIPTION QTY.
1 15081 ENGINE, KAWASAKI LX600 PROP. READY
INCLUDES:
12V STARTER, OIL PRESSURE SWITCH, OIL DRAIIN,
CATALYTIC MUFFLER.
LP FUEL SYSTEM: REGULATOR, INLINE SHUT-OFF VALVE,
HIGH & LOW PRESSURE HOSES, & REGO TANK CONNECTOR.
1
2 15295 SWITCH, OIL PRESSURE, 3 POLE 1
3 15296 ADAPTER 1/8-27 FNPT TO 1/8-28 BSP 1
4 77539 MOUNT, ENGINE, PROPANE 1
5 10055 SCREW, CAP 3/8-16 X 1 8
6 10811 WASHER, LOCK 3/8 ZINC 8
7 10025 WASHER, FLAT 3/8 SAE ZINC 8
8 77540 SPACER, CLUTCH, PROPANE MODEL 1
9 10139 SCREW, SET 1/4-20 X 5/16 1
10 40317 KEY 1/4SQ X 1-5/8 1
11 77541 BRACKET, CLUTCH RETAINER 1
12 10004 NUT, HEX LOCK 3/8-24 ZINC 2
13 75182 CLUTCH, ELECTRIC, 1 GR00VE 1
14 77542 WASHER, CLUTCH RETAINING 1-1/4”OD X 1/2”ID X 3/16”THK 1
15 10450 WASHER, LOCK 7/16 ZINC 1
16 11699 SCREW, CAP 7/16-20 X 1-3/4 1
17 10277 BELT B-38 1
18 10549 SHEAVE 7”OD X 1GR.B X 3/4”BORE 1
19 10016 KEY 3/16SQ X 1-1/2 1
20 3611 CABLE, THROTTLE, LEVER-TYPE 54” (TRIMMED TO 44”LOA) 1
21 10877 SCREW, CAP STSHW 10-24 X 1/2 3
22 10831 WASHER, LOCK, INT. TOOTH #10 3
23 10941 CLIP, CONDUIT, THROTTLE CABLE 1
24 75173 BATTERY 12V, INTERSTATE FAYTX20HL 1
25 77543 RUBBER PAD, BATTERY 3/16 X 3-3/8 X 7 1
26 77555 CLAMP, BATTERY HOLD-DOWN 1
27 10055 SCREW, CAP 3/8-16 X 1 1
28 10811 WASHER, LOCK 3/8 ZINC 1
29 10025 WASHER, FLAT 3/8 SAE ZINC 1
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 14
ILLUSTRATION 7: PROPANE TANK GROUPINGILLUSTRATION 7: PROPANE TANK GROUPING
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 15
PARTS LISTING
ILLUSTRATION 7: PROPANE TANK GROUPING
ITEM # PART # DESCRIPTION QTY.
1 15099 PROPANE TANK 20LB. VAPOR 1
2 100399 PROPANE TANK CRADLE BRACKET 1
3 101126 PROPANE TANK LOCATOR BRACKET 1
4 77061-2 PROPANE TANK STRAP W/ HINGE 1
5 77061-3 PROPANE TANK CLAW BRACKET 1
6 77061-4 PROPANE TANK TOGGLE CLAMP 1
7 11661 SCREW, FLAT HD SLT 1/4-20 X 1 4
8 10602 WASHER, FLAT 1/4 SAE ZINC 4
9 10861 NUT, KEPS LOCK 1/4-20 ZINC 4
10 10320
10802
BOLT, CARRIAGE 3/8-16 X 1-1/4 ZINC
BOLT, CARRIAGE 3/8-16 X 1 ZINC
2
2
11 10025 WASHER, FLAT 3/8 SAE ZINC 4
12 10811 WASHER, LOCK 3/8 ZINC 4
13 10404 NUT, HEX 3/8-16 ZINC 4
14 77547 DECK, PROPANE TANK 1
15 100965 SIDE PANEL, HANDLE RIGHT 1
16 77549 SIDE PANEL, HANDLE LEFT 1
17 10021 SCREW, CAP 3/8-24 X 1 4
18 10025 WASHER, FLAT 3/8 SAE ZINC 8
19 10004 NUT, HEX LOCK 3/8-24 ZINC 4
20 10029 SCREW, CAP 3/8-24 X 1-3/4 4
21 10025 WASHER, FLAT 3/8 SAE ZINC 8
22 10004 NUT, HEX LOCK 3/8-24 ZINC 4
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 16
ILLUSTRATION 8:ILLUSTRATION 8:
ELECTRICAL COMPONENT GROUPINGELECTRICAL COMPONENT GROUPING
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 17
PARTS LISTING
ILLUSTRATION 8: ELECTRICAL COMPONENT GROUPING
ITEM # PART # DESCRIPTION QTY.
1 15201A
50084
10831
10877
11567
SWITCH W/ WIRES, ROCKER RED ON-OFF
(EMERGNCY STOP)
ADDITIONAL PARTS REQ’D. (NOT SHOWN):
TERM., RING #10 16-14GA. INSULATED
WASHER, LOCK, INT. TOOTH #10
SCREW, CAP STSHW 10-24 X 1/2
CONNECTOR, BULLET STD. 16-14GA.BLUE
1
1
1
1
1
2 75184 SWITCH, ROCKER ON-OFF, RED, CLUTCH 1
3 15264 LAMP, OIL PRESSURE, RED 1
4 75183 SWITCH, KEY STARTER 1
5 75171 SOLENOID SWITCH, STARTER 1
6 10018 SCREW, CAP 1/4-20 X 3/4 2
7 10602 WASHER, FLAT 1/4 SAE ZINC 2
8 10861 NUT, KEPS LOCK 1/4-20 ZINC 2
9 57148 GROMMET 3/8ID X 1/8GRV. X 5/8GD 1
10 75182 CLUTCH, ELECTRIC, 1 GR00VE
(REFER TO ILLUS. 6)
1
11 75173 BATTERY 12V, INTERSTATE FAYTX20HL
(REFER TO ILLUS. 6)
1
12 15296 ADAPTER 1/8-27 FNPT TO 1/8-28 BSP 1
13 15295 SWITCH, OIL PRESSURE, 3 POLE 1
NOT
SHOWN
75180 FUSEHOLDER, 1-30A, ATC BLADE 1
75181 FUSE, 20A, ATC BLADE 1
Go to Discount-Equipment.com to order your parts

E-2DHDP18P-PL-0521
Page 18
WIRING DIAGRAMWIRING DIAGRAM
Go to Discount-Equipment.com to order your parts
This manual suits for next models
1
Table of contents
Other Edco Floor Machine manuals

Edco
Edco S-EC Assembly instructions

Edco
Edco S-EC Assembly instructions

Edco
Edco 2D-HD Assembly instructions

Edco
Edco TS8 User manual

Edco
Edco DDG-9-I-0315 Assembly instructions

Edco
Edco SEC-NG Assembly instructions

Edco
Edco 2-EC User manual

Edco
Edco TILE SHARK User manual

Edco
Edco TL-9 TURBO-LITE Assembly instructions

Edco
Edco 2-EC User manual
