Eddy products EP3-UL User manual

SAFETY PRECAUTIONS
■ Check your electric line and receptacle to make
certain they are correct for the voltage and amper-
age indicated on your Heat Gun. If an extension
cord is necessary, a minimum 14 gauge three-
prong grounding type cord rated for outdoor use
would be used to prevent excessive voltage drop,
loss of power or overheating.
■ Do not use adapters or modify the Heat Gun plug.
■ Replace damaged cords and plugs immediately.
■ Because the Heat Gun has the appearance of a
household hair dryer, keep out of the reach of chil-
dren and advise other persons having access to it
of its high heat capabilities.
■ WARNING: With a Heat Gun, as with all other heat
tools, keep a fire extinguisher handy and observe
all sensible fire precautions.
■ WARNING: To reduce the risk of fire or electric
shock, do not expose heat guns to rain or moisture.
Store indoors. Connect to grounded outlet only.
■ This tool emits high temperature heat at the nozzle.
Keep hands and body out of the heated air stream
and never grasp the Heat Gun by the nozzle. Wearing
protective gloves and safety glasses is recommended.
■ Never let the Heat Gun operate while unattended and
unplug when not in use or before servicing.
■ Do not use Heat Gun near combustible materials,
fumes or vapors. Good ventilation is always advised.
■ Do not heat chemicals. Avoid the hazards of ignition or
the release of harmful vapors.
■ Heat Guns are equipped with a circular safety stand
that should be used when setting the tool down while
operating or during the cool-down period. Never store
while hot.
■ Although the housing and handle of your Heat Gun
are constructed of non-conducting material, it is not
recommended for us in wet or damp areas. Never
immerse Gun in water nor stand in water or wet
areas while using Gun.
HEAT GUN
OWNER’S MANUAL
Your Heat Gun is part of a tool line that is capable
of producing up to 1,200ºF heat and EXTREME
CAUTION should be exercised in its use and
operating environment. This owner’s manual
should be read and completely understood before using.
Optional Break Resistant Element Available (add the suffix “M” to the model number
for a Mica Element). Solves breakage problems due to rough handling, dropping, etc.
TEMPERATURE RANGES
MODEL NO.VOLTAGE AMPS APPROX.
TEMP. Fº
**EP3-UL 115 9 300º-500º
**EP5-UL 115 12 500º-750º
**EP6-UL 115 14.3 650º-900º
EP7-UL 115 15 750º-1000º
EP1100 Plus 115 15 800º-1150º
**CSA Listed Models
MODEL NO. VOLTAGE AMPS APPROX.
TEMP. Fº
EP-3A 230 5 300º-500º
EP-5A 230 6 500º-750º
EP-7A 230 8 750º-1000º

Underwriting Laboratories, Inc., in the Eleventh
Edition for Electrical Heating Appliances, UL 499
revised May 1990, issues the following instructions:
1. Hidden areas such as behind walls, ceilings,
floors, soffit boards and other panels may contain
flammable materials that could be ignited by the
Heat Gun when working in these locations. The
ignition of these materials may not be readily
apparent and could result in property damage
and injury to persons.
2. When working in these locations, keep the Gun
moving in a back-and-forth motion. Lingering or
pausing in one spot could ignite the panel or the
material behind it.
WARNING: Extreme care should be taken when
stripping paint. The peelings, residue and vapors of
paint may contain lead, which is poisonous. Any
pre-1977 paint may contain lead and paint applied
to homes prior to 1950 is likely to contain lead.
Exposure to even low levels of lead can cause
irreversible brain and nervous system damage;
young and unborn children are particularly
vulnerable.
Before beginning any paint removal process,
you should determine whether the paint you
are removing contains lead. This can be done by
your local health department or by a professional
who uses a paint analyzer to check the lead content
of the paint to be removed. LEAD-BASED PAINT
SHOULD ONLY BE REMOVED BY A PROFESSIONAL
AND SHOULD NOT BE REMOVED USING A HEAT
GUN.
SAFETY PRECAUTIONS CONTINUED
IMPORTANT SAFETY INSTRUCTIONS
READ THESE INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Persons removing paint should follow these
guidelines:
■ Keep the work area well ventilated. Open the windows and put an
exhaust fan in one of them. Be sure the fan is moving the air from
inside to outside.
■ Remove or cover any carpets, rugs, furniture, clothing, cooking
utensils and air ducts.
■ Place drop cloths in the work area to catch any paint chips or
peelings. Wear protective clothing such as extra work shirts,
overalls and hats.
■ Work in one room at a time. Furnishings should be removed or
placed in the center of the room and covered. Work areas should
be sealed off from the rest of the dwelling by sealing doorways
with drop cloths.
■ Children, pregnant or potentially pregnant women and nursing
mothers should not be present in the work area until the work is
done and all clean-up is complete.
■ Wear a dust respirator mask or a dual filter (dust and fume)
respirator mask which has been approved by the Occupational
Safety and Health Administration (OSHA), the National Institute of
Safety and Health (NIOSH), or the United States Bureau of Mines.
These masks and replaceable filters are readily available at major
hardware stores. Be sure the mask fits. Beards and facial hair may
keep the masks from sealing properly. Change filters often.
DISPOSABLE PAPER MASKS ARE NOT ADEQUATE.
■ Use caution when operating the Heat Gun. Keep the Heat Gun
moving as excessive heat will generate fumes which can be inhaled
by the operator.
■ Keep food and drink out of the work area. Wash hands, arms and
face and rinse mouth before eating or drinking. Do not smoke or
chew gum or tobacco in the work area.
■ Clean up all removed paint and dust by wet mopping the floors.
Use a wet cloth to clean all walls, sills and any other surfaces where
paint or dust is clinging. DO NOT SWEEP, DRY DUST OR VACUUM.
Use a high phosphate detergent or trisodium phosphate (TSP) to
wash and mop areas.
■ At the end of each work session, put the paint chips and debris
in a double plastic bag, close it with tape or twist-ties and dispose
of properly.
■ Removed protective clothing and work shoes in the work area
to avoid carrying dust into the rest of the swelling. Wash work
clothes separately. Wipe shoes off with a wet rag that is then
washed with the work clothes. Wash hair and body thoroughly
with soap and water.

MAINTENANCE INSTRUCTIONS
■ The brushes and commutator in your Heat Gun have
been engineered and matched for many hours of
dependable service Brushes should be checked for wear
at approximately 400 hours of total operation. Replace in
sets when they reach a length of 1/4-inch or less. Brush
springs should be replaced at the same time.
■ Bearings are factory lubricated and sealed for the life of
the bearing and no further lubrication is required.
■ If the Heat Gun is used under extremely dusty conditions,
dust inside of the housing can be removed without
disassembly with a blast of compressed dry air through
openings in the housing.
■ If housing exterior requires cleaning, any household
liquid detergent may be used being careful not to allow
liquid of any kind to reach the Gun’s operating parts.
Avoid using MEK or strong alkaline solutions.
■ Visual inspection of cord and plug should be made
occasionally to make sure protective
insulation is not damaged.

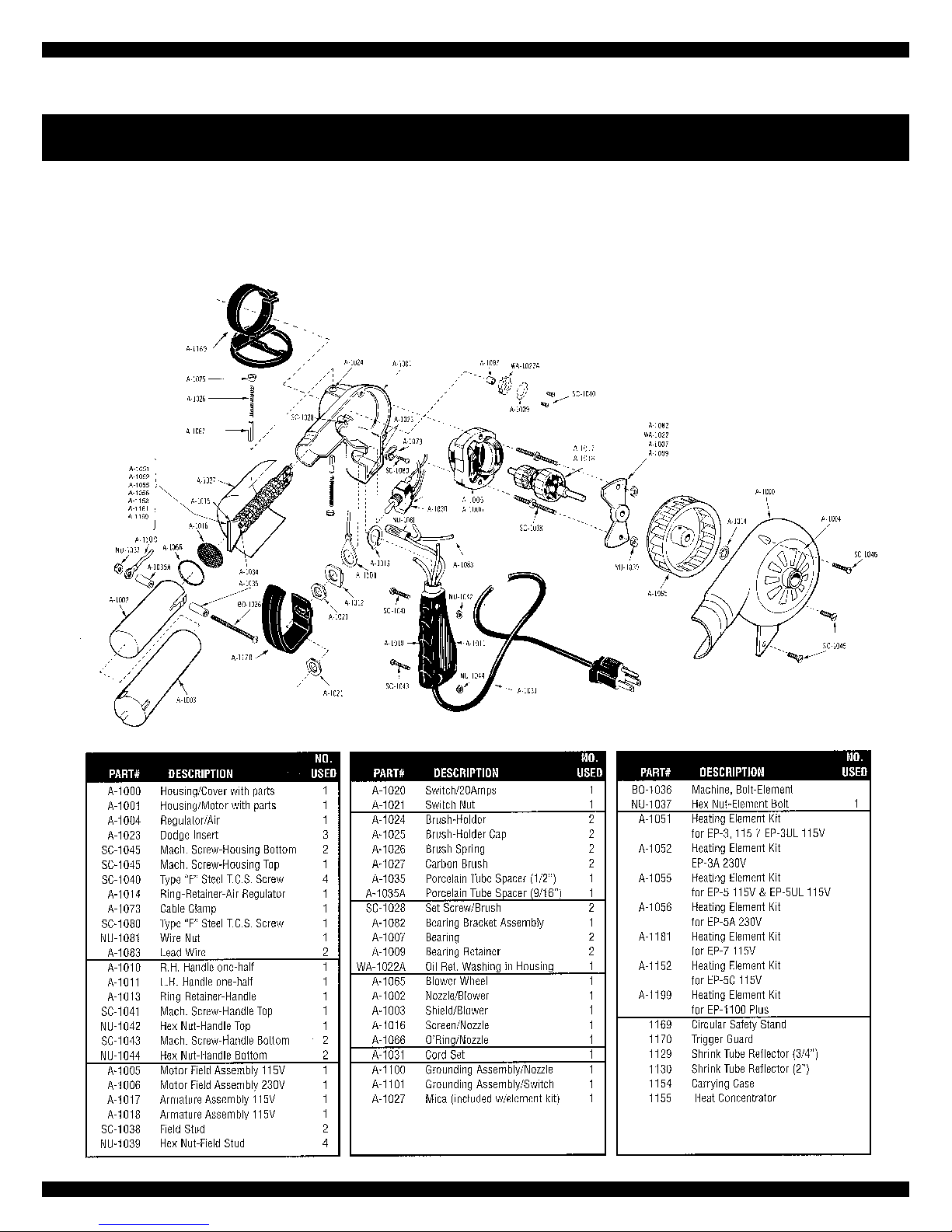

■ In the event of heating element burnout, the complete
“Quick Change” assembly can be ordered with
installation instructions.
“QUICK-CHANGE” ELEMENT REPLACEMENT STEPS
For Ceramic-Based Elements
■ Turn outer shield counterclockwise and pull away from
housing.
■ Loosen bolt and nut on the inner shield and rotate
clockwise until the locking knob on the housing is
visible. Remove the three screws from the cover.
Lift back of cover and gently slide away from
inner shield.
■ Remove old element by pulling connectors apart and
attach new element in same manner.
■ Using new piece of mica, wrap element and slide into
inner shield.
■ Re-assemble the bolt through new element using one
spacer on each side. Start nut, but do not tighten.
■ Slide element into the inner shield so that bolt drops
down into slot provided. Slide the inner shield onto the
housing and twist counterclockwise until the knob is
secured and then tighten bolt and nut. Slide the outer
shield on and twist in a clockwise direction.
For Mica-Based Elements
■ Turn outer shield counterclockwise and pull away from
housing.
■ Rotate inner shield clockwise until the knob on the
housing is visible.
■ Remove the three screws from the cover.
■ Lift back cover and gently slide away from inner
shield.
■ Disconnect the two terminals from element and pull the
element out.
■ Using a new piece of mica, wrap element and slide into
inner shield.
■ Make sure mica is slid down to bottom of nozzle.
■ Reconnect the two terminals to the new element.
■ Replace cover –– do not hit the blower fan.
■ Tighten cover screws –– turn inner nozzle
counterclockwise. Slide on outer shield and tighten by
turning clockwise.

IF YOUR HEAT GUN NEEDS FACTORY SERVICE
Send complete unit prepaid with request for repair
including a brief note describing the problem.
“In-Warranty” repaired guns will be returned
promptly, prepaid.
“Out-of-Warranty” repairs, if less than $25, will
automatically be repaired. If the amount exceeds
$25, repairs will be made only after authorization is
received from the sender. A standard $8.00 service
charge is required to disassemble and evaluate the
cost of repair.

The Eddy Heat Gun has three position toggle switch
marked OFF-COLD-HOT. In “COLD” position, only the fan
will operate. In “HOT” position, both the heating element
and fan operate. when switching the gun off, switch to
“COLD” position and allow fan to run for one minute before
switching to “OFF.” This procedure, when turning off gun,
will extend the life of the heating element and protect the
housing from damage.
■ Adjust heat by turning the air regulator assembly.
Your gun’s rated temperature range is based upon the
amount of air passing through the air regulator. Turning
the regulator as indicated will increase or decrease the
temperature.
■ To prevent back pressure and premature heating
element burn-out, keep nozzle at least one-inch from
surface being heated. Keep nozzle moving … do not
hold stationary on flammable materials.
■ Make certain that all ventilation openings are kept
clean and free of foreign matter. The Heat Gun is most
effectively cleaned with compressed dry air. Do not
insert objects through openings.
■ Care in handling is recommended to avoid damage to
the heating element core.
OPERATING INSTRUCTIONS

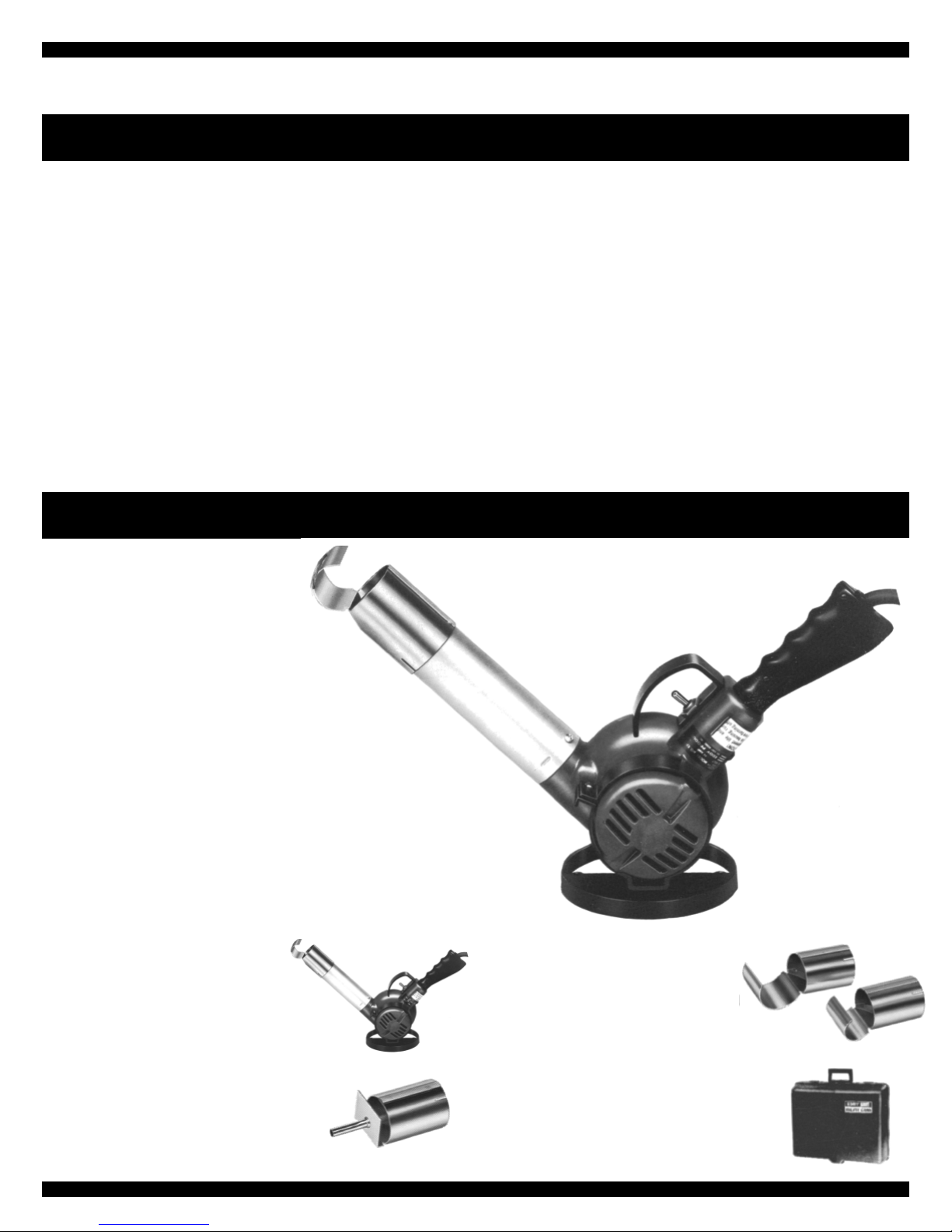

ACCESSORIES FOR HEAT GUNS
■ Shrink Tube Reflectors,
Model 1129 (left) is for
tubing up to one-inch O.D.
and Model 1130 (right) handles
up to two-inches O.D. tubing.
■ Model 1169 Sturdy circular
safety stand of LEXAN can be
easily adjusted to any angle in
horizontal or vertical position.
Easily attached and removed.

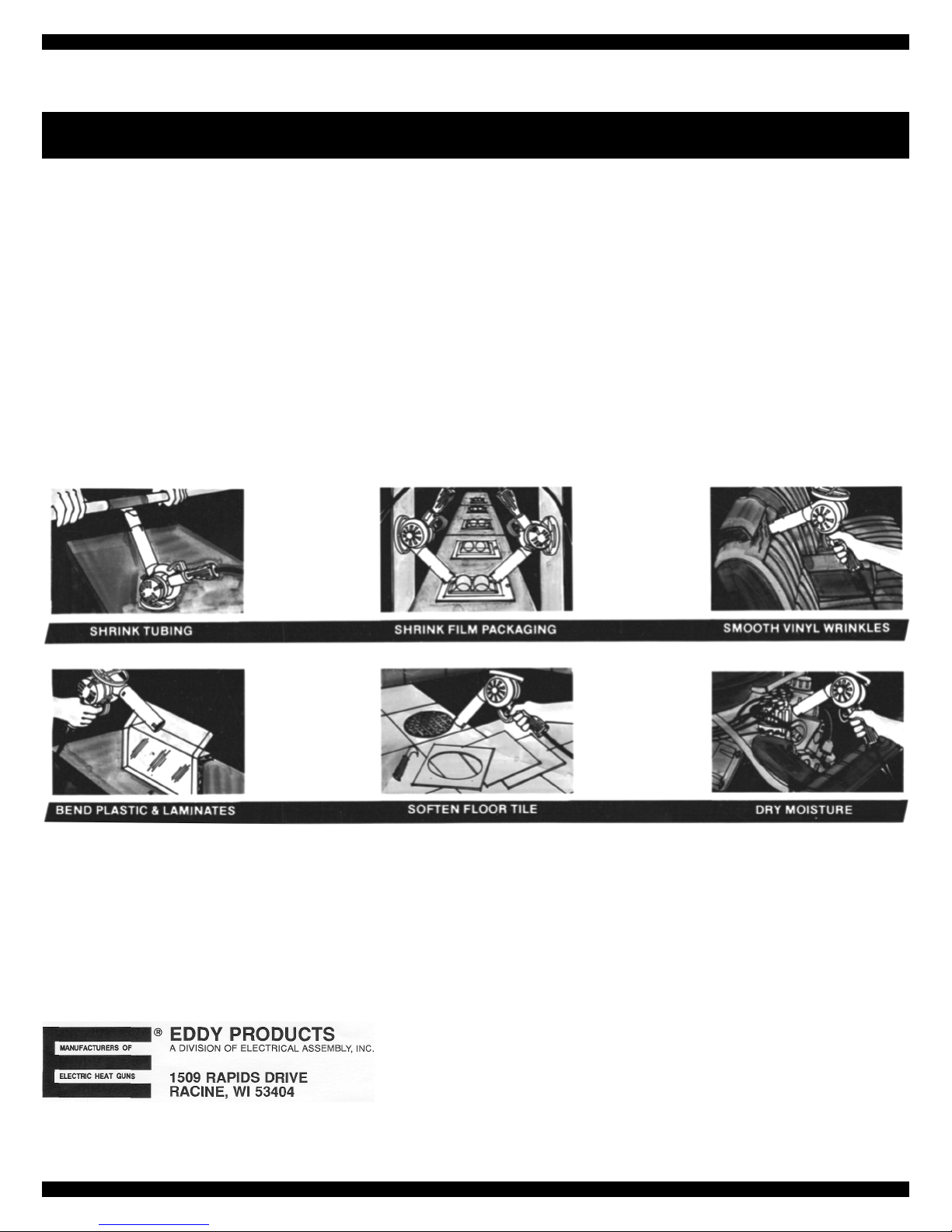

Add versatility and extra uses
to your precision unit for a
wide variety of industrial
and commercial applications.
■ Model 1155 Heat Concentrator
Attachment for limited area
coverage and efficient
shrinking of small size tubing.
■ Model 1154 Rugged polyethlylene
carrying case holds Heat Gun,
circular safety stand and
accessories.

HEAT GUN WARRANTY
Eddy Products warrants this Heat Gun to be free
from defects in material and workmanship under
normal use and service within 12 months from the
date of purchase and guarantees to either repair or
replace at our option, at no cost, any part that in
our judgement shows evidence of such defect
within 12 months from the date of purchase.
All transportation charges on parts submitted for
replacement or repair under this warranty must be
borne by the purchaser.
This warranty does not cover motor brush or nor-
mal wear and does not apply if the Gun has been
abused, altered, or not used with current specified
on the nameplate. Upon expiration of the warranty
periods, the manufacturer shall have no further
warranty obligations, expressed or implied.
Eddy Products
Customer Service Department
1509 Rapids Drive
Racine, WI 53404
Printed in U.S.A. 11/2004 FF201-3
[phone]
[phone]
Fax: [phone]
