Palmgren 80207 User manual

operating manual & parts list 80207
20″
HEAVY DUTY FLOOR MODEL
DRILL PRESS
Read carefully and follow all safety rules and operating instructions before
first use of this product.
32000.19-1010

DESCRIPTION
Palmgren Drill Presses feature a heavy cast iron base, column collar,
work table and head.Work table height is adjustable using rack
and pinion.Table can be tilted 45° both right and left, and rotates
360° on a vertical axis.Work table surface is precision ground and
features T-slots for secure, accurate mounting of workpiece and
also a coolant trough. Digital readout displays spindle depth and
RPM. Other features of the Palmgren drill press are an enclosed ball
bearing quill assembly, quick belt change and tension mechanism,
positive quick-adjust feed depth stop and a 11⁄2HP, 1725 RPM
motor. Chuck and chuck arbor are included.
Palmgren drill presses are ideal for use in home shops, mainte-
nance shops and light industrial applications. Spindle speeds are
adjustable for drilling steel, cast iron, aluminum, wood and plastic.
UNPACKING
Refer to Figure 1.
WARNING: Be careful not to touch overhead power lines, piping,
lighting, etc., if lifting equipment is used. Drill press weighs up to
352 lbs, proper tools, equipment and qualified personnel should be
employed in all phases of unpacking and installation.
Crates should be handled with care to avoid damage from drop-
ping, bumping, etc. Store and unpack crates with correct side up.
After uncrating drill press, inspect carefully for any damage that
may have occurred during transit. Check for loose, missing or dam-
aged parts. If any damage or loss has occurred, claim must be filed
with carrier immediately. Check for completeness. Immediately
report missing parts to dealer.
Drill press is shipped unassembled.Locate and identify the follow-
ing assemblies and loose parts:
A Head Assembly
B Table
CBase
D Column Assembly
E Feed Handle Knob
F Feed Handle
G Table Handle
H Table Handle Knob
I Center Pulley Assembly
Not Shown: Drill Chuck with Key, Arbor, Drill Drift, Belt Tension
Handle,Table Bolt,Taper Pin with Nut, five M12 x 45 Socket Head
Bolts, 3, 5 and 10mm Hex Wrenches, four M8 x 125 Hex Head Bolts,
four M8 Lock Washers, eight M8 Flat Washers, and four M8 Hex
Nuts.
IMPORTANT: The tool has been coated with a protective coating.
In order to ensure proper fit and operation the coating must be
removed. Remove coating with mild solvents such as mineral spir-
its and a soft cloth. Nonflammable solvents are recommended.
After cleaning, cover all exposed surfaces with a light coating of oil.
Paste wax is recommended for table top.
CAUTION: Never use highly volatile solvents. Avoid getting clean-
ing solution on paint as it may tend to deteriorate these finishes.
Use soap and water on painted components.
SPECIFICATIONS
Chuck size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20mm, JT3
Spindle taper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MT3
Spindle travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6”
Quill diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.44”
Quill collar diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.95” (75mm)
Column diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.62”
Speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120-3605
Swing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20”
Table size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165/8x 185⁄8”
Table working surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165/8x 185⁄8”
T-Slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 x 14mm
Base size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175/8” x 221⁄2”
Base working surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 x 16”
Drilling capacity (cast iron) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1”
Distance, spindle to table: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43⁄4-263/8”
Distance, spindle to base: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 453/8”
Overall height: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69.7”
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336 lbs
Shipping weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 352 lbs
Motor . . . . . . . . . . . . . 11⁄2HP, 120/240 V, 14.0/7.0 A, 1725 RPM, 60 Hz
SAFETY RULES
PROPOSITION 65 WARNING: Some dust created by power
sanding, sawing, grinding, drilling and other construction activities
contains chemicals known to the state of California to cause can-
cer, birth defects or other reproductive harm.
Some examples of these chemicals are:
•Lead from lead-based paints.
•Crystalline silica from bricks and cement and other
masonry products.
•Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures vary, depending on how often you
do this type of work.To reduce your exposure to these chemicals:
work in a well ventilated area and work with approved safety
equipment. Always wear OSHA/NIOSH approved, properly fitting
face mask or respirator when using such tools.
Before any work is done, carefully read the cautions listed.Working
safely prevents accidents.
BE PREPARED FOR JOB
•Wear proper apparel. Do not wear loose clothing, gloves, neck-
ties, rings, bracelets or other jewelry which may get caught in
moving parts of machine.
•Wear protective hair covering to contain long hair.
•Wear safety shoes with non-slip soles.
•Wear safety glasses which comply with United States ANSI
Z87.1. Everyday glasses have only impact resistant lenses.They
are NOT safety glasses.
2
Palmgren Operating Manual & Parts List 80207

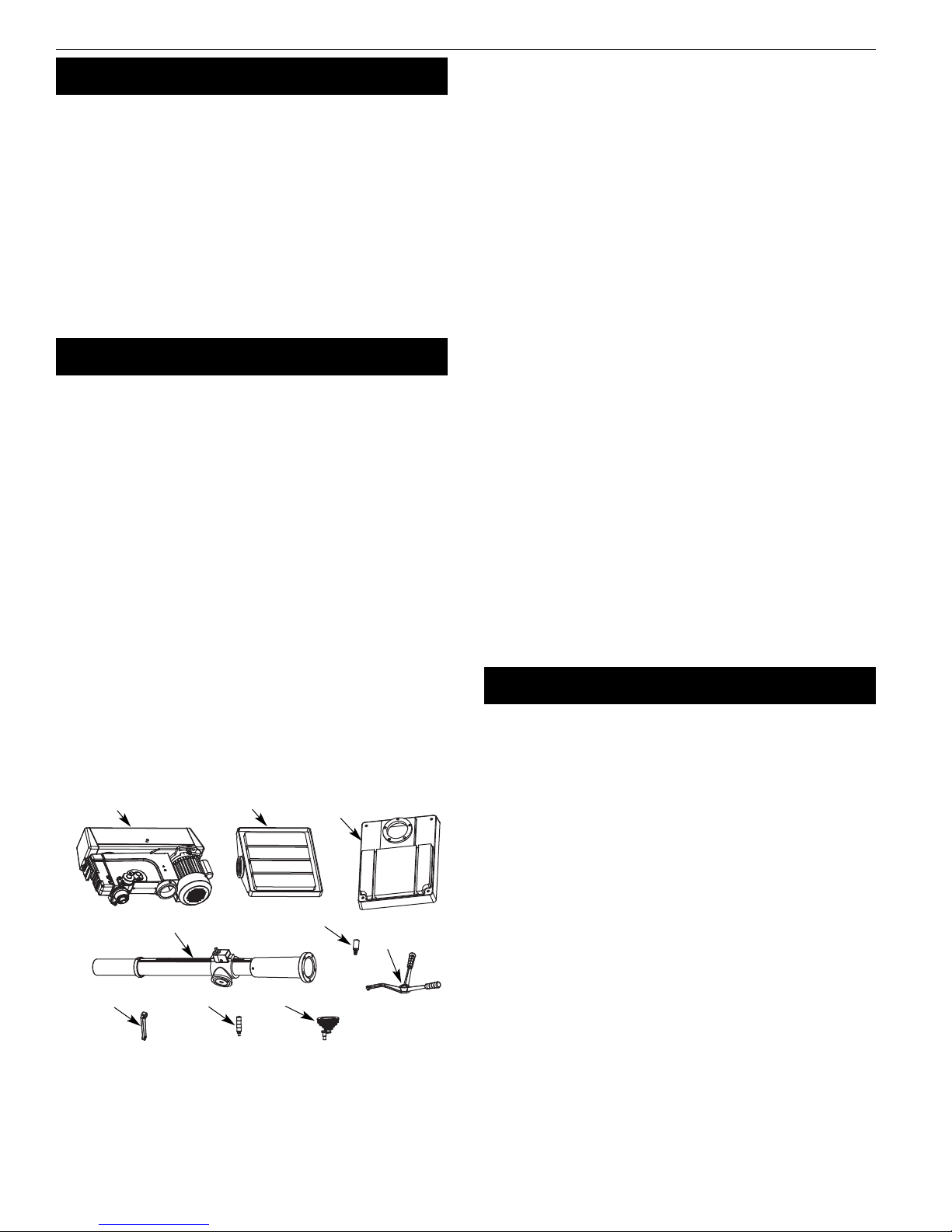

Figure 1 – Unpacking
ABC
DE
F
GHI

3
•Wear face mask or dust mask if cutting operation is dusty.
•Be alert and think clearly.Never operate power tools when
tired, intoxicated or when taking medications that cause
drowsiness.
WORK AREA SHOULD BE READY FOR JOB
•Keep work area clean. Cluttered work areas and work benches
invite accidents.
•Do not use power tools in dangerous environments. Do not use
power tools in damp or wet locations. Do not expose power
tools to rain.
•Work area should be properly lighted.
•Proper electrical outlet should be available for tool.
Three-prong plug should be plugged directly into properly
grounded, three-prong receptacle.
•Extension cords should have a grounding prong, and the three
wires of the extension cord should be of the correct gauge.
•Keep visitors at a safe distance from work area.
•Keep children out of workplace. Make workshop childproof. Use
padlocks, master switches or remove switch keys to prevent
any unintentional use of power tools.
TOOL SHOULD BE MAINTAINED
•Always unplug tool prior to inspection.
•Read operating instructions manual for specific maintaining
and adjusting procedures.
•Keep tool lubricated.
•Use sharp cutters and keep the tool clean for safest operation.
•Remove adjusting tools. Form the habit of checking that adjust-
ing tools are removed before turning on the machine.
•Keep all parts in working order. Check to determine that the
guard or other parts will operate properly and perform their
intended function.
•Check for damaged parts. Check for alignment of moving parts,
binding, breakage, mounting and any other condition that may
affect a tool’s operation.
•Damaged parts should be properly repaired or replaced.Do not
perform makeshift repairs. (Use the parts list provided to order
replacement parts.)
KNOW HOW TO USE TOOL
•Use the right tool for the job. Do not force tool or attachment
to do a job for which it was not designed.
•Disconnect tool when changing accessories such as bits, cut-
ters and the like.
•Avoid accidental start-up. Make sure switch is in OFF position
before plugging in.
•Do not force tool. It will work most efficiently at the rate for
which it was designed.
•Handle workpiece correctly. Secure work with clamps or vise.
Leave hands free to operate machine, Protect hands from
possible injury.
•Never leave a tool running unattended.Turn the power off and
do not leave tool until it comes to a complete stop.
•Do not overreach. Keep proper footing and balance.
•Never stand on tool. Serious injury could occur if tool is tipped
or if cutter is unintentionally contacted.
•Keep hands away from moving parts and cutting surfaces.
•Know your tool. Learn its operation, application and specific
limitations.
•Feed work into a bit or cutter against the direction of rotation
of bit or cutter.
•Turn the machine off if it jams. A cutter jams when it digs too
deeply into the workpiece. (The motor force keeps it stuck in
workpiece.)
•Use recommended accessories. Refer to page 11.Use of
improper accessories may cause risk of injury to persons.
•Clamp workpiece or brace against column to prevent rotation.
•Use recommended speed for drill accessory and workpiece
material.
WARNING: Think Safety! Safety is a combination of operator com-
mon sense and alertness at all times when drill press is being used.
ASSEMBLY
MOUNT COLUMN ASSEMBLY TO BASE
Refer to Figure 7.
•Place base (Ref. No. 1) on flat level surface.
•Mount column assembly (Ref. No. 7) to base using five socket
head bolts (Ref. No. 6).
MOUNT TABLE
Refer to Figure 7.
•Attach crank handle (Ref. No. 20) to shaft of worm gear (Ref. No.
19), rotate worm gear to remove slack, and shoulder crank han-
dle with set screw (Ref. No. 17). Attach crank handle knob (Ref.
No.21) to handle.
•Attach table (Ref. No. 11) to table bracket (Ref. No. 13) using
table bolt (Ref. No. 9).
Do not tighten bolt completely at this time.
•Position table at 0° .Insert taper pin (Ref. No.10) into the hole
under the table located below the table bolt.With a mallet, tap
pin completely into bracket.Thread hex nut onto pin (thread
on lightly–this nut is used to draw pin out when ajusting table
angle).Tighten the table bolt completely at this time.
MOUNT HEAD ASSEMBLY
Refer to Figure 9.
WARNING: Although compact, the drill press head assembly is
heavy. Two people are required to mount the drill press head
assembly onto the column.
•Slide drill press head assembly onto top of column.
•Position head so that it is centered over base.
•Secure head by tightening the set screws (Ref. No. 39) on the
right side of the head casting.
ATTACH BELT TENSION HANDLE
Refer to Figure 8.
•Thread handle (Ref. No. 18) into motor mount plate (Ref. No. 14).
MOUNT QUILL FEED HANDLE ASSEMBLY
Refer to Figure 8.
•Place key (Ref. No. 26) into keyway of pinion (Ref. No. 27).
•Place quill feed handle assembly (Ref. No. 25) over pinion.
•Secure handle assembly with flat head screw (Ref. No. 22) and
plate (Ref. No. 23).
•Thread quill feed knob (Ref. No. 24) into quill feed handle
assembly.
INSTALL CENTER PULLEY ASSEMBLY
Refer to Figures 8 and 9.
•Loosen motor lock handle (Fig. 8, Ref. No. 17) and use belt ten-
sion handle (Fig. 8, Ref. No. 18) to pivot motor toward front of
drill press.
Palmgren Operating Manual & Parts List 80207

4
•Open cover of pulley housing (Fig. 9, Ref. No. 2) and insert cen-
ter pulley assembly (Fig. 8, Ref. No. 9) into the head casting.
•Choose a speed from Figure 5 or the pulley housing speedchart
and connect spindle pulley to center pulley with front drive
belt (Fig. 8, Ref. Nos. 2, 8 and 9). Connect center pulley to motor
pulley with rear drive belt (Fig. 8, Ref. Nos. 9, 10 and 11).
NOTE: Front drive belt is type 310J4 and rear drive belt is type
290J4.
•Pull handle (Fig.8, Ref. No.18) to move motor toward rear of
drill press and tighten motor lock handle (Ref. No. 17).
MOUNT DRILL CHUCK AND ARBOR
Refer to Figure 8.
•Be sure spindle taper, arbor taper and chuck taper are clean
and dry.
•Use the provided chuck key (Ref. No. 32) to adjust the jaws of
the chuck (Ref. No. 31) until they are recessed inside the drill
chuck body.
•Place drill chuck on a workbench face down. Arbor (Ref. No. 30)
has a short taper and a long taper. Place short taper into top of
drill chuck and tap with a rubber or wooden mallet.
•Slide arbor into the spindle (Ref. No. 29) while slowly rotating
drill chuck. Spindle has a rectangular pocket in which the tang
fits into. Once tang is oriented correctly, drill chuck will not
rotate without turning the spindle.
•Tap the end of drill chuck with a rubber or wooden mallet to
seat it into the spindle.
Hardware (Four M8 x 125 hex head bolts, M8 lock washers, M8 hex
nuts and eight M8 flat washers) has been provided for mounting
the drill press to a wood base plate.This is recommended if you
intend to place the drill press on a mobile base.The minimum
recommended size of the wood base plate is 3⁄4x 24 x 24”.
INSTALLATION
Refer to Figures 2, 3 and 4.
MOUNT DRILL PRESS
•Drill press must be mounted to flat level surface. Use shims or
machine mounts if necessary. Do not mount drill press in direct
sunlight.
•Be sure to bolt drill press to floor or bench securely to prevent
tipping and minimize vibration.
•Tighten all nuts and bolts that may have loosened during
shipment.
POWER SOURCE
The motor is designed for operation on the voltage an frequency
specified.Normal loads will be handled safely on voltages not more
than 10% above or below the specified voltage.
Running the unit on voltages which are not within the range may
cause overheating and motor burn out.Heavy loads require that the
voltage at motor terminals be no less than the voltage specified.
GROUNDING INSTRUCTIONS
WARNING: Improper connection of equipment grounding con-
ductor can result in the risk of electrical shock. Equipment should
be grounded while in use to protect operator from electrical shock.
Check with a qualified electrician if grounding instructions are not
understood or if in doubt as to whether the tool is properly
grounded.
This tool is equipped with an approved 3-conductor cord rated up
to 300V and a 3-prong grounding type plug rated at 115V (See
Figure 2) for your protection against shock hazards.
Grounding plug should be plugged directly into a properly
installed and grounded 3-prong grounding-type receptacle, as
shown (Figure 2).
Do not remove or alter grounding prong in any manner. In the
event of a malfunction or breakdown, grounding provides a path
of least resistance for electrical shock.
WARNING: Do not permit fingers to touch the terminals of plug
when installing or removing from outlet.
Plug must be plugged into matching outlet that is properly
installed and grounded in accordance with all local codes and
ordinances. Do not modify plug provided. If it will not fit in outlet,
have proper outlet installed by a qualified electrician.
Inspect tool cords periodically, and if damaged, have repaired by
an authorized service facility.
Green (or green and yellow) conductor in cord is the grounding
wire. If repair or replacement of the electric cord or plug is neces-
sary, do not connect the green (or green and yellow) wire to a live
terminal.
Where a 2-prong wall receptacle is encountered, it must be
replaced with a properly grounded 3-prong receptacle installed in
accordance with National Electric Code and local codes and ordi-
nances.
WARNING: This work should be performed by a qualified electrician.
A temporary 3-prong to 2-prong grounding adapter (See Figure 3)
is available for connecting plugs to a two pole outlet if it is
properly grounded.
Do not use a 3-prong to 2-prong grounding adapter unless permit-
ted by local and national codes and ordinances.
(A 3-prong to 2-prong grounding adapter is not permitted in
Canada.) Where permitted, the rigid green tab or terminal on the
side of the adapter must be securely connected to a permanent
electrical ground such as a properly grounded water pipe, a prop-
erly grounded outlet box or a properly grounded wire system.
Many cover plate screws, water pipes and outlet boxes are not
properly grounded.To ensure proper ground, grounding means
must be tested by a qualified electrician.
EXTENSION CORDS
•The use of any extension cord will cause some drop in voltage
and loss of power.
•Wires of the extension cord must be of sufficient size to carry
the current and maintain adequate voltage.
•Use the table to determine the minimum wire size (A.W.G.)
extension cord.
•Use only 3-wire extension cords having 3-prong grounding
type plugs and 3-pole receptacles which accept the tool plug.
•If the extension cord is worn, cut, or damaged in any way,
replace it immediately.
Palmgren Operating Manual & Parts List 80207
Figure 3 – 2-Prong Receptacle with adapter
Grounding Lug
Adapter
3-Prong Plug
2-Prong Receptacle
Make sure this is
Connected to a known
Grounded Receptacle
Figure 2 – 3-Prong Receptacle
Properly Grounded Outlet
Grounding Prong
3-Prong Plug

EXTENSION CORD LENGTH (120 VOLTS)
Wire Size A.W.G.
Up to 25 ft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
25-50 ft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
NOTE: Using extension cords over 50 ft. long is not recommended.
EXTENSION CORD LENGTH (240 VOLTS)
Wire Size A.W.G.
Up to 50 ft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
50-100 ft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
100-200 ft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
200-300 ft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
NOTE: Using extension cords over 300 ft.long is not recommended.
POWER SOURCE
Drill press requires a 120/240 volt, 60 Hz power source.
To use the drill press with a 240V power supply, have a qualified
electrician attach a 240 volt, 20/30A three-prong plug onto drill
press line cord.
ELECTRICAL CONNECTIONS
Refer to Figure 4.
WARNING: All electrical connections must be performed by a
qualified electrician. Make sure unit is off and disconnected from
power source while motor is mounted, connected, reconnected or
anytime wiring is inspected.
•The motor should be wired for 120 volts and clockwise rotation
as viewed from shaft end of motor.
•A label on the motor describes the possible wiring configura-
tions.There are many different possible combinations, so only
the diagram provided with the motor should be used.
•The power supply to motor is controlled by a push button
switch. Power lines are connected to the quick connect termi-
nals of the switch.
•The green ground line must remain securely fastened to the
motor ground terminal to provide proper grounding.
•To operate drill press at 240 volts, rewire motor as shown in
Figure 4 and replace line cord plug with a 240 volt, 15A, 3-prong
plug.If motor label has a different wiring configuration, use the
motor label diagram to rewire motor.
OPERATION
Refer to Figures 5-9.
WARNING: Read and understand operating instructions and
parts manual before operating this machine.
CAUTION: The operation of any power tool can result in foreign
objects being thrown into the eyes, which can result in severe eye
damage. Always wear safety glasses complying with United States
ANSI Z87.1 (shown on package) before commencing power tool
operation.
STARTING AND STOPPING THE DRILL PRESS
Refer to Figure 9.
WARNING: Be sure drill bit is not in contact with workpiece when
motor is started. Start motor and allow bit to come up to full speed
before drilling.
•The ON/OFF siwtch (Ref. Nos. 13 and 14) is located on the front
of the head casting.
•To turn the drill press on, push green ON button. Always allow
drill bit to come up to speed before drilling.
•To turn the drill press off, press the large red OFF paddle or lift
the paddle and press directly on the red OFF button. Do not
leave drill press untilt he bit has come to a complete stop.
SPEED ADJUSTMENTS
Refer to Figures 5 and 8.
WARNING: Be sure drill press is turned off and is disconnected
from power source before adjusting speeds.
•To change spindle speed, loosen motor lock handle (Ref. No.
17), pivot the motor toward front of drill press.This will loosen
the belt and permit relocating the belt to the desired pulley
groove for the required spindle speed (See Figure 5, page 6).
•After belt has been repositioned, pull handle (Ref. No. 18) to
move motor toward rear of drill press and tighten motor lock
handle.
•Check belt for proper tension and make any final adjustment. A
belt is properly tensioned when light pressure applied to mid-
point of the belt produces about 1/2”deflection.
TABLE ADJUSTMENTS
Refer to Figure 7.
•Height adjustments:To adjust table, loosen locking handle (Ref.
No.14) and turn crank handle (Ref. No. 21) to desired height.
Immediately retighten table bracket locking handle.
•Rotation of work table : Loosen table locking handle (Ref. No.
14) and rotate table (Ref. No. 11) to desired position and
retighten handle.
•Tilting work table: Loosen table bolt (Ref.No.9). Remove pin and
nut (Ref. No. 10).To do this, tighten nut until pin slips out easily.
Tilt table to desired angle up to 45° and retighten table bolt.
Reinsert pin and nut when returning the table to 0° position.
•To obtain more distance between chuck and table, the work
table can be rotated 180° and base can be used as a work sur-
face.This permits drilling of larger objects.
•Clamp table securely after adjustments have been made.
DEPTH STOP ADJUSTMENT
Refer to Figure 8.
To control drilling depth, use scale (Ref. No. 39) to adjust to desired
depth. Depress and hold pin, slide depth stop nut (Ref. No. 41)
along lead screw until bottom edge of nut coincides with the
desired depth on the scale, then release pin. Use this feature to drill
more than one hole to the same depth.
MOUNT DRILL BIT
Refer to Figure 8.
WARNING: Be sure drill press is turned off and is disconnected
from power source before adjusting speeds.
•Place drill bit in jaws of drill chuck.
•Tighten chuck with drill chuck key. Be sure to tighten the chuck
using all three key positions on the chuck body and remove
chuck key.
•Use only the self-ejecting chuck key (Ref. No. 32) supplied with
this drill press, or a duplicate key. Use of any other key might
allow start up with the key still in the chuck. An airborne key
could strike the operator and cause injury.
REMOVE THE CHUCK
Refer to Figure 8.
•Rotate quill feed handle (Ref. No. 25) until slot is exposed in the
side of the quill (Ref. No. 29). Lock quill in position.
Figure 4 – Wiring Schematic for Motor
120 Volts
131324 24
240 Volts
5
Palmgren Operating Manual & Parts List 80207

•Rotate spindle until inner slot is aligned with outer slot.You will
see through spindle when slots are properly aligned.
•Insert the drift key (Ref. No. 51) into the slots and tap lightly
with hammer. The arbor and chuck will drop from spindle.
DIGITAL DISPLAY PANEL
Refer to Figure 6.
•Display panel ‘A’ shows the depth of the spindle and spindle
RPM.
•Button ‘B’ turns power on and off to Display ‘A’.
•Button ‘C’: Press once for spindle depth in inches; press again
for spindle depth in mm; press once again for spindle RPM.
•Button ‘D’ resets display at zero for spindle depth.
MAINTENANCE
WARNING: Turn switch off and remove plug from power source
outlet before maintaining or lubricating your drill press
DRIVE BELT
Replace drive belt when worn.
LUBRICATION
Refer to Figures 7 and 8.
The ball bearings are lubricated at the factory and need no further
lubrication. Using 20wt. non detergent oil, periodically lubricate
the splines (grooves) in the spindle and the rack (teeth on the
quill) as follows:
•Lower quill assembly (Figure 8, Ref. No. 29) all the way down.
•Apply lubricant around the inside of the hole in the spindle
pulley (Figure 8, Ref. No. 2).
•Apply lubricant to rack (teeth) on quill (Figure 8, Ref. No. 29)
while extended below drill press head.
•Apply lubricant to rack and pinion gear (Figure 7, Ref. Nos. 8
and 18) on column and table assembly.
CLEAN MOTOR
Frequently blow out any dust that may accumulate inside motor. If
power cord is worn, cut or damaged in any way, have it replaced
immediately.
6
3605
2101
1699
1453
973
596
424
309
231
in/mm
5/16 7.9
5/8 15.9
3/4 19.0
7/8 22.2
1 25.4
11⁄431.8
15⁄841.3
13⁄444.4
2 50.8
in/mm
3/16 4.8
3/8 9.5
7/16 11.1
1/2 12.7
5/8 15.9
3/4 19.0
7/8 22.2
15/16 23.8
1 25.4
in/mm
11/64 4.4
11/32 8.7
13/32 10.3
15/32 11.9
1/2 12.7
11/16 17.5
3/4 19.0
13/16 20.6
——
in/mm
5/32 4.0
5/16 7.9
3/8 9.5
7/16 11.1
1/2 12.7
5/8 15.9
13/16 20.6
7/8 22.2
——
in/mm
7/64 2.8
1/4 6.4
5/16 7.9
11/32 8.7
3/8 9.5
1/2 12.7
5/8 15.9
3/4 19.0
——
in/mm
3/32 2.4
5/32 4.0
3/16 4.8
1/4 6.4
5/16 7.9
3/8 9.5
1/2 12.7
5/8 15.9
——
in/mm
1/16 1.6
1/8 3.2
1/8 3.2
3/16 4.8
1/4 6.4
5/16 7.9
7/16 11.1
1/2 12.7
9/16 14.3
in/mm
1/32 0.8
1/16 1.6
1/16 1.6
1/8 3.2
3/16 4.8
1/4 6.4
3/8 9.5
7/16 11.1
1/2 12.7
RPM Wood Zinc Diecast Alum. & Brass Plastic Cast Iron &
Bronze
Steel - Mild &
Malleable
Steel - Cast &
Med. Carbon
Steel -
Stainless
& Tool
E
D
C
B
A
Z
Y
X
W
5
4
3
2
1
Motor
Spindle
120
161
231
281
309
424
540
567
596
622
973
1453
1699
2101
3083
3605
A1-5Z
A1-4Y
B2-5Z
A1-3X
B2-4Y
C3-5Z
B2-3X
C3-4Y
A1-2W
D4-5Z
E5-4Y
D4-3X
E5-3X
C3-2W
D4-2W
E5-2W
RPM
Belt
Location
Figure 5 – Spindle Speed Adjustment
Figure 6 – Digital Display Panel
ZEROUNITS
A
B
CD
0.000
mm
Palmgren Operating Manual & Parts List 80207

7
Palmgren Operating Manual & Parts List 80207
SYMPTOM
Spindle does not turn
Noisy spindle
Noisy operation
Bit burns or smokes
Excessive drill runout or wobble
Drill bit binds in workpiece
POSSIBLE CAUSES
1. No power to drill press
2. Defective switch
3. Defective motor
Defective bearings
1. Incorrect belt tension
2. Dry spindle
3. Loose spindle
4. Loose motor pulley
1. Incorrect speed
2. Chips not coming out of table
3. Dull bit
4. Feeding too slow
5. Bit not lubricated
6. Bit running backwards
1. Bent bit
2. Bit not properly installed in chuck
3. Chuck not properly installed
4. Worn spindle bearings
1. Workpiece pinching bit or excessive feed
2. Improper belt tension
3. Workpiece not supported or clamped
properly
CORRECTIVE ACTION
1. Check wiring, fuse or circuit breaker
2. Replace switch
3. Replace motor
Replace bearings
1. Adjust tension
2. Lubricate spindle, See Lubrication, page 6
3. Tighten pulley nut
4. Tighten set screw in pulley
1. Change speed
2. Retract bit frequently to clear chips
3. Sharpen or replace bit
4. Feed faster; enough to allow drill to cut
5. Lubricate bit
6. Check motor rotation to be sure it is
clockwise facing shaft end
1. Replace bit
2. Install bit properly
3. Install chuck properly
4. Replace bearings
1. Support or clamp work, decrease feed
pressure
2. Adjust tension
3. Support or clamp workpiece securely
TROUBLESHOOTING

8
Service Record
Palmgren 20″Floor Model Drill Press
DATE MAINTENANCE PERFORMED REPLACEMENT PARTS REQUIRED
Palmgren Operating Manual & Parts List 80207

9
Palmgren Operating Manual & Parts List 80207
NOTES

11 19
10
8
12
18
6
5
4
15
16
17
7
21
20
13
14
2
3
9
1
10

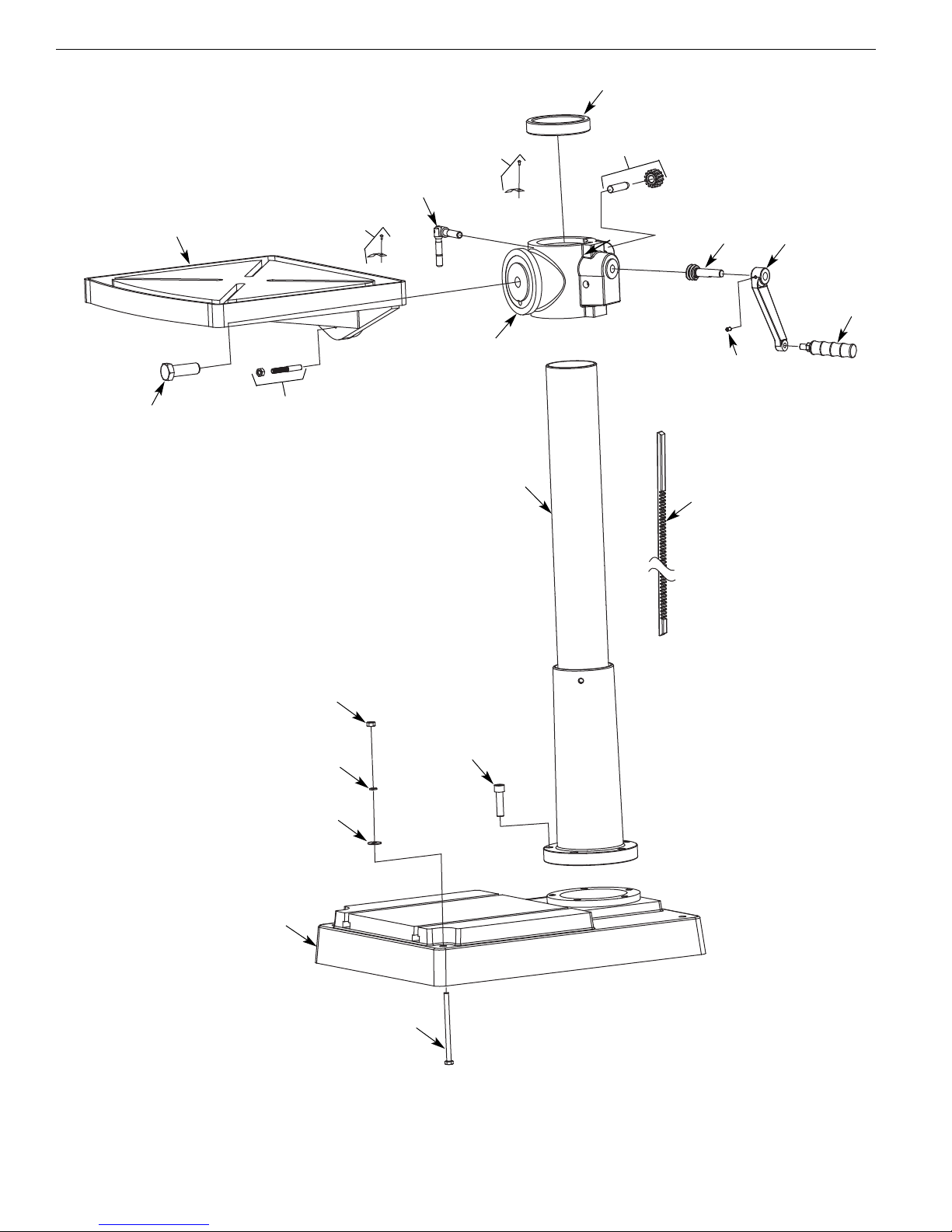

Figure 7 - Replacement Parts Illustration for Base
Palmgren Operating Manual & Parts List 80207

11
Palmgren Operating Manual & Parts List 80207
REPLACEMENT PARTS LIST FOR BASE
Ref. Part Number for:
No. Description 80207 Qty.
1Base 31635.00 1
2 8-1.25 x 125mm Hex head bolt * 4
3 8mm Flat washer * 8
4 8mm Lock washer * 4
5 8-1.25mm Hex nut * 4
6 12-1.75 x 45mm Socket head bolt * 5
7 Column assembly 31958.00 1
8Rack 31959.00 1
9 Table bolt 31971.00 1
10 Taper pin and nut 31972.00 1
11 Table 31973.00 1
12 Scale set 31974.00 1
13 Table bracket 31975.00 1
14 Locking handle 31976.00 1
15 Indicator set 31977.00 1
16 Rack retaining ring 31978.00 1
17 6-1.0 x 10mm Set screw * 1
18 Pinion gear and shaft 31979.00 1
19 Worm gear 31980.00 1
20 Crank 31981.00 1
21 Handle 31982.00 1
ΔOperator’s manual 32000.19 1
Recommended Accessories
Δ4”Angle Vise 11351 1
Δ4”Drill Press Vise 12352 1
Δ4”Standard Vise 12403 1
Δ6”Quick Grip Vise 12621 1
Δ6”Standard Vise 12601 1
Δ6”Cross Vise 30601 1
ΔNot Shown.
* Standard hardware item available locally.

6
6
49
34 35
39
38
33
31
30
32
7
8
9
10
11 12
13
22
20
21
25
29
26
28
27
24
47
43
4
5
45
53
53
44
46
50
51
52
42
41
40
37
36
23
2
1
3
19
18
17
16
14
15
48
12
Palmgren Operating Manual & Parts List 80207

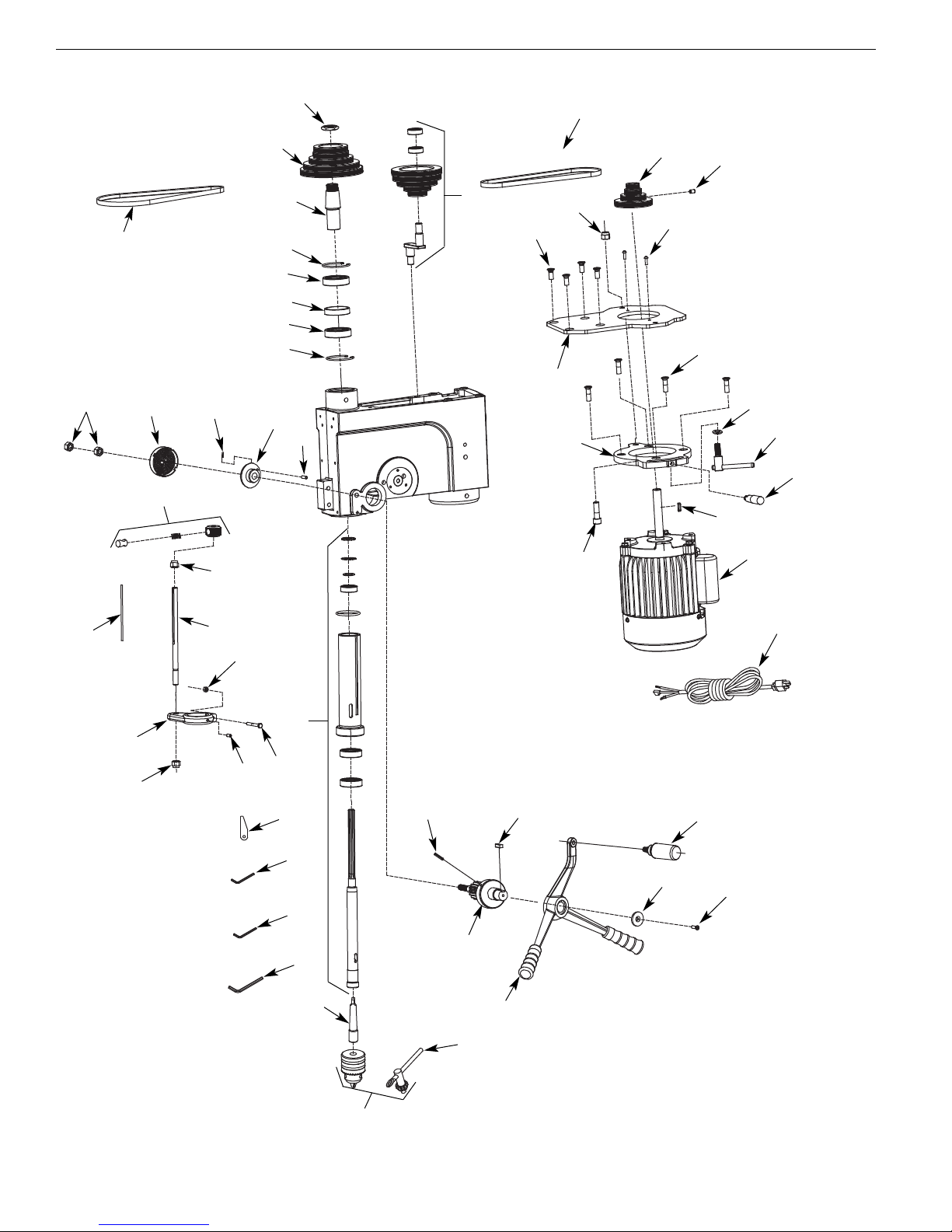

Figure 8 - Replacement Parts Illustration for Spindle and Drive

13
Palmgren Operating Manual & Parts List 80207
Ref.
No. Description Part No. Qty.
1 Spindle nut 32001.00 1
2 Spindle pulley 32002.00 1
3 Spindle sleeve 32003.00 1
4 Plate 32035.00 1
5 6-1.0 x 8mm Cheese head screw 32251.00 2
with flat washer
6 6206zz Ball bearing 20006.00 2
7 Spacer 32006.00 1
8 Front drive belt 310J 32007.00 1
9 Center pulley assembly 32008.00 1
10 Rear drive belt 290J 32009.00 1
11 Motor pulley 32010.00 1
12 8-1.25 x 12mm Set screw * 1
13 10-1.5 x 25mm Tap screw 32011.00 4
14 Motor mount plate 32662.00 1
15 12-1.75 x 40mm Socket head bolt * 1
16 12mm Flat washer * 1
17 Motor locking handle 32013.00 1
18 Belt tension handle 32359.00 1
19 6 x 6 x 40mm Key 07338.00 1
20 Motor 32015.00 1
21 Line cord 32016.00 1
22 6-1.0 x 16mm Tap screw 32004.00 1
23 Plate 32017.00 1
24 Quill feed knob 32018.00 1
25 Quill feed handle w/grips 32019.00 1
26 8 x 7 x 24mm Key 32020.00 1
27 Pinion 32021.00 1
Ref.
No. Description Part No. Qty.
28 5 x 26mm Spring pin 32022.00 2
29 Quill assembly 32023.00 1
30 MT3/JT3 Arbor 18338.00 1
31 JT3 chuck with key 32024.00 1
32 Chuck key 32025.00 1
33 12-1.75 Fiber hex nut * 1
34 6-1.0 x 12mm Set screw * 1
35 6-1.0 x 45mm Hex head bolt * 1
36 6-1.0mm Hex nut * 1
37 Depth stop lead screw 32026.00 1
38 Depth stop collar 32027.00 1
39 Scale 32028.00 1
40 10-1.5mm Fiber hex nut * 1
41 Depth stop nut assembly 32029.00 1
42 2.5 x 10mm Spiral pin 32030.00 1
43 Spring seat 32031.00 1
44 6 x 10mm Spiral pin 32032.00 1
45 Cap cover with spring 32033.00 1
46 1⁄2”-20 Hex nut * 2
47 10-1.5 x 25mm Tap screw 32034.00 4
48 12-1.75mm Hex nut * 1
49 Drift key 18839.00 1
50 3mm Hex wrench 00149.00 1
51 5mm Hex wrench 00150.00 1
52 10mm Hex wrench 32036.00 1
53 Retaining ring 32373.00 2
ΔRun capacitor 32188.00 1
ΔStart Capacitor 32185.00 1
REPLACEMENT PARTS LIST FOR SPINDLE AND DRIVE
ΔNot Shown.
* Standard hardware item available locally.

14
Palmgren Operating Manual & Parts List 80207
Figure 9 - Replacement Parts Illustration for Head
35
23
14
13
29
36
20
30
4
39
7
6
9
8
28
43
5
3
2
1
22
33
34
26
11
37
46
44
42
12
27
32
38
25
21
31 41
47
19
18
17
15
16
24
40
10
45

Ref.
No. Description Part No. Qty.
1 Knob assembly 32037.00 1
2 Pulley housing 32038.00 1
3 Clamp 32039.00 1
4 Foam 32040.00 1
5 Grommet 32041.00 1
6 Speed sensor assembly 32042.00 1
7 5-0.8 x 10mm Pan head screw * 2
8 5mm Flat washer * 2
9 Bracket 32043.00 1
10 4mm Flat washer * 2
11 4-0.7 x 10mm Socket head bolt * 2
12 4-0.7 x 20mm Pan head screw * 2
13 Switch paddle and cover assembly 32044.00 1
14 Switch 31089.00 1
15 Switch housing 32045.00 1
16 Display cover 32046.00 1
17 6-1.0 x 30mm Pan head screw * 2
18 Circuit board 32047.00 1
19 3-0.5 x 5mm Pan head screw * 4
20 Circuit board shield 32048.00 1
21 Washer 32049.00 2
22 3-0.5 x 35mm Pan head screw * 2
23 6-1.0 x 12mm Tap screw 32252.00 2
24 Bracket 32050.00 1
Ref.
No. Description Part No. Qty.
25 Cover 32061.00 1
26 5-0.8 x 10mm Pan head screw * 3
27 5 x 8mm Spring pin 32051.00 2
28 6-1.0 x 16mm Pan head screw * 2
29 5-0.8 x 8mm Pan head screw * 2
30 5mm Serrated washer * 4
31 Head N/A 1
32 6-1.0 x 12mm Cheese head screw 32155.00 2
with flat washer
33 Set screw 32052.00 1
34 5-0.8 x 8mm Pan head screw * 1
35 Clamp 32053.00 1
36 5-0.8 x 16mm Pan head screw * 1
37 Clamp 32054.00 1
38 8 x 24mm Spring pin 32055.00 2
39 10-1.5 x 12mm Set screw * 2
40 Plate 32056.00 1
41 5-0.8 x 8mm Pan head screw * 2
42 Quill lock handle 32057.00 1
43 Dog point screw 32062.00 1
44 10mm Lock washer * 2
45 10-1.5mm Hex jam nut * 1
46 Tranfser shaft assembly 32059.00 1
47 Potentiometer shaft assembly 32060.00 1
15
Palmgren Operating Manual & Parts List 80207
REPLACEMENT PARTS LIST FOR HEAD
* Standard hardware item available locally.
N/A Not avaialbe as replacement part.

WARRANTY
Palmgren warrants their products to be free of defects in material or workmanship.This warranty does not cover defects due
directly or indirectly to misuse, abuse, normal wear and tear, failure to properly maintain the product, heated, ground or otherwise altered, or
used for a purpose other than that for which it was intended.The warranty does not cover expendable and/or wear parts (i.e. v-belts, coated
screws, abrasives), damage to tools arising from alteration, abuse or use other than their intended purpose, packing and freight.The duration
of this warranty is expressly limited to one year parts and labor, unless otherwise noted below beginning from the date of delivery to the
original user.The Palmgren products carry the following warranties on parts with a 1 year warranty on labor:
•USA Machine vises – Lifetime
•IQ Machine vises – Lifetime
•Bench vises – Lifetime
•Positioning tables – Lifetime
•Bench grinders & buffers – 3 years
•Tapping machines – 2 years
•Drilling machines – 2 years
•Finishing machines – 2 years
•Band saws – 2 years
•Work stands – 2 years
•Arbor presses – 2 years
•Metal framing equipment – 2 years
•Accessories – 1 year
The obligation of Palmgren is limited solely to the repair or replacement, at our option, at its factory or authorized repair agent of any part
that should prove deficient.Purchaser must lubricate and maintain the product under normal operating conditions at all times. Prior to oper-
ation
become familiar with product and the included materials, i.e. warnings, cautions and manuals. Failure to follow these instructions will void
the warranty.
This warranty is the purchaser’s exclusive remedy against Palmgren for any deficiency in its products. Under no circumstances is Palmgren
liable for any direct, indirect, incidental, special or consequential damages including lost profits in any way related to the use or inability to
use our products.This warranty gives you specific legal rights which may vary from state to state.
SERVICE & REPAIR
1. If a Palmgren product requires a repair or warranty service DO NOT return the product to the place of purchase.
2. All warranty related work must be evaluated and approved by Palmgren.
3. Prior to returning any item the user must obtain factory approval and a valid RGA number.
4. For instructions and RGA number call toll free [phone].
Palmgren Operating Manual & Parts List 80207
