About This Manual
This manual has been prepared to assist you in the operation and maintenance of your Eddyfi
Technologies’Inuktun equipment. Correct and prudent operation rests with the operator who must
thoroughly understand the operation, maintenance, service and job requirements. The specifications and
information in this manual are current at the time of printing.
This product is continually being updated and improved. Therefore, this manual is meant to explain and
define the functionality of the product. Furthermore, schematics or pictorials and detailed functionality may
differ slightly from what is described in this manual.
Eddyfi Technologies reserves the right to change and/or amend these specifications at any time without
notice. Customers will be notified of any changes to their equipment.
Information in this manual does not necessarily replace specific regulations, codes, standards, or
requirements of others such as government regulations.
This manual copyright © 2019 by Eddyfi Robotics Inc. All rights reserved.
Description of Equipment

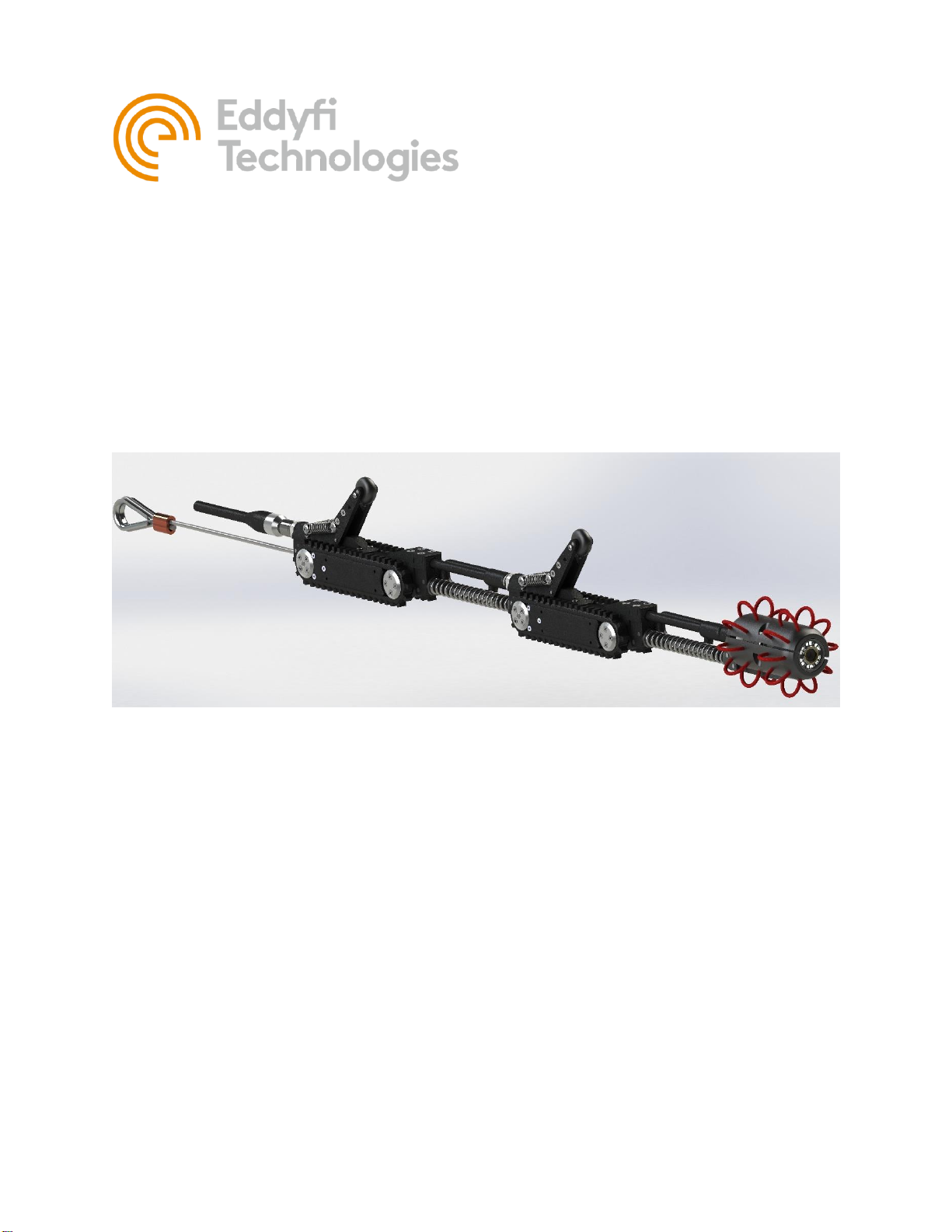

The Inuktun Versatrax 50™ In-Line (VT50) is a portable pipe inspection system which utilizes one to three
Picotracs™ in an inline configuration with integrated traction control arms to fit in a 50-100mm (2-4 inch)
pipe range. The vehicle comes standard with an Inuktun Onyx™ camera and will support an optional
Inuktun Spectrum 45™ pan-and-tilt camera with on-board LEDs to facilitate visual inspections in 78-102mm
(3-4 inch) pipe sizes. The vehicle can be configured to use one, two or three Picotracs, depending on
distance. All Versatrax™ hardware can be used underwater and in dirty, muddy conditions. The rugged
design ensures a long service life and helps protect the vehicle from damage during normal use.

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 5 of 25
User Manual
Intended Use
The VT50™is an industrial inspection vehicle intended for pipe inspections to provide close-up video of
the inspection target. VT50 may be used above or below the waterline up to 60m deep, or in dry
environments. VT50 has been designed to support a modular approach by allowing the operator to
configure the vehicle in one, two and three track configurations. The VT50 system can also be configured
as a Spectrum 45™ or Onyx™ Drop Camera.
Typical applications include:
•Sewer and storm drains
•Air ducts
•Steam headers
•Tanks and pressure vessels
•Pulp and paper mills
•Oil & gas refineries and pipelines
Misuse of the system is deployment in a situation for which it is not rated, or incorrect handling.
a. In a vacuum
b. Beyond its depth rating without factory approval
c. Above or below its temperature rating
d. Use in a potentially explosive atmosphere
e. Use in incompatible chemical environments
f. Very high radiation environments (Beta/Gamma)
g. Prolonged overload (payload or pulling load)
h. Camera pointed at the Sun or at intense lighting
i. Mechanical impacts & scraping during deployment / dropping

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 6 of 25
User Manual
Specifications
Depth Rating
60 m (200 ft)
Tether Length (VT50)
100 m (330 ft) Max
Maximum Speed
1.9 m/min (6.1 feet/min)
Vehicle Pull (per track)
4.5 kg (10 lb)
Camera
Onyx™ SD Camera;
Spectrum 45™ Optional
Tracks
1, 2 or 3 Aluminum Picotracs™
Lights
Variable intensity LED lights integrated with
camera.
Pipe Range (VT50)
50-102mm (2-4in)
Control System
ICON (Inuktun Control and Operations Software)
Vehicle Power Requirements
36-72VDC [30W]
System Power Requirements (see ICON Controller Manual)
110-240VAC, 5 Amp, 50-60Hz
Operating Temperature
0° to 50°C (32° to 122 °F) Dependent on
operating conditions. Ask your sales expert for
more information
Storage Temperature
-20 –60°C [0 to 140 °F]
Minimum Vehicle Dimensions (L x W x H)
(disregarding camera skid)
328 x 37 x 48 mm (12.9 x 1.44 x 1.9 in)
Certification
The product is built in accordance with:
Low Voltage Directive 2006/95/EC and Directive 2014/35/EU
Machinery Directive 2006/42/EC, and
Electromagnetic Compatibility Directive 2004/108/EC and Directive 2014/30/EU

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 7 of 25
User Manual
System Power
Power Requirements
The Versatrax 50™is operated through an ICON™Portable Controller. The ICON Portable Controller
provides power to the tether and vehicle.
Power Input: Refer to the ICON Portable Controller User Manual for specifications.
Generators / Inverters
If powering the system from a generator or inverter, refer to that unit’s operating manual for
recommendations on continuous and peak load ratings. These power sources may apply a reduced output
rating based on electrical load and environmental temperature. Remember to include the power needs of
all other connected devices (external monitors, recording devices, lighting, etc.) when selecting a generator
or inverter.
Safety
In order to be able to use this product properly and safely, every user must first read these operating
instructions and observe the safety instructions contained therein. Take care of these operating instructions
and keep them in a place where they can be accessed by everyone. Untrained personnel should not handle
or operate this equipment.
This system includes some specific devices that have their own User Manuals. Instructions on those
manuals must be also read before using the system.
CAUTION: Failure to follow these safety instructions may result in injury or
equipment damage.
WARNING: Intense Optical Radiation - The Versatrax 50™ camera lights are
extremely bright. Never look directly at the lights. Use a welding filter (shade #8 or
higher) if inspecting the LEDs.
WARNING: Spark Hazard - Under no circumstances should this equipment be
used in a potentially explosive atmosphere.

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 8 of 25
User Manual
WARNING: Trip Hazard - Never stand on the tether. A snap load to the tether
may pull it out from underneath you and cause you to fall. Standing on the tether
may also damage its internal conductors, cause unnecessary wear, and decrease
its life.
WARNING: Mechanical Pinch Hazard –Rotating or moving components can draw
fingers into a pinch position. Do not handle the vehicle while mobile parts are
running, turn off power or disconnect the tether while reconfiguring or maintaining
the vehicle.
WARNING: High Voltage 36-70 VDC. Disconnect the power source before
servicing the product; otherwise, damage may result.
•Eddyfi Technologies’ Inuktun equipment is used in many varied environments from hot/dry to
confined spaces to deep underwater. Such diverse environment risks must be addressed by the
operators who are trained to work in such surroundings. As such, the operator is responsible to
determine safe site setup and appropriate work procedures for deployment and operation of the
equipment.
•Do not operate the camera with a damaged connector or cable. Inspect connectors and cables
regularly for damage.
•Lay the vehicle on its side if you are powering it up on the workbench.
•All personnel operating or maintaining this equipment must be trained and competent.
•Call the Eddyfi Technologies service department for assistance or service if needed.

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 9 of 25
User Manual
System Setup
Working and Storage Environment
The ICON™Portable Controller is to be used in a dry, covered environment only. These components
are not waterproof. Keep all cords and cables away from water. Read the ICON Portable Controller user
manual for more details.
The tether and vehicle are depth rated to 60 meters (200 feet) of water. The tether connector and track
connectors are dry-mate types which must be dry when making a connection. Keep the tether connector
capped with a dummy plug when not connected to the vehicle to help keep out dirt. The tracks are tolerant
to sandy and muddy conditions, although this decreases seal life. The vehicle may also be operated in dry
or dusty environments in the recommended operating temperature range of 0 ˚C – 50 ˚C (32 ˚F –122 ˚F).
The portable reel is splash resistant only.
System storage temperatures are between -20 ˚C to 60 ˚C (-4 ˚F to 140 ˚F).
ICON Portable Controller Connection
The ICON Portable Controller supplies power to the tether and vehicle. It provides a communication
interface to the vehicle. It also provides video reception and distribution.
Refer to the Controller Setup section of the ICON Portable Controller User Manual for more information.
Vehicle & Tether Connection
It is important that the tether be properly connected to the vehicle; otherwise, damage to the system may
result.
1. Connect the vehicle end of tether to the back of the harness block. Visually line up the key in the
connector before mating. Fully screw down and finger-tighten the locking collar. Do not use tools
to tighten the IE55 collar –connector damage may occur if overtightened.
2. Verify the track and camera whips to their respective components are securely connected, and the
whips are free from damage.
Mini-Reel Setup
If your system includes a Mini-Reel, follow these steps to operate:
1. Remove the Mini-Reel from the shipping case.
2. Connect the deck cable from the reel to the Video Interface and Power Supply.
3. Connect the encoder deck cable from the reel to the Video Interface and Power Supply (if provided
with Mini-Reel).

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 10 of 25
User Manual
4. Disengage the shipping brake.
5. Make sure the friction brake is engaged –disengaging the friction brake can result in slack tether
resulting in potentially jamming the reel.
6. Unwind some tether and connect the tether to the vehicle.
Vehicle Configuration
General Vehicle Assembly: One, Two or Three Tracks
The Versatrax 50™ships disassembled for portability. Its modular design can easily be configured to
operate with one, two or three tracks, or in a camera only drop configuration.
To assemble the basic vehicle with one, two or three tracks, and with reference to the illustration below;
1. Remove tracks, camera and push links from their respective shipping containers.
2. Lay out the components on the bench in order.
3. Attach the tow cable to the rear track:
a. Remove the retainer clip located underneath the connector.
b. Insert the tow cable anchor into the housing.
c. Fasten retainer back on.

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 11 of 25
User Manual
4. For two or three-track configurations, link to the next track using a flexible push link. The push
link will install between tracks in the same way the tow cable was attached above. Connect the
integrated interconnect cable to the next track.
5. Link to the camera using another flexible push link. Connect the integrated interconnect cable
from the front track to the camera.
6. Install the appropriate traction wheels and camera skids as discussed in the sections below.
Traction Wheel Setup –All Sizes
Because the Picotrac is very light, it always requires a pressure wheel to gain traction. The integrated
traction arm is preconfigured for use in 2 –3in [50mm –78mm] pipe. For larger pipes, the integrated
traction arm remains in place but is augmented by an extension wheel which bolts into a slot in the traction
arm.
For 3 –3½in [78mm –90mm] pipe use the 3-inch traction arm. (IPN 3089224)
For 3½ –4in [90mm –100mm] pipe use the 4-inch traction arm. (IPN 3089227)

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 12 of 25
User Manual

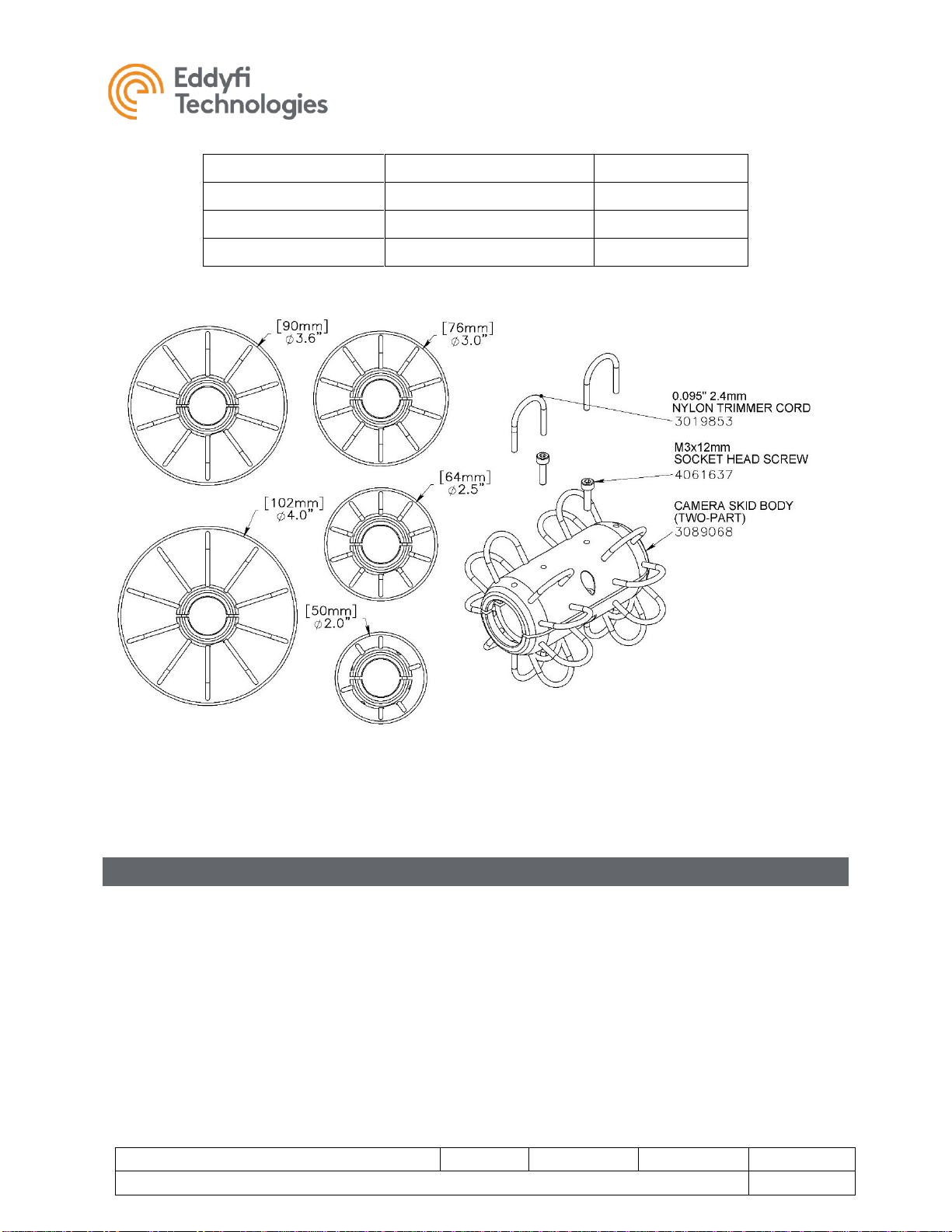

Onyx Skid Brush Adjustment
The Onyx camera skid uses looped nylon cord which act as flexible skids. The flexible structure allows the
skid to pass obstacles and around corners in the small, confined pipe which may not be possible with hard,
fixed skids. In addition, the nylon loops can be easily resized or replaced. The following procedure
describes how to make new bristles for the guide brushes to adapt to any specific size.
Brushes may be custom fit using the following procedure:
1. Cut nylon line to length as outlined below or as needed for a specific size pipe.
2. Melt one end of the trimmer line ~1/8" [3mm] with a small torch, lighter or candle.
3. Blunt the melted end with a flat-head screwdriver.
4. Thread the line from inside the sleeve.
5. Form a loop and thread back through sleeve.
6. Blunt the second end to secure the nylon wire.
7. The finished camera skid must be loose in the pipe as illustrated or it will be too hard for the vehicle
to push. Test the fit in a sample pipe before deployment.
Nominal Pipe Size
(SCH-40)
Nylon Cord Length
(Ø0.095 inch / Ø2.4mm)
Preassembled
Skid Part Number
2-Inch [50.8mm]
1.31 inch [33mm]
IPN 3089268

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 13 of 25
User Manual
2½-Inch [63.5mm]
1.81 inch [46mm]
IPN 3089269
3-Inch [76.2mm]
2.31 inch [59mm]
IPN 3089270
3½-Inch [90.2mm]
2.84 inch [72mm]
IPN 3089277
4-Inch [102mm]
3.34 inch [85mm]
IPN 3089278
Onyx Skid Installation:
An Inuktun Onyx™ camera is supplied standard with the VT50 In-Line system. To install the camera onto
the vehicle, and with reference to the figure below;
1. Configure the camera skid brushes for the target pipe size as described in the previous section
“Onyx Skid Brush Adjustment.”
2. For 2 and 3-inch pipe [50mm –76mm] attach the lower half of the two-part skid body to the skid
mount using M3x6mm socket head cap screws.
3. Attach the skid mount to the flexible push link connected to the front track.

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 14 of 25
User Manual
4. For unified integration, the Onyx camera head is supplied with an IE55 termination adapter which
allows it to plug into the interconnect cable on the front track. Ensure the adapter is fully screwed
onto the camera body. Attach the camera to the interconnect cable on the front track.
5. Power up the system so the operator can observe the video on the screen.
6. Place the Onyx camera into the skid with the face flush with the front of the skid. Rotate the
camera so the image is level. Install the top half of the two-part skid body using M3x12mm
socket cap screws. Avoid over-tightening these screws because they are anchored in plastic.
7. For 3½ - 4-inch pipe [90-102mm] add the spacer block IPN3089256 between the skid and skid
mount, as illustrated below. This will help reduce the up/down torque on the camera skid caused
by level mis-match between the skid and push link, which is always at the same level at the
bottom of the pipe.

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 15 of 25
User Manual

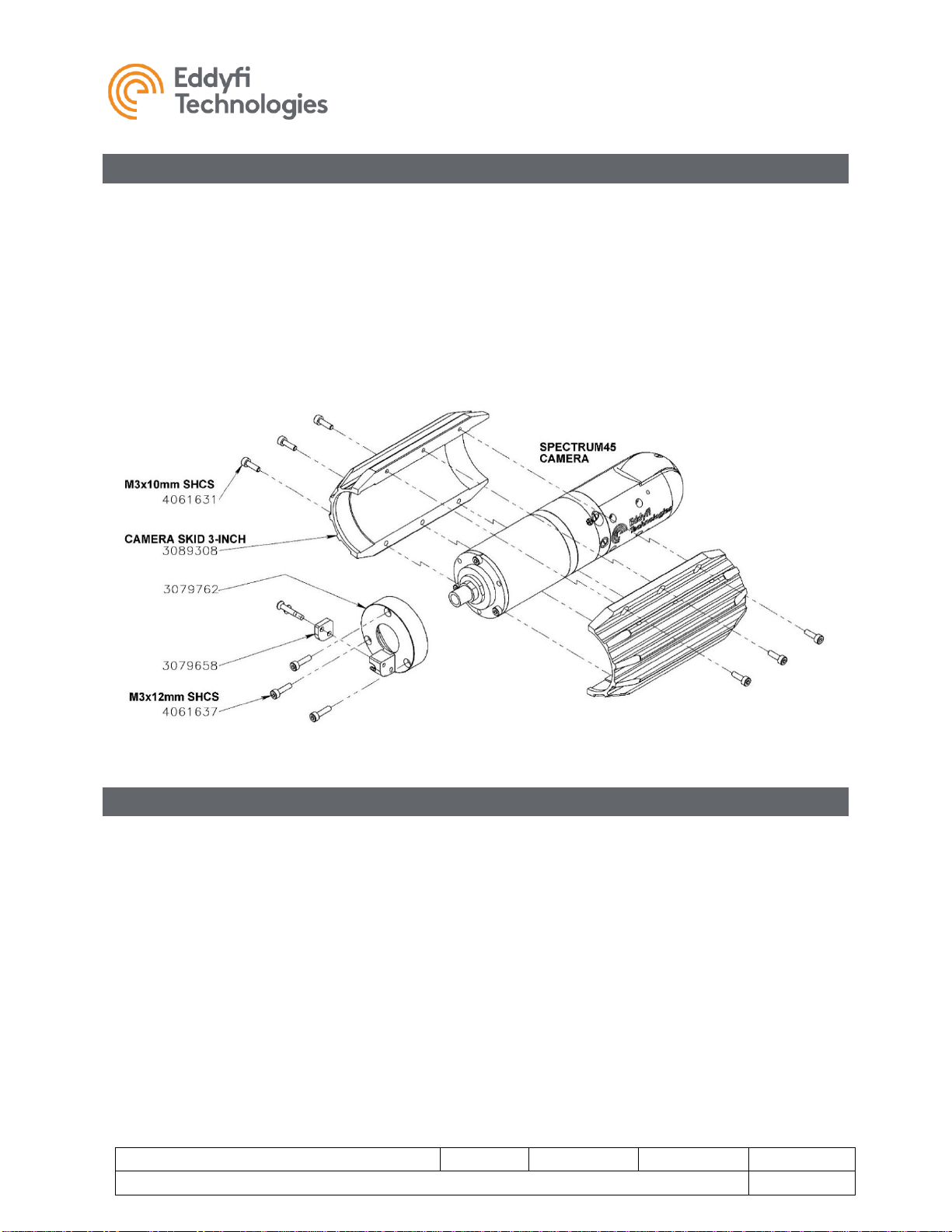

Spectrum 45 Camera Installation
The optional Spectrum 45™ camera is supplied with a 3-inch skid and mounting block.
1. Secure the mounting block to the camera using M3x12mm socket head cap screws.
2. Attach the flexible push link on the vehicle to the camera mounting block.
3. Install the skids using M3x10mm socket head cap screws. Note the orientation of the skid in the
figure below. A groove at the back of the skid captures it onto the camera mounting block, while
an open slot at the front allows for camera pan motion.
Drop Camera Configuration:
The Onyx camera and optional Spectrum 45 camera may be connected directly to the end of the tether to
form a drop camera system.
1. Remove the camera and tow cable from the vehicle or shipping box.
2. Connect the tether to camera –make sure to align pins on connectors and blow out any moisture
or debris. Snug down the locking collar finger tight only –do not use tools on the miniature
connector.
3. Attach the tow cable to the cable grip on the tether using the quick link supplied. Ensure the load
is taken by the tow cable, and there is slack at the connector.

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 16 of 25
User Manual
Vehicle Cable Management
For the connector whips between the tracks and between the front track and camera, it is recommended
that the connector cable be looped and strapped to the push interconnects using standard cable ties as
shown below:
Optional Traction Arm Springs
The spring loaded VT50™traction arms have been optimized for a 2in [50mm] pipe size. If additional
traction is required in the larger pipe sizes, stiffer springs (P/N 3050836) may be installed as follows:
1. Remove all four spring hangers and standard springs
2. Fasten one end of each spring to the forward spring hanger (on the traction arm) and screw down
flange
3. Using a thin screw driver or pick, stretch the other end of the spring onto the rear spring hanger
and screw down flange
4. Use Loctite 243 (blue) with all the screws.

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 17 of 25
User Manual
Operation
Tether Handling
The tether is one of the most important parts of the system. It feeds power and control signals to the
system and returns data to the controller. If the tether is damaged from: improper use, poor handling or an
accident, the system may become inoperable. This could lead to significant downtime, loss of production,
and avoidable costly repairs. It is encouraged to stress the importance of the tether and its use to anyone
operating or maintaining the equipment. For maximum tether life and reliability, we recommend the following
tether handling tips.
•Do not crush the tether by stepping on it.
•Never allow anyone to drive over the tether!
•Do not bend the tether beyond its minimum bend radius
•Do not kink the tether
•Do not snap load the tether
•Avoid loading the tether whenever possible
•Always use the Kellems grip strain relief if applicable to your system
•Regularly inspect the tether for damage
•Regularly clean the tether
Note:
Protecting the conductors inside the tether is critical to the life and operation of the tether.
Proper tether handling and care will result in extended tether life and system reliability.
Pre-Operations Check
Before each deployment of the Versatrax 50™ system, ensure everything is completed on the following
checklist.
❑Check that the work area has been safely set up.
❑Check that the line voltage available at the worksite matches the equipment setup.
❑Check that power and deck cable connections are correct.
❑Check the vehicle for the following:
Check that the vehicle is in the correct configuration for the deployment.
Check the vehicle for mechanical damage to the chassis or cable harnesses which could affect its
operation.
Ensure that all fasteners are in place and secure.
Visually inspect the vehicle and Picotracs™ to ensure that the moving parts are free of debris and
functional. Make sure the track belt is free of debris and turns freely.
Check the tether and vehicle whips for damage.

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 18 of 25
User Manual
Ensure camera and light ports are clean.
❑Check the reel for the following:

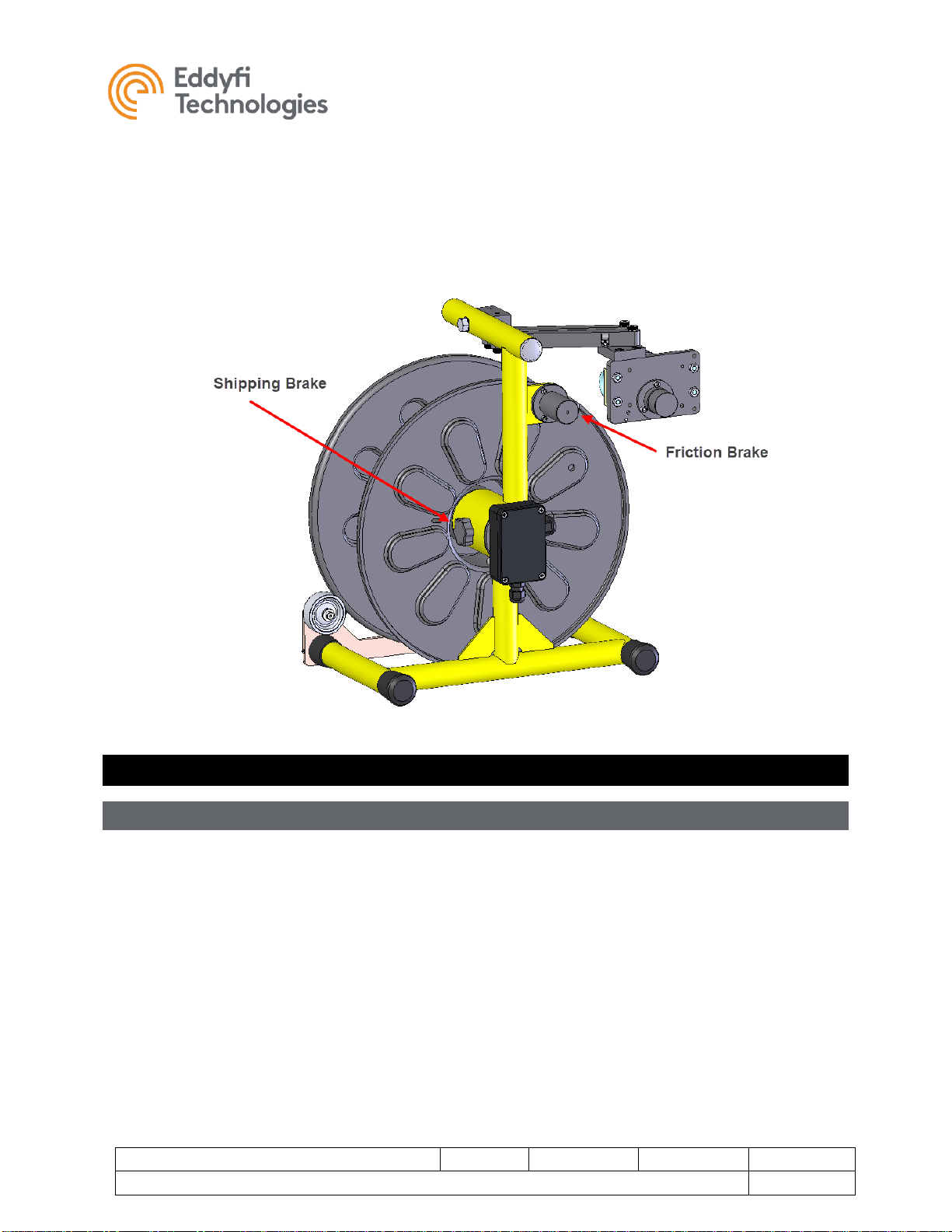

Check that the Shipping Brake is disengaged, and the Friction Brake is engaged.
Check that the tether has no loose, dangling coils. Dangling coils can propagate as the drum rotates
and have the potential to jump the drum. Take care of these before deploying the tether.
❑Power up the system and check the following:
Check for sufficient SSD drive space for recording.
Check record directories are set.
Test video recording.
Test track control.
Test camera control.
Post-Operations Check
A Post-Ops inspection should be carried out after every deployment using the following checklist:
❑Inspect the tether for damage as it is reeled in.
❑Visually inspect vehicle for entrained debris or mechanical damage.
❑Test each function to ensure proper operation.
❑Clean the system by hosing it down with water at regular line pressure. Do not pressure wash. The
tracks maybe cleaned off by hosingthem down while running. If the system has been used in salt water,
thoroughly rinse the vehicle with fresh water right away.
❑Take time to pack the system properly for transport away from the worksite.
❑Store the system in a dry environment.
Note: Ensuring the Versatrax 50™ system is always stored in good working condition will minimize
deployment time for future inspections.

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 19 of 25
User Manual
Power-Up Sequence
After all wiring connections have been made (as per ICON™Portable Controller User Manual), the system
may be powered up. The recommended sequence for power-up is as follows:
1. Power on System (“SYSTEM” button)
2. Power on Controller (“CONTROLLER” button).
3. Power on embedded PC (“PC” button).
4. Start the ICON control (Inuktun controller) program.
ICON always begins with identification of attached system components (cameras, tracks, etc.). If vehicle
power is turned on after ICON is started, the system will not function until ICON is powered down and
restarted.
ICON™ & ICON™ RPT
Vehicle control and video recording are accomplished using ICON graphical interface controller software.
Video playback and reporting are conducted through ICON RPT. Manuals for these two software
packages are included separately. Controls for recording and snapshot functions are kept on-screen
with the camera controls.
•ICON Manual –(Control Interface and Recording)
•ICON RPT Manual - (Reporting, Playback and Video Export)
Maintenance
Connector Care
Connectors are an essential part of system reliability. They must be properly maintained and cared for to
ensure long life and reliability. We recommend the following steps to help prevent damage and increase
the life of connectors.
•Always use connector caps when available.
•Always inspect the end of the connector prior to engaging to ensure it is clean and is the
correct match to the mating connector.
•Never plug in a dirty connector
•Visually align key-ways or locating pins prior to engaging the connector
•Always fully engage or tighten the connector
•Secure locking collars finger tight only. Tools can result in over-tightening which may
damage the connector.
•Install dummy plugs on unused connectors
•Disconnect by pulling straight, not on an angle
•Do not pull on the cable to disengage the connector

Versatrax 50™ In-Line
Document: UMBU014988.docm
Revision: A04
Created by: KJW
Date: 20 Nov 2019
IPN: 3080215-A04
Source Location: C:\ePDM\ISLEng\products\bu-vt50vehicles\manuals\UMBU014988.docm
Page 20 of 25
User Manual
Important: Never “Hot Plug” any connector, this will result in internal damage to the electronics.
Power down the system prior to plugging in any vehicle or tether connector.
Note:
Never use WD-40 or similar solvent-based fluids on connectors or crawlers. These will cause the
rubber parts of the connector or crawler to soften and swell rendering them inoperable.
Impulse Connector: Lubrication and Cleaning
•Lubricate mating surfaces regularly with 3M Silicone spray or equivalent, DO NOT GREASE
•Lubricate O-rings with Molykote 111 silicone grease or equivalent.
•Use dust caps to protect connectors wherever possible
•Clean connectors with soap and fresh water, rinse out with alcohol and allow connector to air-
dry
Fuse Replacement
Refer to the ICON Portable Controller user manual for information regarding fuse replacement.
Caution: Disconnect the power source before servicing or replacing fuses.
Scheduled Maintenance and Servicing
Picotrac™ crawlers are designed to provide reliable service accompanied by a minimum downtime for
maintenance. The frequency of maintenance and/or repairs will be largely dictated by the type of use and
the environments the units are subjected to. We recommend the following maintenance procedures in
addition to normal equipment operational inspections.
Daily
Daily or before each use of the Picotrac / Versatrax 50 units:
1. Visually inspect the Picotrac and track belt for damage; if the track belt is torn or stretched it may
need to be replaced.
2. Check that the belt tensioning springs are freely moving. This can be done by pulling up on the
edge of the track belt with your thumb –the belt should have a small amount of give. If the springs
are bottomed out, there may be dirt under the belt which must be removed before deployment to
avoid damage and to attain best performance.
3. Visually inspect the tether and interconnect cables or damage. If the cables are damaged the unit
should be returned to the factory for servicing.
