Edelweiss LFS802 User manual

PATIO HEATER
INSTRUCTION MANUAL
Keep the instructions for future reference
0063
14

WARNlNG SAFETY RULES
PLEASE READ THE FOLLOWING SAFETY RULES PRlOR
TO OPERATION OF THE HEATER
FOR YOUR SAFETY
If you smell gas:
1．Shut off gas to the appliance.
2．Extinguish any open flame.
3．If odor continues, immediately call your gas supplier or your fire
Department.
FOR YOUR SAFETY
1.Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance．
2.An LP cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance．
WARNlNG
1) For use outdoors or in amply ventilated areas.
2) An amply ventilated area must have a minimum of 25 % of the
surface area open.
3) The surface area is the sum of the walls surface.
WARNING：Improper installation, adjustment, alteration, service
or maintenance Can cause injury or property damage. Read the
installation, operating and maintenance instructions thoroughly
before installing or servicing this equipment.

warning
Read the instructions before installation and use.
-This appliance must be installed and the gas cylinder stored in
accordance with the regulations in force;
-Do not obstruct the ventilation holes of the cylinder housing;
-Do not move the appliance when in operation;
-Shut off the valve at the gas cylinder or the regulator before moving
the appliance;
-The tubing or the flexible hose must be changed within the
prescribed intervals;
-Use only the type of gas and the type of cylinder specified by the
manufacturer;
-In case of violent wind particular attention must be taken against
tilting of the appliance;

i
TABLE OF CONTENTS
Caution ………………………………………………………. 1
Heater Stand and Location ………………………………… 2
Gas Requirements ………………………………………….. 2
Leakage Test ………………………………………………… 2
Operation and Storage ……………………………………... 3
Cleaning and Care ………………………………………….. 4
Parts and Specifications ..………………………………….. 4
Assembly Parts and Procedures ………………………….. 6
Problems Check List ………………………………………... 9

- 1 -
CAUTION
PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION.
Do not use the patio heater for indoors, as it may cause personal injury or property damage.
This outdoor heater is not intended to be installed on recreational vehicles and/or boats.
Installation and repair should be done by a qualified service person.
Improper installation, adjustment, alteration can cause personal injury or property damage.
Do not attempt to alter the unit in any manner.
Never replace or substitute the regulator with any regulator other than the factory-suggested replacement.
Do not store or use gasoline or other flammable vapors or liquids in the heater unit.
The whole gas system, hose, regulator, pilot or burner should be inspected for leaks or damage before
use, and at least annually by a qualified service person.
All leak tests should be done with a soap solution. Never use an open flame to check for leaks.
Do not use the heater until all connections have been leak tested.
Do not transport heater while it’s operating.
Do not move the heater after it has been turned off until the temperature has cooled down.
Keep the ventilation opening of the cylinder enclosure free and clear of debris.
Do not paint the radiant screen, control panel or top canopy reflector.
Control compartment, burner and circulation air passageways of the heater must be kept clean.
Frequent cleaning may be required as necessary.
The LP tank should be turned off when the heater is not in use.
Check the heater immediately if any of the following occurs:
- The heater does not reach temperature.
- The burner makes popping noise during use (a slight noise is normal when the burner is extinguished).
- Smell of gas in conjunction with extreme yellow tipping of the burner flames.
The LP regulator/hose assembly must be located out of pathways where people may trip over it or in
area where the hose will not be subject to accidental damage.
Any guard or other protective device removed for servicing the heater must be replaced before
operating the heater.
Adults and children should stay away from high temperature surface to avoid burns or clothing ignition.
Children should be carefully supervised when they are in the area of the heater.
Cl
To change the gas cylinder in a amply ventilated area, away from any ignition source (candle, cigarettes,
other flame producing appliances, ...);
To check that the regulator seal is correctly fitted and able to fulfill its function
To not obstruct the ventilation holes of the cylinder housing;
To close the gas supply at the valve of the gas cylinder or the regulator after use;
In the event of gas leakage, the appliance shall not be used or if alight, the gas supply shall be shut off and
the appliance shall be investigated and rectified before it is used again;
The recommended frequency of checking the tubing or the flexible hose (at least once per month and each
time the cylinder is changed). If it shows signs of cracking, splitting or other deterioration it shall be exchanged
for new hose of the same length and of the equivalent quality;
othing or other flammable materials should not be hung on the heater or placed on or near the heater.
T
Regulator connection: tighten connection and perform another leak test. If bubbles continue appearing
should be returned to hose’s place of purchase. If leak is at Regulator/Cylinder Valve connection: disconnect,
reconnect, and perform another leak check. If you continue to see bubbles after several attempts, cylinder
valve is defective and should be returned to cylinder’s place of purchase.
urn off the gas valve immediately if smell of gas is detected. Turn Cylinder Valve OFF.If leak is at Hose/

- 2 -
HEATER STAND AND LOCATION
The heater is primarily for outdoor use only. Always ensure that
adequate fresh air ventilation is provided.
Always maintain proper clearance to combustible materials, i.e. top 100 cm
and sides 100 cm minimum.
Heater must be placed on level firm ground.
Never operate heater in an explosive atmosphere like in areas where
gasoline or other flammable liquids or vapors are stored.
To protect heater from strong wind, anchor the base securely to the
ground with screws.
GAS REQUIREMENTS
Use propane or butane gas only.
The pressure regulator and hose assembly to be used must conform to local standard codes.
The installation must conform to local codes, or in the absence of local codes, with the standard for the
storage and handling of liquid petroleum gases.
A dented, rusted or damaged propane tank may be hazardous and should be checked by your tank
supplier. Never use a propane tank with a damaged valve connection.
The propane tank must be arranged to provide for vapor withdrawal from the operating cylinder.
Never connect an unregulated propane tank to the heater.
LEAKAGE TEST
Gas connections on the heater are leak tested at the factory prior to shipment. A complete gas tightness
check must be performed at the installation site due to possible mishandling in shipment or excessive
pressure being applied to the heater.
Make a soap solution of one part liquid detergent and one part water. The soap solution can be applied
with a spray bottle, brush or rag. Soap bubbles will appear in case of a leak.
The heater must be checked with a full cylinder.
Make sure the safety control valve is in the OFF position.
Turn the gas supply ON.
In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and re-
check.
Never leak test while smoking.
CEILING
W A L L
100 cm
100 cm
Fortification of base to the ground

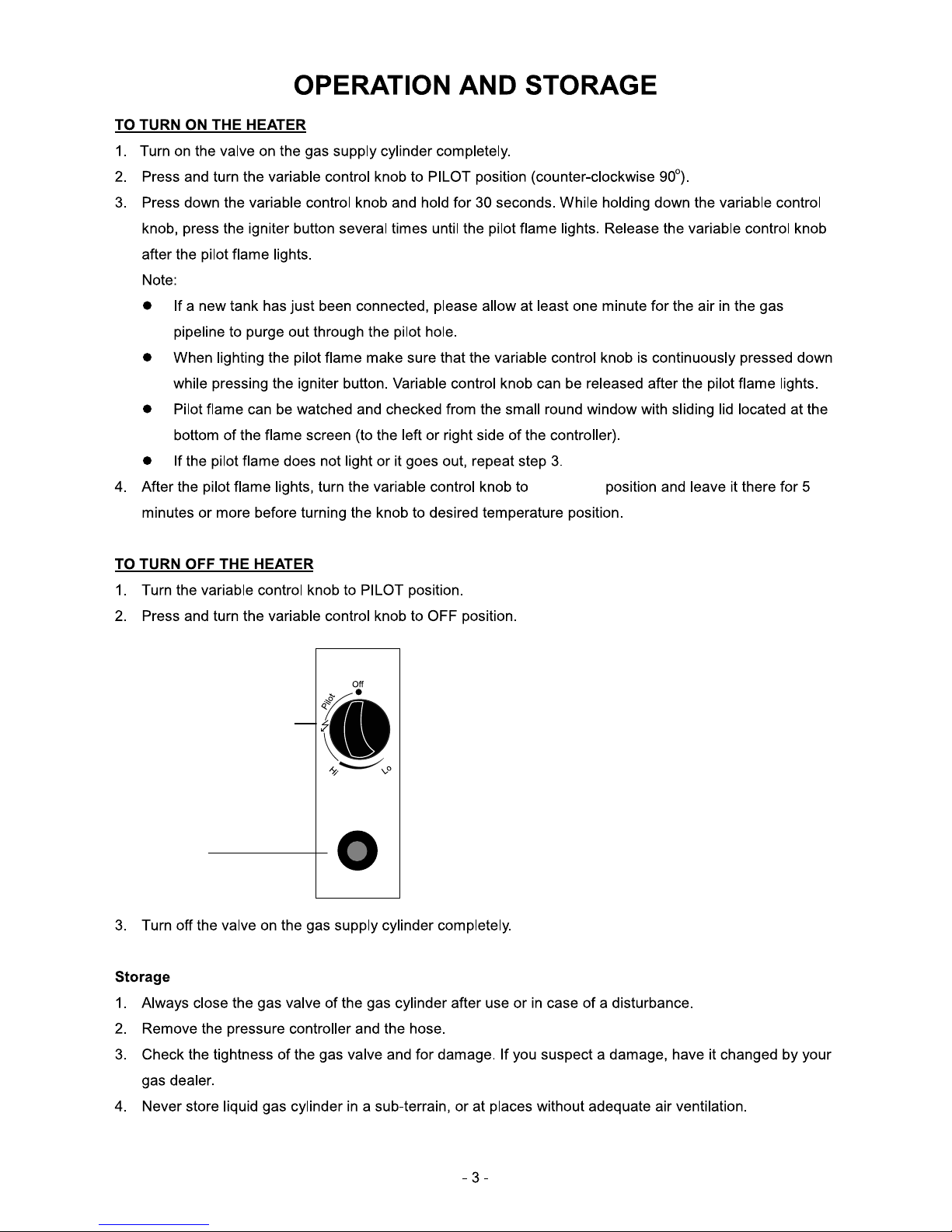

LO
HI
Off
Igniter
Pilot

Variable control knob
Igniter
lgniter
maximum

CLEANING AND CARE
•Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with cleaners that
are combustible or corrosive.
•Remove debris from the burner to keep it clean and safe for use.
•Cover the burner unit with the optional protective cover when the heater is not in use.

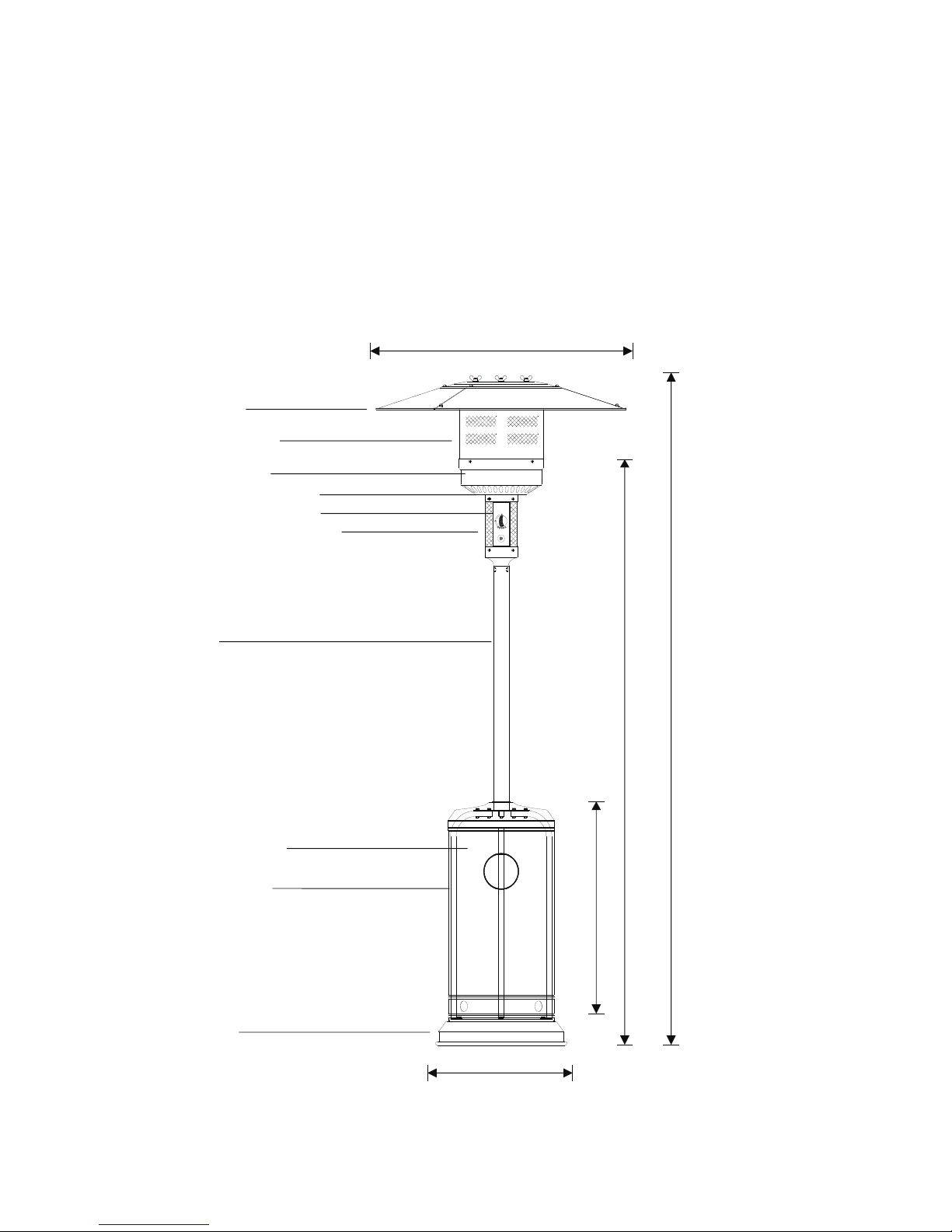

PARTS AND SPECIFICATIONS
- 4 -
2222 mm
2003 mm
765 mm
813 mm
460 mm
Reflector
Flame screen
Burner base
Air admittance fence
Gas valve controller
Base of control housing
Post
Tank housing
Post bracket
Stand
LO
HI
Off
Igniter
Pilot

- 5 -
A. Construction and characteristics
Transportable terrace/garden heater with tank housing
Casing in steel with powder-coating or stainless steel
Gas hose connections with metal clamp (screw caps for Germany)
Heat emission from reflector
B. Specifications
Use propane or butane gas only
Max. wattage: 13000 watts
Min. wattage: 5000 watts
Consumption:
With CE certificates
C. Table of injector
The hose and regulator assembly must conform to local standard codes.
Regulator outlet pressure should meet the corresponding gas category in the table of injector.
The appliance requires approved hose in 1.4m length.
GAS CATEGORY: 3+(28-30/37) 3B/P(50) 3B/P(37) I III 3B/P(30)
TYPES OF GAS: Butane Propane LPG Gas Mixtures
GAS PRESSURE: 28-30 mbar 37 mbar 30 mbar 50mbar 37mbar
TOTAL HEAT
INPUT (Hs): (Qn)
13kW (945g/h)
INJECTOR SIZE: 1.90 mm for main burner
0.18 mm for pilot burner
1.70 mm for main burner
0.18 mm for pilot burner
1.80 mm for main burner
0.18 mm for pilot burner
GAS CATEGORY: 3+(28-30/37) 3B/P(30) 3B/P(37)3B/P(50) I I II
TYPES OF GAS: Butane Propane LPG Gas Mixtures LPG Gas Mixtures LPG Gas Mixtures
GAS PRESSURE: 28-30 mbar 37 mbar 30 mbar 50mbar 37mbar
CONSUMPTION: 450-870g/h 640-1230g/h 550-1060g/h
LPG Gas Mixtures LPG Gas Mixtures

- 6 -
ASSEMBLY PARTS
Tools needed:
Open end wrench 10 & 13 mm
Adjustable opening wrench (2) 20 cm long
Slip joint pliers 23 cm long
Philips screwdriver w/ medium blade
Spray bottle of soap solution for leakage test
Parts supplied:
3 pcs ground fixer
6
Stand with LPG cylinder housing and 3 post brackets.
9 Cup Nuts (M6 mm), 9 Small Screws (M6 x 10 mm), 9 Small Flat Washers (Ø 6 mm)
for Reflector Assembly.
6 Large Bolts and Flange Nuts (M6) for Support Legs/Main Pole Assembly.
3 Medium Bolts (M8 x 15 mm) for Support Legs/Stand Assembly.
3 Reflector Spacers and Wing Nuts, 9 Large Flat Washers for Reflector and burner Assembly.
pcs M6 x 10 mm ground fixer bolts & nuts

- 7 -

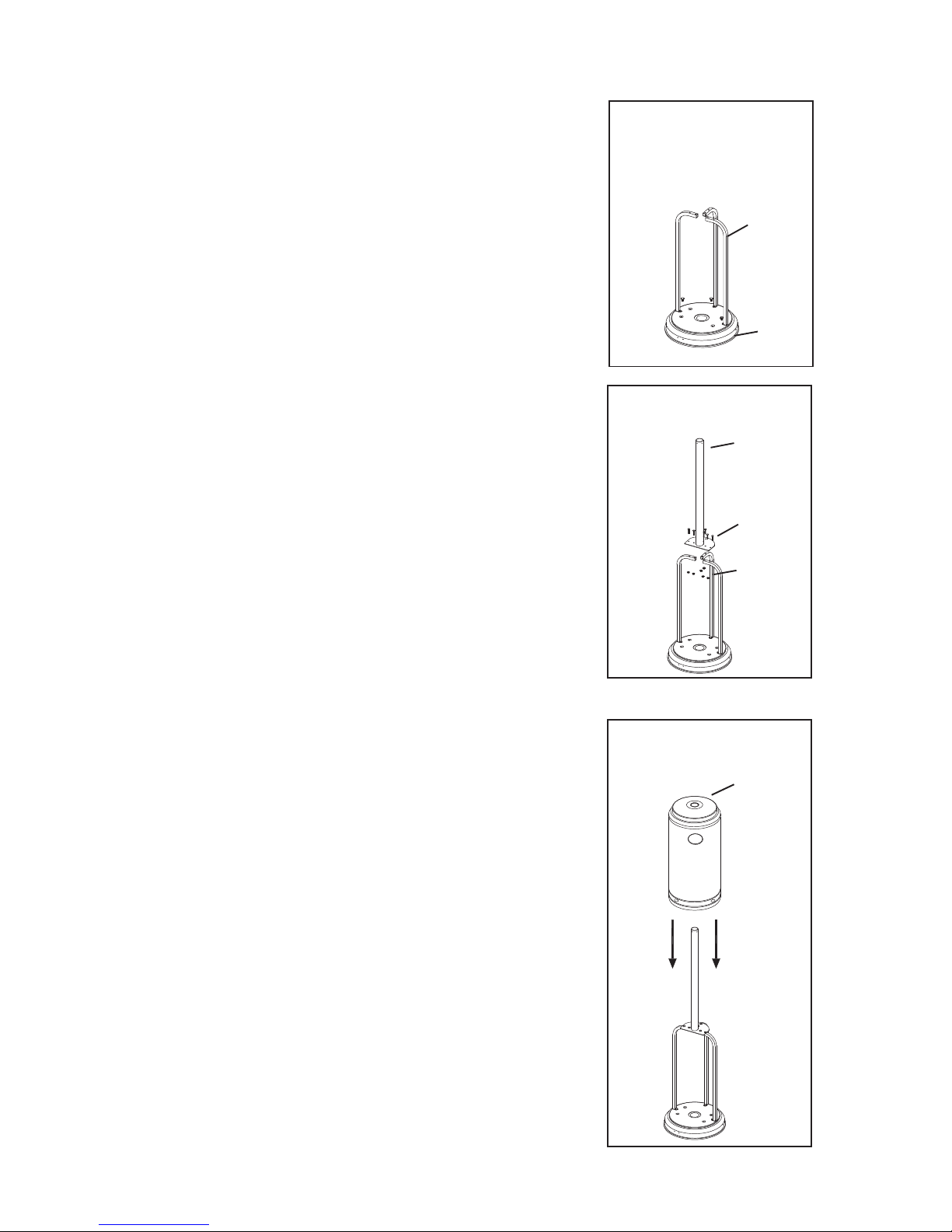

ASSEMBLY PROCEDURES
STEP 1
1-1. Put the 3 pcs post brackets on each position on the base as
shown in the picture.
1-2. Use 3 Medium Bolts(M8x15) to join the post brackets and stand.
STEP 2
2-1. Put the post on the top of 3 pcs post brackets.
2-2. Use 6 Large Bolts and Flange Nuts (M6) to connect the post to the
3 pcs post brackets. Tighten the bolts and nuts.
STEP 3
Place the tank housing on the stand.
Bolt
Post
STEP 2
Nut
STEP 3
Bolt
Stand
Post bracket
STEP 1
Tank housing

- 8 -

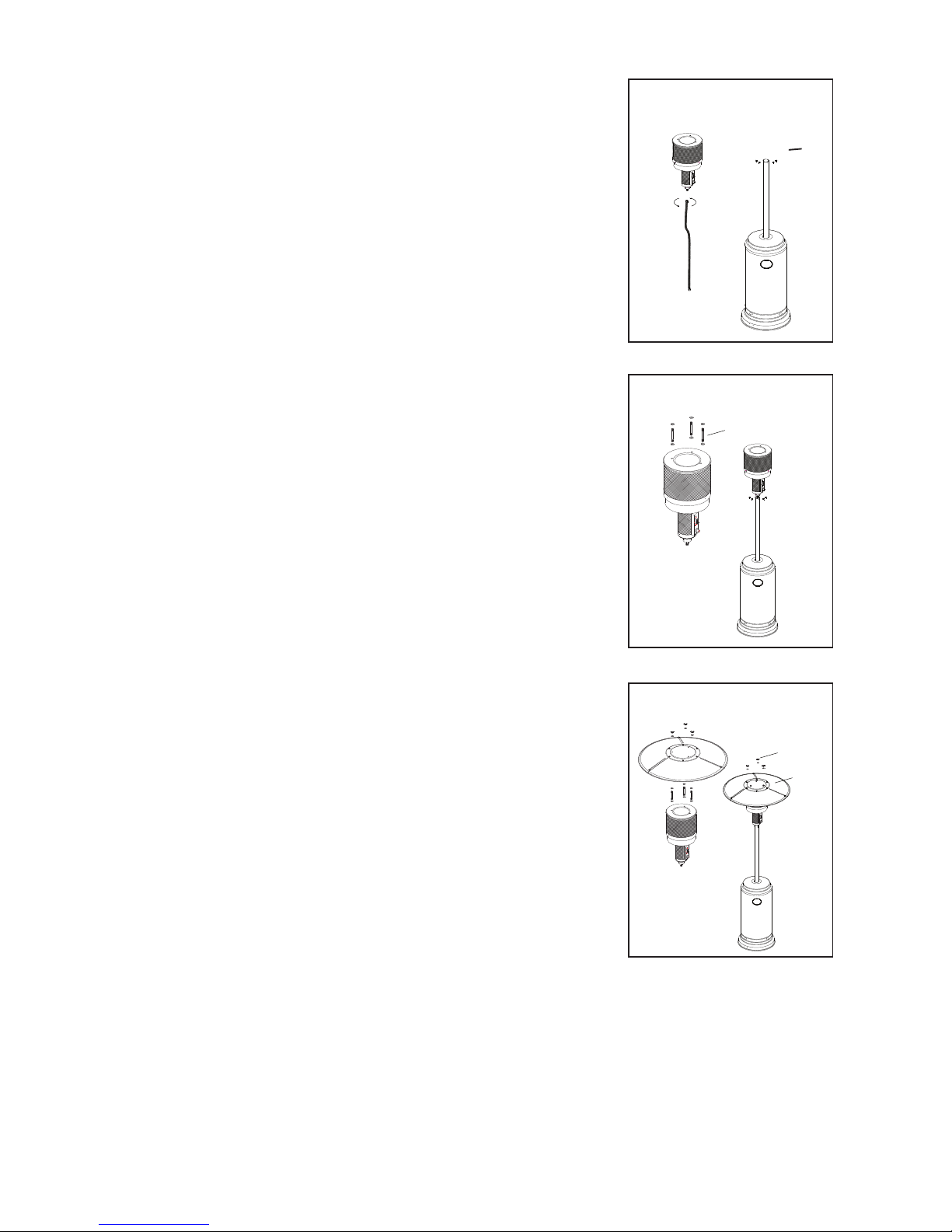

STEP 4
4-1. Remove the 4 bolts from the burner.
4-2. Put the gas hose through into the post.
4-3. Fix the burner unit to the post by the 4 bolts.
STEP 5
5-1. Check whether the connection of vertical post and burner are
assembled according to instructions, and all bolts and nuts are
tightened.
5-2. Put 6 pcs Large Flat Washers on 3 Reflector Spacers.
STEP 6
Fasten the reflector with 3 pcs Large Flat Washers and 3 pcs Wing Nuts.
STEP 4
Bolt
STEP 5
STEP 6
Reflector
Wing nut
Reflector Spacer

- 9 -

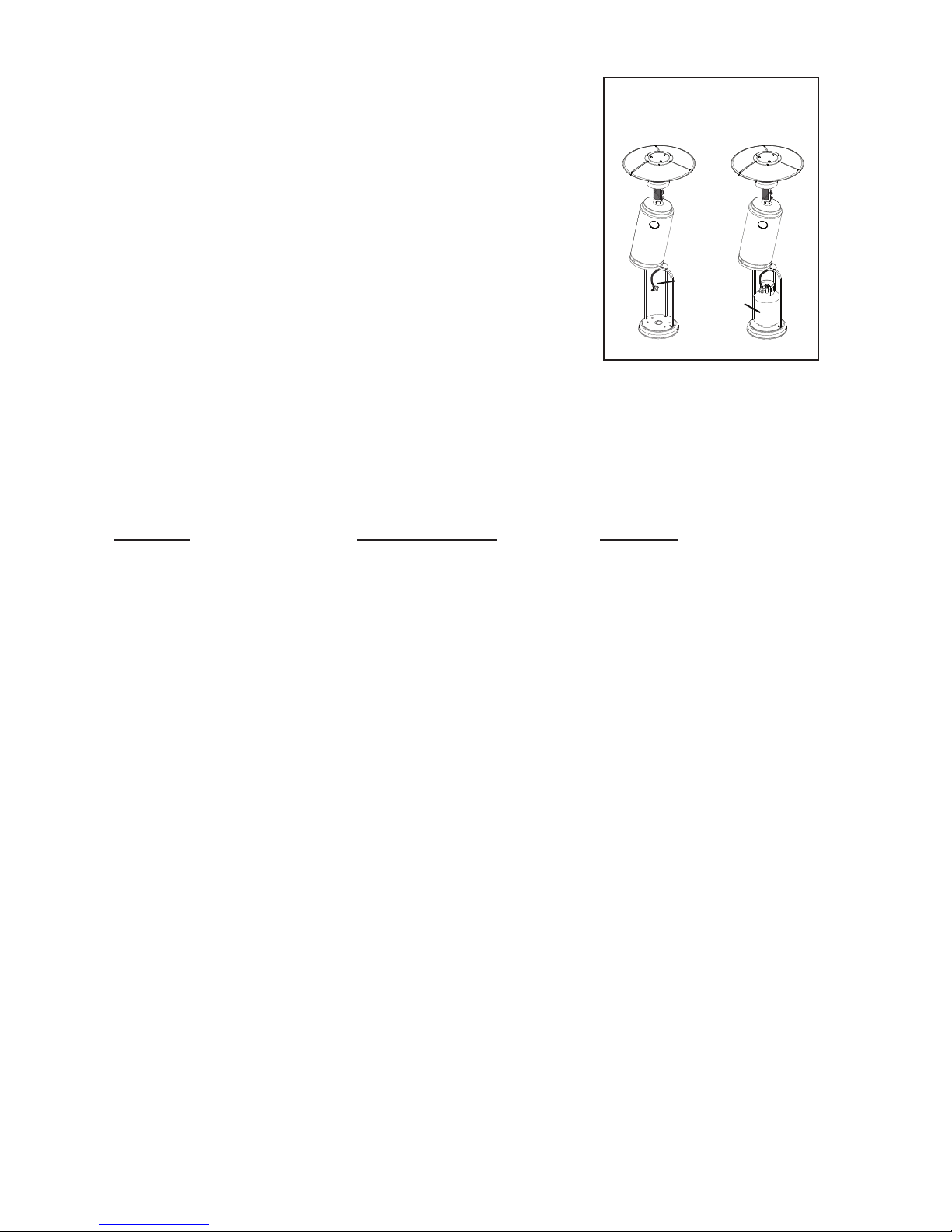

STEP 7
7-1. Bring up the tank housing and rest it on the post plate.
7-2. Connect the regulator to the gas tank and tighten it with adjustable
wrench.
7-3. Connect the end thread of inlet gas hose to the regulator.
7-4. Put LPG gas tank on the stand.
PROBLEMS CHECK LIST
PROBLEM PROBABLE CAUSE SOLUTION
Pilot will not light Gas valve may be OFF Turn the gas valve ON
Tank fuel empty Refill LPG tank
Opening blocked Clean or replace opening
Air in supply system Purge air from lines
Loose connections Check all fittings
Pilot will not stay on Debris around pilot Clean dirty area
Loose connections Tighten connections
Thermocouple bad Replace thermocouple
Gas leak in line Check connections
Lack of fuel pressure Tank near empty. Refill LPG tank.
Burner will not light Pressure is low Tank near empty. Refill LPG tank.
Opening blocked Remove and clean
Control not ON Turn valve to ON
Thermocouple bad Replace thermocouple
Pilot light assembly bent Place pilot properly
Not in correct location Position properly and retry
STEP 7
Regulator
Gas tank
