Edelweiss PHM-01/02 User manual

PATIO HEATER
INSTRUCTION MANUAL
Keep the instructions for future reference
0063
20
MODEL: PHM-01/02

WARNlNG SAFETY RULES
PLEASE READ THE FOLLOWING SAFETY RULES PRlOR
TO OPERATION OF THE HEATER
FOR YOUR SAFETY
If you smell gas:
1．Shut off gas to the appliance.
2．Extinguish any open flame.
3．If odor continues, immediately call your gas supplier or your fire
Department.
FOR YOUR SAFETY
1.Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance．
2.An LP cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance．
WARNlNG

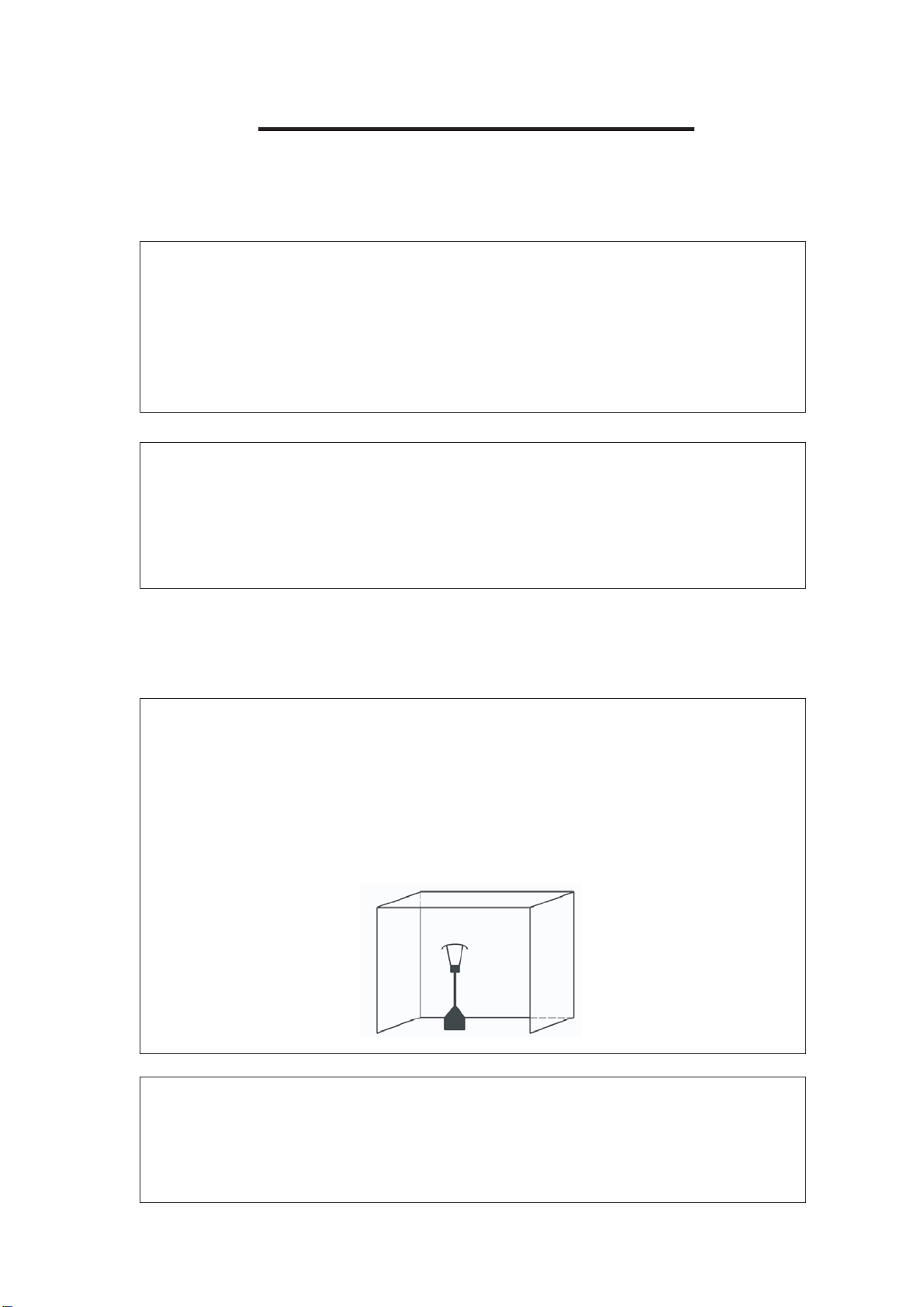

1) For use outdoors or in amply ventilated areas.
2) An amply ventilated area must have a minimum of 25 % of the
surface area open.
3) The surface area is the sum of the walls surface.
WARNING：Improper installation, adjustment, alteration, service
or maintenance Can cause injury or property damage. Read the
installation, operating and maintenance instructions thoroughly
before installing or servicing this equipment.

warning
Read the instructions before installation and use.
-This appliance must be installed and the gas cylinder stored in
accordance with the regulations in force;
-Do not obstruct the ventilation holes of the cylinder housing;
-Do not move the appliance when in operation;
-Shut off the valve at the gas cylinder or the regulator before moving
the appliance;
-The tubing or the flexible hose must be changed within the
prescribed intervals;
-Use only the type of gas and the type of cylinder specified by the
manufacturer;
The LP tank used with your patio heater must meet the following
requirements:
Purchase LP tanks only with these required measurements:
(31.8cm) (diameter) x 58cm) (tall) with 15kg capacity maximum.
-In case of violent wind particular attention must be taken against
tilting of the appliance; Keep the appliance at least 1m from the gas
cylinder.
-The injector in this appliance is not removable and the injector is
only assembled by manufacture. This appliance is forbidden to
convert from one gas pressure to another pressure.
-Do not connect the gas cylinder directly to the appliance without
regulator. Use only the type of gas and the type of cylinder
specified in the instructions.
A regulator(compliees with EN16129:2013 and the national regulation)
of the correct pressure corresponding to the appliance category.
Use 30mbar regulator for butane/propane under the category I3B/P(30).
Use 30mbar regulator for butane under the category I3+(28-30/37).
Use 37mbar regulator for propane under the category I3+(28-30/37).
Use 50mbar regulator for butane/propane under the category I3B/P(50).
It's recommended to use flexible hose that approved by EN16436: 2014.

i
TABLE OF CONTENTS
Caution ………………………………………………………. 1
Heater Stand and Location ………………………………… 2
Gas Requirements ………………………………………….. 2
Leakage Test ………………………………………………… 2
Operation and Storage ……………………………………... 3
Cleaning and Care ………………………………………….. 4
Parts and Specifications ..………………………………….. 4
Assembly Parts and Procedures ………………………….. 6
Problems Check List ………………………………………... 10

- 1 -
CAUTION
PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION.
Do not use the patio heater for indoors, as it may cause personal injury or property damage.
This outdoor heater is not intended to be installed on recreational vehicles and/or boats.
Installation and repair should be done by a qualified service person.
Improper installation, adjustment, alteration can cause personal injury or property damage.
Do not attempt to alter the unit in any manner.
Never replace or substitute the regulator with any regulator other than the factory-suggested replacement.
Do not store or use gasoline or other flammable vapors or liquids in the heater unit.
The whole gas system, hose, regulator, pilot or burner should be inspected for leaks or damage before
use, and at least annually by a qualified service person.
All leak tests should be done with a soap solution. Never use an open flame to check for leaks.
Do not use the heater until all connections have been leak tested.
Turn off the gas valve immediately if smell of gas is detected. Turn Cylinder Valve OFF. If leak is at Hose/
Regulator connection: tighten connection and perform another leak test. If bubbles continue appearing
should be returned to hose’s place of purchase. If leak is at Regulator/Cylinder Valve connection: disconnect,
reconnect, and perform another leak check. If you continue to see bubbles after several attempts, cylinder
valve is defective and should be returned to cylinder’s place of purchase.
Do not transport heater while it’s operating.
Do not move the heater after it has been turned off until the temperature has cooled down.
Keep the ventilation opening of the cylinder enclosure free and clear of debris.
Do not paint the radiant screen, control panel or top canopy reflector.
Control compartment, burner and circulation air passageways of the heater must be kept clean.
Frequent cleaning may be required as necessary.
The LP tank should be turned off when the heater is not in use.
Check the heater immediately if any of the following occurs:
- The heater does not reach temperature.
- The burner makes popping noise during use (a slight noise is normal when the burner is extinguished).
- Smell of gas in conjunction with extreme yellow tipping of the burner flames.
The LP regulator/hose assembly must be located out of pathways where people may trip over it or in
area where the hose will not be subject to accidental damage.
Any guard or other protective device removed for servicing the heater must be replaced before operating the heater.
Adults and children should stay away from high temperature surface to avoid burns or clothing ignition.
Children should be carefully supervised when they are in the area of the heater.
Clothing or other flammable materials should not be hung on the heater or placed on or near the heater.
To change the gas cylinder in a amply ventilated area, away from any ignition
source (candle, cigarettes, other flame producing appliances, ...);
To check that the regulator seal is correctly fitted and able to fulfill its function
showed as photo right;
To not obstruct the ventilation holes of the cylinder housing;
To close the gas supply at the valve of the gas cylinder or the regulator after use;
In the event of gas leakage, the appliance shall not be used or if alight, the gas supply
shall be shut off and the appliance shall be investigated and rectified before it is used again;
To check the hose at least once per month，each time the cylinder is changed，or each time before long time no use.
If it shows signs of cracking, splitting or other deterioration it shall be exchanged for new hose of the same length and of the
equivalent quality;
The use of this appliance in enclosed areas can be dangerous and is PROHIBITED;
Read the instructions before using this appliance. The appliance must be installed in accordance with the instructions and
local regulations.

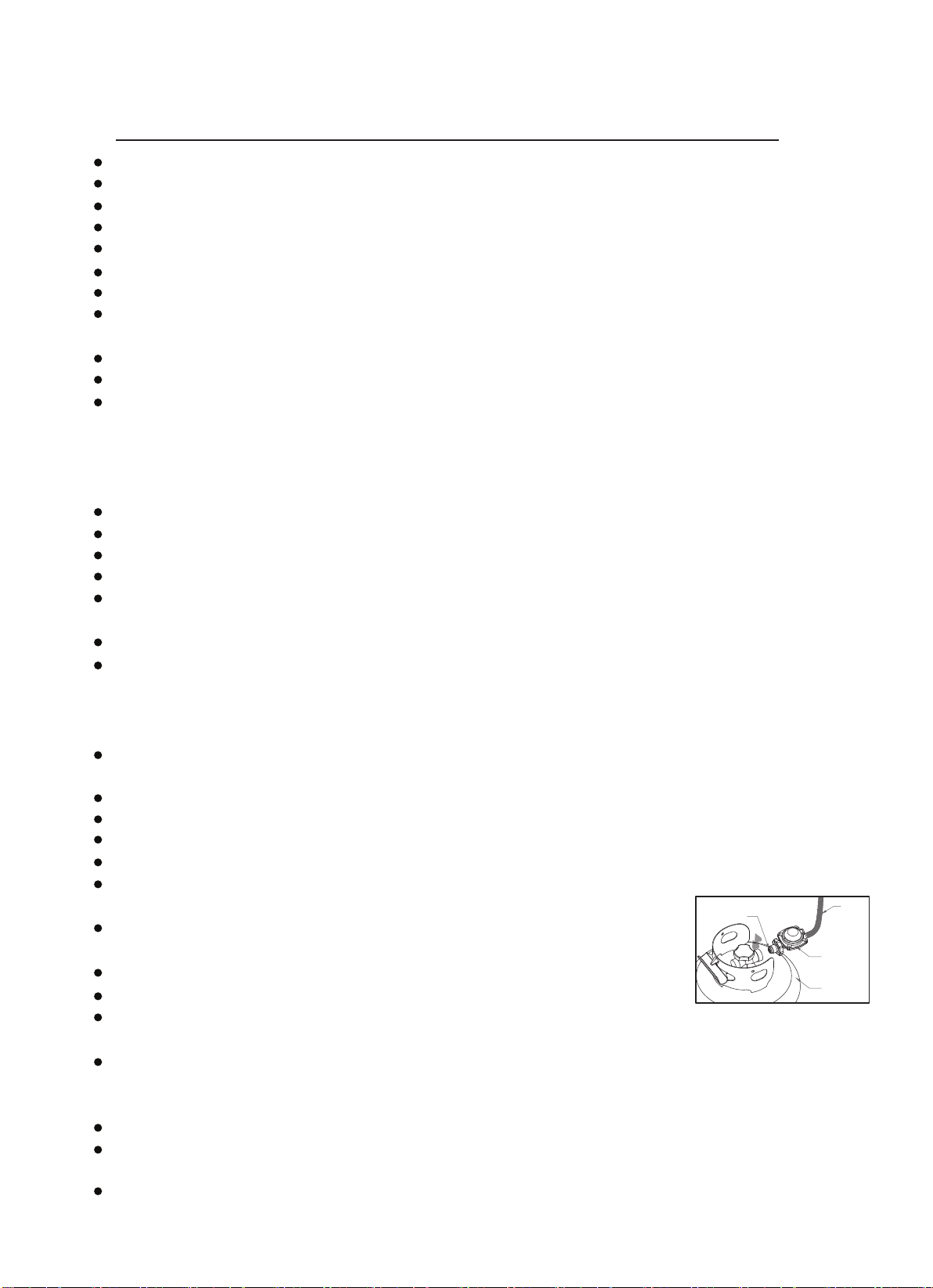

For connection of hose and regulator,and connection of regulator and hose, please refer to photo showed above.
Hose/ Regulator connection and
Regulator / Cylinder connection
seal hose
regulater
cylinder

- 2 -

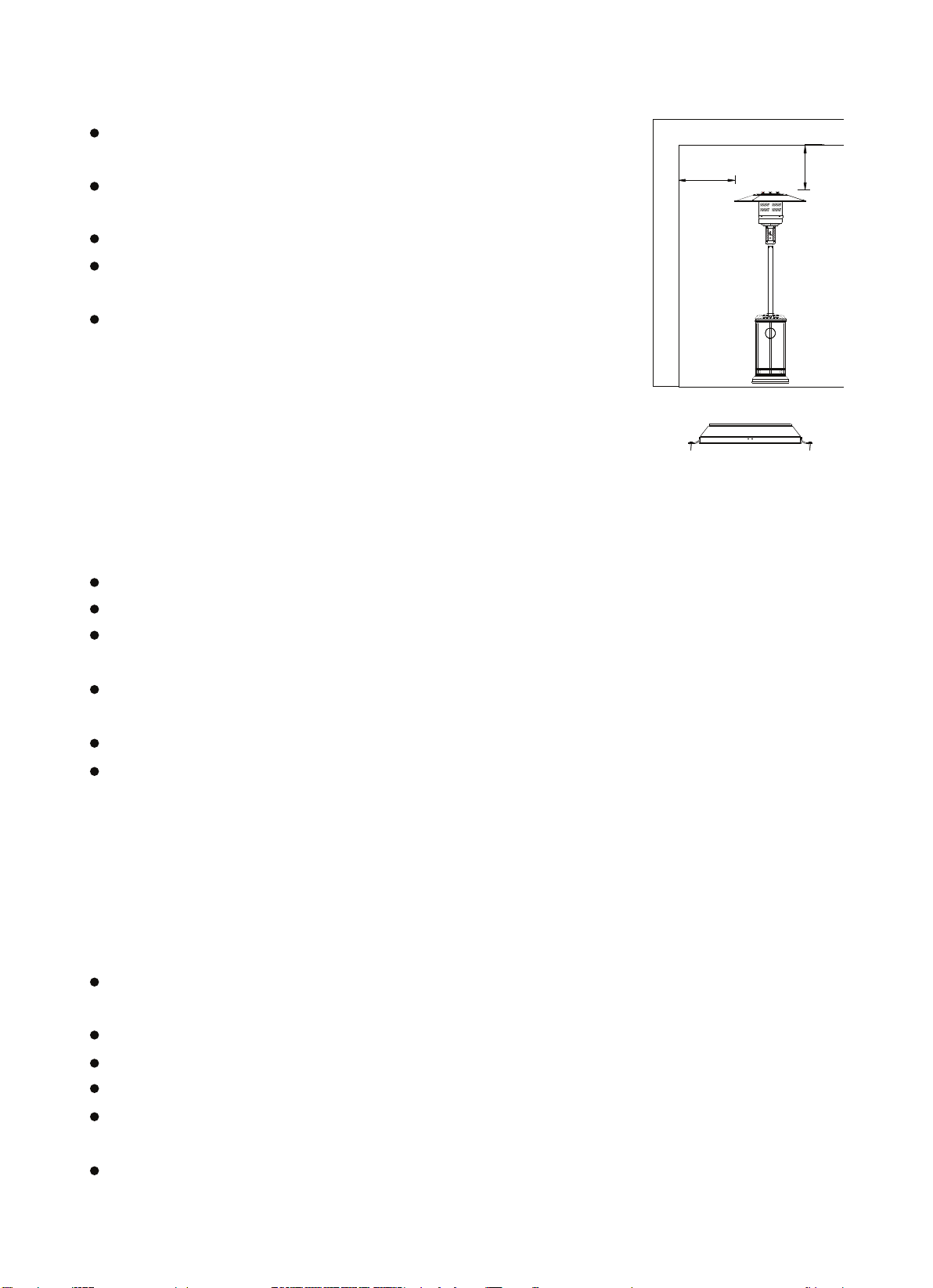

HEATER STAND AND LOCATION
The heater is primarily for outdoor use only. Always ensure that
adequate fresh air ventilation is provided.
Always maintain proper clearance to combustible materials, i.e. top 100 cm
and sides 100 cm minimum.
Heater must be placed on level firm ground.
Never operate heater in an explosive atmosphere like in areas where
gasoline or other flammable liquids or vapors are stored.
To protect heater from strong wind, anchor the base securely to the
ground with screws.
GAS REQUIREMENTS
Use propane or butane gas only.
The pressure regulator and hose assembly to be used must conform to local standard codes.
The installation must conform to local codes, or in the absence of local codes, with the standard for the
storage and handling of liquid petroleum gases.
A dented, rusted or damaged propane tank may be hazardous and should be checked by your tank
supplier. Never use a propane tank with a damaged valve connection.
The propane tank must be arranged to provide for vapor withdrawal from the operating cylinder.
Never connect an unregulated propane tank to the heater.
LEAKAGE TEST
Gas connections on the heater are leak tested at the factory prior to shipment. A complete gas tightness
check must be performed at the installation site due to possible mishandling in shipment or excessive
pressure being applied to the heater.
Make a soap solution of one part liquid detergent and one part water. The soap solution can be applied
with a spray bottle, brush or rag. Soap bubbles will appear in case of a leak.
The heater must be checked with a full cylinder.
Make sure the safety control valve is in the OFF position.
Turn the gas supply ON.
In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and re-
check.
Never leak test while smoking.
CEILING
W A L L
100 cm
100 cm
Fortification of base to the ground
LO
HI

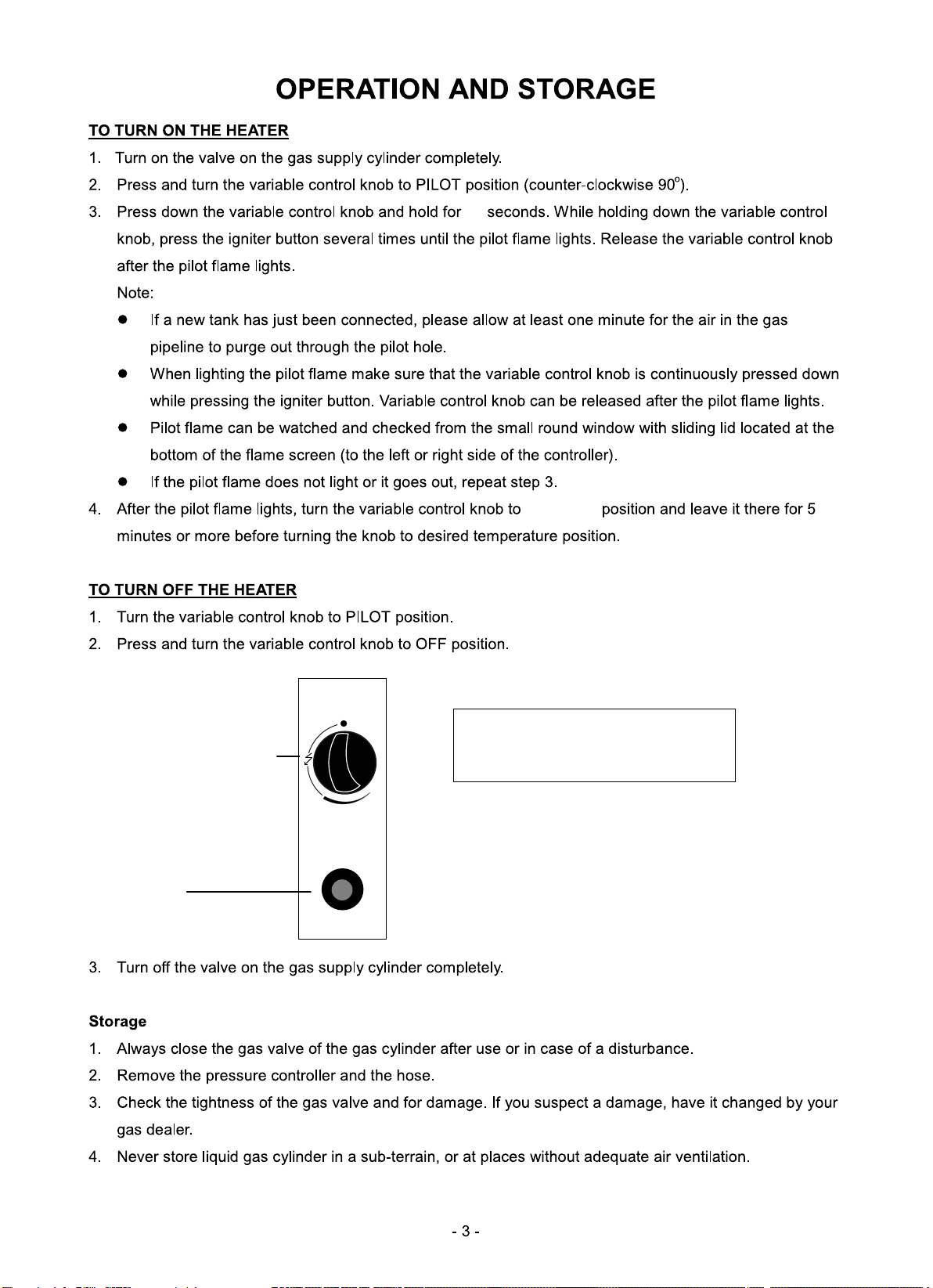

Off
Igniter
Pilot

Variable control knob
Igniter
IGNITER
OFF
PILOT
LO
HI
maximum
OFF: the heater stop work
HI: maximum temperature position
LO: minimum temperature position
90

CLEANING AND CARE
•Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with cleaners that
are combustible or corrosive.
•Remove debris from the burner to keep it clean and safe for use.
•Cover the burner unit with the optional protective cover when the heater is not in use.
PARTS AND SPECIFICATIONS
- 4 -
2222 mm
2003 mm
765 mm
813 mm
460 mm
Reflector
Flame screen
Burner base
Air admittance fence
Gas valve controller
Base of control housing
Post
Tank housing
Post bracket
Stand
LO
HI
Off
Igniter
Pilot

- 5 -
A. Construction and characteristics
Transportable terrace/garden heater with tank housing
Casing in steel with powder-coating or stainless steel
Gas hose connections with metal clamp (screw caps for Germany)
Heat emission from reflector
B. Specifications
Use propane, butane or their mixtures gas only.
Max. wattage: 13000 watts
Min. wattage: 5000 watts
Consumption:
Using the proper regulator according to outlet pressure of regulator as showed in the table above.
C. Table of injector
The hose and regulator assembly must conform to local standard codes.
Regulator outlet pressure should meet the corresponding gas category in the table of injector.
The appliance requires approved hose in 1.4m length.
APPLIANCE CATEGORY:
TYPES OF GAS: Butane Propane
GAS PRESSURE: 28-30mbar 37 mbar 30 mbar 50mbar 37mbar
30mbar 37 mbar 30 mbar 50mbar 37mbar
Butane, propane
or their mixtures
Butane, propane
or their mixtures
Butane, propane
or their mixtures
OUTLET PRESSURE
OF REGULATOR:
3+(28-30/37) 3B/P(30)
I3B/P(50)
I3B/P(37)
I
I
APPLIANCE CATEGORY:
TYPES OF GAS: Butane Propane
GAS PRESSURE: 28-30mbar 37 mbar 30 mbar 50mbar 37mbar
TOTAL HEAT
INPUT (Hs): (Qn) 13kW (G30:945g/h; G31:929g/h)
INJECTOR SIZE:
The marking，for example，1.90 on the injector，indicates that the size of injector is 1.90mm
1.90 mm for main burner
0.18 mm for pilot burner
1.70 mm for main burner
0.18 mm for pilot burner
1.80 mm for main burner
0.18 mm for pilot burner
Butane, propane
or their mixtures
Butane, propane
or their mixtures
Butane, propane
or their mixtures
3B/P(30)
I3B/P(50)
I3B/P(37)
I
3+(28-30/37)
I

- 6 -

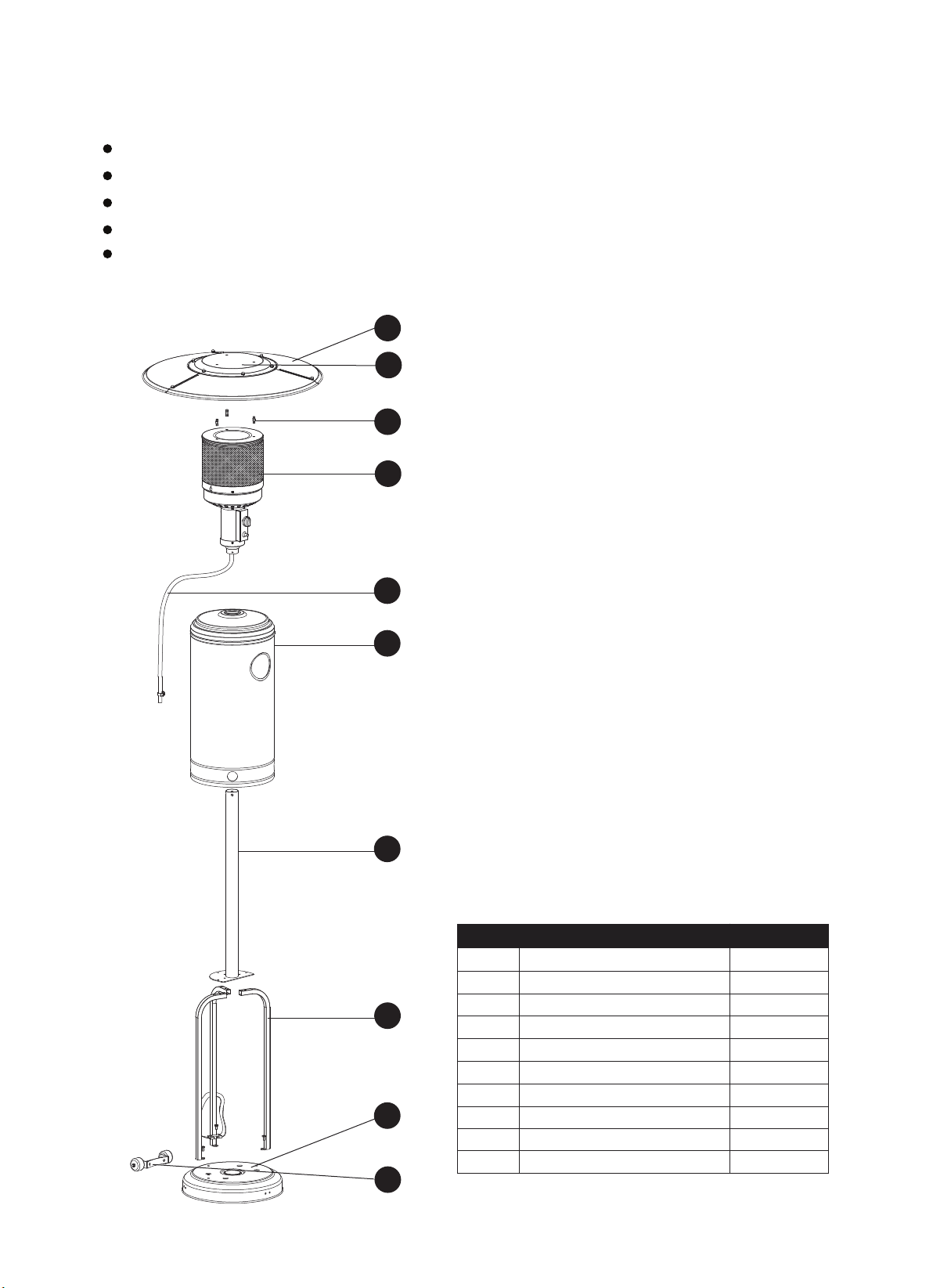

ASSEMBLY PARTS
T
Parts List:
ools needed:
Open end wrench 10 & 13 mm
Adjustable opening wrench (2) 20 cm long
Slip joint pliers 23 cm long
Philips screwdriver w/ medium blade
Spray bottle of soap solution for leakage test
NOITPIRCSEDTRAP YTITNAUQ
A Reflector Panel 3
B
Reflector Plate 1
FF
Reflector Stud 3
C
Head Assembly 1
D
Cylinder Housing
E Post
F Gas Hose
H Base
G Support Bracket
I Wheel Kit
1
1
1
3
1
1
A
B
FF
C
E
H
F
D
G
I

- 7 -
ASSEMBLY PARTS
HARDWARE CONTENTS (shown actual size)
AA
II
DD EE HH
CC FF
BB GG
Reflector
spacer
Qty. 3
Washer Φ8
Qty. 9
Washer Φ6
Qty. 9
Screw
M6 X 10
Qty. 9
Cap nut
Qty. 9
Wrench
Qty. 1
(not actual
size)
JJ KK
Wing nut
Qty. 3
LL
Stainless
steel bolt
Qty. 4
Bolt
M8 x 16
Qty. 5
Bolt
M6 x 30
Qty. 6
M8
Flange
nut
Qty. 2
M6
Flange
nut
Qty. 6

- 8 -
ASSEMBLY PROCEDURES
STEP 1
1-1. Put the 3 pcs post brackets on each position on the base as
shown in the picture.
1-2. Use 3 Medium Bolts(M8x16) to join the post brackets and stand.
STEP 2
2-1. Put the post on the top of 3 pcs post brackets.
2-2. Use 6 Large Bolts and Flange Nuts (M6) to connect the post to the
3 pcs post brackets. Tighten the bolts and nuts.
STEP 3
Place the tank housing on the stand.
Bolt
Post
STEP 2
Nut
STEP 3
Bolt
Stand
Post bracket
STEP 1
Tank housing

- 9 -

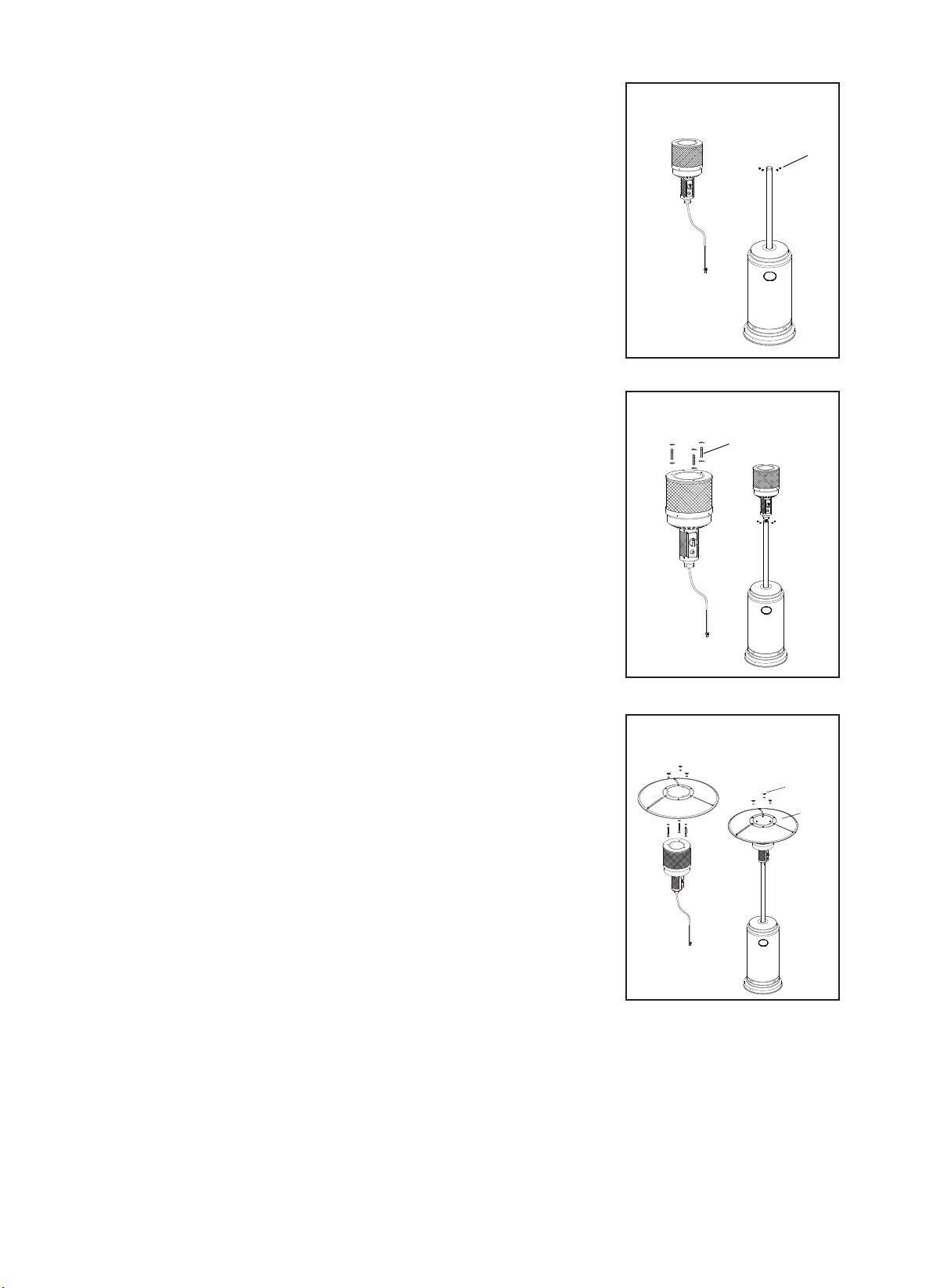

STEP 4
4-1. Remove the 4 bolts from the burner.
4-2. Put the gas hose through into the post.
4-3. Fix the burner unit to the post by the 4 bolts.
STEP 5
5-1. Check whether the connection of vertical post and burner are
assembled according to instructions, and all bolts and nuts are
tightened.
5-2. Put 6 pcs Large Flat Washers on 3 Reflector Spacers.
STEP 6
Fasten the reflector with 3 pcs Large Flat Washers and 3 pcs Wing Nuts.
STEP 4
Bolt
STEP 5
STEP 6
Reflector
Wing nut
Reflector Spacer

- 10 -

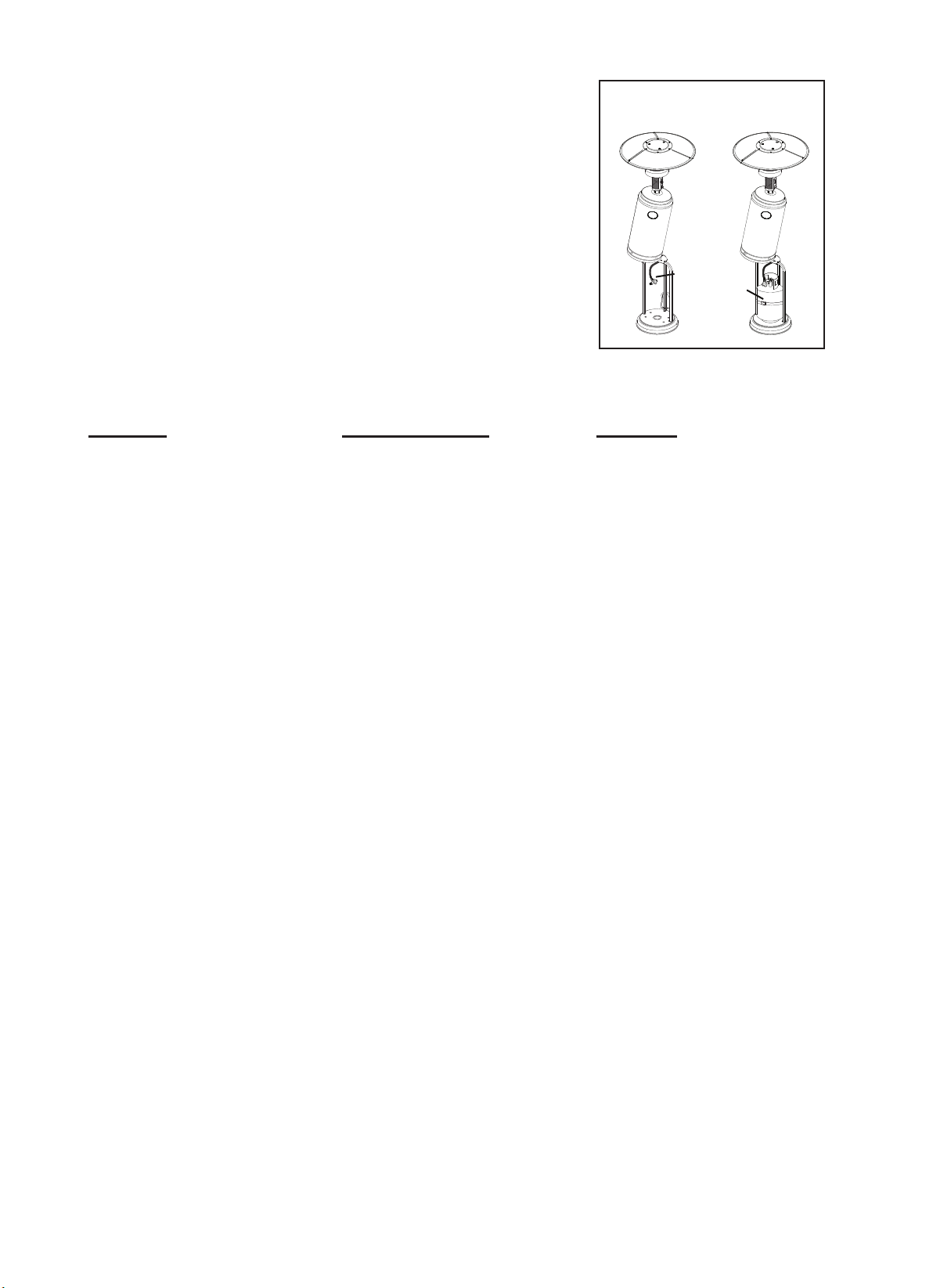

STEP 7
7-1. Bring up the tank housing and rest it on the post plate.
7-2. Connect the end thread of inlet gas hose to the regulator.
7-3. Connect the regulator to the gas tank and tighten it with adjustable
wrench.
7-4. Put LPG gas tank on the stand.
7-5. Fasten cylinder with propane tank strap.
PROBLEMS CHECK LIST
PROBLEM PROBABLE CAUSE SOLUTION
Pilot will not light Gas valve may be OFF Turn the gas valve ON
Tank fuel empty Refill LPG tank
Opening blocked Clean or replace opening
Air in supply system Purge air from lines
Loose connections Check all fittings
Pilot will not stay on Debris around pilot Clean dirty area
Loose connections Tighten connections
Thermocouple bad Replace thermocouple
Gas leak in line Check connections
Lack of fuel pressure Tank near empty. Refill LPG tank.
Burner will not light Pressure is low Tank near empty. Refill LPG tank.
Opening blocked Remove and clean
Control not ON Turn valve to ON
Thermocouple bad Replace thermocouple
Pilot light assembly bent Place pilot properly
Not in correct location Position properly and retry
STEP 7
Regulator
Gas tank
If the appliance is in case of any defaults or problems of assembly or use，please don’t try to modify it by yourself，
contact your supplier or distributor to solve it.
