EdilKamin POWER User manual

POWER
Cast-iron wood gasification boiler
Installation, user and
maintenance manual
The section for the user is at the end of the manual

- 2 -
The appliance must be installed by qualified personnel in compliance with the technical standards and
national and local legislation in force.
In addition, the instructions on safety, installation, maintenance and operation provided in this manual
must be observed.
Instructions for disposing of the appliance
(European Directive 2002/96/EC)
The appliance, at the end of its working life, MUST BE DISPOSED OF SEPARATELY, as required by
the legislation in force.
It MUST NOT be disposed of as municipal waste.
It can be delivered to separate waste collection centres, if such exist, or to the resellers that provide
this service.
Separate waste disposal avoids potential hazards to the environment and human health. It also allows
many recyclable materials to be recovered, with significant economic and energy savings.
The appliance shows the following symbol signifying separate waste disposal as required by the
European Directive.

- 3 -
GENERAL

- 4 -
Dear Customer,
Thank you for having chosen our appliance, a simple, high quality and high efficiency product that will certainly satisfy
your comfort requirements.
Please carefully read this manual before use, and in particular observe the WARNINGS AND SAFETY RULES.
Furthermore, the appliance should be maintained by personnel from the EDILKAMIN Technical Service, who are
specifically trained to perform the maintenance operations, using original spare parts where required.
This manual is an integral part of the appliance and consequently must be carefully kept for all future reference or to be
passed on to other owners or users.
Best regards.
The POWER appliances are compliant with:
• PEDdirective97/23/EEC
• LowVoltageDirective73/23/EEC
• StandardEN303.5
For the appliance serial number see the rating plate.
The POWER appliances come with a SPECIFIC WARRANTY starting from the date this is validated by the Technical
Service.
The warranty does not cover the components subject to normal wear and tear, such as the refractory burner, the stainless
steel duct and the ash container.
The Management
The Management
WARRANTY
CONFORMITY
PRESENTATION

- 5 -
SAFETY
WARNINGS AND SAFETY RULES Pag. 6
PROHIBITED ACTIONS “ 6
GENERAL
INFORMATION ON USING WOOD FUEL Pag. 7
DESCRIPTION “ 7
IDENTIFICATION “ 8
LAYOUT OF THE MAIN COMPONENTS “ 9
TECHNICAL SPECIFICATIONS “ 10
PROBES “ 11
CONTROL PANEL “ 11
WIRING DIAGRAMS “ 12
INSTALLATION
RECEIVINGTHEPRODUCT Pag. 14
DIMENSIONS AND WEIGHT “ 14
HANDLING “ 15
BOILER ROOM “ 15
NEW INSTALLATION OR INSTALLATION REPLACING
ANOTHER APPLIANCE “ 16
WATER CONNECTIONS “ 16

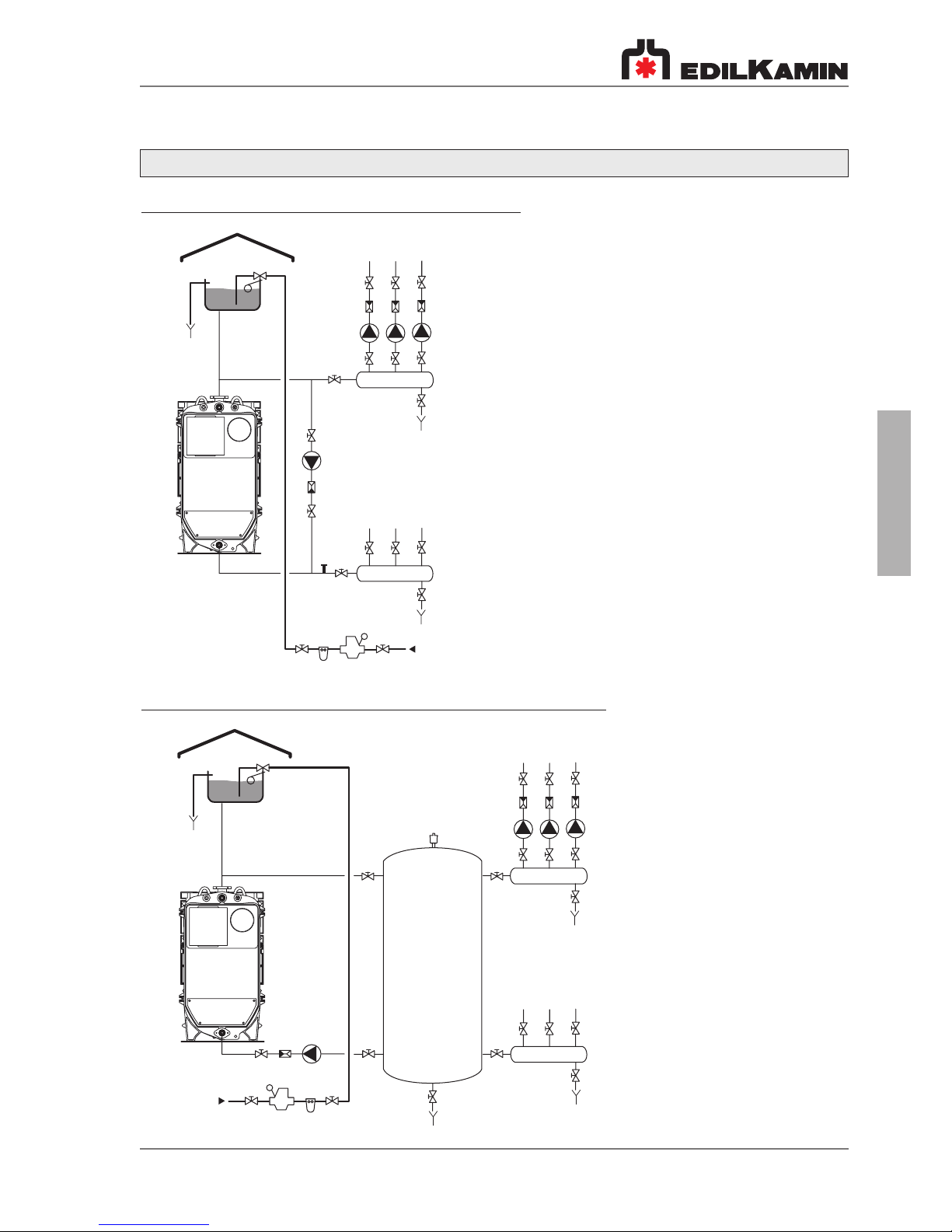

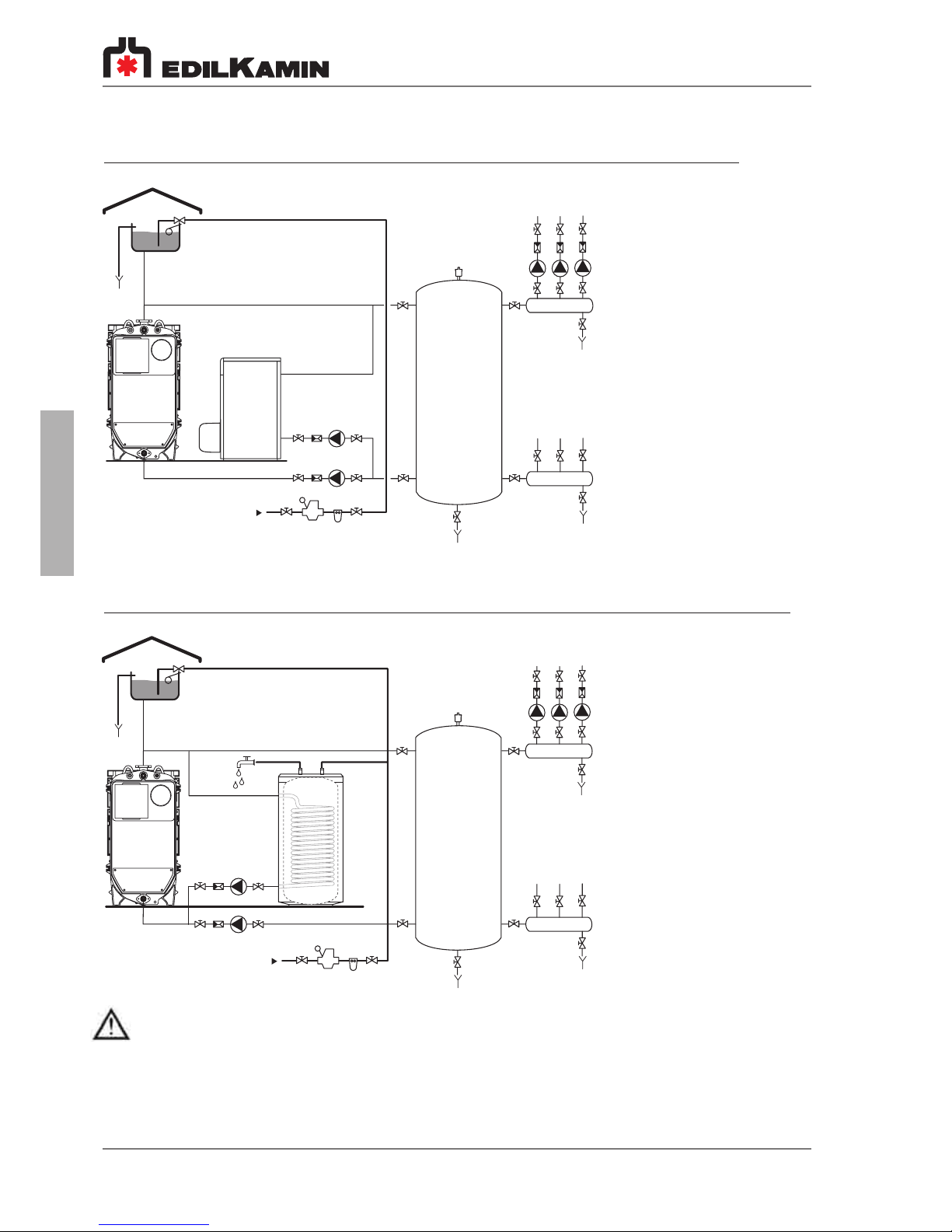

PRINCIPLE DIAGRAM “ 17

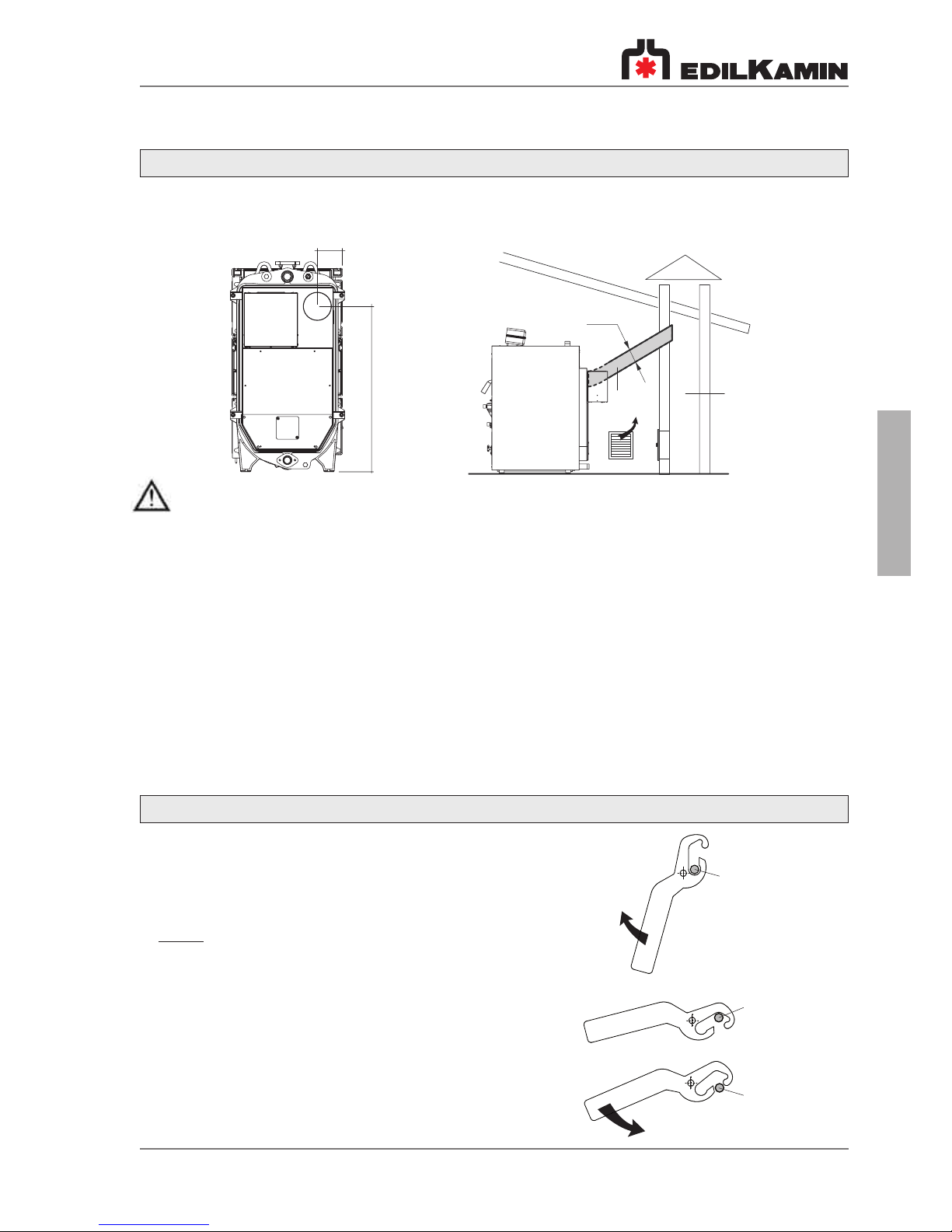

FLUE GAS OUTLET AND COMBUSTION AIR INTAKE “ 19
HANDLE ON THE LOADING DOOR “ 19

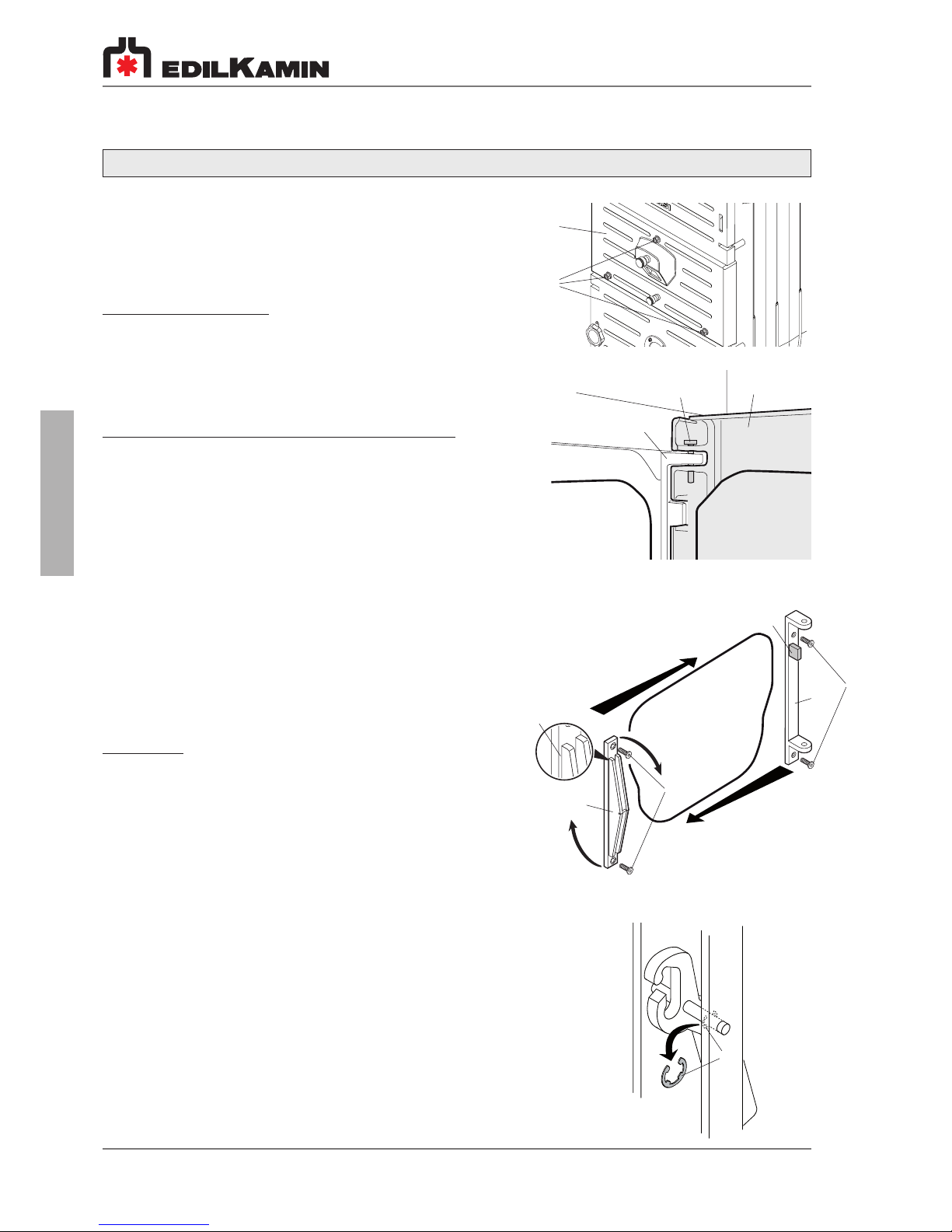

CHANGING THE DIRECTION OF OPENING “ 20
ASSEMBLING THE MICROSWITCH “ 22
INITIAL AIR REGISTER SETTINGS “ 22
ASSEMBLING THE FAN “ 22
ASSEMBLING THE CASING AND THE CONTROL PANEL “ 23
ELECTRICAL CONNECTIONS “ 25
FILLING AND EMPTYING THE SYSTEM “ 27
COMMISSIONING “ 28
REACHING STEADY STATE “ 30
TOPPING UP THE WOOD “ 30
SETTING THE TIMER “ 31
ADJUSTING THE COMBUSTION AIR “ 31
CONTROLDEVICESONTHEAPPLIANCE “ 32
CHECKS “ 32
MAINTENANCE
MAINTENANCE AND CLEANING Pag.33
TROUBLESHOOTING “ 35
OPERATION (FOR THE USER)
IGNITING THE APPLIANCE AND FIRST LOAD Pag.36
SUBSEQUENT LOADS “ 38
SHUTDOWN “ 40
MAINTENANCE “ 41
ORDINARY CLEANING “ 41
TROUBLESHOOTING “ 43
USEFUL REFERENCES “ 44
NOTES “ 45
CONTENTS
CONTENTS

- 6 -
•After having removed the packaging, check that the material supplied is intact and complete; if this is not the case,
contact the reseller that sold the appliance.
•The appliance must be installed by professionally qualified personnel in compliance with the national and local legislation
in force and the instructions provided in the manual supplied with the appliance.
•The appliance must be used for the intended purpose. EDILKAMIN is not liable for any damage caused to people,
animals or things due to errors in installation, control, maintenance and improper use of the appliance.
•In the event of water leaks, disconnect the appliance from the mains power supply, close the water supply and promptly
notify the Technical Service or other professionally qualified personnel.
•If the appliance is not used for an extended period, at least one of the following operations must be performed:
- Place the main switch on the appliance and the main system switch in the "off" position
- Close the cocks on the water circuit
- Empty the central heating and domestic hot water systems if there is the danger of frost.
•The manual is an integral part of the appliance and consequently must ALWAYS be kept with the appliance when
transferred to another owner or user, or installed in another system. The manual must be kept carefully and if damaged or
lost a replacement can be ordered form the Technical Service.
•The appliance must be serviced at least once a year.
WARNINGS AND SAFETY RULES
•DO NOT allow the appliance to be controlled by children or incapable persons without supervision.
•DO NOT touch the appliance when barefoot or with wet parts of the body.
•DO NOT perform any service or cleaning operations without having first disconnected the appliance from the mains
power supply, placing the main system switch and the main switch on the appliance in the “off” position.
•DO NOT perform any cleaning operations when the boiler is hot or when there are coals inside the boiler.
•DO NOT use fuel containers to dispose of the combustion residues.
•DO NOT adjust the safety or control devices without the authorisation and instructions of the manufacturer of the
appliance.
•DO NOT pull, remove or twist the electrical cables coming out of the appliance, even if these are disconnected from the
mains power supply.
•DO NOT plug or reduce the size of the ventilation openings in the room where the appliance is installed and on the
appliance (if present). The ventilation openings are essential for correct combustion.
•DO NOT leave containers with flammable substances in the room where the appliance is installed.
•DO NOT dispose of the packaging material in the environment, as this may be a potential source of danger. It must be
disposed of according to the legislation in force.
PROHIBITED ACTIONS
SAFETY

- 7 -
GENERAL
Firewood is a solid fuel and is a precious source of energy. It readily absorbs moisture and consequently when burnt leaves
evident traces.
Storing the fuel in sheltered, dry and slightly ventilated areas reduces the moisture level and consequently the fouling of
the boiler, improving heat output.
The best combustion techniques (gasification and pyrolysis) are improved by frequent cleaning and correct fuel storage.
Cleaning the inside of the boiler ensures maximum efficiency and limits atmospheric emissions.
INFORMATION ON USING WOOD FUEL

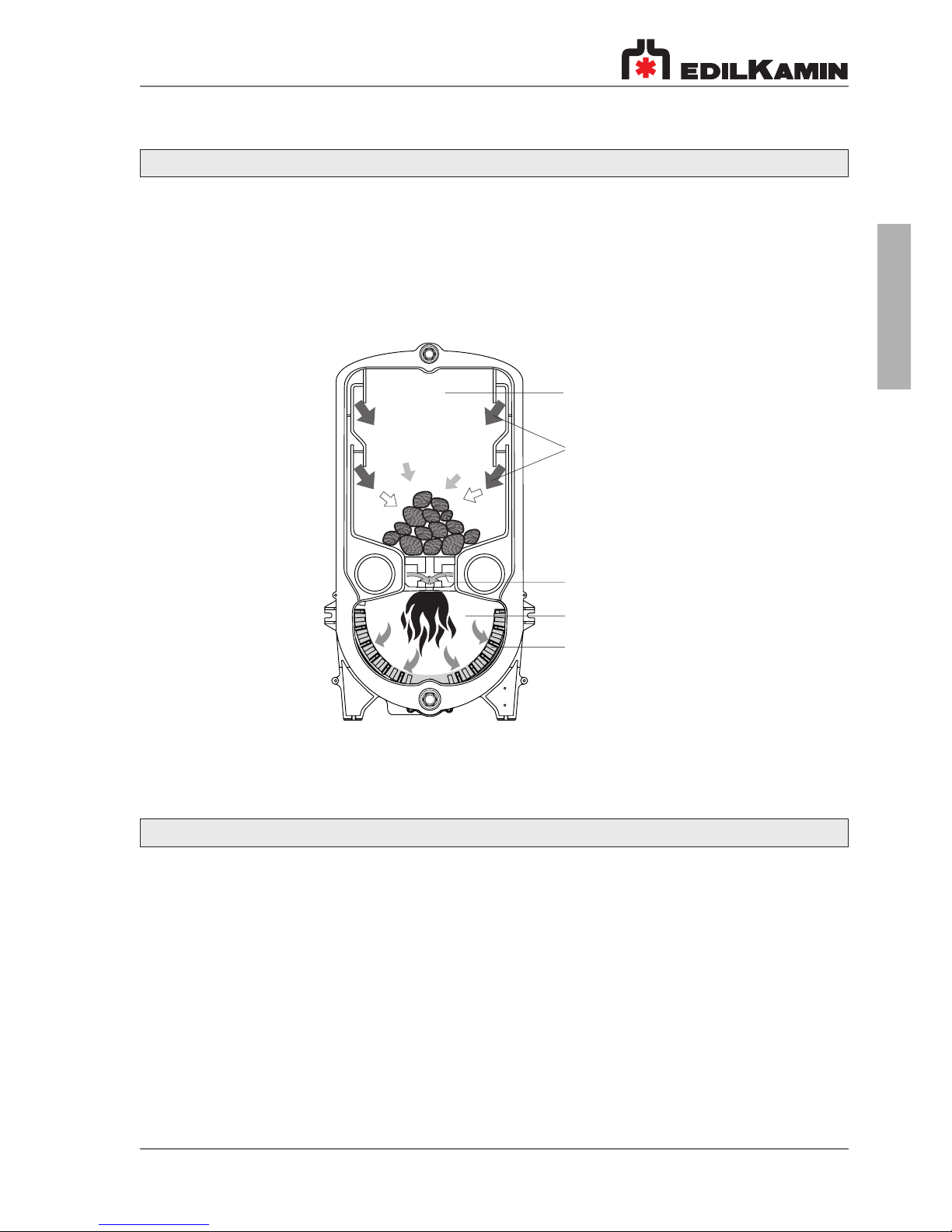

The POWER boilers are hot water generators that operate by gasification of wood, with the combustion chamber kept at
negative pressure and fan-assisted combustion with reverse flame.
TheyfeatureahighqualityandextremelythickENGJL200cast-ironbody.
The large heat exchange surface, the fins in the flue gas path and the burner made from refractory material ensure
exceptional resistance to corrosion and very high efficiency that remains constant over time (self-cleaning effect).
The appliances can independently serve central heating systems or combined central heating and domestic hot water
circuits, when connected to a storage cylinder.
On their own or combined with another heat generator they can supply an energy accumulator.
The control panel includes all the safety and control devices, in compliance with the legislation and standards in force, and
has been designed expressly to guide the user in the operation of the boiler.
The doors can be opened in either direction, and leave the factory with opening to the right, however, if required, the
direction can be changed.
Primary air
Secondary air
Desiccation and
gasification chamber
Combustion chamber
Flue gas path
Percorso
fumi
DESCRIPTION

- 8 -
GENERAL
WARNING
•If the rating plates or any other means of clearly identifying the product are defaced, removed or lost, proper installation
and maintenance may be rendered difficult.
IDENTIFICATION
The appliance is identified by:
- the Technical rating plate that MUST be applied by the installer, after assembling the casing, so that it is legible when
theapplianceisinstalled(forexample,ononeofthesidepanelsasshownonpage26).
- the Body rating plate applied to the front of the body
YEAR OF
CONSTRUCTION
SERIAL NUMBER
NAME
CODE
MAXIMUM AVERAGE HEAT
OUTPUT
MAX OPERATING
PRESSURE
BOILER WATER CAPACITY
YEAR OF CONSTRUCTION
SERIAL NUMBER
MINIMUM AVERAGE HEAT OUTPUT
MAX OPERATING TEMPERATURE
CLASS
POWER SUPPLY INDEX OF PROTECTION
MAX POWER INPUT

- 9 -
GENERAL

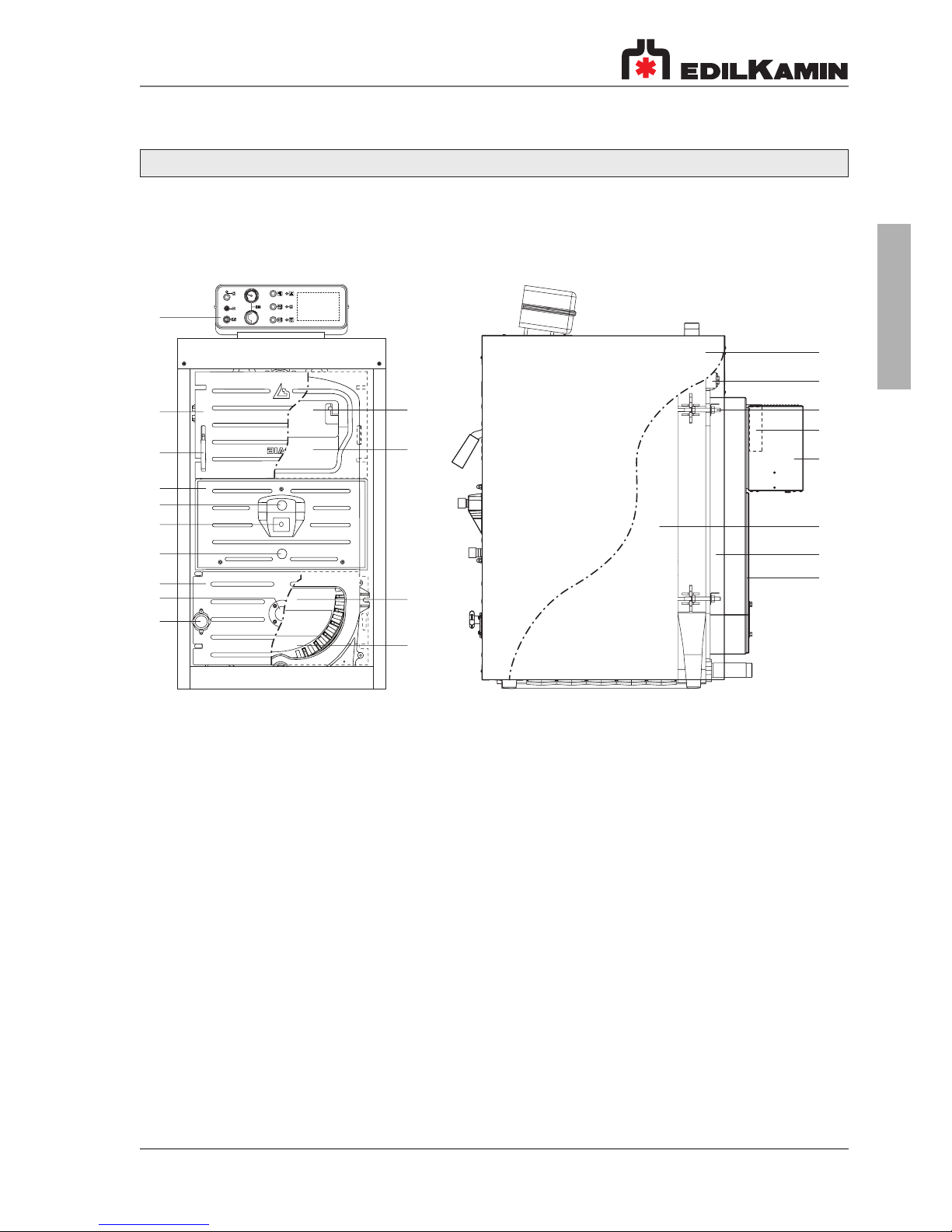

LAYOUT OF THE MAIN COMPONENTS
1Control panel
2Loading door
3 Doorhandle/knob
4Combustion air distributor
5Primary air register
6Combustion air intake
7Secondary air register
8Combustion chamber door
9Flame inspection window
10 Ash container
11 Combustion chamber
20
40
60
80
100
0120
13
1
3
4
6
7
8
3
9
12
11
10
5
2
15
14
19
16
17
18
21
20
12 Wood desiccation and gasification chamber
13 Mobile smoke plate
14 Casing
15 Probe socket
16 By-pass
17 Flue attachment
18 Fan
19 Insulation
20 Smokebox
21 Cleanout door

- 10 -
GENERAL
(*) At10%O2referringtodryfluegasat0°C,1013mbar.
(**) Based on the efficiency and the emissions.

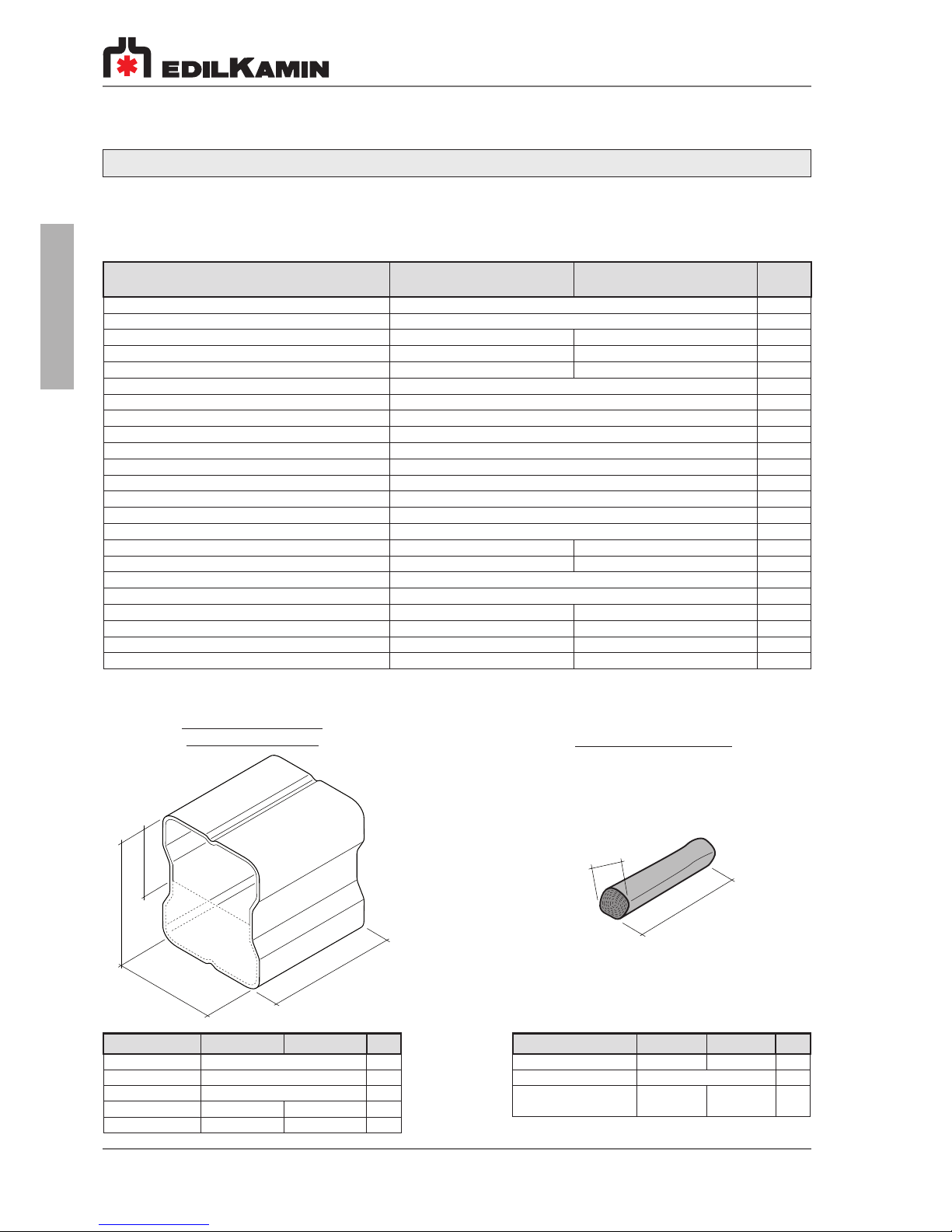

TECHNICAL SPECIFICATIONS
DESCRIPTION POWER 24 POWER 33
Fuel Onlylogsofwood(12to20%RH)
Destinationcountry/countries CEE
Rated max average heat output (Pn Max) 24,1 32,9 kW
Rated min average heat output (Pn Min) 17 25 kW
Useful efficiency at Pn Max 78,4 77,1 %
Average flue gas temperature (ΔT)
>220(260Max) °C
Negativepressureatthestack(Min/Max) 0,25/0,35 mbar
Maximum temperature allowed 110 °C
Operating temperature (range) 70÷85 °C
Minimum return temperature allowed 50 °C
Max operating pressure "PMS" 4 bar
Power supply 230~50 V~Hz
Max power input 120 W
Index of protection X0D IP
Class of the appliance 3(**) n°
CO <1400(*) <2400(*) mg/m3
Flue gas mass flow-rate 23,4 31,3 g/sec
Duration of one load >2 h
Diameter of the stack fitting 150 mm
Water-side pressure drop (
Δ T=15°C) 30 50 mbar
Water-side pressure drop (
Δ T=20°C) 18 30 mbar
Water content in the boiler 70 88 l
Sections 5 7 No.
P
Average W
H
H1
Ø
A
Wood desiccation and
gasification chamber
Model 24 33
Average W 43 cm
H45 cm
H1 25 cm
P40 60 cm
Volume 78 116 l
Model 24 33
A (max) 33 50 cm
Ø~15 cm
Max loadable weight
(typical) 20 30 Kg
ThedatashowninthetableweremeasuredbyanaccreditedorganisationincompliancewithEuropeanstandardEN303.5,
which applies specifically to this type of appliance.
Theperformancedatarefertotheaveragevalueover2hoursofoperationandwithacompleteloadofwood.
Size of the pieces of fuel

- 11 -
GENERAL
1Probe sheath
- Boiler and heat removal thermostat probe (TC)
- Minimum thermostat probe (TM)
- Safety thermostat probe (TST)
- Boiler thermometer probe (TMC)
2Flue gas thermostat probe (TF)

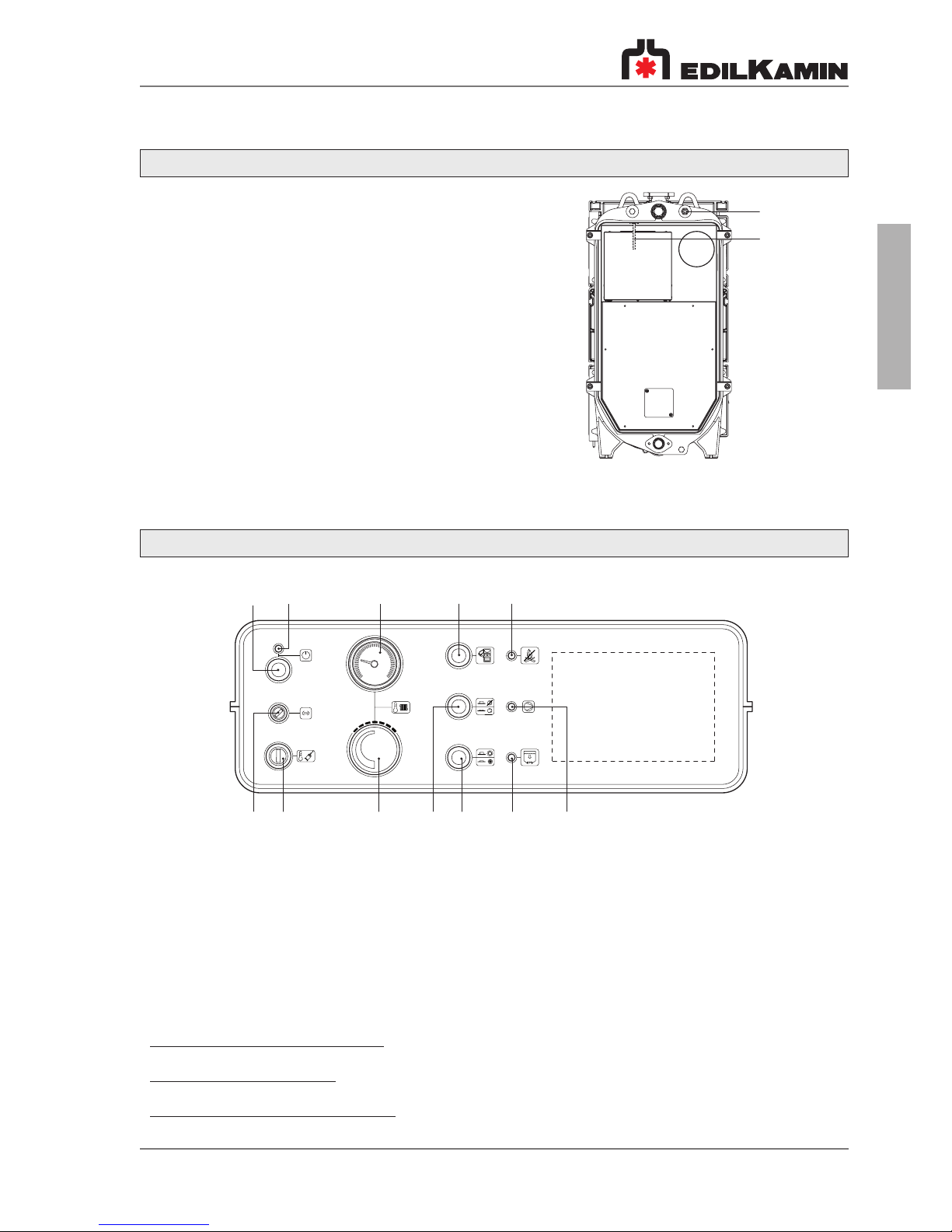

PROBES
CONTROL PANEL
1
2
Ip
20
40
60
80
100
0120
SFTMCSAE
FU AVTST TC E/I SCL SV
APC
Ip Main switch
SAE Power indicator
TMC Boiler thermometer
APC Activate loading procedure
SF Minimum flue gas temperature indicator light
FU Fuse
TST Thermal safety thermostat with manual reset
TC Boiler thermostat with heat removal function
AV Fan shutdown
E/I Summer/winterselectorswitch
SCL Load wood indicator light
SV Fan indicator light
Functional notes
- Constant operation at steady temperature: the appliance always operates at the set temperature so as to effectively supply the
system connected and any storage cylinder. “Total shutdown” logic is not adopted.
- Activate loading procedure (APC): pressing APC starts the fan, thus preventing gas and smoke from being released into the room
when opening the loading door.
- Load wood indicator light (local and remote): the SCL signal warns that the appliance has run out of wood and that a new load
is required. This is featured on the control panel and can also be available as a remote control signal.

- 12 -
GENERAL
WIRING DIAGRAMS
SAE
FU
Ip
R1
JP2JP1
SCL
SV
SF
R2 R3
CR2.1 CR2.2 CR2.3 CR2.4
TF
E/I
TST
APC
T1
AV
TM
CR3
CR1
TC
IG
MP
TA
SCL
TB CB CI V
3
L N
1 2 4 6 9875 121110 13 14 15 1716 18 2019
230V~50Hz
IG Main system switch
Ip Main switch
FU Fuse(6,3A-250VT)
SAE Power indicator light
MP Loading door microswitch
R1 Loading door relay
CR1 Relay 1 contact
R2 Minimum temperature relay
CR2.1-CR2.4Relay2contacts
TM Minimumthermostat(50°C)
TB Storage cylinder thermostat (optional)
CB Storage cylinder pump (optional)
TA Room thermostat
E/I Summer/winterselectorswitch
CI System pump
TC Boilerthermostat(70-85°C)
AV Fan shutdown
T1 Timer(40minutes)
TST Thermalsafetythermostat(110°C)
VThermal safety thermostat
SV Fan indicator light
SCL Load wood indicator light
TF Fluegasthermostat(85°C)
SF Flue gas thermostat indicator light
APC Activate loading procedure
R3 Flue gas thermostat relay
CR3 Relay3contact
RESPONSIBILITY OF THE INSTALLER

- 13 -
GENERAL
Ip
FU
SAE
R1
CB
TA
JP2
JP1
TB
TF
TMMP
CI
E/I
AV
T1
APC
TC
CR3
CR1
CR2.1 CR2.2 CR2.3 CR2.4
SCL
V
SV
TST
SF
R2
R3
Ip Main switch
FU Fuse(6,3A-250VT)
SAE Power indicator light
MP Loading door microswitch
R1 Loading door relay
CR1 Relay 1 contact
R2 Minimum temperature relay
CR2.1-CR2.4Relay2contacts
TM Minimumthermostat(50°C)
TB Storage cylinder thermostat (optional)
CB Storage cylinder pump (optional)
TA Room thermostat
E/I Summer/winterselectorswitch
CI System pump
TC Boilerthermostat(70-85°C)
AV Fan shutdown
T1 Timer(40minutes)
TST Thermalsafetythermostat(110°C)
VThermal safety thermostat
SV Fan indicator light
SCL Load wood indicator light
TF Fluegasthermostat(85°C)
SF Flue gas thermostat indicator light
APC Activate loading procedure
R3 Flue gas thermostat relay
CR3 Relay3contact

- 14 -
INSTALLATION
The POWER appliances are supplied in four boxes on a wooden pallet, protected by nylon wrapping and a cardboard
box
WARNINGS
•Use suitable safety and protection equipment when both
removing the packaging and handling the appliance.
•This manual is an integral part of the appliance and
consequently must be read before installing and
commissioning the appliance and carefully kept for all
future reference or to be passed on to other Owners or
Users.
1 - Boiler body with outlet counterflange.
  Insidethedesiccation/gasificationchamberaretheoutlet
and return stubs, the stainless steel duct.
Attached to the boiler body is the document envelope (A),
containing:
- Technical rating plate
- Installation, user and maintenance manual
- Water pressure test certificate
- Spare parts catalogue.
2-Boilerbodycasingandinsulation,andbagwithfastening
screws.
3-Controlpanelanddoormicroswitch,completewithcable
and bag with fastening screws.
4 - Fan.
2
1
A
3
4
H1
H
P
L
RECEIVING THE PRODUCT
DIMENSIONS AND WEIGHT
Dimensions and Weight
POWER 24 POWER 33
L700 mm
P900 1100 mm
H1200 mm
H1 1380 mm
Net weight (body only) 370 470 Kg
Overall weight 415 526 Kg

- 15 -
INSTALLATION
3
The room where the appliance is installed must only be used for this purpose and must always comply with the technical
standards and the legislation in force and have suitably sized ventilation openings.
WARNINGS
•Check that the index of protection of the appliance
is suitable for the characteristics of the room where
the appliance is installed.
•Allowforthespacerequiredtoaccessthesafety/
control devices and to perform the maintenance
and loading operations.
•DO NOT install the POWER appliances:
- in inhabited rooms such as kitchens or living
rooms, as special care is required and because,
in some circumstances, smoke and odours may
be released;
- outdoors, as they are not designed for this type of
installation.
1
2
2
1
≥0,6 m ≥0,6 m
≥1 m
≥1,5 m
INDICATIVE CLEARANCES
Once the packaging has been removed:
- Remove the boxes so that they are not damaged.
- Remove the four screws (1) fastening the boiler to the pallet.
- If hoisting equipment is available, suitable for the weight of the
boiler(netweight),usetheeyebolts(2)providedonthebody
and lift it.
- If no suitable hoisting equipment is available, handle the boiler
manually, as follows:
- Position the pallet near the point of installation
- Use a suitable lever to push the boiler towards the rear of the
pallet,slidingitalongthetwoslides(3).Thefrontofthepallet
will lift up, making it easier to unload the body.
- When the body is on the floor, the slides can be left
underneath the appliance, or can be removed by tilting the
body to each side.
WARNINGS
•Use suitable safety equipment and observe the maximum
liftable weights per person.
•DO NOT dispose of the packaging material in the environment,
as this may be a potential source of danger. It must be
disposed of according to the legislation in force.
HANDLING
BOILER ROOM

- 16 -
INSTALLATION
When the appliance is installed, check that:
- The flue, if reused,
- ensuresthenegativepressurerequiredforthenewappliance(seethetableoftechnicalspecificationsonpage10);10);
- is suitable for the temperature of the products of combustion, and has been calculated and constructed according to
the reference standards;
- is as straight as possible, airtight, insulated and is not blocked or choked;
- is fitted with a condensate drain.
- When the appliance is in standby, with the stack hot and the fan off, the primary air damper must remain closed.
- The electrical system has been developed in compliance with the specific standards and by qualified personnel.
- The system has been washed, cleaned of any slime and deposits, vented and tested for water tightness.
- Awatertreatmentsystemisusedwhenthesupply/top-upwaterrequires.
Two reference parameters for normal water are:
- pH=6÷8
- Total hardness ≤35°F.
EDILKAMIN is not liable for any damage caused by the incorrect development of the flues.
NEW INSTALLATION OR INSTALLATION REPLACING ANOTHER APPLIANCE
The characteristics of the water fittings are shown in the
figure:
MI Central heating flow outlet
 (counterflangeandthreadedstub,Ø1"1/2M)
RI Central heating return inlet
 (threadedstub,Ø1"1/2M)
NOTE
The threaded outlet and return stubs are located inside the
packagingplacedinthedesiccation/gasificationchamber.
Remove them and fit them on the appliance.
WATER CONNECTIONS
MI
=
1221
62
=
RI

- 17 -
INSTALLATION
IAF
MI
CENTRAL HEATING
FLOW OUTLET
CENTRAL HEATING
RETURN INLET
RI
1
9
4
5
6
1
11
3
1
11
11
11
1
1
2
3
78
10
10
10
1Disconnect valve
2Pumps
3Non-return valves
4Outlet manifold
5Return manifold
6Open expansion vessel
7Pressure reducer
8 Filter/softener
9Pump to prevent condensation
10 Drains
11 Probe for pump to prevent
condensation
MI Central heating flow outlet
RI Central heating return inlet
IAF Cold water inlet
Diagram 1: POWER boiler connected directly to the systems
IAF
MI
CENTRAL HEATING
FLOW OUTLET
CENTRAL HEATING
RETURN INLET
RI 5
6
2
11
1
78
4
1
1
11
11
1
1
2
3
3
9
9
1
9
1
9
10
11
Diagram 2: POWER boiler with energy accumulator to supply the systems
1Disconnect valve
2Pumps
3Non-return valves
4Outlet manifold
5Return manifold
6Open expansion vessel
7Pressure reducer
8 Filter/softener
9Drains
10 Energy accumulator
11 Ventvalve
MI Central heating flow outlet
RI Central heating return inlet
IAF Cold water inlet
PRINCIPLE DIAGRAM

- 18 -
INSTALLATION
Diagram 3: POWER boiler, combined with another boiler, with energy accumulator to supply the systems
IAF
MI
RI 5
6
11
78
4
1
1
1
1
11
1
1
2
3
9
9
1
9
10
11
2
11
3
2
11
3
1
9
CENTRAL HEATING
FLOW OUTLET
CENTRAL HEATING
RETURN INLET
1Disconnect valve
2Pumps
3Non-return valves
4Outlet manifold
5Return manifold
6Open expansion vessel
7Pressure reducer
8 Filter/softener
9Drains
10 Energy accumulator
11 Ventvalve
MI
Central heating flow outlet
RI Central heating return inlet
IAF Cold water inlet
WARNINGS
•The choice and installation of the components making up the system is left to the expertise of the installer, who must
operate in a workmanlike manner and according to the legislation in force.
•Thesystemmustfeatureanopenvesselandensureaminimumheadof10metres.
•The boiler can be used for the production of domestic hot water when combined with a storage cylinder.
•DO NOT install on-off devices on the safety discharge.
1Disconnect valve
2Pumps
3Non-return valves
4Outlet manifold
5Return manifold
6Open expansion vessel
7Pressure reducer
8 Filter/softener
9Drains
10 Energy accumulator
11 Ventvalve
MI
Central heating flow outlet
RI Central heating return inlet
IAF Cold water inlet
ACS
(DHW) Domestic hot water
2
11
3
MI
ACS
CENTRAL HEATING
FLOW OUTLET
CENTRAL HEATING
RETURN INLET
RI 5
6
4
1
1
1
1
11
1
1
2
3
9
9
1
9
10
11
2
11
3
IAF 11
78
1
9
Diagram 4: POWER boiler, combined with a DHW storage cylinder, with energy accumulator to supply the systems

- 19 -
INSTALLATION
The flues must be made in compliance with the standards and the legislation in force, using pipes that are rigid, resistant
to high temperature, condensate and mechanical stress, and that are airtight.
WARNINGS
•The appliance takes in the combustion air from the room where the appliance is installed, which MUST FEATURE
ventilation openings as required by the relevant technical standards.
•The smokebox, during operation, may reach very high temperatures.
•Non-insulated flues are potential sources of danger.
•The flue (1) must ensure the minimum negative pressure envisaged by the technical standards in force (see the table
oftechnicalspecificationsonpage10).
•When the appliance is in standby, with the stack hot and the fan off, the primary air damper must remain closed.
•Unsuitable or incorrectly sized flues (1) and stacks (2) may cause problems of condensation, negatively affect
the combustion parameters and generate noise.
•Thejointsshouldbesealedusingmaterialsthatcanresisttemperaturesofatleast300°C(forexample,putty,mastic
or silicone products).
FLUE GAS OUTLET AND COMBUSTION AIR INTAKE
875
190
Ø 150
21
HANDLE ON THE LOADING DOOR
To avoid accidentally opening the loading door the handle has been
specifically designed to act in two phases:
- first, partial opening of the door
- then, complete opening.
To partiallyopenthedoor,liftthehandlecompletely(position2);itwill
remain hooked to the catch (F).
Tocompletelyopenthedoor,partiallylowerthehandle(position3),to
release the catch (F), and then lower it completely.
To close the door, hold the handle down (position 1) and push the
door against the catch (F). Then lift the handle, so as to hook onto the
catch (F) and then lower it fully.
F
F
F
Door CLOSED
Position 2
Position 3
Position 1

- 20 -
INSTALLATION
CHANGING THE DIRECTION OF OPENING
The doors on the desiccation and gasification chamber and on the
combustion chamber can be opened in either direction.
In the factory they are fitted to open to the right, however, when
required, this can be changed, as follows:
Combustion air distributor
- Unscrewthethreenuts(1)andremovethedistributor(2),handling
it with care so as to avoid damaging the components installed.
Door on the wood desiccation and gasification chamber
-Openthedoor(1)andremovethepins(2)thatfastenittothehinge
(3).
-Removethehinge(3)andthehandlecatch(4)andfitthemonthe
other side.
IMPORTANT:
- Thehinge(3)mustalwayshavethestop(A)atthetop
- The handle catch (4) must be turned over so that the shaped edge
(B) is always facing the outside.
-Thoroughlytightenthelockingscrews(5).
- Remove the stop ring (6) using a suitable screwdriver and remove
the pin.
- Move the handle to the other side, insert the pin in the opening
provided and secure it with the previously removed catch.
1
2
3
4
5
5
B
A
6
1
3
2
