1. Product Information
Main Features
zComplies with 802.11n, 802.11g and 802.11b standards.
zProvides further coverage, less dead spot and high throughput (11n
Adapter Up to 300Mbps with MIMO technology).
zSupports WMM, WMM-PS (IEEE 802.11e QoS standard).
zSupports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x),WPA2 (AES
with IEEE 802.1x) for high security level.
zSupports operating system: Windows OS 2000/XP/Vista, MAC OS
10.4.x /10.5.x and Linux
zSupports WPS configuration button. (EW-7717Un, EW-7727In only)
zSupports USB 2.0/1.1 interface. (EW-7717Un, EW-7718Un,
EW-7318Ug, EW-7318USg, only)

6
2. Package Contents
Before you starting to use this wireless network card, please check if
there's anything missing in the package, and contact your dealer of
purchase to claim for missing items:
EW-7717Un / EW-7718Un
□Wireless USB Adapter x1
□USB Cable with Stand x1
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
EW-7318Ug
□Wireless USB Adapter x1
□USB Cable x1
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
EW-7318USg
□Wireless USB Adapter x1
□USB Cable x1
□4dBi Antenna x1
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
EW-7108PCg / EW-7708Pn
□Wireless Cardbus Adapter x1
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1

7
EW-7128g
□Wireless PCI Adapter x1
□Antenna with cable x1
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
EW-7727In
□Wireless PCI Adapter x1
□3dBi Antenna x2
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
EW-7728In
□Wireless PCI Adapter x1
□3dBi Antennas x3
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
EW-7738Pn
□Wireless ExpressCard x1
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1
EW-7748In
□Wireless PCI Express Adapter x1
□3dBi Antenna x3
□Quick Installation Guide x1
□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &
User Manual) x1

8
3. Network Card Installation
Please follow the following instructions to install your new USB wireless
network card:
3.1 Hardware Installation
EW-7318Ug / EW-7318USg / EW-7717Un / EW-7718Un
1. Fasten the antennas to the antenna connectors on the network card by
clockwise direction. (EW-7318USg only)
2. Insert the USB wireless network card into an empty USB 2.0 port of
your computer when computer is switched on.
Never use force to insert the card, if you feel it’s stuck, flip the
card over and try again.

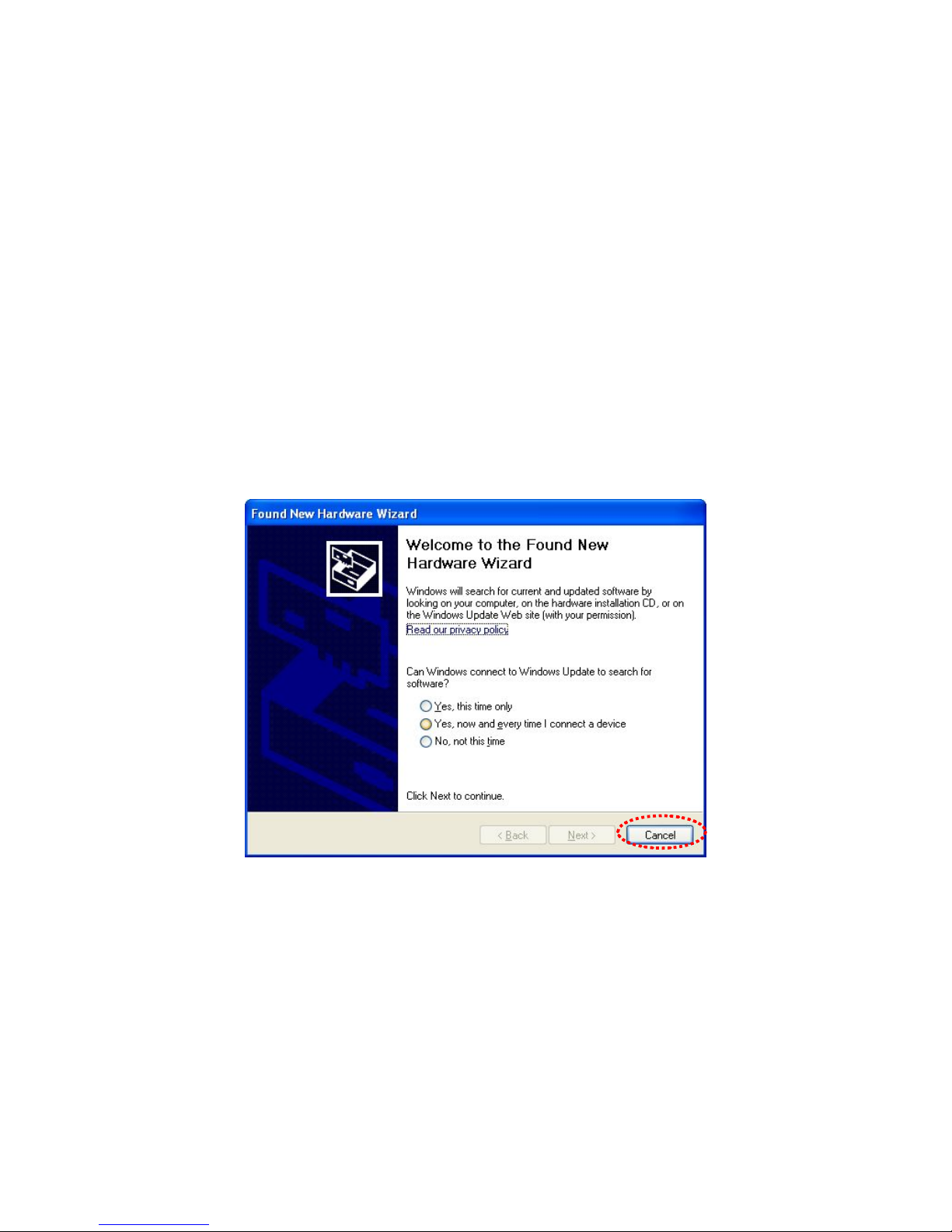

3. The following message will appear on your computer, click ‘Cancel’.

9
EW-7128g / EW-7727In / EW-7728In / EW-7748In
1. SWITCH THE COMPUTER OFF, remove the cover and insert the
wireless network card into an empty PCI slot (EW-7128g/EW-7728In/
EW-7727In) or PCI Express slot (EW-7748In) of your computer.
2. Fasten the antennas to the antenna connectors on the network card by
clockwise direction.
3. You can bend the antenna to fit actual needs.
4. Switch the computer on, the following message will appear on your
computer, please click ‘cancel’.
