Edimax GP-101SF User manual

GP-101SF
Quick Installation Guide
06-2014 / v1.0

COPYRIGHT
Copyright Edimax Technology Co., Ltd. all rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or by
any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission from Edimax Technology Co.,
Ltd.
Edimax Technology Co., Ltd. makes no representations or warranties, either
expressed or implied, with respect to the contents hereof and specifically
disclaims any warranties, merchantability, or fitness for any particular purpose.
Any software described in this manual is sold or licensed as is. Should the
programs prove defective following their purchase, the buyer (and not this
company, its distributor, or its dealer) assumes the entire cost of all necessary
servicing, repair, and any incidental or consequential damages resulting from any
defect in the software. Edimax Technology Co., Ltd. reserves the right to revise
this publication and to make changes from time to time in the contents hereof
without the obligation to notify any person of such revision or changes.
The product you have purchased and the setup screen may appear slightly
different from those shown in this QIG. For more information about this product,
please refer to the user manual on the CD-ROM. The software and specifications
are subject to change without notice. Please visit our website www.edimax.com
for updates. All brand and product names mentioned in this manual are
trademarks and/or registered trademarks of their respective holders.
Edimax Technology Co., Ltd.
Add: No. 3, Wu-Chuan 3rd Rd., Wu-Ku Industrial Park, New Taipei City, Taiwan
Tel: [phone]
Email: [email protected]

PRODUCT INTRODUCTION
Thanks for purchasing the GP-101SF Gigabit PoE Splitter. The PoE Splitter fully
complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE
compliant PSE (Power Source Equipment) or PoE Injector, to deliver 12V, 9V or
5V Direct Current to the device which do not support PoE. PoE (Power over
Ethernet) technology allows the existing Ethernet infrastructure to transmit
electrical power, along with data, to remote IP endpoints over the Ethernet
cables, which can greatly save the cost of the external power cables. Your
network can benefit from PoE technology for it will ensure the normal working
status of your network while keep the existing Ethernet infrastructure secure.
N
No ot te e: :
G
GP P- -1 10 01 1S SF F i is s a ap pp pl li ic ca ab bl le e t to o t th he e d de ev vi ic ce e t th ha at t h ha as s n no o e ex xt te er rn na al l c co on nn ne ec ct ti io on ns s o ot th he er r
t
th ha an n t th he e E Et th he er rn ne et t c ca ab bl le es s. .
Please follow the steps in this guide to set up the network.
Package Contents
Before you start using this product, please check if anything is missing from the
packaging, and contact your dealer to claim the missing item(s):
GP-101SF
The following items should be found in your package
GP-101SF PoE Splitter
One Power Y Cable
Quick installation guide
Features
Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3af standards
Data and Power carried over the same cable
Supports optional 5V DC, 9V DC or 12V DC power supply
Supports Plug-and-Play without any configuration

DC OUT 5V/9V/12V
You can choose the DC output of 5V,
9V or 12V by turning the switch to the
left or right.
▲Please make sure that the output is
correct, a different voltage may
destroy the device.
DATA OUT: Connect to the Ethernet
device with CAT5 UTP cable to
transmit data.

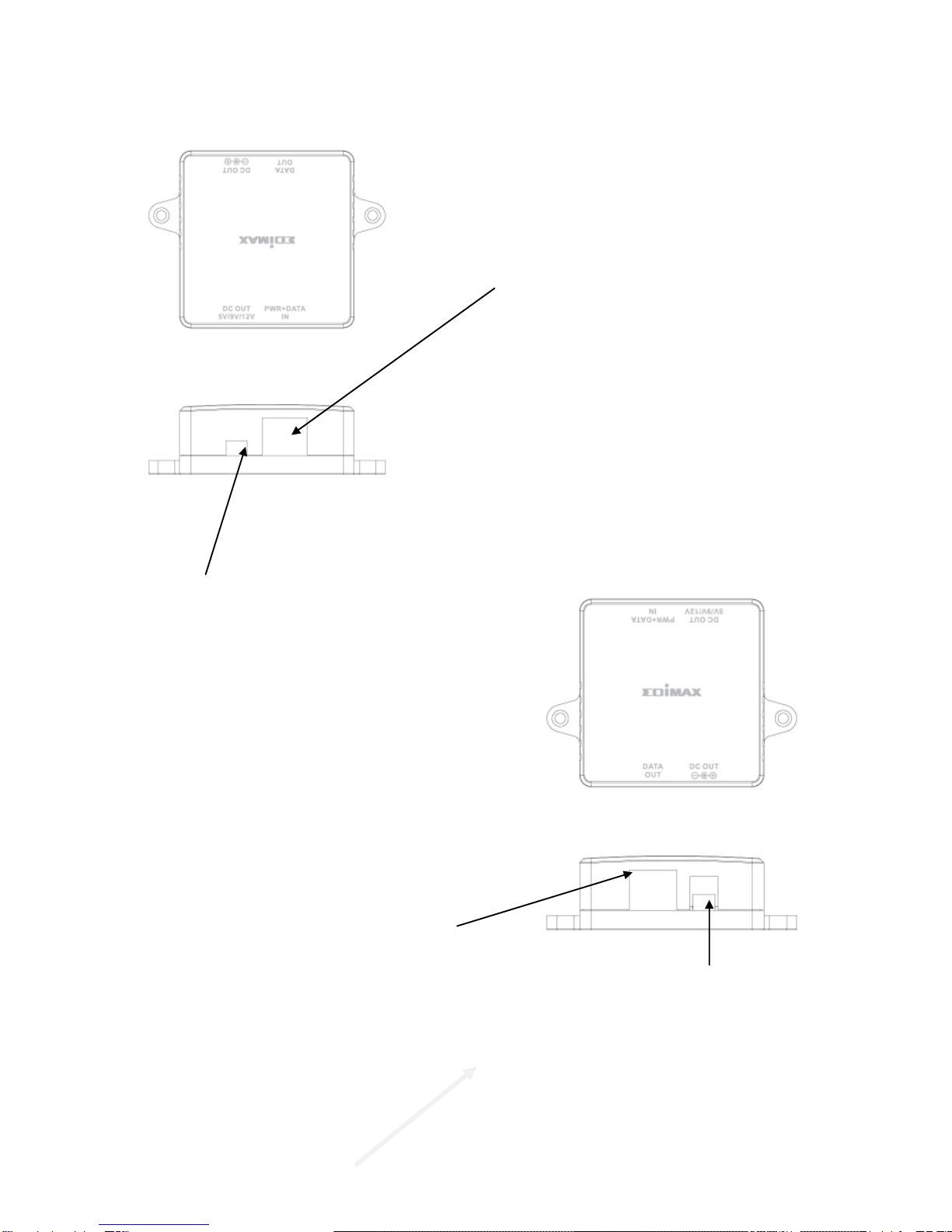

Identifying External Components
POWER+DATA IN
Connect to the PSE or PoE
Injector with a CAT5 UTP cable.
DC OUT: Connect to the power port
of the Ethernet device with the
provided power cable to supply the
power of 5V, 9V or 12V DC

Connecting the PoE Splitter
You can use GP-101SF PoE Splitter with PSE or PoE Injector to expand your
network to where there are no power lines or outlets, where you wish to fix
devices such as APs, IP Cameras or IP Phones, etc. The following steps will tell you
how to connect the PoE Splitter correctly.
1. Use a CAT5 UTP cable to connect a PoE port of the PSE (ex.PoE Switch) to the
POWER+DATA IN port.
2. Choose the appropriate DC output by the Power-mode switch.
N
No ot te e: :
P
Pl le ea as se e m ma ak ke e s su ur re e t th ha at t t th he e o ou ut tp pu ut t i is s c co or rr re ec ct t, , a a d di if ff fe er re en nt t v vo ol lt ta ag ge e m ma ay y d de es st tr ro oy y
t
th he e d de ev vi ic ce e. .
3. Connect the LAN OUT port to the Ethernet device with CAT5 UTP cable for
data transmitting.
4. Connect the DC OUT port to the power port of the same Ethernet device with
the provided power cable.
N
No ot te e: :
T
Th he e p po ow we er r o of f E Et th he er rn ne et t d de ev vi ic ce e i is s s su ug gg ge es st te ed d t to o b be e u un nd de er r 1 10 0W W. .
N
No ow w, , t th he e E Et th he er rn ne et t d de ev vi ic ce e c ca an n w wo or rk k n no or rm ma al ll ly y w wi it th h d da at ta a a an nd d p po ow we er r. .

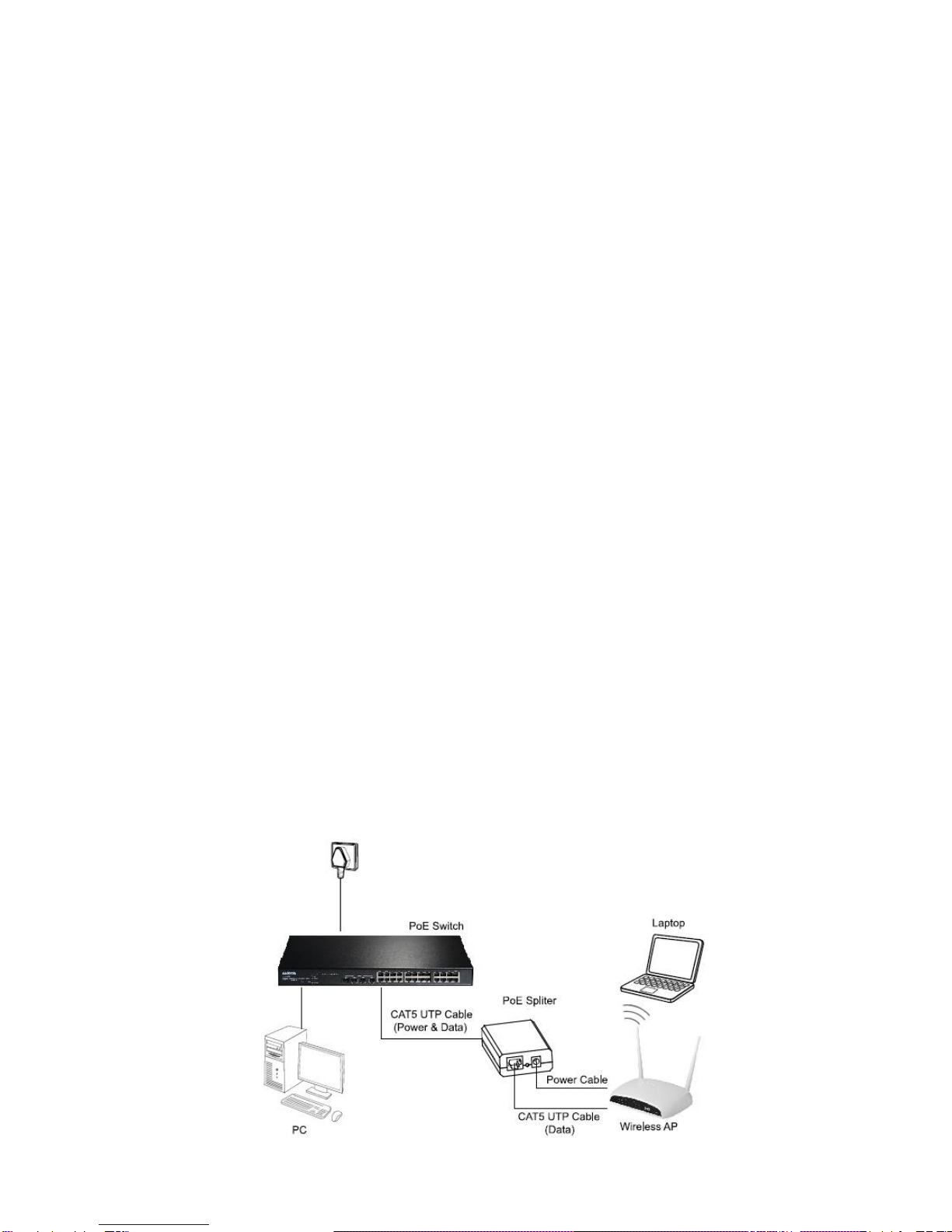

T
Th he e t to op po ol lo og gy y o of f t th hi is s n ne et tw wo or rk k i is s a as s f fo ol ll lo ow ws s. .

Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
This device and its antenna must not be co-located or operating in conjunction
with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
CE Mark Warning
This is a class B product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.

EU Declaration of Conformity
English: This equipment is in compliance with the essential requirements and other relevant provisions
of Directive 2004/108/EC, 2009/125/EC.
Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive
2004/108/EC, 2009/125/EC
Čeština:Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními
směrnic 2004/108/EC, 2009/125/EC.
Polski: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami określonymi
Dyrektywą UE 2004/108/EC, 2009/125/EC.
Română:Acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale
Directivei 2004/108/EC, 2009/125/EC.
Русский: Это оборудование соответствует основным требованиям и положениям Директивы
2004/108/EC, 2009/125/EC.
Magyar: Ez a berendezés megfelel az alapvető követelményeknek és más vonatkozó irányelveknek
(2004/108/EC, 2009/125/EC)
Türkçe: Bu cihaz 2004/108/EC, 2009/125/EC direktifleri zorunlu istekler ve diğer hükümlerle ile
uyumludur.
Українська: Обладнання відповідає вимогам і умовам директиви 2004/108/EC, 2009/125/EC.
Slovenčina: Toto zariadenie spĺňa základné požiadavky a ďalšie príslušné ustanovenia smerníc 2004/108/EC,
2009/125/EC.
Deutsch: Dieses Gerät erfüllt die Voraussetzungen gemäß den Richtlinien 2004/108/EC, 2009/125/EC.
Español: El presente equipo cumple los requisitos esenciales de la Directiva 2004/108/EC, 2009/125/EC.
Italiano: Questo apparecchio è conforme ai requisiti essenziali e alle altre disposizioni applicabili della
Direttiva 2004/108/EC, 2009/125/EC.
Nederlands: Dit apparaat voldoet aan de essentiële eisen en andere van toepassing zijnde bepalingen van
richtlijn 2004/108/EC, 2009/125/EC.
Português: Este equipamento cumpre os requesitos essênciais da Directiva 2004/108/EC, 2009/125/EC.
Norsk:Dette utstyret er i samsvar med de viktigste kravene og andre relevante regler i Direktiv
2004/108/EC, 2009/125/EC.
Svenska: Denna utrustning är i överensstämmelse med de väsentliga kraven och övriga relevanta
bestämmelser i direktiv 2004/108/EC, 2009/125/EC.
Dansk: Dette udstyr er i overensstemmelse med de væ sentligste krav og andre relevante forordninger
i direktiv 2004/108/EC, 2009/125/EC.
Suomi: Tämä laite täyttää direktiivien 2004/108/EC, 2009/125/EC oleelliset vaatimukset ja muut
asiaankuuluvat määräykset.
WEEE Directive & Product Disposal
At the end of its serviceable life, this product should not be treated as household or general waste. It
should be handed over to the applicable collection point for the recycling of electrical and electronic
equipment, or returned to the supplier for disposal.

Declaration of Conformity
We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the
equipment described below complies with the requirements of the European EMC
directive (2004/108/EC).
Equipment:
Gigabit PoE Splitter
Model No.:
GP-101SF
The following European standards for essential requirements have been followed:
EMC
:
EN 55022:2010
EN 55024:2010
EN 61000-3-2:2006 + A2:2009c
EN 61000-3-3:2008
Safety (LVD)
:
EN 60950-1 :
2006+A11:2009+A1:2010+A12:2011
Edimax Technology Co., Ltd.
No. 3, Wu Chuan 3rd Road,
Wu-Ku Industrial Park,
New Taipei City, Taiwan
Date of Signature:
June, 2014
Signature:
Printed Name:
Albert Chang
Title:
Director
Edimax Technology Co., Ltd.
