Efco Eagle Eye-AIHD Series User manual

Eagle Eye-AIHD Series
Fanless Box Computer
This manual covers the following SKU’s
AIHD  AIHDP
User Manual
Version 1.1

Eagle Eyes-AIHD User Manual
i
Preface
Revision History
Revision
Date
Author
Description
0.1 2018/10/19 Max Initial Draft
0.2 2019/06/27 Max Add Chapter 4
0.3 2019/10/05 Max Preliminary
1.0 2020/02/24 J Yen Version 1.0 release
1.1 2020/04/06 J Marengo Update

Eagle Eyes-AIHD User Manual
ii
Copyright
Copyright © 2020 EFCO. All rights are reserved. EFCO reserves the right to make
improvements to the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or transmitted in any
form or by any means without the prior written permission of EFCO. Information
provided in this manual is intended to be accurate and reliable. However, EFCO
assumes no responsibility for its use, nor for any infringements of the rights of third
parties, which may result from its use.
The material in this document is for product information only and is subject to change
without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, EFCO assumes no liabilities resulting from errors or
omissions in this document or the use of the information contained herein.
EFCO reserves the right to make changes in the product design without notice.
Acknowledgments
All brand names and/or trademarks are the properties and registered brands of their
respective owners.
For more information about this and other EFCO products, please visit our website at
www.efcotec.com.
Declaration of Conformity
FCC
This equipment has been tested and found to comply with the limits for a Class A
digital device, according to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
CE
The product(s) described in this manual complies with all applicable European Union
(CE) directives if it has a CE marking. For computer systems to remain CE compliant,
only CE-compliant parts may be used. Maintaining CE compliance also requires
proper cable and cabling techniques.

Eagle Eyes-AIHD User Manual
iii
Warnings, Cautions, and Notes
Warning!
Warnings indicate conditions, which if not observed, can cause personal
injury!
Caution!
Cautions are included to help you avoid damaging hardware or losing
data
Note:
Notes provide additional information

Eagle Eyes-AIHD User Manual
iv
Safety Instructions
Please read the following safety instructions carefully.
It is advised that you keep this manual for future references.
1. All cautions and warnings on the device should be noted.
2. Make sure the power source matches the power rating of the device.
3. Position the power cord so that people cannot step on it. Do not place anything over
the power cord.
4. Always completely disconnect the power before working on the system’s hardware.
5. No connections should be made when the system is powered on, as a sudden rush of
energy may damage sensitive electronic components.
6. If the device is not used for an extended period, disconnect the device from the power
supply to avoid being damaged by transient over-voltage.
7. Always unplug this device from any electrical outlet before cleaning.
8. While cleaning, use a damp cloth instead of liquid or spray detergents.
9. Make sure the device is installed near a power outlet and is easily accessible.
10. Keep this device away from any humidity.
11. Place the device on a solid surface during installation to prevent falls.
12. Do not cover the openings on the device to ensure optimal heat dissipation.
13. System enclosure may get hot during operation, use caution when handling.
14. Do not touch the heat sink or heat spreader when the system is running.
15. Never pour any liquid into the openings. This could cause fire or electric shock.
16. As most electronic components are sensitive to a static electrical charge, be sure to
ground yourself to prevent static charge(s) when installing the internal components. Use
a grounding wrist strap and contain all electronic components in static shielded
containers.
17. If any of the following situations arises, please contact our service personnel:
I. Damaged power cord or plug.
II. Liquid intrusion to the device.
III. Exposure to moisture.
IV. The device is not working as expected or in a manner as described in this
manual.
V. The device is dropped or damaged.
VI. Any visible signs of damage displayed on the device.
18. Do Not store this device in an uncontrolled environment where the
ambient temperatures are BELOW -40°C (-40°F) or ABOVE 85°C (185°F) to
prevent damage.

Eagle Eyes-AIHD User Manual
v
Table of Contents
Preface ………………………………………………………………………………i
Contents ……………………………………………………………………………v
Chapter 1 General Introduction.......................................................................... 1
1.1 Overview ............................................................................................................ 2
1.2 Common Specifications ..................................................................................... 3
1.3 Comparison Table.............................................................................................. 4
1.4 Supported CPUs ................................................................................................ 5
1.5 Supported Memory List ...................................................................................... 5
1.6 Packing List ....................................................................................................... 6
1.7 Ordering Information .......................................................................................... 6

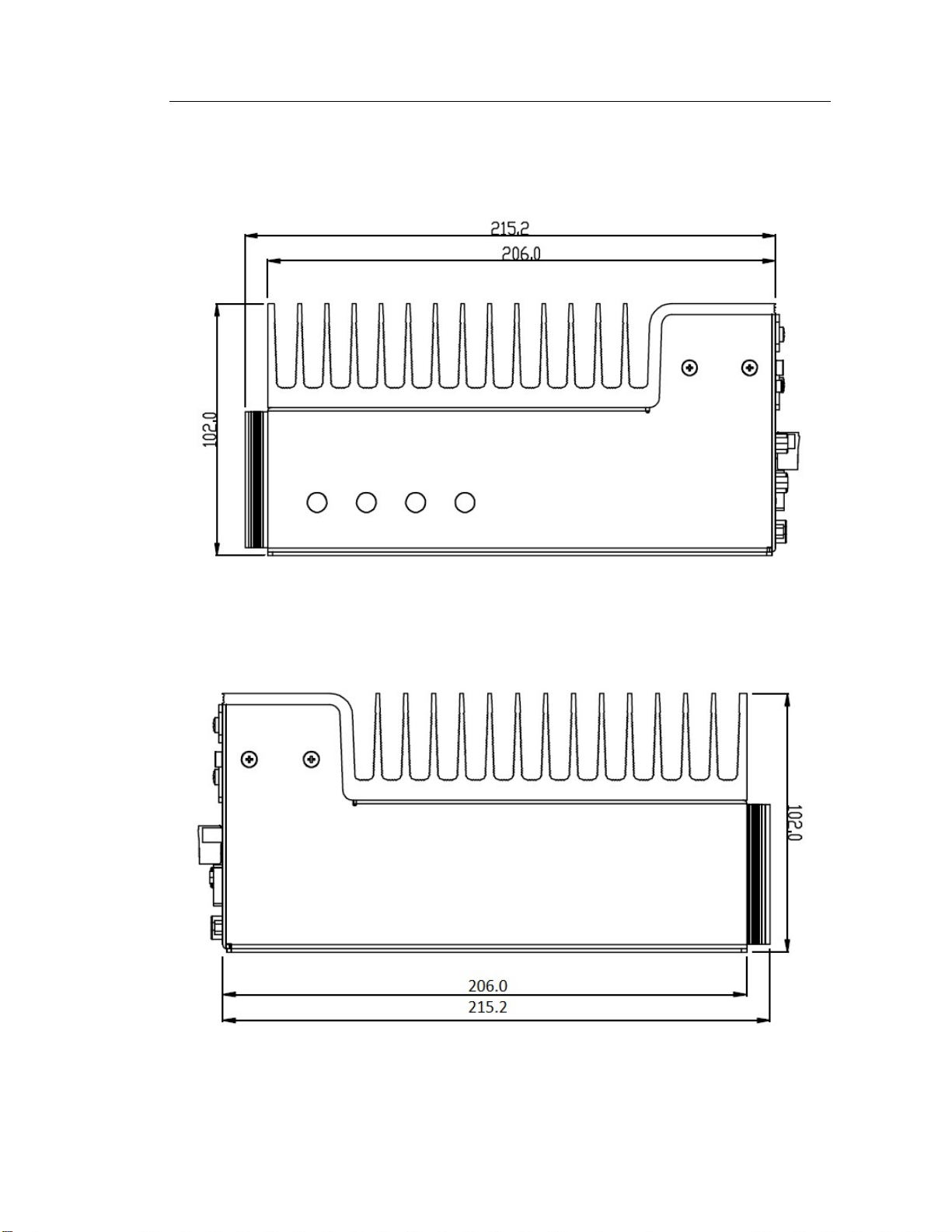

Chapter 2 Mechanical Dimensions .................................................................. 10
2.1 Top View .......................................................................................................... 11
2.2 Bottom View..................................................................................................... 11
2.3 Rear View ........................................................................................................ 12
2.4 Front View ....................................................................................................... 12
2.5 Right-Side View ............................................................................................... 13
2.6 Left-Side View .................................................................................................. 13
Chapter 3 Hardware Function Description ................................................... 14
3.1 I/O Layout ........................................................................................................ 15
3.2 External I/O ...................................................................................................... 17
3.2.1 Power Button with Power LED ................................................................................... 17
3.2.2 Reset Button ............................................................................................................... 18
3.2.3 SSD LED .................................................................................................................... 18
3.2.4 System DC Input (3-Pin Euro Type Terminal Block) .................................................. 18
3.2.5 Power Remote & Ignition Control (5-Pin Euro Type Terminal Block) ........................ 19
3.2.6 Dynamic Display Module (DDM) ................................................................................ 19
3.2.7 DisplayPort Connectors ............................................................................................. 20
3.2.8 DVI-D Connector ........................................................................................................ 21
3.2.9 VGA Connector .......................................................................................................... 22
3.2.10 PoE/Gigabit Ethernet Port .......................................................................................... 22
3.2.11 PoE LEDs ................................................................................................................... 24
3.2.12 USB 3.0 Connectors .................................................................................................. 24
3.2.13 Audio Line-out / Mic-in Audio Jacks ........................................................................... 25
3.2.14 GPIO / Isolated DIO ................................................................................................... 25
3.2.15 UART Ports ................................................................................................................ 27
3.2.16 USIM slot ................................................................................................................... 29
3.2.17 Wireless module LED for Mini PCIe ........................................................................... 30
3.2.18 RTC CMOS Battery Tray ........................................................................................... 30
3.2.19 Antenna Holes ............................................................................................................ 31
3.3 Internal I/O Functions ....................................................................................... 32
3.3.1 DDR4 SO-DIMM Socket ............................................................................................ 32
3.3.2 Mini PCIe / mSATA Socket ........................................................................................ 33
3.3.3 Internal USB 2.0 Ports for USB 2.0 Dongle (optional) ............................................... 35
3.4 SATA and SATA Power Connector .................................................................. 35
3.4.1 Internal SATA and SATA power connector ................................................................ 35

Eagle Eyes-AIHD User Manual
vi
Chapter 4 Hardware Installation....................................................................... 37
4.1 SO-DIMM Memory Installation ......................................................................... 38
4.2 Mini PCIe / mSATA module installation ............................................................ 39
4.3 2.5” SATA SSD/HDD installation ...................................................................... 41
Chapter 5 Function Settings ............................................................................ 44
5.1 Jumper and DIP switch ......................................................................................... 45
5.5.1 Jumper ....................................................................................................................... 45
5.5.2 DIP Switch .................................................................................................................. 45
5.6 Clear CMOS (JP2) ........................................................................................... 46
Appendix ........................................................................................................ 47
Appendix A: Active Video Display Combinations ........................................................ 48
Appendix B: DisplayPort Multi-Stream Transport (MST) Capabilities .......................... 49
Appendix C: How to use GPIO ................................................................................... 50
Functional Description ............................................................................................................ 50
Pin Definition .......................................................................................................................... 51
Isolation Digital Input Connection Method ............................................................................. 51
Isolation Digital Output Connection Method........................................................................... 52

Eagle Eyes-AIHD User Manual
1
Chapter 1
General Introduction
This chapter Includes:
 Overview
 Common Specification
 Comparison Table
 Supported CPU List
 Supported Memory List
 Packing List
 Ordering Information

Eagle Eyes-AIHD User Manual
2
1.1 Overview
The Eagle Eyes-AIH Fanless Box Computer is a high-performance, all-in-one
integrated expandable Embedded Workstation System.
 LGA1151 Socket supports Quad Core 7th/6th Generation Intel®
Xeon®/Core™ i7/i5/i3 processor (Kaby Lake-S / Skylake-S) running with
workstation-grade Intel® C236 chipset.
 Dual channel DDR4 2133/2400MHz up to 64GB non-ECC or ECC memory
 Advanced Intel® HD Graphics 630/530 supporting DirectX 12, OpenGL 4.5,
and OpenCL 2.0 API
 Onboard there are one VGA, one DVI-D, and two DisplayPorts (DP) video
interfaces, that support Ultra HD 4K resolution
The Eagle Eye-AIH system offers leading CPU performance, power efficiency, and
graphics performance with PCIe 3.0 (8GB), Multiple SATA III (6Gbps), USB 3.0
(5Gbps), PoE (1Gbps), GbE LAN, and multiple wireless connections to make
transferring high-speed data as seamless as possible. Thus, delivering outstanding
system performance, power productivity, and flexible manageability for
performance-driven embedded computing applications such as Machine Vision,
Rolling Stock, Intelligent Surveillance, Smart Manufacturing, ITS, Intelligent
Automation, Vehicle Computing, and many Industry 4.0 performance-driven real-time
embedded computing applications.
AIHD / AIHDP

Eagle Eyes-AIHD User Manual
3
1.2 Common Specifications
Model Name AIHD AIHDP
Mechanical
Dimensions 102(W) mm x 206(D) mm x 243(H) mm (4.01" x 8.11" x 9.57")
Weight 4.5kg
Mounting DIN Rail Clip Optional: Wall Mount bracket
Construction Aluminum and metal chassis with fanless design
Battery Easily replaceable RTC battery
System
Intel® Platform Skylake S (SKL-S) / Kaby Lake S (KBL-S)
CPU 6th / 7th Gen Intel® Xeon® E3/Core™ S
LGA1151 Socket type CPU (supports TDP up to 35W)
Chipset Intel® C236 Chipset
Xeon®: HD Graphics P530
(Skylake)/P630 (Kaby Lake)
Graphics
Xeon®: HD Graphics P530 (Skylake)/P630 (Kaby Lake)
Core™ i Series: HD Graphics 530 (Skylake)/630 (Kaby Lake)
Pentium®/Celeron®: HD Graphics 510 (Skylake)/610 (Kaby Lake)
Memory 2x DDR4 SO-DIMM Max. 64GB
(Skylake: DDR4 2133; Kaby Lake: DDR4 2400)
BIOS AMI 128Mbit SPI BIOS
AMT iAMT 11.0 (Intel® i219)
Watchdog Timer Runtime: 10 – 65535 seconds
Powerup: 120 – 65535 seconds
TPM (optional) TPM 2.0 (SLB9665) for data security
OS Windows / Linux
eKit Features
AI Controller (AIC) AI for system monitoring and predictive analysis
Dynamic Display Module
(DDM) 0.96-inch LCM work with AIC to display system status
API Library DDMI & DMCI
Power
DC Input 9 - 36V
Surge Protection 200V/1ms
Input Power Protection Reverse-Voltage, Over-Voltage, Under-Voltage, and Over-Current
Remote Control Yes
Ignition Control Yes
Power Mode AT/ATX (BIOS setting)
External IO
Display Ports / Resolution
2x DP/4096x2304@60Hz
1x DVI-D/1920x1200@60Hz
1x VGA/1920x1200@60Hz
Video Ports Combinations
2x DP + 1x DVI-D
2x DP + 1x VGA
1x DP + 1x DVI-D + 1x VGA
GbE 6x RJ45 (i219 +5x i210) 2x RJ45 (i219 +1x i210)
GbE/PoE N/A 4x RJ45 (4x i210)
USB 6x USB 3.0 ports via native XHCI controller (0.9A each port)

Eagle Eyes-AIHD User Manual
4
Model Name AIHD AIHDP
COM 1x RS-232/422/485 (auto flow control)
1x RS-232 port
DIO
32-bit Programmable
16-bit Programmable+ 8-bit isolated DI + 8-bit isolated DO (optional)
16-bit isolated DI + 16-bit isolated DO (optional)
Audio ALC892 HD Audio Codec, Mic-in, Line out
SIM Push-Push/USIM
Sockets?
3x SIM Push-Push Sockets – SIM supports 2G / USIM supports 3 & 4G
Storage
mSATA 3x Full-Length mSATA (muxed with Mini PCIe)
2.5" SATA Drive Bay 3x internal
RAID Mode RAID 0/1/5
Expansion Slot
Mini PCIe 3x Full-Length Mini PCIe (muxed with mSATA, auto-detection)
Other
USB 2.0 Dongle (optional) 1x Internal USB 2.0 dongle for security key
Antenna 4x antenna openings
LED Power status, SSD status, and I/O status
Environment
Operating Temperature Standard: -20°C to 50°C (-4°F-122°F), supporting CPU TDP up to 35W
Extended temperature -25°C to 70°C (-13°F-158°F)
Storage Temperature -40°C - 85°C (-40°F - 185°F)
Relative Humidity 95% @ 40°C (104°F), non-condensing
Vibration During Operation 5Grms with SSD; 5 Grms with HDD
(IEC60068-2-64: Random 5-500Hz)
Shock During Operation 50Grms with SSD; 50Grms with HDD
(IEC60068-2-27: Half Sine, 11ms duration)
Certification
EMC CE/FCC Class A
Safety Certifications CB
1.3 Comparison Table
Model Name Ethernet Digital I/O
GbE GbE/ PoE 16-bit GPIO Isolated 8-bit DI & 8-bit DO
AIHD 6x RJ45 N/A Yes N/A
AIHD-i 2x RJ45 N/A N/A Yes
AIHDP 2x RJ45 4x RJ45 Yes N/A
IHDP-i 2x RJ45 N/A N/A Yes

Eagle Eyes-AIHD User Manual
5
1.4 Supported CPUs
The Eagle Eyes-AIHD / AIHD-P4E / AIHD-GP4E series embedded PCs support the
7th/6th Generation Intel® Xeon®-E3, Core™-S i7/i5/i3, Pentium® and Celeron®
LGA1151 socket desktop processor (Platform: Kaby Lake-S / Skylake-S). You may
select from the processors listed below according to your cost and performance
requirements.
Intel® 6th Gen Skylake
Xeon® E3-1268L v5 Processor (4 cores/8 threads, 2.4 GHz/3.4 GHz, 8MB cache,
35W TDP)
Core™ i7-6700TE Processor (4 cores/8 threads, 2.4 GHz/3.4 GHz, 8MB cache, 35W
TDP)
Core™ i5-6500TE Processor (4 cores/4 threads, 2.3 GHz/3.3 GHz, 6MB cache, 35W
TDP)
Core™ i3-6100TE Processor (2 cores/4 threads, 2.7 GHz, 4MB cache, 35W TDP)
Pentium® G4400TE Processor (2 cores/2 threads, 2.4 GHz, 3MB cache, 35W TDP)
Celeron® G3900TE Processor (2 cores/2 threads, 2.3 GHz, 2MB cache, 35W TDP)
Intel® 7th Gen Kaby Lake
Core™ i7-7700T Processor (4 cores/8 threads, 2.9 GHz/3.8 GHz, 8MB cache, 35W
TDP)
Core™ i5-7500T Processor (4 cores/4 threads, 2.7 GHz/3.3 GHz, 6MB cache, 35W
TDP)
Core™ i3-7101TE Processor (2 cores/4 threads, 3.4 GHz, 3MB cache, 35W TDP)
1.5 Supported Memory List
The Eagle Eyes-AIHD / AIHD-P4E / AIHD-GP4E series embedded PCs support two
channels of DDR4 memory with a maximum of two DIMMs per channel. DDR
technologies, number of DIMMs per channel, number of ranks per channel are SKU
dependent.
ECC/Non-ECC UDIMM and SODIMM DDR4 support based on SKU.
CPU Name Memory Types Max Memory Size ECC Memory
Supported
E3-1268LV5 DDR4 SO-DIMM 64 GB Yes
i7-6700TE DDR4 SO-DIMM 64 GB No
i5-6500TE DDR4 SO-DIMM 64 GB No
i3-6100TE DDR4 SO-DIMM 64 GB Yes
G4400TE DDR4 SO-DIMM 64 GB Yes
G3900TE DDR4 SO-DIMM 64 GB Yes
i7-7700T DDR4 SO-DIMM 64 GB No
i5-7500T DDR4 SO-DIMM 64 GB No
i3-7101TE DDR4 SO-DIMM 64 GB Yes

Eagle Eyes-AIHD User Manual
6
DDR4 Memory Bandwidth and Data Transfer Rate
Standard
Clock Rates
Data Transfer Rate
Bandwidth
DDR4-1866 (PC4-1866) 933 MHz 1866 MT/s 29.1 GB/s
DDR4-2133 (PC4-1866) 1066 MHz 2133 MT/s 33.3 GB/s
DDR4-2400 (PC4-2400) 1200 MHz 2400 MT/s 37.5 GB/s
DDR4-2666 (PC4-2666) 1333 MHz 2666 MT/s 41.6 GB/s
1.6 Packing List
Item
Description
Qty
1 Eagle Eyes-AIHD / AIHDP series Embedded Box PC 1
1.7 Ordering Information
Optional Module
Model Name Description Article Number (A/N)
iDIO-8I8O 8-bit isolated DI & 8-bit isolated DO module 9206-9002
Optional Accessories
Model
Name
Description Article Number (A/N)
CBL-S01 SATA (Data + Power) cable, 230mm 9992-0301
TBP5-S03 3-Pin, pitch 5.08mm Female Terminal Block
Plug for DC input x1
9993-0105
TBP3-S05 5-Pin, pitch 3.81mm Female Terminal Block
Plug for
Remote Connector x1
9993-0303
TBP3-D20 2x10-Pin, pitch 3.5mm Female Terminal
Block Plug for DIO Connector x1
9993-0620
UTA-89 DIN Rail Clip (S size) 9995-0101
UTA-159 DIN Rail Clip (M size) 9995-0201
Model
Name
Description Article Number (A/N)
E3-1268Lv5
6th Skylake Intel® Xeon® E3-1268L v5
Processor (4 cores/8 threads, 2.4 GHz/3.4
GHz, 8MB cache, 35W TDP)
9860-1268
i7-6700TE
6th Skylake Intel® Core™ i7-6700TE
Processor (4 cores/8 threads, 2.4 GHz/3.4
GHz, 8MB cache, 35W TDP)
9867-6700TE
i5-6500TE
6th Skylake Intel® Core™ i5-6500TE
Processor (4 cores/4 threads, 2.3 GHz/3.3
GHz, 6MB cache, 35W TDP)
9865-6500TE
i3-6100TE
6th Skylake Intel® Core™ i3-6100TE
Processor (2 cores/4 threads, 2.7 GHz, 4MB
cache, 35W TDP)
9863-6100TE
G4400TE
6th Skylake Intel® Pentium® G4400TE
Processor (2 cores/2 threads, 2.4 GHz, 3MB
cache, 35W TDP)
9862-4400TE

Eagle Eyes-AIHD User Manual
7
Model
Name
Description Article Number (A/N)
G3900TE
6th Skylake Intel® Celeron® G3900TE
Processor (2 cores/2 threads, 2.3 GHz, 2MB
cache, 35W TDP)
9861-3900TE
i7-7700T
7th Kaby Lake Intel® Core™ i7-7700T
Processor (4 cores/8 threads, 2.9 GHz/3.8
GHz, 8MB cache, 35W TDP)
9877-7700T
i5-7500T
7th Kaby Lake Intel® Core™ i5-7500T
Processor (4 cores/4 threads, 2.7 GHz/3.3
GHz, 6MB cache, 35W TDP)
9875-7500T
i3-7101TE
7th Kaby Lake Intel® Core™ i3-7101TE
Processor (2 cores/4 threads, 3.4 GHz, 3MB
cache, 35W TDP)
9873-7101TE
Memory - Standard Temperature Grade (0ºC - +60ºC)
Model Name Description – Memory Options Article Number (A/N)
DDR4-2133-4G SO-DIMM DDR4-2133, 4GB 9913-3004
DDR4-2133-8G SO-DIMM DDR4-2133, 8GB 9913-3008
DDR4-2133-16G SO-DIMM DDR4-2133, 16GB 9913-3016
DDR4-2133-32G SO-DIMM DDR4-2133, 32GB 9913-3032
DDR4-2133-64G SO-DIMM DDR4-2133, 64GB 9913-3064
DDR4-2400-2G SO-DIMM DDR4-2400, 2GB 9913-4002
DDR4-2400-4G SO-DIMM DDR4-2400, 4GB 9913-4004
DDR4-2400-8G SO-DIMM DDR4-2400, 8GB 9913-4008
DDR4-2400-16G SO-DIMM DDR4-2400, 16GB 9913-4016
DDR4-2400-32G SO-DIMM DDR4-2400, 32GB 9913-4032
DDR4-2400-64G SO-DIMM DDR4-2400, 64GB 9913-4064
DDR4-2666-4G SO-DIMM DDR4-2666, 4GB 9913-5004
DDR4-2666-8G SO-DIMM DDR4-2666, 8GB 9913-5008
DDR4-2666-16G SO-DIMM DDR4-2666, 16GB 9913-5016
DDR4-2666-32G SO-DIMM DDR4-2666, 32GB 9913-5032
DDR4-2666-64G SO-DIMM DDR4-2666, 64GB 9913-5064
Memory - Industrial Temperature Grade (-40°C - +85°C)
Model Name Description – Memory Options
Article Number (A/N)
DDR4-2133-4G(i) SO-DIMM DDR4-2133, 4GB, Industrial 9923-3004
DDR4-2133-8G(i) SO-DIMM DDR4-2133, 8GB, Industrial 9923-3008
DDR4-2133-16G(i) SO-DIMM DDR4-2133, 16GB, Industrial 9923-3016
DDR4-2133-32G(i) SO-DIMM DDR4-2133, 32GB, Industrial 9923-3032
DDR4-2133-64G(i) SO-DIMM DDR4-2133, 64GB, Industrial 9923-3064
DDR4-2400-4G(i) SO-DIMM DDR4-2400, 4GB, Industrial 9923-4004
DDR4-2400-8G(i) SO-DIMM DDR4-2400, 8GB, Industrial 9923-4008

Eagle Eyes-AIHD User Manual
8
DDR4-2400-16G(i) SO-DIMM DDR4-2400, 16GB, Industrial 9923-4016
DDR4-2400-32G(i) SO-DIMM DDR4-2400, 32GB, Industrial 9923-4032
DDR4-2400-64G(i) SO-DIMM DDR4-2400, 64GB, Industrial 9923-4064
DDR4-2666-4G(i) SO-DIMM DDR4-2666, 4GB, Industrial 9923-5004
DDR4-2666-8G(i) SO-DIMM DDR4-2666, 8GB, Industrial 9923-5008
DDR4-2666-16G(i) SO-DIMM DDR4-2666, 16GB, Industrial 9923-5016
DDR4-2666-32G(i) SO-DIMM DDR4-2666, 32GB, Industrial 9923-5032
DDR4-2666-64G(i) SO-DIMM DDR4-2666, 64GB, Industrial 9923-5064
Storage - mSATA Standard Temperature Grade (0°C - ++60°C)
Model Name Description – Storage Options Article Number (A/N)
mSATA-8G mSATA, 8GB 9933-1008
mSATA-16G mSATA, 16GB 9933-1016
mSATA-32G mSATA, 32GB 9933-1032
mSATA-64G mSATA, 64GB 9933-1064
mSATA-128G mSATA, 128GB 9933-1128
mSATA-256G mSATA, 256GB 9933-1256
mSATA-512G mSATA, 512GB 9933-1512
mSATA-1T mSATA, 1TB 9933-5001
Storage - mSATA Industrial Temperature Grade (-40°C - +85°C)
Model Name Description – Storage Options Article Number (A/N)
mSATA(i)-8G mSATA, 8GB, Industrial 9943-1008
mSATA(i)-16G mSATA, 16GB, Industrial 9943-1016
mSATA(i)-32G mSATA, 32GB, Industrial 9943-1032
mSATA(i)-64G mSATA, 64GB, Industrial 9943-1064
mSATA(i)-128G mSATA, 128GB, Industrial 9943-1128
mSATA(i)-256G mSATA, 256GB, Industrial 9943-1256
mSATA(i)-512G mSATA, 512GB, Industrial 9943-1512
mSATA(i)-1T mSATA, 1TB, Industrial 9943-5001
2.5-inch SSD: Standard Temperature Grade (0°C - +60°C)
Model Name Description – Storage Options Article Number (A/N)
2.5" SSD-32G 2.5" SSD, 32GB 9934-1032
2.5" SSD-64G 2.5" SSD, 64GB 9934-1064
2.5" SSD-128G 2.5" SSD, 128GB 9934-1128
2.5" SSD-256G 2.5" SSD, 256GB 9934-1256
2.5" SSD-512G 2.5" SSD, 512GB 9934-1512
2.5" SSD-1T 2.5" SSD, 1TB 9934-5001
2.5" SSD-2T 2.5" SSD, 2TB 9934-5002

Eagle Eyes-AIHD User Manual
9
2.5-inch SSD - Industrial Temperature Grade (-40°C - +85°C)
Model Name Description – Storage Options Article Number (A/N)
2.5" SSD(i)-32G 2.5" SSD, 32GB, Industrial 9944-1032
2.5" SSD(i)-64G 2.5" SSD, 64GB, Industrial 9944-1064
2.5" SSD(i)-128G 2.5" SSD, 128GB, Industrial 9944-1128
2.5" SSD(i)-256G 2.5" SSD, 256GB, Industrial 9944-1256
2.5" SSD(i)-512G 2.5" SSD, 512GB, Industrial 9944-1512
2.5" SSD(i)-1T 2.5" SSD, 1TB, Industrial 9944-5001
2.5" SSD(i)-2T 2.5" SSD, 2TB, Industrial 9944-5002
2.5-inch HDD - Standard Temperature Grade (0°C - 60°C)
Model Name Description – Storage Options Article Number (A/N)
2.5" HDD-500G 2.5" HDD, 500GB 9935-1500
2.5" HDD-1T 2.5" HDD, 1TB 9935-5001
2.5" HDD-2T 2.5" HDD, 2TB 9935-5002
2.5" HDD-4T 2.5" HDD, 4TB 9935-5004
2.5" HDD-5T 2.5" HDD, 5TB 9935-5005
AC-DC Power Adapter - Options
Model Name Description Article Number (A/N)
ADT-24V60-T3A 24V/60W AC-DC power adapter with pitch
5.08 mm 3-pin terminal block plug 9952-1822
ADT-24V90-T3A 24V/90W AC-DC power adapter with pitch
5.08 mm 3
-
pin terminal block plug
9952-1823
ADT-24V120-T3A 24V/120W AC-DC power adapter with
pitch 5.08 mm 3-pin terminal block plug 9952-1824
ADT-24V160-T3A 24V/160W AC-DC power adapter with
pitch 5.08 mm 3-pin terminal block plug 9952-1825
ADT-24V220-T3A 24V/220W AC-DC power adapter with
pitch 5.08 mm 3-pin terminal block plug 9952-1826
ADT-24V280-T3A 24V/280W AC-DC power adapter with
pitch 5.08 mm 3-pin terminal block plug 9952-1827
AC Power Cord - Options
Model Name Description Article Number
(A/N)
PCBL-B12
YP12-YC12: category B type plug, H05VV-F 3G 0.75
mm, 1.8m, 250V, 10A, TW/JP/US/CA/TH/PH/Central
America
9959-1111
PCBL-D03 YP03-YC12: category D type plug, H05VV-F 3G 0.7
mm,1.8m, 250V, 10A, CN 9959-1211
PCBL-D35 YP35-YC12: category D type plug, H05VV-F 3G 0.75
mm, 1.8m, 250V, 10A, AU/NZ 9959-1311
PCBL-G22 YP22-YC12: category G type plug, H05VV-F 3G 0.75
mm,1.8m, 250V, 10A, DE
9959-1411
PCBL-I61 "YP61-YC12: category I type plug, H05VV-F 3G 0.75
mm,1.8m, 250V, 10A, UK/HK/MO/SG/MY" 9959-1511

Eagle Eyes-AIHD User Manual
10
Chapter 2
Mechanical Dimensions
This chapter includes:
 Top View
 Front View
 Rear View
 Left-Side View
 Right-Side View
 Bottom View

Eagle Eyes-AIHD User Manual
11
2.1 Top View
Unit: mm
AIHD
2.2 Bottom View
Unit: mm
AIHD

Eagle Eyes-AIHD User Manual
12
2.3 Rear View
Unit: mm
AIHD
2.4 Front View
Unit: mm
AIHD

Eagle Eyes-AIHD User Manual
13
2.5 Right-Side View
Unit: mm
AIHD
2.6 Left-Side View
Unit: mm
AIHD
