Efka DC 1550 User manual

CONTROL DA320G5350
INSTRUCTION MANUAL
No. 402302 English
FRANKL & KIRCHNER EFKA OF AMERICA INC. EFKA ELECTRONIC MOTORS
GMBH & CO KG SINGAPORE PTE. LTD.
+
>
>
P
E
KL2334a
-
I
0

EFKA DA320G5350
3
CONTENTS Page
1 Important Safety Instructions 7
2 Range of Applications 8
2.1 Use in Accordance with Regulations 8
3 Scope of Supply 8
3.1 Special Accessories 9
4 Control Operation without Control Panel 9
4.1 Access Authorization upon Command Input 9
4.2 Programming the Code Number 10
4.3 Parameter Selection 11
4.3.1 Direct Selection 11
4.3.2 Changing Parameter Values 12
4.3.3 Parameter Selection with the +/- Keys 13
4.3.4 Immediate Storage of All Changed Data 13
4.4 Changing All Parameter Values at the Operator Level 14
4.5 Function Switchover 14
4.6 Direct Input of Maximum Speed Limitation without Control Panel 14
4.7 Program Identification on the Control 15
5 Control Operation with Control Panel 16
5.1 Operation of the V810 Control Panel 16
5.1.1 Code Number Input on the V810 Control Panel 16
5.1.2 Parameter Input at the Operator Level on the V810 Control Panel 16
5.1.3 Parameter Input at the Technician/Supplier Level on the V810 Control Panel 17
5.2 V820 Control Panel Operation 17
5.2.1 Code Number Input on the V820 Control Panel 17
5.2.2 Parameter Input at the Operator Level on the V820 Control Panel 18
5.2.3 Parameter Input at the Technician/Supplier Level on the V820 Control Panel 18
5.3 Program Identification 19
5.4 Direct Input of Maximum Speed Limitation (DED) with Control Panel 19
5.4.1 Setting on the V810 Control Panel 19
5.4.2 Setting on the V820 Control Panel 19
5.5 Keys for Background Information (HIT) with V820 20
5.5.1 Example of HIT 20
5.5.2 Further Functions of the V810/V820 Control Panels 21
5.5.3 Special Functions of the V820 Control Panel 22
5.6 Programming of Seams (TEACH IN) 23
5.6.1 Programming after Code Number Input 24
5.6.2 Programming without Code Number Input 24
5.6.3 Detailed Example 26
5.6.4 Inserting a Seam or Pattern 27
5.6.5 Deleting a Seam or Pattern 28
5.6.6 Execution (Pattern) Mode 28
5.6.7 Further Settings for TEACH IN 28
6 Putting into Service 30
7 Setting and Putting into Service with the Aid of the Fast Installation Routine (SIR) 30
8 Setting the Basic Functions 32
8.1 Direction of Motor Rotation 32
8.2 Use of a HSM001 Hall Sensor Module or IPG... Pulse Encoder 32
8.3 Selection of the Machine Series 33
8.3.1 Emergency Run Function If Machine Select Is Invalid 33

EFKA DA320G5350 4
CONTENTS Page
8.4 Transmission Ratio 33
8.5 Positioning Speed 33
8.6 Maximum Speed Compatible with the Sewing Machine 34
8.7 Maximum Speed 34
8.8 Positions 34
8.8.1 Setting the Reference Position (Parameter 270 = 0) 36
8.8.2 Setting the Positions on the Control (Parameter 270 = 0) 36
8.8.3 Setting the Positions on the V810 Control Panel (Parameter 270 = 0) 37
8.8.4 Setting the Positions on the V820 Control Panel (Parameter 270 = 0) 37
8.9 Display of the Signal and Stop Positions 38
8.10 Positioning Shift 39
8.11 Braking Characteristics 39
8.12 Braking Power at Standstill 39
8.13 Starting Characteristics 39
8.14 Actual Speed Display 40
9 Functions with or without Control Panel 41
9.1 Softstart 41
9.1.1 Softstart Speed 41
9.1.2 Softstart Stitches 41
9.2 Sewing Foot Lifting 41
9.3 Start Backtack 43
9.3.1 Speed n3 at the Start of the Seam 43
9.3.2 Stitch Counting for Start Backtack 43
9.3.3 Stitch Correction and Speed Release 44
9.3.4 Double Start Backtack 44
9.3.5 Single Start Backtack 44
9.4 End Backtack 44
9.4.1 Speed n4 at the Seam End 45
9.4.2 Stitch Counting for End Backtack 45
9.4.3 Stitch Correction and Last Stitch Backward 45
9.4.4 Double End Backtack 45
9.4.5 Single End Backtack 45
9.4.6 Backtack Synchronization 46
9.5 Start Ornamental Backtack 46
9.6 End Ornamental Backtack 46
9.7 Intermediate Backtack 47
9.8 Backtack Suppression/Recall 47
9.9 Holding Power of the Stitch Regulator Solenoid 48
9.10 Reverse Motor Rotation 48
9.11 Machine Run Blockage (Safety Switch) 48
9.11.1 Machine Start Blockage (Blockage 1 and 2) 49
9.11.2 Function “Machine Run Blockage” 1 (Safety Function) Parameter 283 = 1 49
9.11.3 Function “Machine Run Blockage” 2 (Control Function) Parameter 283 = 2 50
9.12 Bobbin Thread Monitor 50
9.12.1 Input Signals 51
9.12.2 Parameter 195 = 0 – No Bobbin Thread Monitor Function 51
9.12.3 Parameter 195 = 1 – Model 270 / No Stop / Sewing Foot Down after Seam End 51
9.12.4 Parameter 195 = 2 – Model 767, N291 / With Stop / Sewing Foot Up after Seam End 51
9.12.5 Parameter 195 = 3 – Model 767, N291 / With Stop / Sewing Foot Down after Seam
End 51
9.12.6 Parameter 195 = 4 – With Bobbin Thread Monitor Stitch Counting 52
9.13 Needle Cooling / Under-Edge Trimmer 52

EFKA DA320G5350
5
CONTENTS Page
9.14 Function Modules for Output A 52
9.14.1 Function Modules for Output A / No Function (Parameter 250 = 0) 52
9.14.2 Function Module for Output A / Switch Stitch Length (Pa. 250 = 1) 52
9.14.3 Function Module for Output A / Fullness Control with Speed Limitation (Pa. 250 = 2) 53
9.14.4 Function Module for Output A / Fullness Control without Speed Limitation (Pa. 250 = 3) 53
9.14.5 Function Module for Output A / Single Stitch with Short Stitch Length (Pa. 250 = 4) 54
9.14.6 Function Module for Output A / Lift/Lower Roller (Pa. 250 = 5) 54
9.14.7 Function Module for Output A / Lift/Lower Fabric Stop (Pa. 250 = 6) 55
9.14.8 Function Module for Output A / Second Thread Tension (Pa. 250 = 7) 56
9.14.9 Function Module for Output A / Manual Edge Trimmer (Pa. 250 = 8) 56
9.14.10 Function Module for Output A / Automatic Edge Trimmer (Pa. 250 = 9) 57
9.14.11 Function Module for Output A / Triflex Function (Pa. 250 = 10) 58
9.14.12 Function Module for Output A / High Lift for Walking Sewing Foot (Pa. 250 = 10) 59
9.14.13 Function Module for Output A / Sewing Foot Pressure Reduction (Pa. 250 = 12) 60
9.14.14 Function Module A / Handwheel Runs in the Direction of Rotation (Pa. 250 = 13) 60
9.14.15 Function Module A / Handwheel Runs in the Opposite Direction of Rotation
(Pa. 250 = 13) 60
9.15 Function Modules for Output B 61
9.16 Speed Limitation 61
9.16.1 Speed Limitation DB2000/DB3000 61
9.16.2 Analog Speed Limitation 61
9.16.3 Analog Speed Limitation Speedomat 61
9.16.4 Setting the Speed Limitation Depending on High Lift with the V820 Control Panel 62
9.16.5 Setting the Speed Limitation Depending on High Lift with the V810 Control Panel 63
9.17 Thread Trimming Operation 63
9.17.1 Trimming Speed 64
9.17.2 Thread Trimmer 64
9.17.3 Thread Tension Release 64
9.17.4 Thread Wiper 64
9.18 Seam with Stitch Counting 64
9.18.1 Stitches for Stitch Counting 65
9.18.2 Stitch Counting Speed 65
9.18.3 Seam with Stitch Counting When Light Barrier Is On 65
9.19 Free Seam and Seam with Light Barrier 65
9.20 Light Barrier 66
9.20.1 Speed after Light Barrier Sensing 66
9.20.2 General Light Barrier Functions 66
9.20.3 Reflection Light Barrier LSM002 67
9.20.4 Automatic Start Controlled by Light Barrier 67
9.20.5 Light Barrier Filter for Knitted Fabrics 67
9.21 Needle Up/Down; Single Stitch 67
9.22 F1/F2 Function Key Assignment on the V810/V820 Control Panels 68
9.23 Signals A1 and A2 68
9.24 Signal Output Position 1 71
9.25 Signal Output Position 2 71
9.26 Signal Output 512 Impulses per Rotation 71
9.27 Actuator 71
9.28 Audible Signal 72
9.29 Master Reset 72
10 Signal Test 72
10.1 Signal Test Using the Incorporated Control Panel or the V810/V820 72
11 Error Displays 74
12 Operating Elements of the V810 Control Panel 78
13 Operating Elements of the V820 Control Panel 79

EFKA DA320G5350
7
1 Important Safety Instructions
When using an EFKA drive and accompanying devices (e g
for sewing machines), basic safety precautions should
always be followed, including the following:
§ Read all instructions thoroughly before using this drive.
§ Drive, its accessories and accompanying devices should
be mounted and put into operation by qualified personnel
in accordance with the guidelines provided in the
instruction manual.
To reduce the risk of burns, fire, electric shock, or
personal injury:
§ Use this drive only for its intended use as described in the
instruction manual.
§ Use only attachments recommended by the manufacturer
or as contained in the instruction manual.
§ Do not operate without corresponding protective devices.
§ Never operate this drive if one or more parts (e. g. cables,
plugs) are damaged, if it is not working properly, if any
damages can be identified or are to be suspected (e. g.
after it has been dropped). Only qualified personnel are
authorized to make adjustments, eliminate faults and
complete repair work.
§ Never operate the drive with the air openings blocked.
Keep ventilation openings of the drive free from the
accumulation of lint, dust and loose cloth.
§ Never drop or insert any object into any opening.
§ Do not use drive outdoors.
§ Do not operate where aerosol (spray) products are being
used or where oxygen is being administered.
§ To disconnect, turn off main switch, then remove plug
from outlet.
§ Do not unplug by pulling on cord. To unplug, grasp the
plug, not the cord.
§ Keep fingers away from all moving machine parts. Special
care is required e. g. around the sewing machine needle
and the V-belt.
§ Before mounting and adjusting accompanying devices, i.e.
position transmitter, reversing device, light barrier, etc.,
disconnect drive from mains (turn off main switch,
remove mains plug from outlet [DIN VDE 0113 part 301;
EN 60204-3-1; IEC 204-3-1]).
§ Always switch off (0) machine and remove plug from
outlet, when removing covers, mounting accompanying
devices, position transmitter especially, light barrier, etc.,
or any other devices mentioned in the instruction manual.
§ Only qualified personnel are authorized to work on the
electrical components.
§ Work on high voltage circuit areas is forbidden, except as
stated in the respective regulations, e.g. DIN VDE 0105
part 1.
§ Only specially trained personnel are authorized to
complete repair work.
§ Cables to be wired must be protected against expectable
strain and fastened adequately.
§ Cables near moving machine parts (e. g. V-belts) must be
wired at a minimum distance of 25 mm (see DIN VDE
0113 part 301; EN 60204-3-1; IEC 204-3-1).
§ For safety it is preferred to wire the cables separately from
each other.
§ Before connecting the mains line make sure that the mains
voltage corresponds to the specifications on the motor
rating plate and on the nameplate of the power pack.
§ Connect this drive to a properly grounded outlet only. See
Grounding Instructions.
§ Electric accompanying devices and accessories must only
be connected to safety low voltage.
§ EFKA DC drives are protected according to overvoltage
class 2 (DIN VDE 0160 § 5.3.1).
§ Observe all safety guidelines before undertaking
conversions or modifications.
§ For repair and maintenance use only original replacement
parts.
Warnings in the instruction manual
which point out particular risks of
personal injury or risk to the machine
are marked with this symbol wherever
applicable.
This symbol is a warning on the control
and in the instruction manual. It
indicates hazardous voltage.
CAUTION – In the case of failure this
area can be current-carrying even after
having turned the power off (non
discharged capacitors).
§ The drive is not an independently operating unit, but is
designed to be incorporated into other machinery. It must
not be put into service until the machinery into which it is
to be incorporated has been declared in conformity with
the provisions of the EC Directive.
Save these instructions for future reference.

EFKA DA320G5350 8
2 Range of Applications
The drive is suitable for lockstitch, machine models 069, 205, 267, 268, 269, 271, 272, 273, 274, 275, 367, 381, 382, 467,
767, 768, 4180 und 4280
2.1 Use in Accordance with Regulations
The drive is not an independently operating machine, but is designed to be incorporated into other machinery. It must not
be put into service until the machinery into which it is to be incorporated has been declared in conformity with the
provisions of the EC Directive (Appendix II, paragraph B of the Directive 89/392/EEC and supplement 91/368/EEC).
The drive has been developed and manufactured in accordance with the relevant EC standards:
EN 60204-3-1:1990 Electrical equipment of industrial machines:
Particular requirements for industrial sewing machines, sewing units and sewing systems.
Operate the drive only in dry areas.
3 Scope of Supply
1 Direct current motor DC1550
1 Electronic control DA320G5350
- Power pack N204
1 Actuator EB301A
1 Set of standard accessories B156
consisting of: Plastic bag for B156
Documentation
1 Set of accessories Z54
consisting of: Pitman rod 400...700mm long
Bracket for fastening EB3..
Note
If there is no metallical contact between drive (motor) and machine head, the potential equalization cord supplied
with the unit is to be wired from the machine head to the terminal provided on the control box!
CAUTION
When selecting the installation site and the layout of the connecting cable, the Safety
Instructions in chapter 1 must be followed with no exceptions.
Particular attention should be paid to maintaining the proper distance from moving
parts!

EFKA DA320G5350
9
3.1 Special Accessories
Control panel Variocontrol V810 - part no. 5970153
Control panel Variocontrol V820 - part no. 5970154
Reflection light barrier module LSM002 - part no. 6100031
Hall sensor module HSM001 - part no. 6100032
Pulse encoder IPG001 - part no. 6100033
EFKANET interface IF232-2, complete - part no. 7900068
Adapter cord for the connection of light barrier module and Hall sensor module - part no. 1113229
HSM001 or pulse encoder IPG001, or light barrier module, Hall sensor module
HSM001 or pulse encoder IPG001 and EFKANET
Actuating solenoid type EM1.. (for e. g. sewing foot lifting, backtacking, etc.) - see specification
“solenoids” for
available models
Extension cable approx. 1000 mm long for commutation transmitter DC15.. - part no. 1113151
Extension cable approx. 1000 mm long for DC15.. line - part no. 1113150
Potential equalization cord 700 mm long, LIY 2.5 mm2, grey, with forked cable - part no. 1100313
brackets on both sides
Foot control type FB302 with three pedals for standing operation, with approx. 1400 mm - part no. 4170025
connecting cable and plug
Fitting piece for position transmitter - part no. 0300019
Knee switch type KN3 (pushbutton) with cord of approx. 950 mm length without plug - part no. 5870013
Undertable mounting kit for DC15.. - part no. 1113235
Sewing light transformer - please indicate line
voltage and sewing light
voltage (6,3V or 12V)
9-contact SubminD male connector - part no. 0504135
9-contact SubminD male connector - part no. 0504136
Half-shell housing for 9-contact SubminD - part no. 0101523
37-pin SubminD male connector, complete - part no. 1112900
Single pins for 37-pin SubminD with strand of 5cm length - part no. 1112899
4 Control Operation without Control Panel
4.1 Access Authorization upon Command Input
In order to prevent unintentional changes of preset functions the command input is distributed at various levels.
The following persons have access: - the supplier to the highest and all subordinate levels using a code number
- the technician to the next lower and all subordinate levels using a code
number
- the operator to the lowest level without using a code number
ACaCCallufruf
Call-up Supplier: Code number for
control 311 or
control panel 3112
Supplier Level
200 series of
parameter numbers
Technician: Code number for
control 190 or
control panel 1907
Technician Level
100 series of
parameter numbers
Operator Level

EFKA DA320G5350 10
4.2 Programming the Code Number
Note
The parameter numbers in the illustrations below serve as examples and may not be available in all program versions.
In this case, the display shows the next higher parameter number. See List of Parameters.

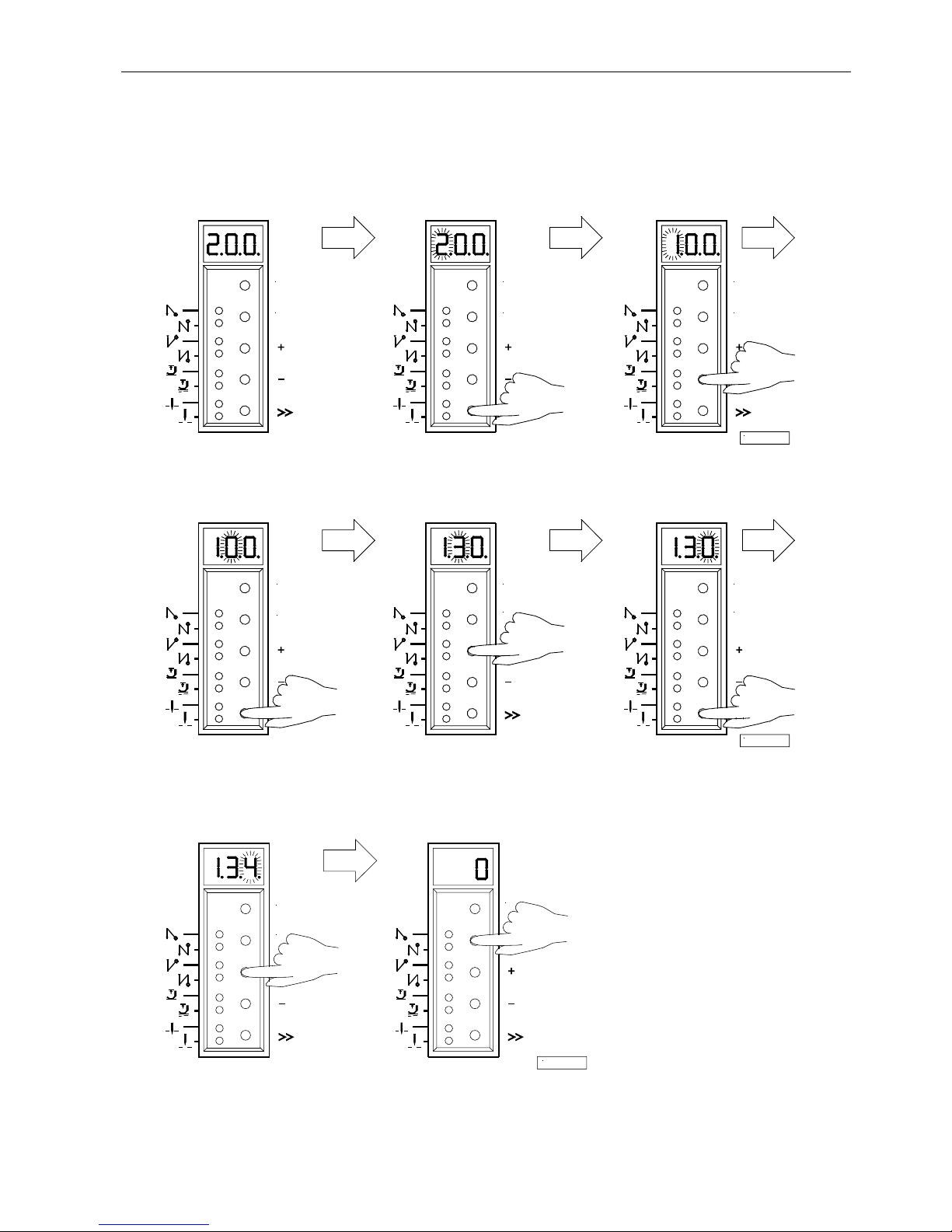

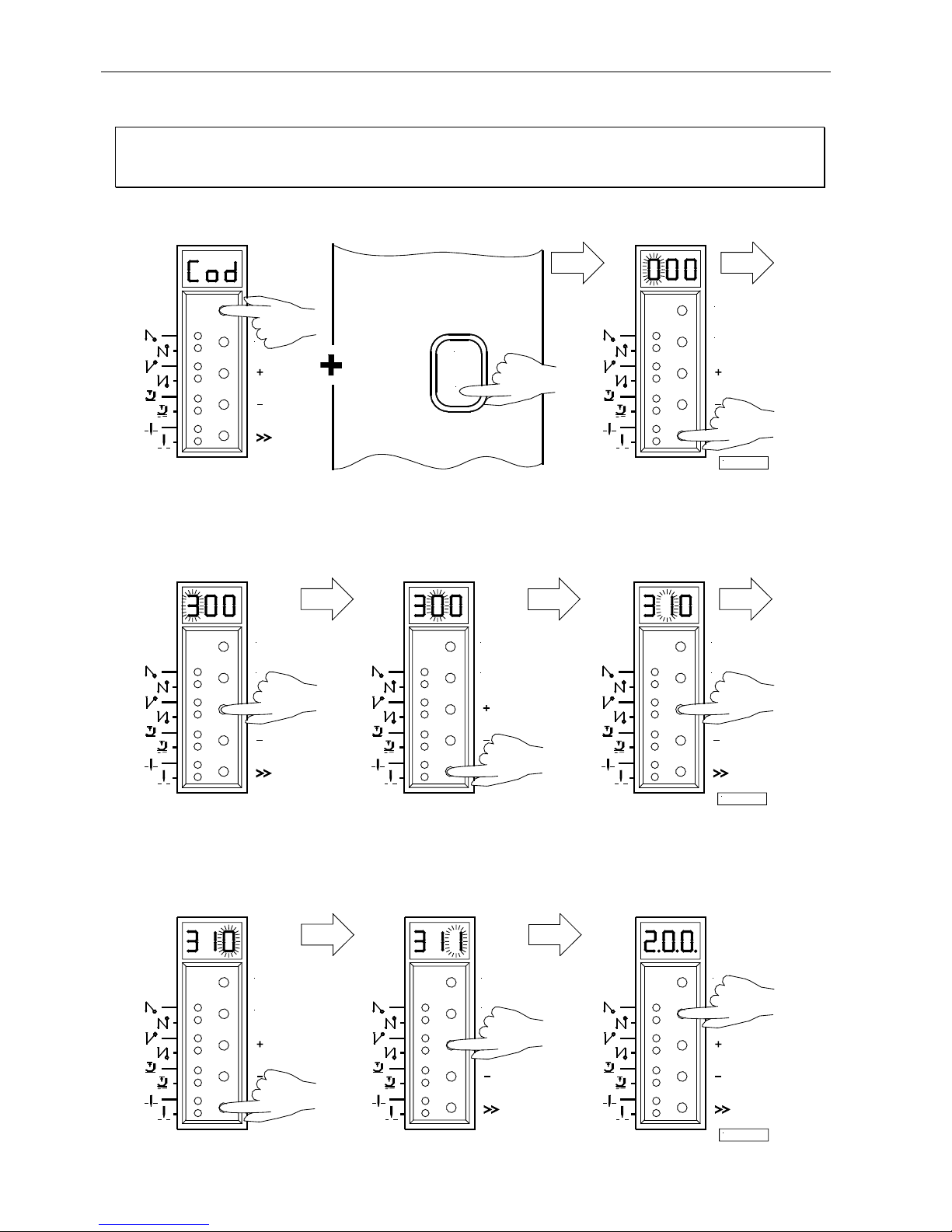

1. Press the Pkey and turn power on 2. Press the >> key (1st digit blinks)
3. Press the +or –key to select 4. Press the >> key 5. Press the +or –key to select
the 1st digit (2nd digit blinks) the 2nd digit
Technician level èCode no. 190
Supplier level èCode no. 311
6. Press the >> key 7. Press the +or –key to 8. Press the Ekey; the parameter
(3rd digit blinks) select the 3rd digit number is displayed, which is
indicated by points between the
digits.
E0
I
1/KL2316
P
E
E
P
E
P
2/KL2317
E
P
P
E
P
E
3/KL2318
P

EFKA DA320G5350
11
4.3 Parameter Selection
4.3.1 Direct Selection
1. After code number input at the 2. Press the >> key 3. Press the +or –key to select
programming level (1st digit blinks) the 1st digit
4. Press the >> key 5. Press the +or –key to select 6. Press the >> key
(2nd digit blinks) the 2nd digit (3rd digit blinks)
7. Press the +or –key to select 8. Press the Ekey; the parameter
the 3rd digit value is displayed. There are no
points between the digits.
P
E
P
E
4/KL2319
P
E
P
E
P
E
5/KL2320
P
E
P
E
6/KL2321
P

EFKA DA320G5350 12
4.3.2 Changing Parameter Values
1. Display after parameter value selection 2. Change the parameter value by pressing the
+or -key
Option 1
Press the Ekey. The next Press the Pkey. Exit programming.
parameter number is displayed. The changed parameter values will be saved
when you start sewing again!
Option 2
Press the Pkey. The same Press the Pkey. Exit programming.
parameter number is displayed. The changed parameter values will be saved
when you start sewing again!
7/KL2322
P
E
P
E
8/KL2323
P
E
9/KL2324
E E

EFKA DA320G5350
13
4.3.3 Parameter Selection with the +/- Keys
1. After code number input at the 2. Select the next parameter by pressing the +key
programming level
3. Select the previous parameter by 4. After pressing the Ekey, the
pressing the - key parameter value is displayed
These values are saved when you start sewing. They remain in effect even after turning the machine off!
Using parameter 401 is another possibility for immediate storage without having to start sewing.
4.3.4 Immediate Storage of All Changed Data
Functions Parameter
Immediate storage of all changed data (EEP) 401
§ Input code number 3112 after power On èPress the Ekey
§ Input parameter 401 èPress the Ekey
§ Set display from 0to1èPress the E or Pkey
§ All data are stored!
10/KL2325
P
E
P
E
11/KL2326
P
E
P

EFKA DA320G5350 14
4.4 Changing All Parameter Values at the Operator Level
All parameter values at the operator level can be changed without code number input (see List of Parameters).
§ Press the Pkey èThe first parameter number will be displayed
§ Press the Ekey èThe parameter value will be displayed
§ Press the +/- keys èThe parameter value will be changed
§ Press the Ekey èThe next parameter will be displayed
§ Press the Ekey èThe parameter value will be displayed
§ Press the +/- keys èThe parameter value will be changed
etc.
§ Press the Pkey twice èExit programming at the operator level
4.5 Function Switchover
Switchable functions can be changed by pressing the appropriate key. The switching state is indicated by light emjtting
diodes (LED). See above illustration!
Table: Assignment of functions to keys and LEDs
Function Key LED number
Single start backtack E(S2) 1 = on 2 = off
Double start backtack E1 = off 2 = on
Start backtack Off E1 = off 2 = off
Single end backtack +(S3) 3 = on 4 = off
Double end backtack +3 = off 4 = on
End backtack Off +3 = off 4 = off
Sewing foot lift at stop in the seam (automatic) -(S4) 5 = on 6 = off
Sewing foot lift at the seam end (automatic) -5 = off 6 = on
Sewing foot lift at stop in the seam and at the seam end (automatic) -5 = on 6 = on
Sewing foot lift (automatic) Off -5 = off 6 = off
Basic position down (position 1) >> (S5) 7 = on 8 = off
Basic position up (position 2) >> 7 = off 8 = on
4.6 Direct Input of Maximum Speed Limitation without Control Panel
The maximum speed of the machine must be limited to the specific level according to the application. Do the setting at the
operator level on the control using the +/- keys during operation or at intermediate machine stop. This function is blocked
at the start of the seam or after the seam end. The actual value shown on the display must be multiplied by 10. When using
a control panel, the full speed value is displayed. See also chapter 5.4!
Example:
The value 330 on the control display corresponds to a speed of
3300 RPM.
Important! If the speed is changed, it is saved only after trimming
and when you start sewing again.
LED3
LED4
LED5
LED6
LED7
LED8
LED2
LED1
S1
S5
S2
S3
S4
13/KL2328a
P
E
LED7
LED8
LED1
LED2
LED3
LED4
LED5
LED6
S1
S4
S3
S2
S5
12/KL2327a
P
E

EFKA DA320G5350
15
4.7 Program Identification on the Control
Function without control panel Parameter
Program number, modification index and identification number display 179
After having selected parameter 179, the following information is displayed in succession:
1. Select parameter 179. 2. Press the Ekey. 3. Press the >> key.
Abbreviation Sr5 is displayed. The first 2 digits of the
program number are displayed.
4. Press the Ekey. 5. Press the Ekey. 6. Press the Ekey.
The second 2 digits of the The program modification The identification number
program number are displayed. index is displayed. digits 1 and 2 are displayed.
7. Press the Ekey. 8. Press the Ekey. 9. Press the Ekey.
The identification number The identification number The identification number
digits 3 and 4 are displayed. digits 5 and 6 are displayed. digits 7 and 8 are displayed.
The routine is repeated after pressing the Ekey. Exit the routine after pressing the Pkey once. The next parameter number
is displayed. Exit programming after pressing the Pkey. The drive is again ready for sewing.
P
E
P
14/KL2329a
P
E
P P P
15/KL2330a
P P
17/KL2361
P

EFKA DA320G5350 16
5 Control Operation with Control Panel
5.1 Operation of the V810 Control Panel
5.1.1 Code Number Input on the V810 Control Panel
Example: Technician level CODE number selection on the V810 control panel
TURN POWER OFF
+TURN POWER ON. First digit blinks ! è
Press the +or –key to select the first digit !
è
Press the >> key !
Second digit blinks ! è
Press the +or –key to select the second digit !
è
Press the >> key twice !
Fourth digit blinks ! è
Press the +or –key to select the fourth digit!
è
If the CODE number is correct, the first
PARAMETER number at the selected level è
is displayed !
5.1.2 Parameter Input at the Operator Level on the V810 Control Panel
Example: CODE number has not been input !
TURN POWER ON ! è
First parameter at the operator level is
displayed. è
Second parameter at the operator level is
displayed. The next or previous parameter è
can be called by pressing the +/- keys.
Parameter value is displayed ! è
Change parameter value by pressing the
+/- keys. è
Parameter value is entered.
Display advances to the next parameter. è
Press the +key several times until the è
desired parameter is displayed !
Parameter value is displayed ! è
Technician Level Code Number => 1907 and Supplier Level Code Number => 3112
P
C
–
0 0 0 0
+
- C
–
1 0 0 0
»C
–
1 0 0 0
+
-C
–
1 9 0 0
»» C
–
1 9 0 0
+
- C
–
1 9 0 7
E
F
–
1 0 0
d A 3 2 0 G
P
F
–
0 0 0
+
F
–
0 0 1
E
0 0 3
+
X X X
E
F
–
0 0 2
+
F
–
0 0 9
E
0

EFKA DA320G5350
17
New parameter value is displayed ! è
Next parameter is displayed ! è
or
Exit programming ! è
These values are saved when you start sewing. They remain in effect even after turning the machine off!
Using parameter 401 is another possibility for immediate storage without having to start sewing.
5.1.3 Parameter Input at the Technician/Supplier Level on the V810 Control Panel
Example: After CODE number input at the technician level.
After CODE number input, the first
PARAMETER number is displayed! è
Press the +key ! The next
parameter number is displayed ! è
Press the Ekey !
The parameter value is displayed ! è
Change the parameter value ! è
Parameter value is entered.
Display advances to the next parameter. è
or
Parameter value is entered.
The actual PARAMETER number is displayed! è
or
Press the Pkey twice !
Exit programming ! è
These values are saved when you start sewing. They remain in effect even after turning the machine off!
Using parameter 401 is another possibility for immediate storage without having to start sewing.
5.2 V820 Control Panel Operation
5.2.1 Code Number Input on the V820 Control Panel
Example: Technician level CODE number selection on the V820 control panel
TURN POWER OFF !
+TURN POWER ON ! è
Input CODE number ! è
+
1
Note! The parameter number can also be selected directly, like the code number!
F
–
1 0 0
+
F
–
1 1 0
E
0 1 8 0
+
-0 X X X
E
F
–
0 1 3
P
d A 3 2 0 G
E
F
–
1 1 1
P
F - 1 1 0
P
P
d A 3 2 0 G
Technician Level Code Number => 1907 and Supplier Level Code Number => 3112
P
C
–
0000
1
9
C
–
1907
0
7

EFKA DA320G5350 18
If CODE number is incorrect,
repeat input ! è
If CODE number is correct,
the first PARAMETER number at the è
selected level is displayed.
5.2.2 Parameter Input at the Operator Level on the V820 Control Panel
Example: CODE number has not been input !
TURN POWER ON ! è
Display shows no reading ! è
First parameter at the operator level
is displayed. PARAMETER number è
is not displayed.
Change the parameter value ! è
Parameter value is entered.
Display advances to the next parameter. è
or
Exit programming ! è
5.2.3 Parameter Input at the Technician/Supplier Level on the V820 Control Panel
Example: After CODE number input at the technician level.
After CODE number input, the first è
PARAMETER number is displayed.
The most significant digit of the
PARAMETER number blinks. è
Input desired PARAMETER
number! è
If PARAMETER number is incorrect,
repeat input! è
If PARAMETER number is correct è
Change the parameter value! è
Parameter value is entered.
Display advances to the next parameter. è
or
Parameter value is entered.
A new PARAMETER number can be è
selected.
or
Press the Pkey twice.
Exit programming! è
These values are saved when you start sewing. They remain in effect even after turning the machine off!
Using parameter 401 is another possibility for immediate storage without having to start sewing.
E
C
–
0000 InFo F1
E
F
–
100
4000 d
A
320G
E
c2 003
E
c1 003
P
4000 dA320G
P
+
- c2 XXX
F-100
E
F-100
1 1 F-110
0
E
F
–
XXX InFo F1
E
F
–
110 n1 180
E
F-111 n2- 4000
P
F-XXX
+
- F-110 n1 XXX
P
P
4000 dA320G

EFKA DA320G5350
19
5.3 Program Identification
Function with control panel Parameter
Program number, modification index and identification number display 179
Display example parameter 179 on the V810 control panel:
§ Select parameter 179!
§ Press the Ekey èSr5 [°] is displayed
§ Press the >> key èe. g. 5350A is displayed (Program number with index)
§ Press the Ekey èe. g. 010108 is displayed (1st part of identification number)
§ Press the Ekey èe. g. 15 is displayed (2nd part of identification number)
§ Press the Pkey twice èdA320G is displayed (Sewing process can be started)
Display example parameter 179 on the V820 control panel:
§ Select parameter 179!
§ Press the Ekey èF-179 Sr5 [°] is displayed
§ Press the >> key èe. g. 5350A is displayed (Program number with index)
§ Press the Ekey èe. g. 01010815 is displayed (Identification number)
§ Press the Pkey twice èdA320G is displayed (Sewing process can be started)
5.4 Direct Input of Maximum Speed Limitation (DED) with Control Panel
The maximum speed of the machine must be limited to the specific level according to the application. Do the setting at the
operator level using the +/- keys at any time. The actual value is shown on the display. The speed setting range is between
parameter 111 (upper limit) and parameter 121 (lower limit).
5.4.1 Setting on the V810 Control Panel
Type designation is displayed è
Maximum speed is displayed
(reading remains on for max. 5 seconds) è
Change the value;
e. g. press the –key 8 times ! è
After approx. 5 seconds the display shows è
5.4.2 Setting on the V820 Control Panel
Actual display value, in the direct mode
Maximum speed and type designation are displayed è
Change the maximum speed value;
e. g. press the –key 8 times ! è
d A 3 2 0 G
+
4 0 0 0
+
-3 2 0 0
d A 3 2 0 G
4000 dA320G
+
- 3200 dA320G
Note
Changing the setting of the maximum speed limitation also affects the start backtack, end backtack and stitch
counting speeds.

EFKA DA320G5350 20
5.5 Keys for Background Information (HIT) with V820
(key assignment see figure on the last page)
For fast operator information, the values of functions switched on using key 1, 2, 3, 4 or 9 are displayed on the control
panel for approx. 3 seconds. During this time, the respective values can be varied directly by pressing the +or -key.
5.5.1 Example of HIT
Increase stitch-count seam section from 20 stitches to 25 stitches.
Stitch-count function (2 key) is off.
Display after power on è
↓
↓↓
↓
Press the 2key briefly ! Lefthand arrow
and stitch-count function are on è
Press the +key ! è
Increase the number of stitches from 20 to 25 !
Display after approx. 3 seconds è
Stitch-count function (2 key ) is already on.
Display after power on è
↓
↓↓
↓
Press the 2key for at least 1 second!
Lefthand arrow goes off momentarily; è
stitch-count function is on
Press the +key ! è
Increase the number of stitches from 20 to 25 !
Display after approx. 3 seconds è
These values are saved when you start sewing. They remain in effect even after turning the machine off!
Using parameter 401 is another possibility for immediate storage without having to start sewing.
Function key F
Various parameters, even higher-level parameters, can be switched on or off by pressing the function key (9 key).
The following functions may be assigned to the function key:
1. Softstart ON/OFF
2. Ornamental backtack ON/OFF
3. High lift for walking foot operational mode stored = ON / operational mode not stored = OFF
4. Needle cooling ON/OFF
5. Signals A1 and/or A2 On/Off with slide-in strips 1...4 (lefthand arrow = A1, righthand arrow = A2)
Note
The following functions are possible only with the V820 control panel!
4000 dA320G
2 Stc 020
+
Stc 025
4000 dA320G
2 Stc 020
+
Stc 025
4000 dA320G
4000 dA320G

EFKA DA320G5350
21
The key assignment can be changed as follows:
Display after power on è
Press the Pkey! è
Press the Ekey! è
Press the Ekey several times until the
letter symbol –F– appears ! è
(ornamental backtack On/Off)
Press the –key! è
(softstart On/Off)
Press the Pkey! è
The assignment is completed.
The number of softstart stitches can be changed as follows:
Example: change number of stitches from 1 to 3 (softstart function (9 key) is off).
Press the 9key briefly !
The arrow above the key lights up è
(softstart function is On)
Press the +key ! è
Number of stitches increases.
Display after 3 seconds è
Example: change number of stitches from 1 to 3 (softstart function (9 key) is already on).
Press the 9key for at least 1 sec. !
The arrow above the key goes off momentarily è
(softstart function is On)
Press the +key ! è
Number of stitches increases.
Display after 3 seconds è
These values are saved when you start sewing. They remain in effect even after turning the machine off!
Using parameter 401 is another possibility for immediate storage without having to start sewing.
5.5.2 Further Functions of the V810/V820 Control Panels
§ Press the >> key èThe most significant digit blinks.
§ Press the +/- key briefly èThe blinking digit changes by ±1.
§ Keep the +/- pressed down èThe blinking digit keeps changing its value, as long as the key is
pressed down.
§ Press the >> key once more èThe next digit blinks.
§ Press the +/- key as above!
§ Press the Ekey èThe setting is completed.
With the code number and parameter number there is no carry over when changing from 0 to 9or vice versa. Parameter
values are, however, carried over. Therefore, you can use the +/- keys to change the value beween the minimum and
maximum value.
If the value change is significant, it is better to use the >> key. If the value change is insignificant, use the +/- keys.
For setting the minimum or maximum value, select the most significant digit using the >> key. Then keep pressing the –
key for the minimum or the +key for the maximum value.
The above description is applicable to both control panels, V810 and V820. Direct input of values is possible with the V820
using the 0...9 keys.
P
E
c2 002
4000 dA320G
E
-F- 2
- -F- 1
P
4000 dA320G
9 SSc 001
+
SSc 003
4000 dA320G
9 SSc 001
+
SSc 003
4000 dA320G

EFKA DA320G5350 22
5.5.3 Special Functions of the V820 Control Panel
The example below shows how minimum or maximum values can be set quickly.
Select parameter 200 è
Press the E key. è
The set value is displayed.
Press the 0key three times. è
The minimum value is displayed.
Press the 9key three times. è
The maximum value is displayed.
2
0
F-200
0
E
F
–
200 t1 050
0
0
F-200 t1 000
0
9
9
F-200 t1 500
9
