Egholm City Ranger 2260 User manual

Operator´s
manual
Hedge cutter
City Ranger 2260-2250

2Operator’s Manual City Ranger 2260/2250 Hedge cutter
Dear Customer
Congratulations with your new Egholm product
The City Ranger 2260-2250 is a Danish designed and manufactured product, which offers a very
exible way of maintaining outdoor areas.
Optimal use of your City Ranger 2260-2250 Hedge cutter
To ensure optimal performance of your City Ranger 2260-2250 Hedge cutter, please read this
manual carefully before using the machine. Failure to do so can result in personal injury and
damage to the machine.
Safety
The Hedge cutter is equipped with various devices to ensure optimal operational safety both for the
user and the surroundings. We ask you to pay particular attention to section 1.1 Safety. The machine
must only be serviced by professionals.
The Hedge cutter is designed only for use by professionals. On delivery, the user will receive
thorough training to become a competent operator. Do not lend to anyone who has not been
thoroughly trained and who has not read this manual carefully. The operator’s manual should be
considered as a permanent part of the machine and must remain with it if the machine is sold.
Warnings
Some items in this operator’s manual are marked with this warning symbol.
The warning indicates areas where extra care has to be taken to avoid personal injury or
damage to the machine and its accessories. The warning also shows what you should pay
special attention to.
Reservations
As it is the Egholm policy to make continuous improvements, we reserve the right to alter the
machine’s specications and equipment at any time without notice. Egholm accepts no liability for
errors or omissions in the operator’s manual.
Contact us
Do not hesitate to contact Egholm should you have questions of any kind regarding your new
Egholm product.
Best regards
Egholm A/S · Transportvej 27 · DK-7620 Lemvig
T. [phone] · F. [phone]
E-mail: [e-mail] · www.egholm.eu
Introduction

3Operator’s Manual City Ranger 2260/2250 Hedge cutter
The Hedge cutter operates quickly and
effectively on hedges and bushes up to 3
metres in height and on branch thicknesses up
to 20 mm. The Hedge cutter is xed at the front
of the machine and controlled from the cab.
The Hedge cutter can easily be adjusted to trim
horizontally, vertically or at any angle required.
During transport, the Hedge cutter is folded to
save as much space as possible.
Attach and detach the Hedge cutter in under a
minute with no tools required.
When detached, the Hedge cutter rests on four
wheels and is extremely easy to store.
Contents
General information ..........................................................................5
1.1 Safety .................................................................................5
1.2 EC Declaration of Conformity ............................................................6
1.3 Technical data .........................................................................7
Operator’s manual ...........................................................................9
2.1 Assembly/Disassembly .................................................................9
2.2 Before start-up ........................................................................11
2.3 Start-up ..............................................................................12
2.4 Setting trimmer position ...............................................................14
Service and Maintenance ....................................................................18
3.1 Cleaning ..............................................................................18
3.2 Maintenance ..........................................................................18
Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
4.1 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
4.2 Complaints ...........................................................................21
4.3 Disposal ..............................................................................21
Wearing parts ...............................................................................23
5.1 Wearing parts - City Ranger 2260-2250 Hedge cutter .....................................23
Notes .....................................................................................24

4
General information

55
Ophold i knækområdet
er forbudt
Aufenthalt im Knickbereich ist verboten
Activities around the articulation point is forbidden
Ne séjournez jamais dans la zone d’articulation
Max. 10°
1
2
3
Operator’s Manual City Ranger 2260/2250 Hedge cutter

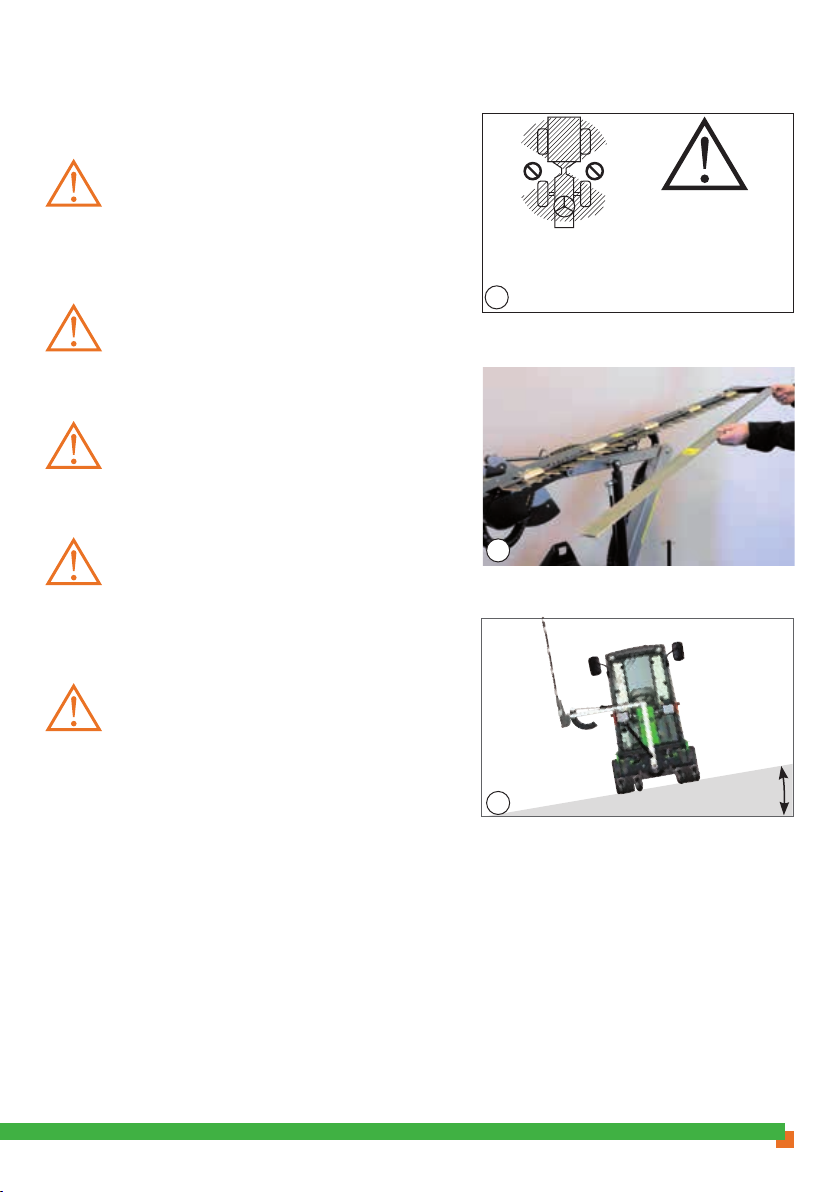

1.1 Safety
N.B
As it is articulated, the rear end of the
machine swings out when turning.
Make sure that no one is standing
near the machine while it is in use.
(Picture 1)
Make sure no one is standing close
to the machine while it is in use
To avoid personal injury people must
stay clear of the cutting bar when it is
being lowered and tilted.
Cover the cutting bar when the
Hedge cutter is not in use and during
transport
Remove the cover immediately prior to
use. (Picture 2)
In the case of maintenance or repair,
always switch off the motor
The attachment motor must be
stopped before any adjustment,
maintenance or repair can be carried
out on the Hedge cutter.
Avoid roll-overs!
Do not drive the machine in a place
where it can slide, tip or roll. Do not
drive on slopes with an incline of
more than 10°. The tyre pressure
must be checked and adjusted to 1.5
bar (22 psi) when the Hedge cutter
is attached. Lower tyre pressure
increases the risk of roll-overs.
(Picture 3)
Protective covering
Do not drive on slopes with an incline of
more than 10°
Prevent people from standing in the
working area
General information

6Operator’s Manual City Ranger 2260/2250 Hedge cutter
1.2 EC Declaration of Conformity
Manufacturer: Egholm A/S
Address: Transportvej 27 · DK-7620 Lemvig
Telephone: [phone]
hereby declares that
The machine: Hedge cutter
Model: Elkær Maskiner
Type: HK 1300 MINI / 2260-2250
· has been manufactured in conformity with the provisions of the Machinery Directive, Directive
2006/42/EC
Any alteration, rebuilding or addition of implements, accessories or other equipment not
manufactured by Egholm automatically results in the cancellation of type approval, CE approval,
any other approval, as well as any warranty on machine and attachments.
Unless otherwise agreed in writing between the operator, customer and Egholm, Egholm is the
data originator (data originator) of all data generated by the machine and attachments during use.
Place: Lemvig
Date:
Signature:
Knud Olsen, Senior Engineer
General information

7
1
Operator’s Manual City Ranger 2260/2250 Hedge cutter
1.3 Technical data
Dimensions Attached Storage dimensions
Length (L).......................3,500 mm......................... 1,000 mm
Width (W) .......................1,600 mm......................... 1,600 mm
Height (H) with cab ..............1,960 mm......................... 1,450 mm
Height (H) with roll bar ...........2,000 mm
Technical data
Type ...............................................HK 1300 MINI / 2260-2250
Max. horizontal reach ..............................................2,500 mm
Cutting width ...................................................... 1,300 mm
Horizontal cutting height ..................................300 mm - 2,100 mm
Vertical cutting height ....................................... 0 mm - 3,200 mm
Angle for cutting bar ....................................................270º
Max. branch thickness ................................................20 mm
Operating speed .................................................... 1-3 km/h
Weight................................................................130 kg
Hydraulic oil ................................Texaco Rando HDZ 46 or equivalent
N.B
Specications may be changed without prior notice.

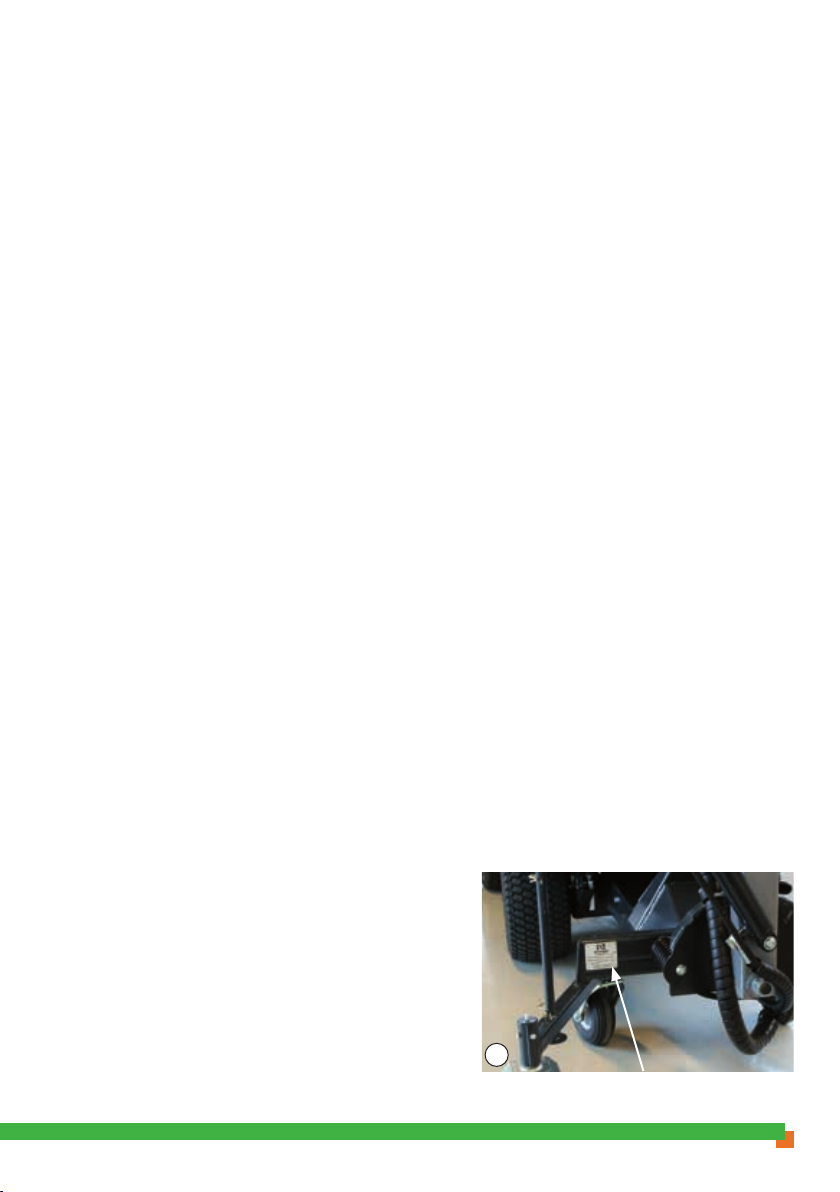

Information plate
(Picture 1)
Information plate
General information

8
Operator´s manual

99
1
2
4
3
Operator’s Manual City Ranger 2260/2250 Hedge cutter

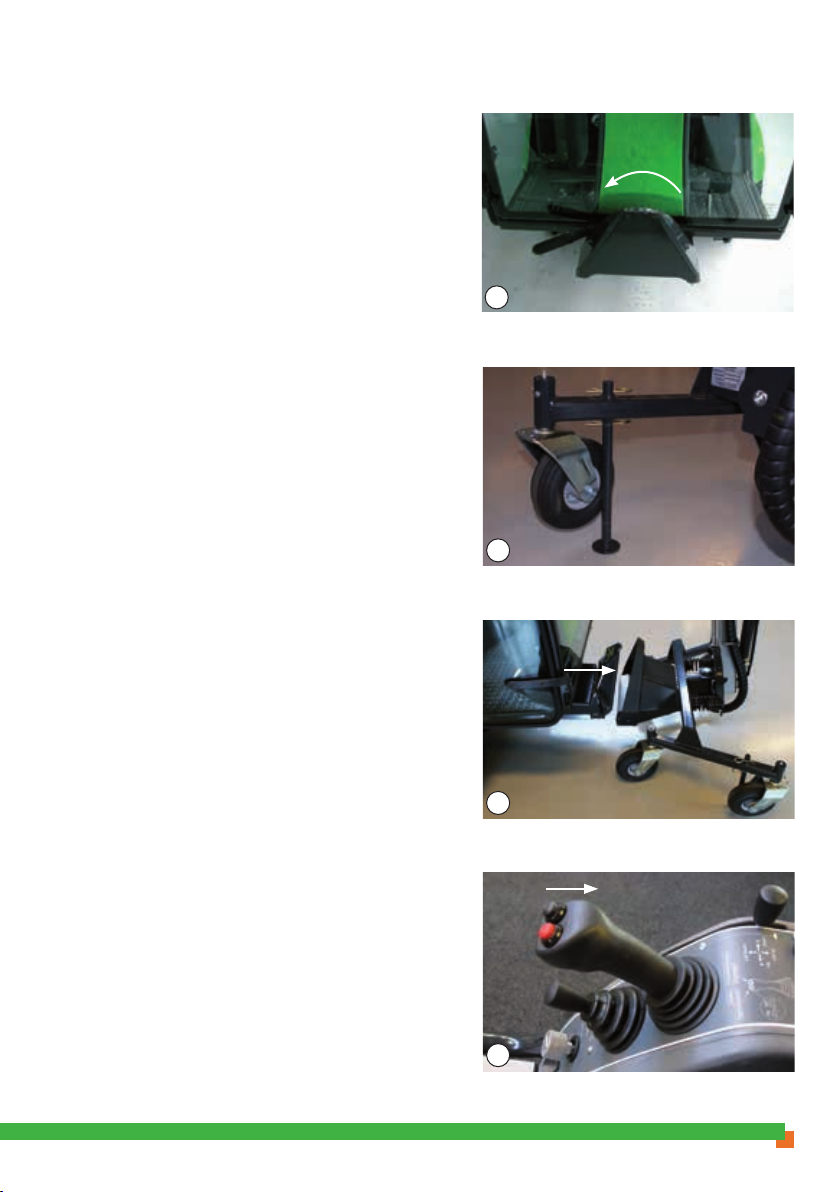

2.1 Assembly/Disassembly
1. The locking handle on the A-frame of the
basic machine must be in the unlocked position.
(Picture 1)
Tips!
Raise the Hedge cutter front wheels free of the
ground and lower the support struts, so that
the Hedge cutter A-frame is angled back. This
makes it much easier to ‘catch’ the A-frame when
attaching. (Picture 2)
2. Drive the machine right up to the A-frame of the
Hedge cutter so the A-frames t into each other.
(Picture 3)
3. Raise the A-frame by pulling the joystick back
until the Hedge cutter is suspended, i.e. free of
the ground. (Picture 4)
4. Stop the machine.
Locking
Pull joystick back
Unlocked A-frame
Support strut lowered
U
n
l
o
c
k
e
d
Operator’s manual

10
1
L
å
s
t
1
2
Operator’s Manual City Ranger 2260/2250 Hedge cutter
2.1 Assembly/Disassembly -
continued
5. Lock the Hedge cutter in place with the locking
handle on the A-frame. The locking handle can
only be engaged when the machine has been
stopped. (Picture 1)
6. Pull out pin on each wheel support strut. Raise
support struts all the way and replace the pins.
(Picture 2)
7. Removal:
Follow the procedure for tting in reverse order.
To avoid accidents when detaching the Hedge
cutter, always make sure the machine is on a level
and stable surface.
Lock A-frame
Support strut up Pin
L
o
c
k
e
d
Operator’s manual

11
1
2
Operator’s Manual City Ranger 2260/2250 Hedge cutter

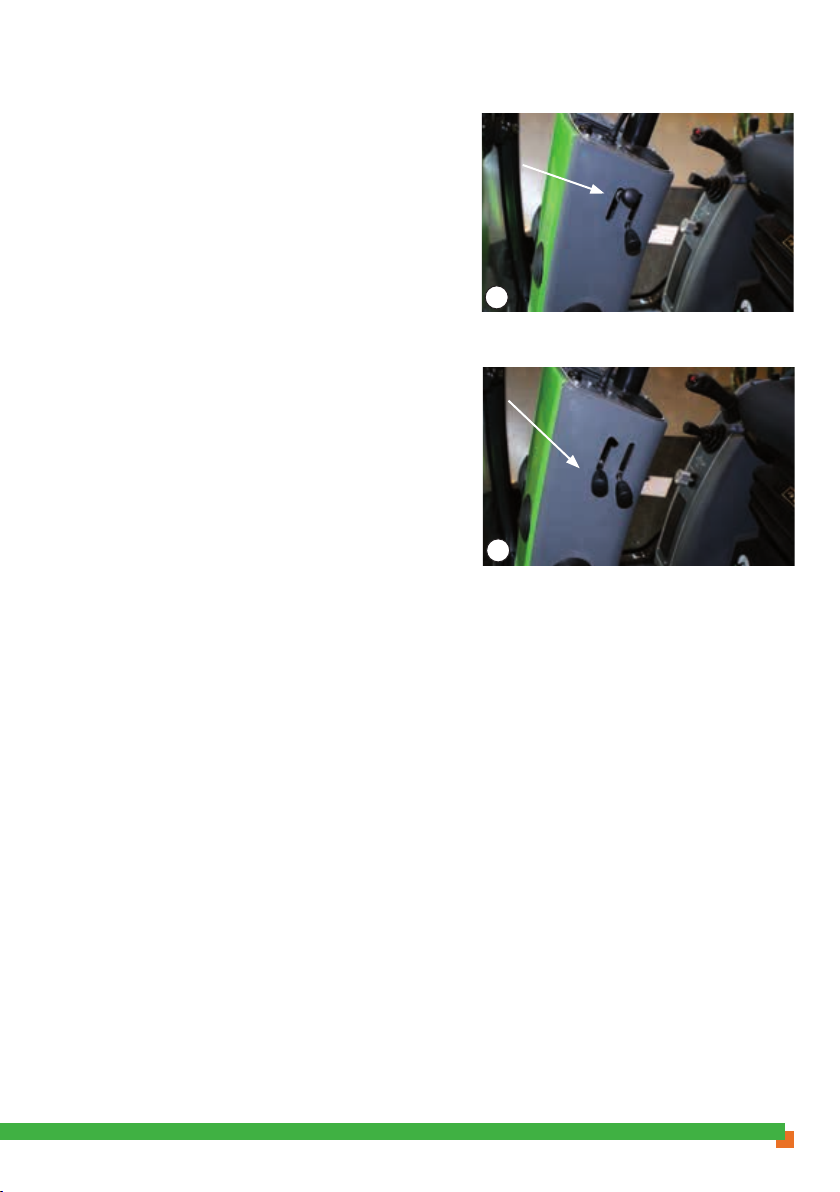

2.2 Before start-up
During transport
Lock the Hedge cutter in the raised position using
the transport lock.
This prevents the attachment from lowering
during transport.
How to use the transport lock
Move the handle to the uppermost position. Raise
the A-frame by pulling the joystick back. As the
A-frame lifts, the transport lock is automatically
activated. (Picture 1)
How to unlock the transport lock
Unhitch the handle and lift the A-frame to the
highest position. The attachment can now be
lowered again. (Picture 2)
Transport lock in locked position
Transport lock in unlocked position
Operator’s manual

12
4
1
2
3
Operator’s Manual City Ranger 2260/2250 Hedge cutter

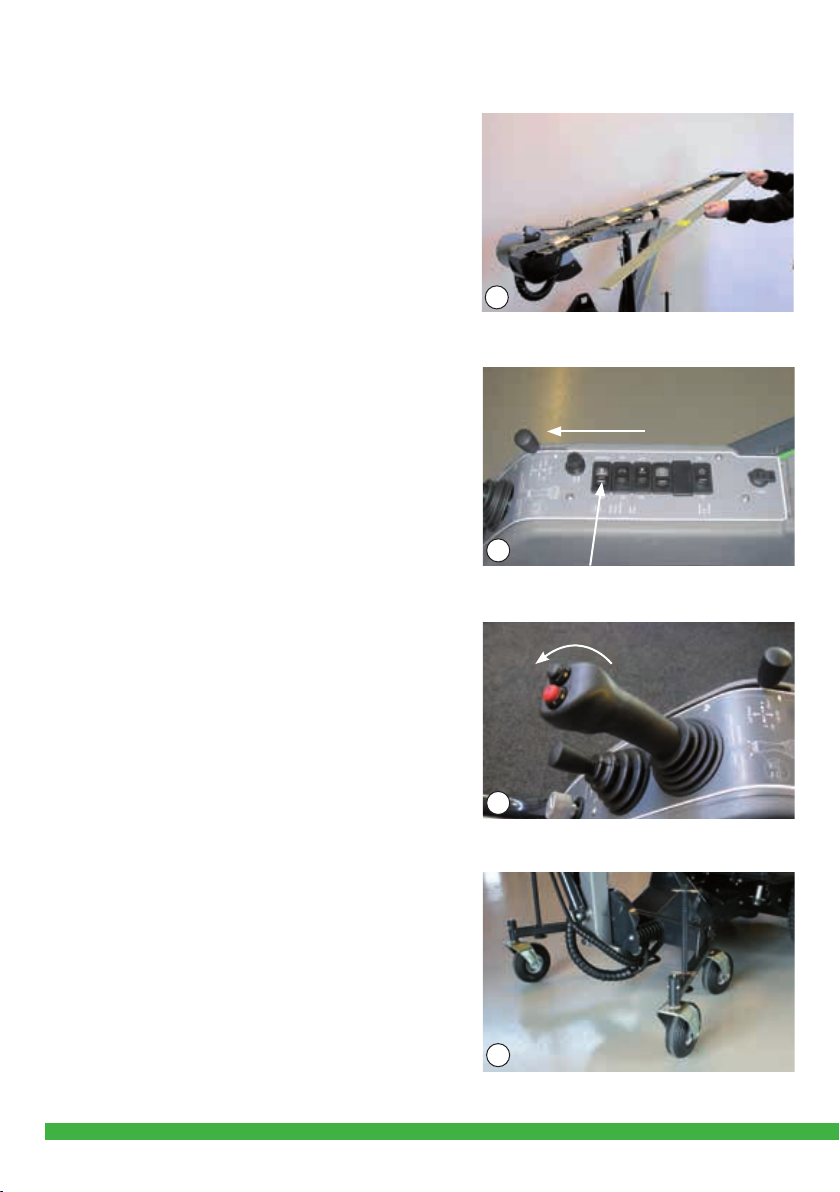

2.3 Start-up
1. Remove the protective cover from the cutting
bar. (Picture 1)
2. Start the machine.
3. Start the Hedge cutter: Switch on with the front
PTO switch. It is recommended that the machine
rpm is adjusted to 2,000. (Picture 2)
4. Move the joystick forward to lower the Hedge
cutter and align the wheels with the surface.
(Pictures 3 and +4)
Protective covering
PTO front and throttle
Joystick forward
Wheels on surface
Operator’s manual

13
1
Operator’s Manual City Ranger 2260/2250 Hedge cutter

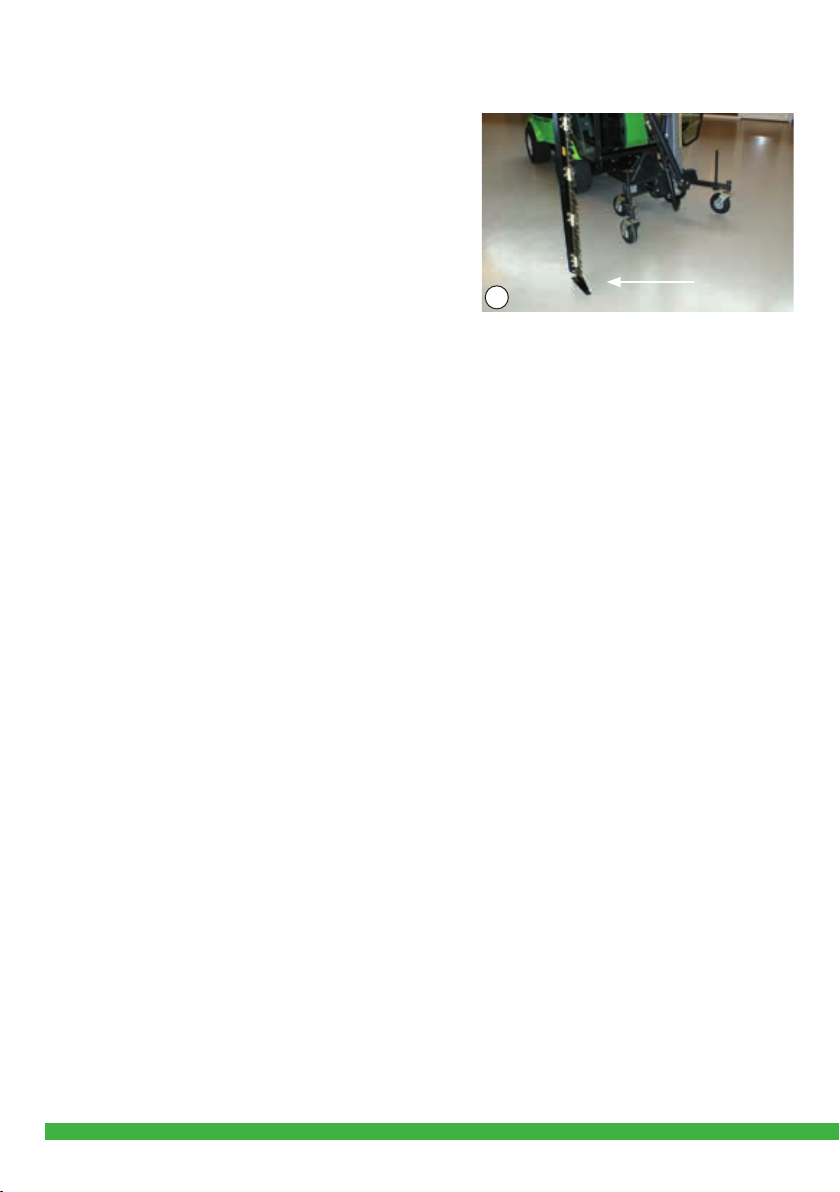

2.3 Start-up - continued
Tips!
Activate the weight distribution (red button) if the
surface is soft. Weight distribution is adjusted
using the control knob. (Picture 1)
N.B
Make sure no one is standing close to
the machine when it is in use. Weight distribution
Operator’s manual

14
1
4
1
2
3
Operator’s Manual City Ranger 2260/2250 Hedge cutter

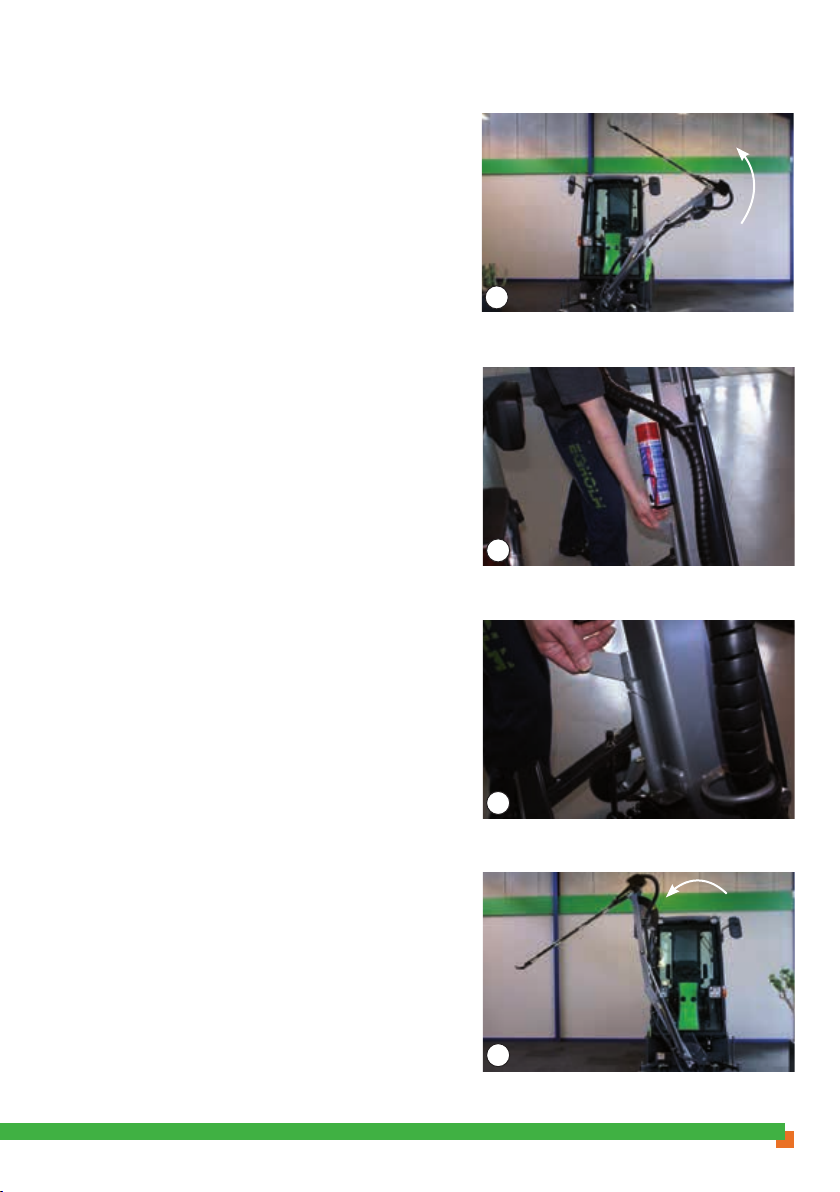

2.4 Setting trimmer position
Set the trimmer position by moving the joystick to
the left or right, pressing the black button on the
joystick at the same time. (Picture 1)
Hedge trimming on the left of the machine
1. Press and hold the black button and move
the joystick to the right. The arm now moves
vertically. (Picture 2)
2. Press and hold the black button and move the
joystick to the left. The arm now moves out to the
left. (Picture 3)
3. Move the joystick to the left. The end of the
cutting bar now moves up. (Picture 4)
Horizontal/vertical hedge trimming to the left
1. Move the joystick to the left until the cutting bar
is raised in the horizontal/vertical position
or
2. Move the joystick to the right until the cutting
bar is lowered in the horizontal/vertical position
3. To trim at higher horizontal/vertical positions:
Press and hold the black button and move the
joystick to the right. The arm moves up. Repeat
positions as described in points 1 + 2.
4. To trim at lower horizontal/vertical positions:
Press and hold the black button and move the
joystick to the left. The arm moves down. Repeat
positions as described in points 1 + 2.
Joystick right - left and black button
Arm up
Arm down
Cutting bar up
Operator’s manual

15
1
2
4
3
Operator’s Manual City Ranger 2260/2250 Hedge cutter
2.4 Setting trimmer position -
continued
Change from left to right side of machine
1. Move the joystick to the left.
The end of the cutting bar now moves down. Do
not stop the machine until the cutting arm end is
on the right. (Picture 1)
2. Move the boom from left to right position.
Free the locking pin by turning the handle out to
90°.The boom can now be tilted to the right side
and locked. (Pictures 2 and 3)
Tips!
Small paths
If a small path has to be trimmed, tilt the boom all
the way over to the opposite side. The cutting bar
remains close to the machine.
Tips!
Reach
If a long side-reach is required, tilt the boom to
the side where trimming is to be done.
3. Press and hold the black button and move the
joystick to the left. The arm now moves to the
right. (Picture 4)
Cutting bar on right side
Boom adjustment
Arm to right
Locking pin
Operator’s manual

16
1
Operator’s Manual City Ranger 2260/2250 Hedge cutter
2.4 Setting trimmer position -
continued
Horizontal/vertical hedge trimming on the left
side
1. Move the joystick to the right until the cutting
bar is raised in the horizontal/vertical position
or
2. Move the joystick to the left until the cutting bar
is lowered in the horizontal/vertical position
3. To trim at higher horizontal/vertical positions:
Press and hold the black button and move the
joystick to the right. The arm moves up. Repeat
positions as described in points 1 + 2
4. To trim at lower horizontal/vertical positions:
Press and hold the black button and move the
joystick to the left. The arm moves down. Repeat
positions as described in points 1 + 2
Tips!
Trim hedges and bushes from below, i.e. with
the cutting bar turned with the outer part down,
so that the skid just touches the ground. Start
trimming. The cutting bar is then raised higher up
the hedge, so that the same section is trimmed all
the way to the top. (Picture 1)
Operating speed
Depending on the conditions, an operating speed
of 1–3 km/h is recommended.
Skid
Operator’s manual

Service and
maintenance

18
1
2
3
Operator’s Manual City Ranger 2260/2250 Hedge cutter
3.1 Cleaning
Daily cleaning and maintenance will extend the
lifetime of both the machine and the attachment.
Clean the Hedge cutter with water when required.
Avoid high pressure cleaning of the snap
couplings.
Wipe snap couplings clean with a cloth.
(Picture 1)
3.2 Maintenance
Check all the bolts and tighten if required after
a few hours of operation, and one every season
thereafter.
Lubricate blades and blade holders every two
hours. (Picture 2)
Lubricating nipples on all moveable parts must be
re-lled at least once every season. (Picture 3)
Defective blades must be replaced immediately.
This ensures effective trimming and reduces
wear and tear on the Hedge cutter.
Blade replacement must only be carried out by
an authorised Egholm dealer
Cleaning the couplings
Lubricating blade
Lubricating nipples
Service and Maintenance

Conditions

20 Operator’s Manual City Ranger 2260/2250 Hedge cutter
4.1 Warranty
The warranty period for the materials and manufacture of this Hedge cutter is 12 months from the
date of purchase. In case of errors or defects on the machine within the warranty period, Egholm
will carry out the necessary repairs without charge for materials and working hours in accordance
with the terms and conditions listed below.
The scope of warranty
1. The Egholm warranty is only valid on presentation of the original receipt, supplied with model
description, serial number and date of purchase.
2. Regular checks, adjustments, services and technical alterations are not covered by the warranty.
3. All inquiries concerning the warranty are to be addressed to the distributor from whom the
machine was purchased.
4. This warranty does not cover faults and defects which cannot be traced back to defects in
material or production errors.
5. This warranty is valid for persons who have legally acquired the machine within the warranty
period.
6. In the event of failure to perform and substantiate service in accordance with the applicable
instructions, Egholm reserves the right to reject any claim made within the warranty period.
7. Egholm reserves the right to make improvements and design-related alterations to the machine
without being obliged to modify previously delivered models in relation hereto.
The warranty does not cover
· Wear and tear, accidents, damage to the equipment caused by operating errors, changes to the
construction of the machine or use of non-Egholm spare parts or attachments.
· Machines with illegible serial numbers.
· Damage caused by force majeure such as lightning, ood, re, war, civil disturbance, etc. or other
causes over which Egholm has no control.
Conditions
