Dear Customer,
Congratulations with your new Egholm product
The Park Ranger 2150 is a Danish-designed and manufactured utility machine, which allows
you to take a very exible approach to maintaining outdoor areas.
Optimal use of your Park Ranger 2150 Hedge cutter
To ensure optimal performance from your Park Ranger 2150 Hedge cutter, please read this manual
carefully before using the machine. Failure to do so can result in personal injury and damage to the
machine.
Safety
The Hedge cutter is equipped with various devices to ensure optimal operational safety both
for the user and the surroundings. We ask you to pay particular attention to section 1.1 Safety.
The machine must only be serviced by professionals.
The Hedge cutter is designed only for use by professionals. On delivery, the user will receive
thorough training to become a competent operator. Do not lend the machine or tools to anyone who
has not been thoroughly trained and who has not read this manual carefully.
The operator’s manual should be considered a vital accessory to the machine and must remain with
it if the machine is sold.
Warnings
Some items in this operator’s manual are marked with this warning symbol.
The warning indicates areas where extra care must be taken to avoid personal
injury or damage to the machine and its accessories. The warning also explains
how you should pay special attention to the aspect in question.
Reservations
As it is the Egholm policy to make continuous improvements, we reserve the right to alter the
machine’s specications and equipment at any time without notice. Egholm accepts no liability for
errors or omissions in the operator’s manual.
Contact Egholm
Please do not hesitate to contact Egholm if you have questions of any kind regarding your new
Egholm product.
Best regards,
Egholm A/S · Transportvej 27 · DK-7620 Lemvig
T. [phone] · F. [phone]
E-mail: [e-mail] · www.egholm.eu
Introduction

3Operator’s Manual Park Ranger 2150 Hedge cutter Operator’s Manual Park Ranger 2150 Hedge cutter
The Park Ranger 2150 Hedge cutter operates
quickly and effectively on hedges and bushes up
to 2,5 metres in height and on branch
thicknesses up to 20 mm (depending on the
species of tree). The Hedge cutter is xed at the
front of the machine and controlled from the
cab.
The Hedge cutter can easily be adjusted to trim
horizontally, vertically or at any angle required.
During transport, the Hedge cutter is folded to
save as much space as possible.
Attach and detach the Hedge cutter in less than
a minute with no tools required.
When detached, the Hedge cutter rests on four
wheels and is extremely easy to store.
Contents
General information ..........................................................................5
1.1 Safety .................................................................................5
1.2 EC Declaration of Conformity ............................................................6
1.3 Technical data .........................................................................7
Operator’s manual ...........................................................................9
2.1 Assembly / Disassembly ................................................................9
2.2 Before start-up ........................................................................12
2.3 Start-up ..............................................................................13
2.4 Setting trimmer position ...............................................................14
Service and Maintenance ....................................................................18
3.1 Cleaning .............................................................................18
3.2 Maintenance ..........................................................................18
Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
4.1 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.2 Complaints ...........................................................................21
4.3 Disposal ..............................................................................21
Wearing parts ...............................................................................23
5.1 Wearing Parts - Park Ranger 2150 Hedge cutter ..........................................23
Notes .....................................................................................27

General information

5
Max. 10°
Ophold i knækområdet
er forbudt
Aufenthalt im Knickbereich ist verboten
Activities around the articulation point is forbidden
Ne séjournez jamais dans la zone d’articulation
Park Ranger 2150
1
2
3
4
Operator’s Manual Park Ranger 2150 Hedge cutter
1.1 Safety
NB
As it is articulated, the rear end of the
machine swings out when turning.
Make sure that no one stands near the
machine while it is in use.
(Picture 1)
Make sure no one stands close to
the machine while it is in use
To avoid the risk of personal injury,
stay clear of the cutting bar when it is
being lowered and tilted.
Cover the cutting bar when the
Hedge cutter is not in use or during
transport
Remove the cover immediately prior to
use. (Picture 2)
In the case of maintenance or repair,
always switch off the motor
The attachment motor must be
stopped before any adjustment,
maintenance or repair can be carried
out on the Hedge cutter.
Avoid roll-overs
Do not drive the machine in a place
where it can slide, tip or roll. Do not
drive on slopes with an incline of more
than 10 degrees. The tyre pressure
must be checked and adjusted to 1.5
bar (22 psi) when the Hedge cutter is
attached. Low tyre pressure increases
the risk of roll-overs. (Picture 3)
Transport
Only transport the Hedgecutter when
packed in transportation position.
(Picture 4)
Protective covering
Do not drive on slopes with an incline of more
than 10°
Ensure that no one stands in the working area
General information
Packed in transportation position

6Operator’s Manual Park Ranger 2150 Hedge cutter Operator’s Manual Park Ranger 2150 Hedge cutter
1.2 EC Declaration of Conformity
Manufacturer: GMR maskiner a/s
Address: Saturnvej 17 DK-8700 Horsens
Tel.: [phone]
hereby declares that
The machine: Cutter arm and Hedge cutter
Model: GMR Maskiner A/S
Type: Arm: Trim 2150
Knife: MB 130-3
· has been manufactured in conformity with the provisions of the Machinery Directive, Directive
2006/42/EC
Any alteration, rebuilding or addition of implements, accessories or other equipment not
manufactured by Egholm automatically results in the cancellation of type approval, CE approval,
any other approval, as well as any warranty on machine and attachments.
Unless otherwise agreed in writing between the operator, customer and Egholm, Egholm is the
data originator (data originator) of all data generated by the machine and attachments during use.
Place: Lemvig, Denmark
Date:
Signature:
Poul Møller Rasmussen
General information

7
12
Operator’s Manual Park Ranger 2150 Hedge cutter Operator’s Manual Park Ranger 2150 Hedge cutter
1.3 Technical data
Dimensions Attached Storage dimensions
Length (L)..............................3,500 mm.................. 1,000 mm
Width (W) ..............................1,600 mm.................. 1,600 mm
Height (H) incl. cab......................1,960 mm.................. 1,450 mm
Height (H) incl. roll bar...................2,000 mm
Technical data
TypeHP ................................................. TRIM2150/ MB130-3
Max. horizontal reach ..............................................2,500 mm
Cutting width...................................................... 1,300 mm
Horizontal cutting height .......................................300-2,100 mm
Vertical cutting height ............................................ 0-3,200 mm
Angle for cutting bar ....................................................270º
Max. branch thickness ................................................20 mm
Operating speed .................................................... 1-3 km/h
Weight................................................................130 kg
Hydraulic oil ................................Texaco Rando HDZ 68 or equivalent
NB
Specications may be changed without prior notice.
Information plate
(Picture 1+2)
General information
Type plate
Cutter
Type plate
Arm

Operator´s manual

9
2
4
5
3
1
6
Operator’s Manual Park Ranger 2150 Hedge cutter

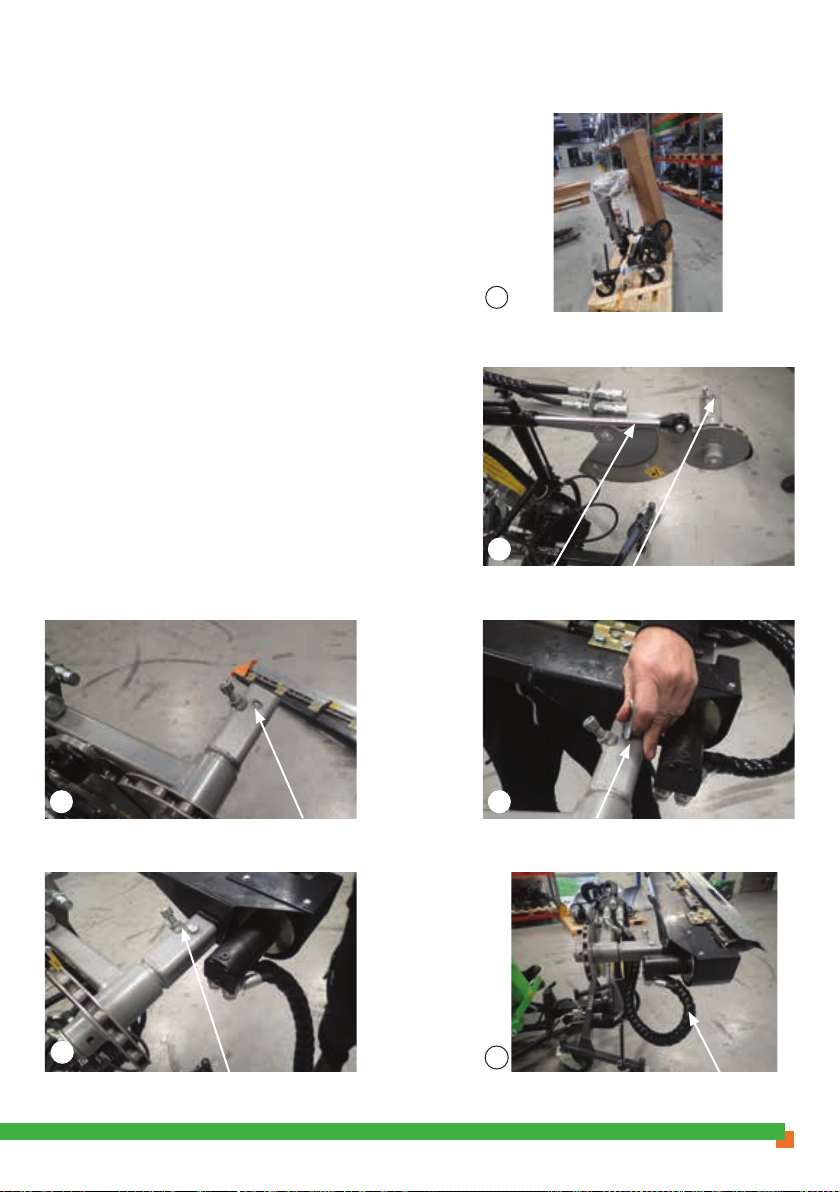

2.1 Assembly / Disassembly
Delivery
The arm and cutter are delivered on one pallet.
(Picture 1)
Unpack both parts and place them on a plan surface
1. Check the arm, the top hydraulic cylinder must be in
out position (Hole in square pipe pointing up and down.)
(Picture 2+3)
2. Mount the cutter knife in the square hole, put in the
M10 bolt (Picture 4).
Mount and tighten the bolt with M10 nut.
Tighten the allen bolt and check the cutter can not
move at all from the cutter arm square pipe. (Picture 5)
3. Mount the hydraulic hoses. The hoses must be
guided below the cutter arm square pipe. (Picture 6)
The Hedge cutter is now ready to mount on the Basic
machine.
Operator’s manual
The arm and cutter are delivered on one
pallet
Hole in square pipe pointing up and down
Cylinder in out position
Mount the cutter knife in the square hole,
M10 bolt
The hydraulic hoses must be guided
below the cutter arm square pipe
Hole in square pipe pointing up and down
Tighten the allen bolt. Check the cutter can not
move at all from the cutter arm square pipe.

10
1
2
4
3
Operator’s Manual Park Ranger 2150 Hedge cutter Operator’s Manual Park Ranger 2150 Hedge cutter
2.1 Assembly / Disassembly -
continued
1. The locking handle on the A-frame of the
basic machine must be in the unlocked position.
(Picture 1)
Tips!
Raise the Hedge cutter front wheels free of the
ground and lower the support struts, so that the
Hedge cutter A-frame is angled back.
This makes it much easier to ‘catch’ the A-frame
when attaching. (Picture 2)
2. Drive the machine right up to the A-frame of the
Hedge cutter so the A-frames t into each other.
(Picture 3)
3. Raise the A-frame using lever A on the left-hand
side of the Basic machine until the Hedge cutter
is freely suspended above the ground. (Picture 4)
4. Switch off the engine.
Locking
Lever A
Unlocked A-frame
Support strut lowered
U
n
l
o
c
k
e
d
Operator’s manual

11
1
3
4
Operator’s Manual Park Ranger 2150 Hedge cutter Operator’s Manual Park Ranger 2150 Hedge cutter
2.1 Assembly / Disassembly -
continued
5. Lock the Hedge cutter in place with the locking
handle on the A-frame. (Picture 1)
Fit the hydraulic hoses to connectors B, C and D.
(Picture 2+3)
6. Pull out pin on each wheel support strut.
Raise support struts all the way and remount the
pins. (Picture 4)
7. Removal:
Follow the procedure for tting in reverse order.
To avoid accidents when detaching the Hedge
cutter, always make sure the machine is on a level
and stable surface.
Put the protective caps on the snap couplings to
protect them from dirt.
Lock A-frame
Support strut up Pin
L
o
c
k
e
d
Operator’s manual
Fit the hydraulic hoses to connectors
B+C
Fit the hydraulic hose to connector D

12
1
2
Operator’s Manual Park Ranger 2150 Hedge cutter Operator’s Manual Park Ranger 2150 Hedge cutter
2.2 Before start-up
During transport
Lock the Hedge cutter in the raised position using
the transport lock.
This prevents the attachment from lowering
inadvertently during transport.
Always have the hedge cutter packed in transport
position during transport Transport lock in locked position
L
o
c
k
e
d
Operator’s manual
Packed in transportation position

13
A B C
1
2
4
3
Operator’s Manual Park Ranger 2150 Hedge cutter Operator’s Manual Park Ranger 2150 Hedge cutter

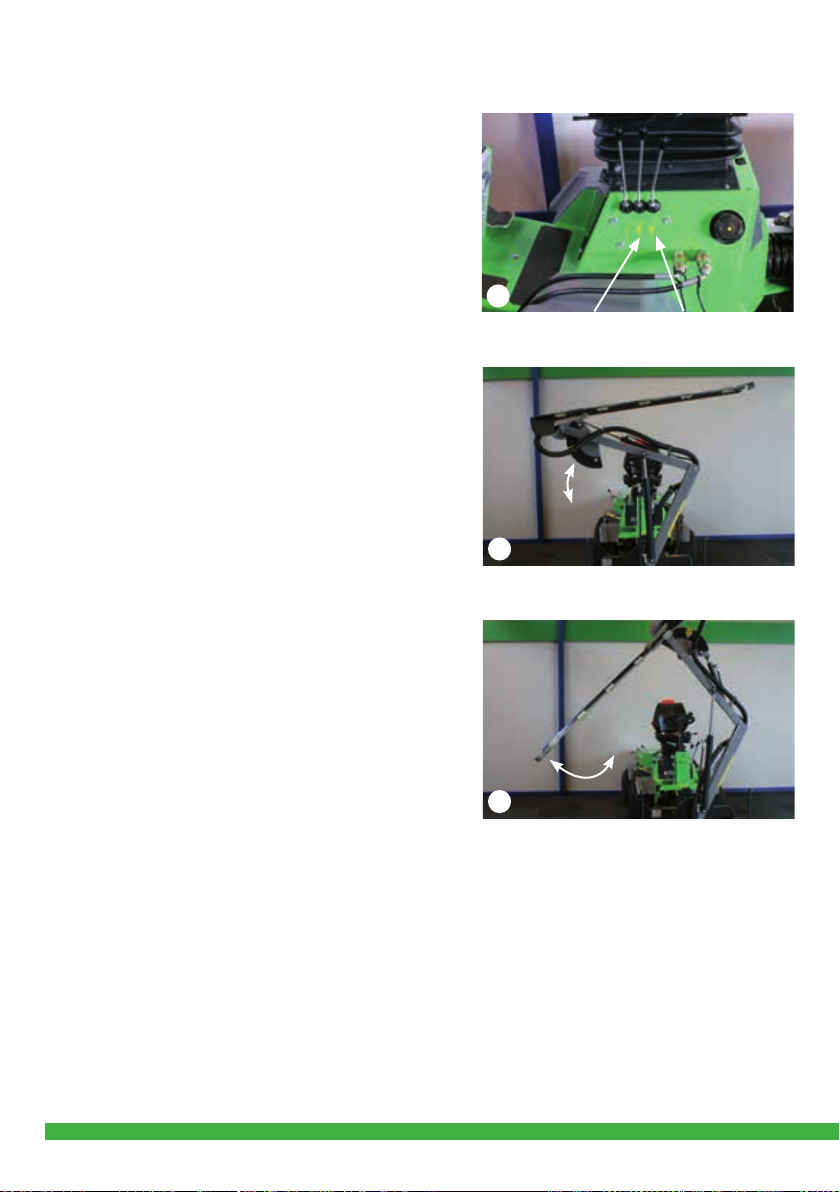

2.3 Start-up

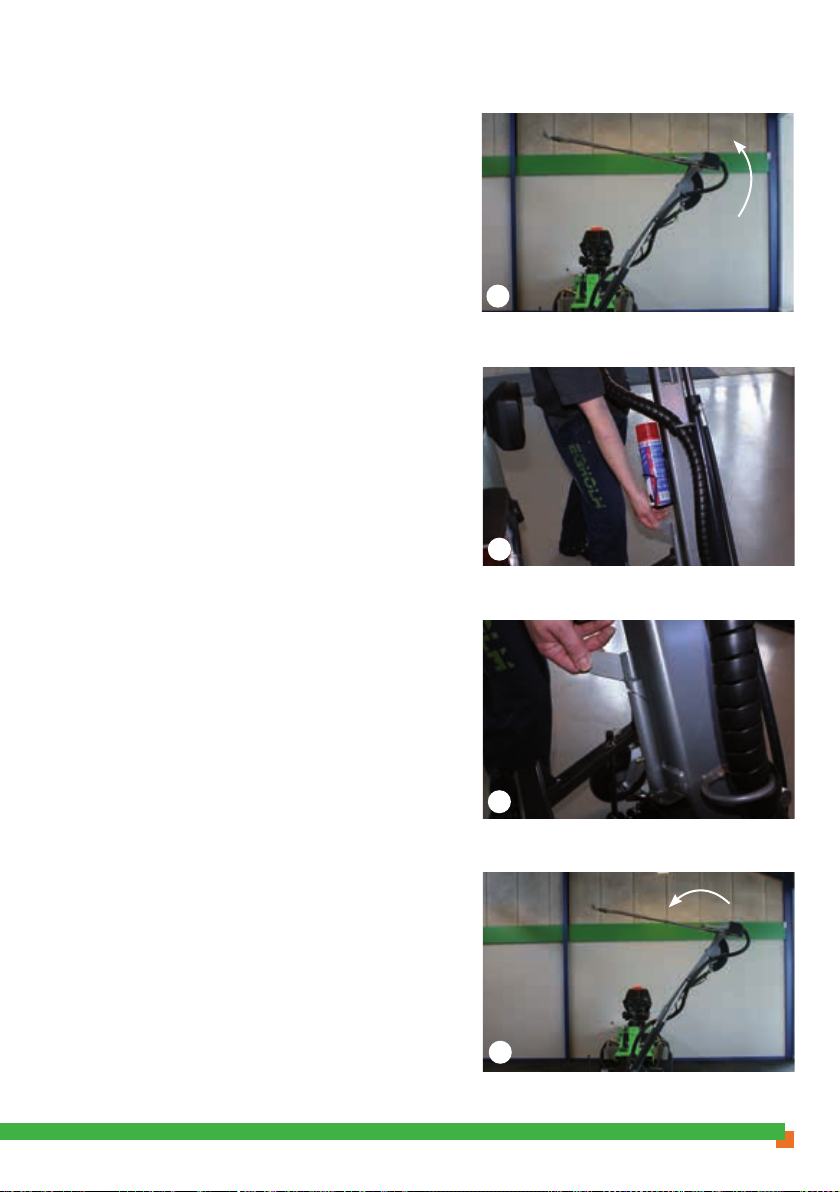

1. Remove the protective cover from the cutting
bar. (Picture 1)
2. Start the machine.
3. To start the Hedge cutter, push lever D on the
right-hand side of the machine up to position 1.
(Picture 2)
4. Lower the Hedge cutter by pushing lever A
on the left-hand side of the machine down to
position 2. (Picture 3+4)
NB!
Make sure no one is standing close to
the machine while it is in use.
Protective covering
Lever D
Lever A Lever B
Wheels on surface
Operator’s manual

14
1
A B C
1
2
3
Operator’s Manual Park Ranger 2150 Hedge cutter Operator’s Manual Park Ranger 2150 Hedge cutter
2.4 Setting trimmer position
To set trimmer position, move Levers B and C
either towards or away from the seat. (Picture 1)
Hedge trimming on the left of the machine
1. Use Lever C to move the cutting arm.
(Picture 2)
2. Use Lever B to move the cutting bar.
(Picture 3)
Horizontal/vertical hedge trimming to the left
1. Activate Lever B until the cutting bar reaches
the required position.
2. To trim at higher horizontal/vertical positions:
Activate Lever C to move the cutting arm
upwards. Use Lever B to reposition the cutting
bar.
Lever B Lever C
Cutting arm
Cutting arm
Operator’s manual

15
1
2
4
3
Operator’s Manual Park Ranger 2150 Hedge cutter Operator’s Manual Park Ranger 2150 Hedge cutter
2.4 Setting trimmer position -
continued
Change from left to right side of machine
1. Use Lever B to move the cutting bar. Do not
stop the machine until the cutting bar end is on
the right. (Picture 1)
2. Move the boom from left to right position.
Free the locking pin by turning the handle out to
90°.
The boom can now be tilted to the right side and
locked. (Pictures 2 + 3)
Tips!
Narrow paths
If a narrow path has to be trimmed, tilt the boom
all the way over to the opposite side. The cutting
bar remains close to the machine.
Tips!
Reach
If a long side-reach is required, tilt the boom to
the side where trimming is to be done. (Picture 4)
Cutting bar on right side.
Boom adjustment
Arm to right
Locking pin
Operator’s manual

16
1
Operator’s Manual Park Ranger 2150 Hedge cutter
2.4 Setting trimmer position -
continued
Horizontal/vertical hedge trimming on the left
side
1. Activate Lever B until the cutting bar reaches
the required position.
2. To trim at higher horizontal/vertical positions:
Activate Lever C to raise the cutting arm to the
required height. Use Lever B to reposition the
cutting bar.
Tips!
Trim hedges and bushes from below, i.e. with
the cutting bar turned with the outer part down,
so that the skid just touches the ground. Start
trimming.
The cutting bar is then raised higher up the
hedge, so that the same section is trimmed all the
way to the top. (Picture 1)
Operating speed
Depending on the conditions, an operating speed
of 1–3 km/h is recommended.
Skid
Operator’s manual

Service and
maintenance

18
1
2
3
Operator’s Manual Park Ranger 2150 Hedge cutter
3.1 Cleaning
Daily cleaning and maintenance will extend the
lifetime of both the machine and the attachment.
Clean the Hedge cutter with water after use.
Avoid high-pressure cleaning of the snap
couplings.
Wipe snap couplings clean with a cloth.
(Picture 1)
3.2 Maintenance
Check all the bolts and tighten if required after a
few hours of operation, and once every season
thereafter.
Lubricate blades and blade holders every two
hours. (Picture 2)
Lubricating nipples on all moveable parts must be
re-lled at least once every season. (Picture 3)
Defective blades must be replaced immediately.
This ensures effective trimming and reduces
wear and tear on the Hedge cutter.
Blade replacement must only be carried out by
an authorised Egholm dealer
Cleaning the couplings
Lubricating blade
Lubricating nipples
Service and Maintenance

Conditions

20 Operator’s Manual Park Ranger 2150 Hedge cutter Operator’s Manual Park Ranger 2150 Hedge cutter
4.1 Warranty
The warranty period for the materials and manufacture of the Hedge cutter is 12 months from the
date of purchase.
In case of errors or defects on the machine within the warranty period, Egholm will carry out the
necessary repairs at no charge for materials and working hours in accordance with the terms and
conditions listed below.
The scope of warranty
1. The Egholm warranty is only valid on presentation of the original receipt supplied with model
description, serial number and date of purchase.
2. Regular checks, adjustments, services and technical alterations are not covered by the warranty.
3. All inquiries concerning the warranty are to be addressed to the place where the machine was
purchased.
4. This warranty does not cover faults and defects which cannot be traced back to defects in
material or production errors.
5. This warranty is valid for persons who have legally acquired the machine within the warranty
period.
6. In the event of failure to perform and substantiate service in accordance with the applicable
instructions, Egholm reserves the right to reject any claim made within the warranty period.
7. Egholm reserves the right to make improvements and design-related alterations to the machine
without being obliged to modify previously delivered models in relation hereto.
The warranty does not cover
Wear and tear, accidents, damage to the equipment caused by operating errors, changes to the
construction of the machine or use of non-Egholm spare parts or attachments.
Machines with illegible serial numbers.
Damage caused by force majeure, such as lightning, ood, re, war, civil disturbance, etc., or other
causes over which Egholm has no control.
Conditions
