Egholm Park Ranger 2150 User manual

Park Ranger 2150
OperatOr’smanual
HEDGE TRIMMER

2
Dear Customer,
Congratulations with your new Egholm product.
The Park Ranger 2150 is a Danish-designed and manufactured utility machine, which allows
you to take a very exible approach to maintaining outdoor areas.
Optimal use of your Park Ranger 2150 Hedge trimmer:
To ensure optimal performance from your Park Ranger 2150 hedge trimmer, please read this
manual carefully before using the machine. Failure to do so can result in personal injury and
damage to the machine.
Safety:
The hedge trimmer is equipped with various devices to ensure optimal operational safety both
for the user and the surroundings. We ask you to pay particular attention to section 1.1 Safety.
The machine must only be serviced by professionals.
The hedge trimmer is designed only for use by professionals. On delivery, the user will receive
thorough training to become a competent operator. Do not lend the machine or tools to anyone
who has not been thoroughly trained and who has not read this manual carefully.
The operator’s manual should be considered a vital accessory to the machine and must remain
with it if the machine is sold.
Warnings:
Some items in this operator’s manual are marked with this warning symbol.
The warning indicates areas where extra care must be taken to avoid personal
injury or damage to the machine and its accessories. The warning also explains
how you should pay special attention to the aspect in question.
Reservations:
As it is the Egholm policy to make continuous improvements, we reserve the right to alter the
machine’s specications and equipment at any time without notice. Egholm accepts no liability for
errors or omissions in the operator’s manual.
Contact Egholm:
Please do not hesitate to contact Egholm if you have questions of any kind regarding your new
Egholm product.
Best regards,
Egholm A/S · Transportvej 27 · DK-7620 Lemvig
T. [phone] · F. [phone]
E-mail: [e-mail] · www.egholm.eu
Operator’s Manual – Park Ranger 2150 Hedge trimmer
Introduction
!

3
Table of contents
Operator’s Manual – Park Ranger 2150 Hedge trimmer
The Park Ranger 2150 hedge trimmer operates quickly and
eectively on hedges and bushes up to 3 metres in height
and on branch thicknesses up to 20 mm (depending on the
species of tree). The hedge trimmer is xed at the front of
the machine and controlled from the cab.
The hedge trimmer can easily be adjusted to trim horizontally,
vertically or at any angle required.
During transport, the hedge trimmer is folded to save as
much space as possible.
Attach and detach the Hedge trimmer in under a minute
with no tools required.
When detached, the hedge trimmer rests on four wheels
and is extremely easy to store.
General information..............................................................................4
1.1 Safety ....................................................................................4
1.2 EC Declaration of Conformity.................................................................5
1.3 Technical data .............................................................................6
Operator’s manual ...............................................................................7
2.1 Assembly / Disassembly .....................................................................7
2.2 Before start-up ............................................................................9
2.3 Start-up..................................................................................10
2.4 Setting trimmer position ...................................................................12
Service and Maintenance.........................................................................15
3.1 Cleaning .................................................................................15
3.2 Maintenance .............................................................................15
Conditions .....................................................................................16
4.1 Warranty.................................................................................16
4.2 Complaints ...............................................................................17
4.3 Disposal..................................................................................17
Wearing parts ..................................................................................18
5.1 Wearing Parts - Park Ranger 2150 hedge trimmer ..............................................18
Notes .........................................................................................19

2
Max. 10°
3
1
Park Ranger 2150
4
1.1 Safety
NB:
As it is articulated, the rear end of the
machine swings out when turning.
Make sure that no-one stands near the
machine while it is in use. (Picture 1)
Make sure no-one stands close to the
machine while it is in use.
To avoid the risk of personal injury, stay
clear of the cutting bar when it is being
lowered and tilted.
Cover the cutting bar when the
hedge trimmer is not in use or during
transport.
Remove the cover immediately prior to use.
(Picture 2)
In the case of maintenance or repair,
always switch o the motor.
The attachment motor must be stopped
before any adjustment, maintenance or
repair can be carried out on the Hedge
trimmer.
Avoid roll-overs:
Do not drive the machine in a place where it
can slide, tip or roll. Do not drive on slopes
with an incline of more than 10 degrees.
The tyre pressure must be checked and
adjusted to 1.5 bar (22 psi) when the Hedge
trimmer is attached. Low tyre pressure
increases the risk of roll-overs. (Picture 3)
General information
!
!
!
!
!
Protective covering
Do not drive on slopes with an incline of more than 10°
Ensure that no-one stands in the working area
Operator’s Manual – Park Ranger 2150 Hedge trimmer

5
General information
1.2 EC Declaration of Conformity
Manufacturer: Egholm A/S
Address: Transportvej 27 · DK-7620 Lemvig
Tel.: [phone]
hereby declares that
The machine: Hedge trimmer
Model: Elkær Maskiner
Type: HK 1300 MINI / 2200
· has been manufactured in conformity with the provisions of the Machinery
Directive, Directive 2006/42/EC
Place: Lemvig, Denmark
Date:
Signature:
Knud Olsen, Senior Engineer
Operator’s Manual – Park Ranger 2150 Hedge trimmer

6
General information
1.3 Technical data
Operator’s Manual – Park Ranger 2150 Hedge trimmer
Dimensions: Attached:
Length (L) 3,500 mm
Width (W) 1,600 mm
Height (H) incl. cab 1,960 mm
Height (H) incl. roll bar 2,000 mm
Storage dimensions:
1,000 mm
1,600 mm
1,450 mm
Technical data:
Type HP 1300 MINI / 2200
Max. horizontal reach 2,500 mm
Cutting width 1,300 mm
Horizontal cutting height 300-2,100 mm
Vertical cutting height 0-3,200 mm
Angle for cutting bar 270º
Max. branch thickness 20 mm
Operating speed 1-3 km/h
Weight 130 kg
Hydraulic oil Texaco Rando HDZ 46 or equivalent
NB:
Specications may be changed without prior notice.
Information plate:
(Picture 1)

1
2
4
3
7
Operator’s manual
2.1 Assembly / Disassembly
1. The locking handle on the A-frame of the basic machine
must be in the unlocked position. (Picture 1)
Tips!
Raise the hedge trimmer front wheels free of the ground
and lower the support struts, so that the hedge trimmer
A-frame is angled back.
This makes it much easier to ‘catch’ the A-frame when
attaching. (Picture 2)
2. Drive the machine right up to the A-frame of the Hedge
trimmer so the A-frames t into each other. (Picture 3)
3. Raise the A-frame using lever A on the left-hand side
of the base machine until the hedge trimmer is freely
suspended above the ground. (Picture 4)
4. Switch o the engine.
Locking
Lever D
Unlocked A-frame
Support strut lowered
U
n
l
o
c
k
e
d
Operator’s Manual – Park Ranger 2150 Hedge trimmer

1
2
8
Operator’s manual

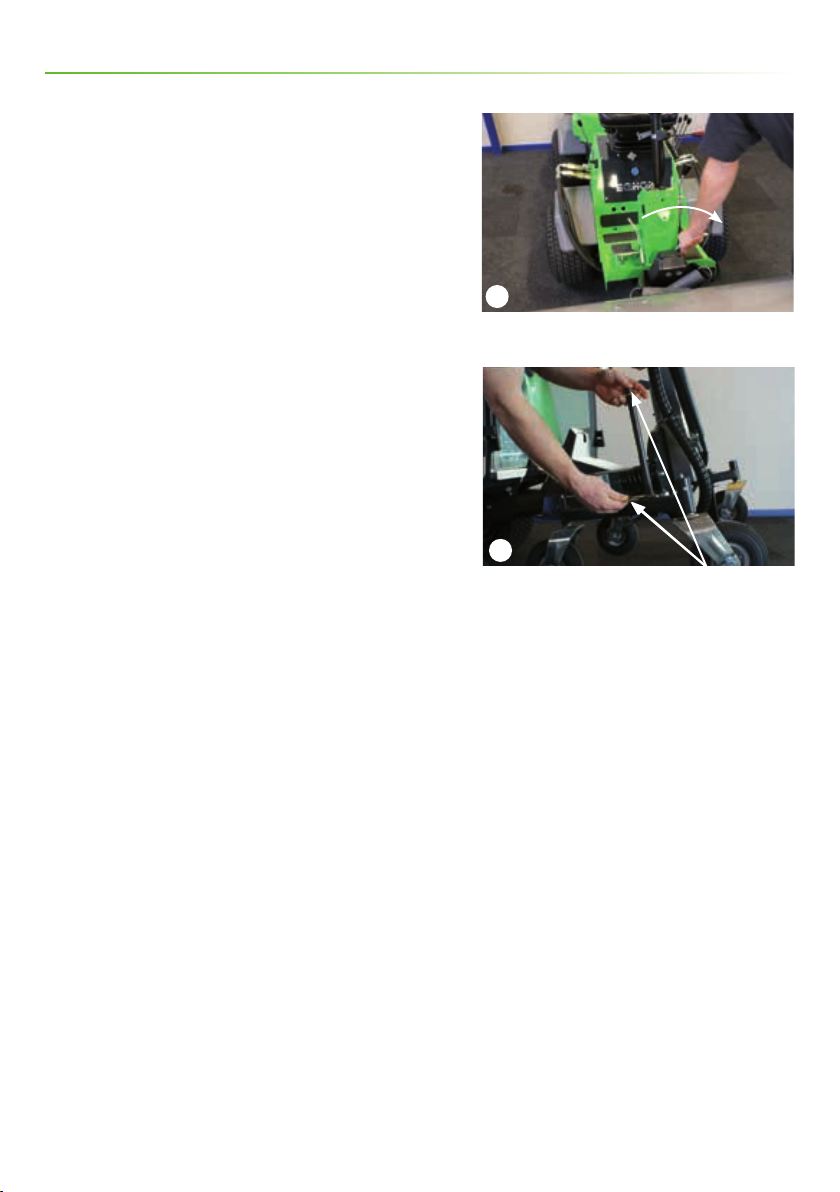

5. Lock the hedge trimmer in place with the locking handle
on the A-frame. (Picture 1)
Fit the hydraulic hoses to connectors B, C and D.
6. Pull out pin on each wheel support strut.
Raise support struts all the way and replace the pins.
(Picture 2)
7. Removal:
Follow the procedure for tting in reverse order.
To avoid accidents when detaching the hedge trimmer,
always make sure the machine is on a level and stable surface.
Put the protective caps on the snap couplings to protect
them from dirt.
Lock A-frame
Support strut up Pin
L
å
s
t
L
o
c
k
e
d
Operator’s Manual – Park Ranger 2150 Hedge trimmer

1
9
2.2 Before start-up
During transport:
Lock the hedge trimmer in the raised position using the
transport lock.
This prevents the attachment from lowering inadvertently
during transport.
Operator’s manual
Transport lock in locked position
L
o
c
k
e
d
Operator’s Manual – Park Ranger 2150 Hedge trimmer

1
2
3
4
A B C
10
Operator’s manual
2.3 Start-up
1. Remove the protective cover from the cutting bar.
(Picture 1)
2. Start the machine.
3. To start the hedge trimmer, push lever D on the right-
hand side of the machine up to position 1. (Picture 2)
4. Lower the hedge trimmer by pushing lever A on the left-
hand side of the machine down to position 2.
(Pictures 3 and 4)
Protective covering
Lever D
Lever A Lever B
Wheels on surface
Operator’s Manual – Park Ranger 2150 Hedge trimmer

11
Operator’s manual
NB:
Make sure no one is standing close to the
machine while it is in use.
!
Operator’s Manual – Park Ranger 2150 Hedge trimmer

1
1
2
3
A B C
12
Operator’s manual
2.4 Setting trimmer position
To set trimmer position, move Levers B and C either
towards or away from the seat. (Picture 1)
Hedge trimming on the left of the machine
1. Use Lever C to move the cutting arm. (Picture 2)
2. Use Lever B to move the cutting bar. (Picture 3)
Horizontal/vertical hedge trimming to the left
1. Activate Lever B until the cutting bar reaches the
required position.
2. To trim at higher horizontal/vertical positions: Activate
Lever C to move the cutting arm upwards. Use Lever B to
reposition the cutting bar.
Lever B Lever C
Cutting arm
Cutting arm
Operator’s Manual – Park Ranger 2150 Hedge trimmer

1
2
3
4
13
Operator’s manual
Change from left to right side of machine
1. Use Lever B to move the cutting bar. Do not stop the
machine until the cutting bar end is on the right.
(Picture 1)
2. Move the boom from left to right position.
Free the locking pin by turning the handle out to 90°.
The boom can now be tilted to the right side and locked.
(Pictures 2 + 3)
Tips!
Narrow paths
If a narrow path has to be trimmed, tilt the boom all the
way over to the opposite side. The cutting bar remains
close to the machine.
Tips!
Reach
If a long side-reach is required, tilt the boom to the side
where trimming is to be done. (Picture 4)
Cutting bar on right side.
Boom adjustment
Arm to right
Locking pin
Operator’s Manual – Park Ranger 2150 Hedge trimmer

14
Operator’s manual
Horizontal/vertical hedge trimming on the left side
1. Activate Lever B until the cutting bar reaches the
required position.
2. To trim at higher horizontal/vertical positions: Activate
Lever C to raise the cutting arm to the required height. Use
Lever B to reposition the cutting bar.
Tips!

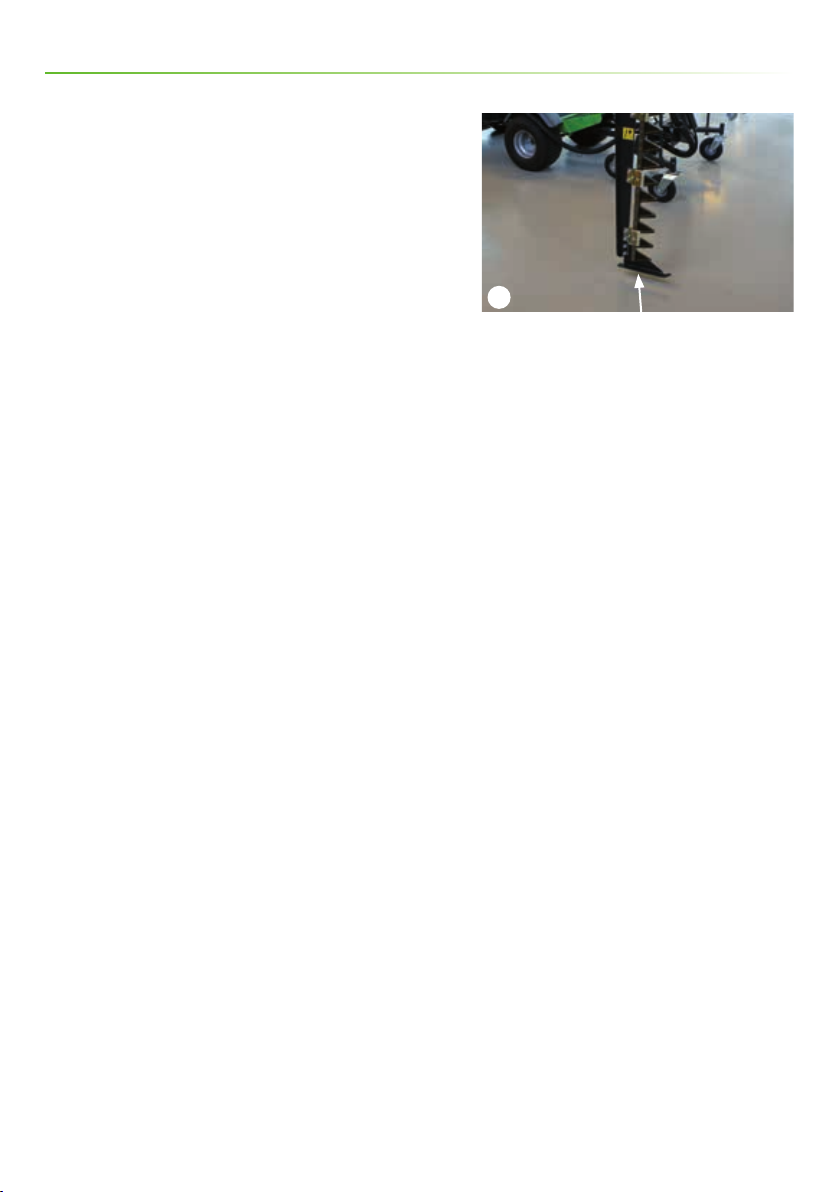

Trim hedges and bushes from below, i.e. with the cutting
bar turned with the outer part down, so that the skid just
touches the ground. Start trimming.
The cutting bar is then raised higher up the hedge, so
that the same section is trimmed all the way to the top.
(Picture 1)
Operating speed
Depending on the conditions, an operating speed of 1–3
km/h is recommended.
1
Skid
Operator’s Manual – Park Ranger 2150 Hedge trimmer

1
2
3
15
3.1 Cleaning
Daily cleaning and maintenance will extend the lifetime of
both the machine and the attachment.
Clean the hedge trimmer with water after use.
Avoid high-pressure cleaning of the snap couplings.
Wipe snap couplings clean with a cloth. (Picture 1)
3.2 Maintenance
Check all the bolts and tighten if required after a few
hours of operation, and once every season thereafter.
Lubricate blades and blade holders every two hours.
(Picture 2)
Lubricating nipples on all moveable parts must be re-lled
at least once every season. (Picture 3)
Defective blades must be replaced immediately. This
ensures eective trimming and reduces wear and tear on
the hedge trimmer.
Blade replacement must only be carried out by an
authorised Egholm dealer
Service and Maintenance
Cleaning the couplings
Lubricating blade
Lubricating nipples
Operator’s Manual – Park Ranger 2150 Hedge trimmer

16
4.1 Warranty
The warranty period for the materials and manufacture of the hedge trimmer is 12 months from
the date of purchase.
In case of errors or defects on the machine within the warranty period, Egholm will carry out the
necessary repairs at no charge for materials and working hours in accordance with the terms and
conditions listed below.
The scope of warranty:
1. The Egholm warranty is only valid on presentation of the original receipt supplied with model
description, serial number and date of purchase.
2. Regular checks, adjustments, services and technical alterations are not covered by the
warranty.
3. All inquiries concerning the warranty are to be addressed to the place where the machine was
purchased.
4. This warranty does not cover faults and defects which cannot be traced back to defects in
material or production errors.
5. This warranty is valid for persons who have legally acquired the machine within the warranty
period.
6. In the event of failure to perform and substantiate service in accordance with the applicable
instructions, Egholm reserves the right to reject any claim made within the warranty period.
7. Egholm reserves the right to make improvements and design-related alterations to the
machine without being obliged to modify previously delivered models in relation hereto.
The warranty does not cover:
Wear and tear, accidents, damage to the equipment caused by operating errors, changes to the
construction of the machine or use of non-Egholm spare parts or attachments.
Machines with illegible serial numbers.
Damage caused by force majeure, such as lightning, ood, re, war, civil disturbance, etc., or
other causes over which Egholm has no control.
Conditions
Operator’s Manual – Park Ranger 2150 Hedge trimmer

17
4.2 Complaints
All inquiries regarding the machine should be made at the distributor from whom the machine
was purchased. This applies to inquiries concerning normal use, service, maintenance and spare
parts as well as any complaints.
We wish you many years of safe and satised use of your machine.
Best regards,
Egholm A/S
4.3 Disposal
When – many years from now – your hedge trimmer comes to the end of its working life,
it should be disposed of in a responsible manner and conform with the relevant disposal
regulations.
1. Used hydraulic oil is to be disposed of at an approved waste disposal facility or site.
2. Remove the plastic and rubber parts and dispose of them in accordance with the applicable
environmental legislation.
3. After the parts mentioned have been removed, the machine is ready to be handed over to an
approved scrap merchant.
Conditions
Operator’s Manual – Park Ranger 2150 Hedge trimmer

18
Wearing parts
90601370 Complete blade set
90601410 Complete upper blade
90601420 Complete lower blade
90601030 Knife guide
5.1 Wearing Parts - Park Ranger 2150 hedge trimmer
90601060 Rivet
90601050 Blade tooth
90601100 Skid
01100330 Wheel
02901080 Lubricant spray
Operator’s Manual – Park Ranger 2150 Hedge trimmer

19
Notes
Operator’s Manual – Park Ranger 2150 Hedge trimmer

90203181-01 EN
Egholm A/S
Transportvej 27
DK-7620 Lemvig
T. [phone]
F. [phone]
www.egholm.eu
[email protected]
