EGO POWER+ TR4200 User manual

WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before
using this product. Save these instructions for future reference.
ELECTRIC LAWN TRACTOR
OPERATOR’S MANUAL
56-VOLT LITHIUM-ION
ELECTRIC LAWN TRACTOR
MODEL NUMBER TR4200/TR4200-FC
Español p. 159
Français p. 75

56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC2
READ ALL INSTRUCTIONS!
TABLE OF CONTENTS
Safety Symbols ...............................................................................3
Symbols ..................................................................................4-5
Safety Instructions for Electric Lawn Tractor ......................................................6-9
FCC Statement ...............................................................................9
Introduction ................................................................................10
Specications ...............................................................................10
Accessories ................................................................................11
Description ..............................................................................12-22
Assembly ...............................................................................23-33
Operation ...............................................................................34-50
Maintenance .............................................................................51-63
Troubleshooting ..........................................................................64-69
Tractor Status Indicator Reference ............................................................70-72
Fault Code Reference .........................................................................72
EGO Limited Warranty ......................................................................73-74
READ & UNDERSTAND
OPERATOR'S MANUAL

356-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations
with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any
danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.
WARNING: Be sure to read and understand all safety instructions in this Operator’s Manual, including all safety alert
symbols such as “DANGER,” “WARNING,” and “CAUTION” before using this machine. Failure to follow all instructions
listed below may result in electric shock, fire, and/or serious personal injury.
The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to
these symbols.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid possible injury or death.
DANGER: DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: WARNING indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION: CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if not avoided,
will result in minor or moderate injury.
DAMAGE PREVENTION AND INFORMATION MESSAGES
These inform the user of important information and/or instructions that could lead to equipment or other property damage
if they are not followed. Each message is preceded by the word “NOTICE”, as in the example below:
NOTICE: Equipment and/or property damage may result if these instructions are not followed.

56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC4
SYMBOLS
This page depicts and describes symbols that may appear on this product. Read, understand, and follow all instructions
on the machine before attempting to assemble and operate.
Safety Alert Precautions that involve your safety
Read & Understand
Operator’s Manual
To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection Always wear safety goggles or safety glasses with side shields
and a full face shield when operating this product.
Maintain Safety Devices Do not open or remove safety shields while the product is
running.
WARNING — Keep
Hands and Feet Away
To reduce the risk of injury, keep hands and feet away from
rotating parts. Do not operate unless discharge cover or grass
bag is in its proper place. If damaged, replace immediately.
DANGER — Keep
Bystanders Away Do not mow when children or others are around.
Never carry children Never carry children or anyone, even when the blades are off.
Look behind while
backing.
Always look down and behind you before and when maneuvering
in reverse or turning around. Make sure children, bystanders, and
pets are clear of the area.
DANGER — Steep slope
hazard
Use extra caution on slopes. Do not mow slopes greater than 15
degrees. Do not use on slopes near open water.
DANGER — Thrown
objects
Remove objects that can be thrown by the blade in any direction.
Wear safety glasses.
DANGER — Do not go
over the edge or into the
water
Stay at least two mowing widths (7 ft /2.13 m) away from any
ditches, drop-offs, or water to avoid accident going over the edge
or into the water.

556-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC
Recycle Symbols
This product uses lithium-ion (Li-ion) batteries. Local, state, or
federal laws may prohibit disposal of batteries in ordinary trash.
Consult your local waste authority for information regarding
available recycling and/or disposal options.
IPXX Ingress Protection (IP)
Rating
Classifies the degree of protection provided by an enclosure, for
electrical equipment.
V Volt Voltage
Direct Current Type or a characteristic of current
mm Millimeter Length or size
in. Inch Length or size
Ft-lb Foot-pound Torque
Nm Newton meter Torque
kg Kilogram Weight
lbs Pounds Weight
°C Degrees Celsius Temperature
°F Degrees Fahrenheit Temperature
MPH Miles per hour Speed
km/h Kilometers per hour Speed
RPM Revolutions per minute Rotational speed
PSI Pounds per square inch Intensity of pressure
kPa Kilopascal Intensity of pressure
NOTE: See the section “KNOW THE ICONS AND INDICATORS ON THE LCD SCREEN” for additional LCD symbols and
operating instructions.
WARNING: To ensure safety and reliability, please contact EGO customer service center and have all repairs
performed by a qualified service technician.

56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC6
SAFETY INSTRUCTIONS FOR ELECTRIC LAWN TRACTOR
DANGER: This machine is capable of amputating hands and feet and throwing objects. Failure to observe the
following safety instructions could result in serious injury or death.
GENERAL INFORMATION
◾Read, understand, and follow instructions and warnings in this manual and on the machine and attachments.
◾Only allow persons who are responsible, trained, familiar with the instructions, and physically capable to operate the
machine.
◾Do not carry passengers and keep bystanders away.
◾Do not operate the machine while under the influence of alcohol or drugs.
◾Follow the manufacturer’s recommendation for wheel weights or counterweights.
PREPARATION BEFORE OPERATING
◾Clear the operating area of any objects which could be thrown by or interfere with operation of the machine.
◾Keep the area of operation clear of all bystanders, particularly small children. Stop the machine and attachment(s) if
anyone enters the area.
◾Do not operate the machine without the entire grass catcher, discharge chute, or other safety devices in place and
functioning properly. Check frequently for signs of wear or deterioration and replace as needed.
◾Wear appropriate personal protective equipment such as safety glasses, hearing protection, and footwear.
OPERATION
◾Only operate the machine in daylight or good artificial light.
◾Avoid holes, ruts, bumps, rocks, or other hidden hazards. Uneven terrain could overturn the machine, or cause
operator to lose their balance or footing.
◾Do not put hands or feet near rotating parts or under the machine. Keep clear of the discharge opening at all times.
◾Do not direct discharge material toward anyone. Avoid discharging material against a wall or obstruction. Material
may ricochet back toward the operator. Stop the blade(s) when crossing gravel surfaces.
◾Do not leave a running machine unattended. Always park on level ground, disengage the attachment, set parking
brake, and stop the motor.
◾Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.
◾Avoid mowing wet grass. Mowing on wet surfaces can cause loss of control and the wheels to sink into the soft
lawn.
◾If situations occur that are not covered in this manual, use care and good judgment. Contact EGO Customer Service
Center for assistance.

756-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC
◾Use only with the battery packs and chargers listed below:
BATTERY PACK CHARGER (Charge battery packs
separately)
CHARGER
(Charge via charging port)
BA1400, BA1400-FC, BA2800, BA2800-FC,
BA4200, BA4200-FC, BA1400T, BA1400T-FC,
BA2242T, BA2242T-FC, BA2800T, BA2800T-FC,
BA3360T, BA3360T-FC, BA4200T, BA4200T-FC,
BA4480T, BA4480T-FC, BA5600T, BA5600T-FC,
BA6720T, BA6720T-FC
CH2100, CH2100-FC,
CH3200, CH3200-FC,
CH5500, CH5500-FC,
CH7000, CH7000-FC,
CH2800D, CH2800D-FC
CHV1600/CHV1600-FC,
CH5500/CH5500-FC/
CH7000/CH7000-FC +
ACA1000/ACA1000-FC
NOTE: In order to start this tractor, EGO batteries totaling 15Ah (2 x BA4200/BA4200T) or more are required. For best
performance, we recommend use of EGO batteries that total 30Ah or more.
CHILDREN SPECIFIC
◾Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the
machine and the mowing activity. Never assume that children will remain where you last saw them.
◾Keep children out of the operating area and under the watchful care of a responsible adult other than the operator.
◾Do not carry children, even with the blade(s) shut off. Children could fall off and be seriously injured or interfere with
safe machine operation. Children who have been given rides in the past could suddenly appear in the mowing area
for another ride and be run over or backed over by the machine.
SLOPE SPECIFIC
WARNING: Slopes are a major factor related to accidents. Operation on slopes requires extra caution.
◾Travel in the manufacturer recommended direction on slopes. Use caution while operating near drop-offs.
◾Do not operate machine under any condition where traction, steering, or stability is in question. Tires could slide even
if the wheels are stopped.
◾Always keep the machine in gear when going down slopes. Do not coast downhill.
◾Avoid starting and stopping on slopes. Avoid making sudden changes in speed or direction. Make turns slowly and
gradually.
◾Use extra care while operating machine with a grass catcher or other attachment(s). They can affect the stability of
the machine.
HAULING
◾Use full width ramps for loading and unloading a machine for transport.
TRANSPORT
◾The machine is heavy and can cause serious crushing injuries. Be extra cautious when it is loaded on or unloaded
from a vehicle or trailer.
◾Use full width ramps for loading machine into a trailer or truck.
◾Use an approved trailer to transport the machine. Engage the electric park brake by releasing the accelerator pedal
and with the parking-brake lock lever pulled up, fully depress the parking-brake pedal to engage the parking brake.
Fasten the machine down with approved devices such as bands, chains, or straps.

56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC8
◾Both front and rear tie down straps must be used and directed down and out from the machine.
DANGER: Use extreme caution when loading the machine into a truck or trailer using ramps. There is the possibility
of serious injury or death if the machine falls off the ramps.
WARNING: The parking-brake is not sufficient to lock the machine in place during transport. Ensure that the machine
is well fastened to the transport vehicle. Always reverse the machine onto the transport vehicle to avoid tipping it over.
◾Do not operate this machine on public roadways.
◾Check and abide by local traffic regulations before transporting the machine on roads.
◾Do not tow this machine, it may cause damage to the drive system.
◾Load the unit onto truck or trailer by driving up ramps of suitable strength using a slow speed. Do not lift! The
machine is not intended to be lifted by hand.
◾When loading or unloading this machine, do not use more than the maximum recommended operation angle of 15
degrees.
TOWING
◾Do not tow a cart that exceeds 600 lbs. (272 kg) total rolling weight. The weight of the cart and other
specifications are included in the owner’s manual supplied with your cart.
◾Attach towed cart only to the hitch. Risk of personal injury or property damage.
◾Never allow children or other persons in or on towed cart. Risk of personal injury.
◾Do not tow on inclines. The weight of the towed cart may cause loss of traction, loss of control and the ability to
stop when towing on inclined surface.
◾Always use extra caution when towing with your tractor. Make wide turns to avoid jack-knifing. Use care when
reversing.
◾Drive at slow speed and allow extra distance to stop.
◾Do not tow near ditches, canals, and other hazards. There is a risk of loss of traction or control.
◾Follow all the warnings and instructions provided by the cart manufacturer. Failure to follow all instructions
may result in personal injury or property damage.
◾Follow the manufacturer’s recommendation for weight limits for towed equipment and towing on slopes.
SERVICE
WARNING: Grass bag components, the side discharge chute, and mulching plug are subject to wear and damage,
which could expose moving parts or allow objects to be thrown and could increase the risk of injury. For safety protection,
frequently check all components and replace damaged components immediately with identical replacement parts, listed
in this manual.
◾Keep machine in good working order. Replace worn or damaged parts. Periodically check the motor and brakes.
◾Use caution when servicing blades. Wrap the blade(s) or wear gloves. Replace damaged blades. Do not repair or alter
blade(s).
◾Always stop the motor, remove the safety key, and remove or disconnect the battery packs before servicing,
cleaning, or removing material from the electric lawn tractor.
◾After striking a foreign object, stop the motor, remove the battery packs, allow the blade to stop rotating, and
thoroughly inspect the electric lawn tractor for any damage. Repair the damage before operating the electric lawn
tractor.

956-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC
◾Have your electric lawn tractor serviced by a qualified repair person using only identical replacement parts. This will
ensure that the safety of the electric lawn tractor is maintained.
◾Follow instructions for changing accessories.
◾Keep the electric lawn tractor free from accumulation of grease, dirt, and other possibly combustible materials.
◾Keep all nuts, bolts, and screws tight to be sure the electric lawn tractor is in safe working condition.
◾Never remove or tamper with safety devices. Regularly check their proper operation. Never do anything to interfere
with the intended function of a safety device or to reduce the protection provided by the safety device.
◾Maintain or replace safety and instruction labels, as necessary.
◾Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack
may create a risk of fire when used with another battery pack.
◾Do not charge electric lawn tractor in rain, or in wet locations.
◾Do not use battery-operated electric lawn tractor in rain.
◾Do not wash the electric lawn tractor with a hose; avoid getting water in the motor and electrical connections.
◾Store idle electric lawn tractor indoors – When not in use, electric lawn tractor should be stored in an indoor, dry, and
locked-up place and out of reach of children.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase
the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
SAVE THESE INSTRUCTIONS! Refer to them frequently and use them to instruct others who may use this product. If you
lend this product to someone else, also lend these instructions to them to prevent misuse of the product and possibly
injury.

56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC10
INTRODUCTION
Congratulations on your selection of a new generation of EGO 56V Lithium-Ion Electric Lawn Tractor. It has been designed,
engineered, and manufactured to give you the best possible dependability and performance.
Should you experience any problem you cannot easily remedy, please contact EGO customer service center
1-877-346-9876 (1-877-EGO-ZTRM).
This manual contains important information on to the safe assembly, operation, and maintenance of your product. Read it
carefully before using the product. Keep this manual handy so you can refer to it at any time.
SERIAL NUMBER_____________________________ DATE OF PURCHASE_____________________________
YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP IN A SAFE PLACE FOR FUTURE
REFERENCE. SAVE YOUR SALES RECEIPT.
SPECIFICATIONS
Voltage 56 V
Deck Size 42 in (1067 mm)
Wheel Size Front 15 x 6 – 6 in
Rear 20 x 10 – 8 in
Cold Tire Pressure Front 14 PSI (96.5 kPa)
Rear 22 PSI (151.7 kPa)
Blade Speed (RPM) up to 3000
Maximum Driving Speed Forward up to 6 MPH (9.6 km/h)
Reverse up to 3 MPH (4.8 km/h)
Cutting-Height Adjustment (12 positions) 1.5 – 4.5 in (38.1 – 114.3 mm)
Maximum Towing Weight (total tolling weight) 600 lbs (272 kg)
Ingress Protection Rating IPX4* (Protection from splashing water)
Recommended Charging Temperature 41°F – 104°F (5°C – 40°C)
Recommended Operating Temperature 32°F – 104°F (0°C – 40°C)
Recommended Storage Temperature -4°F – 158°F (-20°C – 70°C)
Weight (without battery pack) 401 lbs (182 kg)
* NOTE: IPX4 rating is based on the machine and battery being used together as a system.

1156-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC
ACCESSORIES
WARNING: Use only accessories listed below. Use of accessories that do not meet the original equipment
specifications may lead to improper performance and compromised safety.
PART NAME MODEL NUMBER
Blade Set AB4200D
Bagging Blade Set AB4201D
Mulching Plug AMP4200
Cargo Box* AMG1000
Sun Shade* AMS1000
Bagger Kit* ABK4200T
* NOTE:: Cargo box, sun shade or bagger kit should be installed onto the tractor with the attachment rack.

56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC12
DESCRIPTION

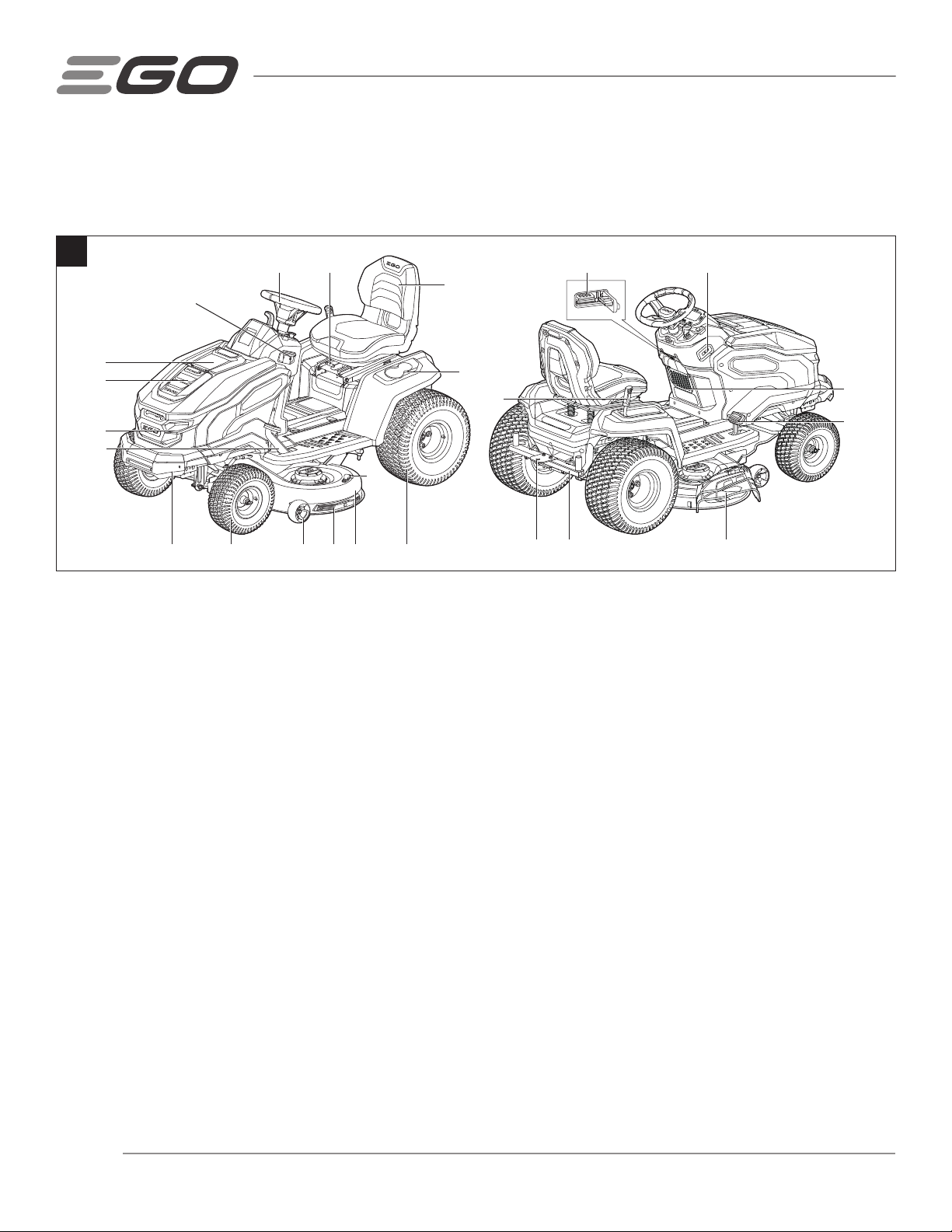

KNOW THE ELECTRIC LAWN TRACTOR (Fig. 1)
1
1
2
356789
11
10
12
13
14
15 16 1718
19
20
212422
23
4
1. Seat 13. Storage Compartment
2. Cup Holders 14. Parking-Brake Lock Lever
3. Rear Wheel (Drive Wheel) (x2) 15. Steering Wheel (Fig. 1a)
4. Wash Port 16. Seat Position Adjustment Lever
5. Deck 17. Charging Port
6. Deck Protector 18. USB Port
7. Anti-Scalp Wheel (x2) 19. Storage Basket
8. Front Wheel (x2) 20. Accelerator Pedal
9. Front Bumper 21. Side Discharge Chute
10. Parking-Brake Pedal 22. Hitch
11. LED Headlight (x2) 23. Deck-Height Adjustment Lever
12. Power Unit (Fig. 1b) 24. Attachment Rack
(for installing the cargo box, sun shade or bagger kit)

1356-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC

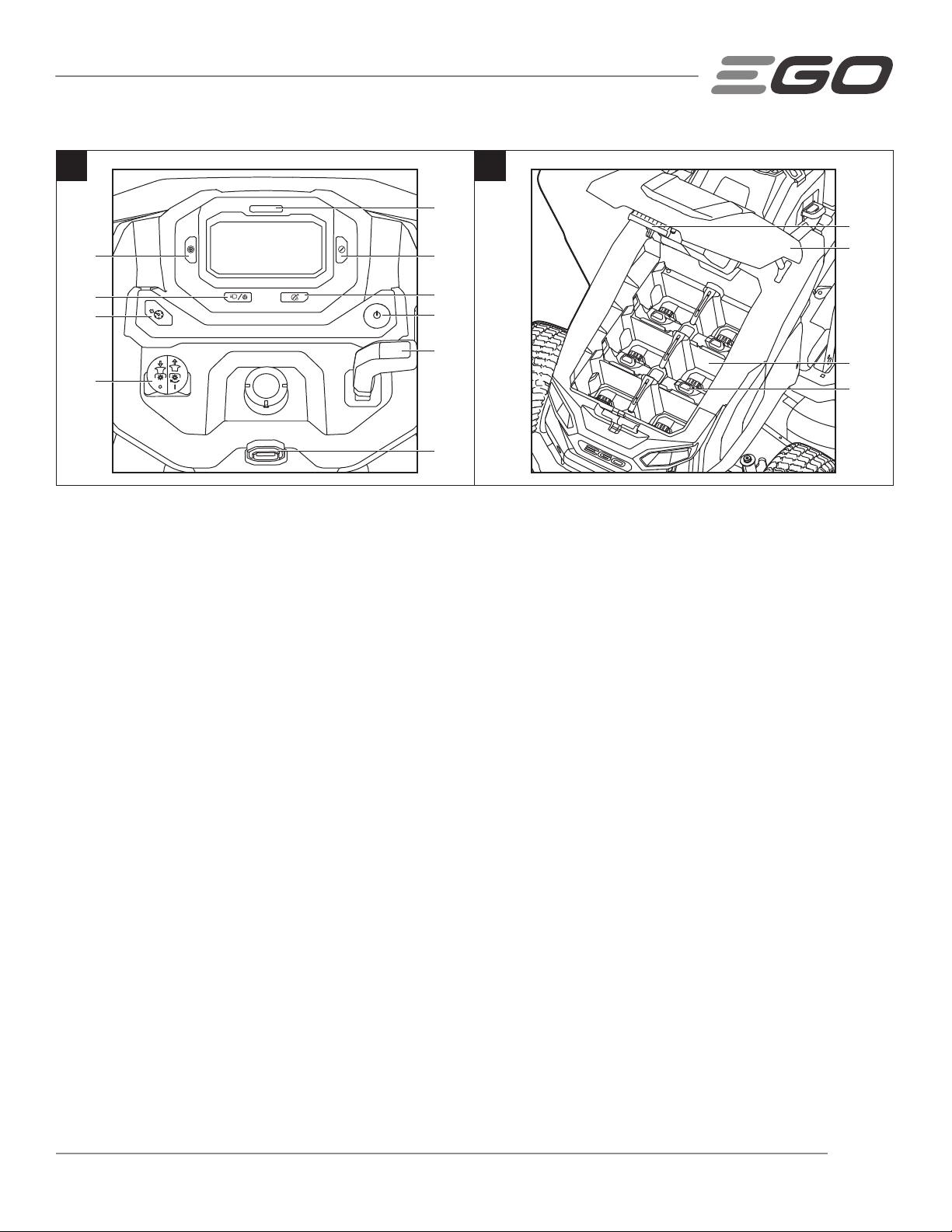

1a 1b
37
36
29
28
27
30
26
25
34
33
32
31
35
38
25. Tractor Status Indicator 32. CCS Button
26. Blade Speed Adjustment Button 33. LED Light Button / Bluetooth Button
27. MOWING IN REVERSE Button 34. Driving Speed Adjustment Button
28. Start/Stop Button 35. Power-Unit Cover Release Button
29. Direction Control Lever 36. Power-Unit Cover
30. Safety Key 37. Power unit with six battery compartments
31. PTO Switch 38. Battery-Release Button

56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC14
WARNING: The safe use of this product requires an understanding of the information on the product and in this
instruction manual, as well as knowledge of the project you are attempting. Before use of this product, familiarize yourself
with all operating features and safety rules.
Safety Key
The safety key must be inserted before the start/stop button is pressed to start the tractor.
Parking-Brake Lock Lever
Pull the parking-brake lock lever up while fully depressing the parking-brake pedal to lock the tractor in the parked
position.
Parking-Brake Pedal
◾Pull the parking-brake lock lever up while fully depressing the parking-brake pedal to lock the tractor in the parking-
brake position.
◾Fully depress the parking-brake pedal again to release the tractor from the parking-brake position and the parking-
brake lock lever will drop down automatically.
◾The parking-brake pedal must be fully depressed or engaged in parking-brake position before the start/stop button
is pressed to start the tractor.
◾Before driving the tractor, fully depress the parking-brake pedal to make the tractor status indicator shine green,
which means the tractor is ready for driving.
WARNING: THE PARKING-BRAKE PEDAL CANNOT SLOW DOWN THE DRIVING SPEED. NEVER TRY TO DEPRESS
THE PARKING-BRAKE PEDAL TO SLOW DOWN THE DRIVING SPEED DURING DRIVING. WHEN THE PARKING-BRAKE
PEDAL IS DEPRESSED BUT IS NOT ENGAGED IN THE PARKING-BRAKE POSITION, THE ELECTRIC BRAKE IS NO LONGER
EFFECTIVE AND THE TRACTOR WILL STOP MOVING ON A FLAT SURFACE. BUT IF THIS HAPPENS ON A SLOPE, THE
TRACTOR MAY SLIDE DOWN THE SLOPE ONCE THE PARKING-BRAKE PEDAL IS RELEASED.
WARNING: PULL UP THE PARKING-BRAKE LOCK LEVER AND DEPRESS THE PARKING-BRAKE PEDAL IMMEDIATELY
TO ENGAGE IT IN THE PARKING-BRAKE POSITION IN CASE ANY EMERGENCY OCCURS, THE TRACTOR WILL STOP
IMMEDIATELY AND WILL NOT SLIDE DOWN THE SLOPE.
Start/Stop Button
◾Press the start/stop button briefly, then the LCD screen will display the “fuel
gauge”.
◾With the safety key inserted, fully depress the parking-brake pedal and
simultaneously press the start/stop button for 3 seconds to start the tractor,
then the LCD screen will display operator interface.
◾Press the start/stop button again for 3 seconds, then the LCD screen will turn
off.
Fuel Gauge

1556-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC
Direction Control Lever
◾Push the lever all the way forward in the “D” direction to drive the tractor forward.
◾Pull the lever all the way backward in the “R” direction to drive the tractor in reverse.
◾Place the lever in the neutral position and the tractor could not be driven.
NOTE: When switching between forward and reverse during driving, move the direction control lever directly from one
end to the other without stopping in the neutral position, otherwise the tractor may stop moving.
NOTICE: Always place the lever in the neutral position when the tractor stops driving, which could prevent unexpected
start if the accelerator pedal is depressed accidentally.
PTO Switch (Pull-to-Operate Switch)
Turns on the blades (blade motors).
NOTICE: It is not recommended to turn on the blade motors when the blades are under heavy load. Raise
the deck and restart the blade motors.
Steering Wheel
Controls the tractor’s driving direction.
Accelerator Pedal
Starts/Stops driving the tractor and controls the driving speed of the tractor.
Seat Position Adjustment Lever
Use this lever to move the high-cushion seat back and forth to the desired position.
Deck-Height Adjustment Lever
The deck-height adjustment lever raises and lowers the cutting deck.
Anti-Scalp Wheel
Prevents the deck from contacting the ground and scalping the lawn when passing over a high spot.
Side-Discharge Chute
Allows the blade to discharge the grass clippings from the side discharge opening. The side-discharge chute is factory
installed.
Hitch
For towing carts or other wheeled attachments. Refer to “TOWING” chapter earlier in this manual.
LED Headlights
Provide light for mowing in low light conditions and allow the tractor to be seen.
Cup Holders, Storage Compartment and Storage Basket
Allow operator to store cups and other personal items.
Charging Port
When used with CHV1600/CHV1600-FC or CH5500/CH5500-FC/CH7000/CH7000-FC + ACA1000/ACA1000-FC charger,
you can directly charge the batteries mounted in the battery compartment.
PTO
ONOFF

56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC16
USB Port
The USB port provides charging power of 5 Volts DC at up a combined draw of 1.5 Amperes for your cell phone, MP3
player, or other USB devices. Consult the owner’s manual for your device for specific charging requirements.
NOTICE:
◾Attempting to charge devices whose combined draws exceed 1.5 amps could damage the USB port and/or the
tractor.
◾The USB port could not be powered when the tractor is in charging mode.
◾Close the USB port cover when it is not used to protect the USB port from water, moisture, or dust.
SMART FEATURES
Driving Speed Adjustment Button
Allows the operator to select a comfortable driving speed. For more information refer to section “CUSTOMIZING YOUR
MOWING AND DRIVING SETTINGS”.
Blade Speed Adjustment Button
Allows the operator to customize the blade speed, depending on grass conditions. For more information refer to section
“CUSTOMIZING YOUR MOWING AND DRIVING SETTINGS”.
MOWING IN REVERSE Button
Allows to turn on/off the blades when the tractor moves in reverse. For more information refer to section “TURNING
BLADES ON WHILE DRIVING IN REVERSE”.
LED Light Button / Bluetooth Button
◾Briefly press the button to turn the headlights on or off.
◾Press and hold the button to connect your mobile device to the tractor via Bluetooth. For more information refer to
section “USING EGO CONNECT APP WITH YOUR TRACTOR”.
CCS Button
To enter and exit CCS (Cruise Control System) while driving forward.
Tractor Status Indicator
◾The green tractor status indicator light means the tractor is ready to be driven.
◾The flashing orange tractor status indicator light means that the tractor firmware is being updated.
◾Otherwise, the tractor status indicator may indicate a particular fault – refer to the sections “TRACTOR STATUS
INDICATOR REFERENCE” and “FAULT CODE REFERENCE” for more information.
PEAK POWER™
This technology combines the power of up to six EGO 56V ARC Lithium™ batteries to deliver the power and performance
of a gas tractor.

1756-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC
EGO Connect App and Firmware
Unlike the gas-powered tractors, your EGO electric lawn tractor uses a state-of-the-art on-board computer to monitor
every element of the machine and make sure that the tractor is running smoothly. EGO engineers periodically release
updates to tractor’s Firmware – an operating system running the on-board computer. In a lot of cases the performance
of a certain element of the tractor can be improved by changing the code in the firmware without replacing the physical
parts or having to visit a service station.
To assure that your tractor is in top shape, install the EGO Connect app on your smartphone or tablet and periodically
check for available firmware updates. EGO Connect app can be downloaded for free from Apple App Store or Google Play.
For information on how to pair your tractor with your smartphone or tablet, please refer to chapter “USING EGO CONNECT
APP WITH YOUR TRACTOR”.
Slope Assist
This feature helps the operator to safely start and drive the tractor on a slope.
◾When the tractor stops driving on a slope, the accelerator pedal is released, and the operator is off the seat without
setting the parking-brake pedal at the parking-brake position. The tractor will automatically stop on the slope using
the battery charge to power the electric brake, meanwhile the audio indicator will emit intermittent beeps. The audio
indicator will no longer sound as soon as the parking-brake pedal is set in parking-brake position.
WARNING: Always set the parking-brake pedal at parking-brake position when the tractor stops driving on
a slope, otherwise, the tractor may slide down the slope, which may cause serious tractor damage or personal
injury!
◾When restarting driving on a slope, disengage the parking-brake pedal and depress the accelerator pedal
immediately. Otherwise, when the parking-brake pedal is released but the accelerator pedal is not depressed, the
tractor may slide down the slope and the audio indicator will not beep.
Limp-Home Mode
When battery charge becomes critically low, the tractor will go into Limp-Home mode to preserve enough power to travel
back to the charging area.
◾The blades switch into low rotation speed, which could only cut very little amount of grass. Upon encountering tall
and dense grass, the blades will stop rotating. The audio indicator will sound (beep) intermittently.
◾The tractor status indicator will flash red every second, both the alert icon (low-power) and the icon of each occupied
battery compartment will blink.
The operator should:
◾Push the PTO switch downward to turn off the blade motors. The audio indicator will stop sounding when the blade
motors stop.
◾Stop working and get to the charging area as soon as possible. The maximum distance the tractor can travel is
0.6 mile (0.96 km).
When the battery is nearly depleted, both the alert icon (low-power) and the icon of each occupied battery compartment
will blink every half a second. The tractor will stop working immediately. The operator will have to transport the tractor to
the charging area for charging.
NOTICE: If manual pushing is needed, be sure that the batteries are disconnected from the tractor and the parking-brake
pedal is released from the parking-brake position.

56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC18
Safety Start Interlock System
The tractor is equipped with a safety start interlock system consisting of the safety key, start/stop button, the parking-
brake pedal, direction control lever, accelerator pedal, seat switch, and charging-port.
The safety start interlock system is designed to protect the operator and others from accidental injury due to unintentional
tractor starting.
WARNING: Check the tractor safety start interlock system prior to operation. This system is an important tractor
safety feature. It should be repaired immediately if it malfunctions: call EGO customer service center immediately.
WARNING: The safety start interlock system must not be disconnected or bypassed. Doing so could cause the tractor
to operate unexpectedly, resulting in personal injury.
Audio Indicator (Beeps)
The EGO electric lawn tractor is equipped with an audio indicator that will beep in certain situations. It will sound when:
◾The tractor starts normally and the LCD screen is illuminated with all icons and indicators. The beep will sound once.
◾The tractor is turned off normally. The beep will sound once.
◾When starting to drive in reverse or switching the driving direction from forward to reverse while driving, the beep
will sound six times.
◾When the available battery charge is critically low, the tractor will go into Limp-Home mode, the beeps will continue
to sound intermittently until the PTO switch is pressed downward.
◾When the tractor is overloaded or overheated, the beep will sound once.
◾When any faults are displayed on the LCD screen, the beep will sound once.
◾If the tractor stops driving on a slope and the operator is off the seat without setting the parking brake, the beeps will
sound continuously to remind the operator to set the parking brake for safety.
◾When entering or exiting the CCS (Cruise Control System), the beep will sound twice.

1956-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC
KNOW THE ICONS AND INDICATORS ON THE LCD SCREEN (Fig. 2)
2
10
9
18
17
16
654321
15 14 13 12 11
7 8
1. CCS Icon 10. Hour Meter
2. Safety-Device Status Indicator 11. Fuel Gauge
3. MOWING IN REVERSE OFF Icon 12. Temperature Icon
4. Drive Icon 13. Alert Icon (Overload/Low-Power)
5. Reverse Icon 14. Vacant Battery Compartment Icon
6. Safety Key Icon 15. Occupied Battery Compartment Icon
7. LED Lights Icon 16. Fault Code Indicator
8. Bluetooth Icon 17. Load Indicator
9. Blade Speed Indicator 18. Driving Speed Indicator

56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC20
CCS (Cruise Control System) Icon
Illuminates when the tractor continues forward at a set speed without needing to step on the accelerator pedal.
Safety-Device Status Indicator
Flashes to instruct the operator to reset the PTO switch.
◾Illuminates when the parking-brake pedal is engaged in parking-brake position.
◾When the LCD screen only displays the “fuel gauge”, the icon blinks as a reminder for the operator to
depress the parking-brake pedal to turn on the tractor.
◾When the LCD screen is fully illuminated, the icon blinks as a reminder for the operator to depress
the parking-brake pedal to make the tractor status indicator show solid green before depressing the
accelerator pedal to drive the tractor.
Illuminates when the operator is off the seat.
Drive Icon
Illuminates when the direction control lever is pushed forward in the “D” direction for driving forward.
Reverse Icon
Illuminates when the direction control lever is pulled backward in the “R” direction for driving in reverse.
NOTE: When the direction control lever is placed in the neutral position, the drive icon and reverse icon will blink
alternately.
MOWING IN REVERSE OFF Icon
Illuminates to indicate the blade motors could not be turned on when the tractor moves in reverse.
Safety Key Icon
◾Illuminates when the safety key is correctly inserted.
◾Blinks as a reminder for the operator to insert the safety key when the LCD screen displays only the “fuel gauge”.
LED Lights Icon
Illuminates when the LED headlights have been turned on.
Bluetooth®Icon
Illuminates when the tractor is connected to a mobile device via Bluetooth.
The Bluetooth®word mark and logos are registered trademarks owned by Bluetooth SIG, inc. and any use of such marks
by EGO is under license.
