OPERATOR’S MANUAL
56 VOLT LITHIUM-ION
CORDLESS MOWER
MODEL NUMBER LM2100E/LM2100E-SP

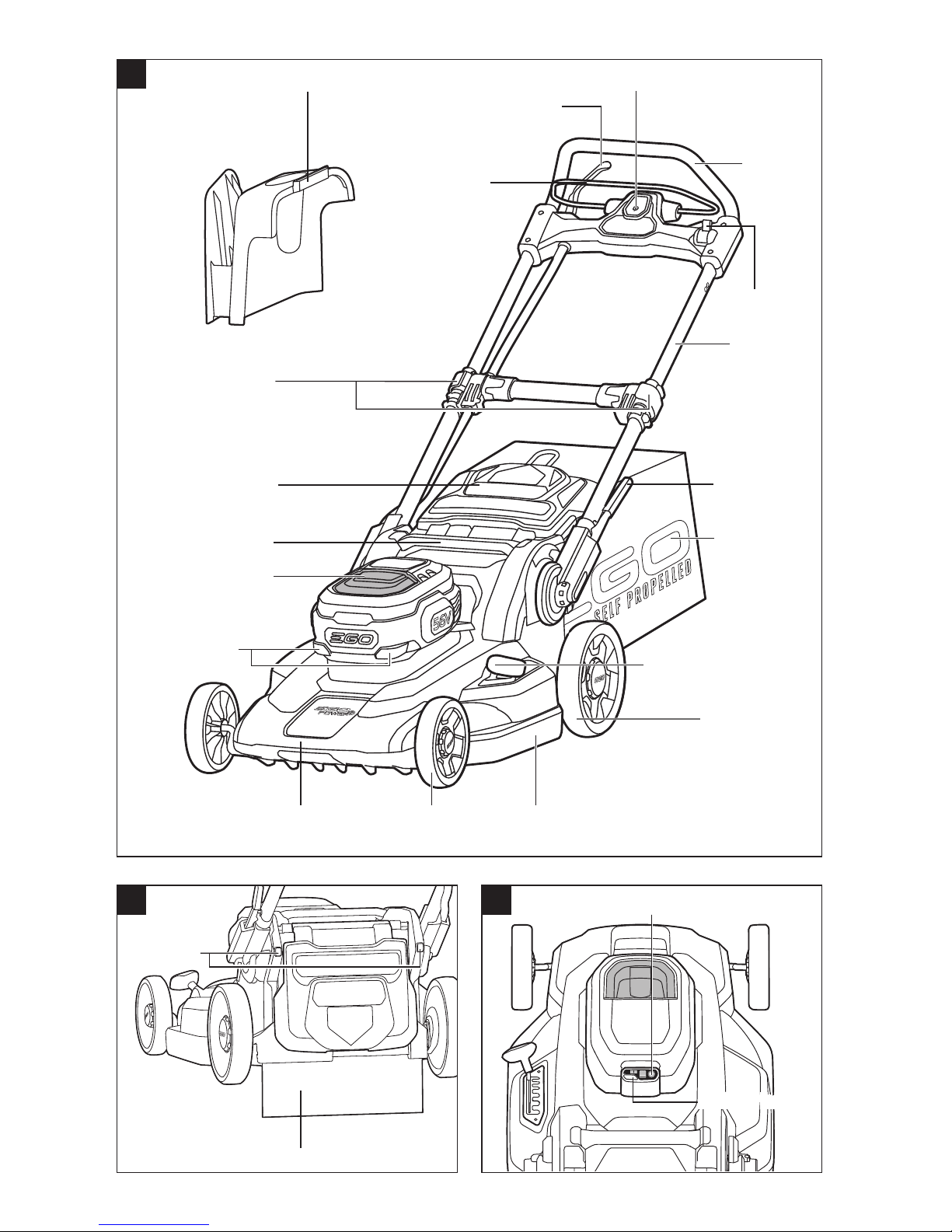

2. Self-propel Trigger
1. Safety Button
19. Mulching Insert
15. Side Rail
16. Self-propel
Speed-control Lever
17. Bail Switch
(Switch Lever)
18. Handle
14. Quick-adjust
Lever
13. Grass Bag
10. Cutting-height
Adjustment Lever
11. Mower Deck
12. Rear Wheel
9. Front Wheel8. Front Handle
7. LED Headlights
6. Battery-pack Cover
5. Rear Handle
4. Rear Discharge Door
3. Handle-locking Clamp
A
B
20. Support
for Upright
Storage
21. Trailing Shield
C22. Switch Button for LED Headlights
23. Power Indicator
1. Safety Button
2. Self-propel Trigger
3. Handle-locking Clamp
4. Rear Discharge Door
5. Rear Handle
6. Battery-pack Cover
7. LED Headlights
8. Front Handle
9. Front Wheel
10. Cutting-height Adjustment Lever
11. Mower Deck
12. Rear Wheel
13. Grass Bag
14. Quick-adjust Lever
15. Side Rail
16. Self-propel Speed-control Lever
17. Bail Switch (Switch Lever)
18. Handle
19. Mulching Insert
20. Support for Upright Storage
21. Trailing Shield
22. Switch Button for LED Headlights
23. Power Indicator

1
2
D
F
J
E
GQuick-adjust Lever
H I
2
1
K
Locked storage
position
Lower operating
position
Grass bag attach-
ment/removal position
Middle operating
position
Upper operating position

2 31
L
N
P
R
M
O
Q
1
2
1
2
S
Safety Key
Safety Key Slot
Battery-release
Button

THIS SIDE FACING GRASS
W
THIS SIDE FACING GRASS
T
THIS SIDE FACING GRASS
X Y
THIS SIDE FACING GRASS
U
THIS SIDE FACING GRASS
V
Stabilizer 1
Stabilizer 2
14mm Wrench
Fan
Inner Flange
Blade
Bolt
Outer Flange

56 VOLT LITHIUM-ION CORDLESS MOWER — LM2100E/LM2100E-SP6
EN
READ ALL INSTRUCTIONS!
READ & UNDERSTAND
INSTRUCTION MANUAL
Residual risk! People with electronic devices, such
as pacemakers, should consult their physician(s) before
using this product. Operation of electrical equipment
in close proximity to a heart pacemaker could cause
interference or failure of the pacemaker.
WARNING: To ensure safety and reliability, all
repairs and replacements should be performed by a
qualied service technician.
Intended use & Foreseeable misuse: The product
is intended for mowing grass in domestic gardens only.
It must not be used to mow unusually high, dry or wet
grass, e.g. pasture grass; or to shred leaves. The product
is to be used only for its prescribed purpose. Any other
use is deemed to be a case of misuse.
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols and the explanations
with them deserve your careful attention and understand-
ing. The symbol warnings do not, by themselves, eliminate
any danger. The instructions and warnings they give are no
substitutes for proper accident prevention measures.
WARNING: Be sure to read and understand all
safety instructions in this Operator’s Manual, including
all safety alert symbols such as “DANGER,” “WARNING,”
and “CAUTION” before using this tool. Failure to follow all
instructions listed below may result in electric shock, re,
and/or serious personal injury.

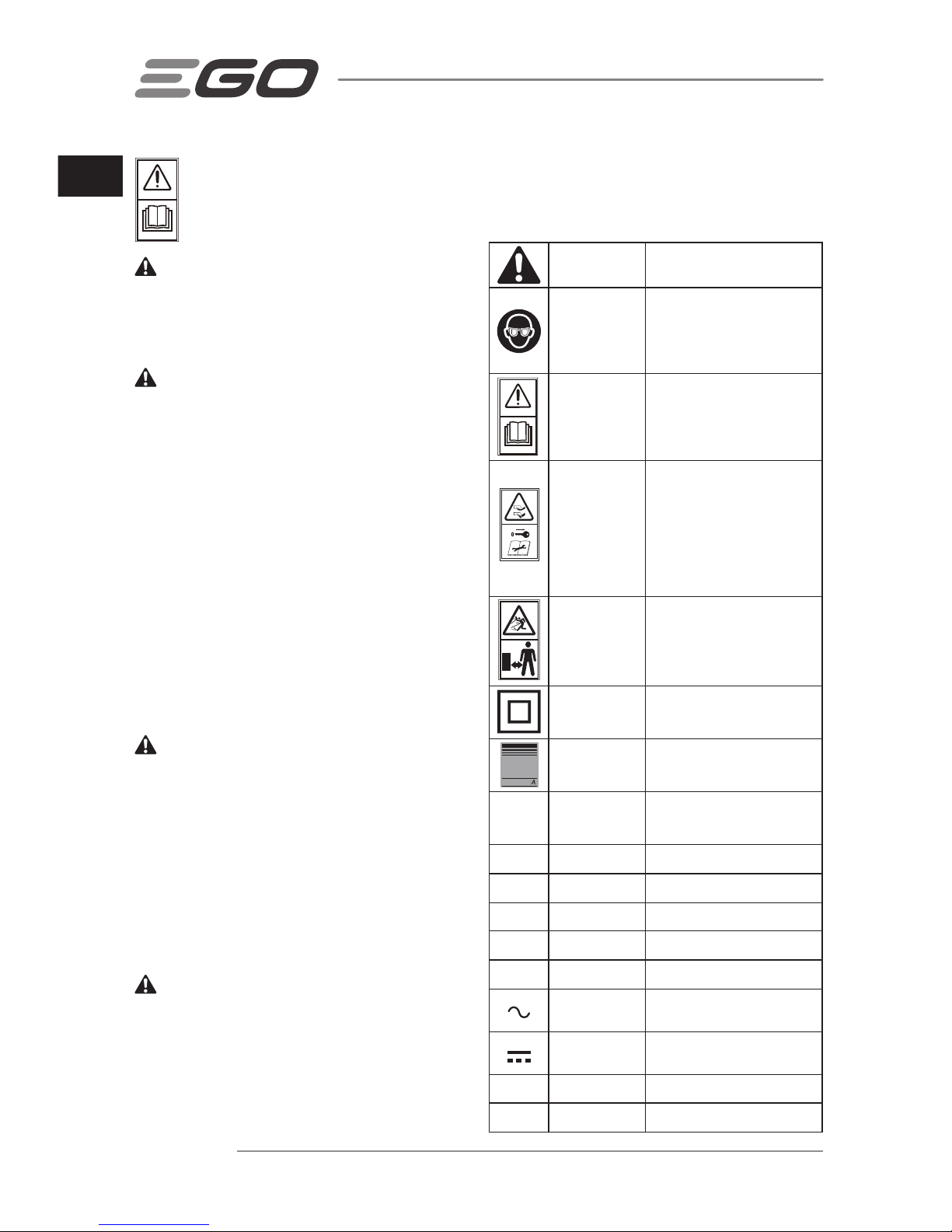

SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER,
WARNING, or CAUTION. May be used in conjunction with
other symbols or pictographs.
WARNING: The operation of any power tools can
result in foreign objects being thrown into your eyes,
which can result in severe eye damage. Before beginning
power tool operation, always wear safety goggles or safety
glasses with side shields and a full face shield when
needed. We recommend a Wide Vision Safety Mask for
use over eyeglasses or standard safety glasses with side
shields.
SAFETY INSTRUCTIONS
This page depicts and describes safety symbols that may
appear on this product. Read, understand, and follow
all instructions on the machine before attempting to
assemble and operate.
Safety Alert Precautions that involve your
safety.
Wear Eye
Protection
Always wear safety goggles
or safety glasses with side
shields and a full face shield
when operating this product.
WARNING:
Read Opera-
tor’s Manual
To reduce the risk of injury,
user must read and under-
stand operator’s manual
before using this product.
Beware of
Sharp Blades.
Blades continue to rotate after
the motor is switched off – Re-
move disabling device before
maintenance. Switch off and
remove detachable battery
pack(or disabling device)
before adjusting or cleaning.
Keep Bystand-
ers Away
Ensure that other people and
pets remain at least 30m
away from the mower when
it is in use.
Class II
Construction
Double-insulated
Construction.
64
NOISE dB
Noise Guaranteed sound power
level.
IPX4 IP Symbol Protection against ingress of
water degree 4
V Volt Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
WWatt Power
min Minutes Time
Alternating
Current Type of current
Direct Current Type or a characteristic of
current
n0No Load Speed Rotational speed, at no load
... /min Per Minute Revolutions per minute

56 VOLT LITHIUM-ION CORDLESS MOWER — LM2100E/LM2100E-SP 7
EN
SAFETY RULES FOR CORDLESS LAWN
MOWER
DANGER: This machine was built to be operated
according to the rules for safe operation included in
this manual. As with any type of power equipment,
carelessness or error on the part of the operator can
result in serious injury. This machine is capable of injuring
hands and feet and throwing objects. Failure to observe
all safety instructions could result in serious injury or
death.
WARNING: When using cordless lawn mowers,
basic safety precautions should always be followed to
reduce the risk of re, electric shock, and personal injury.
IMPORTANT
READ CAREFULLY BEFORE USE. KEEP FOR FUTURE
REFERENCE.
SAFETY RULES FOR CORDLESS LAWNMOWERS:
CAUTION-DO NOT TOUCH ROTATING BLADE!
TRAINING
◾Read the instructions carefully. Be familiar with the
controls and the proper use of the appliance.
◾Never allow children or people unfamiliar with these
instructions to use the appliance. Local regulations
may restrict the age of the operator.
◾Never mow while people, especially children, or pets
are nearby.
◾The operator or user is responsible for accidents or
hazards occurring to other people or their property.
PREPARATION
◾While mowing, always wear substantial footwear and
long trousers.
◾Do not operate the appliance when barefoot or wearing
open sandals. Avoid wearing clothing that is loose
tting or that has hanging cords or ties.
◾Thoroughly inspect the area where the appliance is to
be used and remove all stones, sticks, wires, bones,
and other foreign objects.
◾Before using, always visually inspect to see that the
blades, blade bolts and cutter assembly are not worn
or damaged. Replace worn or damaged blades and
bolts in sets to preserve balance. Replace damaged or
unreadable labels.
OPERATION
◾Mow only in daylight or in good articial light.
◾Avoid operating the appliance in wet grass, where
feasible.
◾Always be sure of your footing on slopes.
◾Walk, never run.
◾For wheeled rotary mowers, mow across the face of
slopes, never up and down.
◾Exercise extreme caution when changing direction on
slopes.
◾Do not mow excessively steep slopes.
◾Use extreme caution when reversing or pulling the
appliance towards you.
◾Stop the blade(s) if the appliance has to be tilted for
transportation when crossing surfaces other than
grass, and when transporting the appliance to and
from the area to be mowed.
◾Never operate the appliance with defective guards
or shields, or without safety devices, for example
deectors and/or grass catchers, in place.
◾Switch on the motor according to instructions and with
feet well away from the blade(s).
◾Do not tilt the appliance when switching on the motor,
except if the appliance has to be tilted for starting. In
this case, do not tilt it more than absolutely necessary
and lift only the part which is away from the operator.
Always ensure that both hands are in the operating
position before returning the appliance to the ground.
◾Do not start the machine when standing in front of the
discharge opening.
◾Do not put hands or feet near or under rotating parts. For
rotary mowers, keep clear of the discharge opening at
all times.
◾Never pick up or carry an appliance while the motor
is running.
◾Switch off and remove detachable battery pack (or
disabling device) and make sure that all moving parts
have come to a complete stop before adjusting or
cleaning:
◾Whenever you leave the machine;
◾Before clearing a blockage and unclogging chute;
◾Before checking, cleaning or working on the
appliance;
◾After striking a foreign object. Inspect the appliance
for damage and make repairs as necessary.
◾If the appliance starts to vibrate abnormally (check
immediately):
◾Inspect for damage;
◾Replace or repair any damaged parts;
◾Check for the tighten any loose parts.

56 VOLT LITHIUM-ION CORDLESS MOWER — LM2100E/LM2100E-SP8
EN
MAINTENANCE AND STORAGE
◾Be careful during adjustment of the machine to prevent
entrapment of the ngers between moving blades and
xed parts of the appliance.
◾Keep all nuts, bolts, and screws tight to be sure the
appliance is in safe working condition.
◾Check the grass catcher frequently for wear or
deterioration.
◾Replace worn or damaged parts for safety.
◾When servicing the blades be aware that, even though the
power source is switched off, the blades can still be moved.
◾For rotary mowers, ensure that only replacement
cutting means of the right type are used.
PERSONAL SAFETY
Tragic accidents can occur if operator is not alert to the
presence of children. Children are often attracted to the
mower and mowing activity. They do not understand the
dangers. Never assume that children will remain where
you last saw them.
◾Keep children out of the mowing area and under the
watchful care of a responsible adult other than the
operator.
◾Be alert and turn the mower off if a child enters the area.
◾Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may
obscure your vision of a child who may run into the
mower.
◾Children should be supervised to ensure that they are
not playing with the mower.
◾Always turn the mower off when removing the battery
pack from the tool. Stop the blade(s) if the appliance
has to be tilted for transportation when crossing
surfaces other than grass, and when transporting the
appliance to and from the area to be mowed.
OPERATION
GENERAL OPERATION:
◾Read this operator’s manual carefully in its entirety before
attempting to assemble this machine. Read, understand,
and follow all instructions on the machine and in the
manuals before operation. Be completely familiar with the
controls and proper use of this machine before operating
it. Keep this manual in a safe place for future and regular
reference and for ordering replacement parts.
◾Use the right appliance – Do not use the lawn mower
for any job except that for which it is intended.
◾Don’t overreach – Keep proper footing and balance at
all times.
◾Objects struck by the lawn mower blade can cause
severe injuries to persons. The lawn should always be
carefully examined and cleared of all objects prior to
each mowing.
◾Before and while moving backwards, look behind and
down for small children and other people.
◾This machine is not a plaything. Therefore, exercise
extreme caution at all times. Your unit has been
designed to perform one job: to mow grass. Do not use
it for any other purpose.
◾Don’t force the lawn mower – it will do the job better
and more safely at the rate for which it was designed.
◾Before using, always visually inspect to see that the
blades, blade bolts and cutter assembly are not worn
or damaged. Replace worn or damaged blades and
bolts and any other components at the same time to
preserve balance. Replace damaged or unreadable
labels.
◾Use extreme caution when reversing or pulling the
appliance towards you.
◾Thoroughly inspect the area where the equipment is to
be used. Remove all stones, sticks, wire, toys and other
foreign objects that could be tripped over or picked up
and thrown by the blade. Thrown objects can cause
serious personal injury. Plan your mowing pattern to
avoid discharge of material toward roads, sidewalks,
bystanders and the like. Also, avoid discharging
material against walls or obstructions, which may
cause discharged material to ricochet back toward the
operator.
◾To help avoid blade contact or an injury from thrown
objects, stay in the operator zone behind the handles
and keep children, bystanders, helpers and pets at
least 30m from the mower while it is in operation. Stop
the machine if anyone enters the area.
◾Always wear safety glasses or safety goggles during
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects that ricochet can
cause serious injury to the eyes. Always use a face or
dust mask if the operation is dusty.
◾Dress properly – Do not wear loose clothing or jewelry.
They can be caught in moving parts. Use of rubber
gloves and footwear is recommended when working
outdoors. Wear sturdy, rough-soled work shoes and
close-tting trousers and shirts. Shirts and trousers
that cover the arms and legs and steel-toed shoes are
recommended. Never operate this machine in bare
feet, sandals, slippery or lightweight (e.g., canvas)
shoes.
◾Do not put hands or feet near rotating parts or under the
cutting deck. Contact with the blade can injure hands
and feet.

56 VOLT LITHIUM-ION CORDLESS MOWER — LM2100E/LM2100E-SP 9
EN
◾A missing or damaged discharge cover can cause
blade contact or injuries from thrown objects.
◾Many injuries occur as a result of the mower being
pulled over the foot during a fall caused by slipping or
tripping. Do not hold onto the mower if you are falling;
release the handle immediately.
◾Never pull the mower back toward you while you are
walking. If you must back the mower away from a
wall or obstruction rst look down and behind to avoid
tripping and then following these steps:
◾Step back from mower to fully extend your arms.
◾Be sure you are well balanced with sure footing.
◾Pull the mower back slowly, no more than half way
toward you.
◾Repeat these steps as needed.
◾Do not operate the mower while under the inuence of
alcohol or drugs.
◾Never operate the appliance with defective guards
or shields, or without safety devices, for example
deectors and/or grass catchers, in place.
◾Stay alert – watch what you are doing. Use common
sense. Do not operate the lawn mower when you are
tired.
◾T he motor/blade control handle is a safety device. Never
attempt to bypass its operation. Doing so makes the
safety device inoperative and may result in personal
injury through contact with the rotating blade. The
motor/blade control handle must operate easily in both
directions and automatically return to the disengaged
position when released.
◾Avoid dangerous environments – Don’t use lawn
mowers in damp or wet locations.
◾Don’t use in rain.
◾Always be sure of your footing. A slip and fall can
cause serious personal injury. If you feel you are losing
your footing, release the motor/blade control handle
immediately and the blade will stop rotating within
three seconds.
◾Stop the blade when crossing gravel drives, walks or
roads.
◾If the equipment should start to vibrate abnormally,
stop the motor and check immediately for the cause.
Vibration is generally a warning of trouble.
◾Inspect for damage;
◾Replace or repair any user replaceable damaged
parts;
◾Check for and tighten any loose parts.
◾Never operate the mower without the proper trailing
shield, discharge cover, grass bag, mulching insert,
side discharge chute, motor/blade control handle or
other safety protective devices in place and working.
Never operate the mower with damaged safety
devices. Failure to do so can result in personal injury.
◾If situations occur that are not covered in this manual,
use care and good judgment. Contact EGO Customer
Service for assistance.
◾Use only with the battery packs and chargers listed
below:
BATTERY PACK CHARGER
BA1120E, BA1400, BA2240E,
BA2800, BA3360, BA4200
CH5500E,
CH2100E
◾The battery pack must be removed from the appliance
before it is scrapped.
◾The battery shall be disposed of safely.
OPERATION ON A SLOPE:
Slopes are a major factor related to slip-and-fall acci-
dents, which can result in severe injury. Always be sure of
your footing on slopes. Operation on slopes requires extra
caution. If you feel uneasy on a slope, do not mow it.
Do:
◾Mow across the face of slopes; never mow up and down.
Exercise extreme caution when changing direction on
slopes.
◾Watch for holes, ruts, rocks, hidden objects, or bumps which
can cause you to slip or trip. Tall grass can hide obstacles.
Do not:
◾Do not mow near drop-offs, ditches or embankments;
you could lose your footing or balance.
◾Do not mow slopes greater than 15 degrees.
◾Do not mow on wet grass. Unstable footing could
cause slipping.
SERVICE
WARNING: Grass bag components, the discharge
cover, side discharge chute, mulching insert and trailing
shield are subject to wear and damage, which could expose
moving parts or allow objects to be thrown and could
increase the risk of injury. For safety protection, frequently
check all components and replace damaged components
immediately with identical replacement parts, listed in this
manual. Contact EGO Customer Service or your closest
EGO service center, and repairs or replacements shall be
performed by a qualied service technician!

56 VOLT LITHIUM-ION CORDLESS MOWER — LM2100E/LM2100E-SP10
EN
◾If the mower’s built-in overload protection switch
frequently trips, contact EGO Customer Service or your
closest EGO service center.
◾Do not wash the mower with a hose; avoid getting
water in the motor and electrical connections.
◾Remove the key and store the idle lawn mower indoors
when not in use. Allow the motor to cool before storing
it in any enclosure. The lawn mower should be stored
in a dry, high, or locked-up enclosure, out of reach of
children.
◾When servicing, use only identical replacement parts
listed in this manual. Use of parts that do not meet the
original equipment specications may lead to improper
performance and compromised safety.
◾Remove or disconnect the battery pack before servicing,
cleaning, or removing material from the lawn mower.
◾Follow instructions for lubricating and changing
accessories.
◾Keep handles dry, clean and free from oil and grease.
◾To reduce a re hazard, keep the motor cover free of
grass, leaves and debris build-up.
◾Check the blade and motor mounting bolts at frequent
intervals for proper tightness. Also, visually inspect the
blade for damage (e.g., bending, cracking and wear.).
Replace the blade only with the identical replacement
blade, listed in this manual.
◾Maintain your mower with care – keep the mower
blade sharp and clean for the best and safest
performance. Mower blades are sharp and can cut.
Wrap the blade or wear gloves and use extra caution
when servicing it.
◾Never remove or tamper with safety devices. Regularly
check their proper operation. Never do anything to
interfere with the intended function of a safety device
or to reduce the protection provided by a safety device.
◾Always stop the motor before making adjustments to a
wheel or a cutting-height adjustment.
◾After striking a foreign object, stop the motor, remove
the key, and thoroughly inspect the mower for any
damage. Repair the damage before operating the
mower.
◾Maintain or replace safety and instruction labels,
as necessary. Contact EGO Customer Service or
your closest EGO service center, and repairs or
replacements shall be performed by a qualied service
technician!
◾SAVE THESE INSTRUCTIONS. Refer to them frequently
and use them to instruct others who may use this tool.
If you lend this tool to someone else, also lend these
instructions to them to prevent misuse of the product
and possibly injury.
BATTERY USE AND CARE
◾To preserve natural resources, please recycle or
dispose of batteries properly. This product contains
lithium-ion batteries. Local or national laws prohibit
disposal of lithium-ion batteries in ordinary rubbish.
Consult your local waste authority for information
regarding available recycling and/or disposal options.
◾Upon removal of the battery pack for disposal or
recycling, cover the battery pack’s terminals with
heavy-duty adhesive tape. Do not attempt to destroy
or disassemble the battery pack or remove any of its
components. Lithium-Ion batteries, must be recycled
or disposed of properly. Also, never touch the terminals
with metal objects and/or body parts as a short circuit
may result. Keep away from children. Failure to comply
with these warnings could result in re and/or serious
injury.
◾UNDER ABUSIVE CONDITIONS, LIQUID MAY BE
EJECTED FROM THE BATTERY; AVOID CONTACT. IF
CONTACT ACCIDENTALLY OCCURS, FLUSH WITH
WATER. IF LIQUID CONTACTS EYES, ADDITIONALLY
SEEK MEDICAL HELP. Liquid ejected from the battery
may cause irritation or burns.
SPECIFICATIONS
Model Number LM2100E LM2100E-SP
Self Propel System No Yes
Voltage 56 V 56 V
No Load Speed 2800 /min 2800 /min
Cutting Height 28-94 mm 28-94 mm
Cutting Height Positions 6 6
Deck Size 53 cm 53 cm
Cutting Width 52 cm 52 cm
Grass Bag Volume 70 L 70 L
Mower Weight
(without battery pack or
accessories)
22.10 kg 24.55 kg
Blade Model AB2101 AB2101
Blade Brake YES YES
Guaranteed Sound Power level 64 dB(A) 64 dB(A)

56 VOLT LITHIUM-ION CORDLESS MOWER — LM2100E/LM2100E-SP 11
EN
PACKING LIST
PART NAME QUANTITY
Lawn mower 1
Grass bag 1
Grass bag frame 1
Mulching insert 1
Safety key 1
Operator’s manual 1
DESCRIPTION
KNOW YOUR MOWER (Fig. A & B & C)
1. Safety Button
2. Self-propel Trigger
3. Handle-locking Clamp
4. Rear Discharge Door
5. Rear Handle
6. Battery-pack Cover
7. LED Headlights
8. Front Handle
9. Front Wheel
10. Cutting-height Adjustment Lever
11. Mower Deck
12. Rear Wheel
13. Grass Bag
14. Quick-adjust Lever
15. Side Rail
16. Self-propel Speed-control Lever
17. Bail Switch (Switch Lever)
18. Handle
19. Mulching Insert
20. Support for Upright Storage
21. Trailing Shield
22. Switch Button for LED Headlights
23. Power Indicator
OPERATION
ASSEMBLING THE GRASS BAG
1) Slide the grass bag onto the frame (Fig. D).
2) Assemble the top clips to the frame (Fig. E), then
assemble the two side clips. Assemble the bottom
clip last.
3) The completely assembled grass bag is shown in
Fig. F.
NOTICE: Under normal usage, bag material is subject to
wear. To reduce the risk of injury, frequently inspect the
bag assembly and replace if there are any signs of wear
or deterioration. Use only grass bags manufactured for
this mower.
ADJUSTING THE FOLDABLE HANDLE
WARNING: Do not attempt to start the mower until
the handle has been locked at one of the three preset
operating positions (UPPER OPERATING POSITION, MIDDLE
OPERATING POSITION and LOWER OPERATING POSITION).
Your mower is shipped with the handle in the compact,
LOCKED STORAGE POSITION (Fig. G).
1) Press and hold the quick-adjust lever to release the
handle from the LOCKED STORAGE POSITION.
2 Lift the handle from its folded position, then release
the lever. Gently pivot the handle upward until you hear
and feel the lock pin engage in one of the following
different positions as shown in the.
◾GRASS BAG ATTACHMENT/REMOVAL POSITION
◾UPPER OPERATING POSITION
◾MIDDLE OPERATING POSITION
◾LOWER OPERATING POSITION

56 VOLT LITHIUM-ION CORDLESS MOWER — LM2100E/LM2100E-SP12
EN
ATTACHING/REMOVING THE GRASS BAG/
MULCHING INSERT
WARNING: Do not at either time make any
adjustment to the lawn mower without rst stopping the
motor, removing the safety key and waiting for the blade
to stop rotating.
NOTICE: Attach either of the attachments to the lawn
mower before mowing.
◾To Attach/Remove the Grass Bag (Fig. I)
NOTICE: Remove the pre-installed mulching insert from
the mower before attaching the grass bag to the mower.
◾To Attach/Remove the Mulching Insert (Fig. J)
ADJUSTING THE CUTTING HEIGHT (Fig. K)
WARNING: Keep your feet away from the deck when
adjusting its height. The mower can be set to 6 cutting
heights between 28mm and 94mm. Choose the proper
cutting height according to the types and conditions of
the grass.
NOTICE: When moving the tool, make sure the cutting
height is adjusted at the position of 3 or higher. Failure to
do so, could result in the damage of the blade.
ATTACHING/DETACHING THE BATTERY PACK (Fig. L)
CHARGE BEFORE FIRST USE.
WARNING: If any parts are broken or missing, do
not attempt to attach the battery pack to the mower or
operate the mower until the broken or missing parts are
replaced. Failure to do so could result in serious injury.
◾To Attach
Push the battery pack into the battery compartment
until you hear a “click”.
◾To Detach
Depress the battery-release button in the battery
compartment.
NOTICE: Make sure that the latch on the mower snaps
into place and that the battery pack is secured to the
mower before starting operation.
STARTING/STOPPING THE MOWER
WARNING: The operation of any lawn mower
can result in foreign objects being thrown into your or
others’ eyes, which can damage eyes severely. Always
wear safety glasses while operating the mower, or while
performing any adjustments or repairs on it.
WARNING: Do not use the mower in the rain.
WARNING: Ensure that other people and pets
remain at least 30m away from the mower when it is in
use.
WARNING: The blade will continue to rotate for
a few seconds after the mower is turned off. Allow the
motor/blade to stop rotating before starting it again. Do
not rapidly turn the mower off and on.
NOTICE: The motor cannot be started unless:
◾The handle is locked into one of the three operating
positions, see ADJUSTING THE FOLDABLE HANDLE.
◾The side rails are fully extended (Fig. M).
◾Both green handle-locking clamps are securely closed
(Fig. N).
CAUTION:Do not attempt to override the operation
of the safety button and bail switch.
To Start (Fig. P)
1) Attach the battery pack to the mower, insert the safety
key into the key slot and close the battery cover (Fig. L).
2) According to Fig. O, depress the safety button down.
3) With the safety button depressed, pull the bail switch
upward to meet the handle and release the safety
button.
To Stop (Fig. Q)
1) Fully release the bail switch.
2) The electric brake in the Automatic Braking
Mechanism will stop the blade rotation within 3
seconds of the bail switch release.
VARIABLE-SPEED SELF-PROPEL SYSTEM
LM2100E-SP mower is equipped with variable-speed
self-propel capability. This system is independent of the
blade On-Off switch; it is not dependent on blade rotation.
To operate the system without blade rotation, pull the
self-propel trigger to the handle.
To turn the self propel off, release the self-propel trigger.
The system has variable speed. To increase the speed,
move the self-propel speed-control lever forwards. To
decrease the speed, move the self-propel speed-control
lever backwards (Fig. R).

56 VOLT LITHIUM-ION CORDLESS MOWER — LM2100E/LM2100E-SP 13
EN
To operate with the blade rotating for cutting:
1. Start the mower.
2. While holding the bail switch against the handle
with your left hand, pull the self-propel trigger to the
handle with your right hand.
3. Hold both the bail switch and the self-propel trigger
simultaneously against the handle with your right
hand and use your left hand to adjust the self-propel
speed-control lever to choose the desired speed.
NOTICE: During cutting, at times it may be easier to mow
around an object, such as a tree or plants, with the self
propel off.
WARNING: To reduce the risk of injury, never
attempt to override the operation of the switch or self
propel system. Use the self propel for its intended purpose
only.
LED HEADLIGHTS
Press the switch button to turn on/off the LED headlights
in the front of the battery compartment.
POWER INDICATOR ON THE MOWER (Fig. S)
The mower is equipped with a power indicator to indicate
the charge status of the battery pack and the working
status of the mower. The power indicator will illuminate
when the blade is rotating or when the LED headlights are
turned on.
Power
Indicator on
Mower
Meaning Action
Shining green
Mower is working
properly; battery
has at least 15% of
its charge
N/A
Shining red Low battery
Stop the mower and
charge the battery
pack
Flashing red The battery is
nearly depleted
Stop the mower and
charge the battery
pack
Shining
orange
The mower or the
battery pack is
overheated
Remove the battery
from the mower,
move them to the
shade and cool
them at least 15
minutes
Flashing
orange
The mower is
overloaded
Slow down your
pace or raise up
the cut height to
decrease the load
MOWER OVERLOAD PROTECTION
To prevent overload conditions, do not try to remove too
much grass at one time. Slow down your cutting pace or
raise the cut height.
Your mower has built-in overload circuit protection. When
the mower is overloaded, the motor will stop and the
power indicator on the mower will ash orange. Remove
the battery pack from the mower. Check to see if grass
has collected beneath the deck and clear it if necessary,
then install the battery and restart the mower.
BATTERY HIGH TEMPERATURE PROTECTION
The battery pack will generate heat during operation. The
heat dissipates more slowly in hot weather. If the battery
temperature exceeds 70°C during operation, the protection
circuit will immediately turn off the mower to protect the
battery pack from damage. The power indicator on the
mower will shine orange and the LED on the battery will
ash orange. Release the bail handle, wait until the battery
pack cools down to approximately 67°C , then restart
the mower.
MAINTENANCE
WARNING: To avoid serious personal injury, always
remove the safety key from the mower before cleaning,
performing any maintenance or transporting the mower.
WARNING: When servicing, use only identical
replacement parts. Use of any other parts may create
a hazard or cause product damage. To ensure safety
and reliability, all repairs and replacements should be
performed by a qualied service technician.
CLEANING THE MOWER
The underside of mower deck should be cleaned after each
use, as grass clippings, leaves, dirt and other debris will
accumulate.
Remove any build-up of grass and leaves on or around
the drive shaft (only LM2100E-SP) and the motor fan (do
not use water). Wipe the mower clean with a damp cloth.
REMOVING/INSTALLING THE BLADE
WARNING: Always protect your hands by wearing
heavy gloves or wrapping the cutting edges with rags or
other materials when performing any maintenance on
the mower blade. Always remove the battery pack when
servicing or transporting the mower.

56 VOLT LITHIUM-ION CORDLESS MOWER — LM2100E/LM2100E-SP14
EN
◾To Remove the Blade
Following Fig. T.
NOTICE: If the bolt rotates with the motor shaft when
loosening the bolt, turn the fan by hand to align the
through holes in the fan with the holes in the blade, and
place another metal rod into the aligned holes (Fig. U).
◾To Install the Blade
Following the assembly sequence in Fig. V , with the
fan blade towards deck and the printed blade side
towards outside, align the through holes in the fan with
the holes in the blade (Fig. W) and then tighten the
blade as Fig. X shown.
NOTICE: The recommended torque for tightening the
blade bolt is 49-59Nm.
STORING THE MOWER
◾Remove the battery pack from the mower and store it
in a cool, dry and clean location. Do not store it next to
corrosive materials, such as fertilizer or rock salt.
◾Lubricate the mower.
◾Store the mower in a covered, enclosed space, that is
cool and dry and out of the reach of children.
◾Do not cover the lawn mower with a solid plastic sheet.
Plastic coverings trap moisture around the mower,
which causes rust and corrosion.
◾The mower can be stored upright or at. (Fig. Y).
WARNING: If the mower begins to tip over from the
upright position, mower damage or personal injury may
result. Always keep the mower stable and out of the reach
of children when it is in the upright position. If possible,
lay it at for storage.
Protecting the environment
Do not dispose of electrical appliances as
unsorted municipal waste, use separate
collection facilities.
Contact your local government for
information regarding the collection
systems available.
If electrical appliances are disposed of in
landlls or dumps, hazardous substances
can leak into the groundwater and get into
the food chain, damaging your health and
well-being.

56 VOLT LITHIUM-ION CORDLESS MOWER — LM2100E/LM2100E-SP 15
EN
TROUBLESHOOTING
WARNING: Always remove the safety key and battery pack when servicing or transporting the mower. Always
protect your hands by wearing heavy gloves or wrapping the cutting edges with rags or other materials when
performing any maintenance on the mower blade.
PROBLEM CAUSE SOLUTION
The mower fails
to start
◾The battery pack is depleted. ◾Charge the battery pack.
◾The battery pack is not mounted in place in the
battery compartment.
◾Attach the battery pack to the
mower; press it until you hear
a click.
◾The battery or mower circuitry is too hot.
(The power indicator on the mower will illuminate
in orange for 10 seconds)
◾Allow the battery pack or mower
to cool until the temperature drops
below 67°C.
◾The side rails are not extended to their maximum
length and the clamps are not locked in position.
◾Fully extend the handle and lock
both clamps.
◾The handle is not set at one of the three operating
positions.
◾Adjust the handle to one of the three
operating positions.
◾The mower deck is clogged with grass and debris. ◾Clean the mower deck and make
certain that the blade has freedom
of movement.
The mower cuts
unevenly
◾The blade is dull. ◾Sharpen or replace the blade.
◾The cutting height is not set properly. ◾Raise the deck to a higher cutting
height setting.
◾The blade is assembled incorrectly. ◾Reassemble the blade, following
the section “INSTALLING THE
BLADE” in this manual.
The mower stops
while mowing
◾The battery pack is depleted. ◾Charge the battery pack.
◾Mower is in overload condition. ◾Raise the cutting height or slow
down the mowing.
◾Mower deck is clogged with grass and debris. ◾Unclog the mower deck. Raise
the cutting height, or cut a narrow
swath.
◾The battery or mower circuitry is too hot.
(The power indicator on the mower will illuminate
orange for 10 seconds.)
◾Allow the battery pack or mower
to cool until the temperature drops
below 67°C.
◾The side rail is retracted a little by the pushing
force applying on the handle.
◾Unlock the clamps. Fully extend
the side rails and lock the clamps
again.

56 VOLT LITHIUM-ION CORDLESS MOWER — LM2100E/LM2100E-SP16
EN
PROBLEM CAUSE SOLUTION
The mower does
not mulch properly
◾Wet grass clippings are sticking to the underside of
the deck.
◾Wait until the grass dries before
mowing.
◾The mower is set to cut too much grass at once. ◾Raise the deck to a higher cutting
height setting.
There is excessive
vibration
◾The cutting blade is loose. ◾Tighten the blade bolt.
◾The cutting blade is unbalanced. ◾Balance the blade following the
instructions.
◾The cutting blade is bent. ◾Replace the blade.
◾The motor shaft is bent. ◾Contact the service center.
The handle locking
clamps cannot be
closed in position.
◾The side rails are not fully extended. ◾Fully extend the side rails, then
lock the clamps.

56 VOLT LITHIUM-ION CORDLESS MOWER — LM2100E/LM2100E-SP 17
EN
WARRANTY
EGO WARRANTY POLICY
5 year warranty on EGO outdoor power equipment and 3 year warranty on EGO Power+ System battery packs and
chargers.
Please contact EGO customer service on Australia 1300 000 EGO(1300 000 346),
New Zealand 0508 000 EGO (0508 000 346) any time you have questions or warranty claims.
LIMITED SERVICE WARRANTY
FOR FIVE YEARS from the date of original retail purchase, this EGO product is warranted against defects in material or
workmanship. Defective product will receive free repair.
FOR THREE YEARS from the date of original retail purchase, the EGO Power+ System battery pack and charger are
warranted against defects in material or workmanship. Defective product will receive free repair.
This warranty does not cover the blade, which is a part that can wear out from normal use within the warranty period.
◾This warranty applies only to the original purchaser at retail and may not be transferred.
◾The warranty period for any EGO product or part used for industrial, professional or commercial purpose is one year.
◾This warranty is void if the product has been used for rental purpose.
◾This warranty does not cover the damage resulting from modication, alteration or unauthorized repair.
◾This warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defect
resulting from misuse, abuse (including overloading of the product beyond capacity and exposure to water or rain),
accidents, neglect or lack of proper installation, and improper maintenance or storage.
◾This warranty does not cover normal deterioration of the exterior nish, including but not limited to scratches, dents,
paint chips, or to any corrosion or discoloring by heat, abrasive and chemical cleaners.
HOW TO OBTAIN SERVICE
For warranty service, please contact EGO customer service on Australia 1300 000 EGO(1300 000 346),
New Zealand 0508 000 EGO (0508 000 346). When requesting warranty service, you must present the original dated
sales receipt. An authorized service center will be selected to repair the product according to the stated warranty terms.
ADDITIONAL LIMITATIONS
Chervon Australia Pty Ltd ABN 36 165 077 501(“Chervon”) warrants to the original domestic purchaser that this
product will be free from defects in materials and workmanship for 5 years from date of purchase, and any battery or
charger will be free from defects in materials and workmanship for 3 years from date of purchase. To make a claim,
return the faulty item together with proof of purchase directly to your closest service agent or to the place of purchase.
Any handling and transportation costs (and other expenses incurred in claiming this warranty) are not covered by this
warranty and will not be borne by Chervon. The replacement product or part or repaired product will be made available
for your collection at an address nominated by Chervon. Where a valid warranty claim is made, Chervon will replace the
defective product or repair the fault. Where the product is repaired, Chervon may use refurbished parts. This warranty
does not cover normal wear and tear, misuse or abuse. This warranty may also be further limited or voided as speci-
cally detailed in the product Manual. Chervon has no other liability under this warranty.The benets to you given by this
warranty are in addition to other rights and remedies imposed by State and Federal legislation that cannot be excluded.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure. Chervon Australia Pty Ltd, Unit 13, 1488 Ferntree Gully Rd, Knoxeld, VIC. 3180.
Phone Number: Australia 1300 000 EGO(1300 000 346), New Zealand 0508 000 EGO (0508 000 346).
Email address: [email protected].
